IK-301 - Kettle Imarflex - Free user manual and instructions

Product Type	Electric Kettle
Brand	Imarflex
Model	IK-301
Capacity	3.0 L
Voltage	230 V a.c.
Power	Approx. 1500 W
Boiling Time	Fast boiling (approx. 5-7 min for full kettle)
Auto Shut-Off	Yes, when water boils
Boil Dry Protection	Yes
Indicator Light	Yes, lights when power is on
Power Base	Included, with cord routing
Water Level Indicator	Yes, with MAX mark
Lid Type	Push-button opening
On/Off Switch	Manual push switch
Filter	Washable, inside spout
Cord Length	Approx. 0.75 m
Dimensions (approx.)	Height: 25 cm, Width: 20 cm, Depth: 20 cm
Weight (approx.)	1.0 kg
Cleaning Methods	Soap and water; vinegar solution
Safety Features	Auto shut-off, boil dry protection, cool-touch handle

Frequently Asked Questions - IK-301 Imarflex

How do I use the kettle for the first time?

Before first use, boil a full kettle of water twice and then discard the water to clean the interior.

What is the maximum water level?

Do not exceed the MAX water level mark indicated on the kettle. Maximum capacity is 3.0 L.

Why does the kettle not shut off automatically?

Ensure the lid is firmly closed and the ON/OFF switch is not obstructed. If constrained, the auto shut-off may not work.

Can I boil other liquids besides water?

No. This kettle is intended for boiling water only. Do not heat other liquids or cook food.

How do I clean the kettle scale?

Use a vinegar solution (1 part vinegar to 1 part water). Fill to MAX, boil, let sit overnight, then rinse thoroughly. Repeat if needed.

What should I do if the cord is damaged?

If the cord is damaged, it must be replaced with the same type and size by an authorized service center.

How do I clean the filter?

Wash the filter with soap and water. Rinse thoroughly before reuse.

Can I immerse the kettle or base in water?

No. Never immerse the unit or power base in water to avoid electric shock.

Why does the kettle not re-boil immediately?

The kettle requires a 25-second cool-down period before it can be switched on again. This prevents damage to the auto shut-off mechanism.

What safety precautions should I take when using the kettle?

Always place on a stable, heat-resistant surface. Keep lid closed during boiling. Do not touch hot surfaces. Use only with supplied base.

USER MANUAL IK-301 Imarflex

Black-and-white photo of a slice of sandwich with mint leaf topping and a steaming cup of coffee on a saucer (no text or symbols visible)

MAX 3.0L 2.5L 2.0L 1.5L MIN 1.0L

imarflex

- Boil Dry Protection • Fast Boiling

When using electrical appliances, basic safety precautions should always be followed, including the following.

1. Read all instructions carefully.

2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.

5. Do not place the unit near a gas stove, an electric burner or in a heated oven.

6. Place the unit on a stable surface; keep it away from the edge of the counter to avoid accidents.

7. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliances by a person responsible for their safety.

8. Children should be supervised to ensure that they do not play with the appliance.

9. Extreme caution must be exercised when using an appliance containing hot water.

10. Do not allow the cord to touch the hot surface of the unit.

11. For protection against electric shock, do not immerse the unit including the power base in water or any other liquid.

12. Always ensure that the lid is closed and do not lift it while water is boiling. Scalding may occur if the lid is removed during the boiling cycle. Do not touch the hot surfaces of the kettle.

13. Remove the kettle from the power base before filling or pouring. Do not attempt to remove the kettle from the power base until it is switched off, manually or automatically. Use the kettle only with the supplied base. Do not use the base for other purpose.

14. Allow the unit to cool down before cleaning.

15. Not intended for outdoor use.

16. This kettle is intended for boiling water only. Do not heat any other liquid or attempt to cook any food in this appliance.

17. Never place the kettle near hot surfaces.

18. No parts are dishwasher safe.

19. Do not exceed into the "Max" water level indicator when filling, if the kettle is overfilled, boiling water may come out.

20. Do not hold the switch on as this may damage the auto shut-off mechanism.

21. Carry or move the electric kettle only by its handle.

22. Avoid water spillage into the socket, connector, cord and alike.

23. Kettle body may get very hot, be careful when handling.

24. Use on a hard, flat level surface only, to avoid interruption of air flow underneath the appliance.

25. For household use only, not intended for any business purposes.

26. Do not use this unit other than its intended use.

27. Save this instruction manual for future reference

28. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

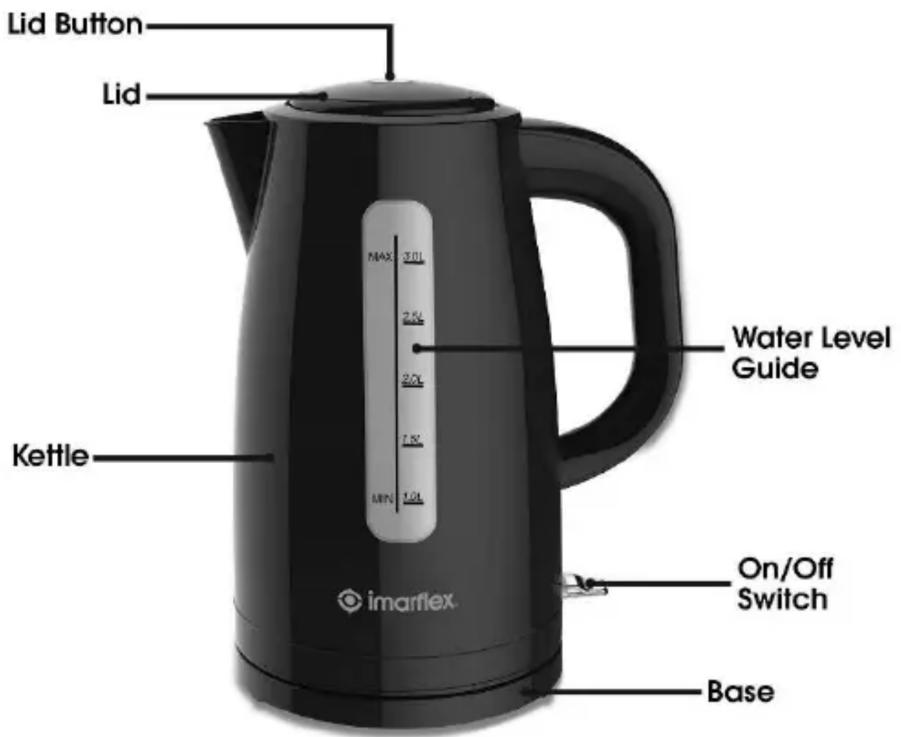

DESCRIPTION OF PARTS

HOW TO USE:

If you are using the kettle for the first time, it is recommended that you clean your kettle before use, by boiling a full kettle of water twice and then discarding the water.

1. Position the power base on a flat, heat resistant surface, as close as possible to a power outlet.
2. Follow cord routing in power base according to exit patterns. Proper cord routing will result in the power base flat when kettle is placed in base. Do not operate kettle if power base is not flat. If power base is not flat, remove kettle from power base and repeat cord placement instructions.
3. To fill with water, press the lid button to open the lid. Fill the electric kettle with water below the "MAX" water level mark.

NOTE: Do not exceed the “MAX” water level mark indicated on the electric kettle and make sure to close the lid. Otherwise, the kettle will not shut OFF automatically.

1. Place the kettle into the power base. Plug the electric cord into an electric outlet. Turn the switch ON by pushing down on the on/off switch. The indicator light will light up to indicate that the unit is on. The water will heat and the electric kettle will switch off automatically when the water boils.

NOTE: Ensure the ON/OFF switch is clear of obstructions and the lid is firmly closed. The electric kettle will not turn off automatically if the ON/OFF switch is constrained.

1. Carefully lift the kettle from the power base and pour the hot water.
2. The kettle will not re-boil until the on/off switch is switched ON after 25 seconds to allow the kettle to cool down, then it can be switched ON again.

Note: Maximum capacity of kettle is 3.0L.

CLEANING AND MAINTENANCE:

1. Unplug the unit from the convenience outlet before cleaning.
2. The body of the kettle may be cleaned using a damp cloth. Do not use abrasive materials to avoid scratches.
3. Wash the filter with soap and water.
4. Refer to the instruction below in cleaning the unit using the following:

- Soap and Water

a. Combine soap and water. Pour into the Kettle up to the maximum level for 1 hour.
b. Discard the solution.
c. Fill the kettle with clean water up to "max" level and boil.
d. Repeat several times until the odor of the soap has been removed.
e. Rinse thoroughly.

- Vinegar

a. Combine one part of vinegar and water. Pour into kettle up to the "max" level Switch ON and wait for the unit to turn OFF.
b. Leave the solution inside the kettle for overnight.
c. Discard the solution. Fill the kettle with clean water up to "max" level and boil again.
d. Repeat several times until the odor of vinegar has been removed.
e. Rinse the kettle thoroughly.
