IK-315S - Kettle Imarflex - Free user manual and instructions

Type	Electric Kettle
Brand	Imarflex
Model	IK-315S
Capacity	1.5 L
Power	1500 W
Voltage	220-240 V, 50/60 Hz
Material	Plastic body, stainless steel heating element
Dimensions	22 x 18 x 24 cm
Weight	0.8 kg
Boil-dry protection	Yes, automatic shut-off
Auto shut-off	Yes, when water boils
Keep warm function	No
Temperature control	No (single boil mode)
Lid type	Flip-top lid
Spout	Precise pour spout
Filter	Removable mesh filter
Cord storage	Yes, base with cord wrap
Indicator light	Power on/off indicator
Cleaning	Descaling recommended periodically with vinegar or citric acid
Safety certifications	CE, RoHS
Spare parts	Lid, filter, base (available from Imarflex service centers)

Frequently Asked Questions - IK-315S Imarflex

How do I descale my Imarflex IK-315S kettle?

To descale, fill the kettle with a mixture of equal parts water and white vinegar, bring to a boil, let it sit for 15 minutes, then rinse thoroughly with clean water. Alternatively, use a commercial descaling product following the instructions.

What is the capacity of the IK-315S?

The Imarflex IK-315S has a capacity of 1.5 liters, suitable for making tea, coffee, or hot beverages for multiple servings.

Does the kettle automatically shut off?

Yes, the kettle features auto shut-off that turns off the power once the water reaches a boiling point. It also has boil-dry protection to prevent damage if operated without water.

How do I clean the filter?

The removable mesh filter can be cleaned under running water with a soft brush. For deeper cleaning, soak it in a mild detergent solution, then rinse thoroughly before reinserting.

What is the power rating and voltage?

The IK-315S operates at 1500W and requires a power supply of 220-240V, 50/60 Hz. Ensure the outlet matches these specifications.

Can I use the kettle to heat other liquids?

It is recommended to use the kettle only for heating water. Other liquids like milk or soup may cause damage or burns due to different boiling properties.

How long does it take to boil a full kettle?

Typically, boiling a full 1.5 L of water takes about 4-6 minutes, depending on starting water temperature.

Is the kettle made of stainless steel?

The body is made of plastic for lightweight handling, while the heating element is stainless steel. The kettle is BPA-free.

What should I do if the kettle turns off before boiling?

This may be due to scale buildup. Descale the kettle as described. If the issue persists, check the power connection or contact Imarflex customer service for repair.

Are spare parts available for the IK-315S?

Yes, spare parts such as the lid, filter, and power base are available through authorized Imarflex service centers. Contact local support for ordering.

USER MANUAL IK-315S Imarflex

When using electrical appliances, basic safety precautions should always be followed, including the following.

1. Read all instructions carefully.

2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use two-way socket with other appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.

5. Do not place the unit near a gas stove, an electric burner or in a heated oven.

6. Place the unit on a stable surface; keep it away from the edge of the counter to avoid accidents.

7. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliances by a person responsible for their safety.

8. Children should be supervised to ensure that they do not play with the appliance.

9. Extreme caution must be exercised when using an appliance containing hot water.

10. Do not allow the cord to touch the hot surface of the unit.

11. For protection against electric shock, do not immerse the unit including the power base in water or any other liquid.

12. Always ensure that the lid is closed and do not lift it while water is boiling. Scalding may occur if the lid is removed during the boiling cycle. Do not touch the hot surfaces of the kettle.

13. Remove the kettle from the power base before filling or pouring. Do not attempt to remove the kettle from the power base until it is switched off, manually or automatically. Use the kettle only with the supplied base. Do not use the base for other purpose.

14. Allow the unit to cool down before cleaning.

15. Not intended for outdoor use.

16. This kettle is intended for boiling water only. Do not heat any other liquid or attempt to cook any food in this appliance.

17. Never place the kettle near hot surfaces.

18. No parts are dishwasher safe.

19. Do not exceed into the "Max" water level indicator when filling, if the kettle is overfilled, boiling water may come out.

20. Do not hold the switch on as this may damage the auto shut-off mechanism.

21. Carry or move the electric kettle only by its handle.

22. Avoid water spillage into the socket, connector, cord and alike.

23. Kettle body may get very hot, be careful when handling

24. Use on a hard, flat level surface only, to avoid interruption of air flow underneath the appliance.

25. For household use only, not intended for any business purposes.

26. Do not use this unit other than its intended use.

27. Save this instruction manual for future reference.

28. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

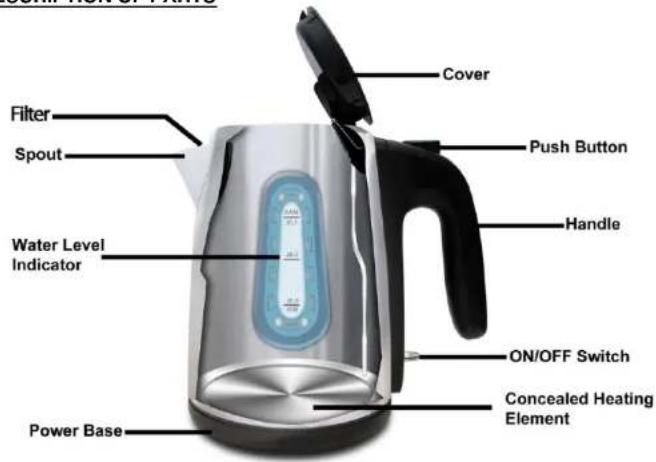

DESCRIPTION OF PARTS

HOW TO USE:

If you are using the kettle for the first time, it is recommended that you clean your kettle before use, by boiling a full kettle of water twice and then discarding the water.

1. Position the power base on a flat, heat resistant surface, as close as possible to a power outlet.

2. Follow cord routing in power base according to exit patterns. Proper cord routing will result in the power base flat when kettle is placed in base. Do not operate kettle if power base is not flat. If power base is not flat, remove kettle from power base and repeat cord placement instructions.

3. To fill with water, press the push button to open the lid. Fill the electric kettle with water below the "MAX" water level mark.

NOTE: Do not exceed the "MAX" water level mark indicated on the electric kettle and make sure to close the lid. Otherwise, the kettle will not shut OFF automatically.

1. Place the kettle into the power base. Plug the electric cord into an electric outlet. Turn the switch ON by pushing down on the on/off switch. The indicator light will light up to indicate that the unit is on. The water will heat and the electric kettle will switch off automatically when the water boils.

NOTE: Ensure the ON/OFF switch is clear of obstructions and the lid is firmly closed. The electric kettle will not turn off automatically if the ON/OFF switch is constrained.

1. Carefully lift the kettle from the power base and pour the hot water.

2. The kettle will not re-boil until the on/off switch is switched ON after 25 seconds to allow the kettle to cool down, then it can be switched ON again.

Note: Maximum capacity of kettle is 1.5L.

CLEANING AND MAINTENANCE:

1. Unplug the unit from the convenience outlet before cleaning.
2. The body of the kettle may be cleaned using a damp cloth. Do not use abrasive materials to avoid scratches.
3. Wash the filter with soap and water.
4. Refer to the instruction below in cleaning the unit using the following:

- Soap and Water

a. Combine soap and water. Pour into the Kettle up to the maximum level for 1 hour.
b. Discard the solution.
c. Fill the kettle with clean water up to "max" level and boil.
d. Repeat several times until the odor of the soap has been removed.
e. Rinse thoroughly.

• Vinegar

a. Combine one part of vinegar and water. Pour into kettle up to the "max" level Switch ON and wait for the unit to turn OFF.
b. Leave the solution inside the kettle for overnight.
c. Discard the solution. Fill the kettle with clean water up to "max" level and boil again.
d. Repeat several times until the odor of vinegar has been removed.
e. Rinse the kettle thoroughly.

REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address [e-mail]

Distributed By: Sabretech Technology Inc.

103-113 Sen Gil Puyat Ave. Pasay

Made in China
