IDF-4000S - Deep fryer Imarflex - Free user manual and instructions

Product Type	Deep Fryer
Brand	Imarflex
Model	IDF-4000S
Rated Voltage	230 V a.c. 60 Hz
Power Consumption	2000 Watts
Oil Capacity	4 Liters
Oil Level Indicators	MIN and MAX marks inside oil pan
Temperature Control	Variable temperature dial
Heating Element	Immersion heater with safety button
Safety Features	Overload protection (auto shut-off), safety button on heater, cool touch handle
Frying Basket	Detachable with foldable handle
Lid	Stainless steel with glass window
Smoke Filter	Built-in
Indicator Lights	Power and heat lights
Material	Stainless steel oil pan and lid, plastic base
Cleaning	Oil pan and basket washable; heater assembly wipe only, do not immerse
Usage	Household only
Country of Origin	Made in China
Distributor	Xelframe Enterprises Inc., Pasay, Philippines

Frequently Asked Questions - IDF-4000S Imarflex

What type of oil can I use in the Imarflex IDF-4000S?

You can use any standard cooking oil suitable for deep frying, such as vegetable, canola, or peanut oil. Do not mix new oil with used oil.

How much oil should I put in the deep fryer?

Fill oil between the MIN and MAX level indicators inside the oil pan. The capacity is 4 liters, but do not overfill.

How do I clean the deep fryer?

Always unplug and let it cool. For the oil pan, soak with water and liquid detergent for 1 hour, then scrub with a sponge. Wash the basket and lid with soap and water. Wipe the heater assembly and base with a damp cloth. Never immerse the heater in water.

What does the overload protection do?

If the deep fryer overheats, it will automatically shut off. To reset, press the small dark-brown button located inside the cord storage compartment using a pointed object like a ball pen.

Can I cook frozen French fries directly?

Yes, but for best results, use a maximum of 200 grams of fries per liter of oil. For fresh potatoes, dry them first to avoid water mixing with oil. Fry in two stages: pre-fry at 180°C for 5-10 minutes, then final fry at 200°C for 2-4 minutes.

What foods can I cook and at what temperatures?

Refer to the Frying Table Guide in the manual: e.g., chips at 180-200°C, fish at 180°C, chicken at 200°C, doughnuts at 200°C. Temperatures may vary based on quantity and type.

Can I use the deep fryer without oil?

No. Do not switch on the deep fryer without oil as it can damage the unit. Always ensure oil is above the MIN level.

How do I store the cord?

The deep fryer has a cord storage compartment at the base. Wind the cord neatly and store it inside after use.

Is the deep fryer safe to leave unattended?

No. Never leave the unit unattended while cooking. Always supervise children and keep flammable materials away.

Where can I get warranty service or replacement parts?

Fill out the warranty card and send it with the receipt to [e-mail]. For repairs, bring the unit to the nearest Imarflex Authorized Service Center.

USER MANUAL IDF-4000S Imarflex

Exterior view of a stainless steel-colored cooking grater with handle and control panel (no text or symbols visible)

imarflex®

In Every Home.

SPECIFICATION

MODEL NO. : IDF-4000S

RATED VOLTAGE : 230Va.c.60Hz

POWER CONSUMPTION : 2000 Watts

CAPACITY : 4L

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.
4. Place the deep fryer on a dry, stable surface. Since the deep fryer becomes hot during use, make sure that it is not too close to other items.
5. Do not place on or near gas stove, electric burner or in a heated oven.
6. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet where the unit is plugged.
7. Do not fill the unit with oil lower than "MIN" level indicator and over the "MAX" level indicator.
8. Do not allow cord to touch hot surface of the unit.
9. While the unit is in use, do not touch metal surface.
10. Do not move the unit while cooking is in progress.
11. Be sure not to damage the heating element. (Do not bend or dent).
12. The heater is equipped with a safety button, which ensures that the heating element can only function when the heater is correctly placed on the Deep Fryer.
13. This Deep Fryer is protected with an Overload Protection, which will automatically shut-off once it overheats. This device is a small dark-brown button found through a hole on the upper right of the Cord Storage. It can be re-activated again by pushing the button with a pointed object (e.g., ball pen).
14. Children should be supervised to ensure that they do not play with the appliance.
15. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
16. This appliance is not intended to be operated by means of an external timer or a separate remote-control system.
17. CAUTION: Never leave the unit unattended while cooking.
18. To protect against electric shock, do not immerse the Heater in water.
19. Keep the unit in a dry and cool place.
20. For household use only; not intended for any business purposes.
21. Save this instruction manual for future reference.

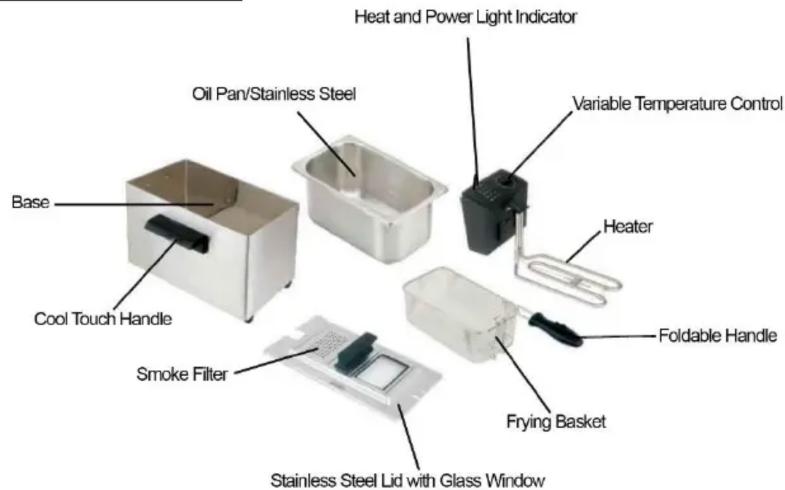

DESCRIPTION OF PARTS

HOW TO USE

1. Put the Oil Pan inside the Base. (See pic.1)
2. Slide down the Heater Assembly on the Base (see pic.2) NOTE: Make sure that it is perfectly fitted on the slot.
3. Pour oil inside the Oil Pan (Do not mix new oil with used oil).

4. Plug the unit into the convenience outlet (the power light indicator will turn on).

5. Adjust the Temperature Control according to your cooking requirements. Choose the desired temperature. See Frying Table Guide for reference.
   NOTE: Do not switch ON the Deep Fryer without oil, as this could damage the unit.

6. Assemble the Frying basket. Press the end of the Handle and hook into the Frying Basket slot and push the handle unto the guide until it locks. (See pic.3 & 4)
7. When the oil reaches the set temperature, the Power Light Indicator will turn off.
8. Put the food in the Frying Basket; slowly dip in the Deep Fryer and cover. (See pic.5)

NOTE: Use the handle to dip the Frying Basket in the Deep Fryer. Once the food is cooked, hook up the Frying Basket on the rim of the fryer and allow the food to drain excess oil. (See pic.6)

1. Unplug the unit after every use.

Pic 1 Pic.2 Plc.3

Metallic rectangular container with a handle, placed on a wooden surface (no visible text or symbols)

Plc.3

Close-up of hands using a tool to wire or wire meshing on a metal grid surface (no text or symbols visible)

Close-up of a mesh metal grate with visible cracks and texture (no text or symbols)

Pic.4

Interior view of a stainless steel voting machine with hand placing a ballot (no visible text or symbols)

Pic.5

Interior view of a stainless steel container with a lid, placed on a tiled floor (no visible text or symbols)

Pic.6

FRYING TIPS

• Use a maximum of 200 grams of French fries per liter of oil.
• When using fries made from fresh potatoes: dry the fries after washing so that no water will mix into the oil.
• Deep-fry the fries in 2 stages. First stage (pre-frying): 5 to 10 minutes at 180 °C. Second stage (final frying) 2 to 4 minutes at 200°C. Drain well.

FRYING TABLE GUIDE

TYPE OF FOOD	FRYING TEMPERATURE (°C)
Pre-Fry Chips	180
Final Fry Chips	200
Fondue Parmesan	180
Cheese Croquettes	180
Meat/Fish/Potato Croquettes	200
Fish	180
Fish Sticks	190
Cheese Fritters	190
Doughnuts	200
Meat Croquettes	200
Chicken	200
Scampi Fritters	190

NOTE: COOKING TEMPERATURE MAY VARY ON TYPE AND THE AMOUNT OF FOOD TO BE COOKED.

CLEANING AND MAINTENANCE

1. Always unplug and allow the Deep Fryer to cool before cleaning.
2. Leave a combination of water and liquid detergent inside the Oil Pan for 1 hour, scrub stubborn dirt with sponge. Do not use abrasive materials to avoid scratches.

3. Wash the Frying Basket and lid with soap and water. Wipe it dry.

4. Do not immerse the Heater Assembly in water. Wipe it with cloth.

5. Wipe the Base with damp cloth.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Xelframe Enterprises Inc.

Unit 711 IPI Buendia Tower Condo 501, Gil Puyat Ave., Pasay

Made in China
