USER MANUAL IFM-580M Imarflex

Line drawing of a modern incarflex air conditioner unit with fan blades and control buttons (no text or symbols on the device itself)

IFM-580M

SPECIFICATION

MODEL NO. : IFM-580M

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 48 Watts

BOX DIMENSION : 440*240*850mm

IMPORTANT SAFEGUARDS:

When using electrical appliances, basic safety precautions should always be followed, including

the following:

1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use two-way socket with another appliance.
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
5. Do not place the unit near gas stove, electric stove or in a heated oven.
6. Put the unit on flat stable surface; keep it away from the edge of counter to avoid accident.
7. Children should be supervised to ensure that they do not play with the appliance.
8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
9. To protect against electric shock, do not immerse the base in water.
10. Do not attempt to empty, fill and tilt the humidifier while it is working.
11. Do not use the unit for outdoor use.
12. Do not use this unit other than its intended use.
13. For household use only; not intended for any business purposes.
14. Save this instruction for future reference.

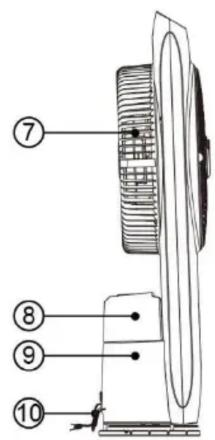

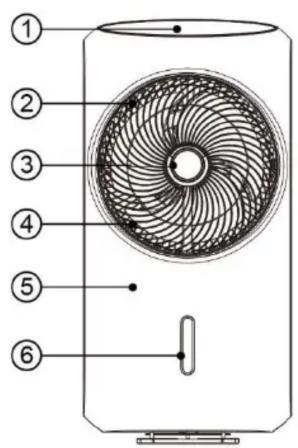

DESCRIPTION OF PARTS:

NO.	DESCRIPTION	NO.	DESCRIPTION
1	Control Panel	6	Decorative Front Body Ring
2	Front Guard	7	Rear Front Guard
3	Decorative Front Guard Ring	8	Water Tank
4	Blade	9	Tank Base
5	Body	10	Power Cord

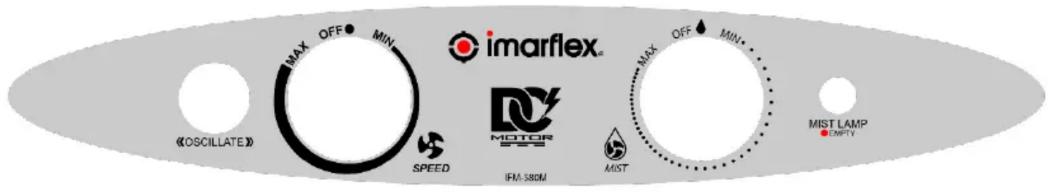

CONTROL PANEL:

HOW TO USE:

1. Lift the Water Tank and turn upside down.
2. Open the Water Tank Cover.
3. Fill the Water Tank with water up to the maximum capacity.
4. Lock the Cover back on.
5. Turn the Water Tank upside down and return to the base.
6. Plug the unit into the convenience outlet.
7. Turn on the unit and choose your desire function.

Note: ‘Mist Lamp’ will turn into green when the mist fan is ON and red if the water tank is empty.

*switch "OSCILLATE" if you desired to use the oscillate function

1. Turn OFF after use.

CLEANING AND MAINTENANCE:

1. Always disconnect the unit from the convenience outlet before disassembling the unit.
2. To disassemble the unit, simply reverse the assembly instruction.
3. Wash the Front Fan Guard, Fan Cap, Fan Blade and Rear Fan Guard with soap and water.
4. Use a moistened cloth (NOT WET) to remove the dirt from the plastic and metal surfaces of Electric Fan.
5. Allow the detachable parts to dry off before assembling the unit.

How to Clean the Water Tank

1. 1. Fill the water tank with water.
2. 1. Put a mild detergent and then shake it well.
3. 1. While shaking, hold it with both hands and do not hold it with the handle.
4. 1. After shaking, remove the water and rinse it thoroughly.

NOTE: The water tank should be cleaned once a week.

REMINDER: Please do not forget to fill up and send the warranty card.
