Product Type	Mobile Device Charging Cart
Model	E32c+
Brand	AVer
Capacity	32 devices (two shelves, 16 bays per shelf)
Supported Devices	Mobile devices up to 14"
Charging Type	Smart Cycling Charge
Power Input	AC 220~240V, 50/60Hz, 8A
Power Strip Rating	220~240V, 50/60Hz, 8A
Security	Front and rear doors with 2-point steel locking mechanism; includes 4 door keys
Casters	Four 5" casters: two lockable, two directional lock
Door Hinge	180° opening
Work Platform Loading	20 kg (44.09 lbs)
Shelf Loading (each)	43.54 kg (95.98 lbs)
Adapter Shelf Loading (each)	3 kg (6.6 lbs)
Cart Dimensions (W x D x H)	639.6 x 632 x 1039 mm (25.18" x 24.88" x 40.91")
Slot Dimensions (Upper)	26 x 366.5 x 300.8 mm (1.02" x 14.43" x 11.84")
Slot Dimensions (Lower)	26 x 366.5 x 341.5 mm (1.02" x 14.43" x 13.44")
Weight (without devices)	52 kg (114.64 lbs)
Working Temperature	0°C to 30°C
Storage Temperature	-40°C to 60°C
Working RH	10% to 90%
Storage RH	5% to 95%
Warranty (Cart and Tray)	10 years
Warranty (Electrical Components)	5 years

Frequently Asked Questions - E32c+ AVer

What should I do if my devices are plugged in but not charging?

First, ensure power cords are undamaged and firmly inserted into a working socket with stable current. Also verify that the power plug and current consumption meet your country's standards.

Are damaged power cords or components covered under warranty?

Yes. The cart and tray have a 10-year warranty, and electrical components have a 5-year warranty. Contact AVer support for further assistance.

How can I check if my devices exceed the cart's current capacity?

Have a qualified electrician measure the current consumption of your devices while installed and with batteries discharged. Ensure the total does not exceed the power strip rating of 8A at 220-240V.

Why does the circuit breaker trip when I plug in the cart?

Other equipment on the same circuit may cause an overload. Have a qualified electrician verify adequate power availability and consider using a dedicated circuit for the cart.

Can I place a TV or monitor on top of the cart?

No. The manual explicitly states no TV or monitor should be used on top of the cart. The work platform is rated for a maximum load of 20 kg (44.09 lbs) for other items only.

What are the safety precautions for moving the cart?

Only adults should move the cart. Before moving, disconnect the power cord from the wall outlet and secure the cord. Never allow anyone to sit, stand, or climb on the cart. Also avoid lifting the cart.

How do I install the power adapter?

Open the rear door, place the adapter in its compartment, route the DC cable to the front through the provided space, plug the AC power cord into the cart's socket, and secure cables with a cable tie.

How should I manage cables inside the cart?

Open the front door, route each device cable through the cable hooks, place the device in its bay, then plug the DC connector. Use cable ties (optional) for better organization.

What is the maximum weight per shelf?

Each shelf has a maximum loading of 43.54 kg (95.98 lbs). The work platform supports up to 20 kg (44.09 lbs), and each adapter shelf holds up to 3 kg (6.6 lbs).

Where can I get service or warranty support?

For customers outside North America, visit www.aver.com. For customers in Europe, visit presentation.aver.com/warranty for comprehensive RMA, warranty, and service information.

USER MANUAL E32c+ AVer

Line drawing of a portable industrial machine with wheels and control panel (no text or symbols)

E32c

User Manual

WARNING

ALWAYS FOLLOW SAFETY PRECAUTIONS

NEVER climb, sit or stand on the cart.

Symbolic illustration of a person pushing a cart with a large 'X' on the ground (no text or symbols present)

ONLY ADULTS should move the cart.

White icon of a person pushing a cart on a black background (no text or symbols)

To reduce risk of electric shock ONLY use indoors.

Symbolic illustration of a person standing next to a vehicle with a cross crossed out, no text or symbols present.

CAUTION

This cart is intended for use only with loading as indicated. Use with loads greater than indicated may result in instability causing possible injury.

$$ \leq 4 4. 0 9 \mathrm{lbs} (2 0 \mathrm{kg}) $$

$$ \leq 9 5. 9 8 \mathrm{lbs} (4 3. 5 4 \mathrm{kg}) $$

$$ \leq 9 5. 9 8 \mathrm{lbs} (4 3. 5 4 \mathrm{kg}) $$

Simple line drawing of a container with two hanging bells and a top handle (no text or symbols)

■ Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
■ Relocating audio and/or video equipment to furniture not specifically designed to support audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or over turning onto a child.

CAUTION!

■ DO NOT allow anyone to sit, stand or climb on the cart.
■ DO NOT lift the cart.
■ DO NOT block the ventilation holes used for air circulation.
■ DO NOT overload objects on the cart shelves. (Work platform maximum loading = 20kg / 44.09lbs; each shelf maximum loading = 43.54kg / 95.98lbs).
■ DO NOT put any devices that the weight is over the maximum loading weight on top of the cart.
■ When moving the cart, DO NOT put any devices (ex: TV, Monitor, Document camera...etc.) on top of the cart.
■ No TV/monitor is to be used on top of the cart.
■ Before moving the cart, disconnect the power from the wall outlet.
■ While moving the cart, make sure the power cord is secured and tightly wrapped.

European Community Compliance Statement (Class A)

This product is herewith confirmed to comply with the requirements set out in the Council Directives on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility Directive

2014/30/EU.

Warning: This is a class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

DISCLAIMER

No warranty or representation, either expressed or implied, is made with respect to the contents of this documentation, its quality, performance, merchantability, or fitness for a particular purpose. Information presented in this documentation has been carefully checked for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this documentation is subject to change without notice.

In no event will AVer Information Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.

TRADEMARKS

“AVer” is a trademark owned by AVer Information Inc. Other trademarks used herein for description purpose only belong to each of their companies.

COPYRIGHT

©2019 AVer Information Inc. All rights reserved.

All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

The mark of Crossed-out wheeled bin indicates that this product must not be disposed of with your other household waste. Instead, you need to dispose of the waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. For more information about where to drop off your waste equipment for recycling, please contact your household waste disposal service or the shop where you purchased the product.

Contents

Package Contents .... 1

Dimensions....1

Diagram 2

Door Lock 3

Installation....4

Adapter Installation....4

Cable Management 5

Charging Cart 6

Troubleshooting 7

Specifications....8

Service and Warranty 9

Package Contents

The following items are included in the package. Please check if each item is available before using.

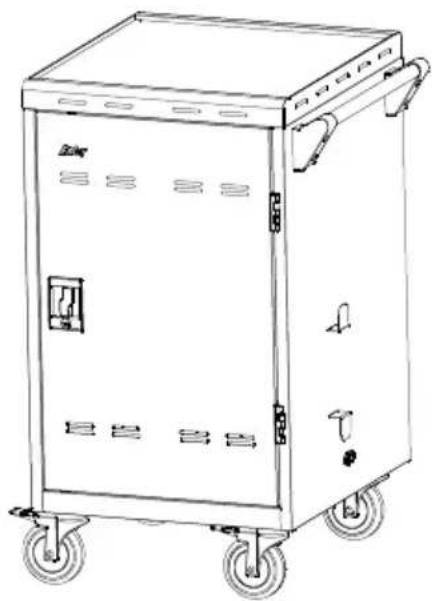

Line drawing of a portable industrial control cabinet with wheels and ventilation slots (no text or symbols)

E32c Cart

User Manual

Door key x4

Coiled black cable with two connectors (no text or symbols visible)

Power Cord*

*The power cord type may vary as they are country dependent.

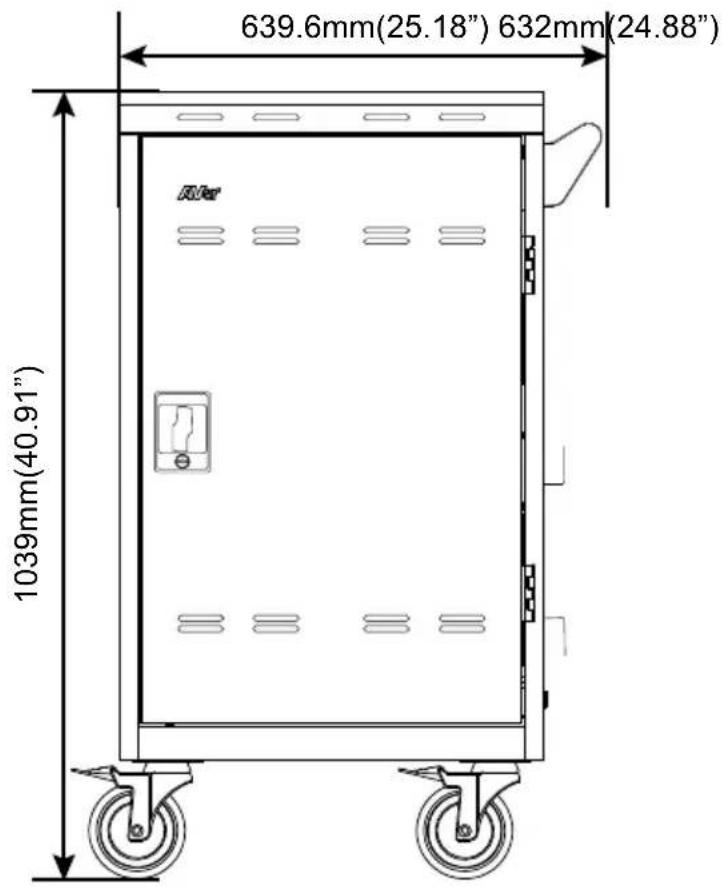

Dimensions

Technical line drawing of a rectangular mechanical device with four wheels and a central handle (no text or symbols)

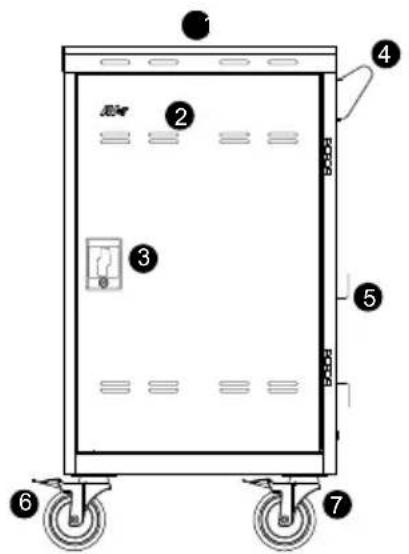

Diagram

Front view of a rectangular electronic device with four wheels and mounting brackets (no text or symbols visible)

Front Side Back

1. Work platform
2. Ventilation holes
3. Door lock
4. Handle
5. Power cable wrap brackets
6. 5" directional lock caster(Keep the cart rolling in the fixed direction)

7. 5" locking caster

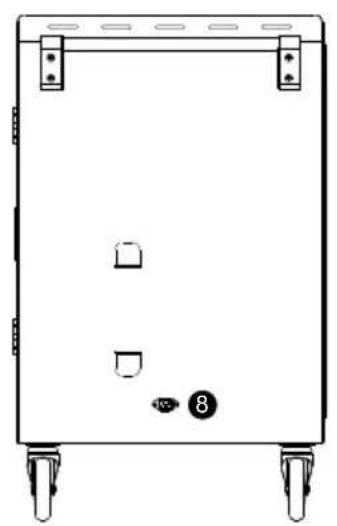

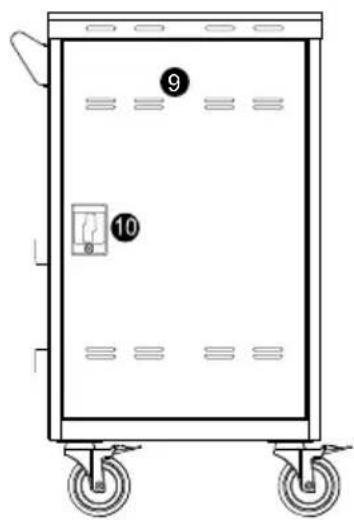

8. Power inlet 9. Ventilation holes

9. Door lock

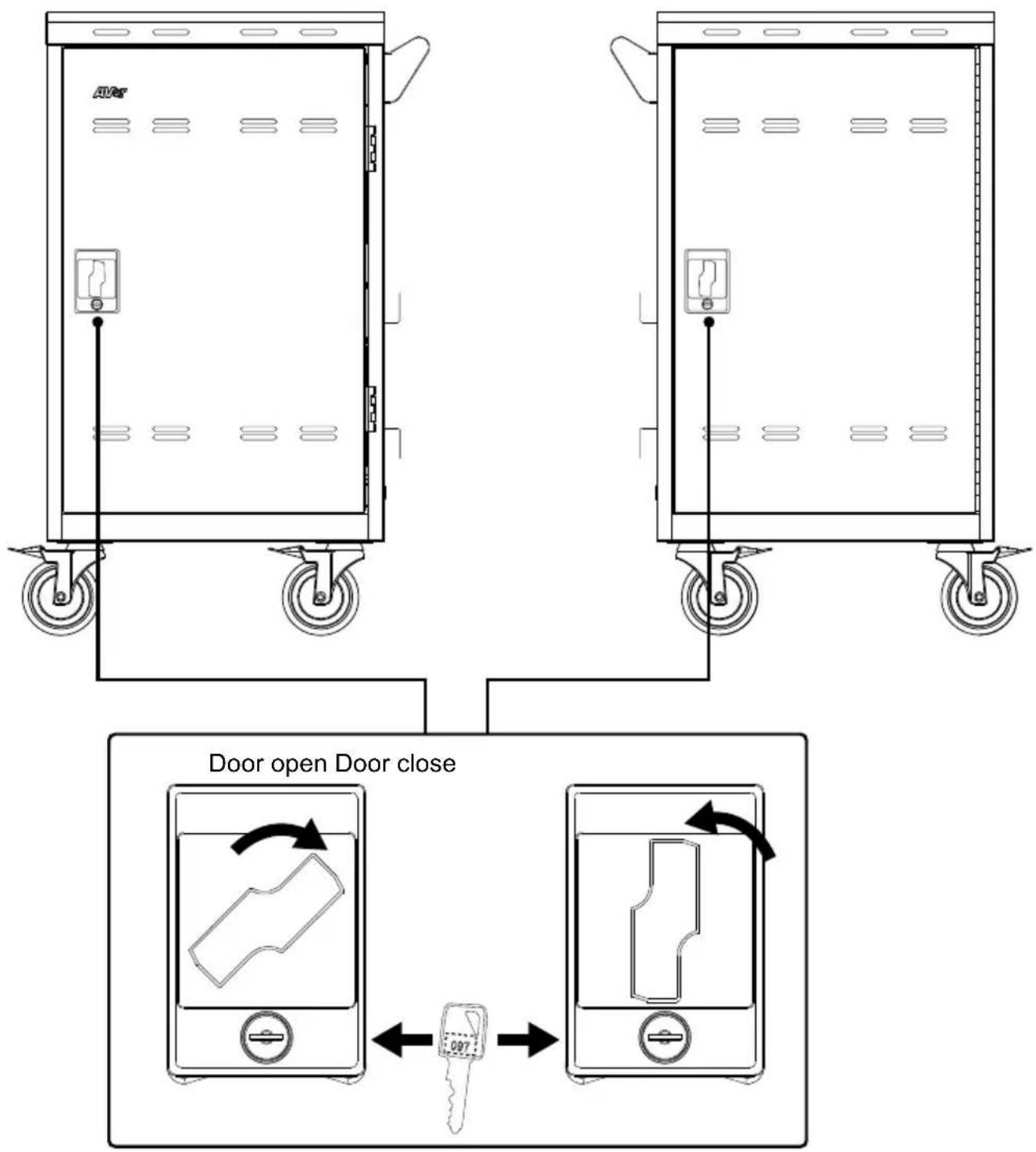

Door Lock

Installation

[Note]

1. It is recommended to use cable ties (optional) to secure and manage cables.
2. It is recommended to allocate 2 persons for efficient device cabling.

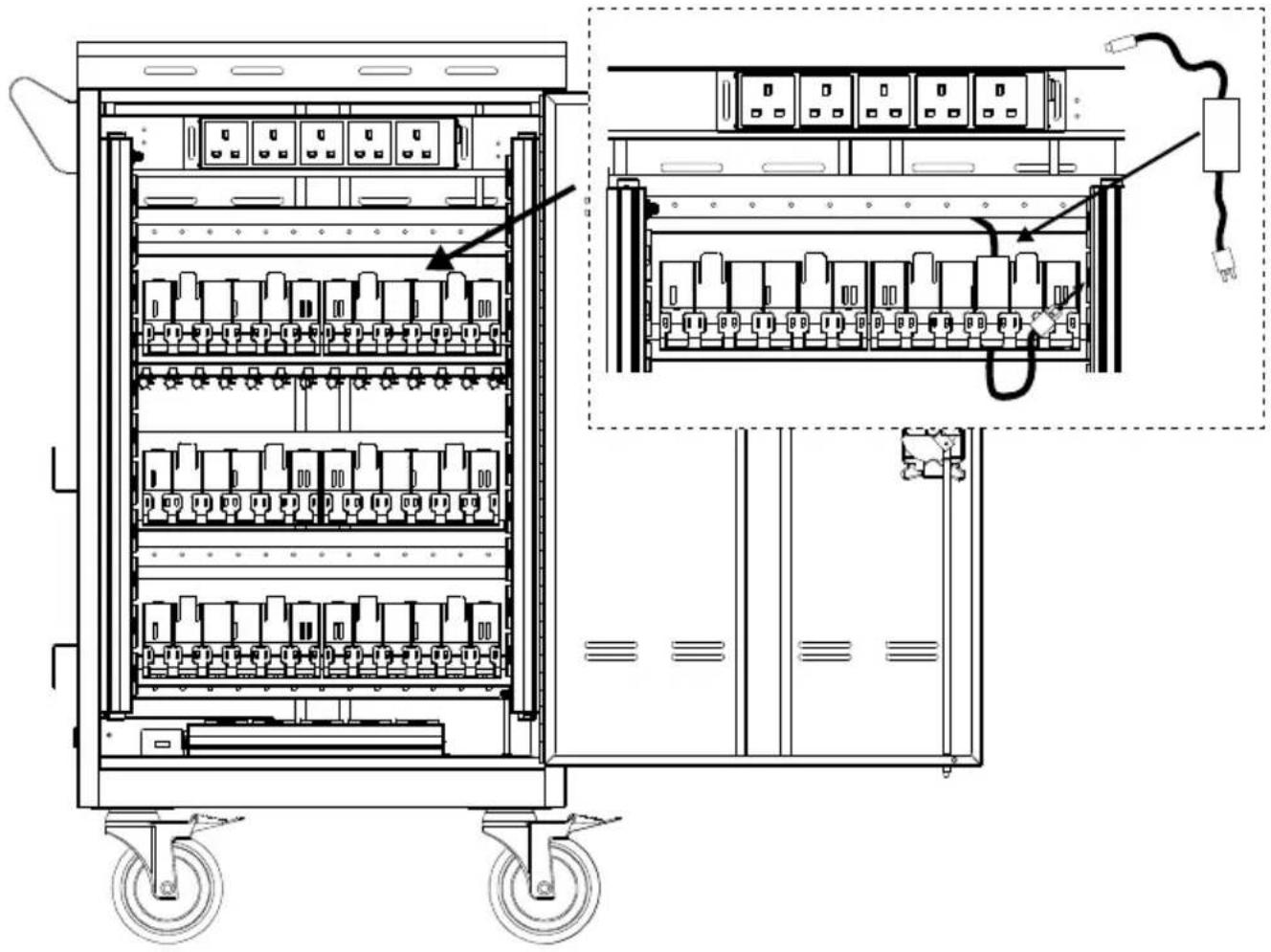

Adapter Installation

1. Open the rear door.
2. Place the power adapter into the individual adapter compartment.
3. Pass the DC-end of the adapter cable to the front of the cart through the space provided.
4. Plug-in the AC-end power cord to the corresponding power AC socket.
5. Bundle the cable and secure it with a cable tie or zip-tie (not supplied).

Technical line drawing of an electrical cabinet with wheels and internal components, showing wiring connections (no text or symbols)

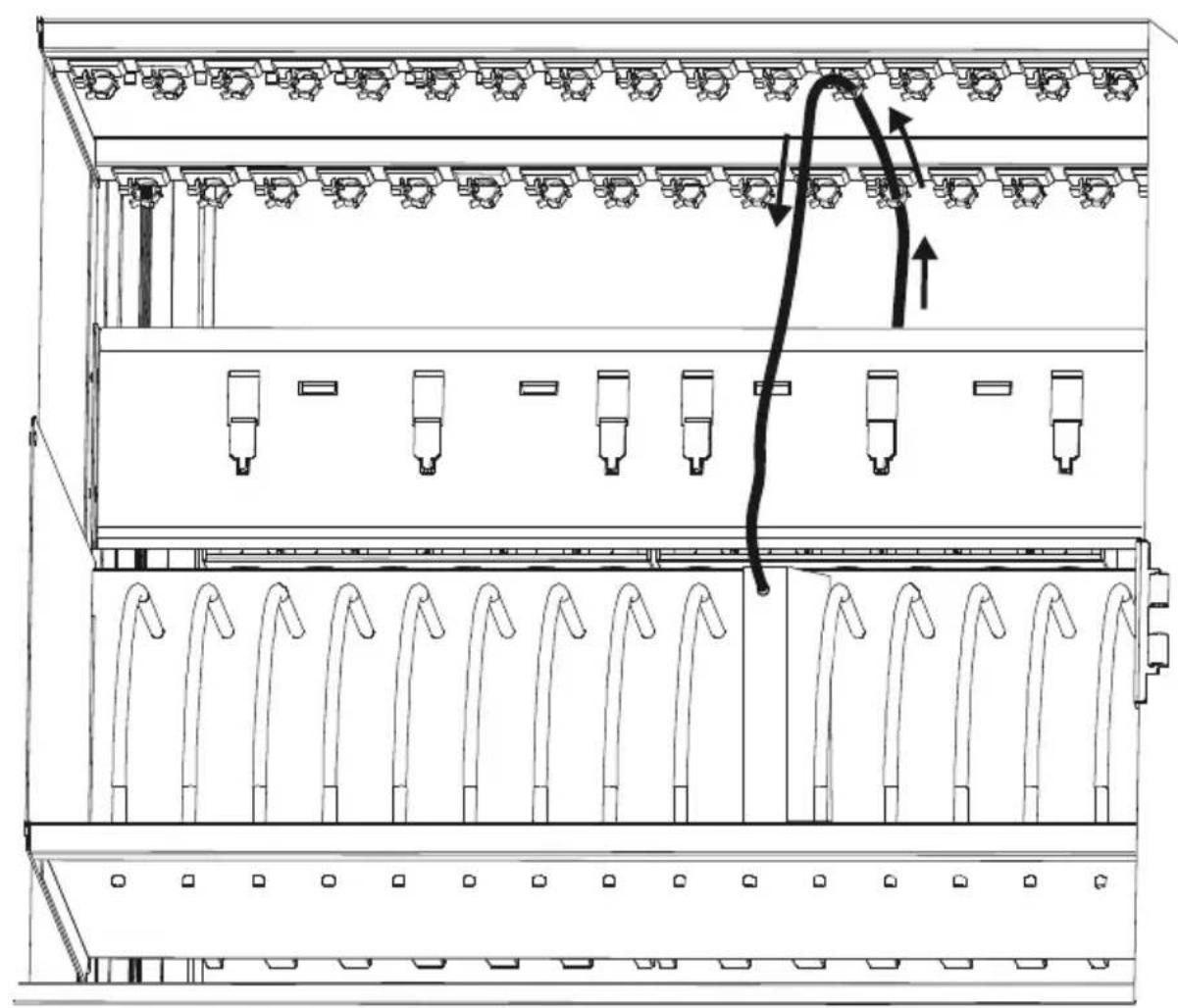

Cable Management

1. Open front door.
2. Route the cable through the cable hook as figure shown.
3. Place the mobile device into the bay.
4. Plug in the DC-connector to the mobile device.

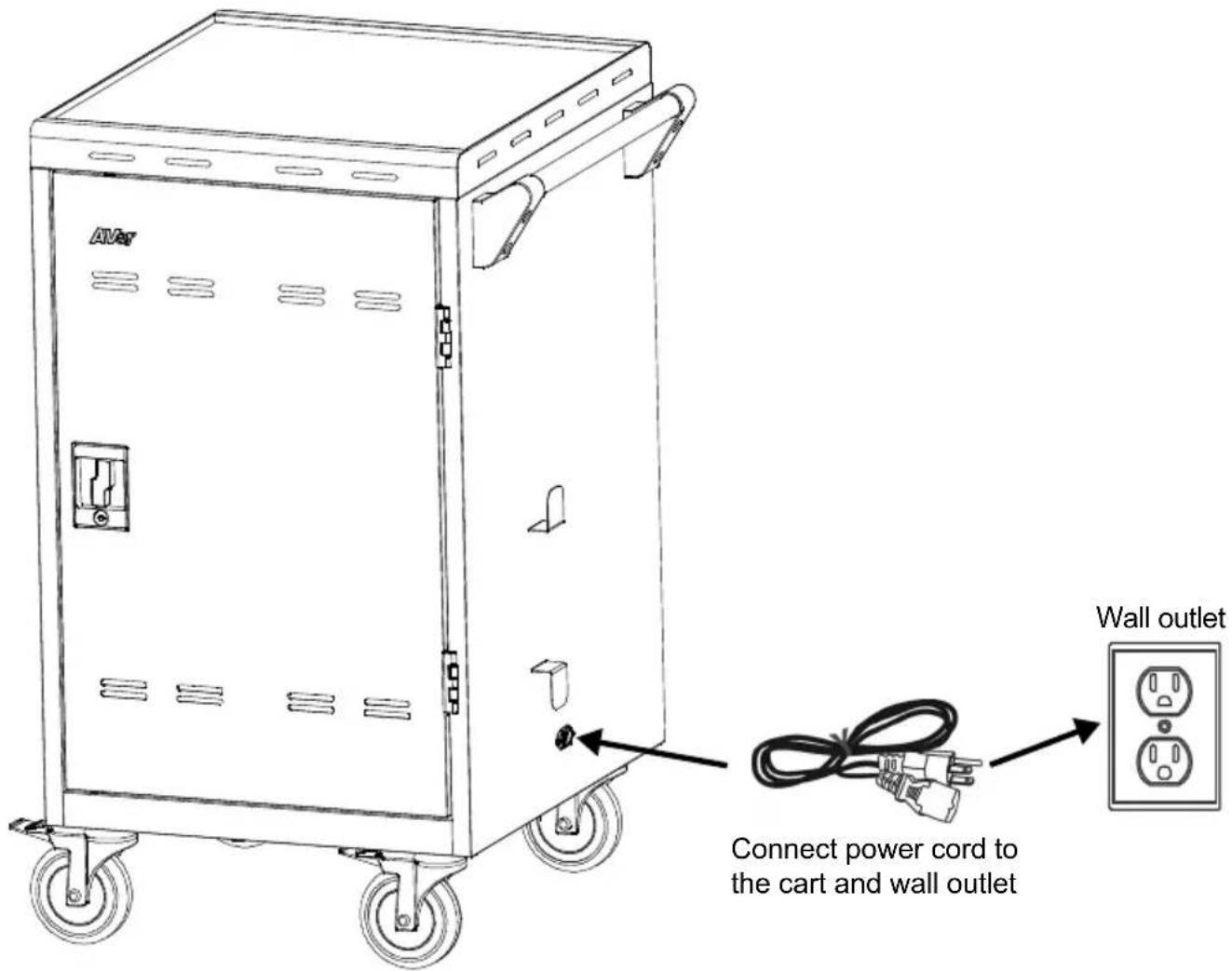

Charging Cart

[Note] The power inlet and power cord type may vary as they are country dependent.

Troubleshooting

Q: Why are all of my devices plugged in but not charging?

A: 1. Make sure power cords are undamaged.

1. Make sure power cords are firmly inserted into the available socket with the stable current.

2. Make sure the power plug and current consumption are compliant with your country specification standards.

Q: My cart's main power cord or cart components are damaged. Are they covered under warranty?

A: We provide a 10 year warranty on the cart and tray, and 5 years warranty on the electrical components.

Q: How do I know if my devices will exceed more than the allotted current?

A: Have a qualified electrician verify the current consumption of your devices. Perform the test with devices installed and batteries discharged.

Q: When I plug in the device it trips the circuit breaker. What is wrong?

A: You may have other equipment or appliances sharing the same circuit that is causing a circuit overload. Have a qualified electrician check that adequate power is available in the circuit.

Specifications

Model	E32c
Capacity	32 (two shelves, 16 bays per shelf)
Supported Devices	Mobile devices up to 14"
Charging Type	Smart Cycling Charge
Power Specification	AC IN: 220~240V, 50/60Hz, 8APower Strip: 220~240V, 50/60Hz, 8A
Security	Front Doors: 2-point steel locking mechanismRear Doors: 2-point steel locking mechanism
Casters	Four 5" casters: two are lockable and two directional lock
Door Hinge	180°
Work Platform Loading	20kg (44.09lbs)
Shelf Loading(ea.)	43.54kg (95.98lbs)
Adapter Shelves Loading(ea.)	3kg(6.6lbs)
Working Temperature	0°~30°C
Working RH%	10%~90%
Storage Temperature	-40°C~60°C
Storage RH%	5%~95%
Warranty	10 years cart and tray5 years electrical components
Cart Dimensions(W x D x H)	639.6 (W) x 632 (D) x 1039 (H)mm25.18"(W) x 24.88"(D) x 40.91"(H)
Slot Dimensions(W x D x H)	Upper side drawer :26(W) x 366.5(D) x 300.8(H)mm1.02"(W) x 14.43"(D) x 11.84"(H)Lower side drawer:26(W) x 366.5(D) x 341.5(H)mm1.02"(W) x 14.43"(D) x 13.44"(H)
Weight without Devices	52 Kg (114.64lbs)

Service and Warranty

All of our products come with a quality and safety assurance.

For customers located outside North America, please visit AVer Global support site:

http://www.aver.com/

For customers located in Europe, please visit the AVer support site for comprehensive RMA, Warranty, and Service information:

http://presentation.aver.com/warranty
