L16u - Battery charger AVer - Free user manual and instructions

Product Type	Battery Charger / Synchronization Station
Brand	AVer
Model	L16u
Capacity	16 devices
Device Support	All USB-charged tablets
Slot Dimensions (W x D x H)	2.8 x 36.4 x 28.5 cm (adjustable divider)
Cabinet Dimensions (W x D x H)	76 x 42.5 x 49.5 cm (29.92" x 16.73" x 19.49")
AC Input	100-120V~ 50/60Hz, 12A or 220-240V~ 50/60Hz, 8A
USB Output (per port)	DC 5V, 2.1A
Charging Type	USB 2.0
LED Indicators	Power (green), USB Sync (blue), Device Status (red/green/flashing green)
Security	Front door: 3-point locking mechanism, security hook
Daisy-Chaining	Supports power and sync daisy-chain up to 3 cabinets
Working Temperature	0°C to 30°C
Storage Temperature	-40°C to 60°C
Working Humidity	10% to 90% RH
Storage Humidity	5% to 95% RH
Warranty	10-year limited (cabinet and tray), 5-year limited (electrical parts)
Included Accessories	L16u cabinet, user manual, power daisy chain cable, power cord, sync daisy chain cable
Maximum Loading	130 lb (do not overload)

Frequently Asked Questions - L16u AVer

How many devices can the L16u charge simultaneously?

The L16u can charge up to 16 devices simultaneously via its USB ports.

Can I connect multiple L16u cabinets together?

Yes, you can daisy-chain up to 3 cabinets for both power and data synchronization using the provided power daisy chain and sync daisy chain cables.

What types of devices are compatible with the L16u?

The L16u supports all USB-charged tablets and other devices that charge via USB.

How do I know when a device is fully charged?

Each slot has an LED indicator: red means charging, solid green means fully charged, and flashing green means sync in progress.

What safety precautions should I follow when using the L16u?

Use only indoors, do not sit or climb on the cabinet, keep ventilation holes unblocked, do not exceed 130 lb load, and disconnect power before moving. Only adults should move the cabinet.

How do I set up the L16u for the first time?

Open the front doors, remove the cable management slot, route power cables through the slots, connect cables to devices and USB ports, then replace and tighten the slot. Finally, connect the power cord to a wall outlet.

Can I lock the cabinet?

Yes, the front door has a 3-point locking mechanism and a security hook. You can use a padlock with a shackle up to 8mm in diameter.

What is the warranty period for the L16u?

AVer offers a 10-year limited warranty for the cabinet and tray, and a 5-year limited warranty for electrical parts.

What do the LED indicators on the front panel mean?

The Power LED is off when power is off and solid green when on. The USB Sync LED shows solid blue when data sync cable is connected. The Device Status LEDs indicate charging (red), full charge (solid green), or sync in progress (flashing green).

How should I clean and maintain the L16u cabinet?

Disconnect from power before cleaning. Wipe with a dry or slightly damp cloth. Do not use harsh chemicals. Ensure ventilation holes are not blocked. Store in a cool, dry place.

USER MANUAL L16u AVer

Line drawing of a portable oven or storage unit with labeled door and control panel (no text or symbols beyond branding)

L16u

User Manual

FCC NOTICE (Class A)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

operation.

Federal Communications Commission Statement

NOTE- This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

Class A ITE

Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the class B ITE limits. Such equipment should not be restricted in its sale but the following warning shall be included in the instructions for use:

Warning -This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

European Community Compliance Statement (Class A)

This product is herewith confirmed to comply with the requirements set out in the Council Directives on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility Directive 2014/30/EU.

Warning - This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures to correct this interference.

DISCLAIMER

No warranty or representation, either expressed or implied, is made with respect to the contents of this documentation, its quality, performance, merchantability, or fitness for a particular purpose. Information presented in this documentation has been carefully checked for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this documentation is subject to change without notice.

In no event will AVer Information Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.

TRADEMARKS

“AVer” is a trademark owned by AVer Information Inc. Other trademarks used herein for description purpose only belong to each of their companies.

COPYRIGHT

© 2015 AVer Information Inc. All rights reserved.

All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

The mark of Crossed-out wheeled bin indicates that this product must not be disposed of with your other household waste. Instead, you need to dispose of the waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. For more information about where to drop off your waste equipment for recycling, please contact your household waste disposal service or the shop where you purchased the product.

CAUTION

■ To reduce risk of electric shock use only indoors.
■ Only adults should move the L16u cabinet.
■ Do not allow anyone to sit, stand, or climb on the L16u cabinet.
■ Do not block the ventilation holes used for air circulation.
■ Do not overload objects on the L16u cabinet (maximum loading is 130lb).
■ Before moving L16u cabinet, disconnect the power from the wall outlet.
■ It is recommended to use at least two people and lift from the bottom when moving the L16u cabinet.

Contents

I. INTRODUCTION .... 1

Package Contents....1

Cabinet Dimensions....1

Cabinet Diagram 2

Door Lock....3

LED Status 3

II. SETUP....4

Daisy-Chaining 8

III. SPECIFICATIONS....9

I. Introduction

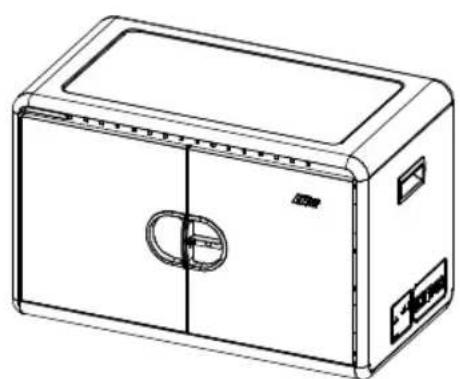

Package Contents

Line drawing of a rectangular electronic device with lid and side ports (no text or symbols)

L16u Cabinet

User manual

Power daisy chain cable

Power cord

Sync. daisy chain cable*
* The sync. daisy chain cable can be used either directly connecting to laptop, or connection to other L16u cabinet for data daisy-chain synchronization.

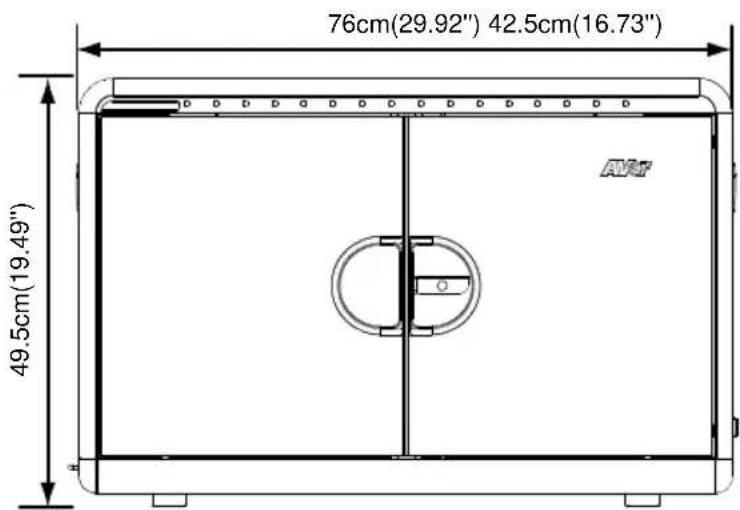

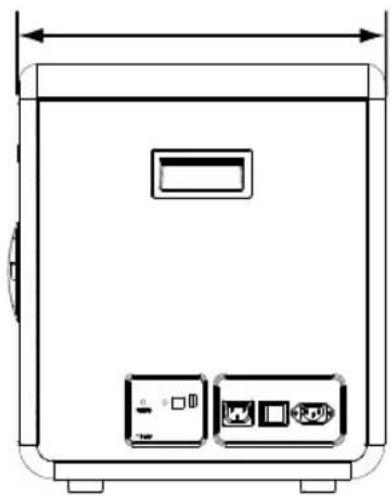

Cabinet Dimensions

Technical line drawing of a rectangular electronic device with internal components and a central display (no text or symbols)

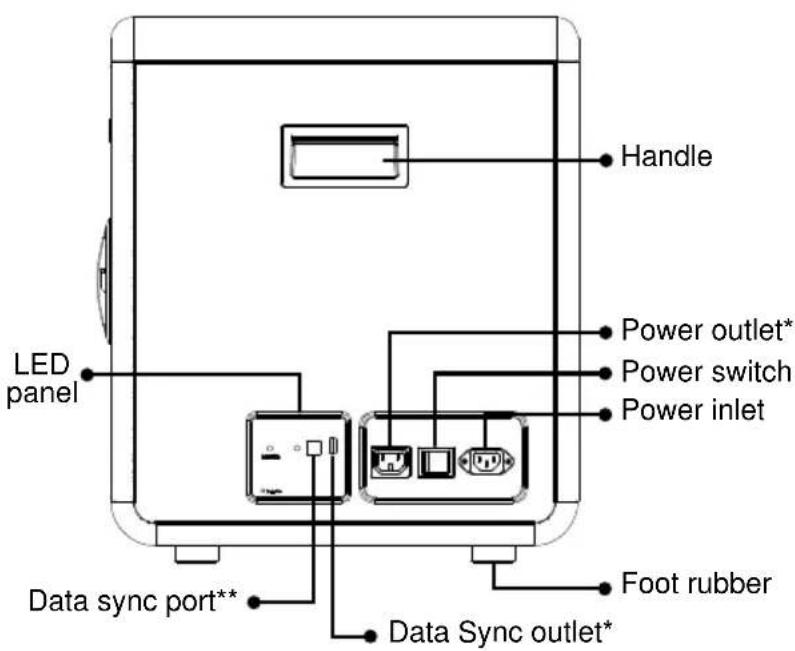

Cabinet Diagram

Front

Side

*Use for synchronize daisy-chain when connecting multiple cabinets.

*Use for connecting to other cabinet's data sync port during data daisy-chain synchronization.

*Connect to laptop's USB port, or other cabinet's data sync outlet during data daisy-chain synchronization.

** Use as Synchronize Daisy-Chain inlet when connecting multiple cabinets.

[Note] Maximum daisy-chain 3 cabinets together.

Back

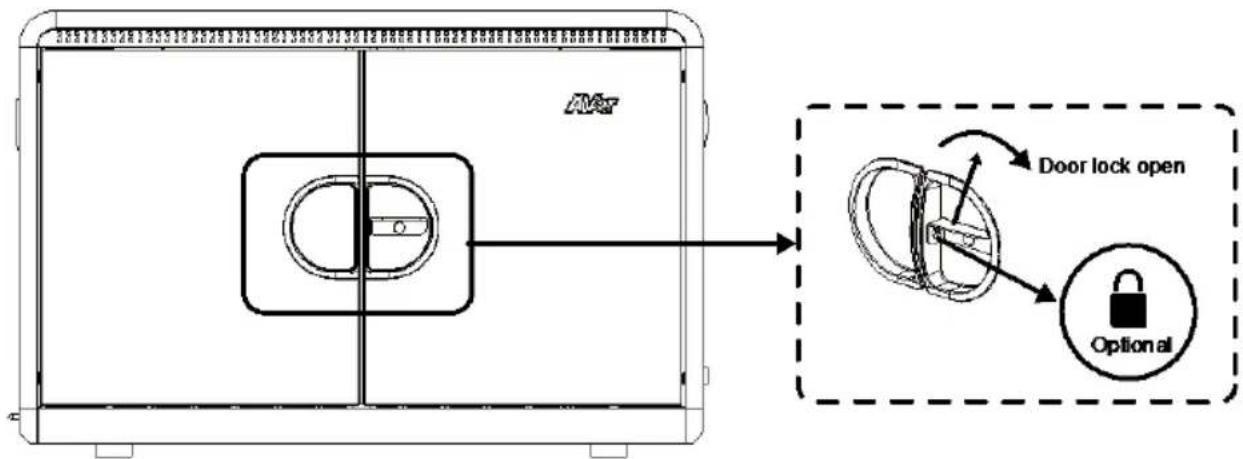

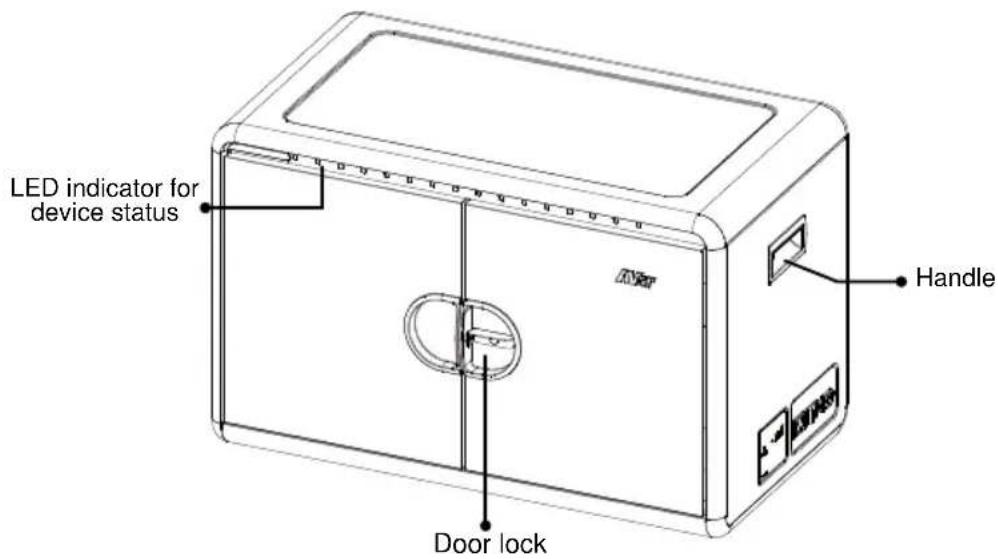

Door Lock

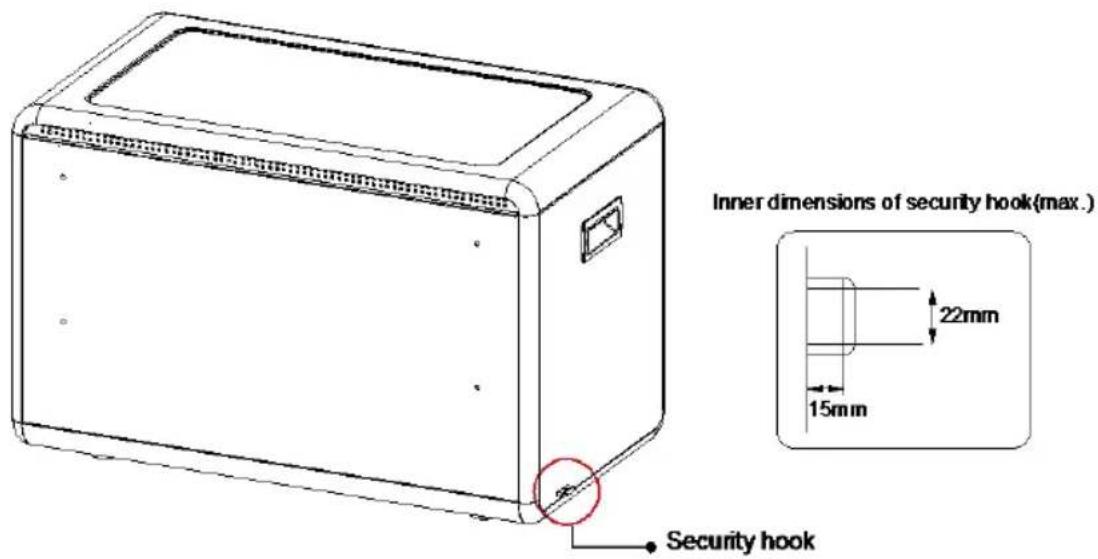

[Note] The shackle dimension is limited to 8mm (0.31").

LED Status

LED	Description
Power (x1)	■ OFF: Power OFF■ Solid Green: Power ON
USB Sync LED (x1)	■ Solid Blue: Data Sync Cable is connected
Device Status (x16)	■ Red: Charging■ Solid Green: Fully Charged■ Flashing Green: Sync in Progress

II. Setup

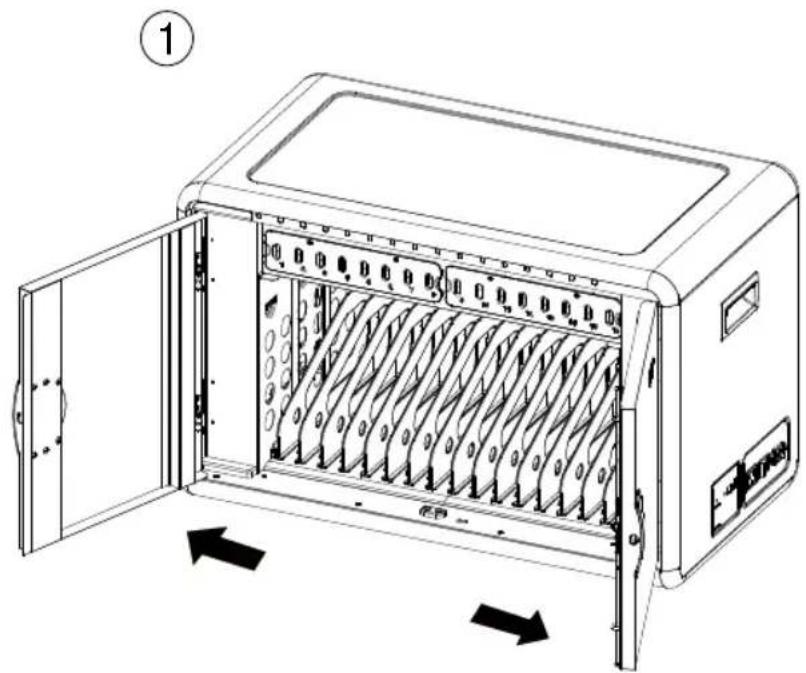

○1 Open the front doors.

Technical line drawing of an open industrial control unit with internal rack and ventilation slots (no text or symbols)

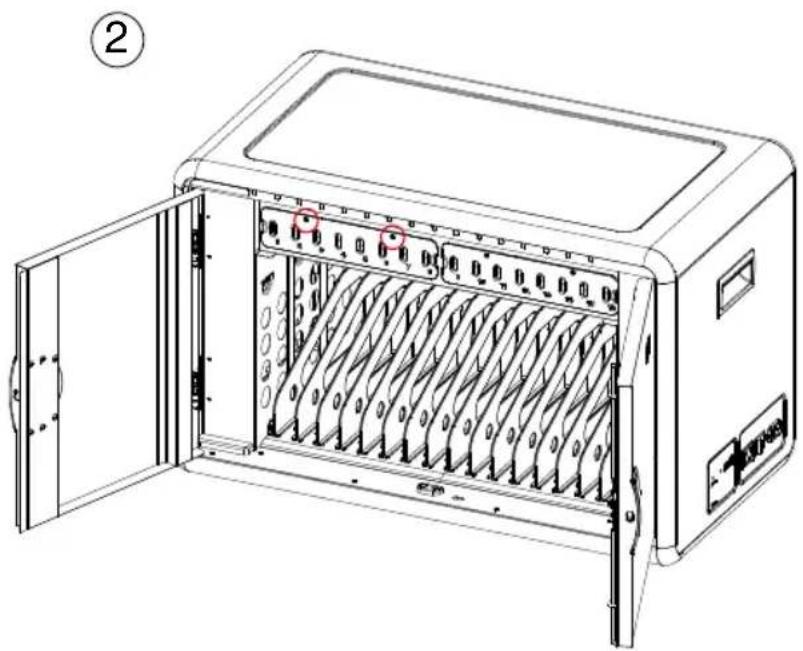

○2 Release the screws of cable management slot.

Technical line drawing of an open industrial control unit with internal rack-mounted components (no text or symbols)

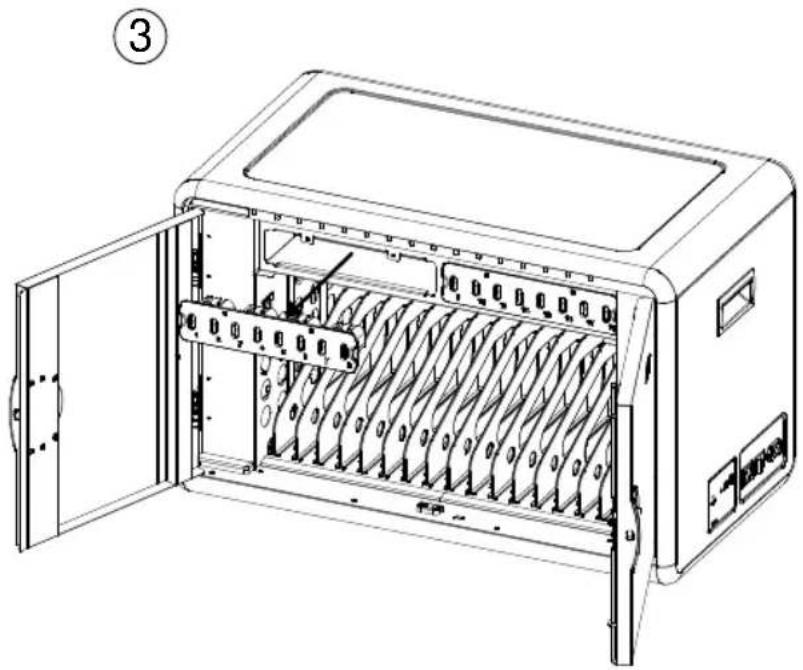

○3 Remove the cable management slot from L16u cabinet.

Technical line drawing of an electrical enclosure with internal wiring and a door open (no text or symbols)

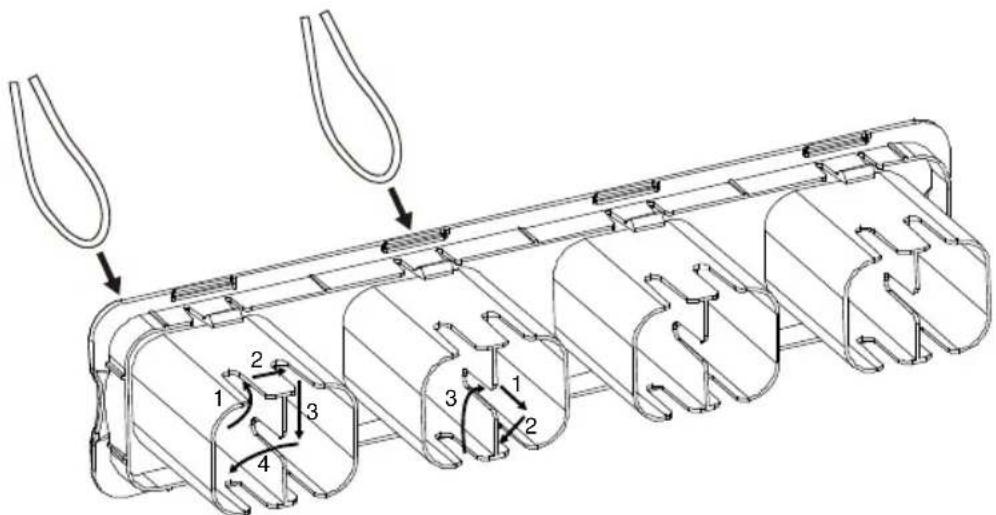

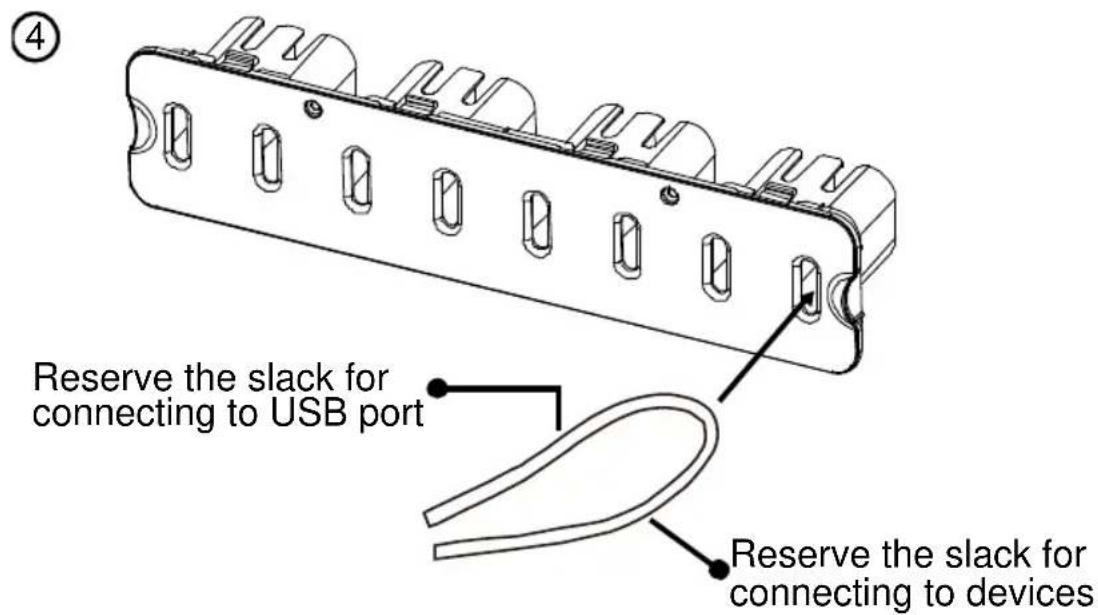

④ Fold the power cable of iPad or tablets and adjust the length of cable for connecting to devices and USB port of cabinet. Insert the power cable of through the hole (as below figure shown); Wrap double cable along the groove as the below figure to fix the power cable. After fixing power cable, the extra power cable can store in the near slot.

○5 Put the cable management slot back to the cabinet and screw it tight.
○6 Connect the power cable to devices.

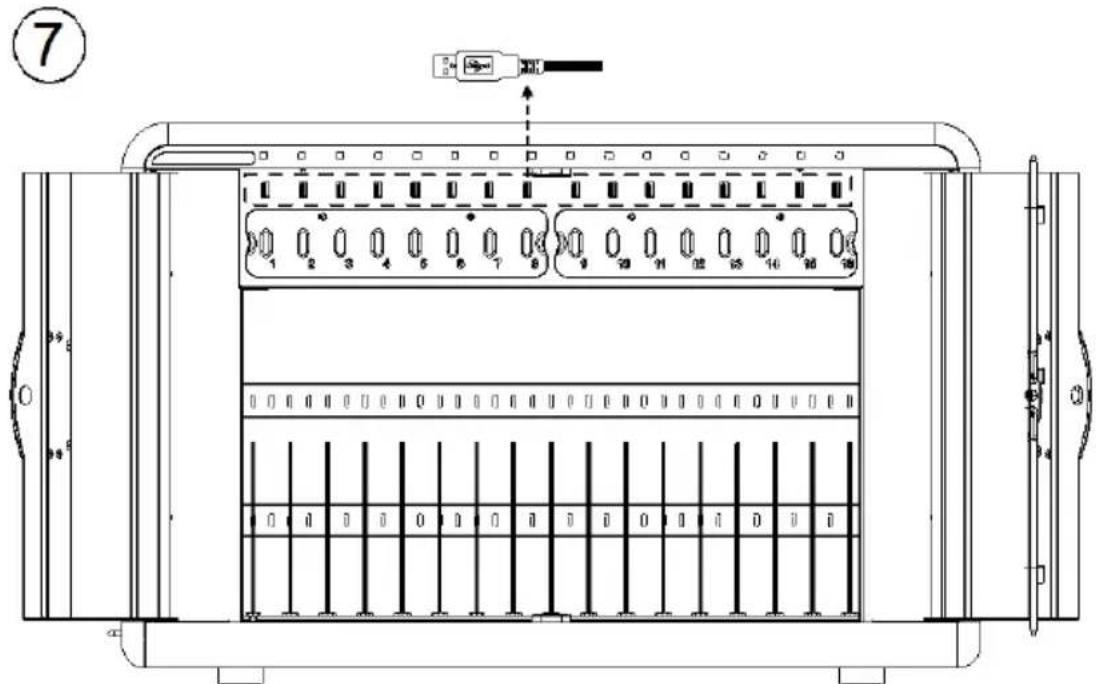

○7 Connect the USB connector of power cable to USB port of cabinet.

⑧ If the slot width needs to be adjusted, remove the divider to the corresponding position.
○9 Close front door.

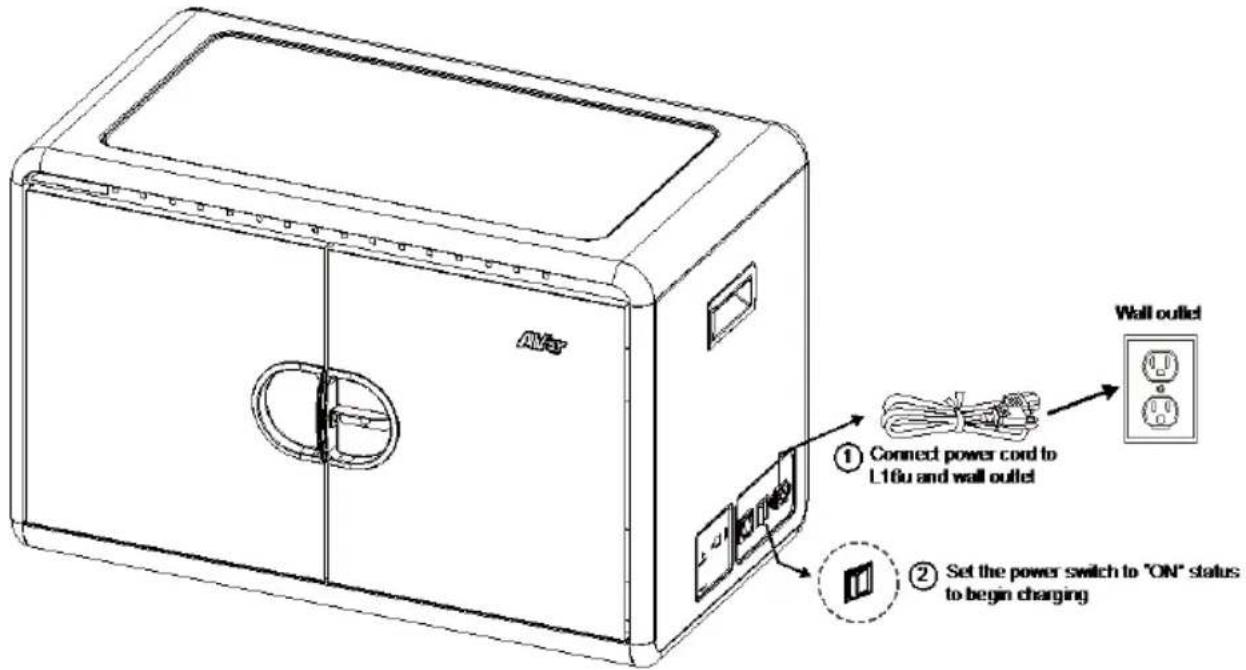

Charging L16u cabinet

Daisy-Chaining

The L16u cabinet supports power and synchronizes Daisy-Chain technology. Power Daisy-Chain enables total maximum 3 cabinets to charge through a single wall outlet. Through sync Daisy-Chain, all the devices in the cabinets can be synchronized at once.

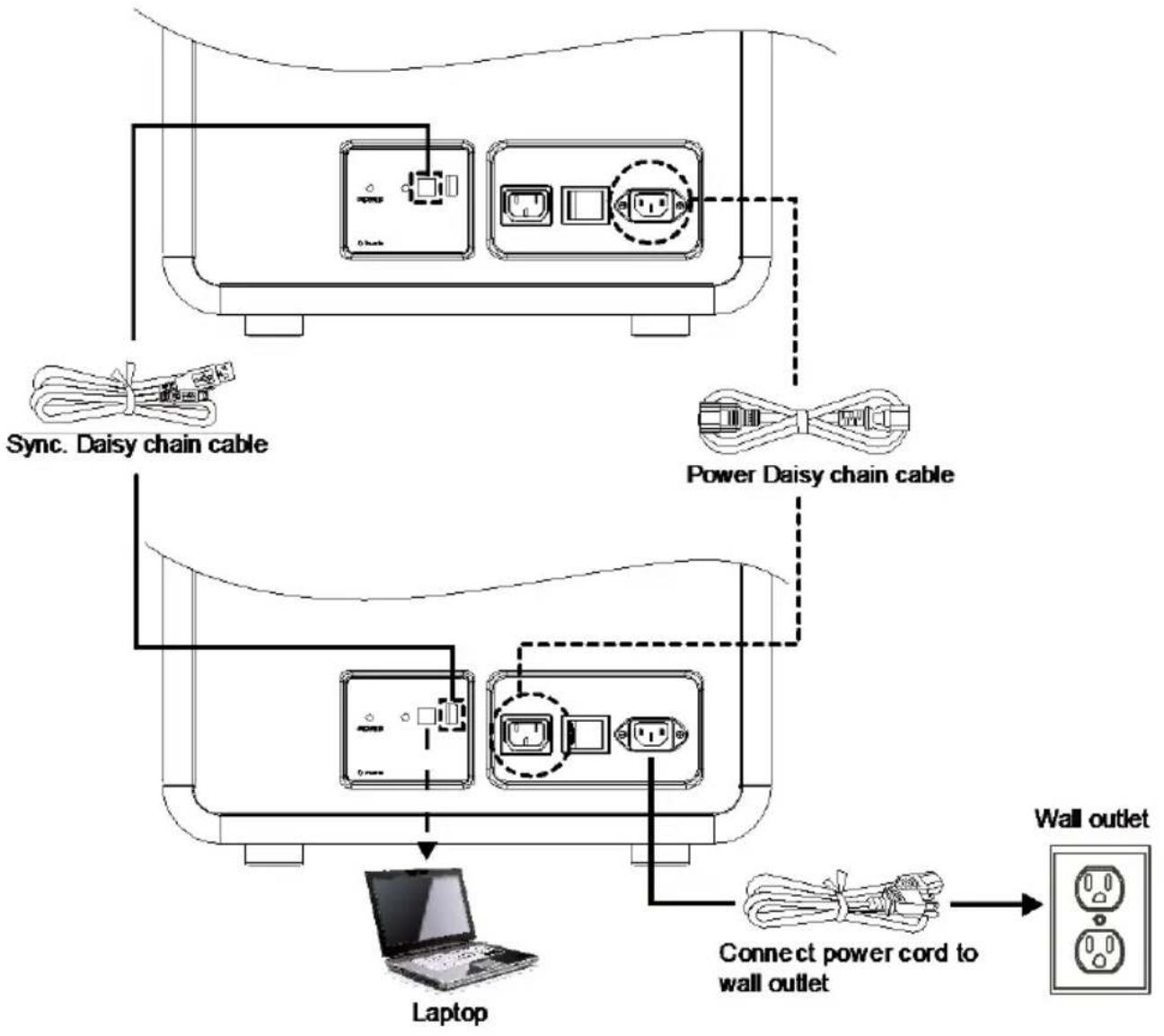

The configuration of Daisy-Chain is illustrated below.

III. Specifications

Capacity

16

Device support

All USB-charged tablets

2.8(W) × 36.4(D) × 28.5(H) cm

Slot Dimension (W x D x H)

* The divider is adjustable

LED status indicators

Yes

Charging type

USB 2.0

AC Input:

100-120V \~ 50/60Hz, 12A

Power specification

220-240V \~ 50/60Hz, 8A

Output for 16 USB ports:

DC 5V, 2.1A

Security

Front door: 3-point locking mechanism

Security hook

Yes

Working temp.

0 \~ 30°C

Working RH

10% \~ 90%

Storage temp.

-40°C \~ 60°C

Storage RH

5% \~ 95%

Warranty

10-year limited warranty for cabinet and tray

5-year limited warranty for electrical parts

76(W) × 42.5(D) × 49.5 (H)cm

Dimensions(W x D x H)

29.92"(W) × 16.73"(D) × 19.49"(H)
