Product Type	Video projector
Brand	GPX
Model	PJ300VP
Native Resolution	800 x 480
Supported Resolutions	480p, 720p, 1080i, 1080p
Aspect Ratio	16:9, 4:3
Brightness	42 ANSI lumens
Light Source	LED bulb
Projection Size	37–150 inches (best 40–70 inches)
Projection Distance	3.9–12.1 ft (1.2–4.4 m)
Keystone Correction	Manual adjustment
Focus Adjustment	Manual
Built-in Speaker	Yes (mono)
Bluetooth	Built-in transmitter for external speakers
Inputs	2 x HDMI, VGA (PC), USB, MicroSD, AV (3.5mm to RCA)
Audio Output	3.5mm headphone jack
Supported Storage	USB and MicroSD up to 32 GB (AVI, MOV)
Power Supply	AC/DC adapter (included)
Power Consumption	Approximately 30–50 W (estimated)
Remote Control	Included (requires 2 x AAA batteries, not included)
Screen Included	120-inch portable screen
Ceiling Mountable	Yes (hardware not included)
Operating Temperature	41°F – 104°F (5°C – 40°C)
Cleaning Instructions	Clean with a dry cloth; use vacuum or air compressor for vents
Safety Warnings	Do not look into lens; use in well-ventilated area; keep away from heat sources and water
Repairability	No user-serviceable parts; refer to qualified service personnel

Frequently Asked Questions - PJ300VP GPX

What is the native resolution of the GPX PJ300VP projector?

The native resolution is 800 x 480 pixels. It supports up to 1080p input.

How do I connect Bluetooth speakers to the projector?

Enable Bluetooth on your speaker, then on the projector go to the Sound Menu and turn Bluetooth ON. The projector will automatically search and pair with nearby devices.

What is the maximum image size and how far should the projector be placed?

The projector can display images from 37 to 150 inches diagonally. The optimal distance is 3.9–12.1 ft (1.2–4.4 m). For best quality, keep the image size between 40 and 70 inches.

How do I adjust the keystone (trapezoid) effect?

Use the Keystone Adjustment knob located on the side of the projector (item 7 on the diagram) to correct image distortion.

Can I update the projector's firmware?

Yes. Download the update file to a USB drive, insert it into the projector, go to Options Menu > Software Update, and follow on-screen instructions.

What is the lamp life of the LED bulb?

The LED bulb is rated for approximately 20,000 hours of use, providing long-lasting performance before needing replacement.

What input sources are available?

The projector supports HDMI (2 ports), VGA (PC), USB, MicroSD, and AV (composite via included cable). Switch between them using the Source button.

How do I play media from a USB drive or SD card?

Insert the USB drive or MicroSD card, set the Source to Media Player, select C:Drive, then choose Music/Photo/Movie and press OK to play. Supported formats: AVI, MOV.

Is the projector safe to use near children?

Yes, but follow safety guidelines: do not look directly into the lens, keep the projector out of reach of small children to avoid ingestion of the remote battery, and ensure proper ventilation to prevent overheating.

Does the projector have a built-in screen?

The package includes a 120-inch portable projector screen that can be wall-mounted (hardware included). However, the projector can also project onto any smooth, white or light-colored surface.

USER MANUAL PJ300VP GPX

Black projector with a circular lens and remote control, no visible text or symbols

Mini Projector with Bluetooth

User's Guide for Model PJ300VP v2794-01

For the most up-to-date version of this User's Guide, go to www.gpx.com

Safety Instructions & Warnings

Important Safety Instructions

• Read these Instructions.
• Keep these Instructions.
• Heed all Warnings.
  • Follow all instructions.
  • Do not use this apparatus near water.
  • Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

- Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- Only use attachments/accessories specified by the manufacturer.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

FCC Warnings

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Battery Warnings

• WARNING: Do not ingest battery, Chemical Burn Hazard.
- If the remote control supplied with this product contains a coin/button cell battery and the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
- Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.
- If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
- CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
- WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.
- Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.
• Do not mix old and new batteries.
• Completely replace all old batteries with new ones.
- Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
- Batteries should be recycled or disposed of as per state and local guidelines.

Additional Warnings and Precautions

• Do not look directly into the projector light.
- Use in well ventilated area with ambient temperature between 41°F\~104°C (5°C\~40°C).
• Do not block any ventilation openings.
- To prevent risk of overheating, place the projector in an area that does not block ventilation, such as an enclosure or cabinet that might restrict airflow.
- Do not place the projector on an unstable surface, such as a loose stack of books, bed, or cushion.

- Do not cover the projector with a blanket, curtain, or similar.

- If setting up near a wall, leave at least 10 in. (25cm) between the wall and the projector's ventilation ports.

- Use a power outlet that can be easily accessed and unplugged.

- Do not block the light coming out of the lens. The light will heat the object and may cause burns, cause it to melt or catch fire.

- When powering off the projector, allow the cooling cycle to finish before handling or disconnecting the power supply.

- Do not use the projector if it has been damaged. Damage could be (but not limited to):

- Unit has been dropped or something has been dropped on it or into it.

- Something is loose or rattling inside the unit.

– Projector has been exposed to rain or liquid.

Power supply or power cord is damaged.

- Do not use the projector in places where flammable gases or explosives may be present.

• Do not use the projector in the following conditions:

– Extremely hot, cold, or humid environments

- Environments with excessive amounts of dust and dirt in the atmosphere.

- Near appliances generating a strong electromagnetic field or heat.

– In direct sunlight.

• If the air vents become clogged or dirty, use a vacuum or air compressor and nozzle to clean. Do not use canned air, as the gas may leave a residue inside the enclosure.
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.
• CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
  • WARNING: Shock hazard - Do Not Open.
• Caution and marking information is located at the rear or bottom of the apparatus.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing.
• Objects filled with liquids, such as vases, shall not be placed on the apparatus.
• Do not place any objects, heavy or otherwise, on the projector.
  • This product meets and complies with all Federal regulations.
  • See projector enclosure for related safety markings.
• No user serviceable parts inside, do not attempt to open the unit or perform any repair. Doing so may cause damage or injury, and will void your warranty.
  • Refer all repairs or replacement to qualified service personnel.
• Stop using the projector and unplug the power source immediately if you notice the following:
• Smoke coming from the unit or power supply.
  – Strange odors or noises coming from the unit.
• Liquid or foreign objects have gotten inside the unit.
  — Unit has been dropped and enclosure has been damaged.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. This product meets and complies with required Federal product guidelines.

Table of Contents

Overview

Features - 5

Includes - 5

Projector

Features & Inputs - 6

Controls - 7

Remote

Functions - 8

Batteries - 8

Menu Options

Picture Menu - 9

Sound Menu - 10

Options Menu - 11

Projector Setup

Power - 12

Projector Placement - 12

Viewing Options - 13

Ceiling Mount - 14

Angle Adjustment - 15

Image Adjustment - 15

Connecting Your Projector

HDMI - 16

Audio/Video Input - 17

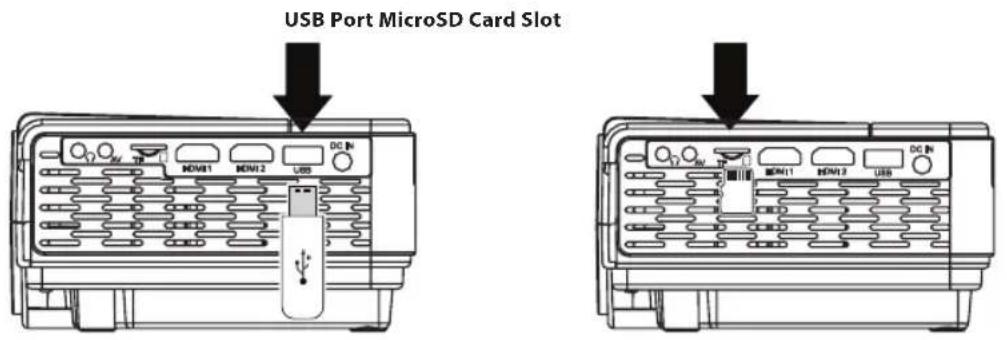

MicroSD & USB Storage Devices - 18

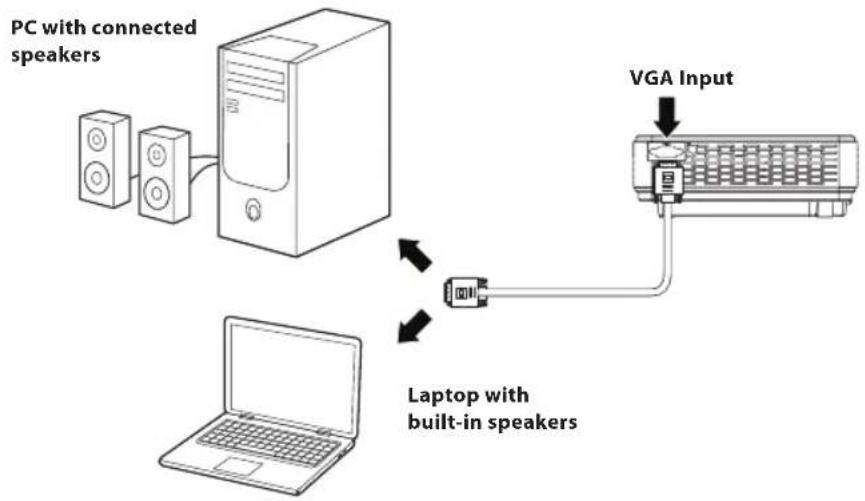

Computer Video (VGA) - 18

External Audio

Bluetooth - Pairing to Wireless Speakers or a Sound Bar - 19

Headphone Jack/Audio Out - 19

Customer Support

Contact Information - 20

Warranty - 20

International Support - 20

Overview

Features

• Supports 480p, 720p, 1080i, 1080p
• Native Resolution: 800 x 480
• Aspect Ratio: 16:9, 4:3
- LED bulb
• Brightness: 42 ANSI lumens
• Built-in Bluetooth transmitter
• I/O: 2 x HDMI, VGA PC, USB, Micro SD card, AV, 3.5mm Headphone Jack

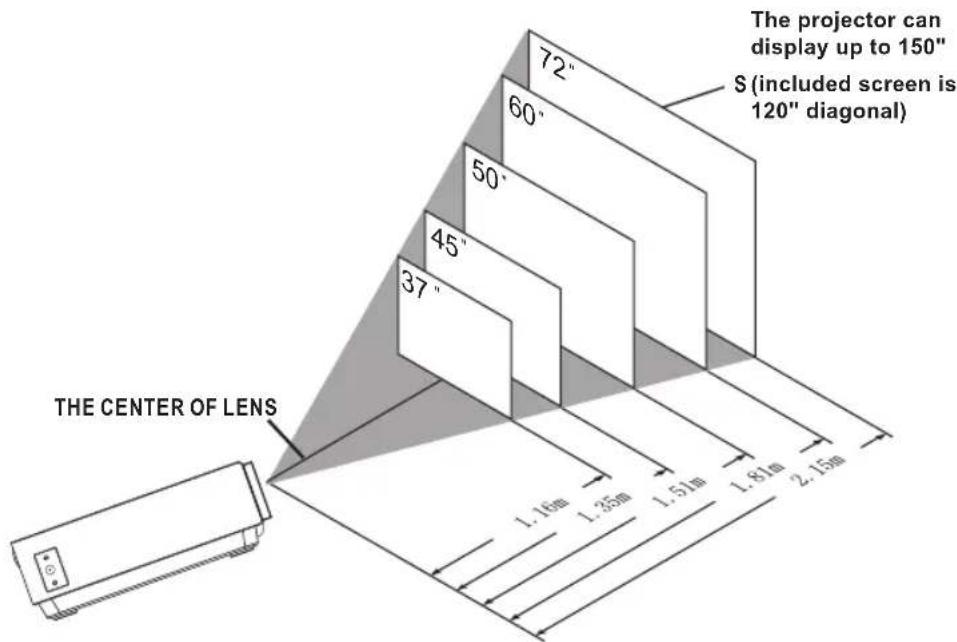

• Projection size: 37-150" (best image size: 40-70"
• Display distance: 3.9-12.1 ft. (1.2-4.4M)
• Built-in speaker
• Keystone angle correction and focus adjust
- Ceiling mountable

Includes

• 120" Projector screen
- Remote control: requires 2 AAA batteries (not included)
• 3.5mm to 3 x RCA audio/video cable
• AC/DC power adapter
- User's Guide

Screen Features

Note: Mounting instructions for the screen are printed on the bag in which the screen is packaged. Keep these instructions for future use.

• 120" diagonal
  • Wide screen 16:9 aspect ratio
  • Wall mountable (hardware included)
  • Folds for easy storage

Projector

Features & Inputs

1. Projector Lens
2. Height Adjustment Peg
3. Focus Adjustment 9. Micro SD Card Port
4. Keystone Adjustment 10. HDMI Input 1 & 2
5. Controls & Power Indicators 11. USB Port
6. VGA/PC Input 12. 3.5mm Audio Output
7. Remote sensor (duplicated on the front of the projector) 13. DC Power Port
8. Speakers

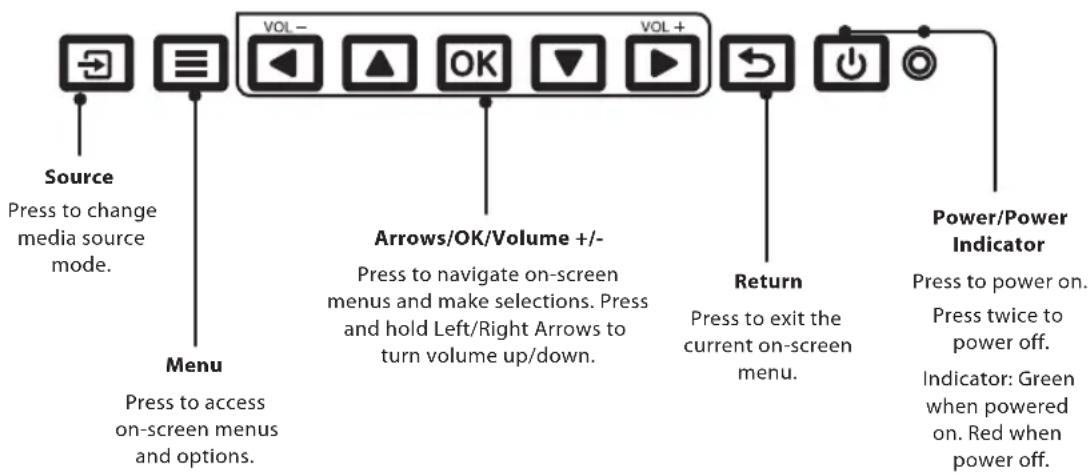

Controls
    T["Indicator: Green when powered on. Red when power off."]

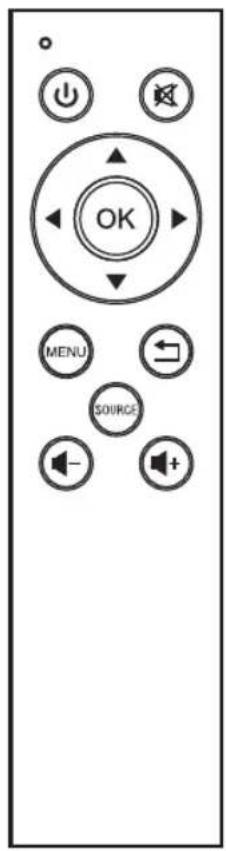

Remote

Functions

Power

Press to power ON/OFF.

Arrows/OK

Press to navigate and confirm selections in

Settings and other menus.

Menu

Press to access projector Settings.

Source

Press to select media source

(VGA, HDMI, AV, USB, SD).

Mute

Press to mute volume.

Return

Press to exit the current on-screen menu.

Vol + / Vol -

Press to adjust audio level.

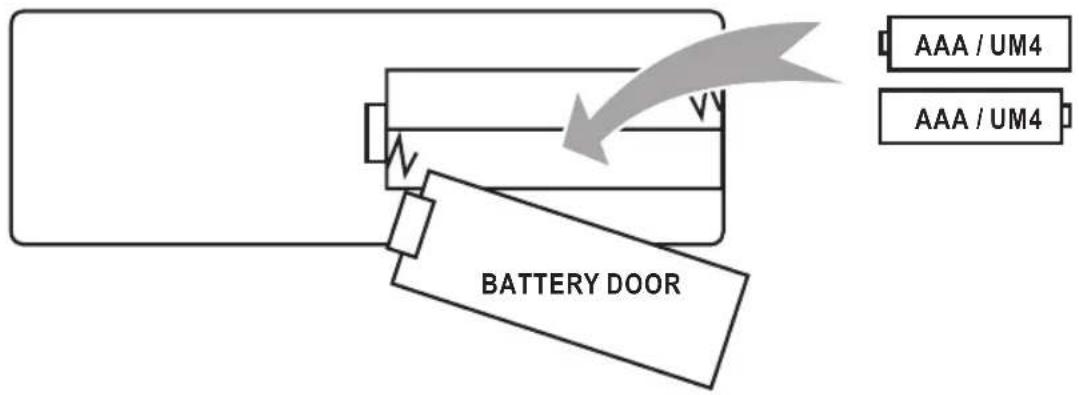

Batteries

Requires 2 AAA batteries (not included).

Menu Options

Change projector settings by pressing the Menu button and selecting the Setup icon.

Note: Not all settings are user adjustable.

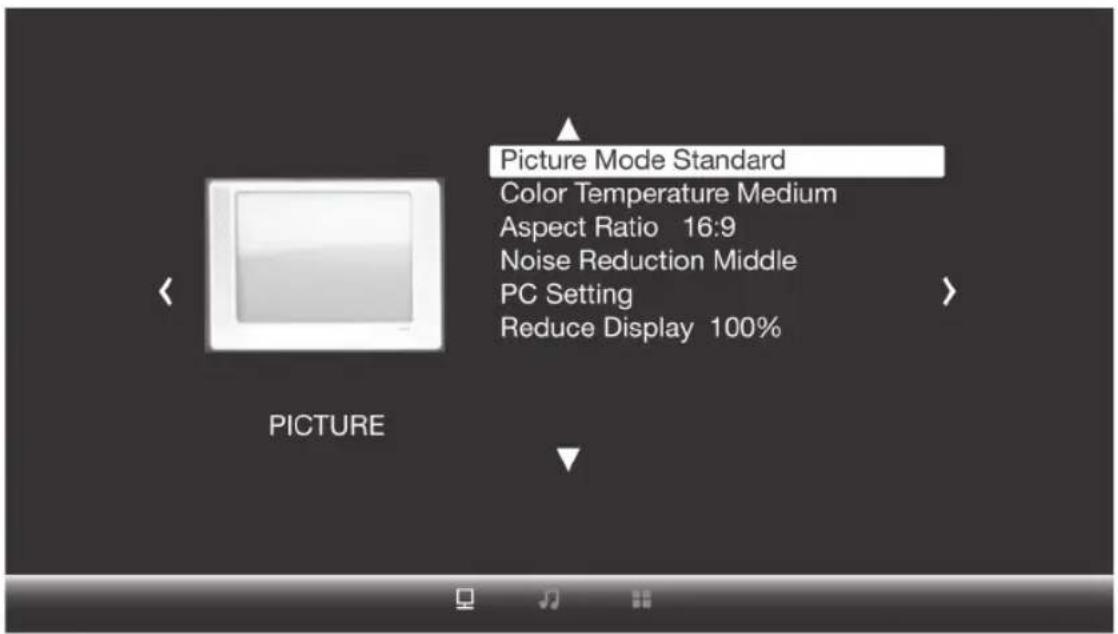

Picture Menu

1. Picture Mode

Select Vivid, User (custom), Soft, or Standard.

2. Contrast, Brightness, etc.

Set Picture Mode to "User" to adjust these settings.

3. Color Temperature

Select Warm, Cool, or Medium. User (custom).

4. Aspect Ratio

Select 16:9, 4:3, or Auto.

5. Noise Reductions

Select Off, Low, Middle, High, or default.

6. PC Settings

Edit VGA settings.

7. Reduce display

Reduce the size of viewable area.

Sound Menu

1. Sound Mode

Select Music, Movie, User (custom), Sports, or Standard.

2. Treble & Bass

Set Sound Mode to "User" to adjust these settings.

3. Balance

Adjust the audio balance.

4. Bluetooth Speaker ON/OFF

Turn Bluetooth capability ON/OFF.

Options Menu

1. OSD Language

Select English, French, or Spanish for the On Screen Display.

2. Restore Factory Default

Reset the projector and restore all of the default settings.

3. Rotate

Flip and mirror the screen image.

4. OSD Duration

Set how long the menu will be displayed after you stop using the menu.

5. Software Update

Update software using a USB drive.

Projector Setup

Power

Plug the AC/DC power adapter (included) into a standard wall outlet and the DC power input on the side of the unit. After connecting power, please allow approximately 5 seconds to pass before powering the unit ON.

Line drawing of an electrical power supply connected to a wall-mounted socket (no text or symbols present)

Projector Placement

For best results, place the projector in a dark room or other dimly lit area. Use the unit with a dedicated projector screen for best picture resolution. A variety of screens and screen sizes can be used (the included wall mountable screen is 120" diagonal). If placing the projector behind the viewing screen (unit in front of/projecting toward viewers), a special screen will be required (not included). If no screen is available, a smooth, white or lightly colored surface will provide the best results.

Viewing Options

The projector can be used to project onto a wall or screen, mounted from the ceiling or on a table. When projecting from the rear position, a special screen will be needed (not included) to display the image.

Illustration of a meeting scene with a large triangular panel and seated participants (no text or symbols)

REAR TABLE

Line drawing of a meeting room with a speaker at the front and a projection screen on the right (no text or symbols)

REAR CEILING

Be sure to aim the remote at the sensor on the front or rear of the projector.

Ceiling Mount

To mount the projector from the ceiling, you will need mounting hardware recommended by a professional. Mounting hardware and instructions are not included.

Before mounting, be sure the ceiling structure can support the weight of the projector and the mount itself. It is recommended to have this unit mounted by a professional.

Angle Adjustment

Image Adjustment

1. Keystone Adjustment

Adjust image corners to reduce image distortion.

Connecting Your Projector

HDMI

HDMI offers superior sound and picture quality, and is the easiest way to play media from a computer, Blu-Ray player, or other device with an HDMI output.

Requires an HDMI cable (not included) and a device with an HDMI output.

1. Using an HDMI cable, connect the HDMI 1 or 2 input on the projector to the HDMI output on your media player or computer.
2. Set the projector's Source to the connected HDMI input and use the controls on the connected device to select and play media.

Audio/Video Input

Requires a 3.5mm to RCA audio/video cable (included).

1. Connect the 3.5mm to RCA audio/video cable to the AV input on the unit.
2. Connect the 3.5mm to RCA audio/video cable to the RCA stereo audio outputs and composite video output on the media player.
3. Set the projector's Source to AV and use the controls on the connected player to select and play media.

Connect AV cable (included) to media player's AV outputs.

Audio Left Channel - White

Audio Right Channel - Red

Video - Yellow

MicroSD & USB Storage Devices

Supports MicroSD cards and USB drives up to 32GB. Supports AVI, MOV file formats.

1. Load a USB drive into the USB Port or Load a MicroSD card into the SD Card Slot.
2. Set the Source to Media Player, then use the Arrow buttons to select "C:Drive".
3. Use the Arrow buttons to select Music/Photo/Movie, then press the OK button to begin playing content from the connected storage device.

Computer Video (VGA)

Note: VGA connections do not support audio. You will need to use the computer's speakers to hear audio.

Requires a VGA cable (not included) and a desktop PC or laptop with a VGA output.

1. Using a VGA cable, connect the VGA input on the projector to the VGA output on your computer.
2. Set the projector's Source to VGA and use the controls on the computer to select and play media.

External Audio

The PJ300 has a built-in speaker. However, you can also connect external speakers for more sound options.

Bluetooth - Pairing to Wireless Speakers or a Sound Bar

NOTE: Bluetooth is OFF by default when the projector first powers ON. Bluetooth can be turned ON or OFF from the Sound Menu.

1. Enable Bluetooth on the external speakers, or sound bar (Bluetooth receiver) to which you wish to connect.
2. Power on the projector and make sure the projector's Bluetooth is ON (see note above). The projector will begin searching for nearby Bluetooth devices to connect to, and will automatically initiate pairing. Note: To eliminate confusion, disable Bluetooth on all receivers to which you do no wish to connect.
3. When successfully paired, the Bluetooth receiver should indicate it is connected, usually with a chime or tone. Check the user manual on your Bluetooth receiver for more information.
4. When successfully connected, the projector will display the Bluetooth receiver's (your speaker or sound bar) name on the top right portion of the Main Menu screen, and sound played from the projector will be heard through the Bluetooth receiver.

After initial pairing, the projector and the Bluetooth speakers will stay paired unless unpaired manually by the user, or erased due to a reset of either device. If this occurs or you find either unit is unable to connect, repeat the above steps.

Headphone Jack/Audio Out

Requires a 3.5 mm to RCA audio/video cable (included) or 3.5mm audio cable (not included).

Note: External speakers must have their own power supply.

1. Using a 3.5 mm to RCA stereo cable (included), connect the external powered speakers to the Headphone Jack on the projector.
2. The projector will automatically detect the connection and send audio signal to the speakers.

Customer Support

Contact Information

Website: www.gpx.com

Email Support: [e-mail]

Email Parts: [e-mail]

Phone Support: 1-888-999-4215

Warranty

For Warranty Information and the most up-to-date version of this User's Guide, go to: www.gpx.com

International Support

To download this User's Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com

Copyright © 2019 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.

Protect for Today Sustain for Tomorrow
