| Product Type | Dual Redundant Word-Clock Distribution Amplifier |
| Dimensions (W x H x D) | 19" (482.6mm) x 1U (44.45mm) x 145mm |
| Weight | 1.7 kg |
| Power Supply | 2 independent internal switch-mode supplies, universal 85-250V, 50/60Hz, dual redundant |
| Power Consumption | <6W |
| Inputs | 2 x auto-sensing Word Clock / AES3id BNC (75Ω), dual redundant (Sync 1 default, Sync 2 auxiliary) |
| Outputs | 16 x buffered BNC word clock outputs (33Ω impedance); 4 front panel, 12 rear panel |
| Display | Blue/white 16-character LCD, 3 modes: Frequency, ±PPM, ±% |
| Display Accuracy | 2ppm at all sample rates up to 768kHz; 0.1Hz increments @ 48kHz |
| Frequency Measurement Range | Up to >768kHz (actual frequency); nominal rates 32, 44.1, 48, 96, 192kHz for PPM and % modes |
| Indicators | Clock Present (W/CLK & AES3id for Sync1 & Sync2), Active Input (Sync1/Sync2), Active PSU (PSU1/PSU2) |
| Clock Input Impedance | 75Ω BNC |
| Clock Output Impedance | 33Ω BNC |
| Mounting | 19" rack mount, 1U |
| Fuse Rating | T500mA, 250V, 20mm x 5mm, time delay per IEC127-2 |
| Operating Voltage Range | 85-250V AC, 50/60Hz |
| Safety | Do not expose to rain/moisture; use supplied mains cables; refer servicing to qualified personnel |
| Maintenance | No user-serviceable parts; wipe with dry cloth; do not tamper with internal components |
| Spare Parts | Mains fuses (T500mA 20x5mm); power cables; contact Drawmer for replacement |
| Warranty | 1 year limited warranty from original purchase date |
Frequently Asked Questions - D-Clock-R DMS-6 DRAWMER
User questions about D-Clock-R DMS-6 DRAWMER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Audio Amplifier in PDF format for free! Find your manual D-Clock-R DMS-6 - DRAWMER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. D-Clock-R DMS-6 by DRAWMER.
USER MANUAL D-Clock-R DMS-6 DRAWMER
Safety Consideration....3
Radio Frequencies Statement....3
Chapter 1 - Introduction
Introduction 4
Features Overlay. 5
Installation 5
Power Connection 5
Chapter 2 - Control Description
Simple Connection Guide....6
Audio Connections 6
Control Description 7
Chapter 3 - DMS-6 General Information
If a fault develops 8
Contacting Drawmer 8
Specification....8
Block Diagram....9
COPYRIGHT
This manual is copyrighted 8 2012 by Drawmer Electronics Ltd. With all rights reserved. Under copyright laws, no part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means, mechanical, optical, electronic, recording, or otherwise, without the written permission of Drawmer Electronics Ltd.
ONE YEAR LIMITED WARRANTY
Drawmer Electronics Ltd., warrants the Drawmer DMS-6 D-Clock-R Dual Redundant Word-Clock Distribution Amplifier to conform substantially to the specifications of this manual for a period of one year from the original date of purchase when used in accordance with the specifications detailed in this manual. In the case of a valid warranty claim, your sole and exclusive remedy and Drawmer's entire liability under any theory of liability will be to, at Drawmer's discretion, repair or replace the product without charge, or, if not possible, to refund the purchase price to you. This warranty is not transferable. It applies only to the original purchaser of the product.
For warranty service please call your local Drawmer dealer. Alternatively you can call Drawmer Electronics Ltd. directly at +44 (0)1709 527574. Then ship the defective product, with transportation and insurance charges pre-paid, to Drawmer Electronics Ltd., Coleman Street, Parkgate, Rotherham, S62 6EL UK. Write the RA number in large letters in a prominent position on the shipping box. Enclose your name, address, telephone number, copy of the original sales invoice and a detailed description of the problem. Drawmer will not accept responsibility for loss or damage during transit.
This warranty is void if the product has been damaged by misuse, modification or unauthorised repair.
THIS WARRANTY IS IN LIEU OF ALL WARRANTIES, WHETHER ORAL OR WRITTEN, EXPRESSED, IMPLIED OR STATUTORY. DRAWMER MAKES NO OTHER WARRANTY EITHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY SHALL BE REPAIR OR REPLACEMENT AS SPECIFIED HEREIN.
IN NO EVENT WILL DRAWMER ELECTRONICS LTD. BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY DEFECT IN THE PRODUCT, INCLUDING LOST PROFITS, DAMAGE TO PROPERTY, AND, TO THE EXTENT PERMITTED BY LAW, DAMAGE FOR PERSONAL INJURY, EVEN IF DRAWMER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states and specific countries do not allow the exclusion of implied warranties or limitations on how long an implied warranty may last, so the above limitations may not apply to you. This warranty gives you specific legal rights. You may have additional rights that vary from state to state, and country to country.
In the interests of product development, Drawmer reserve the right to modify or improve specifications of this product at any time, without prior notice.
DRAWMER
D-Clock-R
DMS-6
DUAL REDUNDANT WORD CLOCK DISTRIBUTION AMPLIFIER
SAFETY CONSIDERATIONS
CAUTION - MAINS FUSE
TO REDUCE THE RISK OF FIRE REPLACE THE MAINS FUSES ONLY WITH A FUSE THAT CONFORMS TO IEC127-2. 250 VOLT WORKING, TIME DELAY TYPE AND BODY SIZE OF 20mm x 5mm. THE MAINS INPUT FUSE MUST BE RATED AT T500mA.
CAUTION - MAINS CABLES
DO NOT ATTEMPT TO CHANGE OR TAMPER WITH THE SUPPLIED MAINS CABLES.
CAUTION - SERVICING
DO NOT PERFORM ANY SERVICING. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
For the USA
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, then the user is encouraged to try to correct the interference by one or more of the following measures:
Re-orient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Unauthorised changes or modification to this system can void the users' authority to operate this equipment.
This equipment requires shielded interface cables in order to meet FCC class B limit.
For Canada
CLASS B
NOTICE
This digital apparatus does not exceed the Class B limits for radio noise emissions set out in the Radio Interference Regulations of the Canadian Department of Communications.
CLASSE B
AVIS
Expanding on the renowned Drawmer D-Clock in providing word clock measurement and distribution to digital audio environments the D-Clock-R has been designed with not only studio recording in mind but also the live and broadcast environment, where reliability and stability are absolutely imperative. Designed for fail-safe operation the D-Clock-R as been developed with dual redundancy for both the power supplies and also the word clock inputs, ensuring that the show will go on regardless of technical difficulties.
DUAL REDUNDANT INPUTS
Auto-Sensing, auto-switching inputs provides a fail-safe backup should one input fail.
The Drawmer D-CLock-R is an auto-sensing dual redundancy input, sixteen output word clock distributor with a 16 character blue LCD display providing a high accuracy reference measurement of the incoming sample rate. It uses a high stability TCXO (temperature compensated xtal oscillator) along with a microcontroller to measure the incoming sample rate to an accuracy of 2ppm and displays the information in three different formats, actual frequency (to one decimal place), nominal frequency +/- ppm error, or nominal frequency plus percentage of pull up or pull down.
The D-Clock-R has two BNC inputs, a default and auxiliary, which is automatically selected depending on the strength and quality of the signal, and capable of locking on to both word clock (upto 768KHz) and AES-3id (upto 192kHz), it has twelve BNC clock outputs situated on the rear panel with a further four BNC clock outputs on the front panel for quick patching to other digital devices.
- Dual Redundancy power supply via 2 x Universal voltage filtered mains power inlets for continuous operation & reliability.
- Dual Redundant input / 16 output Clock Measurement and Distribution Amplifier
- Inputs: 2 x Auto-Sensing WordClock / AES3id BNC dual redundant inputs (@75 Ohms impedance) - should one fail input is automatically switched to the alternative source.
- Outputs: 16 BNC clock outputs - 33 Ohms impedance - 4 on the front panel for convenience.
- 3 sample rate measurement LCD modes accurate to 2ppm.
TWO INDEPENDENT POWER SUPPLIES PROVIDE DUAL REDUNDANCY
Can fully operate on a single supply or both (with power load balancing), providing a fail-safe backup should one fail.

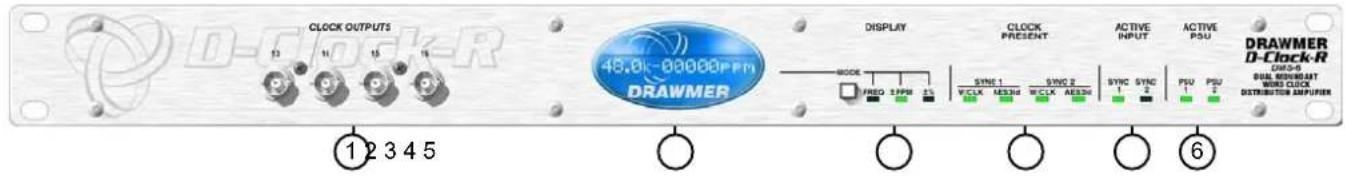

FEATURES OVERLAY
① 4x Front Panel Outputs: 4x BNC output connectors mounted on the front for ease of connectivity.
④ Clock Present LED's: Show the presence of Word Clock and AES3id for both SYNC1 and SYNC2 inputs ⑦
⑦ 2x Auto Sensing Word-Clock/AES3id Inputs:
2 Dual Redundant BNC Word Clock / AES3id inputs can be connected simultaneously to provide a clock and also a backup, should one fail. The input selection is carried out automatically by the DMS-6, with SYNC 1 being default and SYNC 2 auxiliary.
② Display: Blue/White liquid crystal display with three switchable modes of operation.
⑤ Active Input LED's: Two led's showing which of the two word clock inputs ⑦ has been automatically selected.
⑧ 12x BNC Clock Outputs: Buffered BNC wordclock outputs with 33 Ohms impedance.
③ Display Mode: Switch to control the mode of display ② between Frequency, PPM and %.
⑥ Active PSU LED's: Two led's showing which of the two PSU inputs ⑨ is operational.
⑨ Dual Redundant PSU Inputs: 2 x identical power supplies can be used either simultaneously or independently, should power to one fail.
INSTALLATION
The DMS-6 D-Clock-R is designed for standard 19" rack mounting and occupies 1U of rack space. Avoid mounting the unit directly above power amplifiers or power supplies that radiate significant amounts of heat.
If the unit is to be used in a mobile situation, it is strongly
recommended that the rear of the unit is supported in the carrying rack to avoid bending the front panel rack mounting 'ears'. Use fibre or plastic washers to prevent the front panel becoming marked by the mounting bolts.
Always connect the mains earth to the unit.

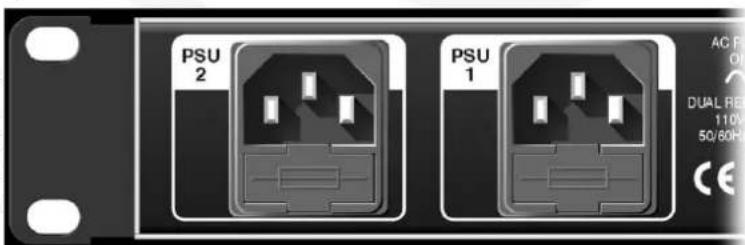

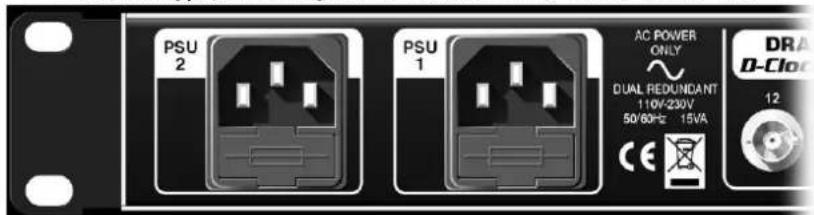

POWER CONNECTION
The DMS-6 D-Clock-R is fitted with two identical and independent power supply units, providing Dual Redundancy. Either can be used solely to supply power to the unit, but in situations where it is critical that power must be maintained mains power should be supplied to both units. With both power supplies receiving power the units will share the load, however, should either fail, the other is capable of fully driving the unit.
The unit will be supplied with two power cables suitable for domestic power outlets in your country. For your own safety it is important that you use these cables. The unit should always be connected to the mains supply earth using at least one of these cables.
Powered by dual universal switch mode power supplies, the DMS-6 D-Clock-R operates from mains voltages between 85 - 250v, eliminating the need to make any changes when touring and allowing the unit to remain fully operational during large fluctuations in the mains power supply.

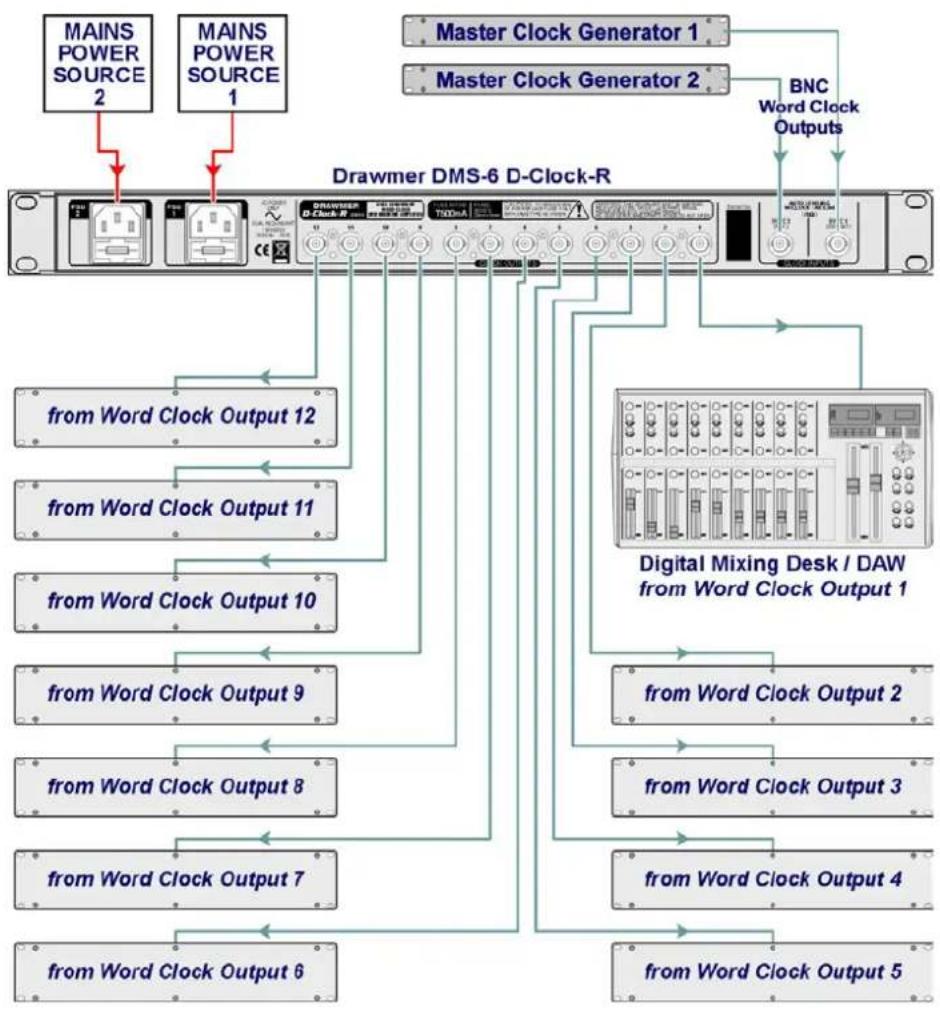

SIMPLE CONNECTION GUIDE
AUDIO CONNECTIONS
Word Clock / AES-3id
Use only good quality 750 digital or video coax (not aerial downlead) cable for the word-clock signals, terminated with the correct type of 75Ω BNC connectors - inferior cables will introduce jitter and will completely undermine the performance benefits which might be achieved by using a master clock in the first place!
AES3id calls for unbalanced 75 ohm connections, which make its hardware requirements the same as S/PDIF connections, though AES3id is implemented with BNC connections instead of RCA type connections. While AES3 & AES3id have different hardware transmission methods the data contained within the transmission is identical.
CONTROL DESCRIPTION

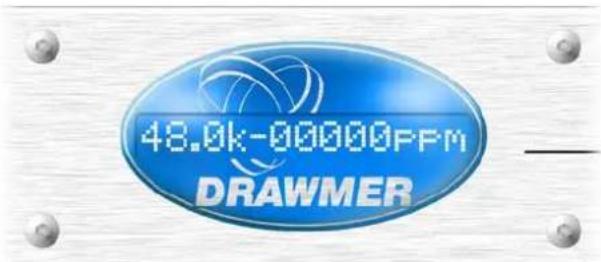

DISPLAY
A Blue/White LCD display with three switchable modes of operation: FREQ, ±PPM and ±%. The mode that is displayed during power down is saved for the next session. The display accuracy is 2ppm at all sample rates up to 768kHz, or 0.1Hz increments @ 48KHz sample rate
MODE
A switch controls the mode of display enabling you to read the incoming sample rate in your preferred manner. Pressing the switch toggles through the three modes of FREQ, ±PPM and ±%, with led indication.
FREQ
Displays the actual frequency to four decimal places upto >768kHz.
±PPM
Displays the nominal sample rate with +/- ppm (part per million) error indication for 32, 44.1, 48, 96 & 192KHz
±%
Displays the nominal sample rate with percentage pull up/down indication for 32, 44.1, 48, 96 & 192KHz
CLOCK PRESENT
The LED's indicate the status of the input sources for both Sync1 & Sync2 in word clock & AES-3id.
When a led is lit continuously a strong signal is being received by that input source and the D-Clock-R is "locked on". If a led flickers, the signal for that particular input source is weak or unstable - in this case the source of this weak signal should be located and improved.
ACTIVE INPUT
The two LED's indicate the input source being used - either Sync1 or Sync2. By default Sync1 would be used, however, should
this signal be weak or missing the D-Clock-R will automatically switch to using Sync2 as the clock input.
ACTIVE PSU
The two LED's indicate the power supply being used - either PSU1 or PSU2. With both LED's lit the power is shared
between the two PSU's. A LED unlit identifies that the PSU is not in use and the source of this problem should be found as soon as it is convenient. The DMS-6 can operate via both or either of the PSU's.
D-Clock-R DMS-6 GENERAL INFORMATION
IF A FAULT DEVELOPS
For warranty service please call Drawmer Electronics Ltd. or their nearest authorised service facility, giving full details of the difficulty.
A list of all main dealers can be found on the Drawmer webpages.
On receipt of this information, service or shipping instructions will be forwarded to you.
No equipment should be returned under the warranty without prior consent from Drawmer or their authorised representative.
For service claims under the warranty agreement a service Returns Authorisation (RA) number will be issued.
Write this RA number in large letters in a prominent position on the shipping box. Enclose your name, address, telephone number, copy of the original sales invoice and a detailed description of the problem.
Authorised returns should be prepaid and must be insured.
All Drawmer products are packaged in specially designed containers for protection. If the unit is to be returned, the original container must be used. If this container is not available, then the equipment should be packaged in substantial shockproof material, capable of withstanding the handling for the transit.
CONTACTING DRAWMER
Drawmer Electronics Ltd., will be pleased to answer all application questions to enhance your usage of this equipment. Please address correspondence to:
Drawmer (Technical Help line)
Coleman Street
Parkgate
Rotherham
S62 6EL
UK
Alternatively contact us by E-mail on :
tech@drawmer.com
Further information on all Drawmer dealers, Authorised service departments and other contact information can be obtained from our web pages on:
http://www.drawmer.com
SPECIFICATION
INPUTS
BNC wordclock input Dual 75ohm BNC
Sensitivity Auto selecting
MAIN OUTPUTS
BNC wordclock outputs 16 x simultaneous re-buffered BNC
wordclock outputs with 33 ohm
output impedance.
4 of which are on the front panel
for ease of connectivity.
DISPLAY
Blue/white LCD display with three switchable modes of operation with mode led indicators for each:
frequency actual frequency up to >768KHz
+/- ppm nominal sample rate with +/- ppm
error indication for 32,44.1,48,96
& 192KHz
+/-% Nominal sample rate with
percent pull up/down indication
for 32,44.1,48,96 & 192KHz
Accuracy 2ppm at all sample rates up to
768KHz
0.1 Hz increments @ 48KHz
sample rate
INDICATORS
Wordclock/AES-3id clock present led indicators
Active input led indicators
PSU active led indicators
GENERAL
Power Supply: 2 x Internal identical,
Universal Input, 10 W
for Dual Redundancy
Power Requirement <6W
Fuse Rating T500mA for All voltages.
CONFORMING TO:
IEC127-2
Fuse Type 20mm x 5mm, Class 3 Slow -
Blow. 250Volt working
Dimensions:
1u, 19" Rack Mount, Depth
145 mm
Weight
1.7 kg
BLOCK DIAGRAM
Ref:1v00 A 06-03-12
