Product Type	Freestanding Gas Cooker with Electric Oven
Brand	Artusi
Model	AFG915X/1
Dimensions (approx.)	60 cm width x 60 cm depth x 90 cm height
Weight (approx.)	60 kg
Energy Source	Gas (hob) + Electric (oven, 220-240 V~)
Oven Power (approx.)	2.5 kW
Number of Hob Burners	5 (including wok burner)
Oven Functions	Static, Fan, Turbo, Grill, Faster Grill, Double Grill & Fan, Pizza, Defrost, Oven Lamp
Oven Capacity	Not specified; estimated 70 L
Timer	Digital timer with cooking duration, end time, and full automatic programming
Safety Features	Flame failure device on hob burners, anti-tilting bracket, child safety warnings, oven door lock (not specified)
Cleaning	Enamel interior easy to clean; use mild soapy water; avoid abrasive cleaners; removable oven door for glass cleaning
Maintenance	Replace oven lamp (E14, 15-25 W, 300 °C resistant) by professional; periodic gas hose check
Spare Parts	Original spare parts recommended; contact authorized service agent
Reparability	Service by authorized technician only; user replaceable oven lamp (professional replacement required)
Installation	Must be installed by qualified technician; requires ventilation; anti-tilting kit included
Gas Type	Compatible with LPG (G30) and Natural Gas (G20); injector table provided for conversion
Warranty	12 or 24 months depending on product type; registration required

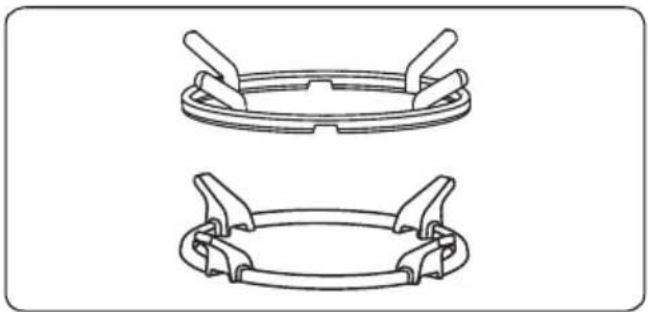

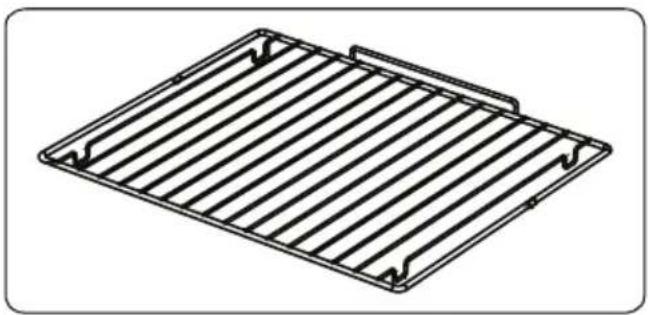

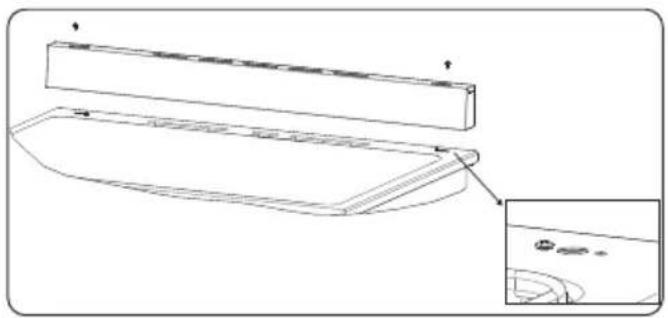

Accessories Included	Wire grid, shallow tray, splashback, wok adaptor, anti-tilting kit, adjustable feet

Frequently Asked Questions - AFG915X/1 Artusi

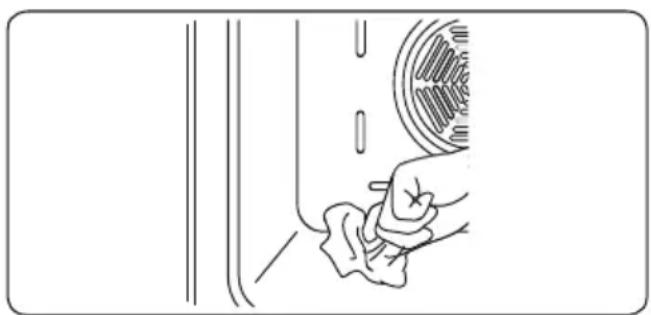

How do I clean the oven interior?

Clean the oven while it is still warm using a soft cloth soaked in soapy water. Rinse and dry. For stubborn stains, use a liquid cleaning material. Avoid abrasive cleaners or steam cleaners.

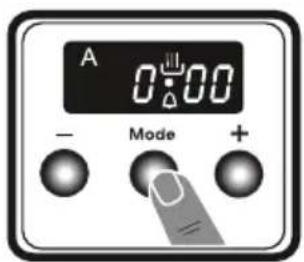

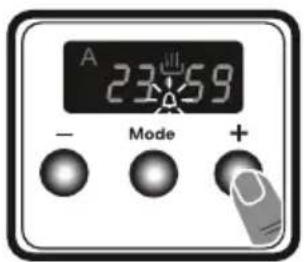

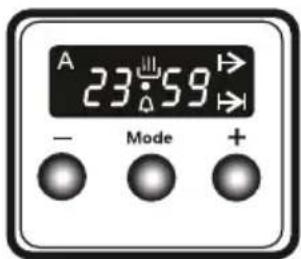

How do I use the digital timer for automatic cooking?

Set the cooking duration by pressing MODE until 'dur' appears, then set time with +/-. To set end time, press MODE until 'end' appears, then set desired finish time. The oven will start and stop automatically. Refer to manual for full automatic programming.

How do I replace the oven light bulb?

Switch off the appliance and let it cool. Remove the glass lens, then replace the bulb with a 230 V, 15-25 W, E14 type bulb rated for 300 °C. Replace the glass lens. This should be done by a qualified professional.

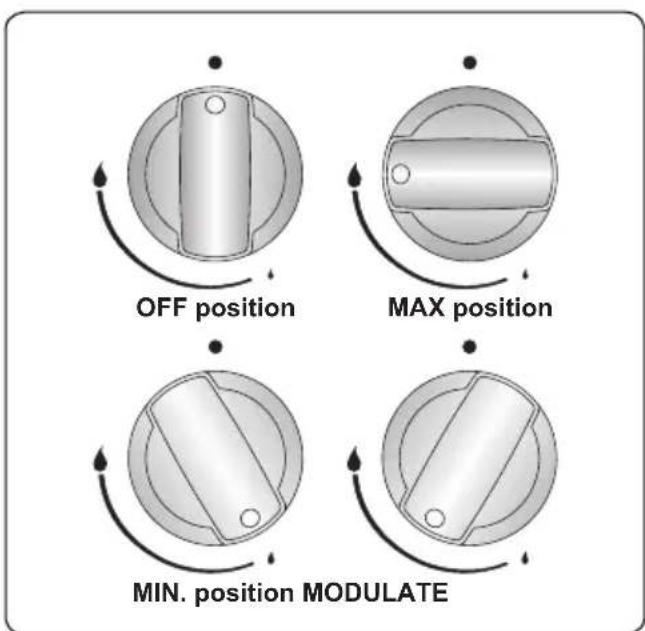

How do I ignite the gas burners?

Push and turn the corresponding knob counterclockwise to the maximum position. For manual ignition, hold a lit match near the burner. For electric ignition, the knob creates sparks. Keep pressing until a stable flame appears. If not lit after 15 seconds, stop and wait 1 minute.

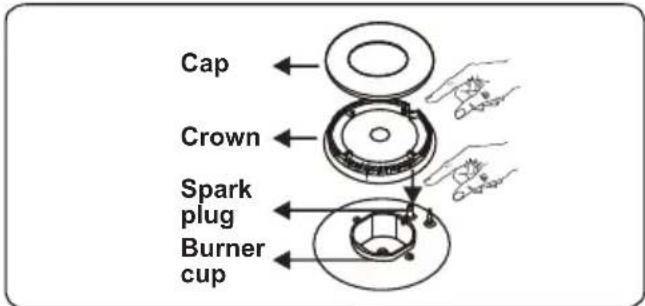

What should I do if the flame is orange or yellow?

Ensure burner caps and crowns are correctly assembled. If using natural gas, the composition may vary; wait a few hours. If problem persists, check for blockages or contact a technician.

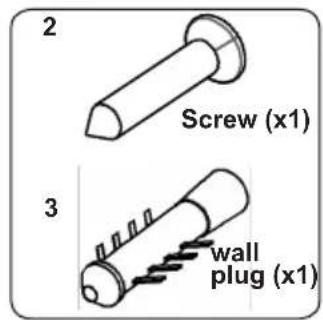

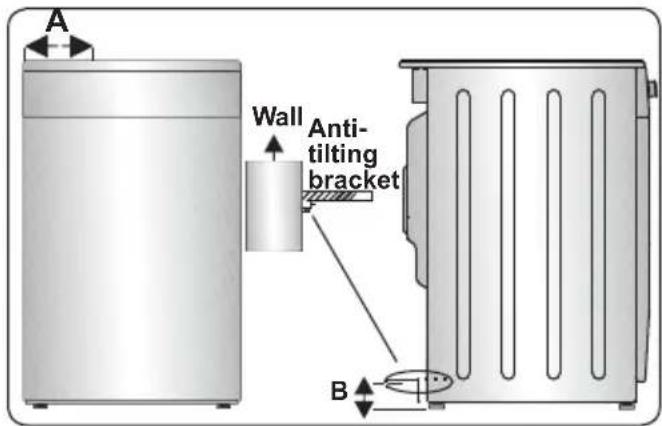

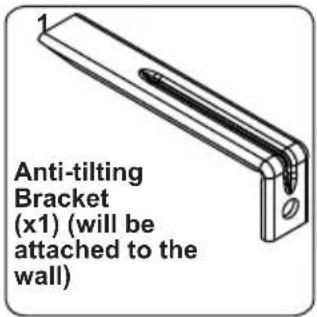

How do I install the anti-tilting bracket?

Attach the bracket to the wall using the provided screw and wall plug at the height specified in the manual (e.g., for 60x60x90 model, A=309.5 mm, B=112 mm). Slide the cooker into place so the bracket engages the slot on the rear.

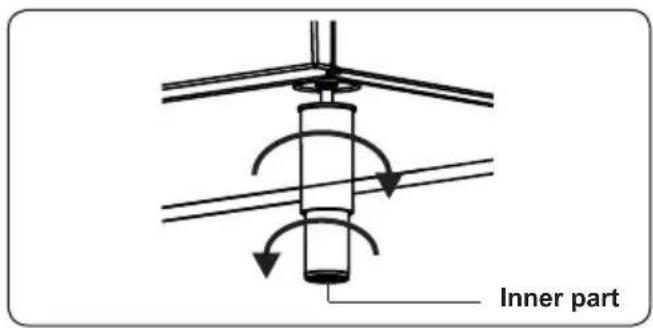

How do I adjust the feet to level the cooker?

Turn the inner part of the feet clockwise to decrease height or counterclockwise to increase height. Maximum adjustment is 50 mm. Use at least two people to lift the appliance.

Why is my oven not heating?

Check that the oven thermostat knob is set correctly and the oven door is closed. Ensure the appliance is connected to power. If still not heating, contact an authorized service technician.

Can I convert the cooker to use a different gas type?

Yes, by replacing the injectors and adjusting the minimum flame setting. Refer to the injector table in the manual. This should be done by a qualified technician.

How do I set the cooking time and end time?

Press MODE until 'dur' appears, then use +/- to set cooking duration. Then press MODE until 'end' appears, set the desired finish time. The oven will automatically start and stop to finish at that time.

USER MANUAL AFG915X/1 Artusi

EN Free Standing Cooker / User Manual

Line drawing of a simple kitchen oven with four handles and top panel (no text or symbols)

AFG915B/1

AFG915X/1

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
!	WARNING Serious injury or death risk
⚡	RISK OF ELECTRIC SHOCK Dangerous voltage risk
⚠️	FIRE Warning; Risk of fire / flammable materials
!	CAUTION Injury or property damage risk
💡	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS....4
1.1 General Safety Warnings ...... 4
1.2 Installation Warnings .... 7
1.3 During Use....8
1.4 During Cleaning and Maintenance 10
2.1 Instructions for the Installer 12
2.2 Installation of the Cooker.... 13
2.3 Gas Connection.... 13
2.4 Gas Conversion (if available) 14
2.5 Electrical Connection and Safety (if available) 15
2.6 Anti-tilting kit 16
2.7 Adjusting the feet 16

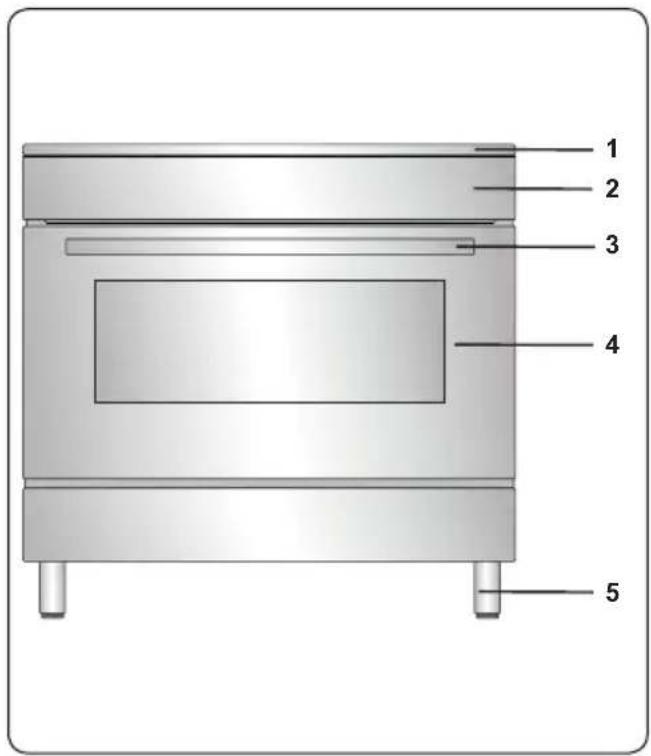

3.PRODUCT FEATURES 18
4.1 Use of gas burners 19
4.2 Oven Controls.... 20
4.3 Cooking Table 22
4.4 Use of the Digital Timer 22
4.5 Accessories 24
5.1 Cleaning 26
5.2 Maintenance.... 28
5.3 Maintenance....28
6.TROUBLESHOOTING&TRANSPORT 29
6.1 Troubleshooting 29
6.2 Transport 30
7.1 Injector Table 31
7.2 Energy Fiche 32

1. SAFETY INSTRUCTIONS

• Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary.
• This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

1.1 GENERAL SAFETY WARNINGS

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continually supervised.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish such a fire with water, but switch off the appliance and cover the flame with a lid or a fire blanket.

⚠️ CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously

WARNING: Danger of fire: Do not store items on the cooking surfaces.
⚠️ WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• For models which incorporate a hob lid, clean any spillages off the lid before use and allow the cooker to cool before closing the lid.
• Do not operate the appliance with an external timer or separate remote-control system.

⚠ WARNING: To prevent the appliance tipping, the stabilising brackets must be installed. (For detailed information refer to the anti-tilting kit set guide.)

Warning symbol depicting a person pulling a large object inside a triangle (no text or numbers)

Simple black-and-white icon of a building inside a circle, with arrows pointing to the structure (no text or symbols)

• During use the appliance will get hot. Care should be taken to avoid touching heating elements inside the oven.
• Handles may become hot after a short period during use.
• Do not use harsh abrasive cleaners or scourers to clean oven surfaces. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.
• Do not use steam cleaners to clean the appliance.

⚠️ WARNING: To avoid the possibility of electric shock, make sure that the appliance is switched off before replacing the lamp.

⚠️ CAUTION: Accessible parts may be hot when cooking or grilling. Keep young children away from the appliance when it is in use.

- Your appliance is produced in accordance with all

applicable local and international standards and regulations.

• Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.
• Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.

⚠️ CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use, in a commercial environment or for heating a room.

- Do not use the oven door handles to lift or move the appliance.

- This appliance is not connected to a ventilation device. It should be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.

- If the burner has not lit after 15 seconds, stop operating the device and open the compartment door. Wait at least 1 minute before attempting to ignite the burner again.

• These instructions are only valid if the correct country symbol appears on the appliance. If the symbol does not appear on the appliance, refer to

the technical instructions which describe how to modify the appliance to match the conditions of use of the country.

• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.
• Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
• Do not let children climb on the oven door or sit on it while it is open.
• If your appliance is provided with a cooking hotplate made of glass or glass ceramic:

CAUTION: "In case of hotplate glass breakage":

• immediately shut off all burners and any electrical heating element and isolate the appliance from the power supply
• do not touch the appliance surface
• do not use the appliance.

- Please keep children and animals away from this appliance.

1.2 INSTALLATION WARNINGS

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by incorrect placement and installation by unauthorised people.
• When the appliance is unpacked, make sure that it is has not been damaged during transportation.

In the case of a defect do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers, styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.

• Protect your appliance from the atmosphere. Do not expose it to sun, rain, snow, dust or excessive humidity.
• Materials around the appliance (i.e. cabinets) must be able to withstand a minimum temperature of 100°C.
• The appliance must not be installed behind a decorative door, in order to avoid overheating.

1.3 DURING USE

• When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.
  • Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.
• Do not put flammable or combustible materials in or near the appliance when it is operating.
  • Always use oven gloves to remove and replace food in the oven.
• Under no circumstances should the oven be lined with aluminium foil as overheating may occur.
• Do not place dishes or baking trays directly onto the base of the oven whilst cooking. The base becomes

very hot and damage may be caused to the product.

Do not leave the cooker unattended when cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the cooker off and cover the pan with its lid or a fire blanket.

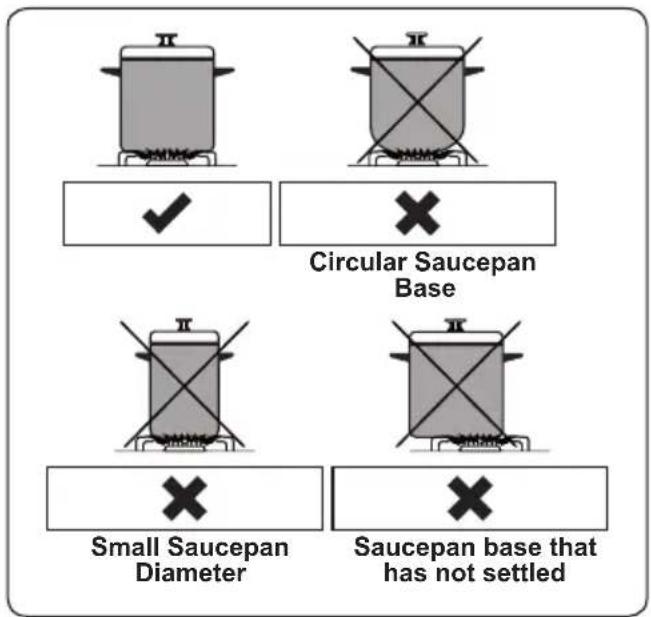

• Always position pans over the centre of the cooking zone, and turn the handles to a safe position so they cannot be knocked.
• If the product will not be used for a long period of time, turn the main control switch off. Turn the gas valve off when gas appliances are not in use.
• Make sure the appliance control knobs are always in the “0” (stop) position when the appliance is not in use.
• The trays incline when pulled out. Take care not to spill or drop hot food when removing it from the oven.

⚠️ CAUTION: The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use, keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).

• Prolonged intensive use of the appliance may call for additional ventilation, such as opening a window, or for more effective ventilation, for example by increasing the level of mechanical ventilation where present.
• While using the grill burner, keep the oven door open and always use the grill deflector shield supplied with the product. Never use the grill burner

with the oven door closed.

⚠️ CAUTION: Glass lids may shatter when heated. Turn off all the burners and allow the hob surface to cool before closing the lid.

Symbol of a crossed saw cutting through a slope, enclosed in a circle (no text or numbers present)

• Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door.
• Do not place heavy or flammable items (e.g. nylon, plastic bags, paper, cloth, etc.) into the drawer. This includes cookware with plastic accessories (e.g. handles).

⚠️ CAUTION: The inside surface of the storage compartment may get hot when the appliance is in use. Avoid touching the inside surface.

- Do not hang towels, dishcloths or clothes from the appliance or its handles.

1.4 DURING CLEANING AND MAINTENANCE

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents when needed.

CE Declaration of conformity

CE We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.

The operating instructions apply to several models. You may notice differences between these instructions and your model.

2. INSTALLATION AND PREPARATION FOR USE

WARNING : This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency and/or nature of the gas and gas pressure) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.).

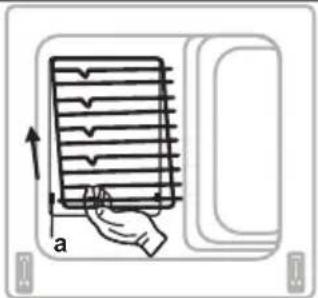

• If the product contains removable shelf guides (wire racks) and the user manual includes recipes like yoghurt, the wire racks shall be removed and the oven operated in the defined cooking mode. Removal of the Wire Shelf information is included in the CLEANING AND MAINTENANCE section.

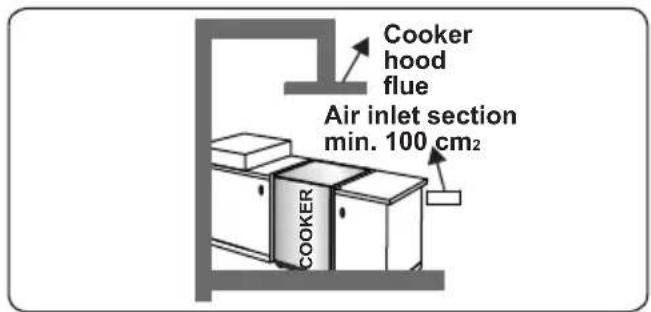

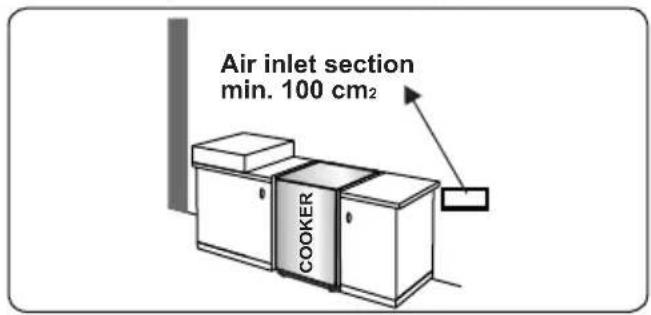

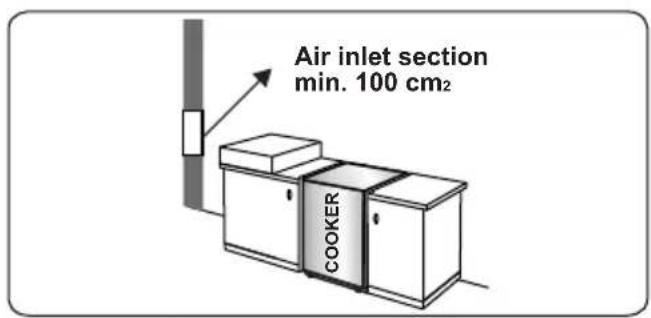

2.1 INSTRUCTIONS FOR THE INSTALLER Ventilation requirements

• For rooms with a volume of less than 5 m ^3 , permanent ventilation of 100 cm ^2 free area is required.
• For rooms with a volume of between 5 m 3 and 10 m 3 , permanent ventilation of 50 cm _2 free area will be required, unless the room has a door which opens directly to outside air in which case no permanent ventilation is required.
• For rooms with a volume greater than 10 m ^3 , no permanent ventilation is required.

Important: Regardless of room size, all ms containing the appliance must have ct access to outside air via an openable dow or equivalent.

Emptying of burned gases from the environment

Gas appliances expel burned gas waste to the outside air, either directly or via a cooker hood with a chimney. If it is not possible to install a cooker hood, install a fan on the window or wall that has access to fresh air. The fan must have the capacity to change the volume of air in the kitchen a minimum of 4-5 times per hour.

General instructions

• After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage, do not use it and contact an authorised service person or qualified technician immediately.

• Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.
- The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100°C.
- The appliance should not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer.
- The appliance can be placed close to other furniture on condition that, in the area where the appliance is set up, the furniture's height does not exceed the height of the cooktop.

2.2 INSTALLATION OF THE COOKER

• If the kitchen furniture is higher than the cooktop, the kitchen furniture must be

at least 10 cm away from the sides of appliance for air circulation.

• There should be a minimum 2cm blank space around the appliance for air circulation.

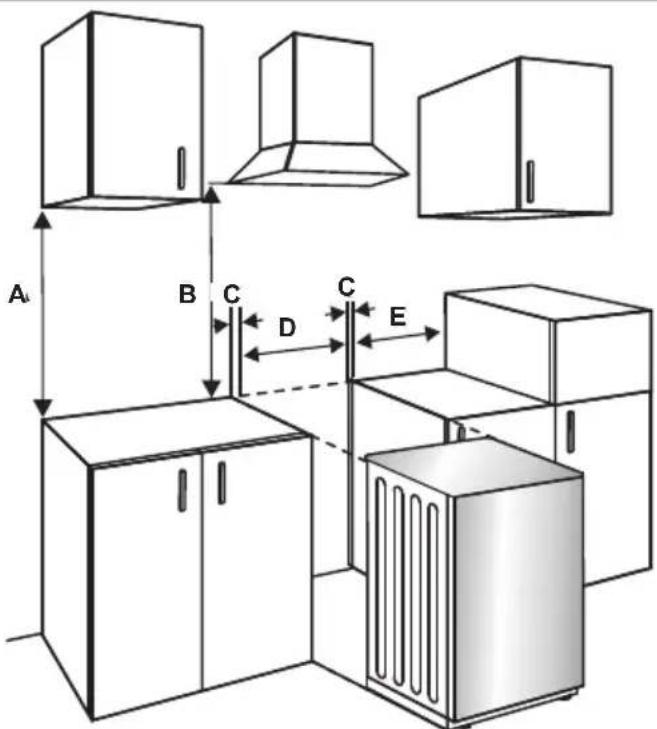

• If a cooker hood or cupboard is to be installed above the appliance, the safety distance between cooktop and any cupboard/cooker hood should be as shown below.

A (mm) Cupboard 420
B (mm) Cooker Hood 650/700
C (mm) 20
D (mm) Product Width
E (mm) 100

2.3 GAS CONNECTION

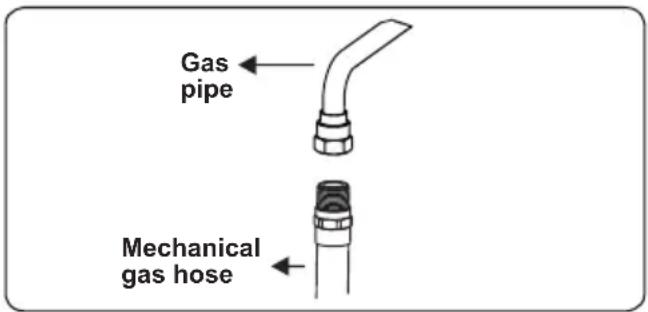

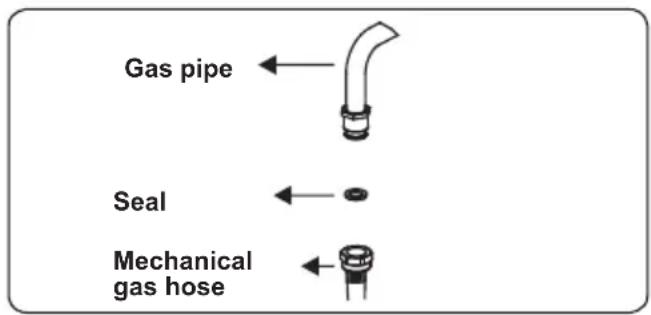

Assembly of gas supply and leakage check

Connect the appliance in accordance with applicable local and international standards and regulations. First, check what type of gas is installed on the cooker. This information is available on a sticker on the back of the cooker. You can find the information related to appropriate gas types and appropriate gas injectors in the technical data table. Check that the

feeding gas pressure matches the values on the technical data table, to be able to get the most efficient use and to ensure the minimum gas consumption. If the pressure of used gas is different than the values stated or is not stable in your area, it may be necessary to assemble an available pressure regulator on the gas inlet. You should contact an authorised service centre to make these adjustments.

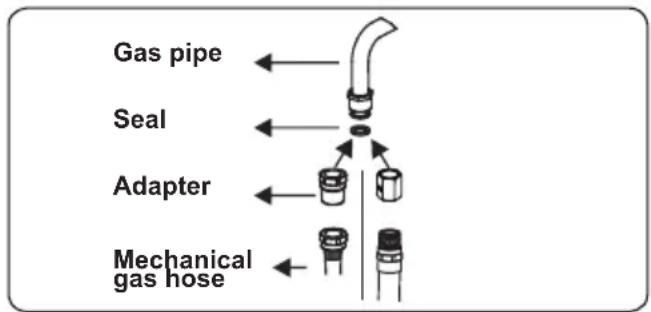

Points that must be checked during flexible hose assembly:

• If the gas connection is made by a flexible hose fixed onto the gas inlet of the hob, it must be fixed on by a pipe collar.
• Connect your appliance with a short and durable hose that is as close as possible to the gas source.
• The permitted maximum length of the hose is 1.5 m.

- The device should be connected in line with the relevant local gas standards.

- The hose must be kept clear of areas that may heat up to temperatures of more than 90°C.

- The hose must not be cracked, torn, bent or folded.

- Keep the hose clear of sharp corners and objects that could move.

- Before you assemble the connection, you must make sure the hose is not damaged. Use bubbly water or leakage fluids to perform the check. Do not use a naked flame to check for gas leakage.

- All metal items that are used during gas connection must be free from rust. Check the expiry date of any components used for connection.

Points that must be checked during fixed gas connection assembly

The method used to assemble a fixed gas connection (gas connection made by threads, e.g. a nut) varies according to the country you are in. The most common parts for your country will be supplied with your appliance. Any other parts required can be supplied as spare parts.

During connection, always keep the nut on the gas manifold fixed while rotating the counter-part. Use appropriately-sized spanners for a safe connection. For surfaces between different components always use the seals provided in the gas conversion kit.

The seals used during connection should also be approved to be used in gas connections. Do not use plumbing seals for gas connections.

Remember that this appliance is ready to be connected to the gas supply in the country for which it has been produced. The main country of destination is marked on the rear cover of the appliance. If you need to use it in another country, any of the connections in the figure below may be required. In such a case, contact local authorities to learn the correct gas connection.

The Cooker must be installed and maintained by a suitably qualified gas registered technician in accordance with current safety legislation.

WARNING: Do not use a naked flame to check for gas leaks.

2.4 GAS CONVERSION (IF AVAILABLE)

Your appliance is designed to be operated with LPG/NG gas. The gas burners can be adapted to different types of gas, by replacing the corresponding injectors and adjusting the minimum flame length suitable

to the gas in use. For this purpose, the following steps should be performed.

Changing injectors

Hob burners

• Cut off the main gas supply and unplug the appliance from the mains electrical supply.
• Remove the burner caps and the adapters.
• Use a 7 mm spanner to unscrew the injectors.
• Replace the injector with the ones from the gas conversion kit, with the correct diameters for the type of gas that is going to be used, according to the gas injector table.

Adjusting the minimum flame position:

First of all, make sure that the appliance is unplugged from the mains electrical supply and that the gas feed is open. The minimum flame position is adjusted with a flat screw located on the valve. For valves with a flame failure safety device, the screw is located on the side of the valve spindle as shown in the figures. For valves without a flame failure safety device, the screw is located inside the valve spindle as shown in the figure. To make adjusting the flame position easier, we recommend that you remove the control panel (and the micro switch if your model has one) during the alteration. The bypass screw must be loosened for conversion from LPG to NG. For conversion from NG to LPG, the bypass screw must be tightened.

Valve with flame failure device

Valve with flame failure device

Determining the minimum flame position

To determine the minimum position, ignite the burners and leave them on in the minimum position. Remove the knobs because the screws are accessible only when the knobs are removed. With the help of a small screwdriver, fasten or loosen the bypass screw by around 90 degrees. When the flame has a length of at least 4mm, the gas is well distributed. Make sure that the flame does not die out when passing from the maximum position to the minimum position. Create an artificial wind with your hand towards the flame to see if the flames are stable.

Changing the gas inlet

For some countries, the gas inlet type can be different for NG/LPG gases. In this case, remove the current connection components and nuts (if any) and connect the new gas supply accordingly. In all conditions, all components used in gas connections should be approved by local and/or international authorities. In all gas connections, refer to the “Assembly of gas supply and leakage check” clause explained above.

2.5 ELECTRICAL CONNECTION AND SAFETY (IF AVAILABLE)

WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

WARNING: THE APPLIANCE MUST BE EARTHED.

- Before connecting the appliance to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance's power rating (also indicated on the identification plate).

• During installation, please ensure that isolated cables are used. An incorrect connection could damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified personnel.
• Do not use adaptors, multiple sockets and/or extension leads.
• The supply cord should be kept away from hot parts of the appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.
• If the appliance is not connected to the mains with a plug, a all-pole disconnector (with at least 3 mm contact spacing) must be used in order to meet the safety regulations.
• The appliance is designed for a power supply of 220-240 V\~. If your supply is different, contact the authorized service personnel or qualified electrician.
• The power cable (H05VV-F) must be of sufficient length to be connected to the appliance.
• The fused switch must be easily accessible once the appliance has been installed.
• Ensure all connections are adequately tightened.
  • Fix the supply cable in the cable clamp and then close the cover.
• The terminal box connection is placed on the terminal box.

2.6 ANTI-TILTING KIT

The document bag contains an anti-tilting kit. Loosely attach the anti-tilting bracket (1) to the wall using the screw (2) and wall plug (3), following the measurements shown in the figure and table below. Adjust the height of the anti-tilting bracket so that it lines up with the slot on the cooker and tighten the screw. Push the appliance towards the wall making sure that the anti-tilting bracket is inserted into the slot on the rear of the appliance.

Product Dimensions (Width X Depth X Height) (Cm)	A (mm)	B (mm)
60x60x90 (Double Oven) 297.5 52
50x60x90 (Double Oven) 247.5 52
90x60x85 430 107
60x60x90 309.5 112
60x60x85 309.5 64
50x60x90 247.5 112
50x60x85 247.5 64
50x50x90 247.5 112
50x50x85 247.5 64

2.7 ADJUSTING THE FEET

The appliance is supplied with 4 adjustable feet. Attach the feet to the bottom panel support by rotating clockwise as shown in the figure.

For safe operation, it is important that your appliance is correctly balanced. Make sure the appliance is level prior to cooking. To increase the height of the appliance, turn the inner part of the feet anti-clockwise. To decrease the height of the appliance, turn the inner part of the feet clockwise.

It is possible to raise the height of the appliance up to 50 mm by adjusting the feet. The appliance is heavy and we recommend that a minimum of 2 people lift it. Never drag the appliance.

3. PRODUCT FEATURES

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below.

List of Components

1. Cooktop
2. Control Panel
3. Oven Door Handle
4. Oven Door
5. Adjustable Feet

Control Panel

1. Button (Ignition)
2. Timer
3. Oven Function Control Knob
4. Oven Thermostat Knob
5. Hob Control Knob

4. USE OF PRODUCT

Ignition of the burners

The position symbol above each control knob indicates the burner that the knob controls.

Manual Ignition of the Gas Burners

If your appliance is not equipped with an ignition aid, or in case there is a failure in the electric network, follow the procedures listed below.

For Hob Burners: Push in the knob of the burner you wish to ignite and keep it pressed while turning it anti-clockwise until the knob is in the 'maximum' position. Continue pressing the knob and hold a lit match, taper or other manual aid to the upper circumference of the burner. Move the ignition source away from the burner as soon as you see a stable flame.

Electrical ignition by control knob

Push in the knob of the burner you wish to ignite and keep it pressed while turning it anticlockwise until the knob is in the 90 degrees position. The microswitch under the knob will create sparks through the spark plug for as long as the control knob is pressed. Press the knob until you see a stable flame on the burner

Flame safety device

Hob burners

Hobs equipped with a flame failure device provide security in case of an accidentally extinguished flame. If such a case occurs, the device will block the burners gas lines and will avoid any accumulation of unburned gas. Wait 90 seconds before re-igniting an extinguished gas burner.Hob Controls

Hob burner

The knob has 3 positions: off (0), maximum (big flame symbol) and minimum (small flame symbol). Ignite the burner with the knob in the 'maximum' position; you can then adjust the flame length between the 'maximum' and 'minimum' positions. Do not operate the burners when the knob is between the 'maximum' and 'off' positions.

After ignition, visually check the flames. If you see a yellow tip, lifted or unstable flame, switch the gas flow off, then check the assembly of burner caps and crowns once they have cooled. Make sure there is no liquid in the burner caps. If the burner flames go out accidentally, switch the burners off, ventilate the kitchen with fresh air and wait at least 90 seconds before attempting re-ignition.

To switch the hob burners off, turn the hob burner knob clockwise to the '0' position or so that the marker on the hob burner knob points upwards.

Your hob has burners of different diameters. You will find that the most economical way of using gas is to choose the correct size gas burner for your cooking pan size and to bring the flame to the 'minimum' position once boiling point is reached. We recommend that you always cover your cooking pan to avoid heat loss.

To obtain maximum performance from the main burners, we suggest you use pots with the following flat bottom diameters. Using pots smaller than the minimum dimensions shown below will cause energy loss.

Rapid / Wok Burner 22-26 cm
Semi-rapid Burner 14-22 cm
Auxiliary Burner 12-18 cm

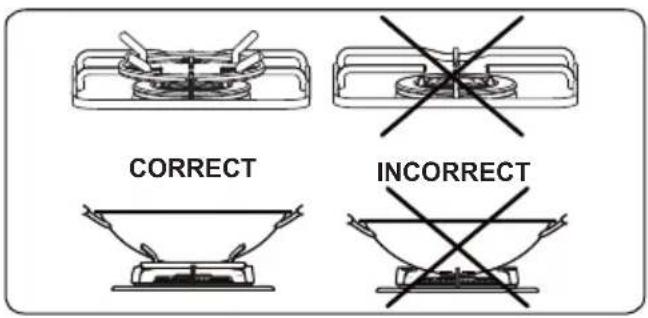

Make sure that the tips of the flames do not spread out from the outer circumference of the pan, as this may harm plastic accessories, such as handles.

Switch the main gas control valve off when the burners are not in use for prolonged periods of time.

WARNING:

• Only use flat-bottomed pans with thick bases.
  • Make sure the bottom of the pan is dry before placing it on the burner.
• The temperature of accessible parts may become high while the appliance is operating. It is imperative that children and animals are kept well away from the burners during and after cooking.
  • After use, the hob remains very hot for a prolonged period of time. Do not touch it and do not place any object on top of it.
• Never place knives, forks, spoons and lids on the hob as they will get hot and could cause serious burns.
• Do not allow pan handles or any other cooking utensils to project over the edge of the cooker top.

4.2 OVEN CONTROLS

Oven function control knob

Turn the knob to the corresponding symbol of the desired cooking function. For the details of different functions see 'Oven Functions'.

Oven thermostat knob

After selecting a cooking function, turn this knob to set the desired temperature. The oven thermostat light will illuminate whenever the thermostat is in operation to heat up the oven or maintain the temperature.

Oven Functions

* The functions of your oven may be different due to the model of your product.

Simple dark gray square with a white sun icon in the center (no text or symbols)

Oven Lamp: Only the oven light will switch on. It will remain on for the duration of the cooking function.

Abstract white line drawing of a stylized flower or droplet on a dark background (no text or symbols)

Defrost Function: The oven's warning lights will switch on and the fan will start to operate. To use the defrost function, place your frozen food in the oven

on a shelf in the third slot from the bottom. It is recommended that you place an oven tray under the defrosting food to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it.

Pure electrical circuit symbol for a three-blade propeller (no text or labels)

Turbo Function: The oven's thermostat and warning lights will switch on, and the ring heating element and fan will start operating. The turbo function

evenly disperses the heat in the oven so all food on all racks will cook evenly. It is recommended that you preheat the oven for about 10 minutes.

Solid dark square with two horizontal white lines on top and bottom (no text or symbols)

Static Cooking Function: The oven's thermostat and warning lights will switch on, and the lower and upper heating elements will start operating. The

static cooking function emits heat, ensuring even cooking of food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best to use only one shelf at a time in this function.

Abstract geometric symbol with a four-blade propeller inside a dark square (no text or symbols)

Fan Function: The oven's thermostat and warning lights will switch on, and the upper and lower heating elements and fan will start operating.

This function is good for baking pastry.

Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food. It is recommended that you preheat the oven for about 10 minutes.

Simple icon of a propeller inside a square frame with a horizontal line at the bottom (no text or symbols)

Pizza Function: The oven's thermostat and warning lights will switch on, and the ring, lower heating elements and fan will start operating. This function

is ideal for baking food, such as pizza, evenly in a short time. While the fan evenly disperses the heat of the oven, the lower heating element ensures baking of the food.

Simple line drawing of a zigzag line above a dark square (no text or symbols)

Grilling Function: The oven's thermostat and warning lights will switch on, and the grill heating element will start operating. This function is used for

grilling and toasting foods on the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

Simple icon of a computer monitor with a wavy line above it, no text or symbols present.

Faster Grilling Function: The oven's thermostat and warning lights will switch on, and the grill and upper heating elements will start

operating. This function is used for faster grilling and for grilling food with a larger surface area, such as meat. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190°C.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Double Grill and Fan Function: The oven's thermostat and warning lights will switch on, and the grill upper heating elements and fan will

start operating. This function is used for faster grilling of thicker food and for grilling of food with a larger surface area. Both the upper heating elements and grill will be energised along with the fan to ensure even cooking. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

4.3 COOKING TABLE

Function	Dishes
Static	Puff Pastry 1 -	2 170-190	35-45
	Cake 1 - 2	170-190	30-40
	Cookie 1 - 2	170-190	30-40
	Stew 2 175	200	40-50
	Chicken 1 - 2	200	45-60
Fan	Puff Pastry 1 -	2 170-190	25-35
	Cake 1 - 2	3 150-170	25-35
	Cookie 1 - 2	3 150-170	25-35
	Stew 2 175	200	40-50
	Chicken 1 - 2	200	45-60
Turbo	Puff Pastry 1 -	2 - 3	170-190	35-45
	Cake 1 - 2	3 150-170	30-40
	Cookie 1 - 2	3 150-170	25-35
	Stew 2 175	200	40-50
Grilling	Grilled meatballs	4 200	10-15
	Chicken * 190	50-60
	Chop 3 - 4	200	15-25
	Beefsteak 4	200	15-25

*If available cook with roast chicken skewer.

4.4 USE OF THE DIGITAL TIMER

Function Description
A	Auto cooking
	Manual cooking
→	Cooking time
→	Cooking end time
•	Dot
Ω	Minute minder
Mode	Mode function
-	Decrease timer
+	Increase timer
23 59	Timer display

Time adjustment

The time must be set before you start using the oven. Following the power connection, the symbol "A" and "000" will flash on the display.

1. Press the "+" and "-" keys simultaneously. Symbol will appear, and the dot in the middle of the screen will start to flash.

1. Adjust the time while the dot is flashing using the "+" and "-" keys.

1. After a few seconds, the dot will stop flashing and will remain illuminated.

Audible warning time adjustment

The audible warning time can be set to any time between 0:00 and 23:59 hours. The audible warning time is for warning purposes only. The oven will not be activated with this function.

1. Press "MODE". The symbol will begin to flash and "000" will be displayed.

1. Select the desired time period using the "+" and "-" keys while 🔒 is flashing.

1. The symbol will remain illuminated, the time will be saved and the warning will be set.

When the timer reaches zero, an audible warning will sound and the symbol will flash on the display. Press any key to stop the audible warning and the symbol will disappear.

Semi-automatic time adjustment (cooking period)

This function helps you to cook for a fixed period of time. A time range between 0 and 10 hours can be set. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature using the control knobs.

1. Press "MODE" until you see "dur" and symbol on the display screen. The symbol "A" will flash.

1. Select the desired cooking time period using the "+" and "-" keys.

1. The current time will reappear on the screen, and the symbols "A", and will remain illuminated.

When the timer reaches zero, the oven will switch off and an audible warning will sound. The symbols "A" and will flash. Turn both control knobs to the "0" position and press any key on the timer to stop the warning sound. The symbols will disappear and the timer will switch back to manual function.

Semi-automatic time adjustment (finishing time)

This function automatically starts the oven so that cooking will finish at a set time. You can set an end time of up to 10 hours after the current time of day. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature using the control knobs.

1. Press "MODE" until you see "end" and symbol on the display screen. "A" and the current time of day will flash.

1. Use the “+” and “-” buttons to set the desired finishing time.

1. The current time will reappear on the screen, the symbols "A", and will remain illuminated.

When the timer reaches zero, the oven will switch off and an audible warning will sound. The symbol "A" and ➤will flash. Turn both control knobs to the "0" position and press any key on the timer to stop the sound. The symbol will disappear and the timer will switch back to manual function.

Full-automatic programming

This function is used to start cooking after a certain period of time and for a certain duration. A time of up to 10 hours after the current time of day can be set. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature using the control knobs.

1. Press "MODE" until you see "dur" and symbol on the screen. The symbol "A" will flash.

1. Select the desired cooking time period using the "+" and "-" keys.

1. The current time will reappear on the screen, the symbols "A", and remain illuminated.

1. Press "MODE" until you see "end" and ➡ symbol on the screen. The time and the symbols "A" and ➡ will flash.

1. Select the desired finishing time using the "+" and "-" keys.

1. Add the cooking period to the current time of day. You can set a time of up to 23 hours and 59 minutes after this.

1. The current time will reappear on the screen, and the symbols "A", and will remain illuminated.

The operating time will be calculated and the oven will automatically start so that cooking will finish at the set finishing time. When the timer reaches zero, the oven will switch off, an audible warning will sound and the symbols "A" and will flash. Turn both control knobs to the "0" position and press any key to stop the sound. The symbol will disappear and the timer will switch back to manual function.

Sound Adjustment

To adjust the volume of the audible warning sound, while the current time of day is displayed, press and hold the “-” button for 1-2 seconds until an audible signal sounds. After this, each time the “-” button is pressed, a different signal will sound. There are three different types of signal sounds. Select the desired sound and do not press any other buttons. After a short time, the selected sound will be saved.

4.5 ACCESSORIES

The Wire Grid for Deep Trays

Make sure the wire grid is correctly placed

within a deep tray. It is recommended to use this accessory for grilling steaks, meatballs and similar food.

Line drawing of a rectangular metal tray with horizontal slats and corner brackets (no text or symbols)

The Shallow Tray

The shallow tray is best used for baking pastries.

Put the tray into any rack and push it to the end to make sure it is correctly placed.

Technical line drawing of a square frame with circular cutouts and mounting holes (no text or symbols)

The Splashback

The splashback is attached to the cooktop with two screws.

Technical line drawing of a mechanical component with an inset showing a detail view (no text or symbols)

The Wire Grid

The wire grid is best used for grilling or for processing food in oven-friendly containers.

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

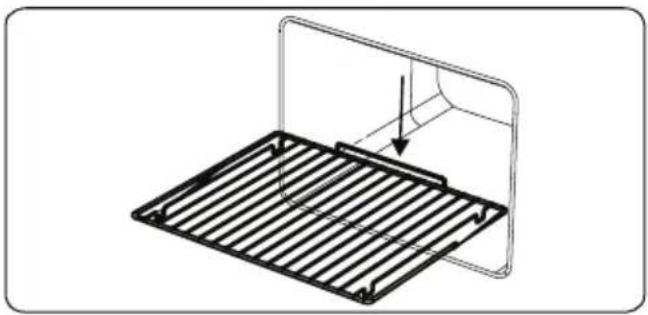

WARNING Place the q

Place the grid to any corresponding rack in the oven cavity correctly and push it to the end.

Technical line drawing of a metal rack with a curved cover and an arrow indicating rotation (no text or symbols)

The Wok Adaptor

The wok adaptor should be placed on the pan support of the wok burner.

Technical line drawing of two mechanical components with flanges and brackets (no text or symbols)

WARNING: Using wok pans without the wok adaptor may cause the burner to malfunction.

Do not use the wok adaptor with flat-bottomed saucepans. Do not use convex-bottomed saucepans without the wok adaptor.

5. CLEANING AND MAINTENANCE

5.1 CLEANING

WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out.

General Instructions

• Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance.
• Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces.

Do not use cleaners that contain particles, as they may scratch the glass, enamelled and/or painted parts ur appliance.

- Should any liquids overflow, clean them immediately to avoid parts becoming damaged.

Do not use steam cleaners for cleaning any part of the appliance.

Cleaning the Inside of the Oven

• The inside of enamelled ovens are best cleaned while the oven is warm.
• Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven over again with a wet cloth and then dry it.
• You may need to use a liquid cleaning material occasionally to completely clean the oven.

Line drawing of a hand cleaning a car window with a tire (no text or symbols)

Cleaning the Gas Hob

• Clean the gas hob on a regular basis.
  • Take off the pan supports, caps and crowns of the hob burners.
• Wipe the hob surface with a soft cloth soaked in soapy water. Then, wipe the hob surface over again with a wet cloth and dry it.
• Wash and rinse the hob-burner caps. Do not leave them wet. Dry them immediately with a dry cloth.
• Make sure you re-assemble all parts correctly after cleaning.
• The surfaces of the pan supports may become scratched over time due to use. This is not a production fault.

Do not use a metal sponge for cleaning any part of the hob.

Make sure no water gets into the burners as this may block the injectors.

Cleaning the Hotplate Heater (if available)

• Clean the hotplate heater on a regular basis.
• Wipe the hotplate with a soft cloth soaked in only water. Then, run the hotplate for a short time to dry it completely.

Cleaning the Glass Parts

• Clean the glass parts of your appliance on a regular basis.
• Use a glass cleaner to clean the inside and outside of the glass parts. Then, rinse and dry them thoroughly with a dry cloth.

Cleaning the Enamelled Parts

• Clean the enamelled parts of your appliance on a regular basis.
• Wipe the enamelled parts with a soft cloth soaked in soapy water. Then, wipe them over again with a wet cloth and dry them.

Do not clean the enamelled parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the enamel for a long time.

Cleaning the Stainless Steel Parts (if available)

• Clean the stainless steel parts of your appliance on a regular basis.
• Wipe the stainless steel parts with a soft cloth soaked in only water. Then, dry them thoroughly with a dry cloth.

Do not clean the stainless steel parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for a long time.

Cleaning Painted Surfaces (if available)

- Spots of tomato, tomato paste, ketchup, lemon, oil derivatives, milk, sugary foods, sugary drinks and coffee should be cleaned with a cloth dipped in warm water immediately. If these stains are not cleaned and allowed to dry on the surfaces they are on, they should NOT be rubbed with hard objects (pointed objects, steel and plastic scouring wires, surface-damaging dish sponge) or cleaning agents containing high levels of alcohol, stain removers, degreasers, surface abrasive chemicals. Otherwise, corrosion may occur on the powder painted surfaces, and stains may occur. The manufacturer will not be held responsible for any damage caused by the use of inappropriate cleaning products or methods.

Removal of the Oven Door

Before cleaning the oven door glass, you must remove the oven door, as shown below.

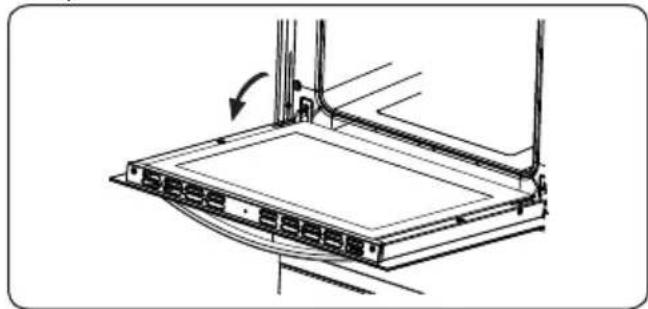

1. Open the oven door.

Technical line drawing of a mechanical assembly with no visible text or symbols

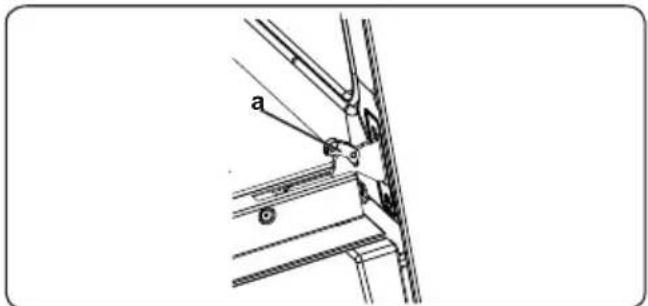

1. Open the locking catch (a) (with the aid of a screwdriver) up to the end position.

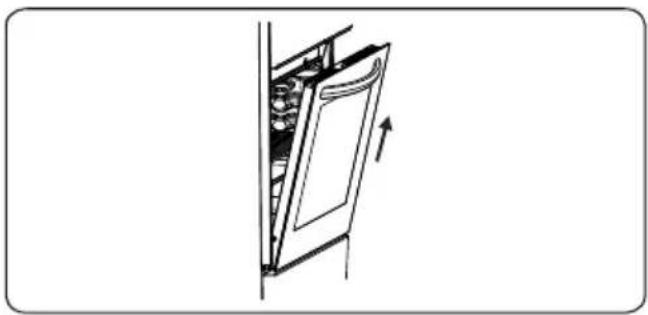

1. Close the door until it almost reaches the fully closed position and remove the door by pulling it towards you.

Diagram of a door opening with an arrow indicating direction (no text or symbols)

Removal of the Wire Shelf

To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up.

5.2 MAINTENANCE

WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified physician only.

Changing the Oven Lamp

WARNING: Switch off the appliance and allow it to cool before cleaning your appliance.

• Remove the glass lens, then remove the bulb.
• Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed (230 V, 15-25 Watt, Type E14).
• Replace the glass lens, and your oven is ready for use.
• The product contains a light source of energy efficiency class G.
  • Light source can not be replaced by end user. After sales service is needed.
• The included light source is not intended for use in other applications.

Replaceable light source by a professional

The lamp is designed specifically for use in household cooking appliances. It is not suitable for household room ination.

5.3 MAINTENANCE

WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified nician only.

Other Controls

• Periodically check expiration date of the gas connection pipe.
• Periodically check the gas connection pipe. If a defect is found, contact an authorised service provider to have it changed.
- If a defect is found while operating the control knobs of the appliance, contact an authorised service provider.

6. TROUBLESHOOTING&TRANSPORT

6.1 TROUBLESHOOTING

If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician.

Problem Possible Cause Solution
Hob burners do not work.	The burners may be in the 'off position. Supply gas pressure may not be correct. Power (if the appliance has an electric connection) is switched off.	Check the position of the control knob. Check the gas supply and gas pressure. Check whether there is power supplied. Also check that other kitchen appliances are working.
Hob burners do not light.	Burner cap and crown are not assembled correctly. Supply gas pressure may not be correct. LPG cylinder (if applicable) may be depleted. Power (if the appliance has an electric connection) is switched off.	Ensure the burner parts have been placed correctly. Check the gas supply and gas pressure. LPG cylinder may need replacing. Check whether there is power supplied. Also check that other kitchen appliances are working.
Flame colour is orange/yellow.	Burner cap and crown are not assembled correctly. Different gas compositions.	Ensure the burner parts have been placed correctly. Due to the design of the burner, the flame can appear to be orange/yellow in certain areas of the burner. If you operate the appliance with natural gas, city natural gas may have different compositions. Do not operate the appliance for a couple of hours.
Burner is not igniting or only partially lighting.	Burner parts may not be clean or dry.	Ensure that parts of the appliance are dry and clean.
Burner sounds noisy.	-	This is normal. The noise may reduce as they heat up.
Noise -		It is normal for some metal parts on the cooker to produce noise when in use.
The hob or cooking zones cannot be switched on.	There is no power supply.	Check the household fuse for the appliance. Check whether there is a power cut by trying other electronic appliances.
The hob produces an odour during the first cooking sessions.	New appliance.	Heat a saucepan full of water on each cooking zone for 30 minutes.
Oven does not turn on.	Power is turned off.	Check whether there is power supplied. Also check that other kitchen appliances are working.
No heat or oven does not warm up.	Oven temperature control is incorrectly set. Oven door has been left open.	Check the oven temperature control knob is set correctly.
Cooking is uneven within the oven.	Oven shelves are incorrectly positioned.	Check that the recommended temperatures and shelf positions are being used.Do not frequently open the door unless you are cooking things that need to be turned. If you open the door often, the interior temperature will be lower and this may affect the results of your cooking.
Oven light (if available) does not operate.	Lamp has failed.Electrical supply is disconnected or switched off.	Replace lamp according to the instructions.Make sure the electrical supply is switched on at the wall socket outlet.
The timer buttons cannot be pressed properly.	There is foreign matter caught between the timer buttons.Touch model: there is moisture on the control panel.The key lock function is set.	Remove the foreign matter and try again.Remove the moisture and try again.Check whether the key lock function is set.
The oven fan (if available) is noisy.	Oven shelves are vibrating.	Check that the oven is level.Check that the shelves and any bake ware are not vibrating or in contact with the oven back panel.

6.2 TRANSPORT

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport.

If you do not have the original packaging, prepare a carriage box so that the appliance, especially the external surfaces of the product, is protected against external threats.

7. TECHNICAL SPECIFICATIONS

7.1 INJECTOR TABLE

G30 28-30 mbar 10,7 kW 778 g/h AU Class:1 G20 10	mbar	G30 28-30 mbar
LARGE BURNER
DIA. of INJECTOR (1/100mm) 115 85
NOMINAL RATING (kW) 2,9 2,9
CONSUMPTION 276,2 l/h 210,9 g/h
MEDIUM BURNER
DIA. of INJECTOR (1/100mm) 97 65
NOMINAL RATING (kW) 1,75 1,65
CONSUMPTION 166,7 l/h 120 g/h
MEDIUM BURNER
DIA. of INJECTOR (1/100mm) 97 65
NOMINAL RATING (kW) 1,75 1,65
CONSUMPTION 166,7 l/h 120 g/h
SMALL BURNER
DIA. of INJECTOR (1/100mm) 72 50
NOMINAL RATING (kW)	1	0,9
CONSUMPTION	95,2 l/h	65,4 g/h
WOK BURNER
DIA. of INJECTOR (1/100mm)	130 96
NOMINAL RATING (kW) 3,6 3,6
CONSUMPTION 342,8 l/h 261,7 g/h

7.2 ENERGY FICHE7.2 ENERGY FICHE

Brand		ARTUSI
Model		AFG915X/1
Type of Hob Gas
Number of Cooking Zones 5
Heating Technology-1 Gas
Size-1 cm Auxiliary
Energy Efficiency-1 % NA
Heating Technology-2 Gas
Size-2 Semi-Rapid
Energy Efficiency-2 % 59,0
Heating Technology-3 Gas
Size-3 cm Semi-Rapid
Energy Efficiency-3 % 59,0
Heating Technology-4 Gas
Size-4 Rapid
Energy Efficiency-4 % 57,0
Heating Technology-5 % Gas
Size-5		Wok
Energy Efficiency-5 % 56,0
Energy Efficiency of Hob	% 57,8
This hob complies with EN 30-2-1
Energy Saving Tips
Hob- Use cookwares having flat base.- Use cookwares with proper size .- Use cookwares with lid.- Minimize the amount of liquid or fat.- When liquid starts boiling , reduce the setting.

Worldwide Appliances Pty Limited

A.B.N. 45868077422

Distributed by Eurolinx pty Ltd

Office:

48-50 Moore Street, Leichhardt N.S.W 2040 Post:

Locked Bag 3000, Annandale, N.S.W 2038 P: 1300 694 583

WARRANTY REGISTRATION

Your ongoing satisfaction with your artusi product is important to us. We ask that you complete the enclosed Warranty Registration Card and return it to us so that we have a record of the artusi product purchased by you.

PRIVACY

Worldwide Appliances respects your privacy and is committed to handling your personal information in accordance with the National Privacy Principles and the Privacy Act 1988 (Cth). A copy of the Worldwide Appliances Privacy Policy is available at www.artusi.com.au. Worldwide Appliances will not disclose any personal information set out in the Warranty Registration Card (“Personal Information”) without your consent unless required by:

1. law;

2. any Worldwide Appliances related company;

3. any service provider which provide services to artusi or assist artusi in providing services (including repair and warranty services) to customers. Our purpose in collecting the Personal Information is

to keep a record of the artusi product purchased by you, in order to provide a better warranty service to you in the unlikely event that there is a problem with your artusi product. Worldwide Appliances may contact you at any one or more of the address, email address or telephone numbers set out in the Warranty Registration Card. Please contact artusi on 1300 694 583 should you not wish to be contacted by Worldwide Appliances.

WARRANTY

1. Warranty

Worldwide Appliances warrants that each artusi product will remain, for a period of either 12 months or 24 months of warranty. All Warranties are valid from the original date of purchase, And warranty claims must be accompanied by the proof of purchase.

24 months warranty products:

All Built-in Appliances – Limited to Ovens, Gas, Induction and Electric Cooktops, and All Rangehoods. Freestanding Cookers - Gas and Electric Models (900mm Width).

Dishwashers - Freestanding, Fully Integrated, Semi Integrated and built-in. All Wine coolers. All Dryers. Freestanding Cookers - Gas and Electric Models in 50cm, 54cm and 60cm Widths

Portable Appliances* – Benchtop Models and Portable Gas Models

2. What is not Covered by the Warranty.

The Warranty does not apply if an artusi product is defective by a factor other than a defect arising in the manufacture of the artusi product, including but not limited to:

(a) damage through misuse (including failure to maintain, service or use with proper care), neglect, accident or ordinary wear and tear (including deterioration of parts and accessories and glass breakage);

(b) use for purpose for which the artusi product was not sold or designed;

(c) use or installation which is not in accordance with any specified instructions for use or installation;

(d) use or operation after a defect has occurred or been discovered;

(e) damage through freight, transportation or handling in transit (other than when Worldwide Appliances is responsible);

(f) damage through exposure to chemicals, dusts, residues, excessive voltage, heat, atmospheric conditions or other forces or environmental factors outside the control or Worldwide Appliances;

(g) repair, modification or tampering by the purchaser or any person other than Worldwide Appliances, an employee of Worldwide Appliances or an authorised artusi service contractor ^* ;

(h) use of parts, components or accessories which have not been supplied or specifically approved by artusi.

(i) damage to surface coatings caused by cleaning or maintenance using products not recommended in the artusi product handbook provided to the purchaser upon purchase of the artusi product;

(j) damage to the base of an electric oven due to items having been placed on the base of the oven cavity or covering the base, such as aluminium foil (this impedes the transfer of heat from the element to the oven cavity and can result in irreparable damage); or

(k) damages, dents or other cosmetic imperfections not affecting the performance of the artusi in respect of an artusi product purchased as a “factory second” or from display

The Warranty does not extend to light globes used in artusi products.

3. Domestic Use

Each artusi product is made for domestic use. This Warranty may not extend to artusi products used for commercial purposes.

Continued over...

4. Time for Claim under the Warranty

You must make any claim under this Warranty within twenty eight (28) days after the occurrence of an event which gives rise to a claim pursuant to the Warranty, by booking a service call on the telephone number below.

5. Proof of Purchase

Customers must retain proof of purchase in order to be eligible to make a warranty claim in respect of an artusi product.

6. Claiming under the Warranty

Customers will bear the cost of claiming under this Warranty unless Worldwide Appliances determines the expenses are reasonable, in which case the customer must claim those expenses by providing written evidence of each expense to Worldwide Appliances at the address on the Warranty Registration Card.

7. Statutory Rights

(a) These terms and conditions do not affect your statutory rights.
(b) The limitations on the Warranty set out in this document do not exclude or limit the application of the consumer guarantees set out in the Act or any other equivalent or corresponding legislation in the relevant jurisdiction where to do so would:
(i) contravene the law of the relevant jurisdiction; or
(ii) cause any part of the Warranty to be void.
(c) Worldwide Appliances excludes indirect or consequential loss of any kind (including, without limitation, loss of use of the artusi product) and (other than expressly provided for in these terms and conditions) subject to all terms, conditions and warranties implied by custom, the general law, the Act or other statute.
(d) The liability of Worldwide Appliances to you

for a breach of any express or non-excludable implied term, condition or warranty is limited at the option of Worldwide Appliances to:

(i) replacing or repairing the defective part of the artusi product;
(ii) paying the cost of replacing or repairing the defective part of the artusi product;
(iii) replacing the artusi product; or
(iv) paying the cost of replacing the artusi product.
(e) Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.

You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

8. Defects

Any part of an artusi product deemed to be defective and replaced by Worldwide Appliances is the property of Worldwide Appliances.

Worldwide Appliances reserves the right to inspect and test artusi products in order to determine the extent of any defect and the validity of a claim under the Warranty.

All warranty service calls must be booked via the customer care department. The team can be contacted on 1 300 85 64 11 option 1 or [e-mail]

01082016

DON'T FORGET TO REGISTER YOUR WARRANTY ONLINE NOW AT www.eurolinx.support

TO REGISTER YOUR WARRANTY

52202020
