BO6725E02ABG - Oven GORENJE - Free user manual and instructions

Product Type	Built-in oven
Brand	Gorenje
Model	BO6725E02ABG
Dimensions (H x W x D)	595 x 595 x 530 mm
Aperture Dimensions (H x W x D)	600 x 560 x 560 mm (min)
Weight	Approx. 30.0 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Rating	Max. 2.9 kW
Usable Capacity	73 liters
Oven Functions	Natural convection, bottom heater, top and bottom heaters, fan with bottom/top, combined grill, fan and combined grill, defrost, separate oven lighting, fast heat-up
Temperature Range	50°C to 250°C
Timer / Minute Minder	120-minute mechanical timer
Oven Light Bulb	230 V, 25 W, G9, high temperature (300°C)
Cleaning Method	Steam cleaning; gentle washing with warm water and mild detergent
Removable Inner Door Glass	Yes
Safety Features	Child safety (supervision required), automatic shut-off? (minute minder), cool-touch door? (not specified)
Installation Requirements	Grounded socket, dedicated circuit recommended, heat-resistant cabinet materials
Accessories Included	Deep tray, oven shelf
Energy Saving Tips	Use residual heat, avoid preheating for long times, keep door closed
Warranty	Refer to manufacturer's warranty terms

Frequently Asked Questions - BO6725E02ABG GORENJE

How do I set the minute minder on my Gorenje BO6725E02ABG oven?

Turn the minute minder knob fully clockwise until it stops, then turn it back anticlockwise to the desired time (up to 120 minutes). When the time expires, a brief audible signal sounds and the oven stops.

Can I use the oven if the inner glass is removed?

No, the inner glass must be properly installed before operation. It provides thermal insulation and safety. To remove it for cleaning, press and hold the grid sides to pull it out, then lift the glass stopper.

What type of light bulb does the oven use and how do I replace it?

Use a high-temperature bulb (300°C) with 230 V, 25 W, G9 base. Switch off the oven and disconnect power, unscrew the lamp cover, replace the bulb, and reinstall the cover.

How do I use the grill function on this oven?

Set the function knob to the grill position (>>>). Set the temperature to desired level. Preheat for about 5 minutes with the door closed. Place food on the grill grid or tray, insert it, close the door, and bake.

What is the maximum weight the oven door can support?

Do not place pans weighing over 15 kg on the opened oven door. The hob can support up to 25 kg.

How can I clean my oven quickly?

Use the steam cleaning function: pour 250 ml water into a bowl on the lowest shelf, set temperature to 50°C and function to bottom heater, heat for 30 minutes, then wipe the interior with a cloth and mild detergent.

Why does the oven not heat up?

Check the household fuse box for a blown fuse. If the fuse is fine, ensure the function and temperature knobs are set correctly. If problems persist, contact an authorized service center.

Can I use aluminum foil on the oven floor?

Never cover the oven floor with aluminum foil or place pots and pans directly on the floor. This can cause heat concentration and damage.

What should I do if the oven makes unusual noises?

Some sounds are normal (e.g., fan, heating elements expanding). If you hear persistent abnormal noises, switch off the oven and contact service.

How do I remove the oven door for cleaning?

Open the door fully, lift the hinge latches, then gently close the door until it clicks into clamping position. Hold the door with both hands and pull up to remove the hinge bolts. After cleaning, align hinges and push back, then lower latches.

USER MANUAL BO6725E02ABG GORENJE

MODELS:

BO6725E02ABG

WARNING!

DEEP BAKING TRAY

TOP

WIRING DIAGRAM

220-240 V~

Oven lighting lamp

MODEL:

BO6725E02ABG

WARNING!

WIRE RACK

MODEL:

BO6725E02ABG

WARNING

The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Children should be supervised to ensure that they do not play with the appliance. During use, the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven, for cooking ranges and ovens. WARNING: Accessible parts may become hot during use. Young children should be kept away. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. If during the test of Clause 11, the temperature rise at the centre of the internal bottom surface of a storage drawer exceeds that specified for handles held for short periods in normal use, the instruction shall state that these surfaces can get hot. A steam cleaner is not to be used. Ensure that the appliance is switched off before replacing the lamp to avoid possibility of electric shock. The appliance must not be installed behind a decorative door in order to avoid overheating. Disconnection of the appliance after installation, by accessible plug or a switch in the fixed wiring. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance should be connected to a circuit which incorporates an isolating switch which can be accessible by the user after installation providing full disconnection from the power supply. The disconnection may be achieved by incorporating a switch in the fixed wiring in accordance with the wiring rules. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

WARNING

• If using alcohol in your recipes, please be aware that high temperatures can cause the alcohol to vaporize and even to ignite on the hot heating elements.
• When residual heat is used to keep food warm, the high level of humidity and condensation can cause corrosion in the oven. The control panel, worktop or furniture unit may also be damaged. Do not switch the oven off completely while food is inside it, but select the lowest possible temperature for the oven function you are using. This will ensure the fan will automatically continue to run.
• Cover any food which is left in the oven to be kept hot, as moisture in the food could lead to corrosion damage in the oven. This also prevents the food from drying out. ● Never cover the floor of the oven with aluminum foil, or place oven dishes, pans, saucepans or trays directly onto the floor of the oven. ● This would cause concentrations of heat which could cause damage to the floor of the oven.

The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy.

Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality.

Before using the appliance, please read the instruction manual carefully.

By following these instructions carefully, you will be able to avoid any problems in using the appliance.

It is important to keep the instruction manual and store it in a safe place so that it can be consulted at any time.

It is necessary to follow the instructions in the manual carefully in order to avoid possible accidents.

Caution!

Do not use the oven until you have read this instruction manual. The

oven is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

TABLE OF CONTENTS

Safety instructions.... 3

How to save energy....5

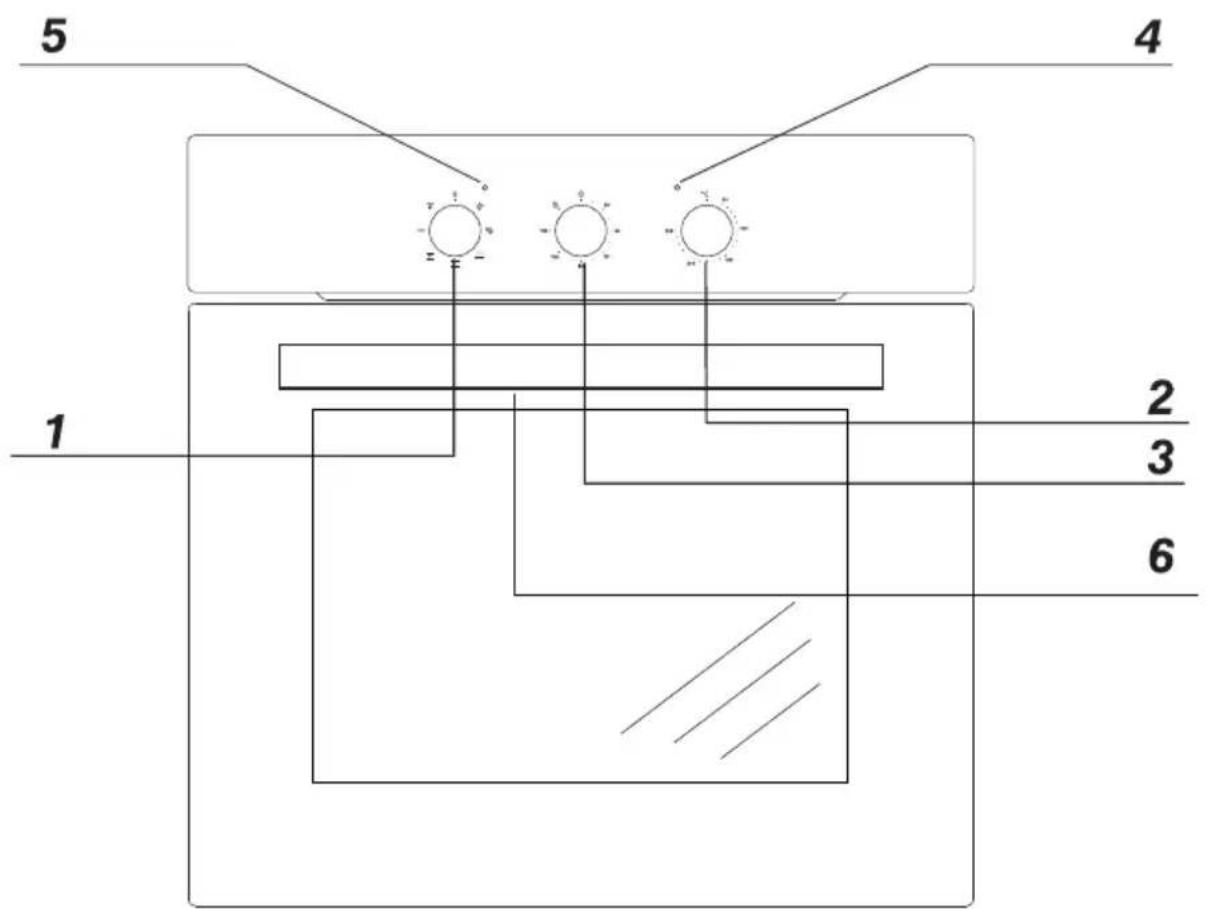

Description of the appliance....7

Specifications of the appliance....8

Installation 9

Operation 11

Cleaning and maintenance....15

Operation in case of emergency....18

Technical data....19

SAFETY INSTRUCTIONS

NOTE:

Ensure there is a grounded socket nearby (behind the unit).

A dedicated power circuit is recommended for the unit but not required. Additional electrical appliances on the same circuit may exceed the current (amperage) rating for that circuit. If after the installation of your unit the circuit breaker trips or the fuse fails on a repeated basis, then a dedicated circuit will likely be required.

! The appliance must be installed only by a qualified person in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property.

The manufacturer declines all responsibility for improper

installation which may harm persons and animals and damage property.

Important: The power supply to the appliance must be cut off before any adjustments or maintenance work is done on it.

WARNING:

When using this product, basic precautions should always be taken, including the following:

Your built-in oven is a classified electrical appliance. As with any electrical appliance and particularly with electric heaters, basic precautions must be followed in order to reduce the risk of fire, burns, electrical shocks and/or other serious injuries or death.

! The appliance becomes hot during operation. Take care not to touch the hot parts inside the oven.

! This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

While in operation, direct contact with the cooker may cause burns!

! Ensure that small items of household equipment, including connection leads, do not touch the hot oven or the hob as the insulation material of this equipment is usually not resistant to high temperatures.

! Do not leave the cooker unattended when frying. Oils and fats may catch fire due to overheating or boiling over.

Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25 kg on the hob.

! Do not use harsh cleaning agents or sharp metal objects to clean the door as they can scratch the surface, which could then result in the glass cracking.

! Do not use the cooker in the event of a technical fault. Any faults must be fixed by an appropriately qualified and authorised person.

! In the event of any incident caused by a technical fault, disconnect the power and report the fault to the service centre to be repaired.

! The rules and provisions contained in this instruction manual should be strictly observed. Do not allow anybody who is not familiar with the contents of this instruction manual to operate the cooker.

! The cooker should not be cleaned using steam cleaning equipment.

The panels adjacent to the oven must be made of resistant material. Cabinets with a veneer exterior must be assembled with glues that can withstand temperatures of up to 100°C. Keep combustible materials, such as curtains, drapes, furniture, pillows, clothing, linens, bedding, paper, etc., at least 3 feet (0.9 meters) from the front, sides, and rear of the heater. Do not use this unit in areas where gasoline, paint, or other flammable liquids or their associated vapors may be present. To reduce the risk of fire, do not place or install this unit in areas where ventilation or circulation ducts may become blocked. The unit's power cord must be connected to a properly grounded and protected, 220-240V electrical outlet. Always use ground fault protection where required by the electrical code. To reduce the risk of fire, avoid running the power cord under rugs, carpets, etc. Keep the power cord away from high traffic areas where it may pose a tripping hazard. Avoid the use of an extension cord, which may overheat and cause a fire. When transporting or storing the unit, keep it in a dry location, free from dust, excessive vibration, or other factors that may damage the unit. Do not operate any oven with a damaged cord or plug, or after the heater malfunctions, has been dropped, or damaged in any manner. Return the oven to an authorized service center to be examined. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. Use this oven only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Never add cold water to food on a hot universal tray or baking tray, or directly onto food in a hot oven. The steam created could cause serious burns or scalding, and the sudden change in temperature can damage the enamel. Do not lift the oven by the handle.

Using energy in a responsible way not only saves money but also helps the environment. So let's save energy! And this is how you can do it:

Do not uncover the pan too often (a watched pot never boils!).

Do not open the oven door unnecessarily often.

Switch off the oven in good time and make use of residual heat.

For long cooking times, switch off heating zones 5 to 10 minutes before finishing cooking. This saves up to 20% on energy.

Only use the oven when cooking larger dishes.

Meat of up to 1 kg can be prepared more economically in a pan on the cooker hob.

Make use of residual heat from the oven.

If the cooking time is greater than 40 minutes, switch off the oven 10 minutes before the end time.

Important! When using the timer, set appropriately shorter cooking times according to the dish being prepared.

! Make sure the oven door is properly closed. Heat can leak through spillages on the door seals. Clean up any spillages immediately.

! Do not install the cooker in the direct vicinity of refrigerators/freezers.

Otherwise energy consumption increases unnecessarily.

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept out of reach of children.

Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling.

Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you are making a significant contribution to the protection of our environment.

Information on appropriate disposal centres for used devices can be provided by your local authority.

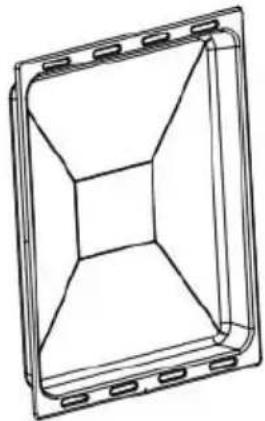

Deep tray

Oven shelf

! The kitchen area should be dry and aired and equipped with efficient ventilation. When installing the oven, easy access to all control elements should be ensured. ! This is a built-in oven, and its back wall and one side wall can be placed next to a high piece of furniture or a wall. Coating or veneer used on fitted furniture must be applied with a heat-resistant adhesive (100°C). This prevents surface deformation or detachment of the coating. ! Make an opening with the dimensions given in the diagram for the oven to be fitted. ! Make sure the mains plug is disconnected and then connect the oven to the mains supply. ! Insert the oven completely into the opening without allowing the four screws in the places shown in the diagram to fall out.

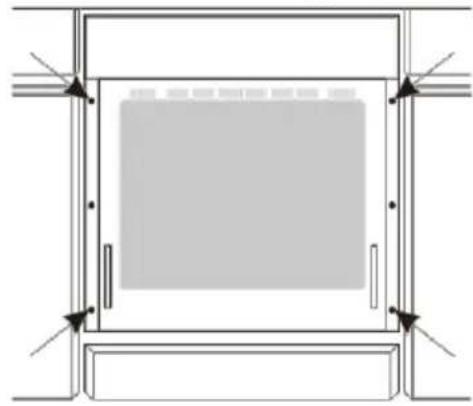

Product Dimensions Aperture Dimensions

Height: 595mm

600mm

Width: 595mm

560mm

Depth: 530mm

560mm (min)

Electrical connection

Warning!

All electrical work should be carried out by a suitably qualified and authorized electrician. No alterations or willful changes in the electricity supply should be carried out.

Fitting guidelines

The oven is manufactured to work with single-phase alternating current (220V-240V/50Hz). The connection diagram is also found on the cover of the connection box. Remember that the connection wire should match the connection type and the power rating of the oven.

The connection cable must be secured in a strain-relief clamp.

Warning!

Remember to connect the safety circuit to the connection box terminal marked with. The electricity supply for the oven must have a safety switch which enables the power to be cut off in case of emergency. The distance between the working contacts of the safety switch must be at least 3 mm.

Before connecting the oven to the power supply it is important to read the information on the data plate and the connection diagram.

CONNECTION DIAGRAM Caution | Voltage of heating elements 220V~240V

Caution! In the event of any connection the safety wire must be connected to PE terminal

220V-240V~

For 220V-240V earthed single-phase connection: connect the brown wire to L, the blue wire to N, and the safety wire (yellow-green) to

Before first use

Remove packaging and clean the interior of the oven.

Take out and wash the oven fittings with warm water and a little washing-up liquid.

Switch on the ventilation in the room or open a window.

Heat the oven to a temperature of 250°C for approximately 30 minutes, then remove any stains and wash carefully.

Important!

The inside of the oven should only be washed with warm water and a small amount of washing-up liquid.

Oven on and off

To switch on the oven, you need to:

Set the required working conditions of the oven, its temperature, and a heating mode.

Set the knob to the required position, turning it to the right.

Oven functions and operation.

Natural convection oven (conventional)

The oven can be warmed up using the bottom and top heaters. Operation of the oven is controlled by the oven function knob—to set a required function you should turn the knob to the selected position.

as well as the temperature regulator knob—to set a required temperature you should turn the knob to the selected position.

The oven can be switched off by setting both of these knobs to the position “●”/“○”.

Using the minute minder

The minute minder can be used independently of an oven cooking function for a time period of up to 120 minutes.

To set the timer, turn the knob fully clockwise until it stops and then turn it back anticlockwise to the required time.

The time period that has been set will expire when the control knob reaches zero, a brief audible signal will sound. The oven is stopped at this time.

Selecting manual operation mode

Turn the control knob counterclockwise to the manual operation symbol so that the cooking time can be unlimited.

To stop the oven, turn the control knob to 0.

Possible knob positions

Separate oven lighting

By setting the knob to this position, the lighting inside the oven is switched on. Use, for example, when washing the oven chamber.

Defrosting

This function allows all frozen foods to be rapidly and delicately thawed thanks to the internal fan.

Bottom heater on

When the knob is set to this position, the oven is heated using only the bottom heater. Use for e.g. final baking from the bottom.

Bottom and top heaters on

Setting the knob to this position allows the oven to be heated conventionally.

Fan, bottom and top heaters on

At this knob position, the oven executes the cake function. Conventional oven with a fan.

Combined grill

(Grill and the top heater)

When the “combined grill” is active, it enables grilling with the grill and with the top heater switched on at the same time. This function allows a higher temperature at the top of the cooking area, which causes more intense browning of the dish and permits larger portions to be grilled.

Fan and combined grill on.

When the knob is turned to this position, the oven activates the combined grill and fan function. In practice, this function allows the grilling process to be speeded up and an improvement in the taste of the dish. You should only use the grill with the oven door shut.

Caution!

When selecting any heating function (switching a heater on etc.), the oven will only be switched on after the temperature has been set by the temperature regulator knob.

Switching on the oven is indicated by two signal lights, yellow and red, turning on. The yellow light, turned on, means the oven is working. If the red light goes out, it means the oven has reached the set temperature. If a recipe recommends placing dishes in a warmed-up oven, this should not be done before the red light goes out for the first time. When baking, the red light will temporarily come on and go out (to maintain the temperature inside the oven). The yellow signal light may also turn on at the knob position of “oven chamber lighting”.

Fast oven heat-up

Fast heat-up: the bottom and top heater setting,

the fast heat-up function may be used - the oven will reach a temperature of 150°C within approximately 4 minutes.

Mode of operation:

! Set the oven function to the position of I and top heater. ! Set the temperature regulator knob to the position of 150°C. ! The oven warms up to the temperature of 150°C (or lower if set); the oven reaching the temperature is signalled by the red light of the temperature regulator going off. ! Now put the tray with dough into the oven. ! Set the oven function knob to the selected heating mode.

Important!

When the fast oven heat-up function has been selected, the chamber should not contain a baking tray with dough or other elements that do not constitute the oven fittings.

The fast heat-up function is not recommended for use with the programmer set.

Example: Use of the Grill heater

The baking process operates through infrared rays emitted onto the dish or food by the heater.

In order to switch on the Grill heater you need to:

! Set the oven knob to the position marked with >>>. ! Set the temperature regulator knob to set a required function; you should turn the knob to the selected position. ! Set the minute minder. ! Preheat the oven for approximately 5 minutes (with the oven door shut). ! Put the food to be baked on the grill grate or baking tray. ! Insert the grill grate or baking tray onto the appropriate cooking level. ! Close the oven door. ! Wait for the baking time to end. ! During baking, adjust baking temperature and time if necessary.

Caution!

The baking should be used with the oven door shut. When the oven is baking, accessible parts can become hot.

It is recommended to keep children away from the oven.

By ensuring proper cleaning and maintenance of your oven you can have a significant influence on the continuing fault-free operation of your appliance.

Before you start cleaning, the oven must be switched off and you should ensure that all knobs are set to the "0" position. Do not start cleaning until the oven has completely cooled.

Appropriate light cleaning or washing products are recommended, such as any kind of liquids or emulsions for fat removal. If the recommended products are not available, it is advisable to use a solution of warm water with a little washing-up liquid or cleaning products for stainless steel sinks.

Oven

The oven should be cleaned after every use. When cleaning the oven, the lighting should be switched on to enable you to see the surfaces better. The oven chamber should only be washed with warm water and a small amount of washing-up liquid. After cleaning the oven chamber, wipe it dry.

Caution!

Do not use cleaning products containing abrasive materials for the cleaning and maintenance of the glass front panel.

Steam cleaning:

- Pour 250 ml of water (1 glass) into a bowl placed in the oven on the first level from the bottom. - Close the oven door. - Set the temperature knob to 50°C, and the function knob to the bottom heater position. - Heat the oven chamber for approximately 30 minutes. - Open the oven door, wipe the chamber inside with a cloth or sponge, and wash using water with washing-up liquid. Caution! Possible moist residues under the cooker can result from steam cleaning.

After cleaning the oven chamber, wipe it dry.

Replacement of the oven light bulb

In order to avoid the possibility of an electric shock, ensure that the appliance is switched off before replacing the bulb.

Set all control knobs to the position "●"/"0" and disconnect the mains plug. Unscrew and wash the lamp cover, then wipe it dry. Unscrew the light bulb from the socket, and replace the bulb with a new one - a high temperature bulb (300°C) with the following parameters:

- Voltage: 230 V

- Power: 25 W

- G9

Oven light bulb

Screw the bulb in, making sure it is properly inserted into the ceramic socket.

Screw in the lamp cover.

CLEANING AND MAINTENANCE

Removing the doors

a. The oven door is fully open.

b. The latch hinges are completely lifted.

c. Gently close the oven door until you hear the sound of engagement. Once they reach the clamping position, hold the door with both hands and continue to push and pull up at the same time so that the hinge bolt is removed from the oven.

d. After cleaning, align the hinge with the oven door. Latch and push it until it catches. Take care to ensure that the hinge and door are properly aligned to avoid door damage.

If in doubt, contact the service centre - information is listed on the back of this user manual.

e. With the oven door fully opened, push the latch down to its initial position to complete the oven door installation.

Remove the inner glass panel

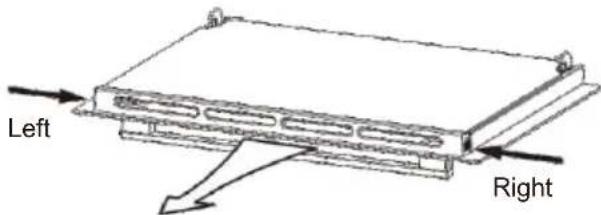

a. Press and hold the two sides of the grid with both hands to pull it out.

A

Pull out the grid

b. Remove the inner glass.

c. Locate the glass stopper and remove it. Remove the glass for cleaning. To reinstall the inner glass, simply gently place it back onto the door and reinsert the glass stopper to secure the glass in place.

In the event of an emergency, you should:

! Switch off all working units of the cooker ! Disconnect the mains plug ! Call the service centre ! Some minor faults can be fixed by referring to the instructions given in the table

PROBLEM REASON ACTION
The appliance does not work	Break in power supply	Check the household fuse box, if there is a blown fuse replace it with a new one
The oven lighting does not work	The bulb is loose or damaged	Tighten up or replace the blown bulb(see chapter Cleaning and Maintenance)

Voltage rating

Power rating

Cooker dimensions H/W/D

Usable capacity of the oven *

Weight

220-240V~ 50/60 Hz

max. 2.9kW

1. 5/59.5/53.0 cm

73 liters

Approx. 30.0kg
