Product Type	Motherboard
Brand	Biostar
Model	H61MHV3
CPU Socket	LGA1155
Chipset	Intel H61
Memory Support	Dual Channel DDR3 1066/1333/1600 MHz, up to 16 GB (2 slots)
Storage Interfaces	4 x SATA II (3 Gb/s)
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1
LAN	Realtek RTL8111H, 10/100/1000 Mbps
Audio	ALC897, 7.1 Channel HD Audio
Rear I/O	1 x PS/2, 1 x VGA, 1 x HDMI, 4 x USB 2.0, 1 x LAN, 3 x Audio Jacks
Internal I/O	4 x SATA, 2 x USB 2.0 headers, 1 x COM header, front panel header, audio header, speaker header, CMOS clear jumper
Form Factor	uATX (191 mm x 170 mm)
Power Connectors	24-pin ATX, 4-pin ATX12V
OS Support	Windows 7/8/8.1/10
Weight (Approx.)	0.5 kg
Maintenance	Keep dry and clean; avoid static discharge; disconnect power before handling
Safety Precautions	Use on stable surface; avoid sharp edges; ensure proper CPU installation without force; use adequate power supply
Repairability	Standard replaceable components (CPU, RAM, expansion cards); CMOS clear for BIOS reset
General Information	For detailed BIOS setup, driver installation, and troubleshooting, refer to the user manual.

Frequently Asked Questions - H61MHV3 BIOSTAR

What CPU does the Biostar H61MHV3 support?

It supports Intel Core i7/i5/i3, Pentium, and Celeron processors in the LGA1155 package. Check the CPU support list at biostar.com.tw for specific models.

What type of memory does this motherboard use?

It uses DDR3 memory running at 1066, 1333, or 1600 MHz. Two slots allow up to 16 GB with non-ECC modules. For dual channel, install identical modules in both slots.

Does the Biostar H61MHV3 have integrated graphics?

Yes, if your CPU has integrated graphics (e.g., Intel HD Graphics). It supports VGA and HDMI outputs. Maximum resolution: 1920 x 1200 @60Hz for both ports.

How many SATA ports are available?

There are 4 SATA II (3 Gb/s) ports for connecting hard drives or SSDs.

Can I use USB 3.0 on this motherboard?

No, this motherboard only provides USB 2.0 ports. It has 4 rear ports and 4 via internal headers.

How do I update the BIOS?

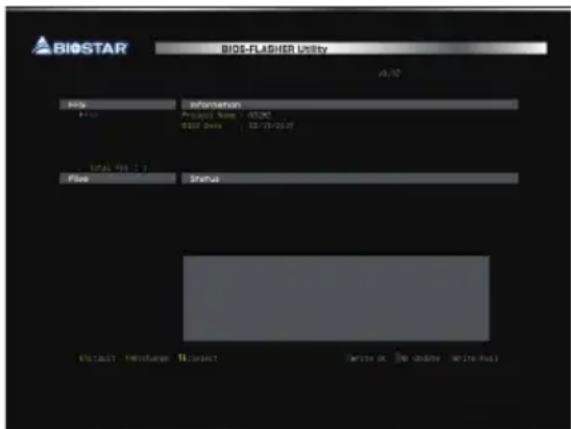

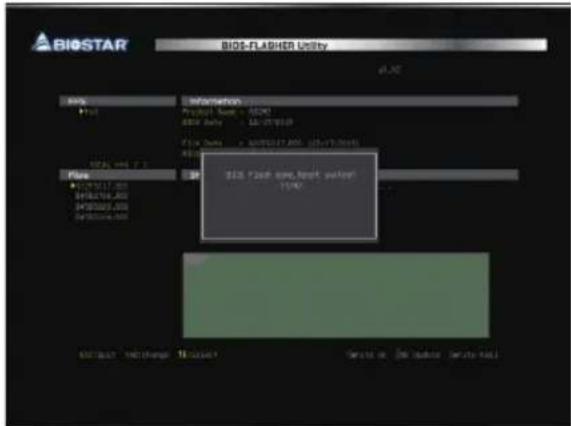

You can update the BIOS using BIOSTAR BIOS-FLASHER (via USB drive) or the BIOS Update Utility (Windows, online or file). Always load optimized defaults after updating.

What should I do if the system does not boot?

Check power cable connections, ensure RAM is properly seated, and verify CPU is installed correctly. If using a new CPU, ensure it's supported. Clear CMOS if needed via jumper JCMOS1.

How do I clear CMOS?

Disconnect AC power, short pins 1-2 of jumper JCMOS1 for 5 seconds, then return jumper to normal (pins 1-2 open). Power on and load optimized defaults in BIOS.

What operating systems are supported?

Windows 7, 8, 8.1, and 10 are supported. Check Biostar website for updates.

Does the motherboard have an M.2 slot?

No, the Biostar H61MHV3 does not have an M.2 slot. It only uses SATA II for storage.

USER MANUAL H61MHV3 BIOSTAR

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor's approval in writing.

The content of this user's manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user's manual. All the brand and product names are trademarks of their respective companies.

Short Declaration of conformity We declare this product is complying with the laws in force and meeting all the essential requirements as specified by the directives 2004/108/CE, 2006/95/CE and 1999/05/CE whenever these laws may be applied

Table Of Contents

FCC Information and Copyright 1

Chapter 1: Introduction....3

1.1 Before You Start 3
1.2 Package Checklist....3
1.3 Specifications....4
1.4 Rear Panel Connectors....5
1.5 Motherboard Layout....6

Chapter 2: Hardware installation....7

2.1 Install Central Processing Unit (CPU) 7
2.2 Install a Heatsink....9
2.3 Connect Cooling Fans 10
2.4 Install System Memory 10
2.5 Expansion Slots 12
2.6 Jumper & Switch Setting 13
2.7 Headers & Connectors.... 14

Chapter 3: UEFI BIOS & Software....17

3.1 UEFI BIOS Setup 17
3.2 BIOS Update....17
3.3 Software....21

Chapter 4: Useful help....22

4.1 Driver Installation 22
4.2 AMI BIOS Beep Code.... 23
4.3 AMI BIOS post code 23
4.4 Troubleshooting....25

APPENDIX I: Specifications in Other Languages 26

Arabic....26
German 27
Spanish 28
Thai 29
Japan....30

Chapter 1: Introduction

1?1 Before You Start

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

• Prepare a dry and stable working environment with sufficient lighting.
  • Always disconnect the computer from power outlet before operation.
• Before you take the motherboard out from anti-static bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.
• Avoid touching the components on motherboard or the rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.
• Do not leave any unfastened small parts inside the case after installation. Loose parts will cause short circuits which may damage the equipment.
• Keep the computer from dangerous area, such as heat source, humid air and water.
• The operating temperatures of the computer should be 0 to 45 degrees Celsius.
  • To avoid injury, be careful of:
  Sharp pins on headers and connectors
  Rough edges and sharp corners on the chassis
  Damage to wires that could cause a short circuit

1.2 Package Checklist

• Serial ATA Cable x2
  • Rear I/O Panel for ATX Case x1
• Quick Installation Guide x1
  • Fully Setup Driver DVD x1

Note

» The package contents may be different due to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

1.3 Specifications

Specifications
CPU Support	Support Intel® CoreTM i7/ i5/ i3 processors and Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1155 package* Please refer to www.biostar.com.tw for CPU support list.
Chipset Intel® H61
Memory	Supports Dual Channel DDR3 1066/ 1333/ 16002 x DDR3 DIMM Memory Slot, Max. Supports up to 16 GB MemoryEach DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 module* DDR3 1600 memory module (depending on CPU)* Please refer to www.biostar.com.tw for Memory support list.
Storage 4x SATA II (3Gb/s)
LAN	Realtek RTL8111H10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Audio Codec	ALC8977.1 Channels, High Definition Audio
USB 8x USB 2.0 port (4 on rear I/Os and 4 via internal headers)
Expansion Slots	1x PCIe 2.0 x11x PCIe 3.0 x16 Slot (x16 mode, depending on CPU)
Rear I/Os	1x PS/2 Keyboard / Mouse1x VGA Port1x HDMI Port4x USB 2.0 Port1x LAN port3x Audio Jack
Internal I/Os	4x SATA II (3Gb/s)2x USB 2.0 Header (each header supports 2 USB 2.0 ports)1x 4-Pin Power Connector1x 24-Pin Power Connector1x CPU Fan Connector1x System Fan Connector1x Front Panel Header1x Front Audio Header1x Internal Stereo Speaker Header1x Clear CMOS Header1x COM Port Header
Form Factor uATX Form	Factor, 191 mm x 170 mm
OS Support	Windows 7/ 8/ 8.1/ 10Biostar reserves the right to add or remove support for any OS with or without notice.

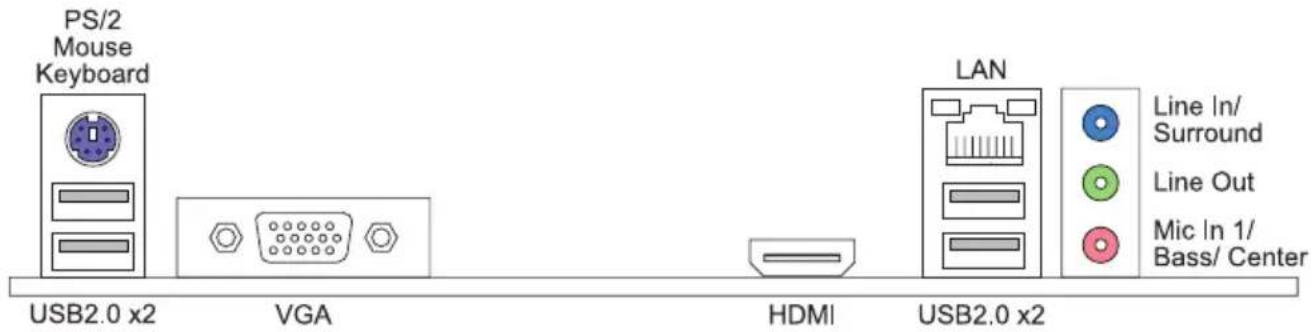

1.4 Rear Panel Connectors

Note

» HDMI, VGA ports only work with an Intel® integrated Graphics Processor.
» Maximum resolution

HDMI: 1920 x 1200 @60Hz, compliant with HDMI 1.4a

VGA: 1920 x 1200 @60Hz

» The mainboard supports two onboard display outputs at same time and the display output configuration can be selected in Intel graphics driver utility.

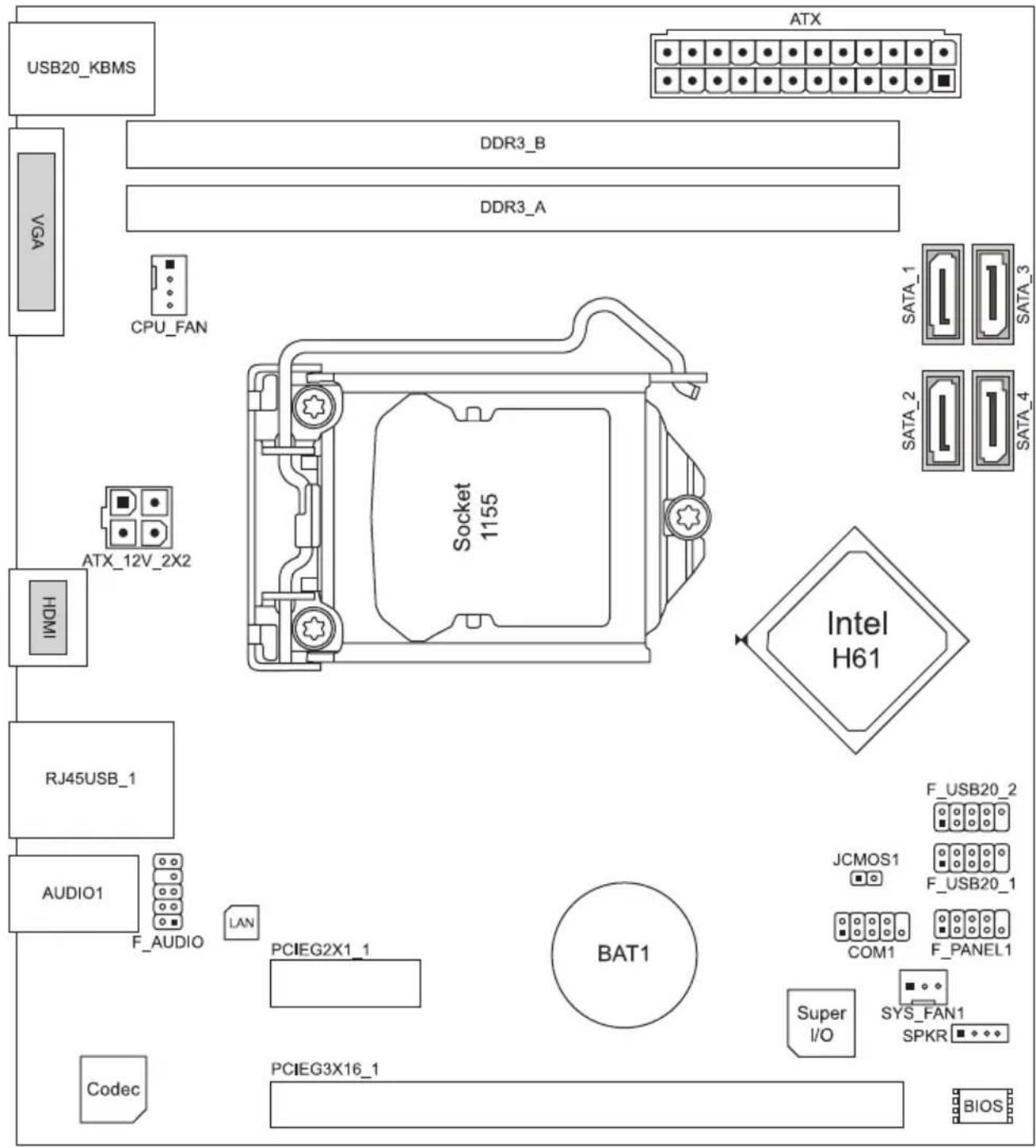

1.5 Motherboard Layout

Note

» ■ represents the 1st pin.

Chapter 2: Hardware installation

2.1 Install Central Processing Unit (CPU)

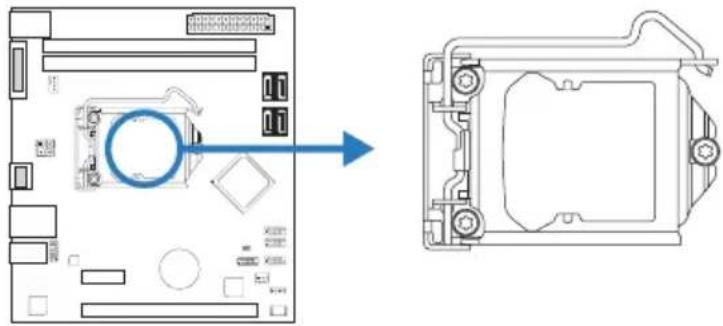

Step 1: Locate the CPU socket on the motherboard

Diagram showing a computer motherboard with an arrow pointing to a front view of the internal components (no text or symbols present)

Note

» Remove pin cap before installation, and make good preservation for future use. When the CPU is removed, cover the pin cap on the empty socket to ensure pin legs won't be damaged.
» The motherboard might equip with two different types of pin cap. Please refer below instruction to remove the pin cap.

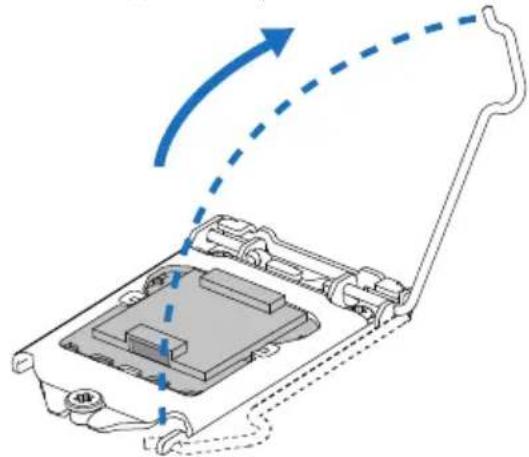

Step 2: Pull the socket locking lever out from the socket and then raise the lever up.

Diagram showing two views of a device with arrows indicating motion, no text or symbols present

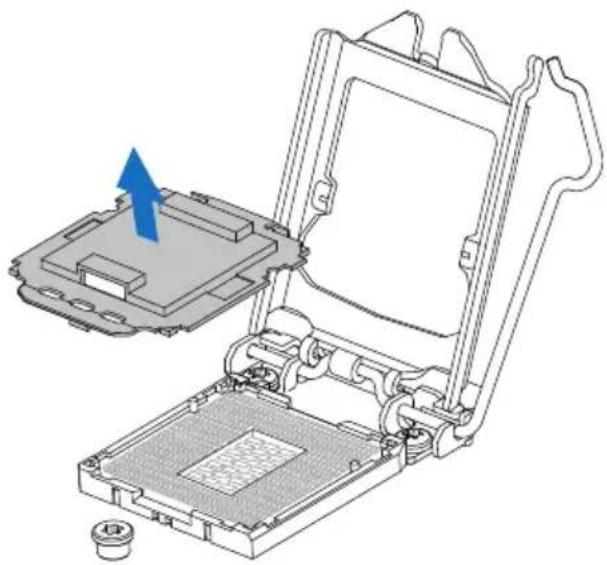

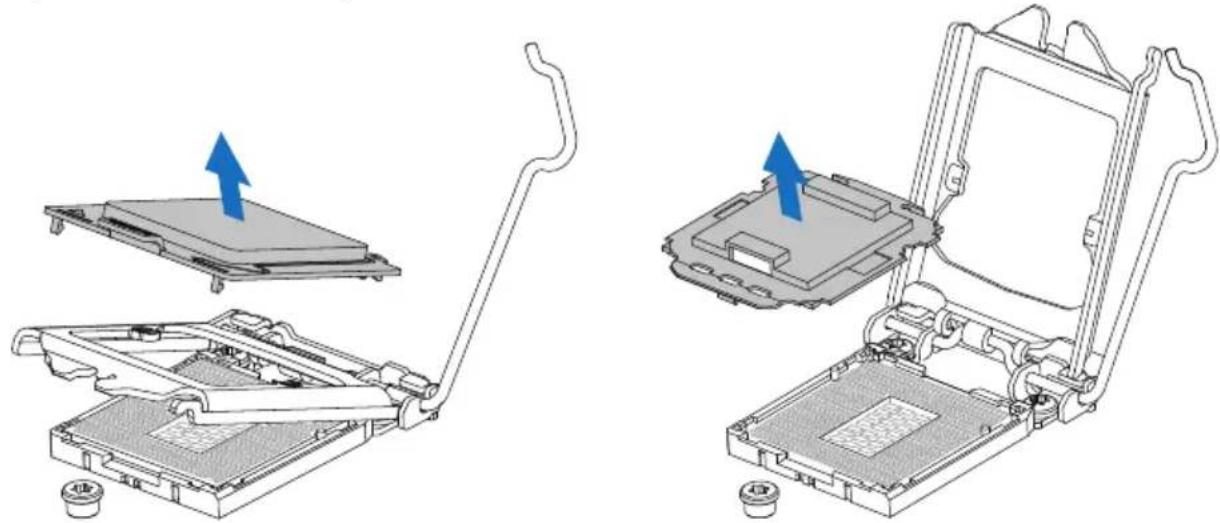

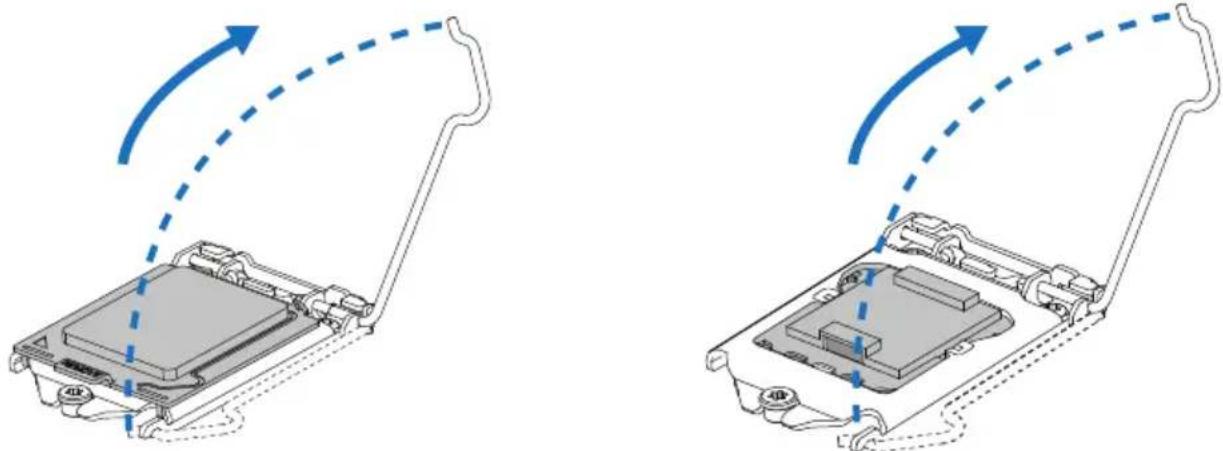

Step 3: Remove the Pin Cap.

Technical illustration of a computer chassis with two views showing internal components and a close-up of the top panel (no text or symbols present)

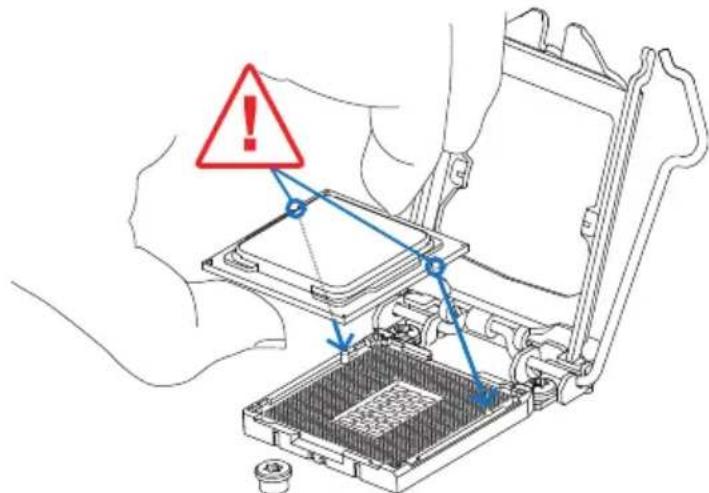

Step 4: Hold processor with your thumb and index fingers, oriented as shown. Align the notches with the socket. Lower the processor straight down without tilting or sliding the processor in the socket.

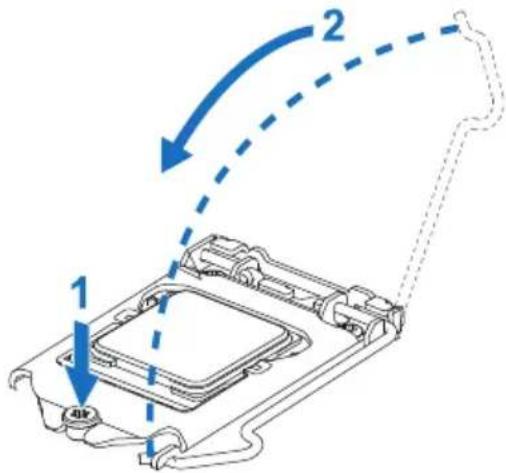

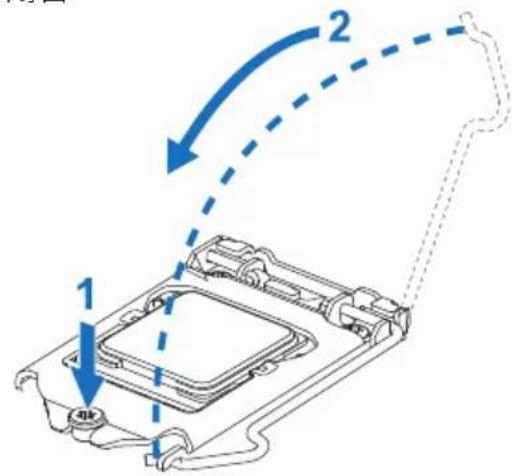

Step 5: Hold the CPU down firmly, and then lower the lever to locked position to complete the installation.

Note

» Ensure that you install the correct CPU designed for LGA1155 socket.
» The CPU fits only in one correct orientation. Do not force the CPU into the socket to prevent damaging the CPU.

2.2 Install a Heatsink

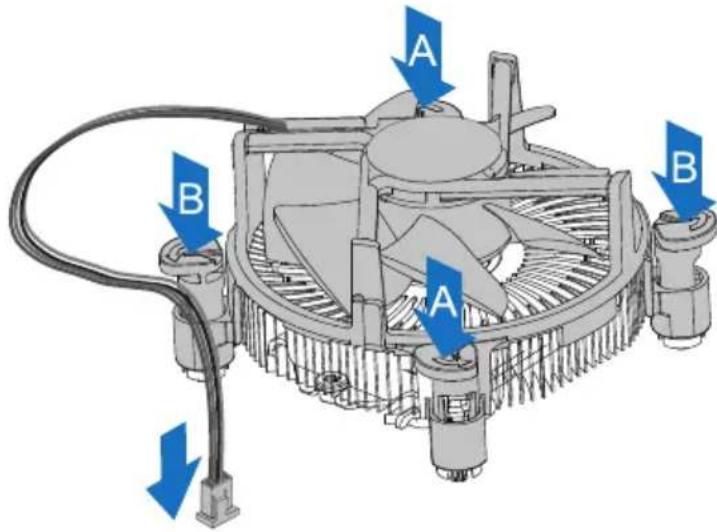

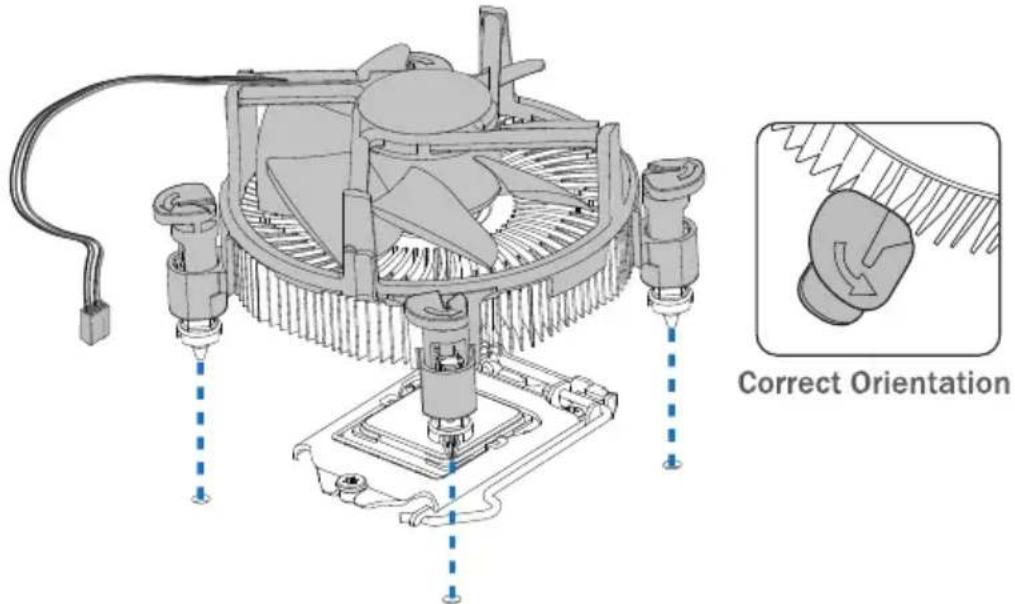

Step 1: Place the CPU fan assembly on top of the installed CPU and make sure that the four fasteners match the motherboard holes. Orient the assembly and make the fan cable is closest to the CPU fan connector.

Step 2: Press down two fasteners at one time in a diagonal sequence to secure the CPU fan assembly in place. As each fastener locks into position a click should be heard.

Note

» Apply the thermal interface material on the CPU before heatsink installation, if necessary.
» Do not forget to connect the CPU fan connector.
» For proper installation, please kindly refer to the installation manual of your CPU heatsink.

2.3 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer.

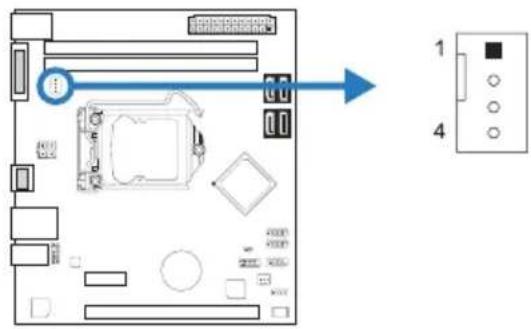

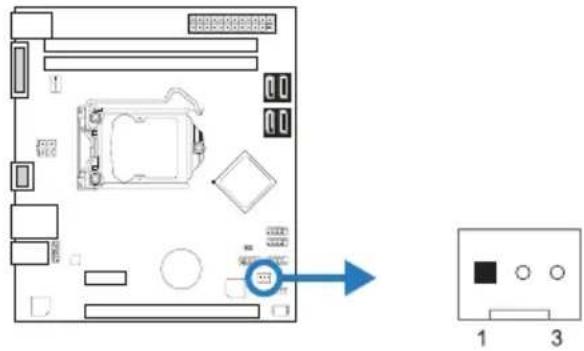

CPU_FAN: CPU Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

4 Smart Fan Control (By Fan)

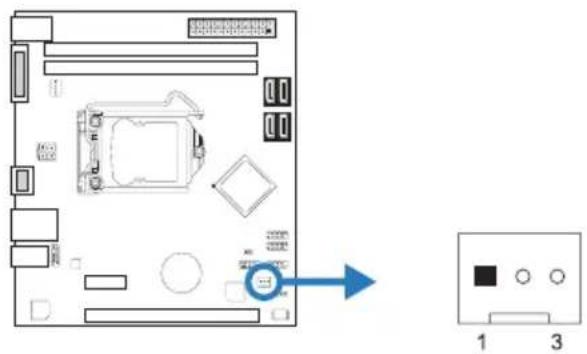

SYS_FAN1: System Fan Header

Pin	Assignment
1	Ground
2	+12V
3	FAN RPM rate sense

Note

» CPU_FAN, SYS_FAN1 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to pin#1(GND).

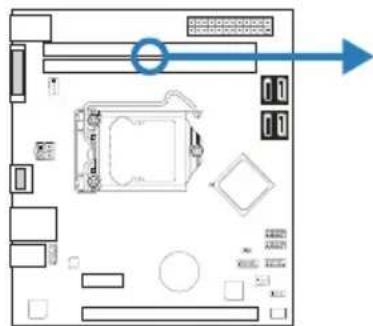

2.4 Install System Memory

DDR3 Modules

Top-down schematic of a computer monitor layout with no visible text or symbols

DDR3_B

DDR3_A

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

Technical line drawing of a computer RAM module with scroll wheel and clamping mechanism (no text or symbols)

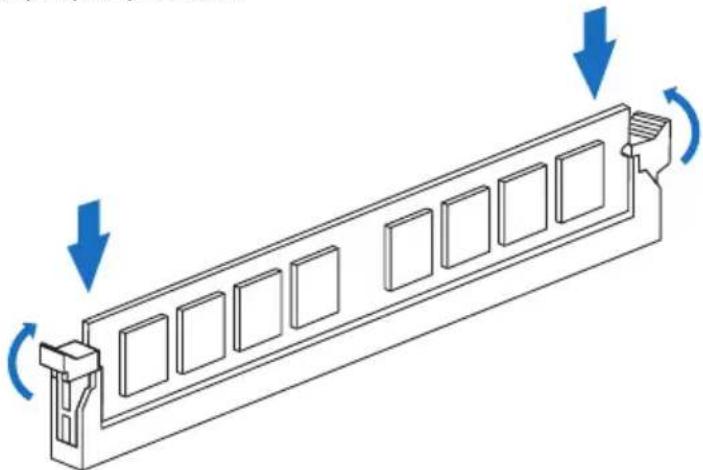

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining clips snap back in place and the DIMM is properly seated.

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Note

» If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Memory Capacity

DIMM Socket Location DDR3 Module Total Memory Size
DDR3_A 512MB/1GB/2GB/4GB/8GB	Max is 16GB.
DDR3_B 512MB/1GB/2GB/4GB/8GB

Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function: Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR3_A DDR3_B
Disabled O X
Disabled X O
Enabled O O

(O means memory installed, X means memory not installed.)

Note

» When installing more than one memory module, we recommend to use the same brand and capacity memory on this motherboard.

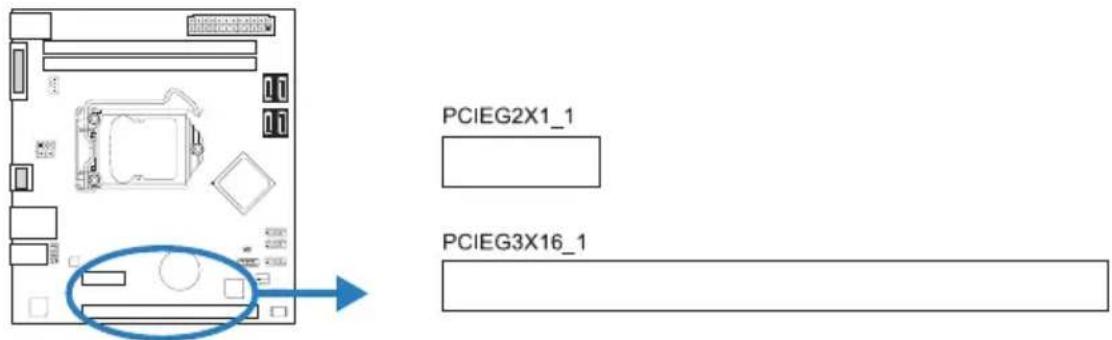

2.5 Expansion Slots

PCIEG3X16\_1: PCI-Express Gen3 x16 Slot (x16 mode)

• PCI-Express 3.0 compliant.
• The maximum bandwidth of the PCIe slot is 32GB/s.

PCIEG2X1\_1: PCI-Express Gen2 x1 Slots

• PCI-Express 2.0 compliant.
• Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.

Install an Expansion Card

You can install your expansion card by following steps:

• Read the related expansion card's instruction document before install the expansion card into the computer.
• Remove your computer's chassis cover, screws and slot bracket from the computer.
• Place a card in the expansion slot and press down on the card until it is completely seated in the slot.
• Secure the card's metal bracket to the chassis back panel with a screw. (This step is only for installing a VGA card.).
• Replace your computer's chassis cover.
• Power on the computer, if necessary, change BIOS settings for the expansion card.
  • Install related driver for the expansion card.

Note

» Please be note that you will need to use M2 type screwdriver if you want to install or uninstall the screw. It is recommended not to use a screwdriver that does not meet the specifications, otherwise the screw may be damaged.

2.6 Jumper & Switch Setting

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is "close", if not, that means the jumper is "open".

Pin opened Pin closed Pin 1-2 closed

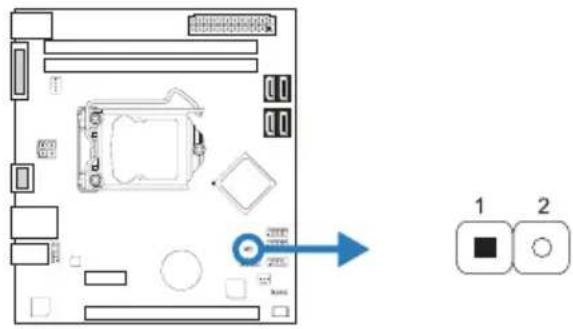

JCMOS1: Clear CMOS Jumper

The jumper allows users to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedures to avoid damaging the motherboard.

Pin 1-2 Open: Normal Operation (Default)

Pin 1-2 Short: Clear CMOS data

Clear CMOS Procedures:

1. Remove AC power line.
2. Set the jumper to "Pin 1-2 Short", you can use a metal object like a screwdriver to touch the two pins.
3. Wait for five seconds.
4. After clearing the CMOS values, be sure the jumper is "Pin 1-2 open".
5. Power on the AC.
6. Load Optimal Defaults and save settings in CMOS.

2.7 Headers & Connectors

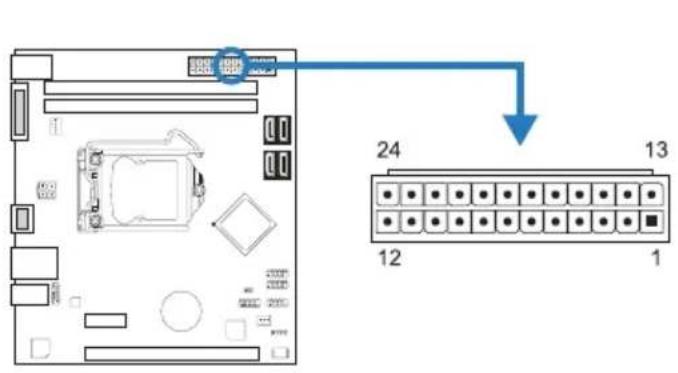

ATX: ATX Power Source Connector

For better compatibility, we recommend to use a standard ATX 24-pin power supply for this connector. Make sure to find the correct orientation before plugging the connector.

Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 P_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +V 9 Standby Voltage+5V
22 +V 10 +12V
23 +V 11 +12V
24 Ground 12 +3.3V

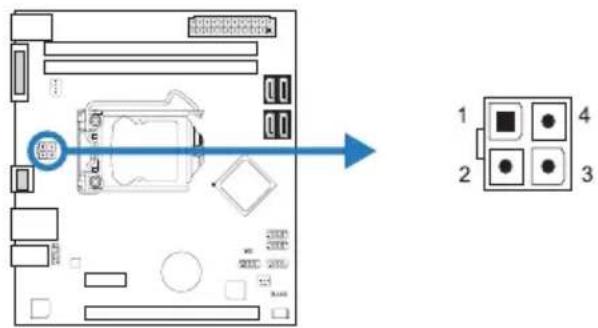

ATX\_12V\_2X2: ATX Power Source Connector

The connector provides +12V to the CPU power circuit.

Pin Assignment

1 +12V

2 +12V

3 Ground

4 Ground

Note

» Before you power on the system, please make sure that both ATX and ATX_12V_2X2 connectors have been plugged-in.
» Insufficient power supplied to the system may result in instability or the peripherals not functioning properly. Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices.

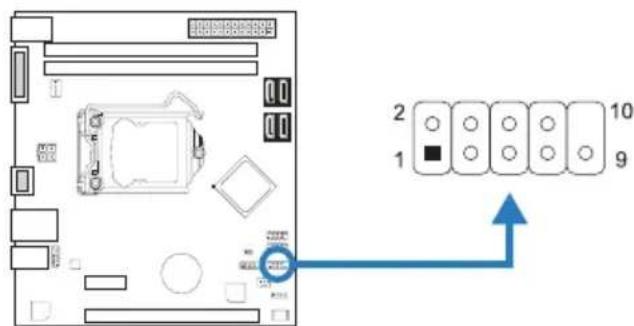

F\_PANEL: Front Panel Header

This connector includes Power-on, Reset, HDD LED and Power LED connections. It allows user to connect the PC case's front panel switch functions.

Pin	Assignment	Function	Pin	Assignment	Function
1 HDD LED(+)		HDDLED 4	2 Power LED (+)		PowerLED
3 HDD LED(-)			Power LED (-)
5 Ground		ResetButton 8	6 Power Button		Power-OnButton
7 Reset Control			Ground
9	NC	NC	10	NA	NA

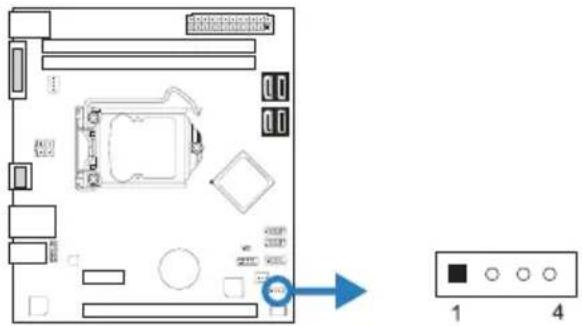

SPKR: Chassis Speaker Header

Please connect the chassis speaker to this header.

Pin	Assignment
1 +5V
2 N/A
3 N/A
4 Speaker

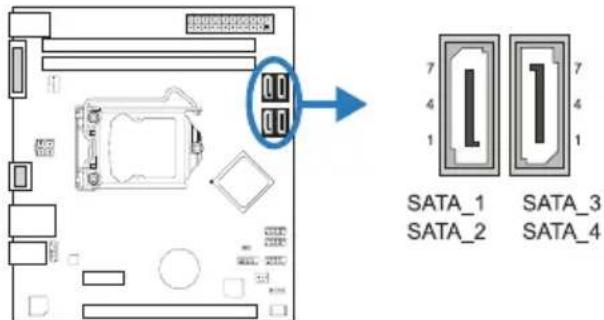

SATA\_1/ SATA\_2/ SATA\_3/ SATA\_4: Serial ATA 2.0 Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

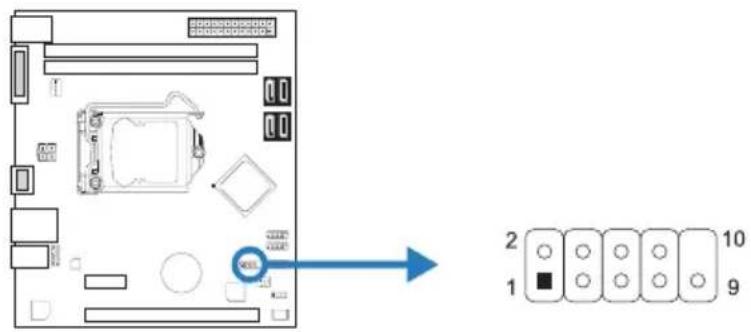

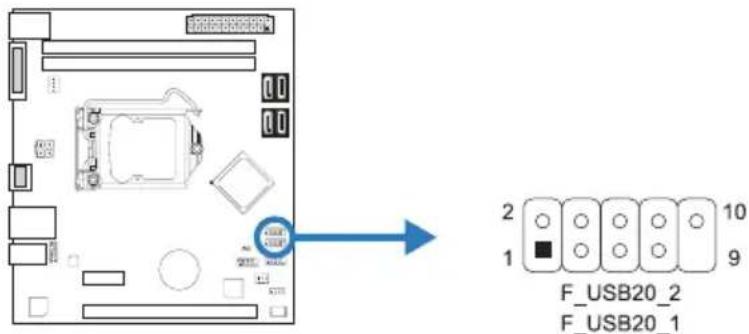

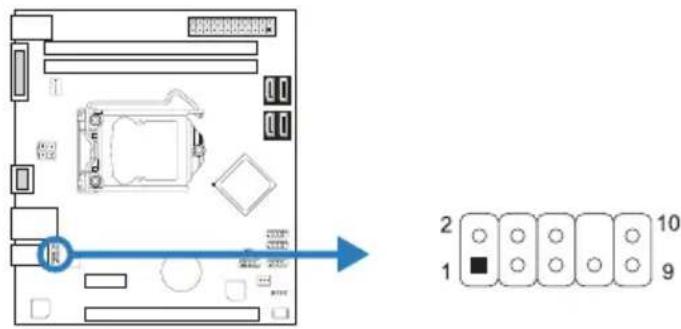

F\_USB20\_1/ F\_USB20\_2: Header for USB 2.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

10 NC

F\_AUDIO: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD and AC'97 audio standards.

HD Audio AC'97
Pin	Assignment Pin	Assignment
1 Mic	Left in 1 Mic In
2 Ground	2 Ground
3 Mic	Right in 3 Mic	Power
4 GPIO	4 Audio Power
5 Right	line in 5 RT	Line Out
6 Jack	Sense 6 RT	Line Out
7 Front	Sense 7 Reserved
8 Key	8 Key
9 Left	line in 9 LFT	Line Out
10 Jack	Sense 10 LFT	Line Out

Note

It is recommended that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high definition audio capability.
» Please try to disable the "Front Panel Jack Detection" if you want to use an AC'97 front audio output cable. The function can be found via O.S. Audio Utility.

COM1: Serial Port Header

The motherboard has a serial port header for connecting RS-232 Port.

Pin Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

Chapter 3: UEFI BIOS & Software

3.1 UEFI BIOS Setup

• The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.
• For further information of setting up the UEFI BIOS, please refer to the UEFI BIOS Manual on our website.

3.2 BIOS Update

The BIOS can be updated using either of the following utilities:

• BIOSTAR BIOS-FLASHER: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Utility: It enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web.

BIOSTAR BIOS-FLASHER

Note

» This utility only allows storage device with FAT32/16 format and single partition.
» Shutting down or resetting the system while updating the BIOS will lead to system boot failure.

Updating BIOS with BIOSTAR BIOS-FLASHER

1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, copy and save the BIOS file into a USB flash (pen) drive.(Only supported FAT/FAT32 format)
3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press during the POST process.

5. After entering the POST screen, the BIOS-FLASHER utility pops out. Choose to search for the BIOS file.

1. Select the proper BIOS file, and a message asking if you are sure to flash the BIOS file. Click "Yes" to start updating BIOS.

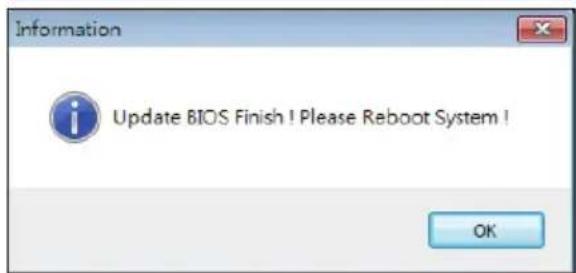

1. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the key to restart system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then the BIOS Update is completed.

BIOS Update Utility (through the Internet)

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this function.

3. Launch BIOS Update Utility and click the "Online Update" button on the main screen.

1. An open dialog will show up to request your agreement to start the BIOS update. Click "Yes" to start the online update procedure.

1. If there is a new BIOS version, the utility will ask you to download it. Click "Yes" to proceed.

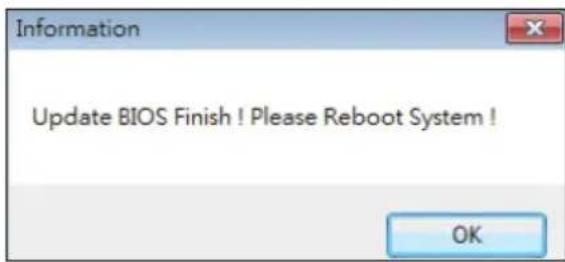

2. After the download is completed, you will be asked to program (update) the BIOS or not. Click "Yes" to proceed.

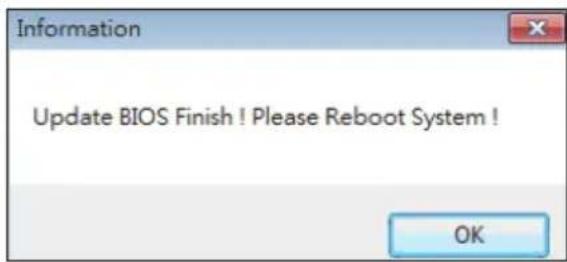

3. After the updating process is finished, you will be asked you to reboot the system. Click "OK" to reboot.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select and to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through a BIOS file)

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from http://www.biostar.com.tw/

3. Launch BIOS Update Utility and click the "Update BIOS" button on the main screen.

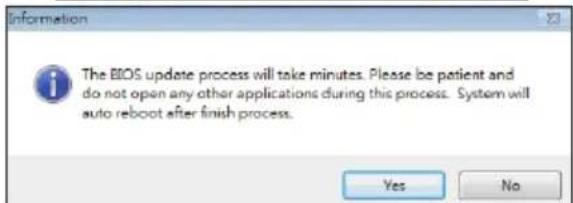

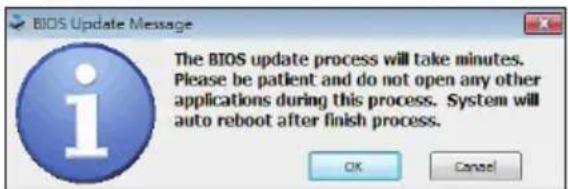

4. A warning message will show up to request your agreement to start the BIOS update. Click "OK" to start the update procedure.

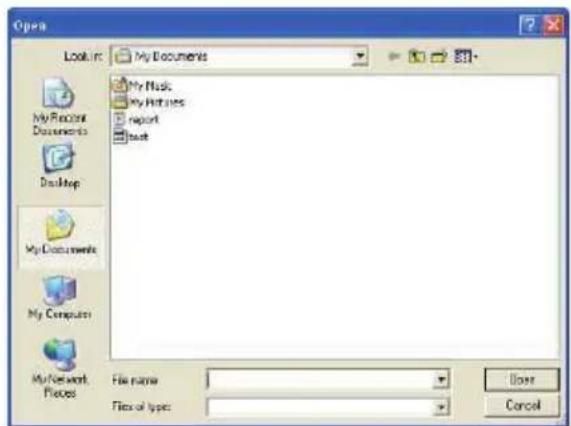

1. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on "Open". It will take several minutes, please be patient.

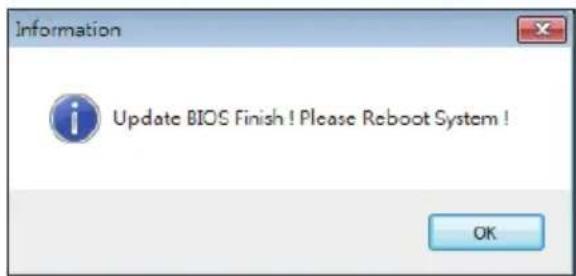

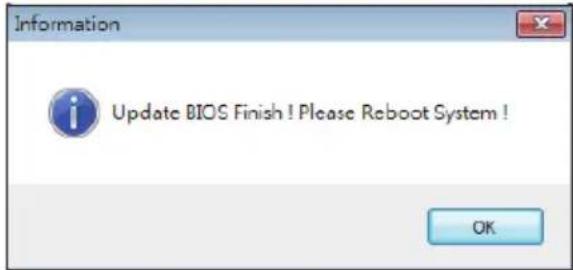

2. After the BIOS Update process is finished, click on "OK" to reboot the system.

3. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then, the BIOS Update is completed.

Backup BIOS

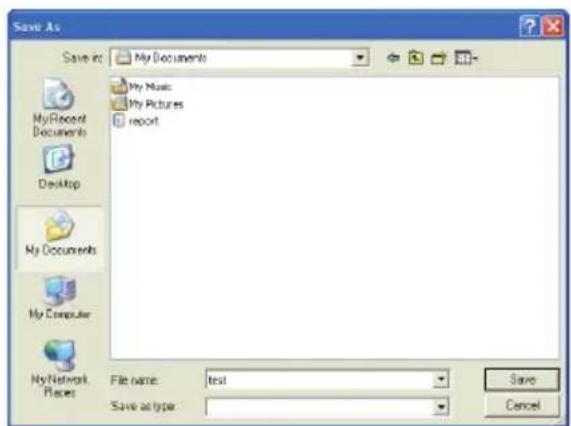

Click the Backup BIOS button on the main screen for the backup of BIOS, and select a proper location for your backup BIOS file in the system, and click "Save".

3.3 Software

Installing Software

1. Insert the Setup DVD to the optical drive. The driver installation program would appear if the Auto-run function has been enabled.
2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process is completed, you will see the software icon showing on the desktop. Double-click the icon to launch it.

Note

» All the information and content about following software are subject to be changed without notice. For better performance, the software is being continuously updated.
» The information and pictures described below are for your reference only. The actual information and settings on board may be slightly different from this manual.

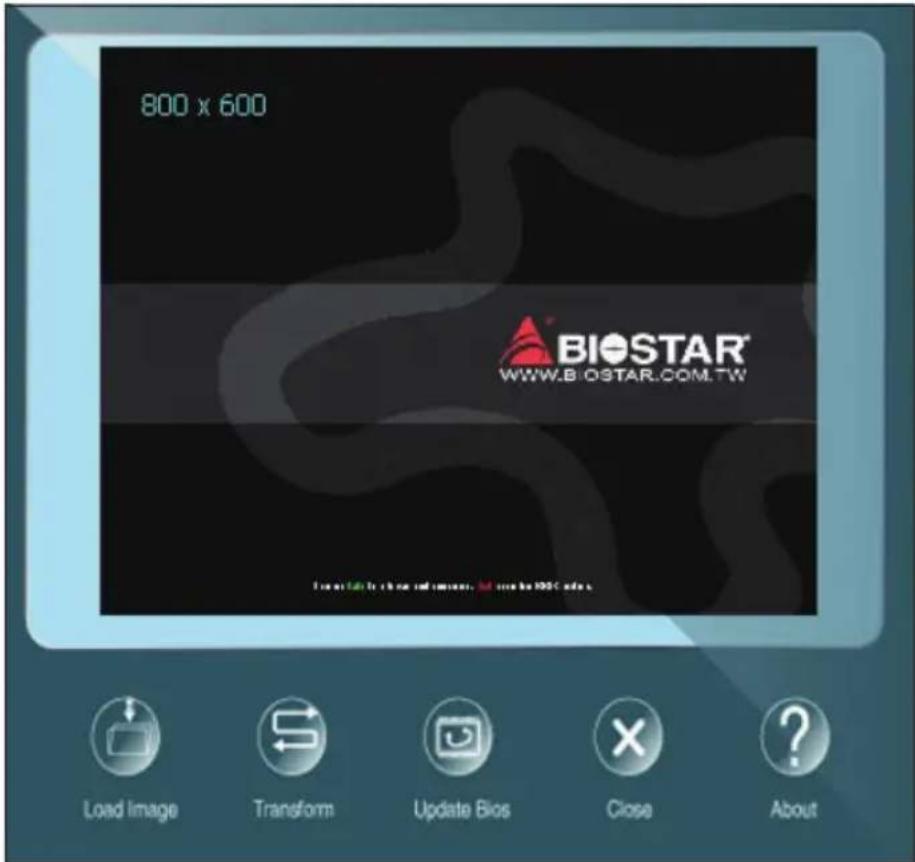

BIOScreen Utility

This utility allows you to personalize your boot logo easily. You can choose BMP as your boot logo so as to customize your computer.

Please follow the step-by-step instructions below to update boot logo:

• Load Image: Choose the picture as the boot logo.
• Transform: Transform the picture for BIOS and preview the result.
• Update Bios: Write the picture to BIOS Memory to complete the update.

Chapter 4: Useful help

4.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver DVD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD. Click on the Manual icon to browse for available manual.

Note

» If this window didn't show up after you insert the Driver DVD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.
» You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader software from http://get.adobe.com/reader/
» The motherboard used in the illustrations may not resemble the actual board. these illustrations are for reference only.

4.2 AMI BIOS Beep Code

Boot Block Beep Codes

Number of Beeps Description
Continuing Memory sizing	error or Memory module not found

POST BIOS Beep Codes

Number of Beeps Description
1 Success booting.
8 Display memory error	(system video adapter)

4.3 AMI BIOS post code

Code Description

10 PEI Core is started

11 Pre-memory CPU initialization is started

15 Pre-memory North Bridge initialization is started

19 Pre-memory South Bridge initialization is started

2B Memory initialization. Serial Presence Detect (SPD) data reading

2C Memory initialization. Memory presence detection

2D Memory initialization. Programming memory timing information

2E Memory initialization. Configuring memory

2F Memory initialization (other).

31 Memory Installed

32 CPU post-memory initialization is started

33 CPU post-memory initialization. Cache initialization

34 CPU post-memory initialization. Application Processor(s) (AP) initialization

35 CPU post-memory initialization. Boot Strap Processor (BSP) selection

36 CPU post-memory initialization. System Management Mode (SMM) initialization

37 Post-Memory North Bridge initialization is started

3B Post-Memory North Bridge initialization (North Bridge module specific)

4F DXE IPL is started

60 DXE Core is started

F0 Recovery condition triggered by firmware (Auto recovery)

F1 Recovery condition triggered by user (Forced recovery)

F2 Recovery process started

F3 Recovery firmware image is found

F4 Recovery firmware image is loaded

E0 S3 Resume is stared (S3 Resume PPI is called by the DXE IPL)

E1 S3 Boot Script execution

E2 Video repost

E3 OS S3 wake vector call

60 DXE Core is started

61 NVRAM initialization

62 Installation of the South Bridge Runtime Services

63 CPU DXE initialization is started

68 PCI host bridge initialization

69 North Bridge DXE initialization is started

6A North Bridge DXE SMM initialization is started

Code	Description
70	South Bridge DXE initialization is started
71	South Bridge DXE SMM initialization is started
72	South Bridge devices initialization
78	South Bridge DXE Initialization (South Bridge module specific)
79	ACPI module initialization
90	Boot Device Selection (BDS) phase is started
91	Driver connecting is started
92	PCI Bus initialization is started
93	PCI Bus Hot Plug Controller Initialization
94	PCI Bus Enumeration
95	PCI Bus Request Resources
96	PCI Bus Assign Resources
97	Console Output devices connect
98	Console input devices connect
99	Super IO Initialization
9A	USB initialization is started
9B	USB Reset
9C	USB Detect
9D	USB Enable
A0	IDE initialization is started
A1	IDE Reset
A2	IDE Detect
A3	IDE Enable
A4	SCSI initialization is started
A5	SCSI Reset
A6	SCSI Detect
A7	SCSI Enable
A8	Setup Verifying Password
A9	Start of Setup
AB	Setup Input Wait
AD	Ready To Boot event
AE	Legacy Boot event
AF	Exit Boot Services event
B0	Runtime Set Virtual Address MAP Begin
B1	Runtime Set Virtual Address MAP End
B2	Legacy Option ROM Initialization
B3	System Reset
B4	USB hot plug
B5	PCI bus hot plug
B6	Clean-up of NVRAM
B7	Configuration Reset (reset of NVRAM settings)

4.4 Troubleshooting

Probable Solution
1. There is no power in the system. Power LED does not shine; the fan of the power supply does not work2. Indicator light on keyboard does not shine.	1. Make sure power cable is securely plugged in.2. Replace cable.3. Contact technical support.
System is inoperative. Keyboard lights are on, power indicator lights are lit, and hard drives are running.	Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.
System does not boot from a hard disk drive, but can be booted from optical drive.	1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.
System only boots from an optical drive. Hard disks can be read, applications can be used, but system fails to boot from a hard disk.	1. Back up data and applications files.2. Reformat the hard drive. Re-install applications and data using backup disks.
Screen message shows “Invalid Configuration” or “CMOS Failure.”	Review system’s equipment. Make sure correct information is in setup.
System cannot boot after user installs a second hard drive.	1. Set master/slave jumpers correctly.2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data. (See "Close CMOS Header: JCMOS1" section)
2. Wait for seconds.
3. Power on the system again.

APPENDIX I: Specifications in Other Languages

Arabic

Примечание

Примечание

Diagram of a device with a lever and arrow indicating motion, showing no text or symbols

Diagram of a device with internal components and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion, showing internal components and a handle (no text or symbols)

Technical line drawing of a mechanical device with an open base and a blue arrow indicating a component (no text or symbols present)

Примечание

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

4 Smart Fan Control (By Fan)

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

Примечание

Top-down schematic of a computer room layout with no visible text or symbols

DDR3_B

DDR3_A

Technical line drawing of a computer RAM module with scroll wheel and scrollpad (no text or symbols)

Isometric line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Примечание

Top-down schematic of a computer motherboard with labeled components and a highlighted component (no text or symbols present)

PCIEG3X16: слот PCI-Express Gen3 x16 (x16 режиме)

Pin Assignment

1 +12V

2 +12V

3 Ground

4 Ground

Примечание

Pin	Assignment Function Pin		Assignment Function
1	HDD LED(+)	HDDLED	2	Power LED (+)	PowerLED
3	HDD LED(-)		4	Power LED (-)
5	Ground	ResetButton	6	Power Button	Power-OnButton
7	Reset Control		8	Ground
9	NC	NC	10	NA	NA

Pin	Assignment
1	+5V
2	N/A
3	N/A
4	Speaker

SATA\_1/ SATA\_2/ SATA\_3/ SATA\_4: разъемыSerial ATA 2.0

Pin	Assignment
1	Ground
2	TX+
3	TX-
4	Ground
5	RX-
6	RX+
7	Ground

HD Audio AC'97
Pin	Назначение Pin	Наз	начение
1 Mic	Left in 1 Mic	In
2 Ground	2 Ground
3 Mic	Right in 3 Mic	Power
4 GPIO	4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7 Front Sense 7 Reserved
8 Key	8 Key
9 Left line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out

Примечание

Pin	Assignment
1	Carrier detect
2	Received data
3	Transmitted data
4	Data terminal ready
5	Signal ground
6	Data set ready
7	Request to send
8	Clear to send
9	Ring indicator
10	Key

Diagram showing a computer motherboard with an arrow pointing to a front view of the internal components (no text or symbols present)

주의

Diagram showing two views of a device with arrows indicating motion, no text or symbols present

Technical illustration of a computer chassis with two views showing internal components and blue arrows indicating motion (no text or symbols present)

주의

핀	배열
1 Ground
2 +12V
3 FAN RPM rate sense
4 Smart Fan Control (By Fan)

SYS_FAN1: 시스템 팬 헤더

핀	배열
1 Ground
2 +12V
3 FAN RPM rate sense

주의

Top-down schematic of a computer room layout with monitor, keyboard, and mouse (no text or labels)

Technical line drawing of a RAM module with mounting bracket and clamping mechanism (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

주의

Pin opened Pin closed Pin 1-2 closed

JCMOS1: CMOS 클리어 점퍼

핀	배열
1 +5V
2 N/A
3 N/A
4 Speaker

SATA\_1/ SATA\_2/ SATA\_3/ SATA\_4: 시리얼 ATA 2.0 커넥터

핀	배열
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7Ground

HD Audio AC'97
핀 배열 핀 배열
1 Mic Left in 1 Mic In
2 Ground 2 Ground
3 Mic Right in 3 Mic Power
4 GPIO 4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7Front Sense 7Reserved
8 Key 8 Key
9 Left line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out

주의

3.3 소프트웨어

소프트웨어의 설치

Diagram showing a computer motherboard with an arrow pointing to a front view of the internal components (no text or symbols present)

注意

Diagram of a mechanical device with a blue arrow indicating upward motion, showing internal components and a handle (no text or symbols)

Technical illustration of a mechanical assembly with a blue arrow indicating a component (no text or symbols present)

步驟5: 固定CPU，將拉桿閉合。

注意

針	定義
1	接地
2+12V
3FAN RPM rate sense
4 Smart Fan Control (By Fan)

SYS_FAN1: 系統風扇接頭

Top-down schematic of a computer motherboard layout with no visible text or symbols

DDR3_B

DDR3_A

Technical line drawing of a RAM module with a clamping tool and rotation arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

注意

針腳 1-2 打開: 一般操作(預設)

針腳 1-2 短路: 清空CMOS數據

清空CMOS數據過程:

HD Audio AC' 97
針定義針定義
1 Mic Left in 1 Mic In
2接地2接地
3Mic Right in 3Mic Power
4 GPIO 4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7Front Sense 7Reserved
8 Key 8 Key
9 Left line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out

注意

3.3 軟體

安裝軟體

請參照以下步驟來更新開機畫面：
