| Product Type | Portable Air Conditioner |
| Brand | Equator |
| Model | PAC 162 W |
| Cooling Capacity | 16,000 BTU/h |
| Dimensions (H x W x D) | 30.7 x 16.5 x 16.9 inches (78 x 42 x 43 cm) |
| Weight | 68.3 lbs (31 kg) |
| Power Supply | 115 V / 60 Hz / 1150 W |
| Current | 10 A |
| Refrigerant | R410A |
| Air Flow (High Speed) | 320 CFM |
| Noise Level | 53 dB(A) (high speed) |
| Energy Efficiency Ratio (EER) | 11.0 |
| Modes | Cool, Dehumidify, Fan, Sleep |
| Fan Speeds | 3 (Low, Medium, High) |
| Timer | 24-hour programmable timer |
| Remote Control | Yes (included) |
| Thermostat Control | Yes, digital display with temperature range 60-86°F (16-30°C) |
| Dehumidification Capacity | 2.5 pints per hour |
| Water Drainage | Continuous drain option via hose (not included) |
| Air Filter | Washable, reusable |
| Filter Cleaning Reminder | Yes, indicator light |
| Exhaust Hose Length | 59 inches (150 cm) with adapter |

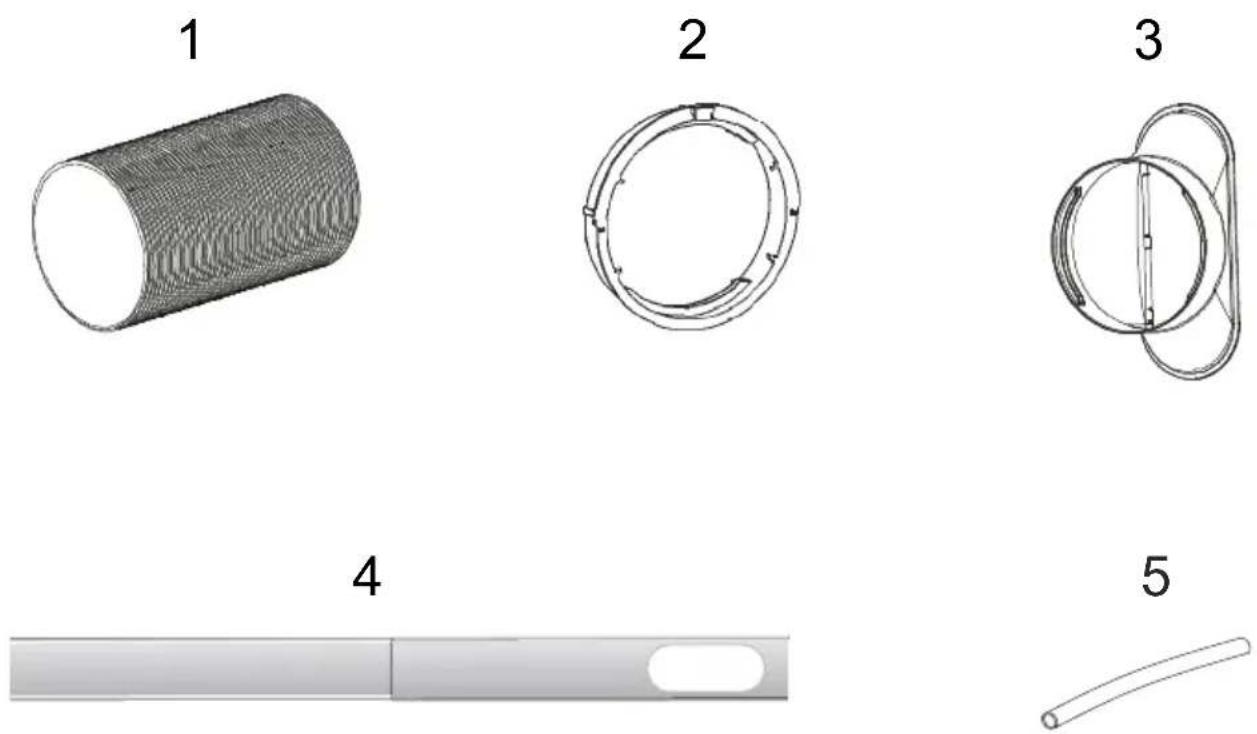

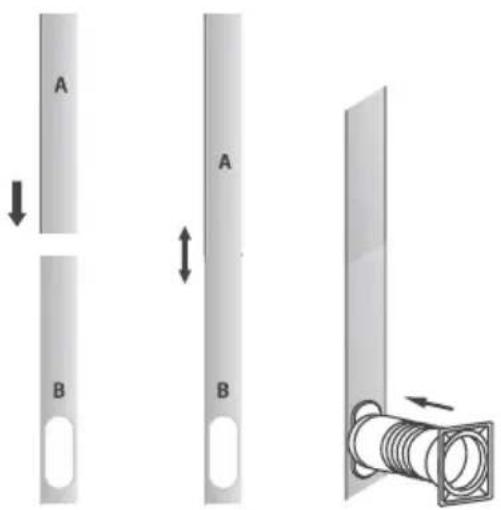

| Window Kit | Included (adjustable for sliding windows up to 50 inches) |
| Safety Certifications | ETL listed |
| Warranty | 1 year limited |
Frequently Asked Questions - PAC 162 W Equator

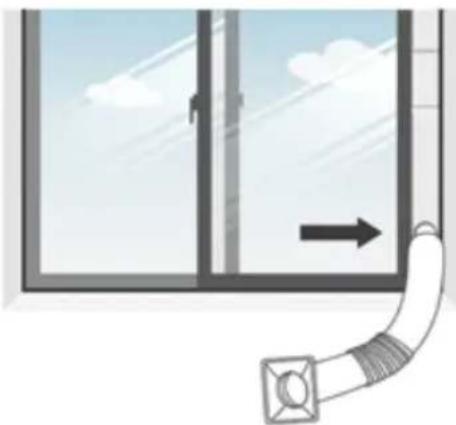

How do I install the Equator PAC 162 W air conditioner?

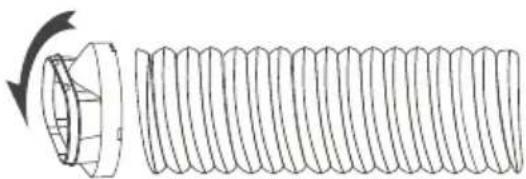

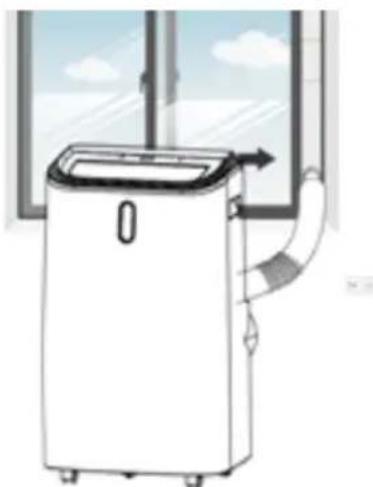

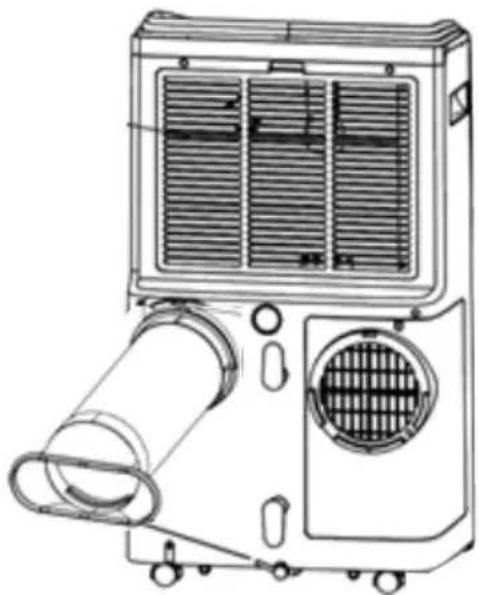

Installation involves attaching the exhaust hose to the unit and the window adapter, then placing the adapter in a window opening. Ensure the window kit is properly sealed to prevent warm air from entering. Refer to the manual for step-by-step instructions.

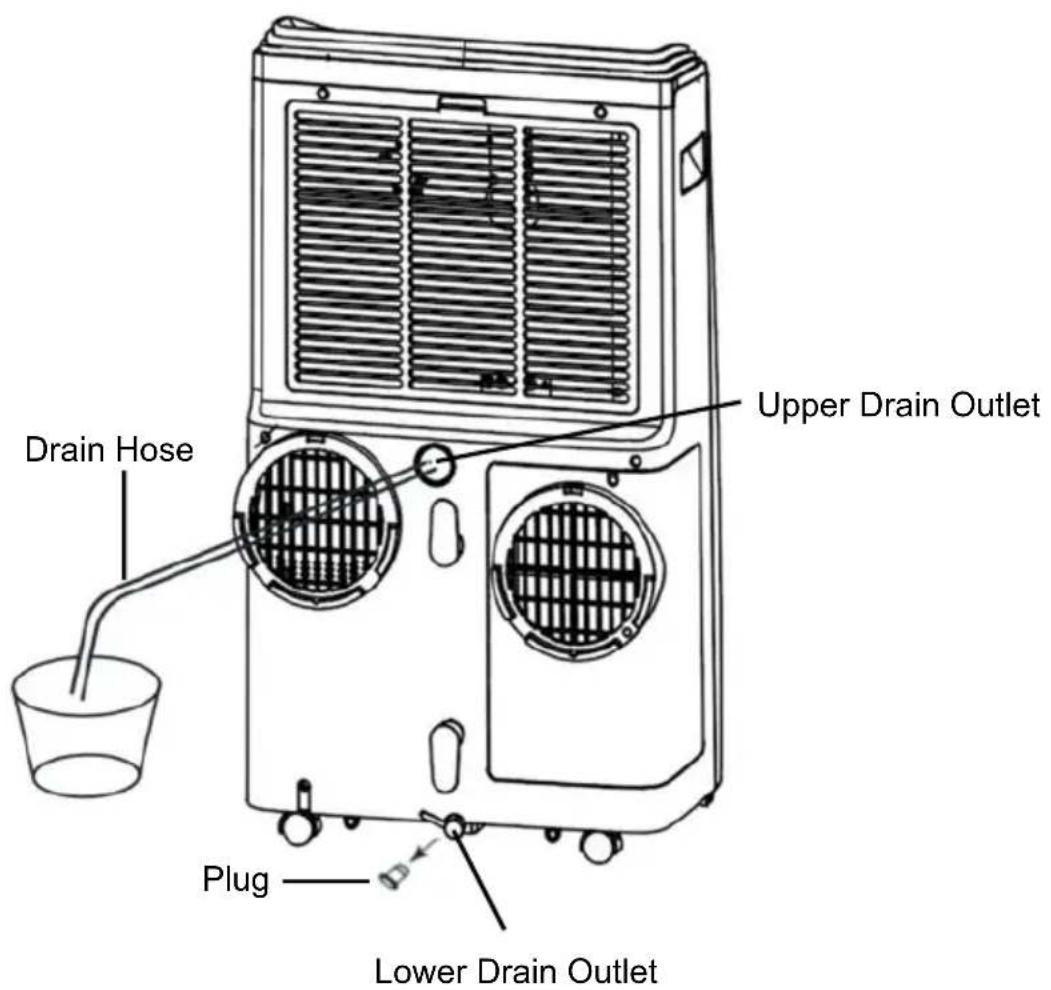

Does the PAC 162 W require continuous drainage?
In cool mode, the unit self-evaporates most moisture. In dehumidify mode, you may need to use the continuous drain hose (not included) for extended operation. The built-in tank collects excess water; empty it when the indicator lights up.
How often should I clean the air filter?
Clean the washable filter every two weeks under normal use. A dirty filter reduces efficiency. Remove the filter, rinse with lukewarm water, dry completely, and reinstall.
What is the best way to maximize energy efficiency?
Close windows and doors, insulate the window kit, set the thermostat to a moderate temperature (78°F/25°C), use the timer, and clean the filter regularly.
Can I use the air conditioner in a room without an exhaust window?
No, the exhaust hose must vent warm air outside. It is designed for window installation. Without proper exhaust, the unit cannot function effectively.
How do I reset the filter cleaning reminder?

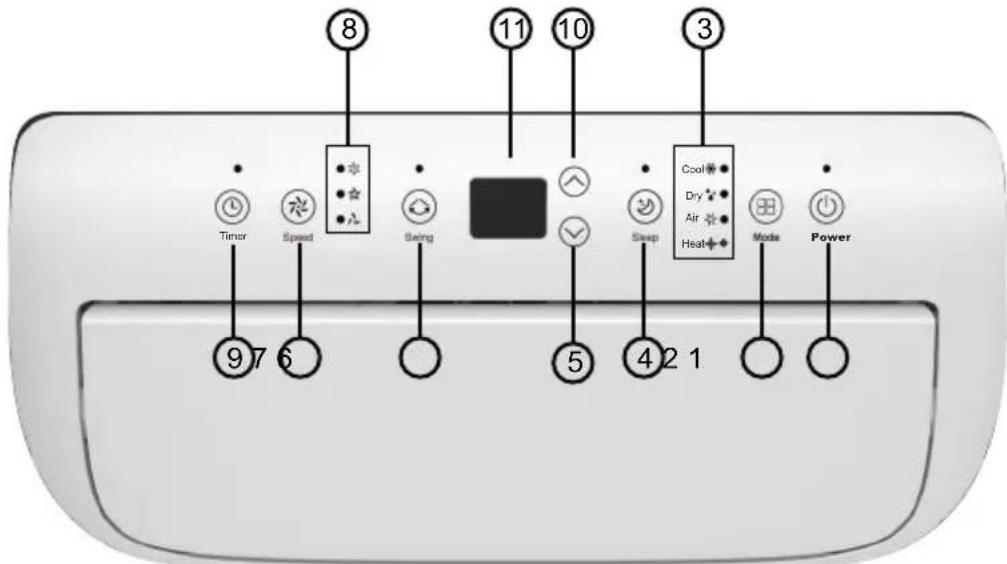

After cleaning the filter, press and hold the 'Filter' button on the remote or control panel for about 3 seconds until the indicator light turns off.
What does the 'Sleep' mode do?
Sleep mode gradually increases the temperature setting by 1°F every 30 minutes for the first hour, then stabilizes, to provide quieter operation and energy savings while you sleep.
Why is the unit icing up?
Ice buildup can occur if the filter is dirty, the room temperature is too low (below 60°F), or the unit is overworked. Clean the filter, raise the thermostat setting, and allow the unit to defrost.
Can I use an extension cord?
No, using an extension cord is not recommended. Plug the unit directly into a grounded wall outlet to avoid fire hazard or damage.
How do I replace the batteries in the remote control?
Slide the back cover open, remove old batteries, and install two new AAA batteries (not included) with correct polarity. Replace the cover.
