Product Type	Car Air Purifier
Model	GoPure Style GP560
Brand	Philips
Dimensions (L x W x H)	200 x 200 x 50 mm
Weight	0.5 kg
Power Supply	12V DC (cigarette lighter adapter)
Power Consumption	5 W (max)
Filter Type	HEPA + Activated Carbon
Filtration Stages	3-stage: pre-filter, HEPA, activated carbon
CADR (Clean Air Delivery Rate)	20 m³/h
Coverage	Up to 10 m² (cabin)
Noise Level	35-50 dB(A)
Fan Speeds	3 speeds (low, medium, high)
Auto Mode	Yes (with sensor)
Air Quality Indicator	Color ring (blue, purple, red)
Filter Replacement Indicator	Yes
Filter Lifetime	Approx. 6 months (2000 hours)
Installation	Cupholder or dashboard mount (bracket included)
Maintenance	Vacuum pre-filter monthly; replace filter every 6 months
Safety Features	Overheat protection, auto shut-off when tipped
Included Accessories	12V adapter, mounting bracket, user manual
Warranty	2 years

Frequently Asked Questions - GoPure Style GP560 PHILIPS

How do I install the Philips GoPure Style GP560 in my car?

Place the purifier in a cupholder or use the included bracket to attach it to the dashboard. Plug the 12V adapter into the cigarette lighter socket. The device will start automatically.

How often should I replace the filter?

The filter should be replaced every 6 months (or after 2000 hours of use). The filter replacement indicator will remind you when it's time.

Can I clean the filter instead of replacing it?

Only the pre-filter is washable. Vacuum it monthly. The HEPA and activated carbon filter cannot be washed and must be replaced.

What pollutants does the GoPure Style GP560 remove?

It removes dust, pollen, smoke, bacteria, viruses, and odors using a HEPA filter and activated carbon.

Does the purifier work while the car is off?

It only works when the 12V socket is powered. If your car socket turns off with ignition, the purifier will stop.

What do the colors on the ring mean?

Blue indicates good air quality, purple means moderate, and red indicates poor air quality. The sensor measures particulate matter.

How loud is the purifier?

Noise level ranges from 35 dB (low speed) to 50 dB (high speed), similar to a quiet conversation.

Can I use it in a truck or RV?

Yes, as long as there is a 12V socket. It is designed for vehicles with standard cigarette lighter ports.

Does it have a replacement filter indicator?

Yes, the indicator will light up or the ring will blink to alert you when the filter needs to be replaced.

What is the CADR and coverage area?

The CADR is 20 m³/h, suitable for car cabins up to 10 m² (e.g., a typical passenger car).

USER MANUAL GoPure Style GP560 PHILIPS

User Manual

EN Read these instructions for use carefully before using the product and save them for future reference.

Warranty and service

The Lumileds warranty applies, provided:

• The product is handled properly for its intended use only. • The product is used in accordance with its operating instructions. • You present the original invoice with the product.

The Lumileds warranty does not apply if the product is damaged due to accident, error, or misuse.

For more information and assistance, or if you have a problem with the product, you can visit the Philips website at www.philips.com/automotive, or contact the retail outlet where you purchased the product.

Or for the users in China, please call the customer service hotline: [phone]

Lumileds (Shanghai) Management Co., Ltd No. 19-20, Lane 299, Wenshui Road, JiangAn District, Shanghai

2

1 ⚠️ Important information

⚠ Warning

Do not clean or spill any liquids such as water, detergents, or flammable solvents on the device.

Keep Philips car air sanitizer free of any obstruction. Do not cover!

To clean the car air sanitizer:

• Disconnect car air sanitizer
• Use soft cloth only.

Philips car air sanitizer is not a toy! Do not let children play with it.

For your safety, do not manually operate the device while driving. Always stop your car first!

UVC LED sterilization technology is used in this product. It is strictly forbidden to disassemble the air sanitizer to avoid possible exposure to UV radiation.

Help to preserve the environment. Do not discard the device with household waste. Bring it to the official waste recycling service location near you. Filter and HESAMax cartridge may be disposed of with household waste.

2 Product Introduction

4

2.1 Discover the content of Philips package

USB Type-C power cable

User Manual

Note

Ensure the device is installed according to the instructions in this guide.

For your safety, please use the items delivered in this package only to install the device. In case of incorrect installation, Lumileds declines all responsibility for any harm or accident.

3 Installing the car air sanitizer

3.1 Remove the packaging of the HESAMax cartridge before use

Remove the base as shown in the image below. Remove the HESAMax cartridge from the base and then remove the plastic packaging. Then, put the HESAMax cartridge and base back into place.

5

3.2 Installing and connecting the console

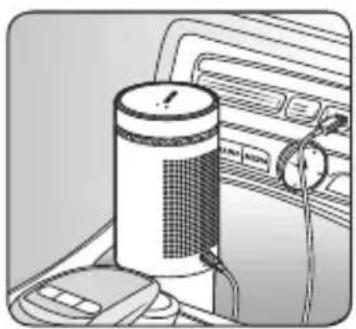

Place the air sanitizer in the cup holder in the center console or armrest of the car.

Use the power cable provided to connect the air sanitizer to the car's USB port.

Precautions

Do not place the air sanitizer in places other than the cup holder to prevent unexpected product movement, as the car is moving, that affects safety whilst driving.

In-car USB DATA port is not recommended as power input.

Please avoid the use of any USB port with a power rating lower than 1.0A, or low-powered car lighter outlet with an adapter as the power source.

When input power is lower than required, product performance will be compromised.

Do note: The USB ports of some cars continue to supply power even when the engine is off. To avoid running out of batteries, the air sanitizer is set to automatically shut down after two hours of continuous operation. When the air sanitizer is automatically turned off after two hours during driving, turn it on manually if you wish to turn the air sanitizer on again.

4 Operating the Philips car air sanitizer

Once the car's USB port starts supplying power, the air sanitizer will turn on automatically. It will operate in low speed mode as the default.

1. Press the ON/OFF button to switch into the operating mode between low speed and high speed.
2. When turned on, press and hold the ON/OFF button for 2 seconds to shut down the air sanitizer.
3. When turned off, press the ON/OFF button to start and it will operate in low speed mode as the default.

5 Replacement of filter and HESAMax cartridge

This product has 2 air filtration features that require replacement: a high-efficiency particle filter and a HESAMax cartridge.

5.1.1 Filter replacement reminder The air sanitizer will automatically remind you to replace the filter.

When the filter needs to be replaced, the blue light ring on the top of the air sanitizer will blink every time it's turned on.

5.1.2 How to replace the filter 1. After removing the base, open the filter cover and remove the filter.

5.1.3 How to reset the air sanitizer

1. With the filter cover open, power on the air sanitizer. Press and hold the ON/OFF button for more than 5 seconds until you hear "ding ding" and release the button to reset the filter.
2. Close the filter cover and install the base.
3. If the reset failed, please repeat the above steps.

5.2 How to replace HESAMax cartridge

HESAMax cartridge works 24/7, the replacement cycle depends on the in-car gas/odor level. The recommended replacement period is 12 months. Remove the HESAMax cartridge from the base and replace with a new one. Then, fix the base back in place.

Precautions

For safety reasons, when the filter cover is open, the fan inside the air sanitizer and the UVC lamp will stop working. Please be sure to use genuine Philips SaniFilter Plus and HESAMax cartridges, and replace them in a timely manner. This will maintain the best performance of Philips car air sanitizers and ensure the purest air in the car.

6 Philips car air sanitizer troubleshooting

Problem 1

Philips car air sanitizer does not switch to high speed.

Solution 1

• Check that it is not connected to an in-car USB data port, which is usually not designed as a power source.
• Connect to an in-car USB port with charging function.
• Or check your USB power input; it needs to be higher than 5V/1A.

Problem 2

Some cars continue to power the 5V outlet when the engine is off.

Solution 2

To avoid draining the battery, the Philips car air sanitizer will automatically power off after two hours of continuous running. To restart your device, press the power button.

Problem 3

After filter replacement, the blue light ring on top remains blinking at restart.

Solution 3

Turn off the device and follow the filter reset steps in section 5.1. Make sure the power cable remains connected during the whole process.

Problem 4

The Philips car air sanitizer stops running for a short while.

Solution 4

This is normal: the Philips car air sanitizer has a voltage protection function. The device turns off automatically when the voltage supply from the vehicle is fluctuant. The device will resume working once the voltage becomes stable.

Simplified Chinese

Warranty and service

Lumileds warranty scope:

12

3.2 Installation and connection control

Note

How to reset the air purifier

5.2 How to replace the HESAMax cube

19

3.2 Installation and Connection of the Control Unit

Note

How to Reset the Air Purifier

5.2 How to Replace the HESAMax Cartridge

26

3.2 Setup and Power Connection

Note

5.1.3 How to Reset the Replacement Indicator

33

3.2 Installation and Connection

⚠ Caution

5.1.3 How to Reset the Air Purifier

5.2 Replacing the HESAMax Cartridge
