Product Type	Range Hood
Brand	LG
Model	DC9101SAU
Installation Type	Wall-mounted
Control Type	Electronic push button with LED indicators
Number of Speeds	4 + Intensive (booster)
Intensive Speed	Yes, automatic shut-off after 10 minutes
24h Changeover Function	Yes, low speed at 100 m³/h, 28 dB(A)
Delay Off Timer	Yes, 30 minutes
Filter Saturation Alarm	Yes, for metal grease and activated charcoal filters
Grease Filter Type	Washable metal, safety knobs
Charcoal Filter Type	Replaceable, not washable (every 4 months)
Lighting	20 W halogen, replaceable
Air Extraction Modes	Ducted (external exhaust) or recirculation (with charcoal filter)
Duct Diameter	150 mm (reducible to 120 mm)
Minimum Installation Height	650 mm above hob
Power Supply	Mains voltage (see rating plate), Class I with earthing
Noise Level (24h mode)	28 dB(A)
Chimney Type	Telescopic, two sections
Safety Features	Automatic shut-off intensive speed, filter alarms, minimum distance requirement

Frequently Asked Questions - DC9101SAU LG

What is the minimum installation height for the LG DC9101SAU range hood?

The minimum safety distance between the cooker top and the extractor hood is 650 mm.

How do I clean the metal grease filters?

Remove the filters by turning the safety knobs (pull and turn). Wash them in warm soapy water, taking care not to bend them. Allow them to dry completely before refitting. They should be cleaned when the S1 LED lights up or at least every 2 months.

How often should the activated charcoal filter be replaced?

The activated charcoal filter is not washable and must be replaced when the S1 LED flashes or at least every 4 months.

How do I reset the filter saturation alarm?

Turn off the lights and motor. Press and hold button T3 for at least 3 seconds until the LEDs start flashing. This resets both the grease and charcoal filter alarms.

Can the hood be used in recirculation mode?

Yes, the hood can be used in recirculation mode. You need to install the air outlet connection (part 15) and ensure the activated charcoal filters are inserted.

What type of light bulb does the hood use?

The hood uses a 20 W halogen bulb. To replace, remove the two screws on the lighting support, pull it out, replace the bulb, and reassemble.

How do I enable the 24h changeover function?

Press and hold button T1 for approximately 5 seconds. The LED T1 will flash, indicating the function is active. It operates at 100 m³/h with a noise level of 28 dB(A).

What should I do if the hood is not working?

Check that the mains power is connected and that the two-pole switch is on. Ensure the connector of the feeding cable is correctly inserted in the socket near the fan. Also check if the thermal fuse has tripped.

Can the hood be installed over a gas cooker?

Yes, but the minimum distance of 650 mm must be maintained. For non-electrical appliances, ensure adequate aeration to prevent backflow of exhaust gases.

How do I activate the delay off timer?

Press button T2 for approximately 2 seconds. The LED will flash, and the hood will automatically shut off after 30 minutes.

USER MANUAL DC9101SAU LG

Isometric line drawing of a vertical rectangular device mounted on a base platform (no text or symbols)

Model Numbers DC9101SAU

Instruction Manual

Dear Customer,

If you follow the recommendations contained in this Instruction Manual, your appliance will give you constant high performance and will remain efficient for many years to come.

CONTENTS

RECOMMENDATIONS AND SUGGESTIONS 3

CHARACTERISTICS 4

INSTALLATION 6

USE 9

MAINTENANCE 10

INSTALLATION

The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

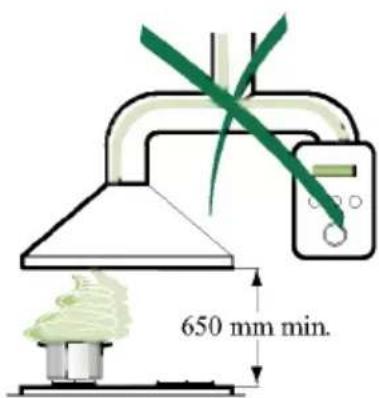

The minimum safety distance between the cooker top and the extractor hood is 650 mm.

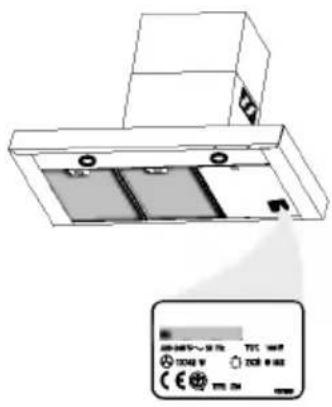

⚠️ Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
⚠ For Class I appliances, check that the domestic power supply guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.
Installation of the extractor hood over a solid-fuel burner(coal, wood, etc.) which could constitute a potential fire hazard (e.g. due to flying sparks) is only permitted if the burner is equipped with an enclosed, non-removable cover and all country-specific regulations are observed. This restriction dose not apply to gas cookers and gas hobs.
⚠️ Regulations concerning the discharge of air have to be fulfilled.

USE

The extractor hood has been designed exclusively for household use to eliminate kitchen smells.
⚠️ Never use the hood for purposes other than for which it has been designed.
Never leave high naked flames under the hood when it is in operation.
Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
⚠️ Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
The hood should not be used by children or persons not instructed in its correct use.
Do not use the appliance if it is damaged in any way.
⚠️ Never operate the extractor hood without a grease filter.
Do not flambe food directly under the extractor hood.

MAINTENANCE

Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
⚠ Clean and/or replace the Filters after the specified time period.
⚠ Clean the hood using a damp cloth and a neutral liquid detergent.
⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.
There is a fire risk if cleaning is not carried out in accordance with the instructions.

Illustration of a kitchen appliance with a green spatula and a black pot, crossed by a green diagonal stripe (no text or symbols)

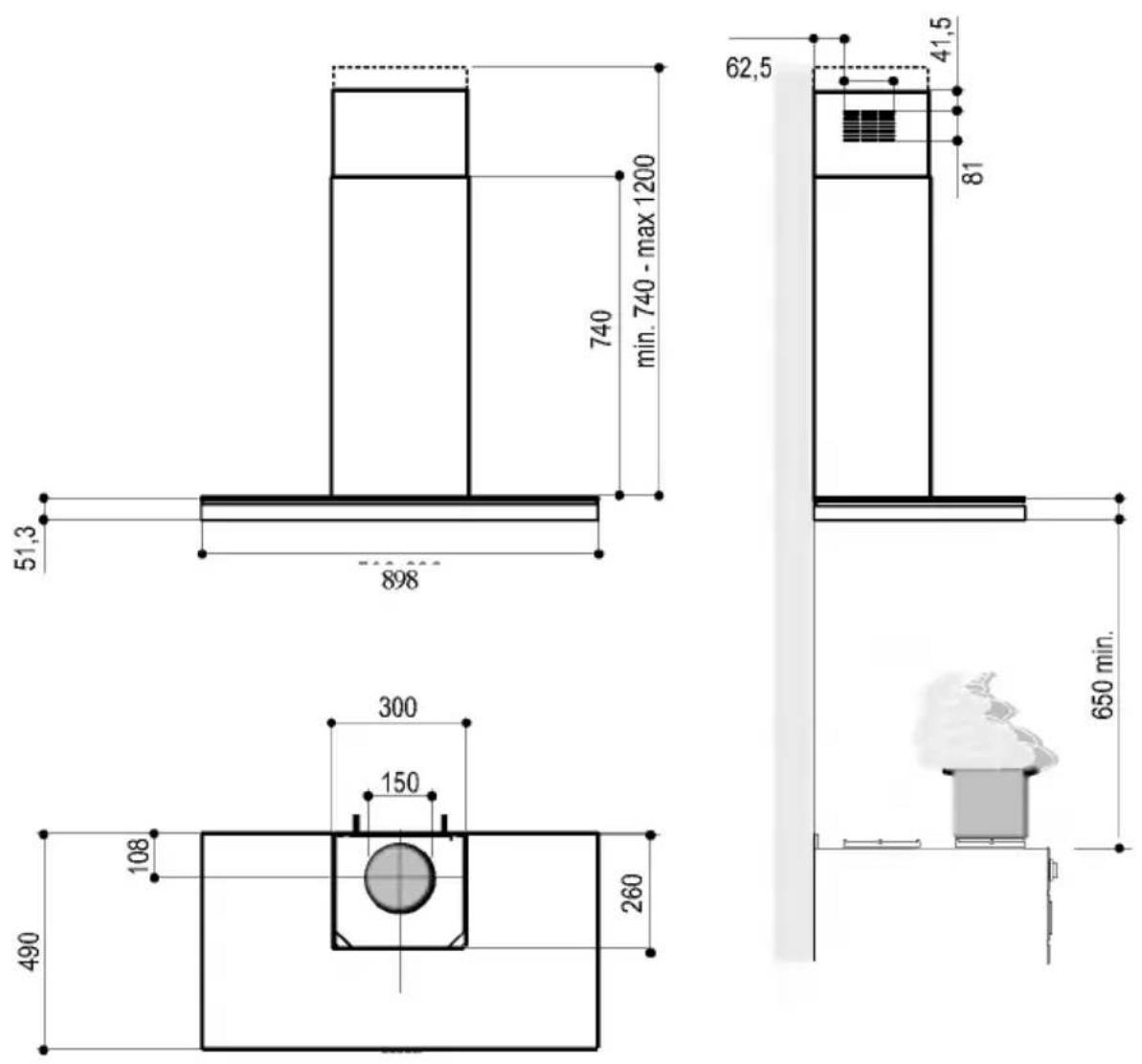

Dimensions

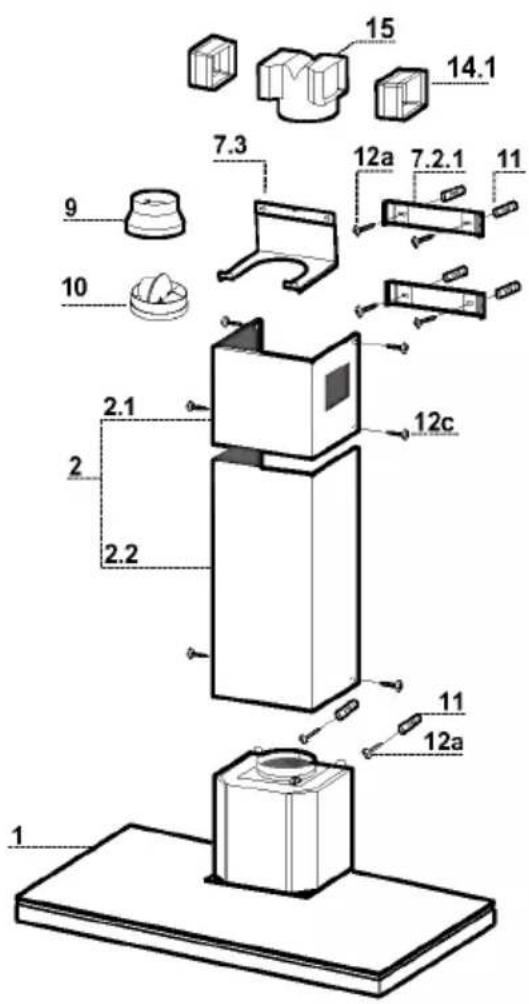

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic Chimney comprising:
2.1	1	Upper Section
2.2	1	Lower Section
9	1	Reducer Flange ø 150-120 mm
10	1	Damper
14.1	2	Air Outlet Connection Extension
15	1	Air Outlet Connection

Ref.	Q.ty	Installation Components
7.2.1	2	Upper Chimney Section Fixing Brackets
7.3	1	Air Outlet Connection Support
11	6	Wall Plugs
12a	6	Screws 4,2 x 44,4
12c	6	Screws 2,9 x 9,5

1 Documentation

Wall drilling and bracket fixing

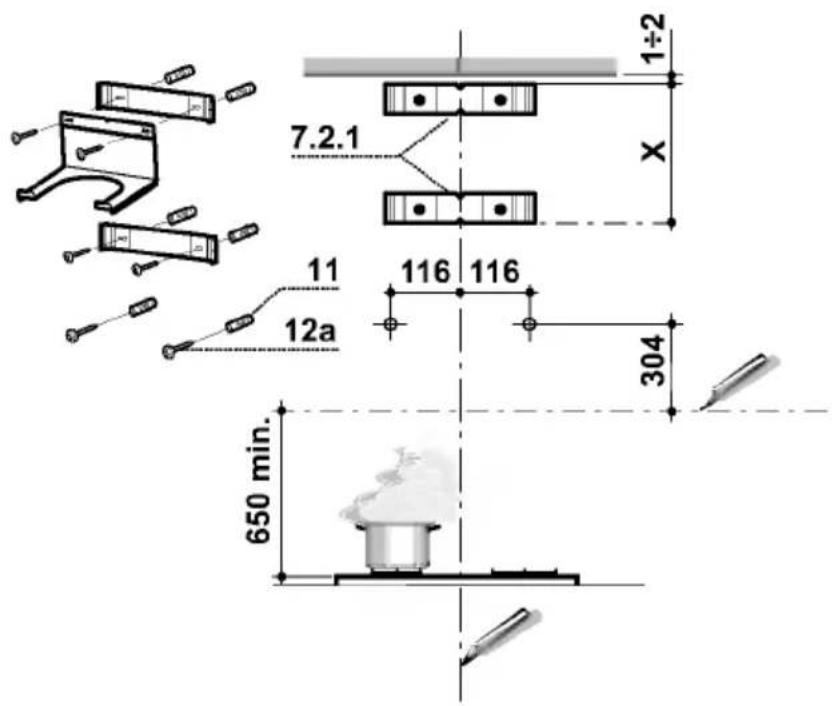

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 304 mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
  • Fix the lower bracket 7.2.1 using the 12a screws (4,2 x 44,4) supplied.
• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2 screws 12a (4.2 x 44,4) supplied.

• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

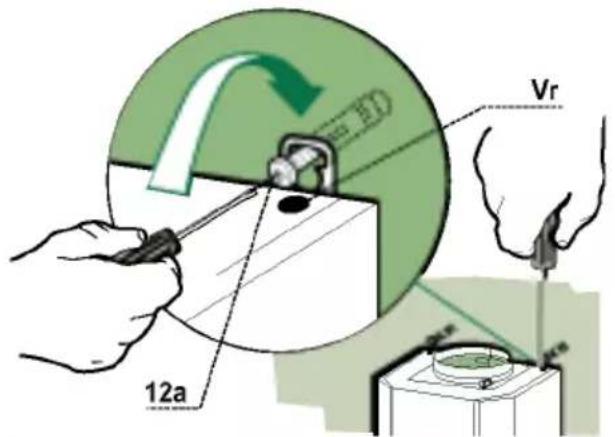

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.

• Hook the hood body onto the screws 12a
  • Fully tighten support screws 12a
• Adjust screws Vr to level the hood body.

Connections

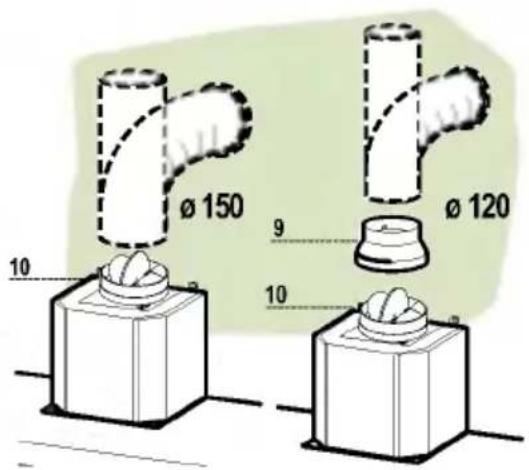

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• To install the dumper 10
- To install a 120 mm air exhaust connection, insert the reducer flange 9 on the dumper 10.
- Fix the pipe in position using sufficient pipe clamps (not supplied).
- Remove any activated charcoal filters.

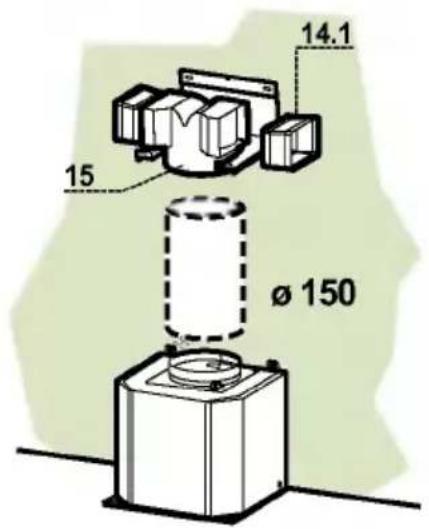

RECIRCULATION VERSION AIR OUTLET

• Put connection 15 into the connection support 7.3.
• Insert the connection extension pieces laterally 14.1 in connection 15.
  • Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet using either a flexible or rigid pipe 150 mm, the choice of which is left to the installer.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Diagram showing a mechanical component with an inset view of a connector or connector (no text or symbols present)

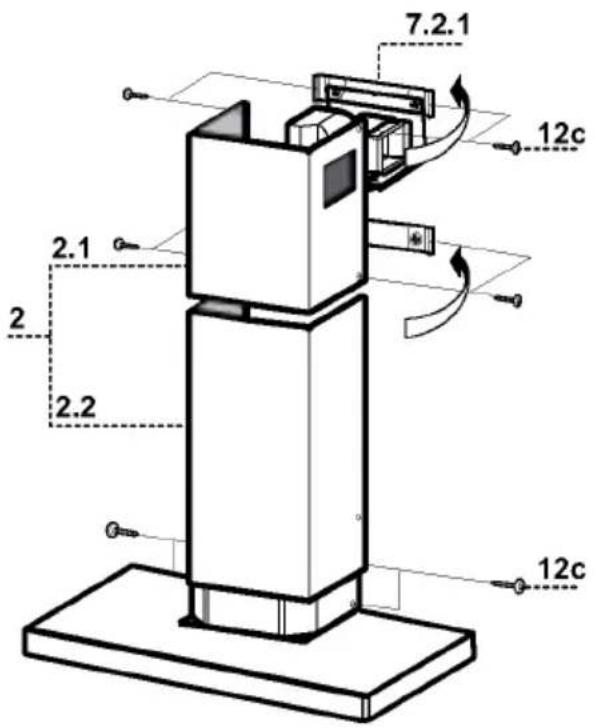

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied.
• Make sure that the outlet of the extensions pieces is aligned with the chimney outlets.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.
• Fix the lower part laterally to the hood body using the 2 screws 12c (2,9 x 9,5) supplied.

Control Panel

The hood can be switched on pushing directly onto the requested speed without firstly having to select 0/1 button.

KEY		LED	FUNCTIONS
L	0/1 Light		Turns lighting on and off.
T1	0/1 Motor	on	First speed.When pressed for about 2 seconds the motor is switched off.
		Flashing	24h ChangeoverThis is enabled by pressing and holding the button for approximately 5". It allows a suction level of 100 m^3/h with a noise level of just 28dB(A). Can be enabled at any speed, even with the hood turned off. To disable, press and hold the button for approximately 5".
T2	Speed	on	Second speed.
		Flashing	Delay (30')Press the button for approximately 2" to enable automatic shutdown with a 30' delay. Suitable to complete elimination of any residual smells. Can be enabled at any speed and is disabled by pressing the button briefly.
T3	Speed	on	Third speed.
T4	Speed	Fixed	Max. speed
		Flashing	Intensive speed.Suitable for the strongest cooking vapours and odours.The function becomes active when the button is pushed for about 2 seconds. After 10 minutes of functioning it turns off automatically. This function can be interrupted by means of pressing any of the buttons.
S1	Led	Fixed	Indicates that the Metal grease filters saturation alarm has been triggered, and the filters need to be washed. The alarm is triggered after 100 working hours. (Reset; check the Maintenance-paragraph)
		Flashing	indicates that the activated charcoal odour filter saturation alarm has been triggered, and the filter has to be replaced; the metal grease filters must also be washed. The activated charcoal odour filter is triggered after 200 working hours. (Activation and Reset; check the Maintenance-paragraph)

Grease filters

CLEANING METAL GREASE FILTERS

Alarm signal reset

• Switch of the lights and extractor motor.
• Press button T3 for at least 3 seconds, until the leds start to flash.

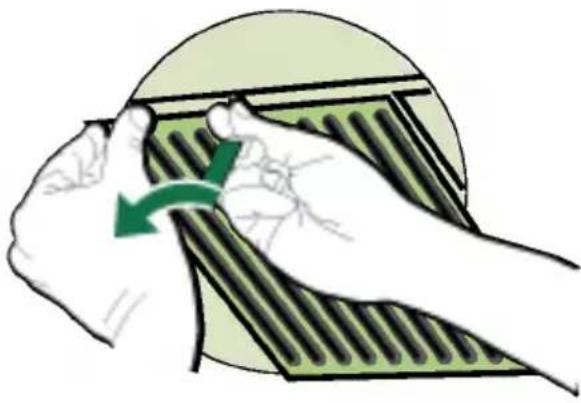

Cleaning the filters

• The filters are washable and must be cleaned when the led S1 lights up or at least every 2 months of operation, or more frequently for particularly heavy usage.
• Remove the filters one at a time, supporting them with one hand and turning the safety knobs (pull and turn).
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• Replace them and fix them using the safety knobs provided (pull and turn).

Illustration of hands performing a task on a striped material surface, with a green arrow indicating the motion direction (no text or symbols present)

Enabling/Disabling the alarm signal

• In Recirculation version Hoods, the Filter saturation alarm can be enabled on installation or at a later date.
  • Turn the Lights and the suction Motor off.
• Disconnect the Hood using the Main switch or the double-pole switch on the mains power supply or the connector of the feeding cable from the side of the fan.
• Restore the connection by pressing and holding T1
• Release the button. All five LEDs are turned on
• Within 3 seconds press T1 until LEDs T1 and T4 flash in confirmation:

• LED flashes twice - Activated charcoal filter saturation alarm ENABLED

• LED flashes once - Activated charcoal filter saturation alarm DISABLED

Diagram showing a mechanical component with an inset view of a green arrow pointing to a specific part (no text or symbols present)

REPLACING THE ACTIVATED CHARCOAL FILTER

The filter is not washable and cannot be regenerated. It must be replaced when S1 flashes or at least every 4 months. The alarm signal will only light up when the extractor motor is switched on.

Alarm signal reset

• Switch off the lights and extractor motor.
• Press button T3 for at least 3 seconds, until the leds start to flash.

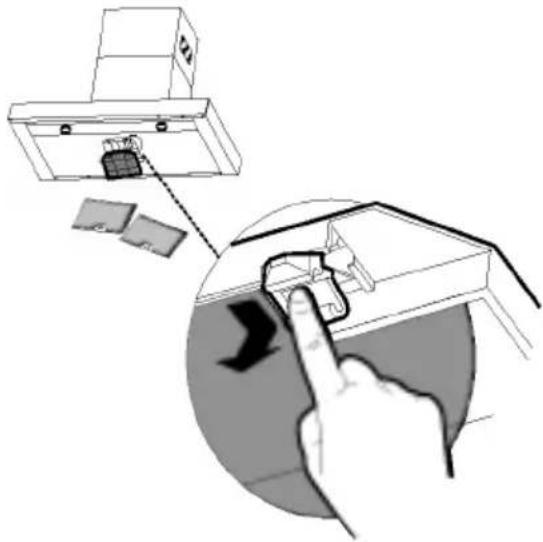

Replacing the Filter

• Remove the metal grease filters
• Remove the saturated activated carbon filter by releasing the fixing hooks
  • Fit the new filter by hooking it into its seating
• Replace the metal grease filters.

Illustration showing a hand pressing down on a device component with a magnified view of the handle (no text or symbols present)

Lighting

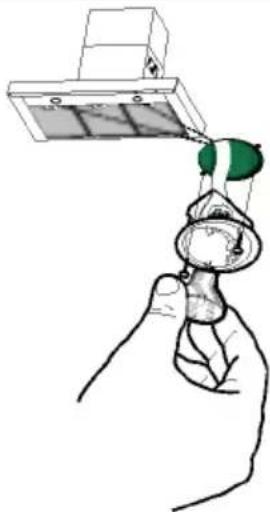

LIGHT REPLACEMENT

20 W halogen light.

• Remove the 2 screws fixing the Lighting support, and pull it out of from the Hood.
  • Extract the lamp from the Support.
• Replace with another of the same type, making sure that the two pins are properly inserted in the lamp holder socket holes.
• Replace the Support, fixing it in place with the two screws removed as above.

Hand holding a small object with a green and white object inserted, next to a mounted device (no text or symbols visible)

When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.
