Brand	Russell Hobbs
Model	ATHENA2 Pet RHUV5601
Product Type	Broom Vacuum Cleaner (Stick Vacuum)
Power Supply	Corded Electric
Voltage	220-240 V ~ 50/60 Hz
Cord Length	Approx. 5 m
Dust Capacity	0.5 L
Filter Type	Washable (cold water, monthly)
Noise Level	Approx. 75 dB
Weight	Approx. 3.5 kg
Dimensions (L x W x H)	Approx. 250 x 200 x 1100 mm
Suitable For	Carpets and hard floors
Pet Hair	Yes (Pet model with specialized tool)
Accessories Included	Crevice tool, dusting brush, pet tool
Guarantee	12 months (extendable to 24 months with registration)
Maintenance	Wash filters monthly; replace belt when needed
Safety Features	Thermal cut-out, cord safety

Frequently Asked Questions - ATHENA2 Pet RHUV5601 RUSSELL HOBBS

How do I empty the dust bin?

Press the release button to detach the dust canister from the main body. Hold over a trash bin and press the bottom release to empty. Tap to remove debris. Reattach securely.

How often should I wash the filters?

Wash the filters with cold water at least once a month. If vacuuming fine dust, more frequent washing may be needed. Allow filters to dry completely for 24 hours before reuse.

How do I replace the belt?

Use a cross-head screwdriver to remove the brush cover screws. Remove the old belt from the motor shaft and roller. Loop the new belt over the motor shaft and stretch over the floor brush in the space between bristles. Turn the brush several times to align, then replace the cover.

What should I do if suction decreases?

Check if the dust canister is full and empty it. Clean the filters following instructions. Inspect the hose and attachments for blockages and clear any obstructions.

Can I use this vacuum to pick up liquids?

No. This appliance is designed for dry vacuuming only. Do not use it to pick up water, other liquids, or combustible substances.

How do I register for the additional guarantee?

Register online at https://mda.russellhobbs.com or call 0345 209 7461 within 12 months of purchase to receive a free extra year guarantee.

What does the red dust indicator mean?

If the vacuum has a red indicator light, it typically signals that the dust canister is full or airflow is blocked. Empty the canister and check for blockages.

The vacuum overheated and stopped. What now?

Allow the vacuum to cool for at least 1 hour. Clean all filters, empty the dust canister, and check for blockages. Ensure filters are dry before restarting.

Is the vacuum suitable for pet hair?

Yes, this is the Pet model (ATHENA2 Pet). It includes a specialized pet tool for effective hair removal from upholstery and carpets.

How do I contact customer support?

Contact the Product Care Team at 0345 209 7461 or visit https://mda.russellhobbs.com. Address: Green Bank Business Park, Hindley Green, Wigan, WN2 4AY.

USER MANUAL ATHENA2 Pet RHUV5601 RUSSELL HOBBS

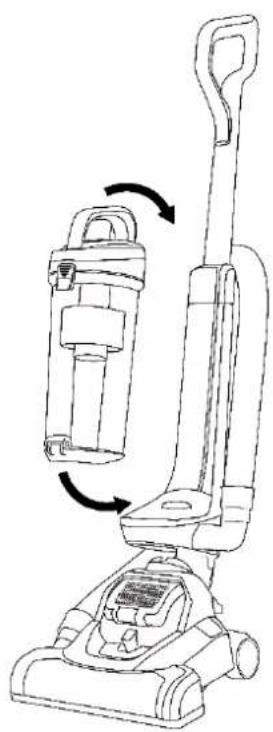

Line drawing of a vacuum cleaner with a handle and internal components, showing rotational motion (no text or symbols)

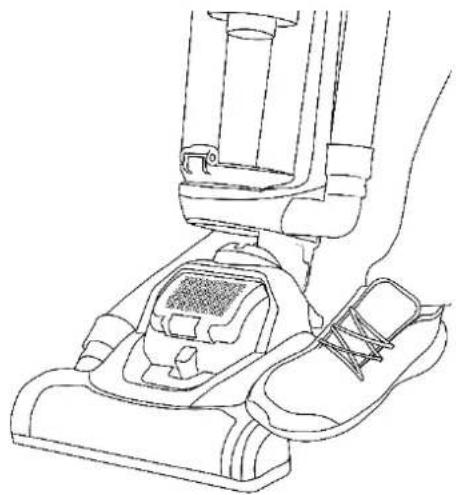

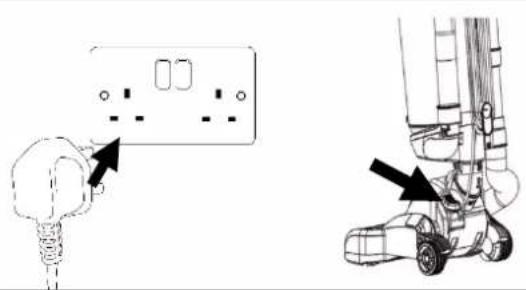

POWERING ON

Technical line drawing showing a mechanical component with an arrow pointing to a labeled part and another forklift (no text or symbols present)

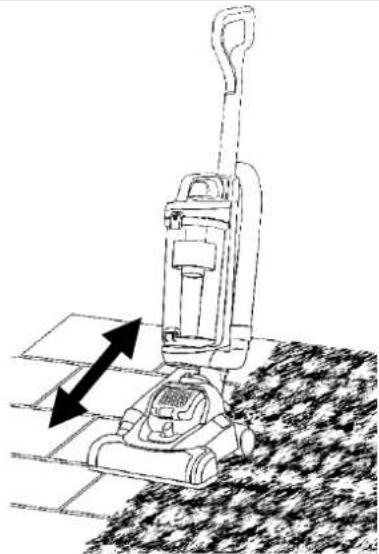

SUITABLE FOR USE

Two abstract geometric patterns: a grid of irregular black lines on the left and a brick wall pattern with white squares on the right (no text or symbols)

Carpet
Hard Floors

WASH FILTERS

Wash the filters with cold water at least once a month

1

MONTH

REGISTER YOUR

FREE 1 YEAR

GUARANTEE

TODAY

GUARANTEE

At Russell Hobbs, we take all our customer feedback seriously.

Feel free to contact our Product Care Team, on 0345 209 7461 who will be more than happy to assist you.

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship, the faulty product must be returned to the place of purchase.

Refund or replacement is at the discretion of the retailer.

The following conditions apply:

• The product must be returned to the retailer with the original proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide and any other instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended use.
• This guarantee does not cover wear and tear, damage, misuse or consumable parts.
  • This does not affect your statutory rights.

RUSSELL HOBBS CONTACT DETAILS

Website: https://mda.russellhobbs.com

Telephone: [phone]

Address: Product Care Customer Service, Green Bank Business Park, Hindley Green, Wigan, WN2 4AY

Note your serial number below for future reference.

Empty white rectangle with black border (no text or symbols)

Image for illustration purposes only

REGISTER ONLINE

Visit our website to register your full parts and labour guarantee online.

https://mda.russellhobbs.com

REGISTER BY PHONE

Call our friendly Product Care team.

0345 209 7461

IMPORTANT SAFETY INSTRUCTIONS

• It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to electrical parts.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not use with damaged cord or plug. Do not run the vacuum cleaner over any cables, or its own power cable. As this will result in damaging the cable.
• This product is intended for household use only. Do not use outdoors.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.
• Do not direct at people, animals, electrical outlets, or equipment containing electrical components.
• Do not use this appliance to pick up water or any other liquids, combustible substances or hot/burning objects.
• Unplug from outlet when not in use, and before putting on and taking off parts, and before cleaning. Do not leave unattended whilst plugged in.
• Do not use appliance if it has been dropped, damaged, left outdoors or dropped into water. Do not operate this appliance for anything other than its intended use.
• Keep the appliance and adapter away from water; do not allow it to get wet.
• If unit is wet, do not plug unit into wall socket or turn unit on. Do not immerse in water or other liquids for cleaning. Do not handle the appliance with wet hands.
• Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp corners or edges, or expose cord to heated surfaces.
• The use of accessory attachments not recommended by the manufacturer may cause fire, electric shock or injury. Only use the accessories supplied by the manufacturer.
• Only use the appliance when fully assembled.
• Never place your fingers or other objects into any part of the appliance. Be aware that loose clothing or hair may become trapped in the cleaner if improperly used.
• Caution: Exhaust air discharged from the sides of the appliance may extinguish a gas fire, pilot light, or disturb ashes in an open fire. Always avoid directing the appliance toward naked flames. Before use, ensure that all of the air vents are clear and there is no restriction of air flow.

OPERATION

Line drawing of a vacuum cleaner's base and foot assembly (no text or symbols)

Line drawing of a vacuum cleaner on tiled floor with directional arrows indicating motion (no text or symbols)

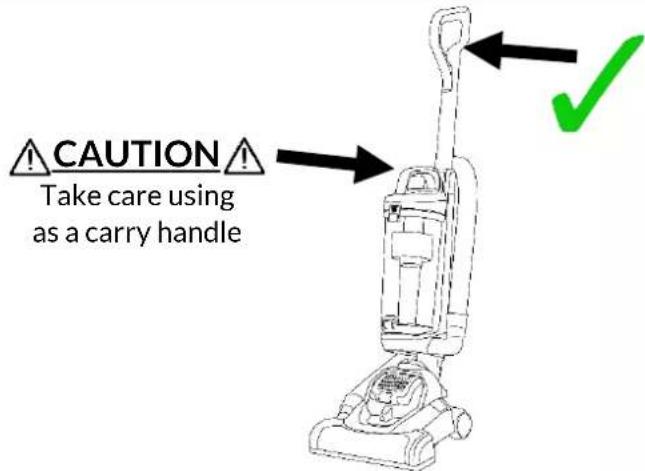

CARRYING THE APPLIANCE

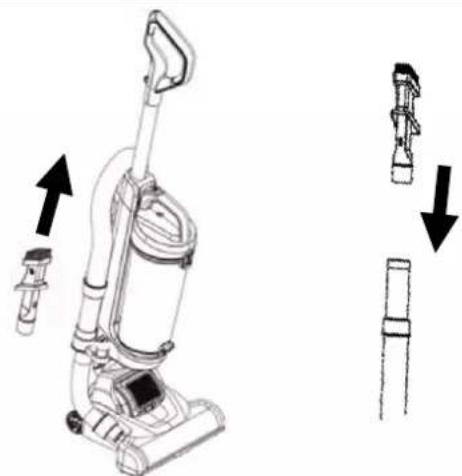

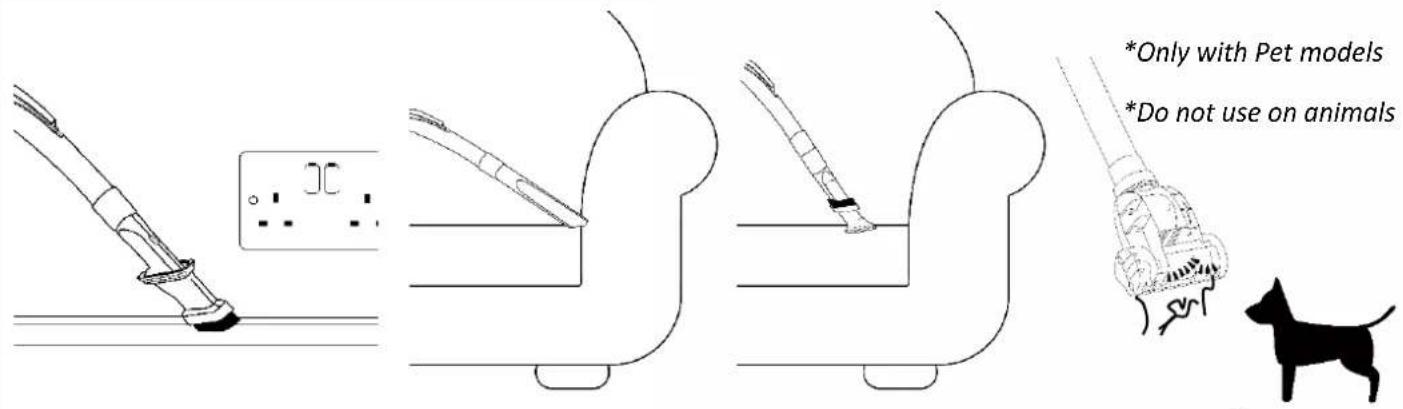

TOOL ATTACHMENTS

Line drawing of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

TOOL ATTACHMENTS

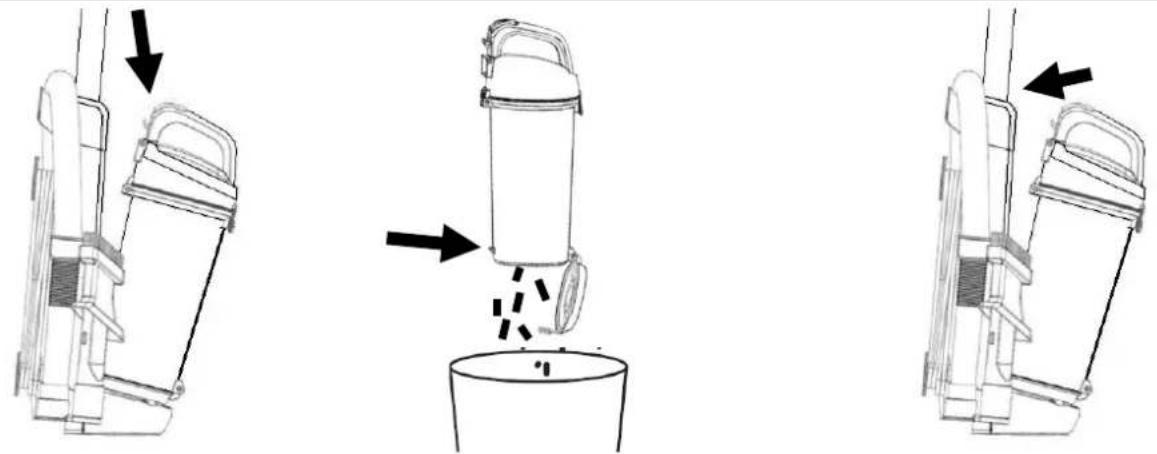

EMPTYING THE BIN

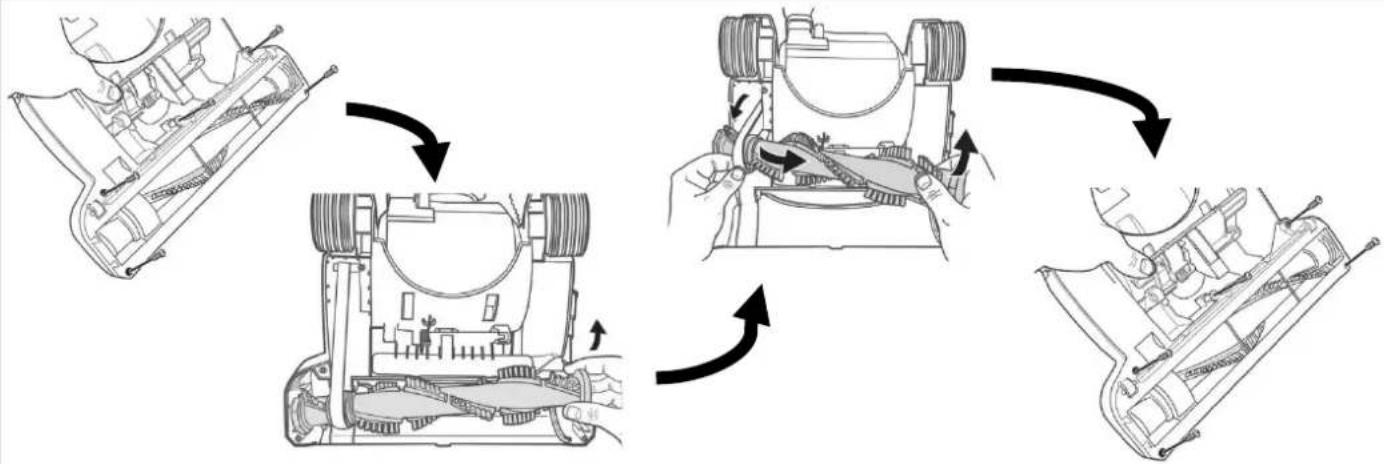

REPLACING THE BELT

Use cross-head screwdriver on screws. Grasp old belt and remove from motor shaft. Loop new belt over motor shaft, stretch other side over floor brush in space between bristles. Turn the brush several times to align. Replace the brush cover.

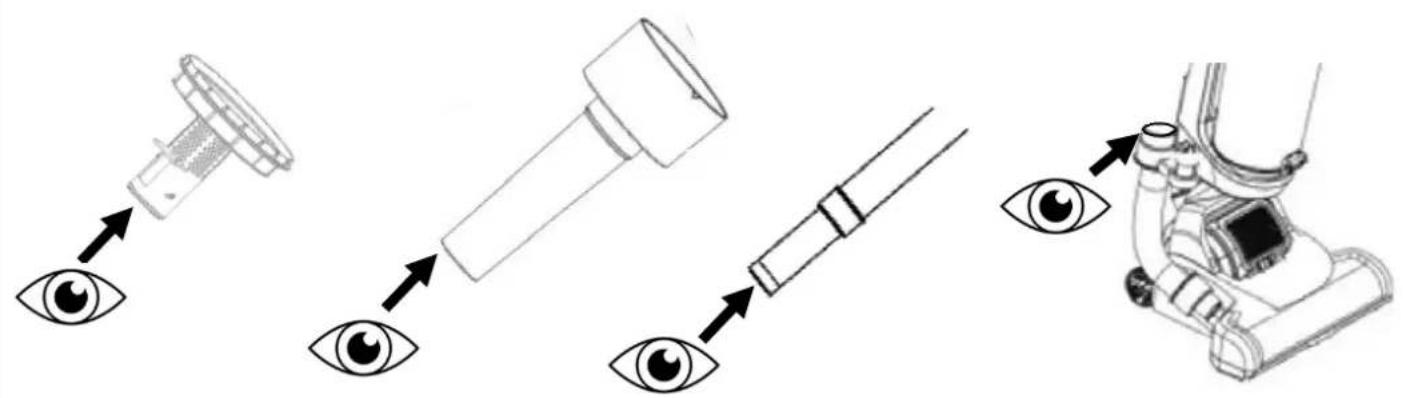

LOOKING FOR BLOCKAGES

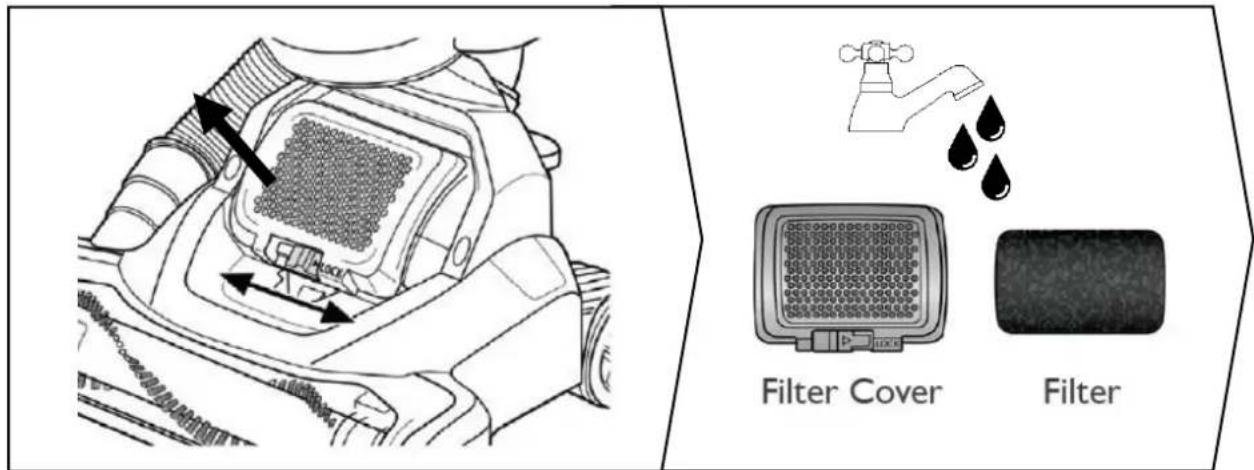

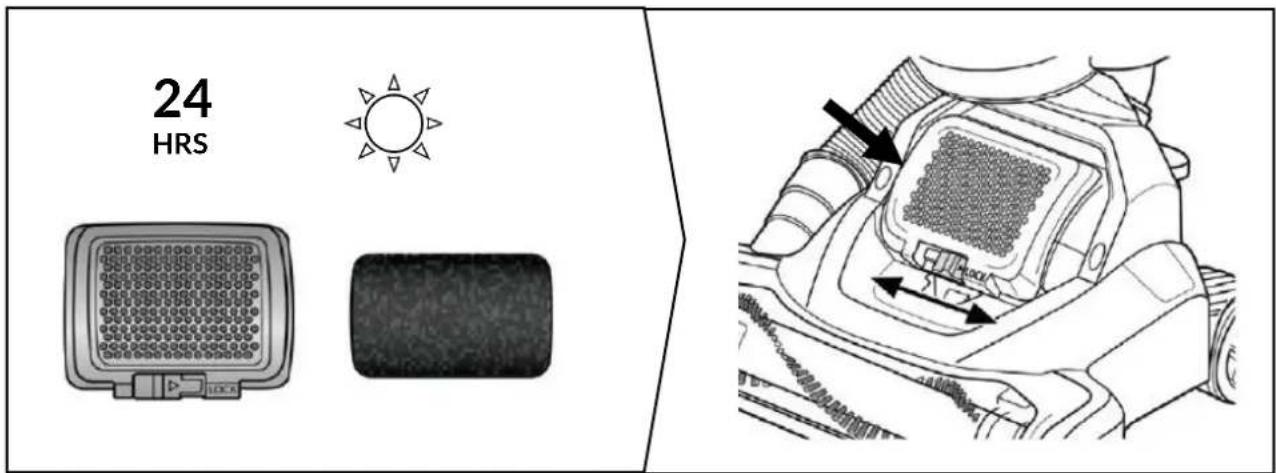

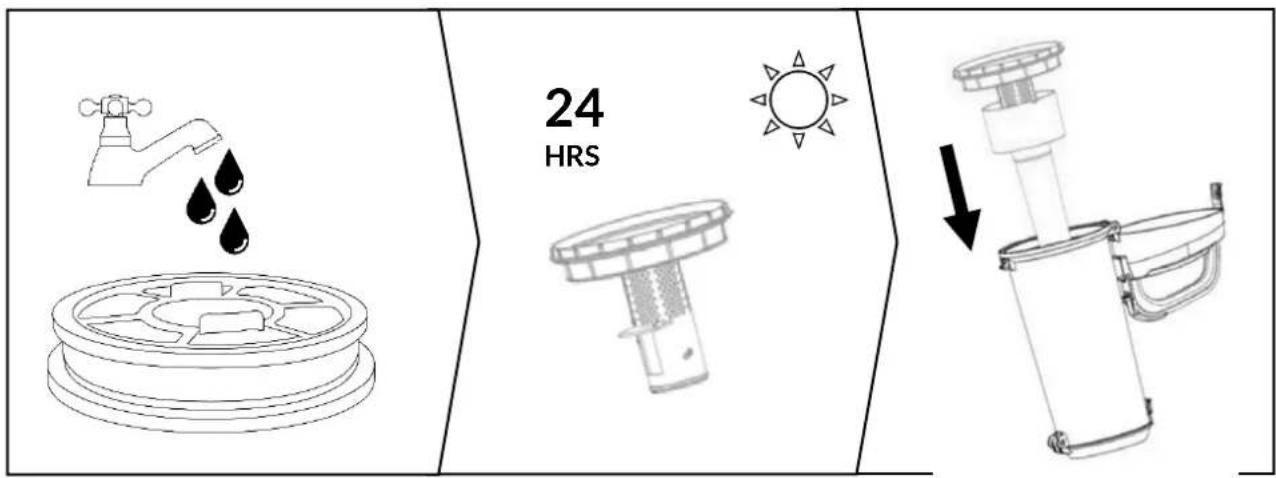

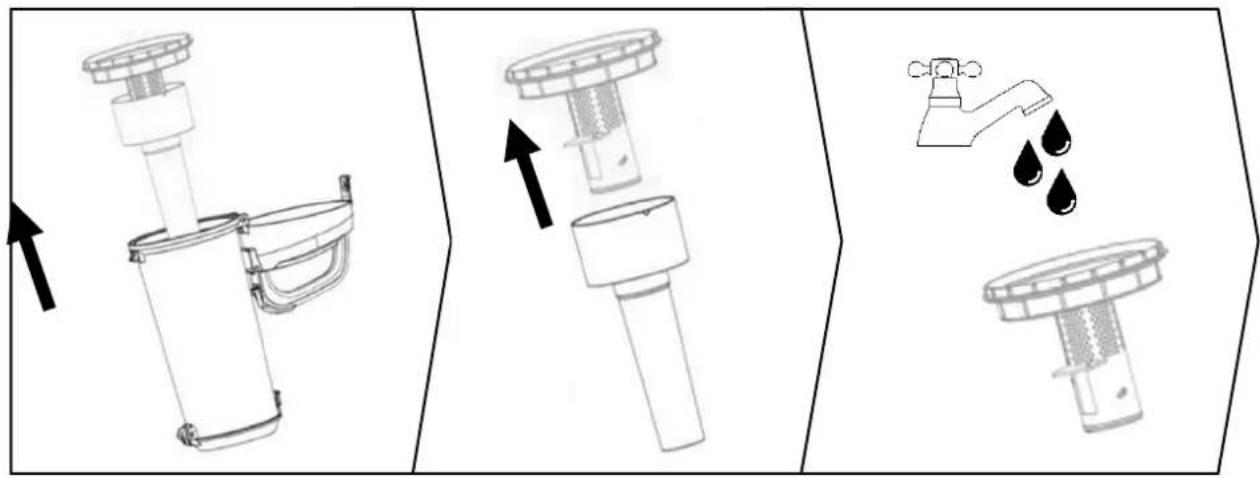

IMPORTANT! WASH

THE FILTERS

REGISTER YOUR

FREE 1 YEAR

GUARANTEE

TODAY

WASH FILTERS

Wash the filters with cold water at least once a month

1

MONTH

IMPORTANT! WASH

THE FILTERS

REGISTER YOUR

FREE 1 YEAR

GUARANTEE

TODAY

WASH FILTERS

Wash the filters with cold

water at least once a month

1

MONTH

PROBLEM SOLVING
The vacuum cleaner doesn’t switch on	Check the vacuum is plugged inCheck the socket is switched onCheck another appliance in the socketCheck for any obvious signs of damage to cord or plugIf recently used, allow to cool for 1 hour then try again
The suction is decreasing and dirt is not adequately being picked up	Check if the dust canister is full; if so, empty itClean the filters following the instructions in this manualCheck there are no blockages in the hose, and clear any obstructions
Vacuum cleaner is over heating	Check the filters are clean
Dust is coming out of the vacuum	The dust canister has not been fitted correctly. Refit the canister following the instructions in this manual.
The air exhausted from the vacuum smells	Clean the filters, hose, and dust container following the instructions in this manual
The vacuum cleaner has cut out	Allow the vacuum to cool for 1 hour. Clean all filters and dust containers before trying to use again.

If you are still experiencing difficulties with the appliance please contact us BEFORE returning the appliance to the retailer it was purchased from:

Website: https://mda.russellhobbs.com

Telephone: [phone]

Address: Product Care Customer Service, Green Bank Business Park, Hindley Green, Wigan, WN2 4AY

IMPORTANT!

WASH FILTERS

Wash the filters with cold water at least once a month The filters may require more frequent washing if vacuuming fine dust

1

MONTH

Russell Hobbs

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship, the faulty product must be returned to the place of purchase.

By registering your product you will get an additional year guarantee free of charge. Additional cover can be purchased through the website.

REGISTER ONLINE

Visit our website to register your full parts and labour guarantee online.

https://mda.russellhobbs.com

REGISTER BY PHONE

Call our friendly Product Care team.

0345 209 7461

NOTES

NOTES

Russell Hobbs

Russell Hobbs is a registered trademark used under license from Spectrum Brands (UK) Ltd. Made under license by G2S Limited, Wigan, WN2 4AY/G2S (NI) Ltd, Belfast, BT5 5AD

Russell Hobbs Support: call 0345 209 7461 or visit https://mda.russellhobbs.com

The ‘wheelie bin’ symbol is known as the ‘Crossed-out wheelie bin Symbol’. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste. Only discard electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment. For your nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.

SEDEX – Connecting businesses and their global suppliers to share ethical data and enabling improvement in ethical performance. Visit www.sedex.org.uk for further information.

We reserve the right, due to possible changes to design, to alter the instruction manual without prior notice.
