RHCHS2001 - Broom RUSSELL HOBBS - Free user manual and instructions

Product Type	Broom
Brand	Russell Hobbs
Model	RHCHS2001
Overall Length	Approx. 120 cm (47 in)
Bristle Width	Approx. 30 cm (12 in)
Bristle Material	Synthetic fiber (polyester)
Handle Material	Plastic with rubber grip
Handle Type	Straight, with hanging hole
Weight	Approx. 0.3 kg (0.66 lb)
Power Source	None (manual operation)
Primary Function	Sweeping floors and surfaces
Suitable Surfaces	Hard floors, tile, laminate, concrete
Maintenance	Hand wash bristles with mild soap; air dry
Storage	Store hung or upright in dry area
Replacement Parts	Replacement heads available (check retailer)
Repairability	Modular design; handle and head can be separated
Safety Warnings	Keep away from fire; not a toy; use as intended
Included Accessories	Broom head and handle only
Country of Origin	China (typical)
Warranty	2 years (refer to manufacturer)

Frequently Asked Questions - RHCHS2001 RUSSELL HOBBS

How do I assemble the Russell Hobbs RHCHS2001 broom?

The broom head snaps onto the handle. Align the connector and push until you hear a click. No tools required.

Can I use this broom on wet surfaces?

No, the synthetic bristles may not absorb liquid and can become slippery. Use only on dry surfaces.

How do I clean the broom bristles?

Remove hair and debris manually, then wash with warm water and mild detergent. Shake off excess water and let air dry completely before storage.

Is the handle adjustable?

No, the handle is fixed at approximately 120 cm. It is not telescopic.

Can I replace the broom head?

Yes, the head is detachable and replacement heads are available from Russell Hobbs or authorized retailers. Check your model number RHCHS2001.

How do I store the broom to keep it in good condition?

Store the broom hanging by the hole in the handle or standing upright in a cool, dry place. Avoid storing with bristles bent or on damp floors.

Is this broom suitable for outdoor use?

It can be used for light outdoor sweeping on patios or garage floors, but prolonged exposure to weather may degrade the bristles. Store indoors.

What should I do if the handle breaks?

If under warranty, contact Russell Hobbs for a replacement. Otherwise, the handle is not sold separately, so you may need to purchase a new broom.

Does this broom come with a dustpan?

No, the package includes only the broom. A dustpan is sold separately.

How do I remove tangled hair from the bristles?

Use a comb or your fingers to gently pull hair away from the bristle base. Alternatively, cut stubborn tangles with scissors, being careful not to cut the bristles.

USER MANUAL RHCHS2001 RUSSELL HOBBS

Diagram of a vacuum cleaner with attached arm and base, showing mechanical components and directional arrows (no text or labels)

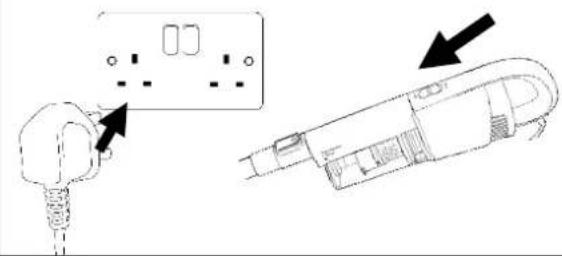

POWERING ON

Diagram showing a plug inserted into a device and then being inserted into a cable (no text or symbols present)

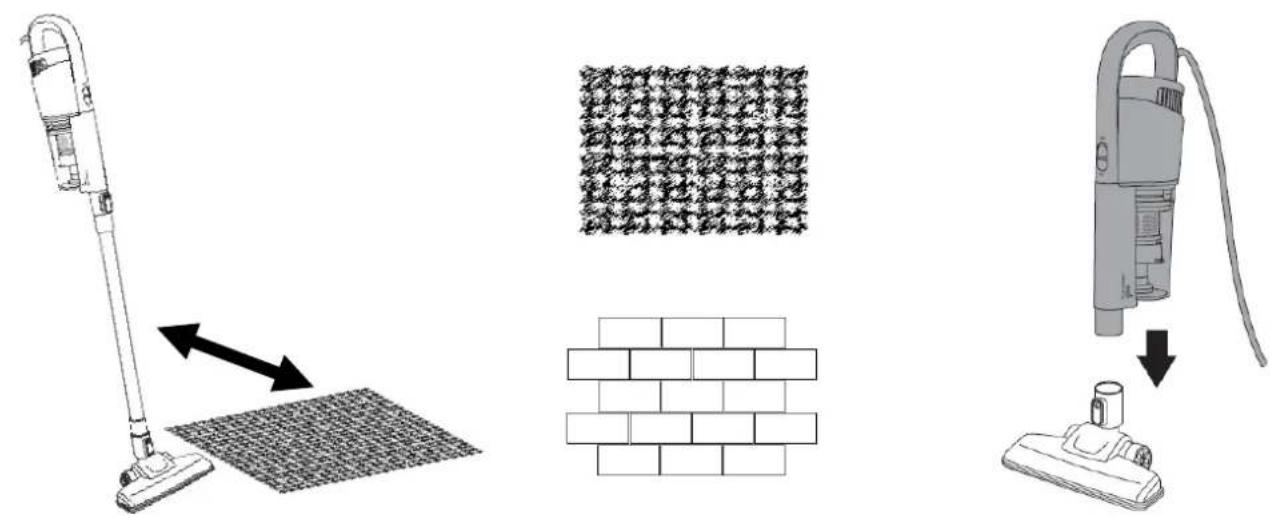

SUITABLE FOR USE

Carpet

Hard Floors

Upholstery

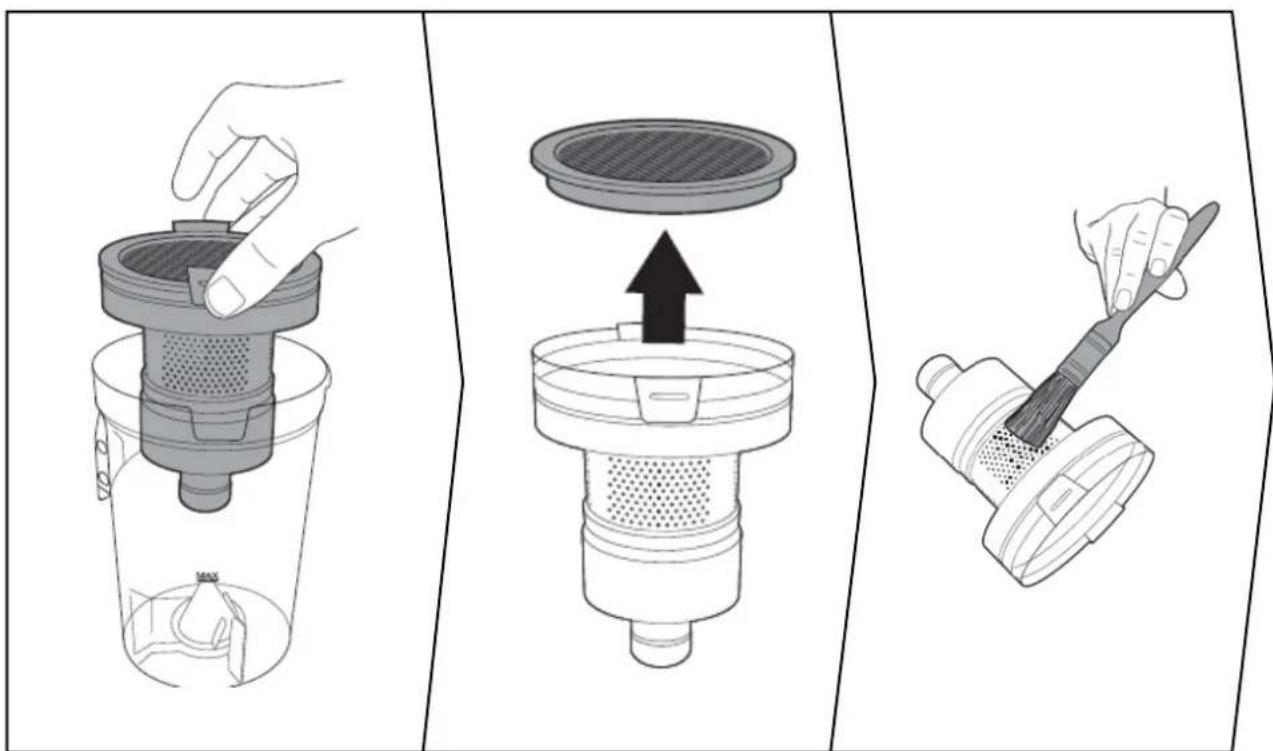

WASH FILTERS

Wash the filters with cold water at least once a month

1

MONTH

REGISTER YOUR

FREE 1 YEAR

GUARANTEE

TODAY

GUARANTEE

At Russell Hobbs, we take all our customer feedback seriously.

Feel free to contact our Product Care Team, on 0345 209 7461 who will be more than happy to assist you.

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship, the faulty product must be returned to the place of purchase.

Refund or replacement is at the discretion of the retailer.

The following conditions apply:

• The product must be returned to the retailer with the original proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide and any other instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended use.
• This guarantee does not cover wear and tear, damage, misuse or consumable parts.
  • This does not affect your statutory rights.

RUSSELL HOBBS CONTACT DETAILS

Website: https://mda.russellhobbs.com

Telephone: [phone]

Address: Product Care Customer Service, Green Bank Business Park, Hindley Green, Wigan, WN2 4AY

Note your serial number below for future reference.

Image for illustration purposes only

REGISTER ONLINE

Visit our website to register your full parts and labour guarantee online.

https://mda.russellhobbs.com

REGISTER BY PHONE

Call our friendly Product Care team.

0345 209 7461

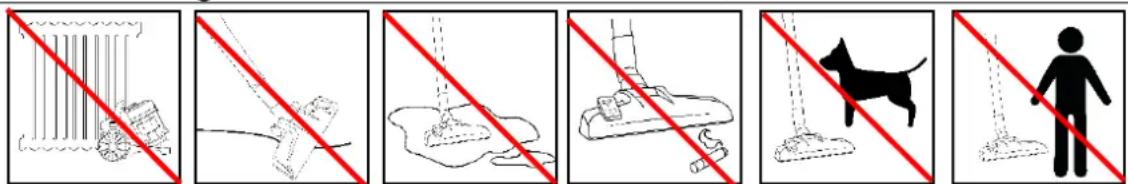

IMPORTANT SAFETY INSTRUCTIONS

• It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to electrical parts.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not use with damaged cord or plug. Do not run the vacuum cleaner over any cables, or its own power cable. As this will result in damaging the cable.
• This product is intended for household use only. Do not use outdoors.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.
• Do not direct at people, animals, electrical outlets, or equipment containing electrical components.
• Do not use this appliance to pick up water or any other liquids, combustible substances or hot/burning objects.
• Unplug from outlet when not in use, and before putting on and taking off parts, and before cleaning. Do not leave unattended whilst plugged in.
• Do not use appliance if it has been dropped, damaged, left outdoors or dropped into water. Do not operate this appliance for anything other than its intended use.
• Keep the appliance and adapter away from water; do not allow it to get wet.
• If unit is wet, do not plug unit into wall socket or turn unit on. Do not immerse in water or other liquids for cleaning. Do not handle the appliance with wet hands.
• Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp corners or edges, or expose cord to heated surfaces.
• The use of accessory attachments not recommended by the manufacturer may cause fire, electric shock or injury. Only use the accessories supplied by the manufacturer.
• Only use the appliance when fully assembled.
• Never place your fingers or other objects into any part of the appliance. Be aware that loose clothing or hair may become trapped in the cleaner if improperly used.
• Caution: Exhaust air discharged from the sides of the appliance may extinguish a gas fire, pilot light, or disturb ashes in an open fire. Always avoid directing the appliance toward naked flames. Before use, ensure that all of the air vents are clear and there is no restriction of air flow.
  • Take care using on natural surfaces such as wood, and on laminates.

OPERATION

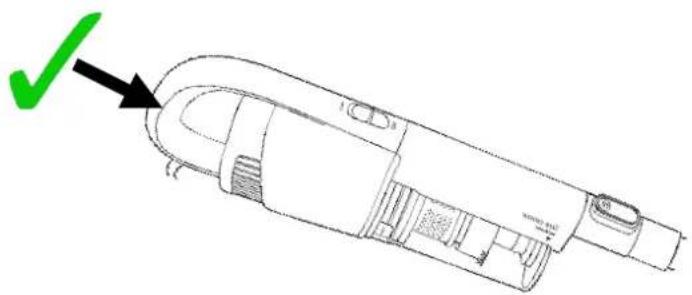

CARRYING THE APPLIANCE

Technical line drawing of a mechanical device with a green checkmark arrow pointing to a detail (no text or symbols present)

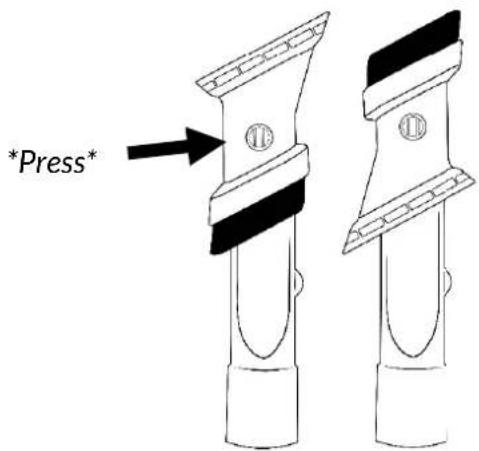

TOOL ATTACHMENTS

TOOL ATTACHMENTS

Technical line drawing of a mechanical component with a magnified inset showing internal components (no text or symbols)

Line drawing of a mechanical component with a tool inserted, no text or symbols present

Line drawing of a mechanical component inserted into a chair (no text or symbols)

*Do not use on animals

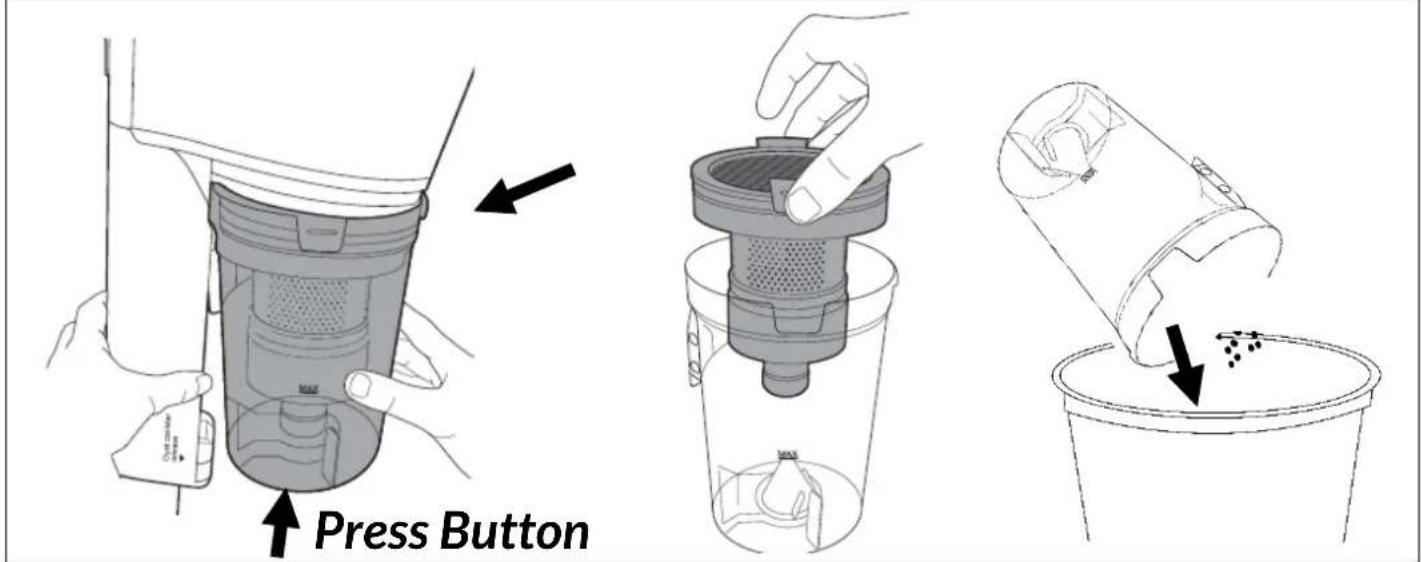

EMPTYING THE BIN

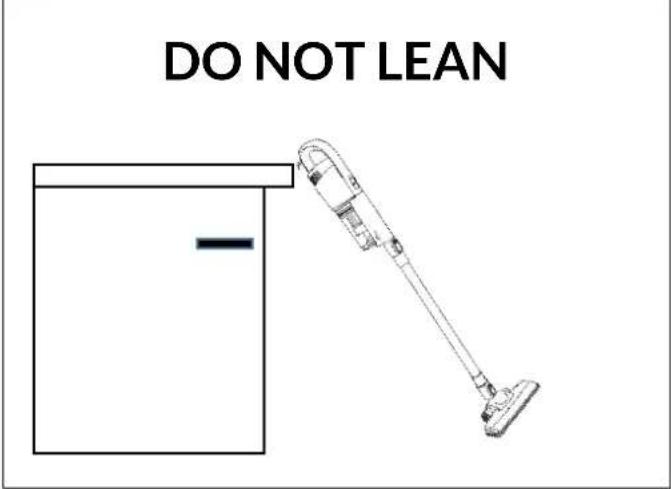

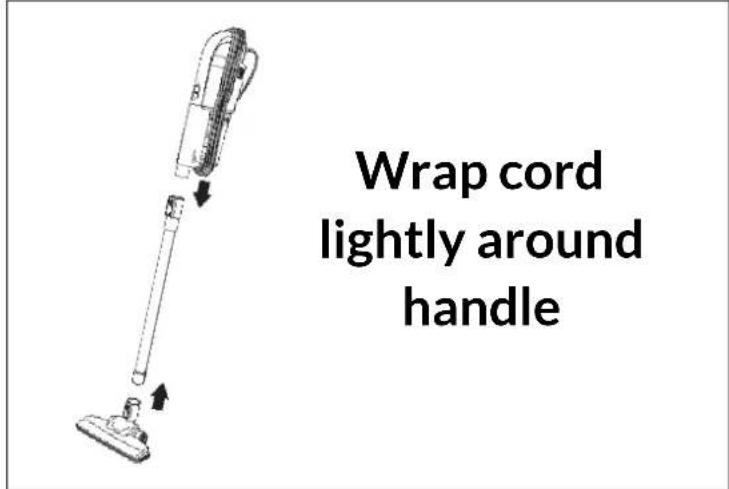

STORING

WARNING

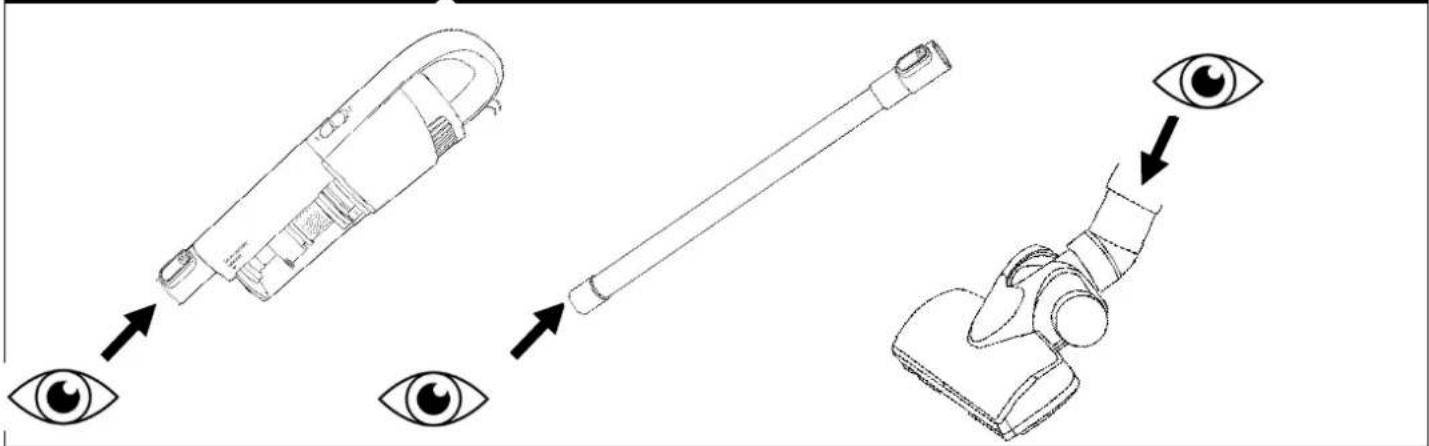

CHECKING FOR BLOCKAGES

IMPORTANT! WASH

THE FILTERS

REGISTER YOUR

FREE 1 YEAR

GUARANTEE

TODAY

WASH FILTERS

Wash the filters with cold water at least once a month

1

MONTH

IMPORTANT! WASH

THE FILTERS

REGISTER YOUR

FREE 1 YEAR

GUARANTEE

TODAY

WASH FILTERS

Wash the filters with coldwater at least once a month

1

MONTH

PROBLEM SOLVING
The vacuum cleaner doesn’t switch on	Check the vacuum is plugged inCheck the socket is switched onCheck another appliance in the socketCheck for any obvious signs of damage to cord or plugIf recently used, allow to cool for 1 hour then try again
The suction is decreasing and dirt is not adequately being picked up	Check if the dust canister is full; if so, empty itClean the filters following the instructions in this manualCheck there are no blockages in the tube, and clear any obstructions
Vacuum cleaner is over heating	Check the filters are clean
Dust is coming out of the vacuum	The dust canister has not been fitted correctly. Refit the canister following the instructions in this manual.
The air exhausted from the vacuum smells	Clean the filters, tube, and dust container following the instructions in this manual
The vacuum cleaner has cut out	Allow the vacuum to cool for 1 hour. Clean all filters and dust containers before trying to use again.
Parts have become damaged/snapped	Contact customer services

If you are still experiencing difficulties with the appliance please contact us BEFORE returning the appliance to the retailer it was purchased from:

Website: https://mda.russellhobbs.com

Telephone: [phone]

Address: Product Care Customer Service, Green Bank Business Park, Hindley Green, Wigan, WN2 4AY

IMPORTANT!

WASH FILTERS

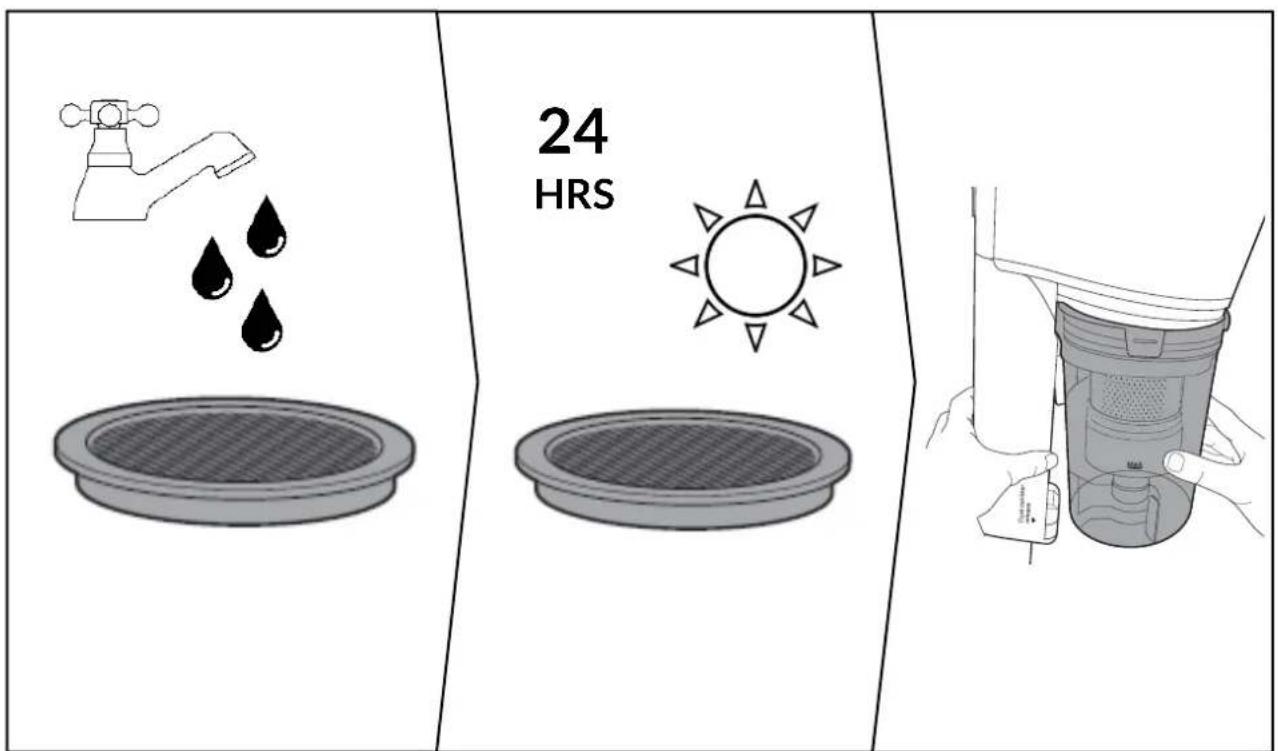

Wash the filters with cold water at least once a month The filters may require more frequent washing if vacuuming fine dust

1

MONTH

Russell Hobbs

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship, the faulty product must be returned to the place of purchase.

By registering your product you will get an additional year guarantee free of charge. Additional cover can be purchased through the website.

REGISTER ONLINE

Visit our website toregister your full partsand labour guarantee online.

https://mda.russellhobbs.com

REGISTER BY PHONE

Call our friendly Product Care team.

0345 209 7461

NOTES

NOTES

Russell Hobbs

Russell Hobbs is a registered trademark used under license from Spectrum Brands (UK) Ltd. Made under license by G2S Limited, Wigan, WN2 4AY/ G2S (NI) Ltd, Belfast, BT5 5AD

Russell Hobbs Support: call 0345 209 7461 or visit https://mda.russellhobbs.com

The ‘wheelie bin’ symbol is known as the ‘Crossed-out wheelie bin Symbol’. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste. Only discard electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment. For your nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.

SEDEX – Connecting businesses and their global suppliers to share ethical data and enabling improvement in ethical performance. Visit www.sedex.org.uk for further information.

We reserve the right, due to possible changes to design, to alter the instruction manual without prior notice.
