Product Type	Fully Automatic Washing Machine (Top Load)
Model	NA-FD18V1
Rated Voltage	220 V – 240 V
Rated Frequency	50 Hz
Rated Power Consumption	1475 W – 1750 W
Standard Water Amount	105 L
Maximum Capacity (Dry Cloth)	18.0 kg
Product Dimensions (W x D x H)	679 mm x 755 mm x 1100 mm
Product Weight	48 kg
Tap Water Pressure	0.01 – 1 MPa
Programs	Normal, Speedy, Delicate, Baby Care, Water Save, Blanket, Soak, Stain Master +, Tub Hygiene, Air Dry (90 min)
Wash Options	Preset Timer, Wash/Rinse/Spin Adjustment, Tangle Care, ECONAVI, Stain Master +, Air Dry
Convenient Functions	Auto Tub Clean, Child Lock, End Buzzer Cancel, Auto Power Off
Maintenance	Lint filter cleaning after each wash; detergent drawer cleaning; water supply filter cleaning; tub hygiene monthly
Safety Features	Child lock, lid safety, auto shut-off, overheat protection, grounding required
Accessories Included	Water supply hose (1), external drain water hose (1), water tap adaptor (1), bottom cover (1), screw (1)
Repairability	Spare parts and service available through authorized Panasonic service centers; do not disassemble by yourself

Frequently Asked Questions - NA-FD18V1 PANASONIC

What is the maximum capacity of the Panasonic NA-FD18V1?

The maximum dry cloth capacity is 18.0 kg for the NA-FD18V1 model. For the NA-FD16V1 it is 16.0 kg, and for the NA-FD14V1 it is 14.0 kg.

How do I use the Stain Master + program?

Select the Stain Master + program, then choose the stain type (Sweat, Mud, Soya/Sauce, Collar/Sleeve, Oily, or Bacteria Elimination). Pretreat heavy stains if needed. The maximum load is 5.0 kg. The program includes a soak phase and may heat water for certain cycles.

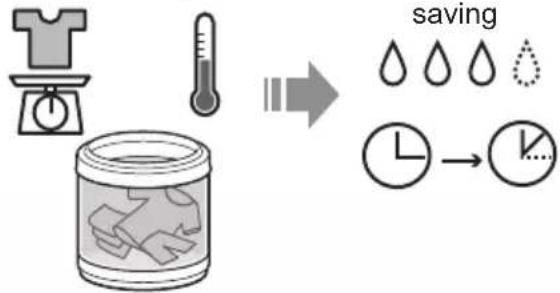

What is the ECONAVI function?

ECONAVI automatically detects the laundry weight and water temperature to optimize water and energy usage. It is available only with the Normal program. Enable or disable it by pressing and holding the corresponding button for 3 seconds.

How can I set the preset timer?

Press the Preset button and select the desired hours (2-24 depending on program). The machine will finish the cycle at the set time. To cancel, press Preset again.

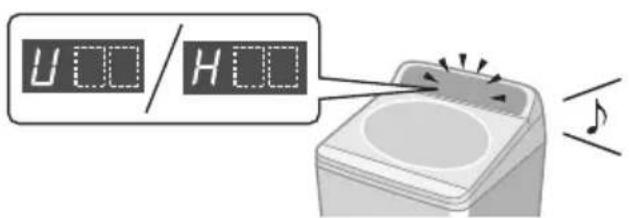

What should I do if the display shows an error code like U12 or U99?

For U12 (water drainage error), check if the drain hose is kinked or blocked. For U99 (forcible drainage with child lock), release child lock and ensure the lid is closed. Refer to the error display section in the manual for full details.

How do I clean the lint filter?

After each wash, remove the lint filter from the tub, rinse it under running water, and reinstall it by pressing until it clicks. If the filter is broken, contact your local dealer for a replacement.

Can I wash waterproof items like raincoats?

No. Do not wash waterproof items such as raincoats, wet suits, or other non-water-permeable fabrics as they may cause damage or malfunction.

How do I perform tub hygiene?

Run the Tub Hygiene program monthly. Ensure the tub is empty, add 200 ml of chlorine bleach, and start the program. This prevents black mould. Do not use the Water Save or Air Dry programs for this.

What are the dimensions and weight of this washing machine?

The dimensions are 679 mm (W) x 755 mm (D) x 1100 mm (H), and the weight is 48 kg.

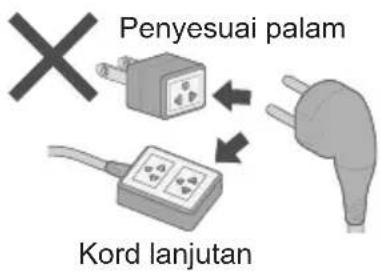

Is it safe to use an extension cord?

No. Do not use an extension cord or plug adaptor. The power cord must be plugged directly into a properly grounded outlet. If the cord is damaged, have it replaced by a qualified service person.

USER MANUAL NA-FD18V1 PANASONIC

Operating & Installation Instructions

Fully Automatic Washing Machine (Household Use)

Model No. NA-FD18V1 NA-FD16V1 NA-FD14V1

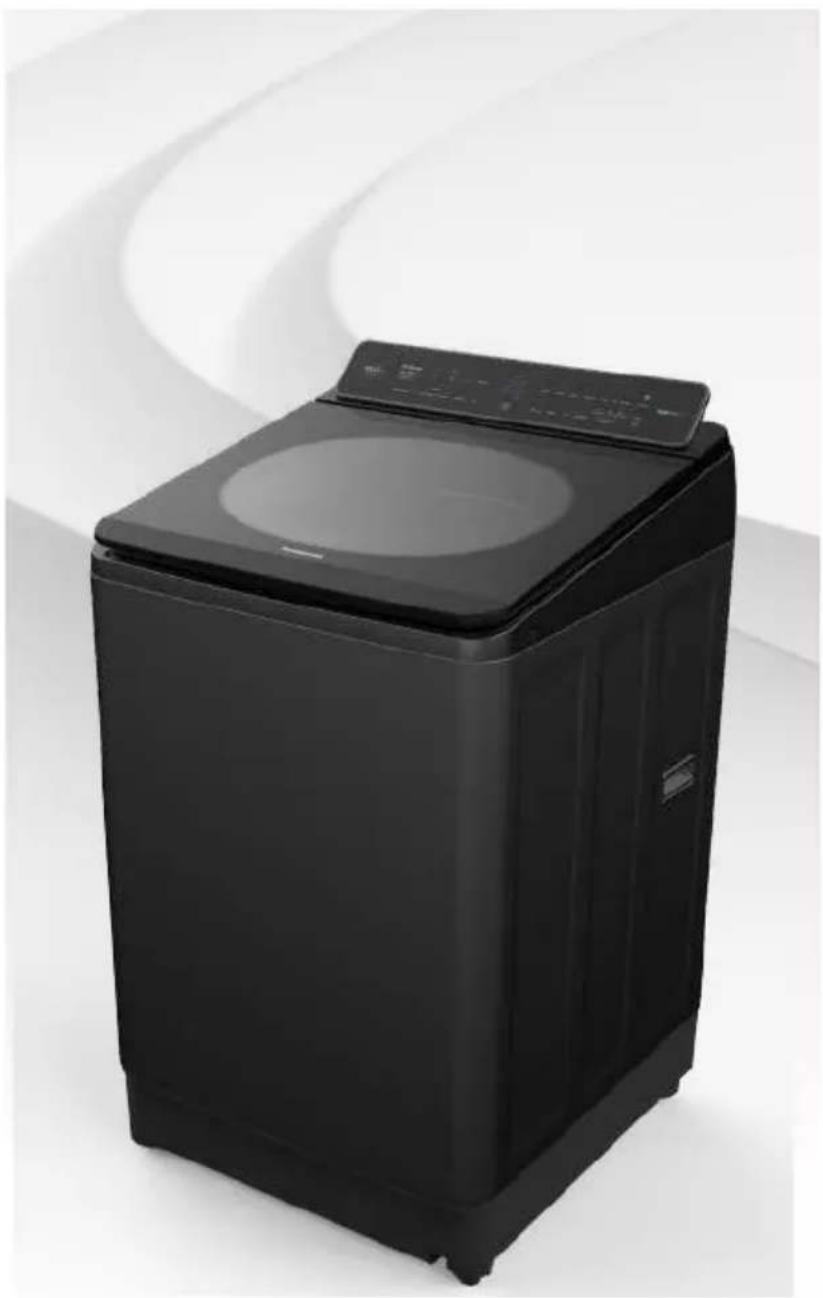

Black washing machine with circular vent and top lid, placed on a white surface (no visible text or symbols)

Thank you for purchasing this product.

• Read these instructions carefully for optimum performance and safety before use.
• Keep this manual for future reference.

Contents

Safety Precautions	2
Part Names / Accessories	6
Before Washing	7

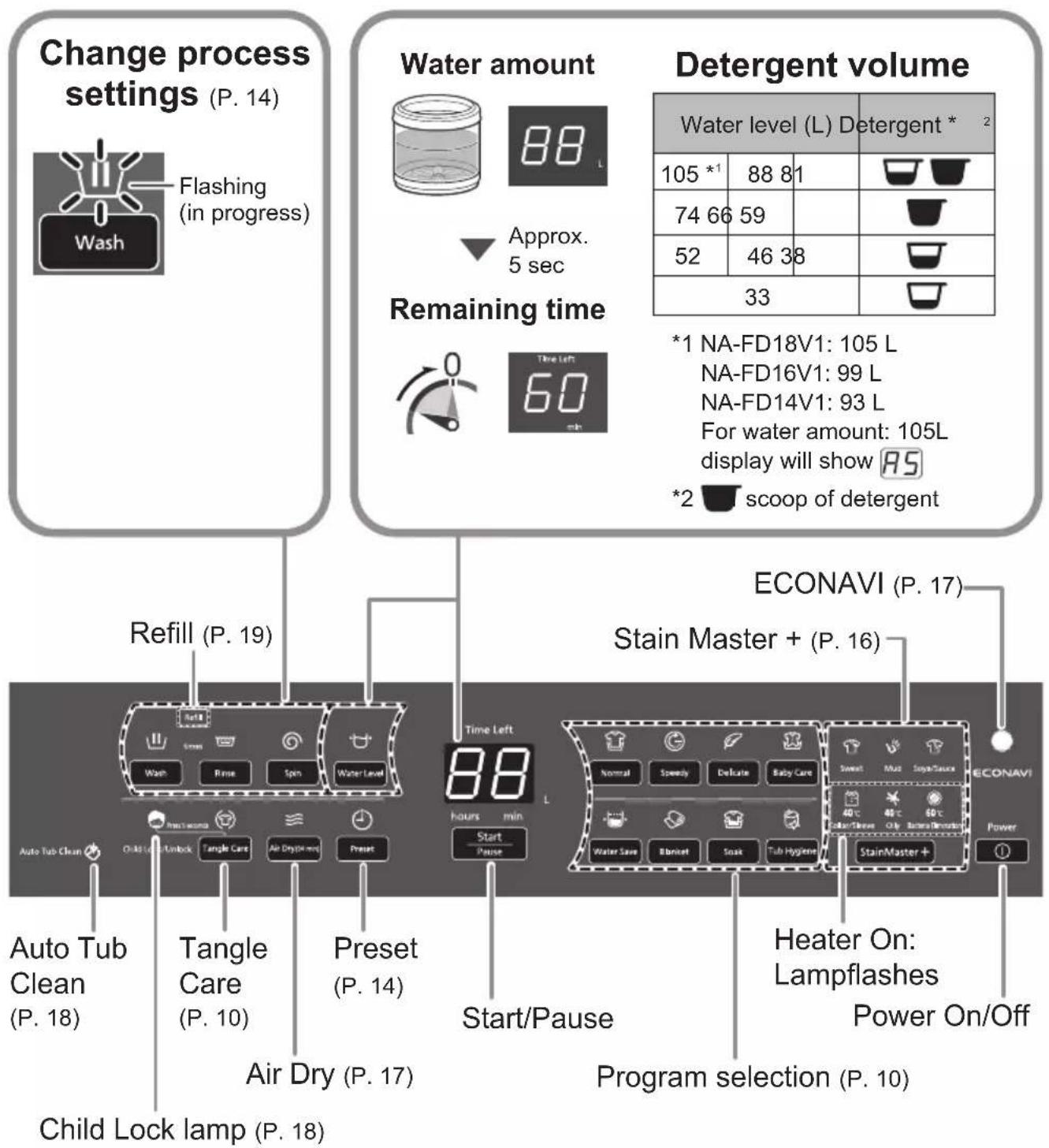

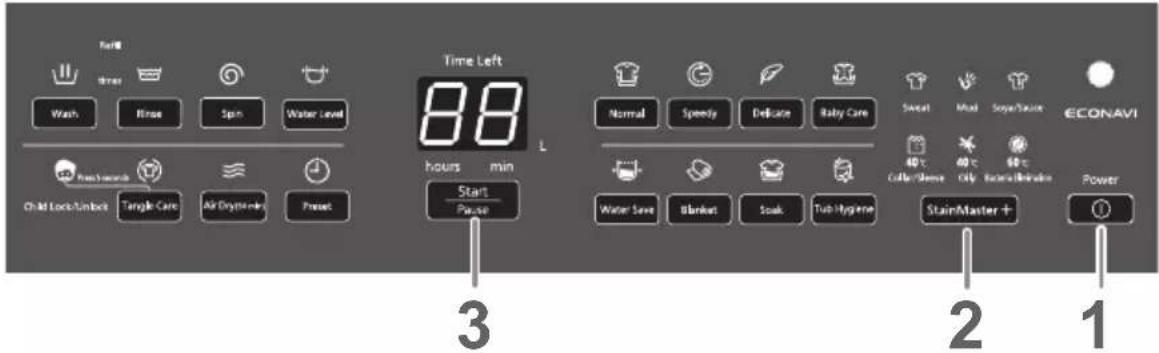

Operation Panel	8
Washing	9
Variety of Programs	10
Detergent / Softener / Bleach	12
Washing Options	14
• Preset
• Wash / Rinse / Spin
• Delicate
• Blanket
• Stain Master + Air Dry (90 min)
• ECONAVI
Convenient Functions	18
Contents of Programs	19
Maintenance	20
Installation	24
Error Display	28
Troubleshooting	30
Specifications	32

AWW9901C8MC0-0C5

A1120-0(M)

Printed in Vietnam

11-2020

Safety Precautions

WARNING

May cause serious injury or death.

Children must not use it alone.

Illustration of a child washing clothes inside a washing machine with a 'X' symbol (no text or labels)

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

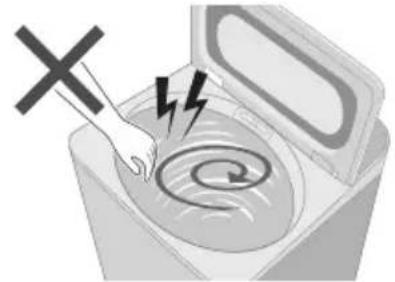

Do not touch the tub until it stops.

Illustration of a hand using a tool to mark a circular process with a lightning bolt, no text or symbols present

- If the tub does not stop within 15 sec:

May cause fire or electric shock.

Do not touch it with wet hands.

Illustration of a hand holding a fish with water droplets and a 'X' symbol above it (no text or labels)

Do not hold or pull on the cord.

Hand holding a plug inserted into an electrical outlet, with a 'X' symbol indicating no text or symbols on the plug (no text or symbols present)

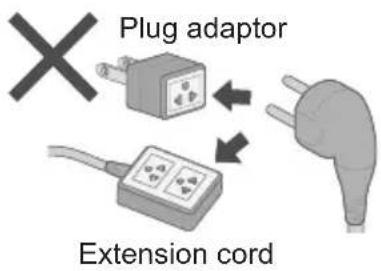

Do not use.

Fully insert it. Do not use.

Illustration of a hand holding a small object with a cross mark above, next to an open electrical outlet (no text or symbols)

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

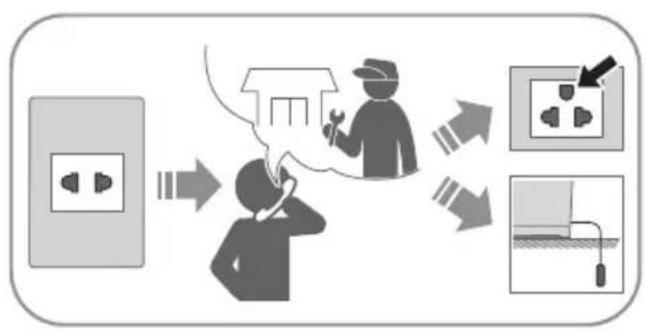

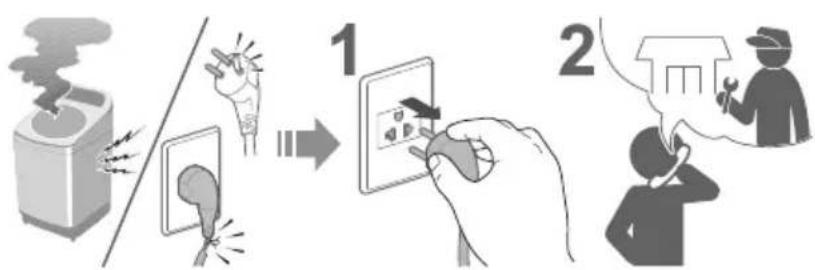

In case of failure or damaged power cord, stop use and ask the service centre.


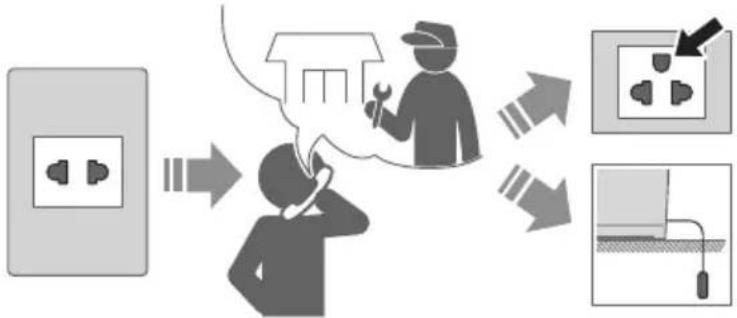

Securely insert the ground prong. Call your local dealer for a new socket.

Use a socket appropriate for this appliance.

- The plug shape, socket shape and rating requirement varies with the region.

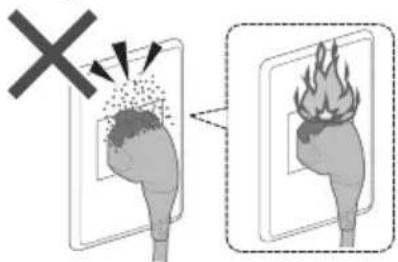

Accumulated dust may cause fire.

Wipe the power plug periodically.

Illustration of hands performing a medical procedure with sparkles (no text or symbols)

Keep away from flammable materials.

May cause failure.

Never disassemble, repair or modify it by yourself.

Illustration of a trash bin with a crossed-out symbol, a person holding a tool, and scattered items (no text or labels)

Safety Precautions (continued)

CAUTION

May cause injury.

Be careful not to get your fingers caught.

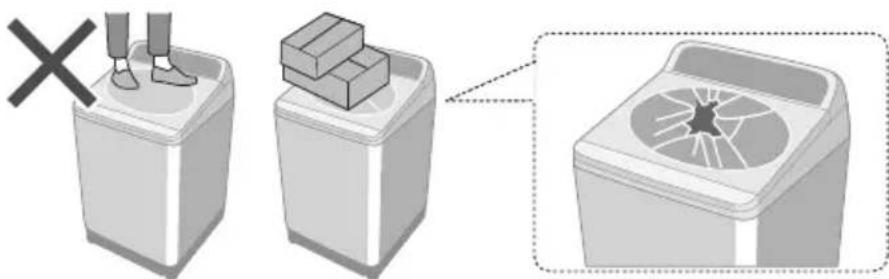

Do not climb or put objects on the appliance.

Illustration showing a washing machine with a hand using a tool to stop blocks, and its close-up view of the lid with a starburst pattern (no text or symbols)

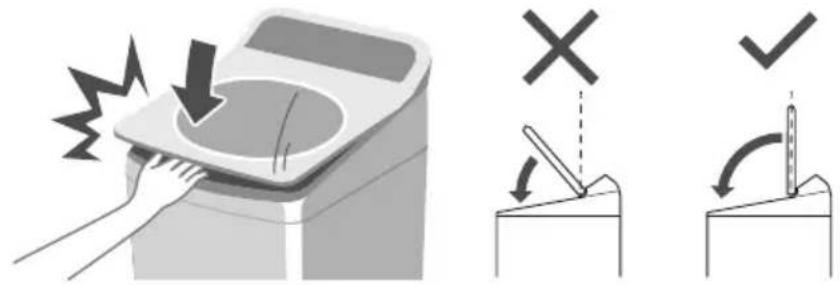

- If the lid is broken, immediately stop using.

Do not touch when it is hot.

Be careful of your hands and feet.

Illustration of two hands holding a 3D cube with a cross symbol on top (no text or labels)

May cause water leakage.

Turn off the water faucet. Use new hose-sets.

Illustration showing a washing machine with a T-shirt and a faucet, both with sparkles (no text or symbols)

Illustration of a flexible hose with sparkles and decorative stars (no text or symbols)

- New hose-sets supplied with the appliance are to be used and old hose-sets should not be reused.

■ For maximum dry cloth and tap water pressure, see Page 32.

May cause failure.

Keep away from heat and direct sunlight.

Illustration of a washing machine with a sun symbol and a cross mark, no text or symbols present

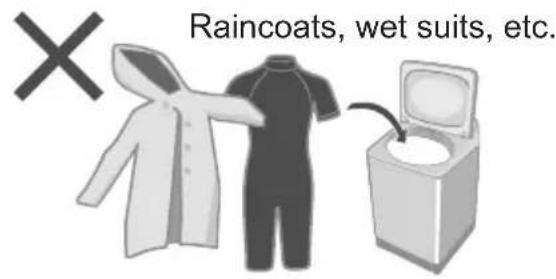

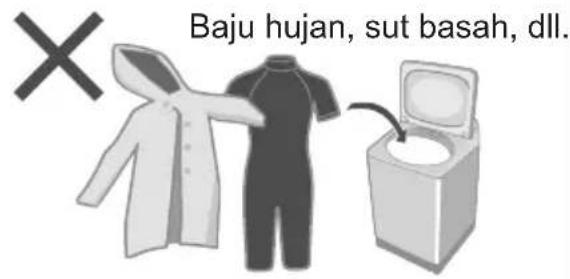

Do not wash waterproof items.

Do not obstruct. Do not use hot water.

- Do not obstruct the openings of the bottom face with carpet, etc.

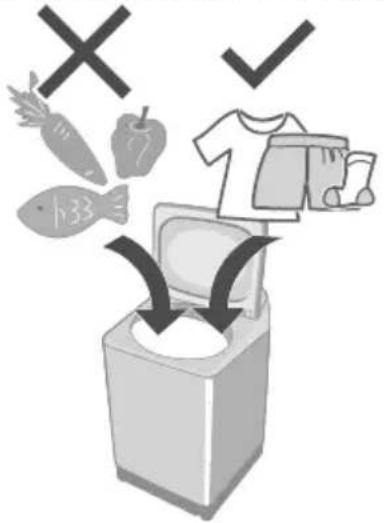

For Machine-washable items only.

• This appliance is intended to be used in household. This appliance is not intended to be used in applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• areas for communal use in blocks of flats or in launderettes.

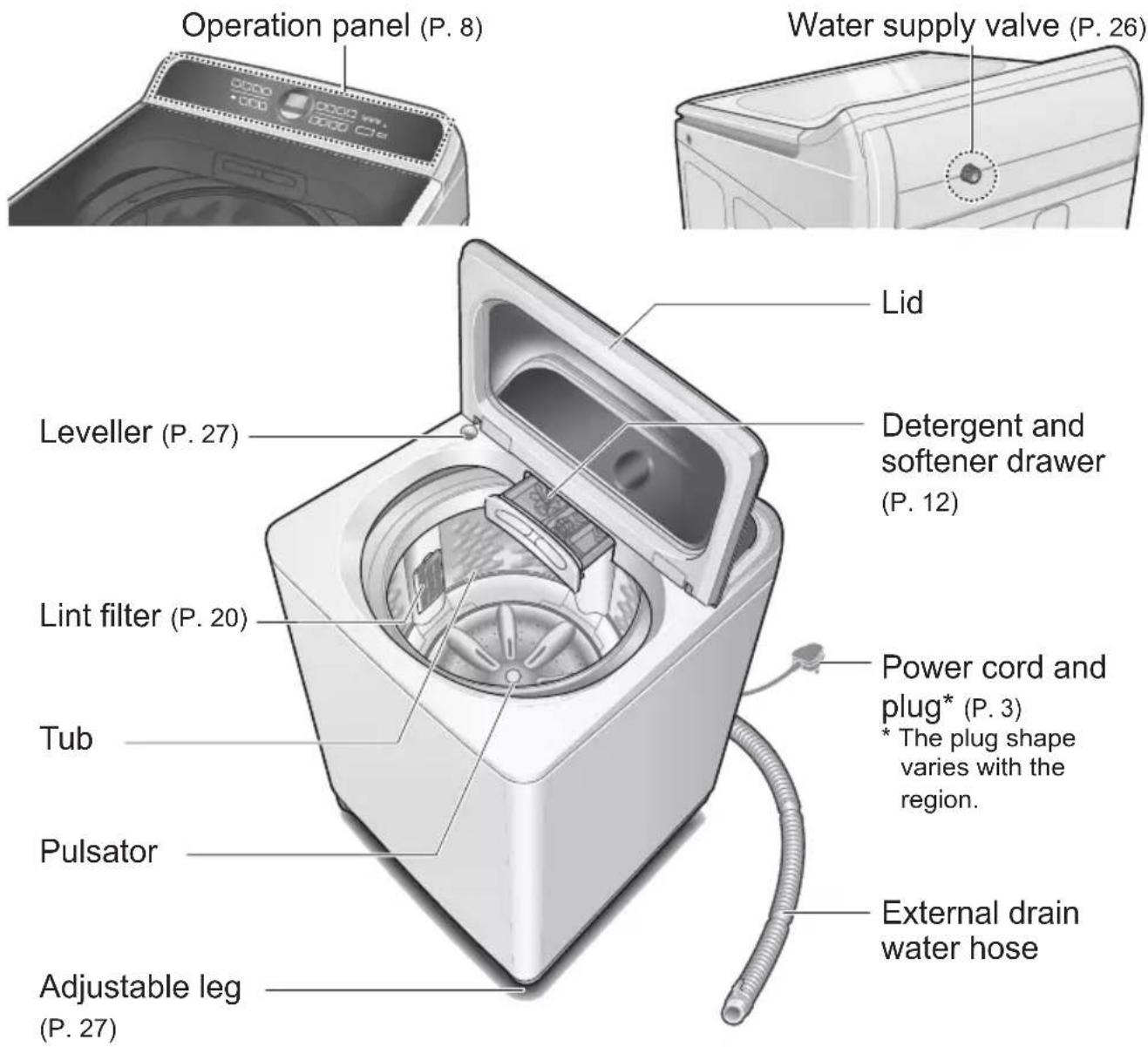

Part Names / Accessories

Part names

Accessories

□ Water supply hose (1) (P. 26)

Pure diagram of a coiled pipe with two connectors (no text or symbols)

Length: 1.0 ~m

□ External drain water hose (1) (P. 25)

□ Water tap adaptor (1) (P 26)

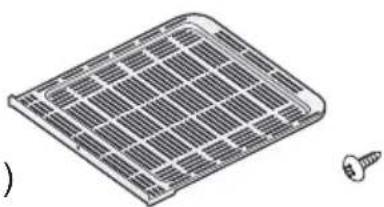

☐ Bottom cover (1) / Screw (1) (P. 25)

Illustration of a solar panel with grid lines and a screw, no text or symbols present

Before Washing

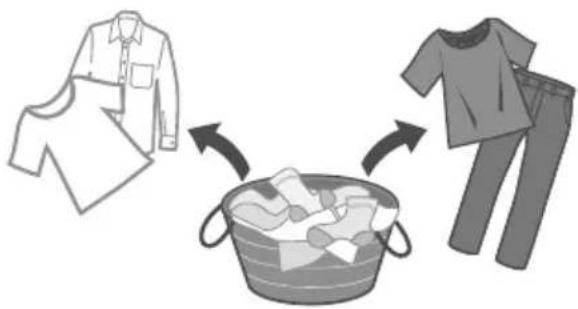

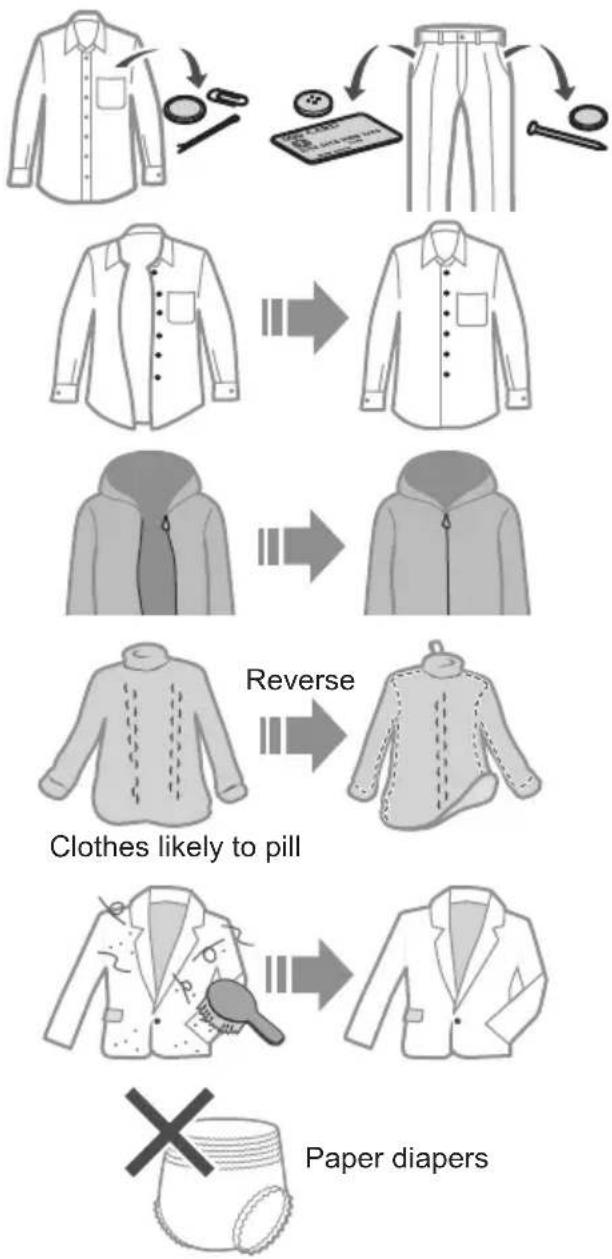

Laundry preparation and check

Pre-laundry check

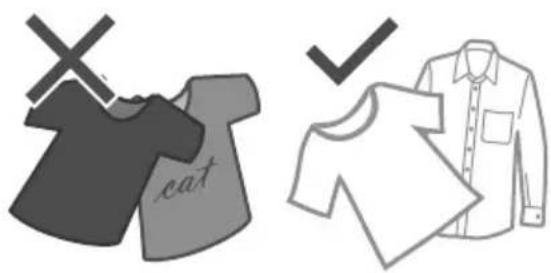

To prevent colour staining

Illustration showing clothing items including a shirt, a bag, and a T-shirt, with no text or symbols present.

Use laundry nets for delicates

For "Stain Master +" (P. 16)

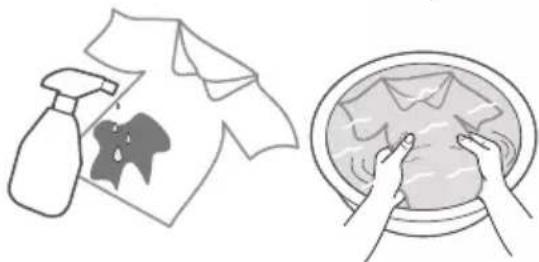

- Pretreatments for heavily stains

Illustration showing a washing machine and a hand washing clothes in a bowl (no text or symbols)

- Observe the clothes' care labels

- Coloured clothes

- Rubber clothes

Silhouette of a person wearing short-sleeve shorts with a large 'X' symbol (no text or symbols present)

• Shirts with stiff fabric

- Graphic shirts

Simple line drawing of a T-shirt with floral patterns and a crossed-out X symbol (no text or symbols)

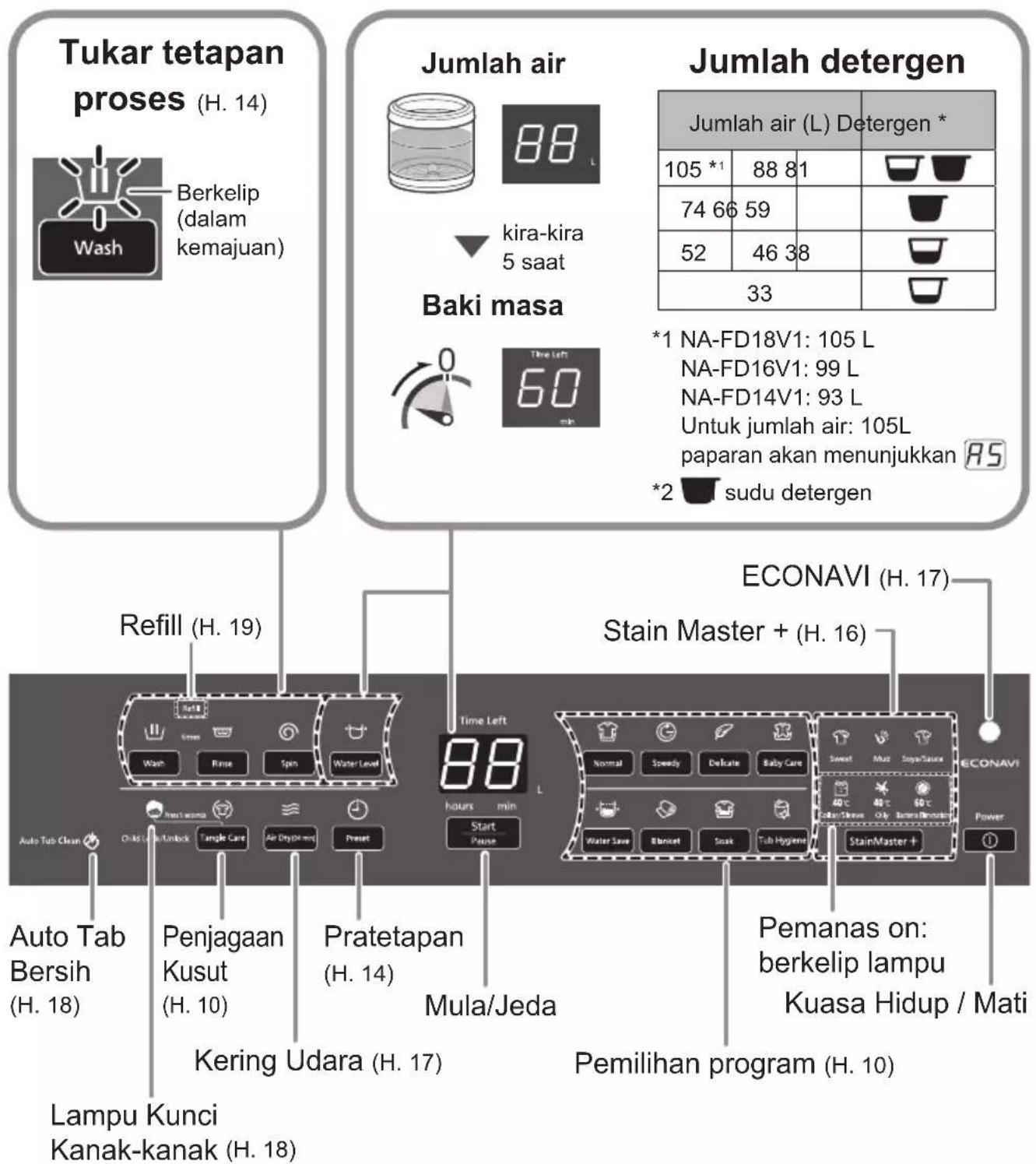

Operation Panel

NOTE

In case of a power failure.
Operation will resume from where it stopped when the power recovers.
- If you do not pre Start within 10 minutes after power-on.
Auto power off.

- The wash process setting of the “Stain Master +” and “Soak” programs cannot be changed.

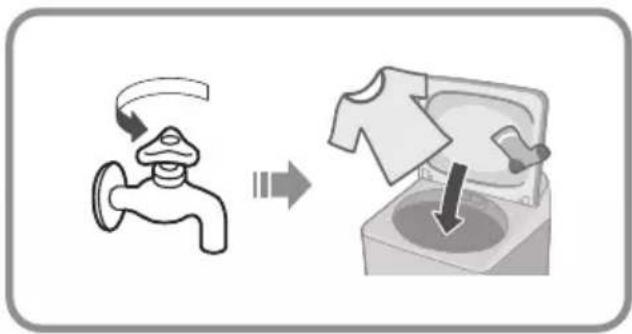

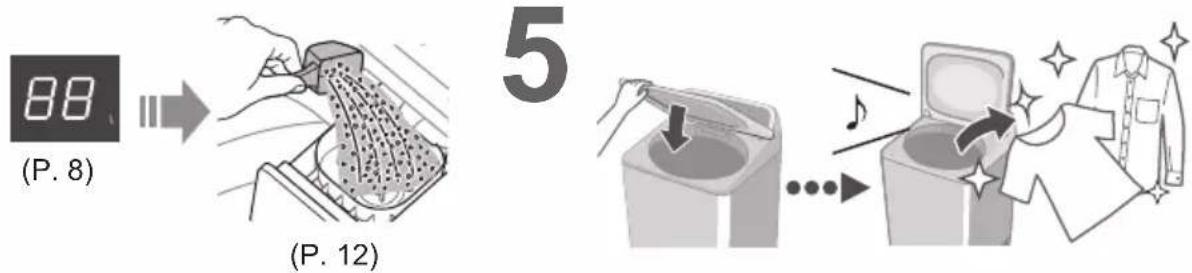

Washing

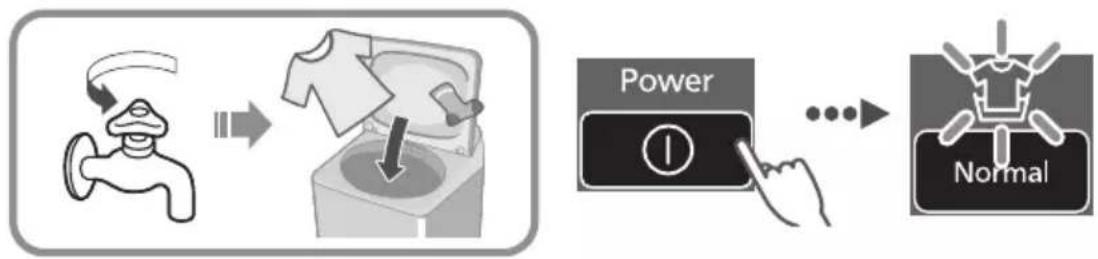

1

2

3

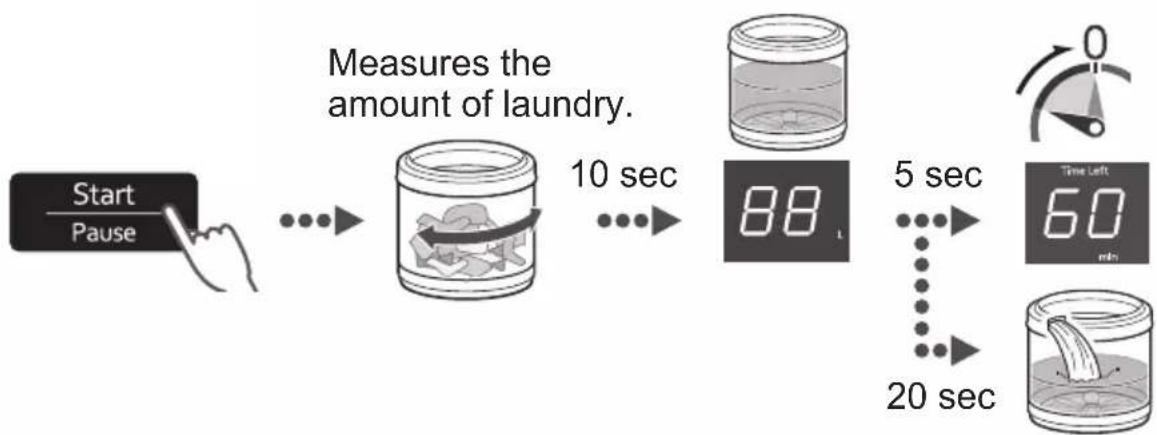


4

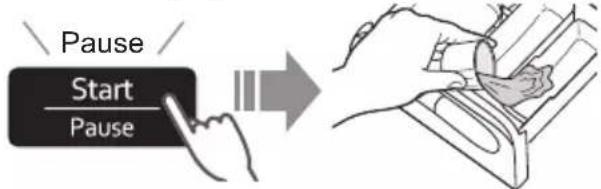

■After pressing "Start"

- To change each operation (while washing).


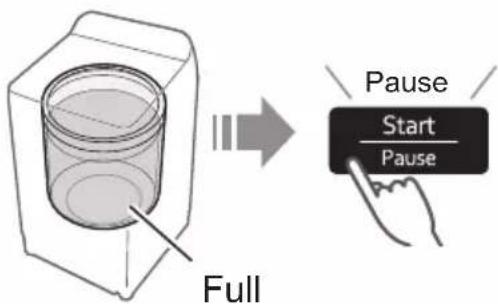

To check or change the water level (while washing

- You cannot change the program.

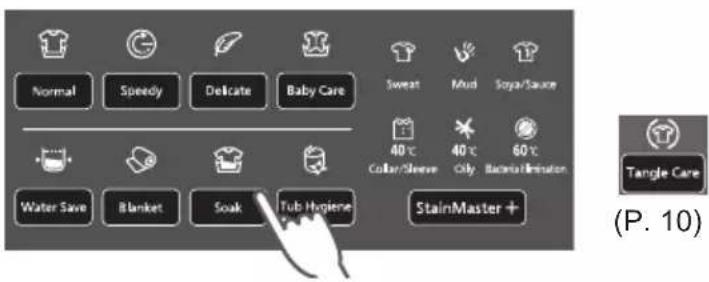

Variety of Programs

	Program Purpose		Max. capacity (kg)
Wash	Normal (P. 9)	Everyday clothes	18.016.014.0
	Tangle Care (P. 9)	Anti-tanglingWashing more gently than “Normal” to reduce tangle.Disentangling clothes after spin: 8 kg or less.
	Speedy (P. 9)	For light soil	18.016.014.0
	Delicate (P. 15)	Washing gently	5.0
	Baby Care (P. 9)	Clothes for babies & sensitive skinRinsing thoroughly	18.016.014.0
	Water Save (P. 9)	Saving water	18.016.014.0
	Blanket (P. 15)	Comforters and blankets With a machine-washable tag	4.2

*Top: NA-FD18V1 / Middle: NA-FD16V1 / Bottom: NA-FD14V1

	Program Purpose			Max. capacity (kg)
Wash	Soak(P. 9)		For heavy soil Presoaking to wash
	StainMaster +(P. 16)		For the following stains	5.0
	Light	SweatMudSoya/SauceCollar/Sleeve(40 °C)Oily (40 °C)

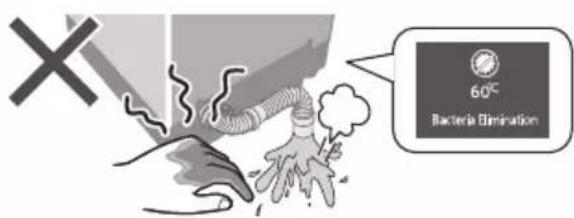

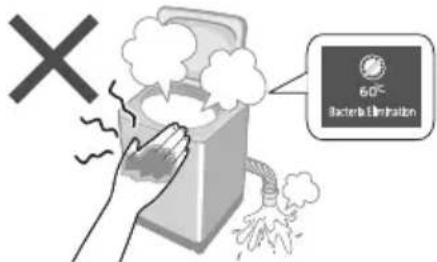

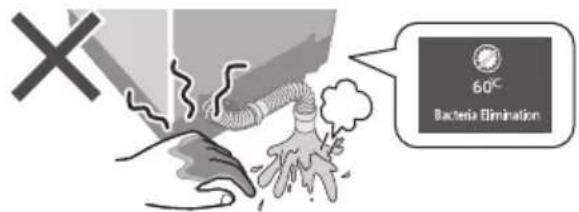

	Bacteria Elimination(60 °C)
Dry	Air Dry (90 min)(P. 17)		Drying synthetic fibre clothes	3.0
Maintenance	Tub Hygiene(P. 23)		Tub drying —	—

StainMaster +

NOTE

- “Normal” program and “Water Save” program are recommended for a normally soiled load at the rated capacity of this washing machine.

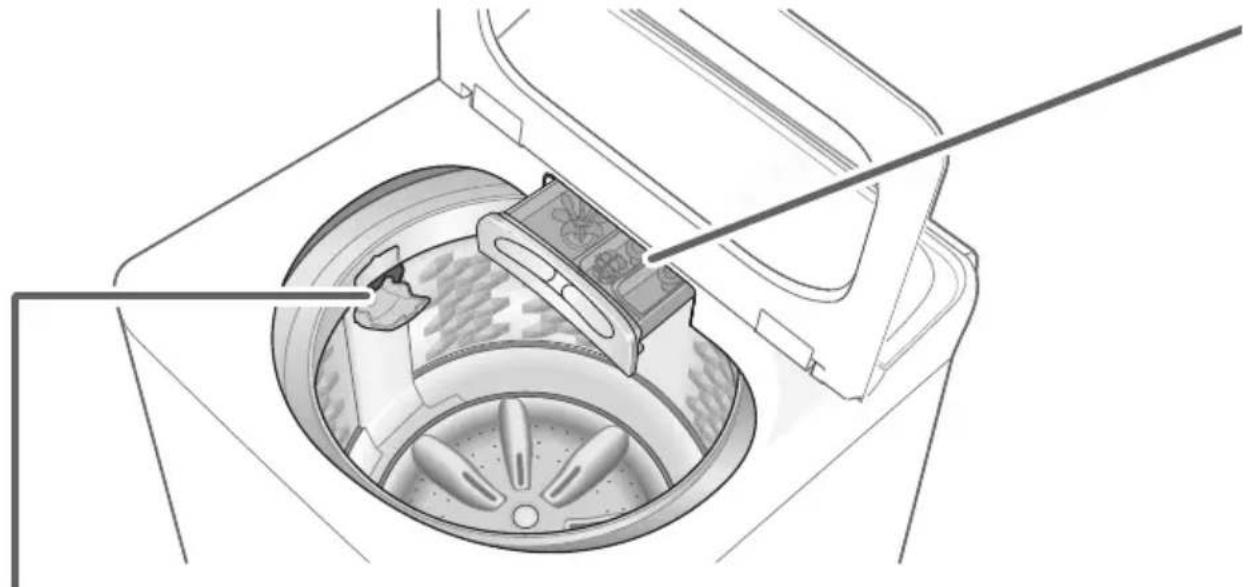

Detergent / Softener / Bleach

• Follow the instructions on each package.
  For cleaning (P. 21)
• Close detergent and softener drawer completely before use.

Technical line drawing of a washing machine interior with a handle and fan (no text or symbols)

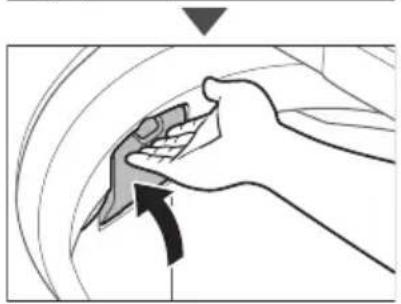

Bleach

Illustration of a hand holding a small object with a black arrow pointing to it, no text or symbols present

Illustration of a hand placing a small object into a container (no text or symbols visible)

Illustration of a hand holding a tool near a curved surface, with an arrow indicating direction (no text or symbols)

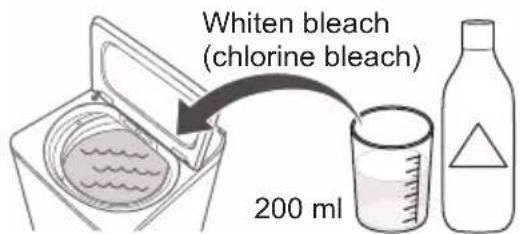

Whiten bleach (chlorine bleach)


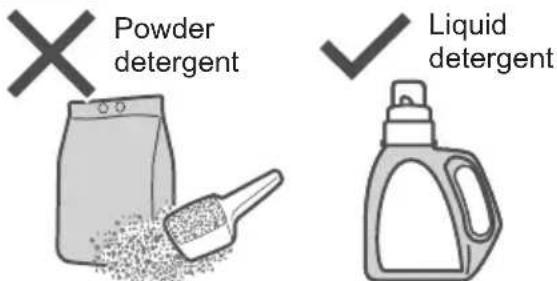

    A["Powder detergent"] --> B["Liquid detergent"]
    B --> C["Softener"]
    D["Max. 100 ml"] --> E["Delivery to a device with battery and pump"]

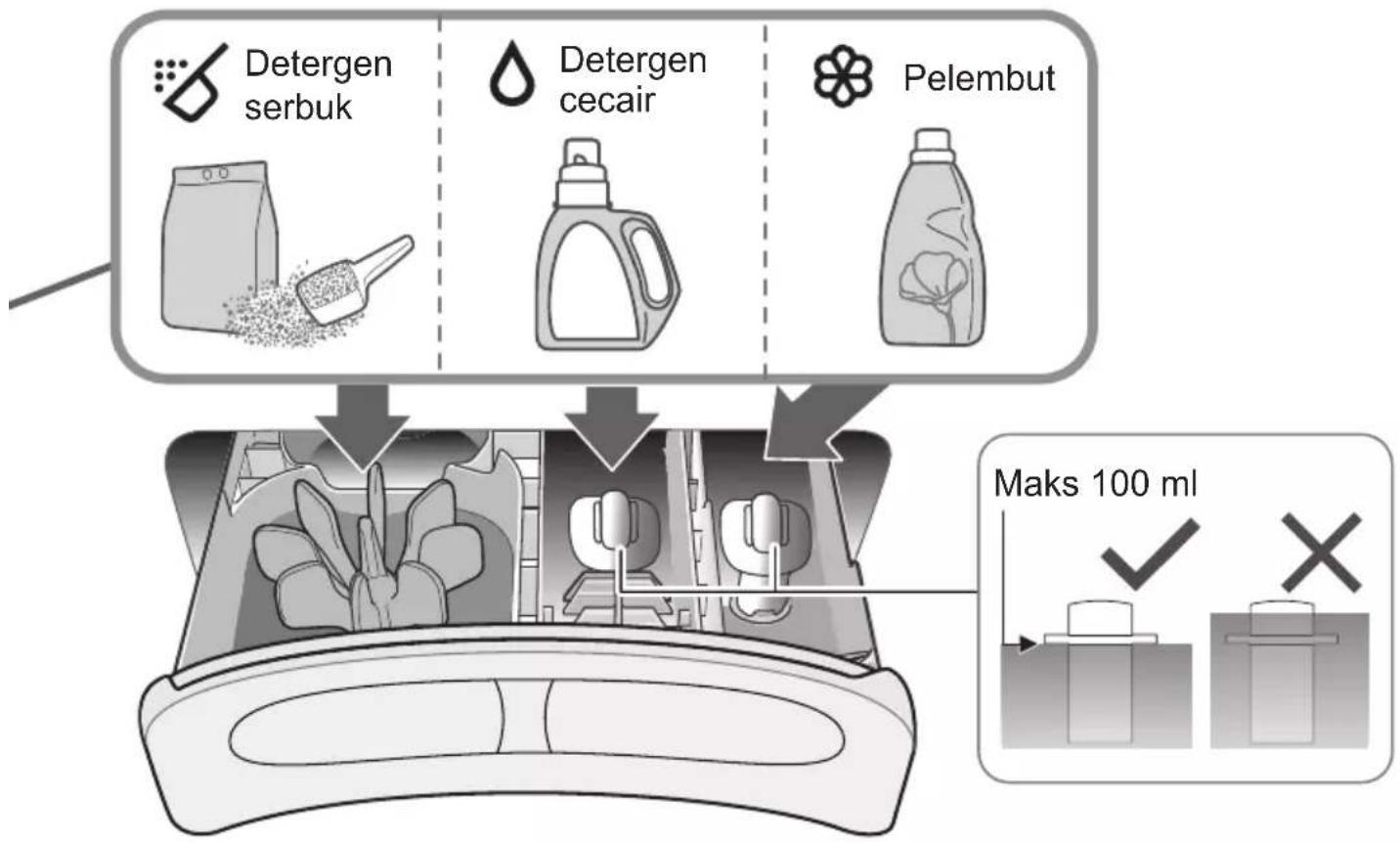

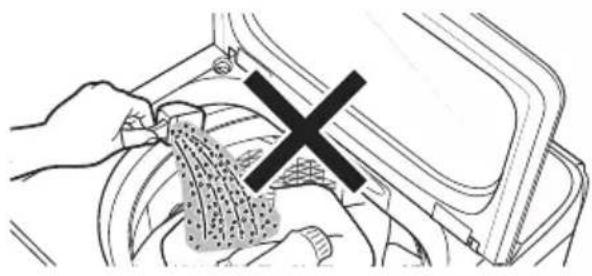

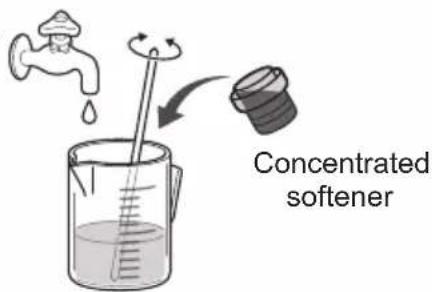

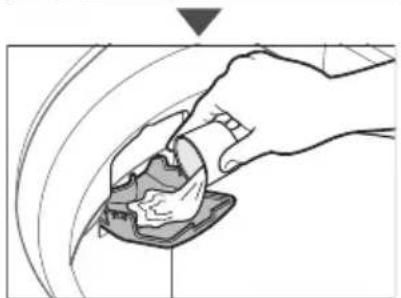

Detergent

Diagram showing a hand holding a textured object with a black 'X' mark, no text or symbols present

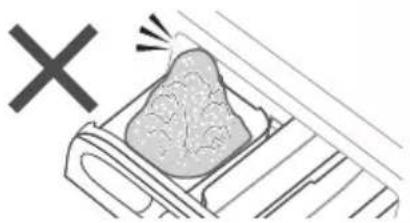

Simple line drawing of a rock inside a container with a 'X' symbol and explosion effect (no text or labels)

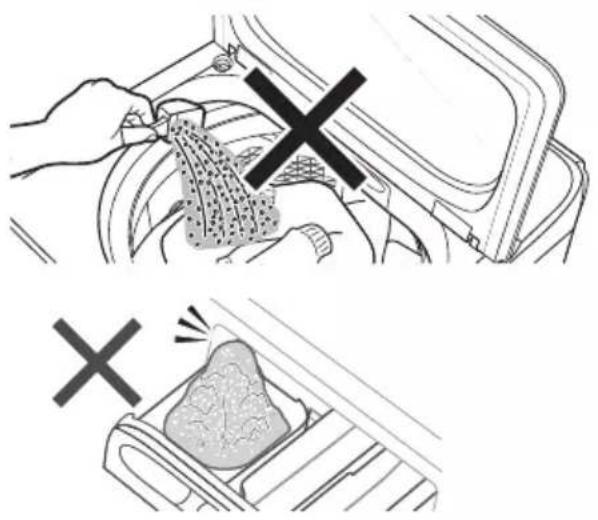

- If powder detergent does not dissolve well, put it in the bleach inlet.

Illustration of a hand using a tool to cut a mechanical component (no text or symbols visible)

- The level of foaming depends on the load size, soil, detergent, and water hardness.

Softener

During operation

Water

- Softener cannot be used with the "Water Save" program.

Washing Options

Preset

Set how many hours later to finish operation.

1

2

All other indications turn off.

2 min

Normal	2 - 24
Speedy	1 - 24
Delicate	-
Baby Care	2 - 24
Water Save	2 - 24
Blanket	-
Soak	3 - 24
StainMaster +	(P. 16)
Air Dry(90 min)	-
Tub Hygiene	-

■ To confirm

■ To cancel or change

Wash / Rinse / Spin

1

2

3

NOTE

- Not available for "Tangle Care".

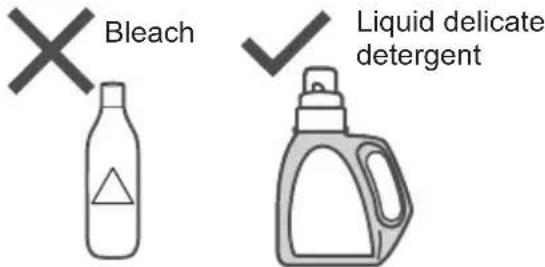

Delicate

74 L 5.0 kg
66 L 3.0 kg
59 L 1.0 kg

NOTE

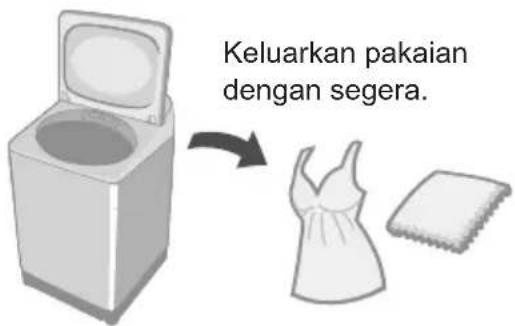

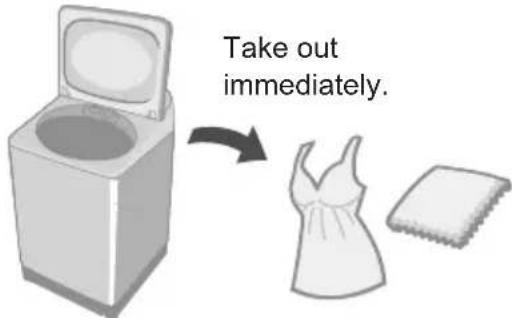

■ After operation ends

Blanket

Max.water amount *

4.2 kg100 % synthetic fibre100 % cotton

* NA-FD18V1: 105 L / NA-FD16V1: 99 L / NA-FD14V1: 93 L

Illustration of a washing machine with a downward arrow indicating a drop or reduction, showing internal components (no text or symbols)

NOTE

NOTE

- The water amount indication shows the maximum and cannot be changed.

Washing Options (continued)

Stain Master +

Preparation: (P. 7)

1

2

StainMaster +

■ Timer preset (hours)40P.

Collar/Sleeve: 3 - 24

Oily: 3 - 24

Bacteria Elimination: 4 - 24

Others: 2 - 24

3

4

5

NOTE

Max. 5.0 ~kg

Max. water amount

• Bacteria Elimination: 66L

- Others: 81L

- You cannot change the wash process setting of this program.

- When using

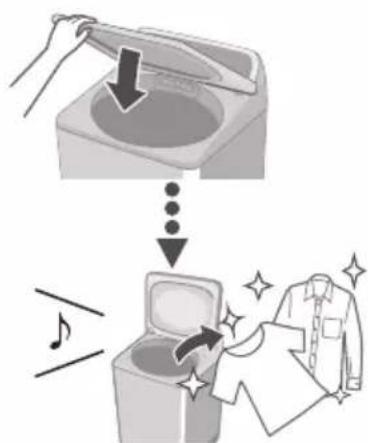

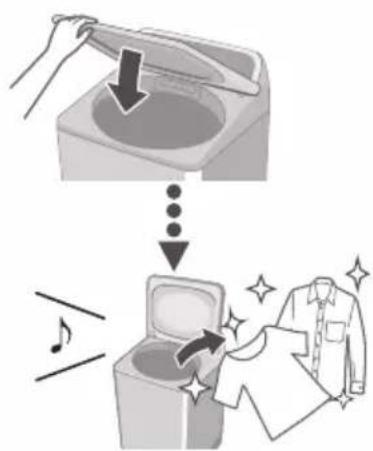

• Make sure to close the lid.

Illustration of a hand removing a trash bin into a trash can, with musical notes and sound waves shown (no text or symbols)

- Dew condensation may occur on the lid, etc.

Condensation

Illustration of a washing machine with a lid and internal granular material (no text or symbols)

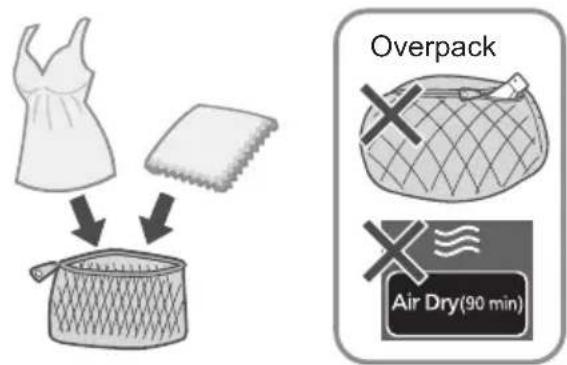

Air Dry (90 min)

The air blown from the tub rotation removes water from clothes.

- Dryable clothes: Synthetic fibre (Max. 3.0 kg)

1

2

3

NOTE

Clothes may not be sufficiently dried (depends on amount and type of clothes, and the temperature).
- This function does not use a heater. Clothes may be cold and half dry.

ECONAVI

• "Normal" program only

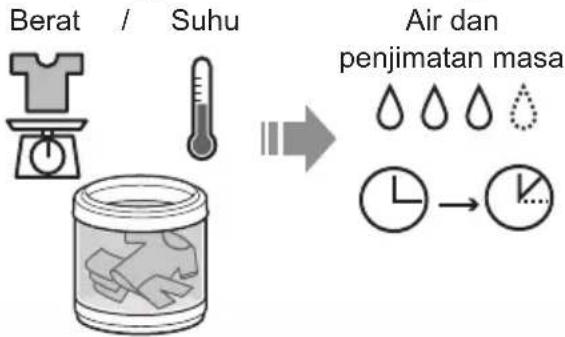

Weight / Temperature

Water and time

■ Lamp indications

Detecting

ECONAVI enabled

ECONAVI disabled

■ To turn on/off

1

2

3

Hold 3 sec

4

to select

5

* Test conditions:

• "Normal" program
• Comparison between ECONAVI-enabled operation (amount of laundry: 4.0 kg, water temperature: above 35 °C) and ECONAVI-disabled operation (amount of laundry: 18.0 / 16.0 / 14.0 kg (rated capacity), water temperature: below 15 °C)
• Test was conducted based on IEC60456 except for water temperature.

Convenient Functions

Setting Auto Tub Clean

Preventing black mould, available with all programs except "Water Save" and "Air Dry".

■ Lamp indications

Operating

Function enabled

Function disabled

■ To turn on/off

1

2

3

Hold 3 sec

4

to select

5

Cancelling end buzzer

1

■ To reset: same procedure

Setting Child Lock

* This function does not lock the lid and button operations.

1

2

Hold 5 sec

■ To cancel: same procedure ^4

NOTE

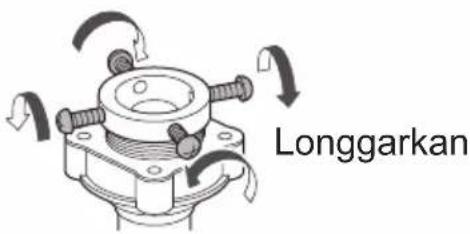

Turning the tub by hand

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Contents of Programs

Program		Total time*1(min)	Wash(min)	Rinse(times)	Spin(min)
	Normal	70 10 2 7
	Speedy	50 3 2 5
	Delicate	50 9 2 1
	Baby Care	80 10 2 9
	Water Save	80 10 3 7
	Blanket	80 12 2 7
	Soak	130 *2	71 (Soak 59) 2 7
Stain Master +	Sweat	70 13 2 7
	Mud	90 32 2 7
	Soya/Sauce	110 *2	54 (Soak 29) 2 7
	Collar/Sleeve	165 *2	33 *3	2	7
	Oily	170 *2	38 *3	2	7
	BacteriaElimination	225 *2	30 *3	2	7
	Tub Hygiene	150 *2	65 (Soak 62) 2 30

*1 Total time is approximate (When the standard water supply rate is 15 L / min and the water temperature is 28 °C).
*2 Remaining time of 99 minutes or less will be displayed. --→99
*3 Excluding water heating time. Symbol -will be displayed during the water heating process.

- “Refill”: to fill the tub with water and rinse while supplying water.

Maintenance

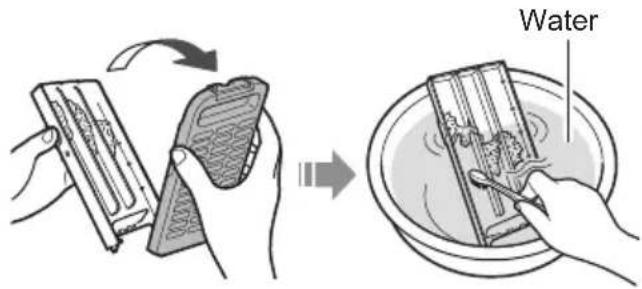

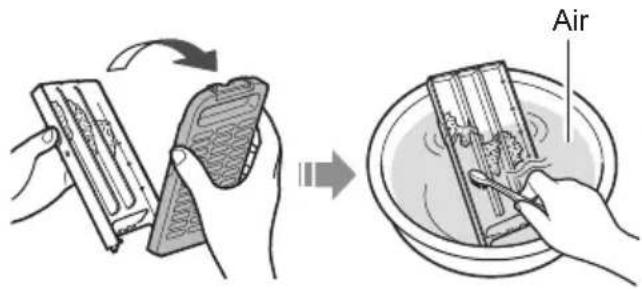

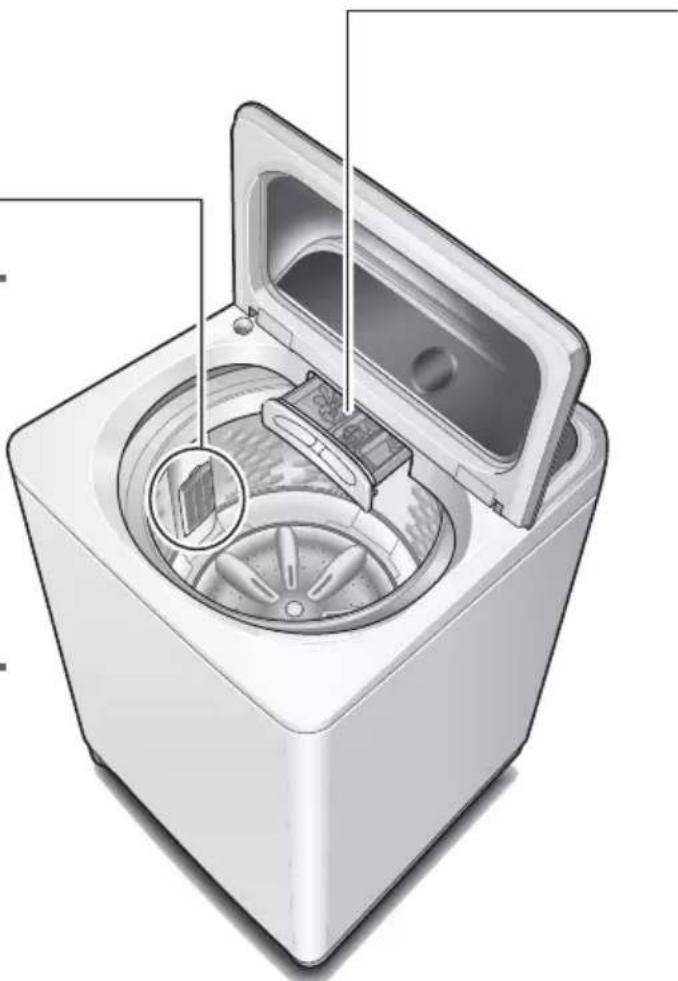

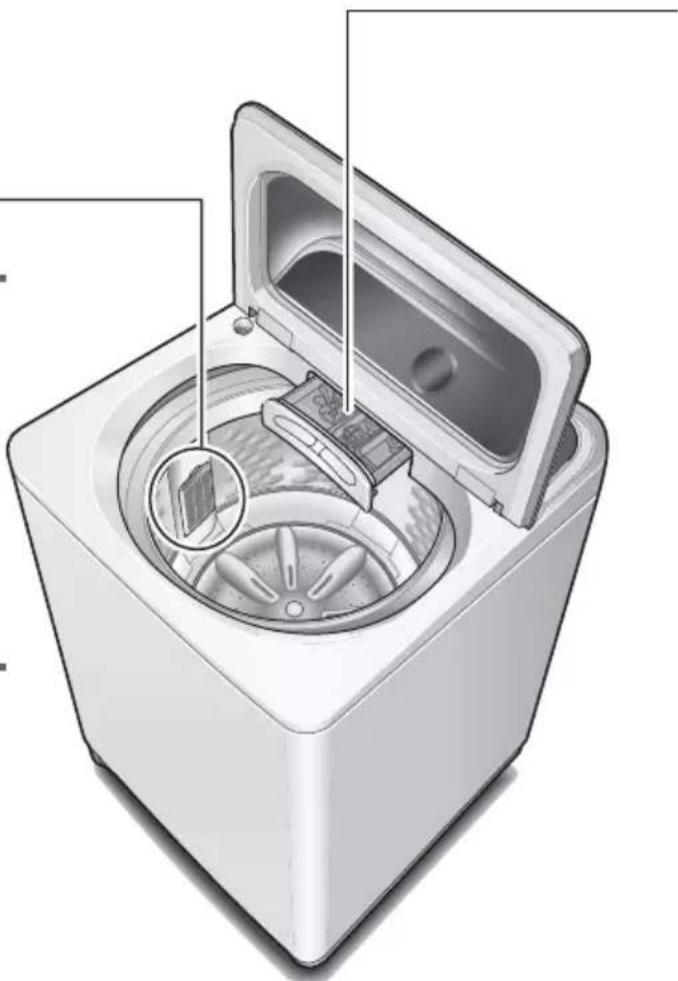

Lint filter

After each operation

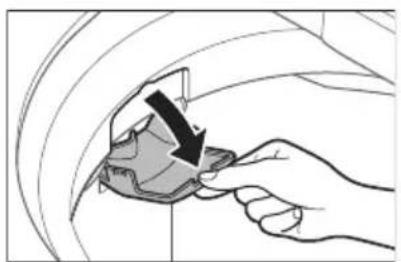

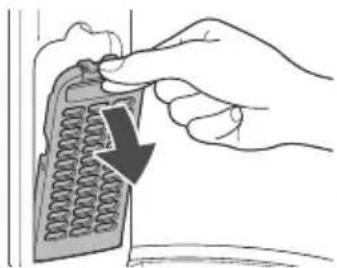

1

Hand inserting a calculator into a device (no text or symbols visible)

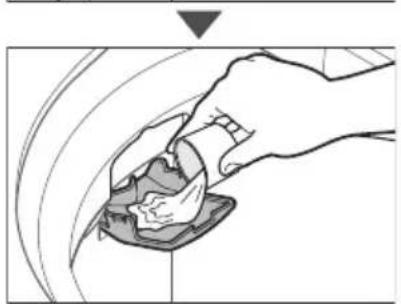

2

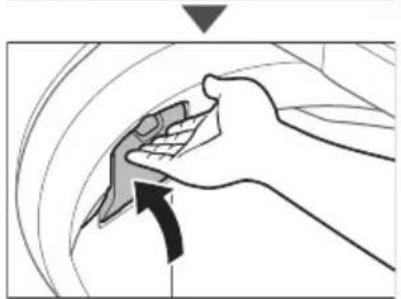

3

Illustration of two hands holding a rectangular device with a curved arrow indicating rotation (no text or symbols)

Illustration of hands holding a handheld device with a lightning bolt (no text or symbols)

Cross-sectional diagram of a microwave oven with internal components and a close-up inset showing internal structure (no text or labels)

NOTE

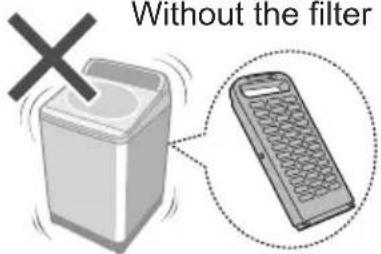

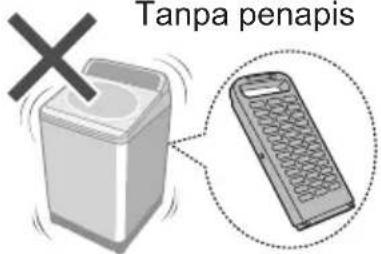

Without the filter

If it is difficult to remove the filter (P. 18)

Diagram of a mechanical or electrical component with internal components and directional arrows (no text or symbols)

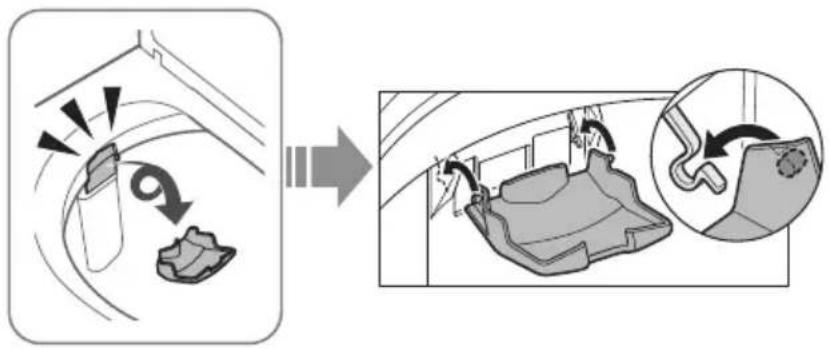

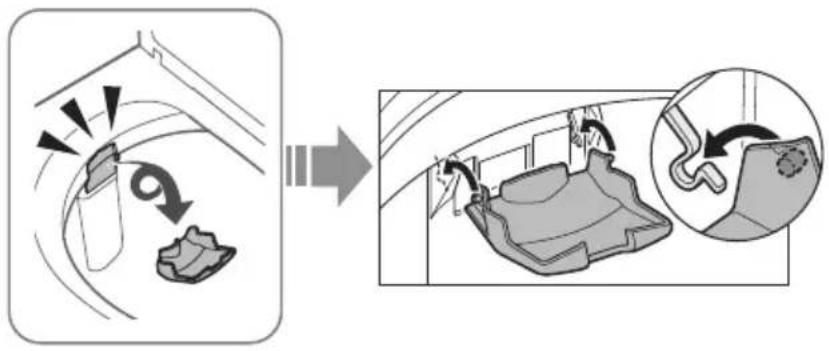

If the filter is broken

Detergent and softener drawer

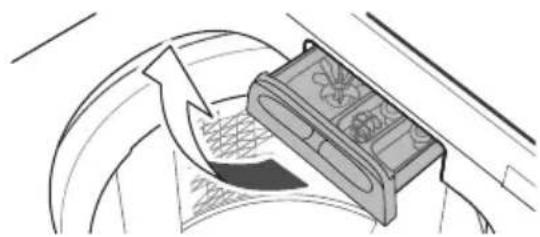

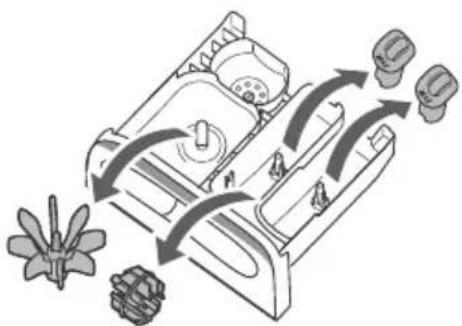

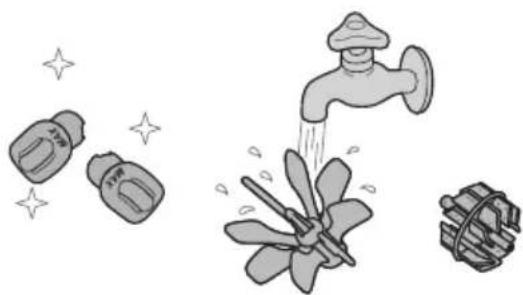

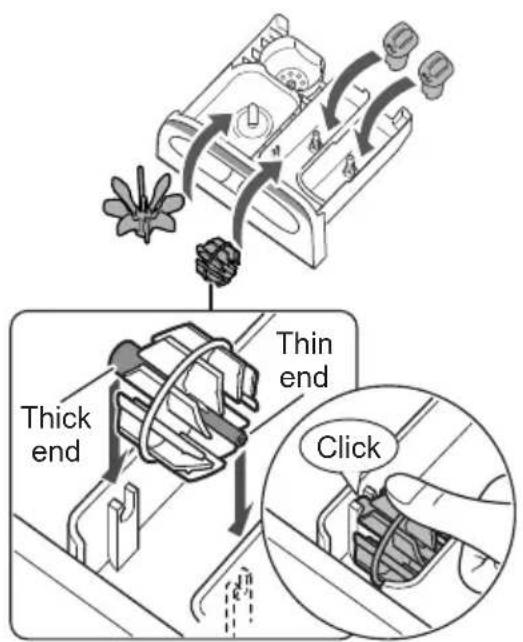

If stained with detergent or softener

1

Diagram of a car interior showing airflow or flow direction with no text or symbols

Remove

2

Diagram of a kitchen appliance with directional arrows indicating flow or movement (no text or symbols)

3

Illustration of kitchen utensils and a water tap with decorative sparkles (no text or symbols)

4

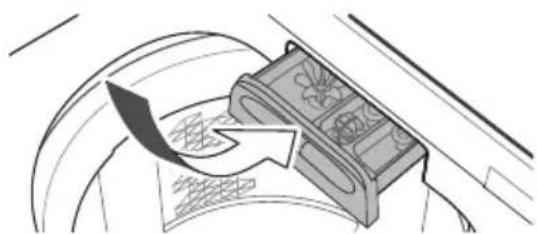

5

Diagram showing a mechanical component being inserted into a curved surface, with no visible text or symbols.

Attach

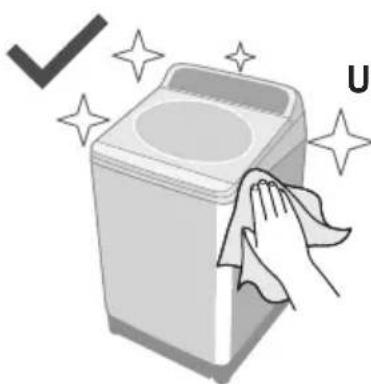

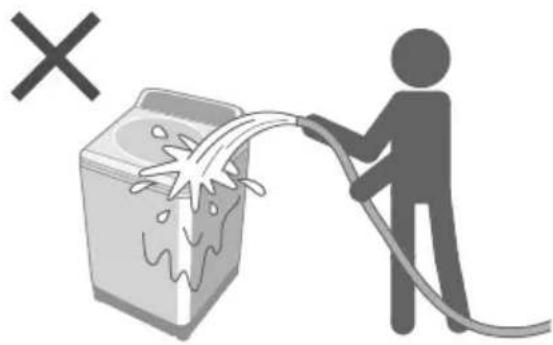

Main unit, lid

Illustration of a hand cleaning a washing machine with sparkles around (no text or symbols)

For heavy soil

Neutral kitchen detergent

Illustration of a bottle with liquid and droplets (no text or symbols)

Illustration of a person spraying water from a washing machine with a hose, no text or symbols present

Maintenance (continued)

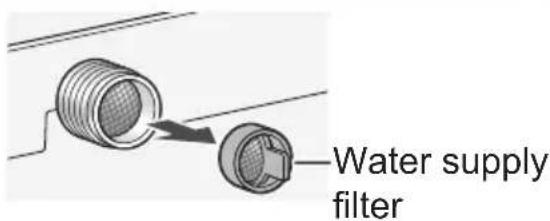

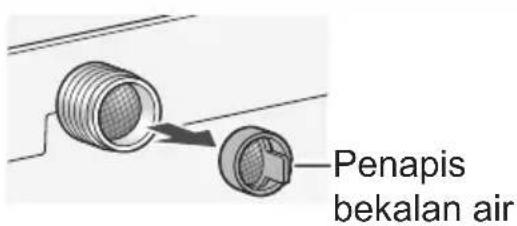

Water supply filter

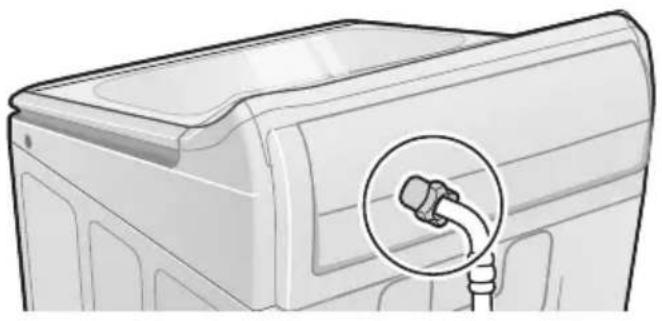

If water does not flow smoothly

Illustration of a car door with a magnified inset showing a plug inserted into the seat (no text or symbols)

1

2

3
    note right of A Approx. 40 sec

4

5

6

Illustration of a hand holding a tool with a circular object inserted (no text or symbols)

7

Diagram showing two mechanical components with a directional arrow, no text or symbols present

8

Tub

Once a week

Once a month

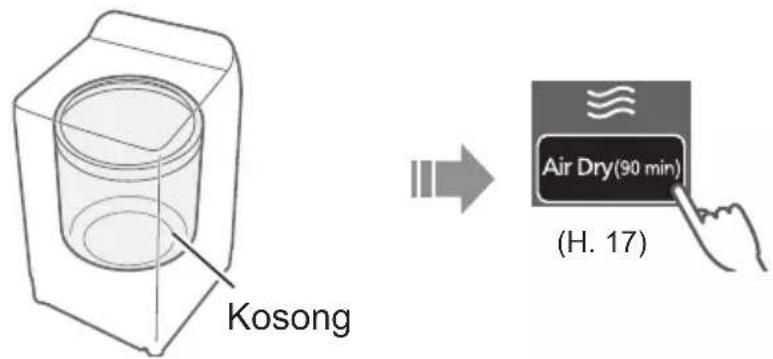

1

5

2

6

3

4

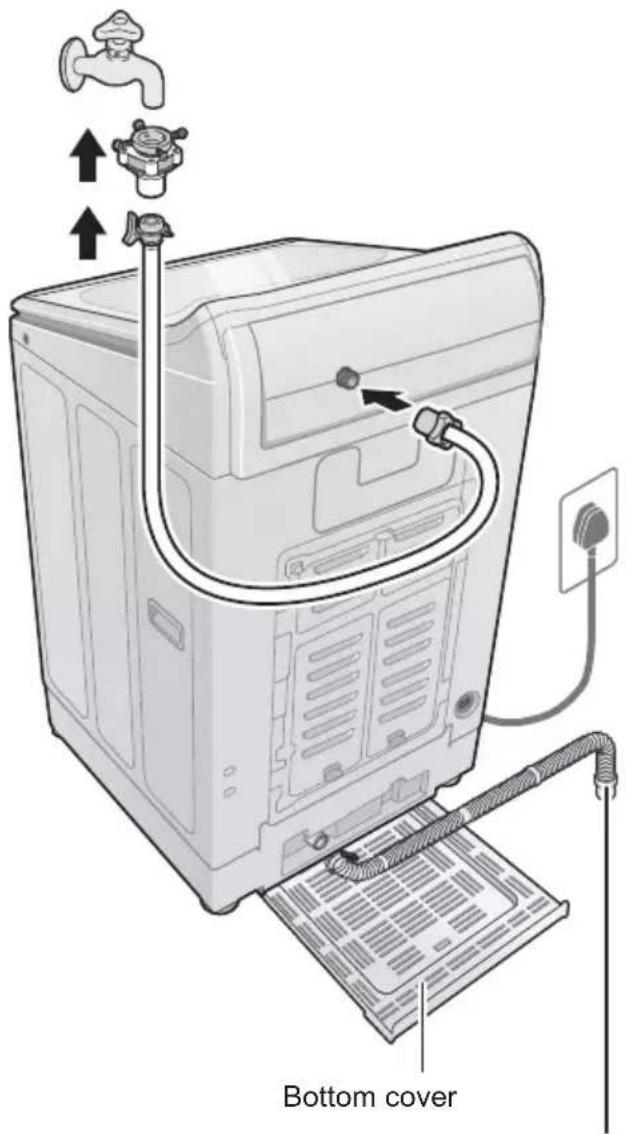

Installation

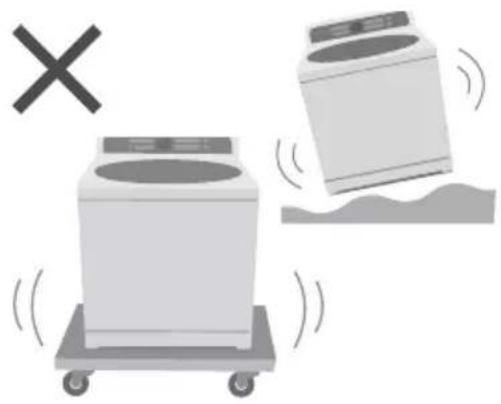

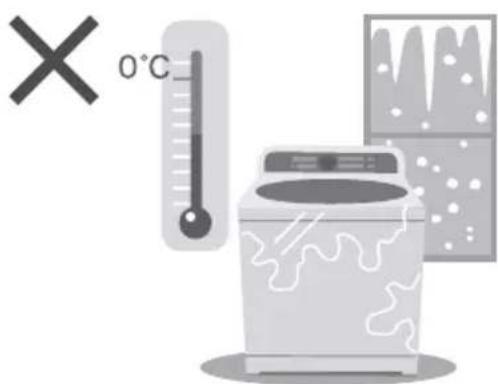

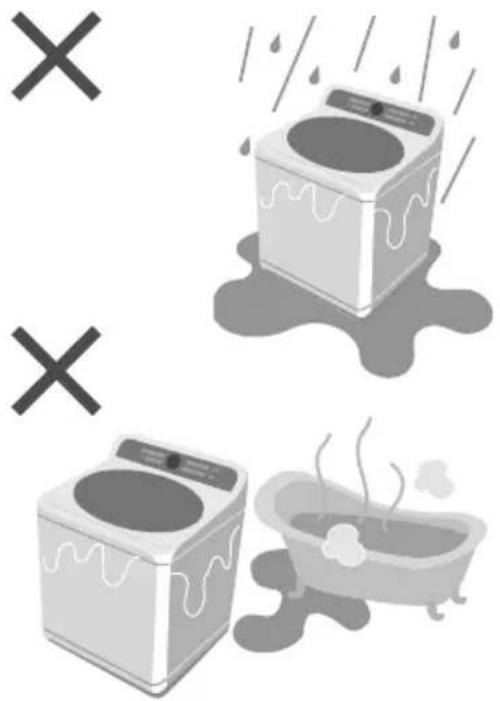

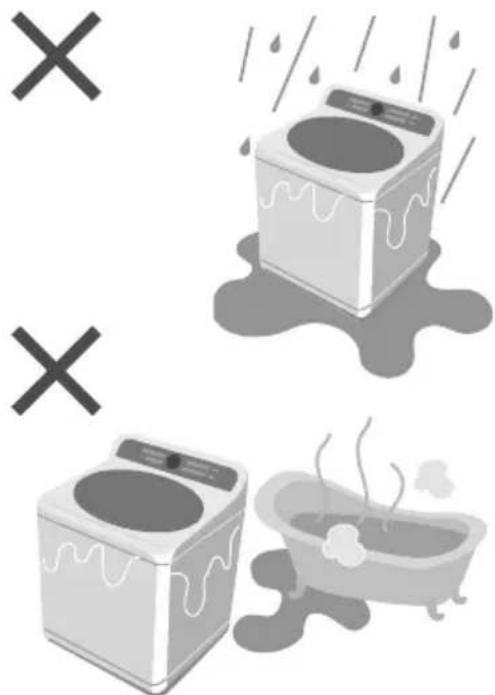

Check the location.

Illustration of washing machines and a bathtub with steam rising (no text or symbols)

Illustration of two washing machines on a cart with a 'X' symbol and sound waves, no text or symbols present.

Make sure to ask a service person for installation.

Silhouette of a house with tools and a worker (no text or symbols)

■ Do not install by yourself.
■ Follow this installation method.
If you do not, Panasonic will not be liable for any accident or damage.

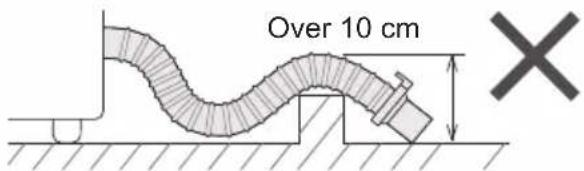

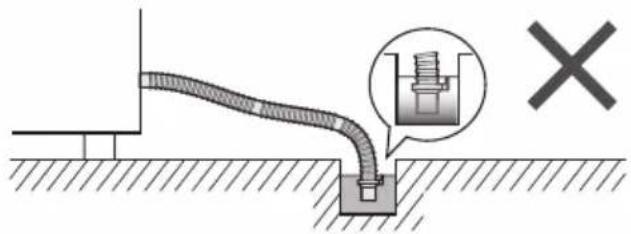

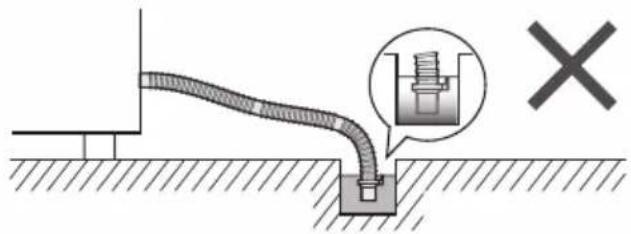

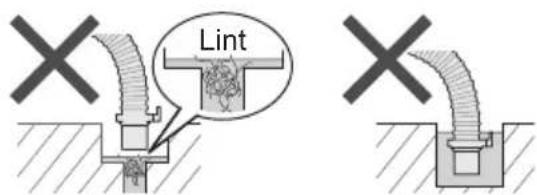

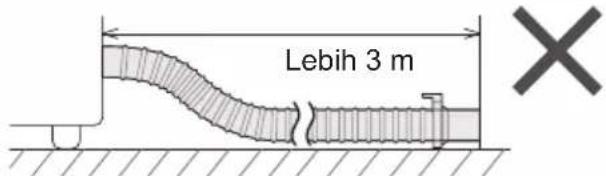

External drain water hose

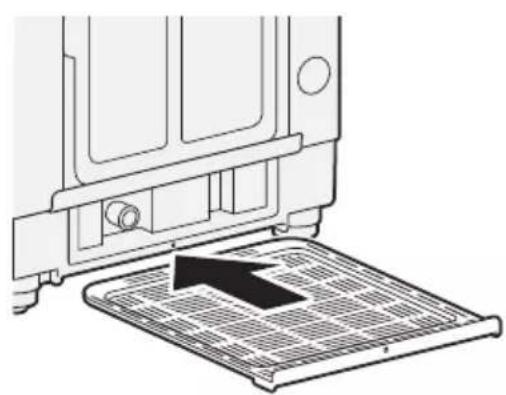

Attach the bottom cover

1

Diagram of a device's front panel with a black arrow pointing to a grid-patterned base (no text or symbols)

2

Technical line drawing of a mechanical assembly with a wrench and screwdriver (no text or symbols)

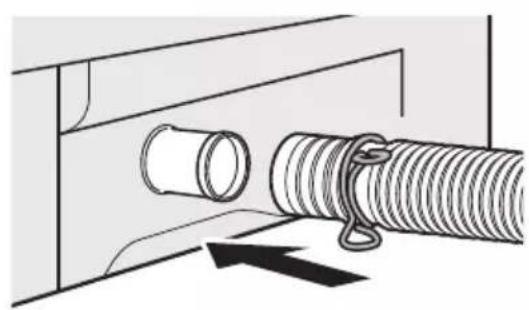

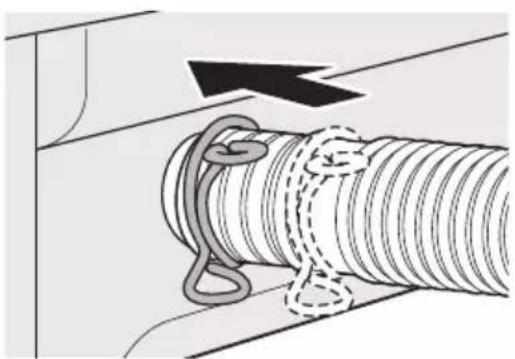

Attach the external drain water hose

1

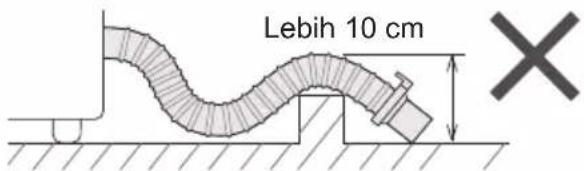

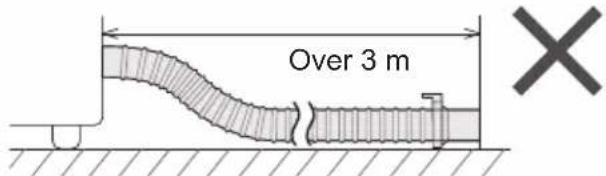

Diagram of a hose being inserted into a housing component, showing internal tubing and a directional arrow (no text or symbols)

NOTE

2

Diagram of a mechanical assembly with a coiled spring and directional arrow (no text or symbols)

Installation (continued)

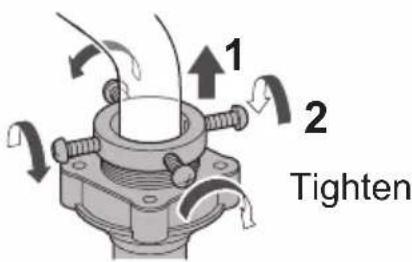

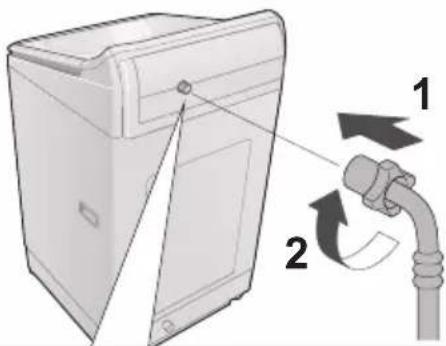

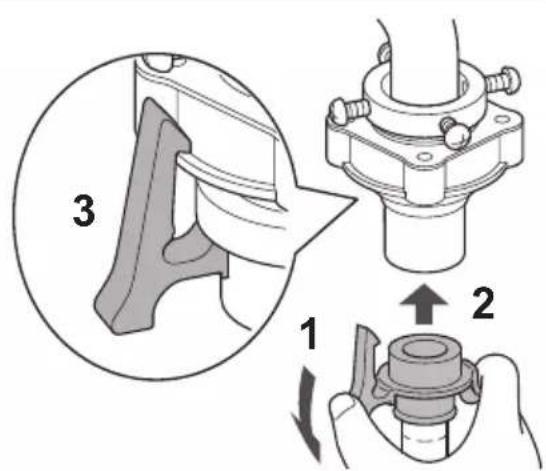

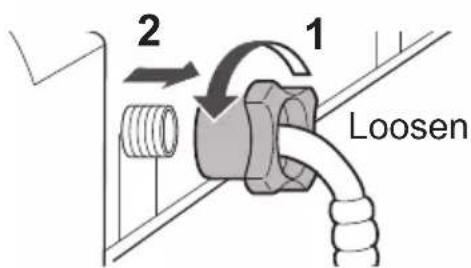

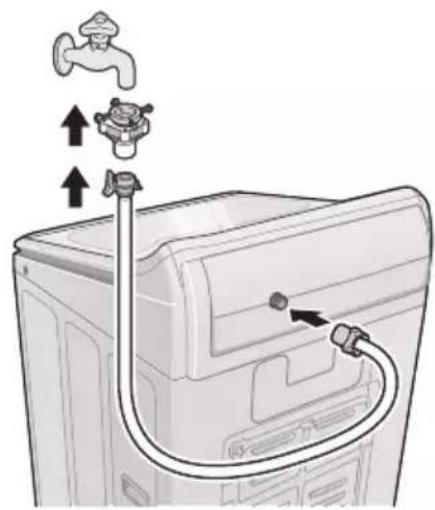

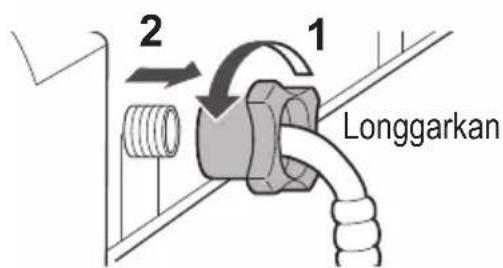

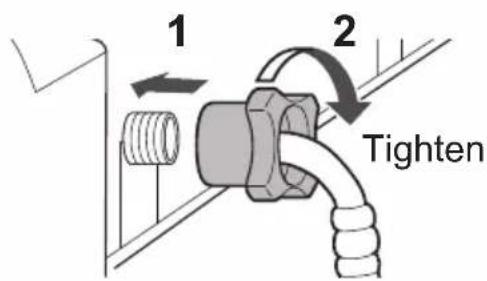

Connect the water supply hose

Diagram of a washing machine with faucet and valve connections (no text or symbols)

1

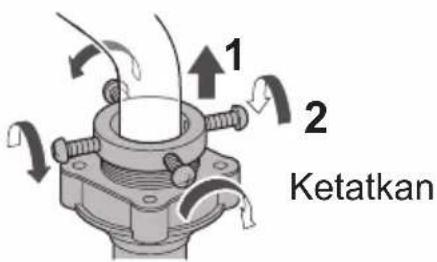

2

3

4

5

6

3
Check that the elbow is not loose.

CAUTION

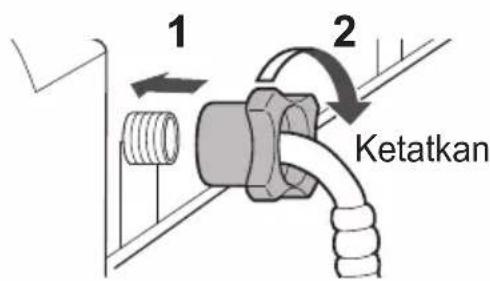

• Tighten the nut firmly.
• Do not twist, squash, modify or cut the hose.

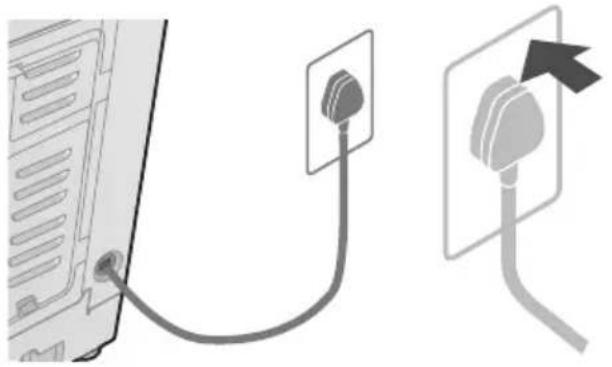

Connect the power plug and grounding

Diagram showing a cable inserted into a socket connected to an outlet, with an arrow indicating the outlet's direction (no text or symbols present)


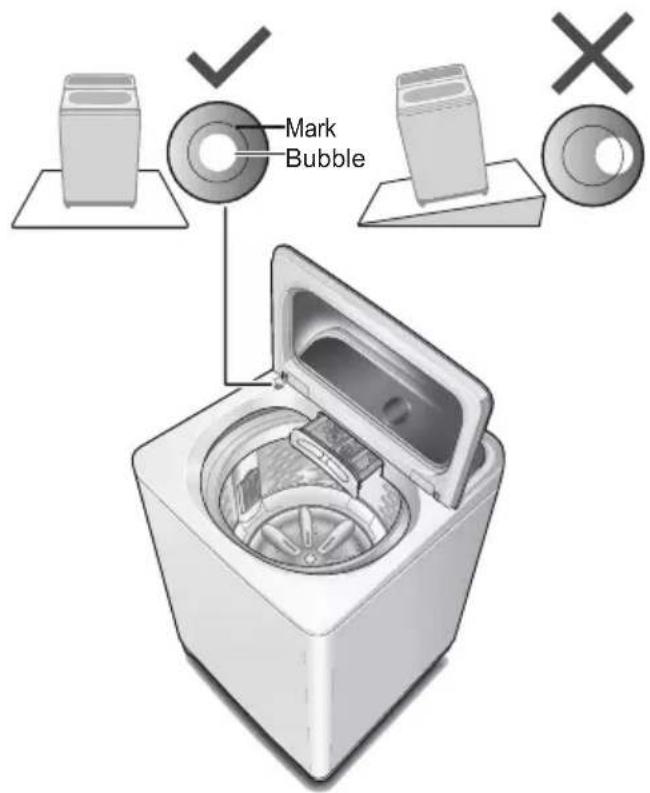

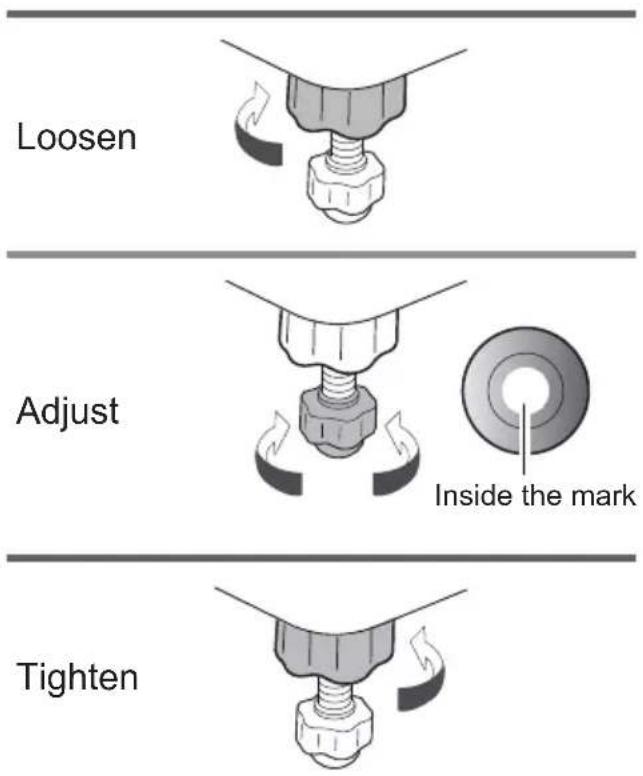

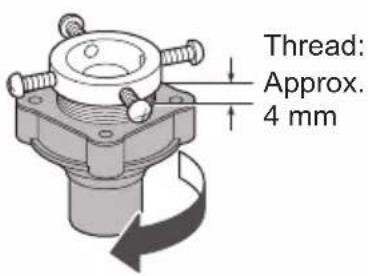

Check that the washing machine is level

■ If the bubble is out of the mark

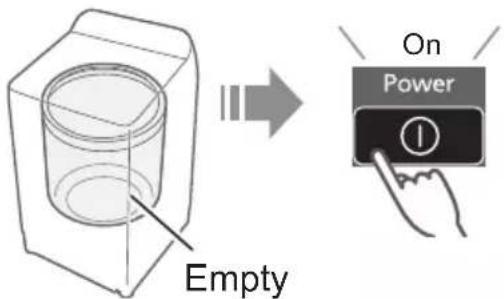

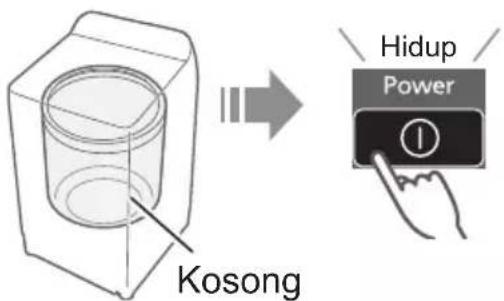

Trial operation

Illustration of a washing machine with a hand holding a checkmark and a faucet, showing water droplets and drainage pipes (no text or symbols)

Error Display

■ Preparation

Cancel Child Lock (P. 18) if it is set.

Error Display Points to be checked

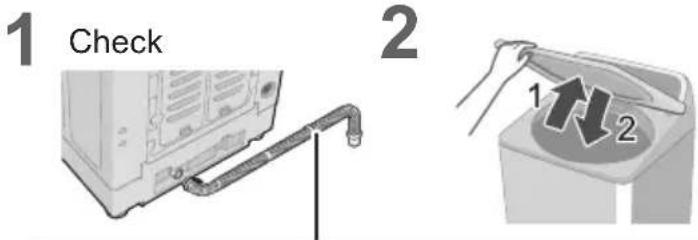

Water cannot drain.

The lid is open.

Illustration of a hand holding a tool above a washing machine with a downward arrow indicating a drop (no text or symbols)

Spin or "Air Dry" is not possible.

Unstable or incline

Simple 3D illustration of a trash bin on a flat surface (no text or symbols)

Simple line drawing of a washing machine on a flat surface, labeled '1 Stable' (no text or symbols on the machine itself)

Illustration of a trash bin with a handle and arrow indicating downward motion (no text or symbols)

Error Display Points to be checked
Water cannot be supplied.	1	2
		water supply (P. 22)

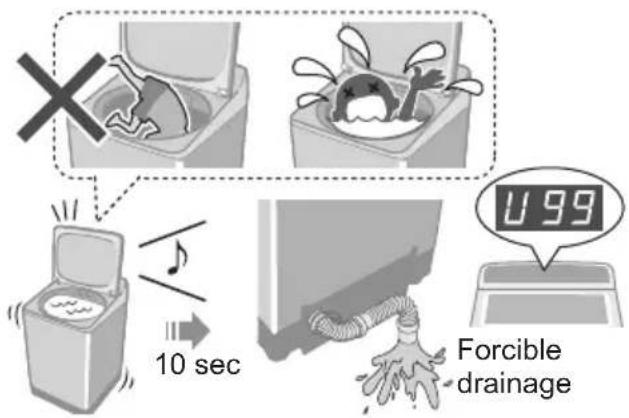

U99	With Child Lock set		Forcible drainage
Water has been forcibly drained.	1
	1
Inspection is required.

Troubleshooting

	Symptoms Points to be checked

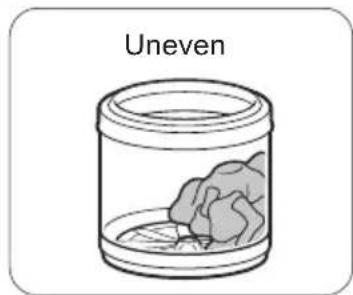

Time	Indication increases or does not decrease.	Time indication is approximate.Remaining time is corrected during operation.
	Longer than the indication.	When clothes are uneven. When the water drainage is not good. When the water supply is not good.
	Operation passes the preset time.	The operation time may be longer.
Main unit	No operation	CheckPower failure Timer presetTryClose the lid. Turn on. Insert the power plug completely.Press "Start".Turn breaker
	Cannot change process settings (after start).	TryDuring wash processAfter wash process

	Symptoms Points to be checked
Wash	Water is supplied while washing.		When water level drops.	When amount of laundry is large.
			→ Water is added automatically.
	The water level
	too high		When laundry is wet.	When there is water in the tub before operation.
			→ The water level may be higher
	too low		When clothes are light (synthetic fibre, etc.).
			→ The water level may be lower.
Rinse	Operation started with rinse, but water is not supplied.		When there is no water in the tub.	→ Water is supplied after spin.
			When there is water in the tub.	→ Water is supplied after water discharge and spin.
Spin	Spin changes to rinse.		If clothes are uneven, this appliances automatically corrects unevenness by rinse process.
	Rinse starts instead of spin.
	Irregular rotation		The tub rotation speed is adjusted to reduce vibration.

Troubleshooting (continued)

	Symptoms Points to be checked
Others	Power failure/Breaker off. Off		Operation will resume from where it stopped when the power is recovered. On
	has no effect.		□ Check □ Try □ Under 5.0 kg □ Pretreatments (P. 7) □ Select according to the stain type. (P. 11)
	Powder detergent remains undissolved.		□ Try Put it in the bleach inlet. (P. 12)

Specifications

Model No. NA-FD18V1 NA-FD16V1 NA-FD14V1
Rated voltage 220 V - 240 V
Rated frequency 50 Hz
Rated power consumption 1475 W - 1750 W
Standard water amount 105 L	99 L	93 L
Maximum capacity (Dry cloth)	18.0 kg	16.0 kg	14.0 kg
Product dimensions	679 mm (W) x 755 mm (D) x 1100 mm (H)
Product weight	48 kg
Pressure of tap water	0.01 - 1 MPa

Panasonic®

Arahan Pengendalian & Pemasangan

Black washing machine with circular vent and top lid, placed on a white surface (no visible text or symbols)

Kandungan

Langkah Berjaga-jaga Keselamatan	2
Nama Bahagian / Kelengkapan	6
Sebelum Membasuh	7
Panel Operasi	8
Membasuh	9
Pelbagai Program	10
Washing / Softener / Bleach	12
Pilihan Membasuh• Preset (Pratetapan)• Wash / Rinse / Spin• Delicate (Halus)• Blanket (Selimut)• Stain Master +• Air Dry (90 min)• ECONAVI	14
Fungsi Menyenangkan	18
Kandungan Program	19
Penyenggaraan	20
Pemasangan	24
Paparan Ralat	28
Penyelesaian Masalah	30
Spesifikasi	32

Illustration of a child washing clothes inside a washing machine with a 'X' symbol (no text or labels)

Illustration of a hand washing a washing machine with a warning symbol (no text or labels)

Illustration of a hand holding a water droplet with a 'X' symbol above, indicating an environmental or safety hazard (no text present)

Hand holding a plug inserted into a socket, with an 'X' symbol indicating no change or failure (no text or symbols present)

Illustration of a hand holding a bulb above two panels, with no text or symbols present.

Illustration of hands performing a medical procedure with sparkles (no text or symbols)

Illustration of a washing machine with a crossed-out symbol, a person holding a tool, and scattered items (no text or symbols)

Illustration of two hands holding a large rectangular object with a cross symbol above (no text or labels)

Illustration of a washing machine with a T-shirt and a faucet, showing a hand turning a faucet (no text or symbols)

Illustration of a flexible hose with sparkles and decorative stars (no text or symbols)

Illustration of a washing machine with a sun symbol and a cross mark, no text or symbols present

Jangan basuh barang kalis air.

Jangan halang. Jangan gunakan air panas.

Pure diagram of a coiled pipe with two connectors (no text or symbols)

Panjang: 1.0 ~m

Illustration of a solar panel with grid lines and a screw, no text or symbols present

Sebelum Membasuh

Illustration showing clothing items including a shirt, jeans, and a box with arrows indicating direction (no text or symbols)

Illustration showing a washing machine and a hand washing clothes in a basin (no text or symbols)

Mematuhi label penjagaan pakaian

- Pakaian berwarna

• Bahan getah

Silhouette of a person wearing short-sleeve jeans with a large 'X' symbol (no text or symbols present)

Simple line drawing of a T-shirt with floral patterns and a large 'X' symbol (no text or symbols present)

Panel Operasi

NOTA

Technical line drawing of a washing machine interior with a tool, showing no text or symbols

Peluntur

Illustration of a hand placing a small object into a curved surface with a black arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a car wheel (no text or symbols)

Illustration of a hand holding a car interior with a black arrow indicating direction (no text or symbols)

Peluntur memutihkan (peluntur klorin)

Detergen

Illustration of a hand using a tool to cut a component into a circular opening (no text or symbols)

1

2

3

NOTA

- Tidak tersedia untuk "Tangle Care (Penjagaan Kusut)".

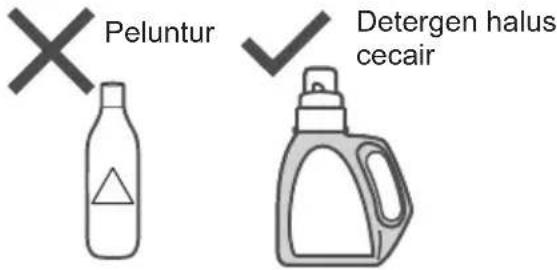

Delicate (Halus)

74 L 5.0 kg
66 L 3.0 kg
59 L 1.0 kg

NOTA

■ Selepas operasi berakhir

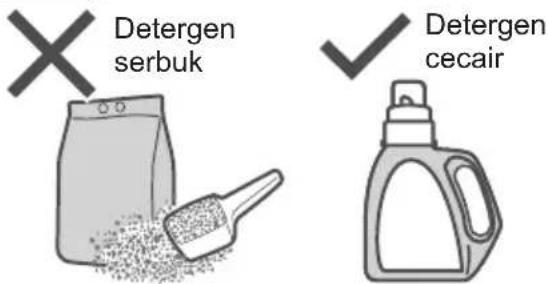

Diagram of a washing machine with a cylindrical roller inside, showing internal components and a downward arrow indicating flow (no text or symbols)

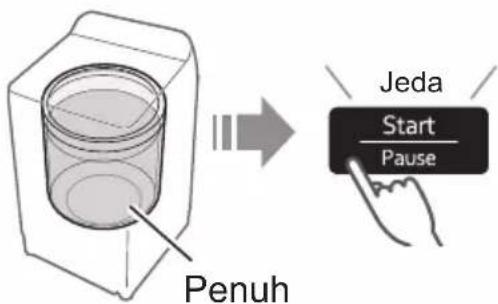

NOTA

NOTA

Bacteria Elimination: 4 - 24

Orang lain: 2 - 24

3

4

Hand using a tool to spread a textured surface with dots (no text or symbols visible)

5

NOTA

Maks 5.0 ~kg

• Bacteria Elimination: 66L

- Orang lain: 81L

Illustration of a hand removing a trash bin into a labeled open box, with musical notes and sound waves shown (no text or symbols)

Illustration of a food processor with a lid and granular contents (no text or symbols)

Air Dry (90 min) (Kering Udara (90 min))

Program "Normal" sahaja

* Keadaan ujian:

■ Membatalkan: prosedur yang sama x4

NOTA

Diagram of a mechanical component with rotating parts and directional arrows (no text or symbols)

Kandungan Program

Program		Jumlah masa^*1 (minit)	Wash(Basuh)(minit)	Rinse(Bilas)(kali)	Spin(Perah)(minit)
	Normal (Biasa)	70 10 2 7
	Speedy (Cepat)	50 3 2 5
	Delicate (Halus)	50 9 2 1
	Baby Care(Penjagaan Bayi)	80 10 2 9
	Water Save (Jimat Air)	80 10 3 7
	Blanket (Selimut)	80 12 2 7
	Soak (Rendam)	130 ^*2	71 (Rendam 59) 2 7
Stain Master +	Sweat (Peluh) 70 13 2 7
	Mud (Lumpur) 90 32 2 7
	Soya/Sauce (Kicap/Sos)	110 ^*2	54 (Rendam 29) 2 7
	Collar/Sleeve(Kolar/Lengan)	165 ^*2	33 ^*3	2	7
	Oily (Berminyak) 170	^*2	38 ^*3	2	7
	Bacteria Elimination(Penyingkiran Bakteria)	225 ^*2	30 ^*3	2	7
	Tub Hygiene(Kebersihan Tab)	150 ^*2	65 (Rendam 62) 2 30

Hand inserting a calculator into a device (no text or symbols visible)

2

3

Illustration of hands holding a device with a curved arrow indicating rotation (no text or symbols)

Illustration of hands holding a handheld device with a lightning bolt (no text or symbols)

Cross-sectional diagram of a microwave oven with internal components and a close-up inset showing internal structure (no text or labels)

NOTA

Diagram of a mechanical device with rotating components and a tool interacting with it (no text or symbols)

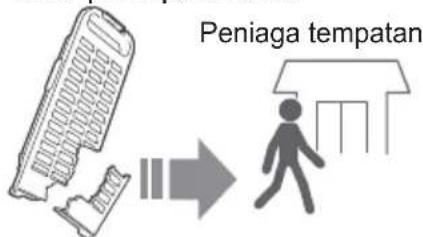

Jika penapis rosak

Illustration of four different household appliances: a faucet, a water pump, a wheelbarrow, and a washing machine (no text or symbols present)

Unit utama, penutup

Illustration of a hand cleaning a washing machine with sparkles around (no text or symbols)

Untuk kotoran degil

Illustration of a bottle with liquid and droplets (no text or symbols)

Illustration of a person spraying water from a washing machine with a hose, no text or symbols present

Illustration of a vehicle door with a magnified inset showing a cable connector (no text or symbols)

1

2

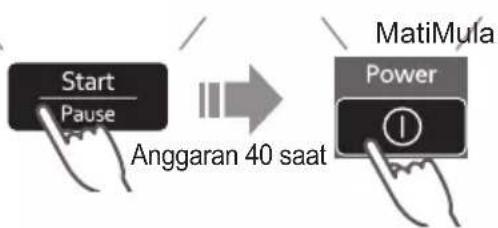

3

4

5

6

Illustration of a hand holding a tool with a circular object inserted (no text or symbols)

7

Diagram showing two mechanical components with a directional arrow, no text or symbols present

8

Tab

Sekali seminggu

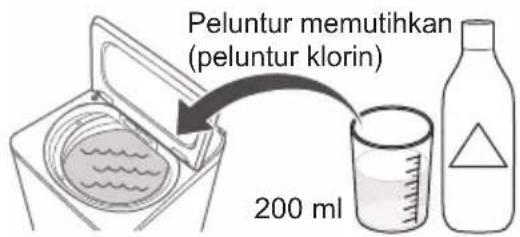

Sekali sebulan
1

5

2

6

3

4

Pemasangan

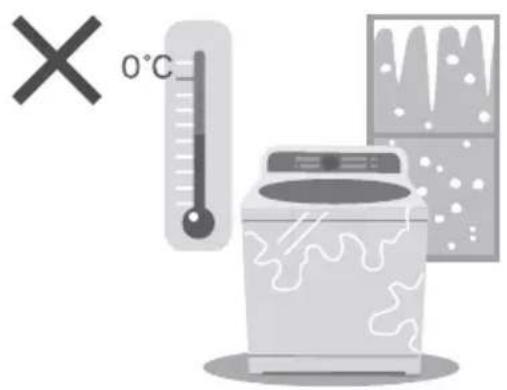

Periksa lokasi.

Illustration of washing machines and a bathtub with steam rising (no text or symbols)

Illustration of two washing machines on a platform with a 'X' symbol and sound waves, no text or symbols present.

Silhouette of a person with a wrench and tools next to a house outline (no text or symbols)

Diagram of a device's front panel with a black arrow pointing to a grid-patterned base (no text or symbols)

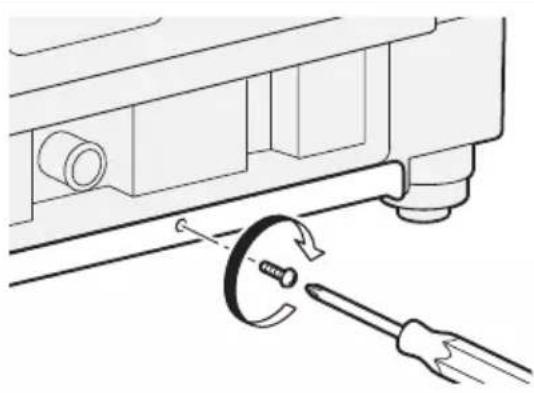

2

Technical line drawing of a mechanical component with a wrench and screwdriver (no text or symbols)

Pasangkan hos air saliran luar

1

Diagram of a hose being inserted into a housing component, showing internal tubing and a directional arrow (no text or symbols)

NOTA

2

Diagram of a mechanical assembly with a coiled spring and directional arrow (no text or symbols)

Diagram of a washing machine with faucet and valve connections (no text or symbols)

1

Mechanical component diagram showing a rotating shaft and housing with mounting bolts (no text or symbols)

Bebenang: kira-kira 4 mm

2

3

4

3
Periksa bahawa sikunya tidak longgar.

AWAS

Diagram showing a cable inserted into a socket connected to an outlet, with an arrow indicating the outlet's direction (no text or symbols present)

Illustration of a washing machine with a hand holding a pen and a water tap, showing liquid flow (no text or symbols)

Diagram of a mechanical pipe connection with a bracket (no text or symbols)

2

Illustration of a damaged pipe with a starburst effect and a cross symbol (no text or labels)

Penutup terbuka.

Illustration of a hand opening a washing machine with a downward arrow indicating process (no text or symbols)

Simple line drawing of a jar containing a container with a pile of food (no text or symbols)

1 Sekata

Simple line drawing of a jar with a lid and a container filled with food items (no text or symbols)

2

Illustration of a hand holding a toilet with a downward arrow indicating airflow or discharge (no text or symbols)

Simple 3D illustration of a rectangular box placed on a flat base (no text or symbols)

1 Stabil

Simple line drawing of a washing machine on a flat surface (no text or symbols)

2
