Product Type	Fan Heater
Brand	Omega Altise
Model	OACH1500
Power Rating	1500 W
Voltage	220-240 V
Frequency	50/60 Hz
Heating Element	Ceramic
Heat Settings	2 (Low/High) plus Fan Only
Thermostat	Adjustable
Fan Speeds	2
Oscillation	Yes
Indoor/Outdoor Use	Indoor only
Mounting	Free-standing
Dimensions (H x W x D)	25 cm x 20 cm x 15 cm
Weight	1.5 kg
Cord Length	1.5 m
Safety Features	Overheat protection, tip-over switch, cool-touch housing
Material	ABS Plastic
Color	White
Control Type	Rotary dial
Filter	Washable air filter
Maintenance	Clean filter monthly
Included Accessories	None
Energy Efficiency	Standard
Noise Level	Approx. 45 dB

Frequently Asked Questions - OACH1500 Omega Altise

How do I clean the Omega Altise OACH1500 heater?

Always unplug the heater and let it cool completely. Use a soft cloth to wipe the exterior. For the filter, remove it and wash with mild soap and water, then dry thoroughly before reinserting. Do not use abrasive cleaners.

What safety features does the OACH1500 have?

The heater includes overheat protection that automatically shuts it off if internal temperatures exceed safe limits, and a tip-over switch that cuts power if the unit is knocked over. The housing remains cool to the touch during operation.

Can I use the OACH1500 in a bathroom?

No, this heater is not rated for bathroom use. It should only be used in dry indoor areas away from water sources to prevent electric shock.

Does the heater have an auto shut-off timer?

The OACH1500 may not include a programmable timer. However, it features an adjustable thermostat that maintains the set temperature and cycles off when the room reaches that level.

How do I reset the overheat protection?

If the heater shuts off due to overheating, unplug it and allow it to cool down for at least 15-20 minutes. Check that the air intake and outlet are not blocked. Plug it back in and turn it on. If it still does not work, contact customer support.

What is the power consumption of the OACH1500?

The heater has a maximum power rating of 1500 watts on high setting. On low setting, it uses approximately 750 watts. Actual consumption depends on the thermostat cycling.

How noisy is the heater?

The fan produces a noise level of around 45 decibels on high speed, which is comparable to a quiet conversation. It is suitable for bedrooms and offices.

What room size is the OACH1500 suitable for?

It is designed to heat rooms up to approximately 20 square meters (215 square feet) depending on insulation and climate conditions.

Can I leave the heater on overnight?

While the heater has safety features, it is not recommended to leave it unattended for long periods. Always follow the manual's guidelines and ensure the heater is placed on a stable, non-flammable surface away from curtains.

Where can I find replacement parts or service?

For genuine parts or service, contact Omega Altise customer support or visit their website. The model number OACH1500 is required for ordering.

USER MANUAL OACH1500 Omega Altise

OPERATION, MAINTENANCE AND SAFETY INSTRUCTIONS

FOR OMEGA ALTISE OACH1500 HEATER

OACH1500

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT:

Read the safety precautions of this booklet carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage. If you are unsure about anything regarding your heater or these instructions, please contact Omega Altise on 1300 795 572 in Australia or [phone] in New Zealand before operating your appliance.

1. Read all instructions carefully before using the heater.
2. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons. Do not modify this appliance.
3. Remove the package and ensure that the appliance is undamaged (keep packing box for later storage). In case of doubt do not use the appliance and contact Omega Altise Service. Do not let children play with any parts of the packaging.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Extreme caution is necessary when the heater is used by or near children or individuals with decreased mental and physical capacity and whenever the heater is left operating unattended.
5. Before you use the appliance, check if the voltage marked on the rating label corresponds to the mains in your home. The appliance must be connected to a grounded power supply.
6. Avoid using extension cords as the extension cord may overheat and cause a risk of fire. If the use of an extension cord cannot be avoided, always use one with a minimum rating of 13Amps. Do not use this appliance with a programmer, timer or any other device that switches the appliance on automatically, since a fire risk exists if the appliance is covered or positioned incorrectly.
7. Do not pull the power cord to disconnect with the power source. Always grasp the plug to pull it out.
8. Do not run power cords under rugs or other combustible materials. Do not place power cords in areas where they can be a tripping hazard. Do not operate directly below a power outlet.
9. Do not insert any objects into the heater as it may cause an electric shock or fire or damage to the heater. Do not block or tamper with the heater in any manner while it is in operation. To prevent a possible fire, do not cover the appliance in any manner. Do not place on soft surfaces, like a bed, where openings may become blocked.
10. Do not leave the heater unattended. Always unplug the heater when not in use.

WARNING:

The Main Power Switch and On/Off switches should not be used as the sole means of disconnecting power. Always unplug the power cord before servicing or moving the unit.

1. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Always use the handle when moving the heater (where available) or hold on the sides if not available (make sure the unit is turned off). Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains at least 1 m from the heater to the sides, front, rear & top.
2. The heater has hot and arcing or sparking parts inside. It must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden, corrosive, salty or wet atmospheres. This heater is intended for general indoor domestic use ONLY.
3. This heater is not intended for use in wet or damp locations. Never locate a heater where it may fall into a bathtub or other water container.
4. Do not use the heater outdoors
5. This heater includes a tilt switch that turns the heater off if it falls over. Once righted, the heater will completely reset and can be used as normal.
6. This heater includes an audible alarm to warn that parts of the heater are getting excessively hot. If the alarm sounds, immediately turn the heater off and inspect for any objects on or adjacent to the heater that may cause high temperatures.

WARNING:

To avoid danger of electric shock, unplug from outlet when not in use and before cleaning. If the supply cord is damaged, it must be replaced by a special cord or assembly available from Omega Altise Service. In order to avoid overheating, do not cover the heater. The heater must NOT be located immediately below a socket outlet. Do not use the heater in the immediate surrounding of a bath, shower or swimming pool.

omega altise

GENERAL HEATER PARTS

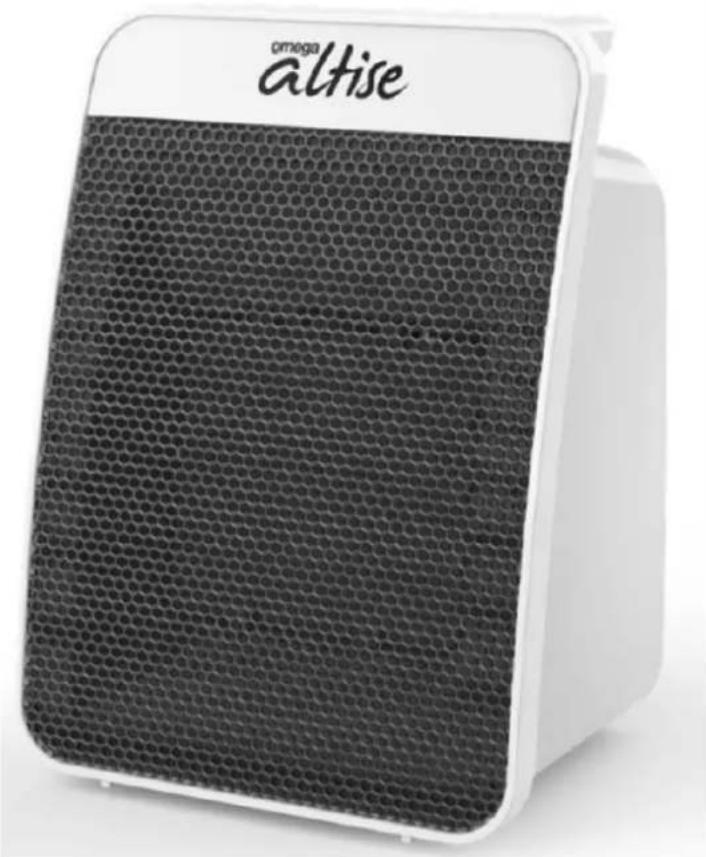

Heater Unit - Front View

Control Panel - Top View

Thermostat Control On/ Off Control

GETTING STARTED

1. Carefully remove the heater from the plastic bag and the carton.
2. Place the heater on a stable and flat surface.
3. Set the main power switch to the 'OFF' position. Plug the cord set into a 240V\~A.C. 50Hz earthed electrical outlet.

OPERATING INSTRUCTIONS

Using the On/Off Control, set the heater to low "I" or high "II" by rotating the control clockwise.

To adjust the Thermostat Control, rotate the control clockwise to set the desired temperature

The turn off the heater, rotate the controls anti-clockwise to the "0" and "OFF" position.

TIP OVERSWITCH:

Your heater is designed to automatically shut the heater off when tipped forward or backward. The unit will automatically turn on once it is returned to its normal upright position.

omega altise

SAFETY FEATURES

1. A thermal overload protector is built in to prevent overheating.
2. When an overheat temperature is reached, the heater will automatically shut off. It can only resume operation when the user resets the unit (see reset instructions below).
3. If the unit is tilted, a safety system automatically will cut off the power, put the unit in a vertical position and it will go on stand-by mode. Turn the unit on by pressing the POWER button and the unit will start operating again as per normal.

To reset your heater:

1. Unplug the heater and wait between 5-10 minutes for the unit to cool do wn.

2. Then, turn on the unit again and operate normally.

CLEANING & MAINTENANCE

WARNING: ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING, DO NOT IMMERSE HEATER IN WATER!

Clean the Air inlet and Outlet regularly with a Vacuum Cleaner.. Clean the body of the heater with a soft damp cloth. Always make sure that the heater is completely dry before connecting back to the mains supply.

CAUTION: Do not use gasoline, benzene, thinner, harsh cleaners, etc. as they will damage the heater. NEVER use ALCOHOL OR SOLVENTS.

STORAGE: Store the heater with these instructions in the original packaging, in a cool, dry place.

WEEE WARNING

This product should not be disposed of with household waste. Please recycle where facilities exist and check with your local authority for recycling advice.

HINTS & TIPS

Where possible your electric heater should be connected to a power outlet that uses a separate 10 amp power circuit. This will avoid overloading your household fuse.

In the event that your household fuse is overloaded and trips, please note this is normally caused by the use of excessive power outlets at the same time your heater is operating (for example, a steam iron, kettle, toaster etc.). Please ensure to check the use of the power circuit and adjust when heater is in use (i.e. turn off the heater when boiling a kettle).

Should you still experience difficulty contact Omega Altise Service for assistance.

It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. Due to continual product development, Omega Altise reserves the right to alter specifications or appearances without notice. Dispose of packaging responsibly – recycle where facilities are available.

A division of Shriro Australia Pty Ltd 104 Vanessa St Kingsgrove NSW 2208 In Australia: 1300 795 572 In New Zealand: [phone] www.omegaaltise.com

IM Ref: OACH1500 01/2018/01
