Product Type	Fan Heater
Power Output	1800 W
Heating Settings	Fan Only, Low Heat (900 W), High Heat (1800 W)
Thermostat	Adjustable, maintains desired room temperature
Safety Features	Overheat protection, tip-over auto shut-off, cool-touch housing
Dimensions (H x W x D)	25 cm x 20 cm x 15 cm
Weight	1.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Cord Length	1.8 m
Noise Level	45 dB (low), 50 dB (high)
Controls	Rotary dial for power and thermostat
Oscillation	Yes, 70° oscillation
Filter	Washable, removable dust filter
Maintenance	Clean filter monthly; wipe exterior with damp cloth
Warranty	1 year
Certifications	CE, UKCA

Frequently Asked Questions - OAPE1800B Omega Altise

How do I clean the filter on my Omega Altise OAPE1800B heater?

Unplug the heater. Locate the filter cover on the back or side, remove it, and take out the filter. Wash the filter with warm soapy water, rinse, and let it dry completely before reinstalling. Clean the filter every month for optimal performance.

What does the tip-over switch do?

The tip-over switch is a safety feature that automatically turns off the heater if it is accidentally knocked over. This prevents fire hazards and ensures safe operation.

Can I use the heater in a bathroom?

No, this heater is not designed for bathroom use unless it is specifically rated as splash-proof. It should be kept away from water and moisture.

How do I adjust the thermostat?

Turn the thermostat dial clockwise to increase the desired temperature. The heater will cycle on and off to maintain the set temperature. Turn it anti-clockwise to decrease.

Why does the heater turn off and on by itself?

This is normal. The thermostat controls the temperature: when the room reaches the set temperature, the heater turns off; when it drops, it turns back on. If it cycles too frequently, adjust the thermostat.

What is the maximum room size for this heater?

The Omega Altise OAPE1800B is suitable for rooms up to approximately 20-25 square meters (215-270 square feet) with good insulation. For larger rooms, additional heating may be needed.

Can I leave the heater unattended?

It is not recommended to leave the heater unattended for long periods. Always unplug when not in use and never leave it on while sleeping.

How do I reset the overheat protection?

If the heater overheats, it will automatically shut off. Unplug it, allow it to cool down for at least 10 minutes, then plug it back in and turn it on. The heater should resume normal operation.

Why does the fan keep running after I turn off the heat?

The fan may continue to run for a few seconds to cool down internal components. This is normal and helps prolong the life of the heater.

Can I use an extension cord with this heater?

It is not recommended. Plug the heater directly into a wall outlet. If you must use an extension cord, ensure it is rated for at least 15 amps and is fully uncoiled.

USER MANUAL OAPE1800B Omega Altise

OPERATION, MAINTENANCE AND SAFETY INSTRUCTIONS

OMEGA ALTISE PANEL HEATERS OAPE1800B & OAPE1800W

Front view of a black rectangular electronic device with wheels, no visible text or symbols on the device itself.

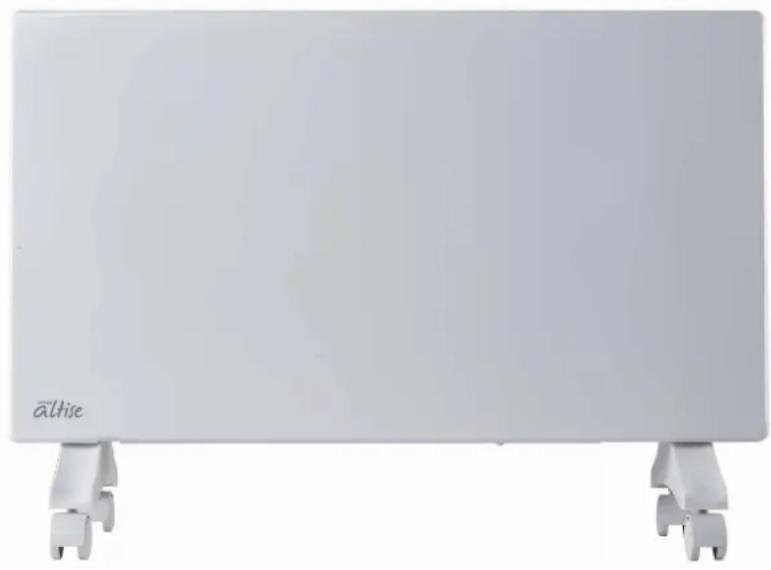

White rectangular electronic device with wheels and a small logo reading 'älhire' on the front (no other text or symbols visible)

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT:

Read the safety precautions of this booklet carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage. If you are unsure about anything regarding your heater or these instructions, please contact Omega Altise on 1300 795 572 in Australia or [phone] in New Zealand before operating your appliance.

1. Read all instructions carefully before using the panel convection heater.
2. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons.
3. Remove the package and ensure that the heater is undamaged. In case of doubt do not use the heater and contact Omega Altise Service. Do not let children play with any parts of the package.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
5. Before you use the heater, check if the voltage marked on the rating label corresponds to the mains in your home.
6. When first operated, a slight burning smell may be experienced. This is normal.
7. Avoid using extension cords as the extension cord may overheat and cause a risk of fire.
8. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Always use the control panel or castor supports when moving the heater (when not wall mounted). Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains at least 1 meter from the front & top of the heater and keep them at least 0.5 meters from the sides and rear. Do not cover.
9. Do not pull the power cord to disconnect with the power source. Always grasp the plug to pull it out.
10. Do not insert any objects into the heater as it may cause an electric shock or fire or damage to the heater. Do not block or tamper with the heater in any manner while it is in operation. To prevent a possible fire, do not block the air inlet or outlet in any manner. Do not place on soft surfaces, like a bed or long pile carpet, where openings may become blocked.
11. Do not leave the heater unattended. Always unplug the heater when not in use. Always let the heater cool down before moving or storing away.
12. The heater has hot parts inside. It must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmospheres. This heater is intended for general indoor domestic use ONLY.
13. This heater is not intended for use in wet or damp locations, such as a bathroom or any area containing a bath, shower, wash basin or close to water or damp items. Never locate a heater where it may fall into a bathtub or other water container. It must be positioned or installed so that the controls cannot be touched by a person in a bath or shower. Do not immerse the power cord in any liquid (including water).
14. This heater is for use indoors only.
15. This heater includes an overheat protection safeguard that will turn the unit off should it overheat. If this occurs, remove the plug from the mains socket & allow to cool for 45 minutes, at which point it can be restarted. Check for the reason for the overheating, such as blocked vents, prior to starting up again.
16. Never install or use the heater directly below a wall socket.
17. When fixing on a wall, the heater must be level, securely fixed & at the correct height (check with local authorities if unsure). There must be at least 150mm between it and any barrier/wall to the sides, bottom or top to prevent overheating or damage.
18. Always use the heater with the castors supplied on level floors or attached to a wall with the supplied brackets.

WARNING:

The Main Power Switch and the On/Off switch should not be used as the sole means of disconnecting power. Always unplug the power cord before servicing or moving the unit.

WARNING:

To avoid danger of electric shock, unplug from outlet when not in use and before cleaning. If the supply cord is damaged, it must be replaced by a special cord or assembly available from an authorized person. In order to avoid overheating, do not cover the heater. The heater must NOT be located immediately below a socket outlet. Do not use the heater in the immediate surrounding of a bath, shower or swimming pool.

omega altise

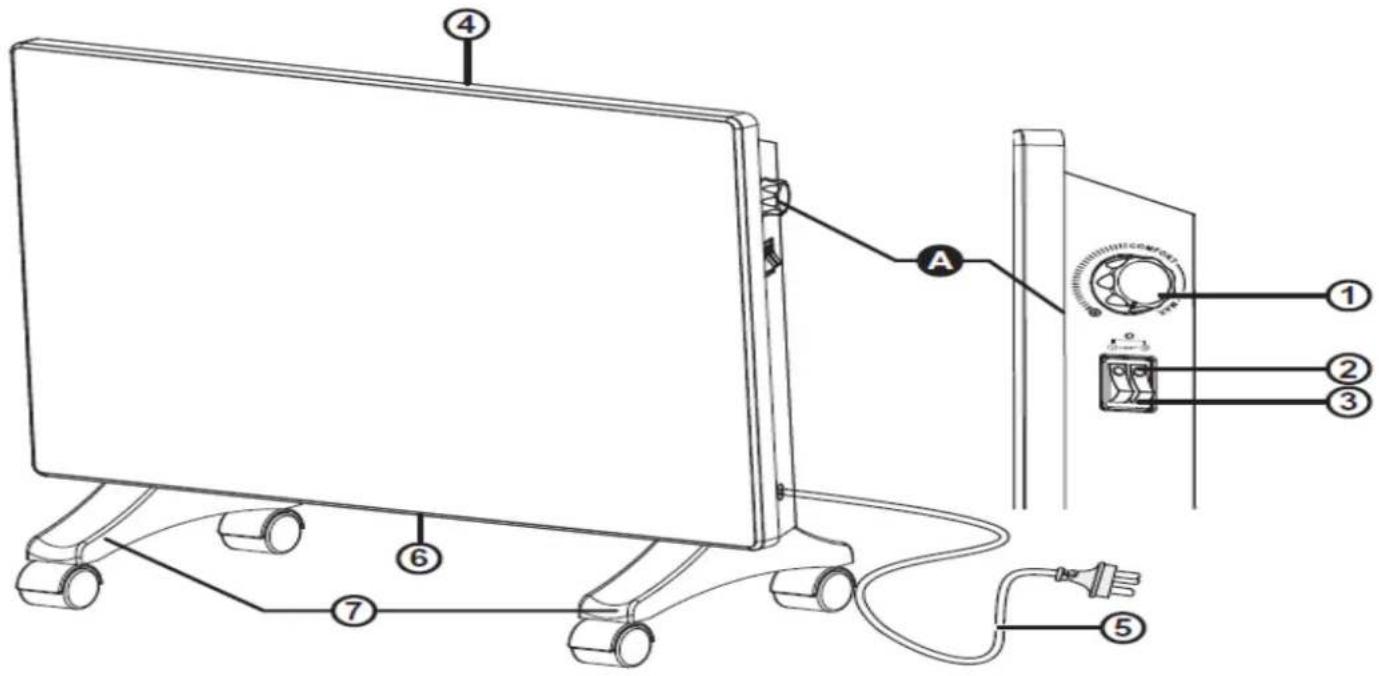

CONTROL FUNCTIONS

Diagram of a TV cable with labeled components including power plug, switch, and control panel

1. Temperature Adjustment Knob
2. Heater Operation Indicator
3. Main Power Switch (On/Off) I:750W, II:1050W, I&II:1800W
4. Vent/ Warm Air Discharge
5. 240 Volt Power Cord and Plug
6. Air Inlets
7. Castors and Wheels

GETTING STARTED

1. Carefully remove the heater from packaging and the carton, and unwind the cord to its full length.
2. Either fit the castors and wheels then place the heater onto a stable, flat and dry surface, or fit the supplied mounting brackets to a stable wall & hang from the wall in a dry position away from open or running water. See installation sections for details.
3. Turn the heater off at the power switch (on the top right hand side of the unit). Plug the cord set into a 220-240V\~A.C. 50Hz electrical outlet. Turn the power on at the electrical outlet.
4. Turn the heater on at the power switch (on the right hand side of the unit). If in stand-by mode, press the power button to start the appliance, and press again to put back to stand-by mode.
   NOTE: Heater must have castors fitted or be attached to a wall before use.

OPERATING INSTRUCTIONS

TURNING ON & OFF

Plug the heater into a power outlet and turn the power outlet on. Press the main power switch ③ on the right hand side panel.

POWER SETTINGS

There are 3 power settings, low, medium and high. For normal operation, use the medium or high setting.

For low, lower the switch showing I until it illuminates.

For medium, lower only the switch showing II until it illuminates.

For high, lower both switches until they illuminate.

SETTING TEMPERATURES

While the unit is operating in either the low, medium or high power modes, rotate the Temperature Adjust Knob clockwise to increase the temperature or anti-clockwise to decrease the temperature.

MAIN POWER SWITCH

The main power switch is to the right of the control panel. After the heater is plugged in, switching this on allows the heater to function & switching it off stops all functions.

TILT SWITCH

As a safety feature this heater is fitted with a tilt switch that automatically places the heater into standby mode if the appliance tilts more than 45^ . An audible warning is also provided in the form of a repeating chime to alert the user. Once the heater is returned to level, normal operation will commence automatically.

omega altise

INSTALLATION GUIDE

This heater can either be mounted to a wall or used with the supplied castors and wheels. Please note the following safety warnings:

• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Always use the control panel or castor supports when moving the heater (when not wall mounted). Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains at least 1 meter from the front & top of the heater and keep them at least 0.5 meters from the sides and rear. Do not cover.
• The heater has hot parts inside. It must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmospheres. This heater is intended for general indoor domestic use ONLY.
• This heater is not intended for use in wet or damp locations, such as a bathroom or any area containing a bath, shower, wash basin or close to water or damp items. Never locate a heater where it may fall into a bathtub or other water container. It must be positioned or installed so that the controls cannot be touched by a person in a bath or shower. Do not immerse the power cord in any liquid (including water).
• Never install or use the heater directly below a wall socket.
• When fixing on a wall, the heater must be level, securely fixed & at the correct height (check with local authorities if unsure). There must be at least 150mm between it and any barrier/wall to the sides, bottom or top to prevent overheating or damage.

FITTING CASTORS and WHEELS

Make sure the heater is unplugged from the mains power. Turn the heater upside down & rest on a protective surface. Place a castor bracket over the designated slots and slide into position. This will cause the screw hole to align. Securely fix in place screw provided. (do not over-tighten). Push the castors and wheels into the slots. Turn the heater right side up & it is ready to connect to mains power. Note: The heater gets hot when in use, so it is best not to move when in use. If it must be moved, use the castor brackets or control panel as points of contact.

WALL MOUNTING

Do not fit the castors to the base of the heater. Make sure the heater is unplugged from the mains power and the wall is suitable for mounting the panel heater and there are the correct clearances. Make sure the panel heater is within 1 metre of a power socket. Mount the supplied wall mounting hooks using the mountings supplied. Ensure the screws used are appropriate for the screws used are appropriate for this application. Ensure the mountings are 525mm apart and 465mm above floor level.

Part list Castors 4PCS Screw 4PCS Support 2PCS STEP 1 STEP 2 STEP 3 STEP 4 STEP 5 STEP 6 STEP 7

525mm Minimum Height above floor 465mm Wall mounting hooks

omega altise

Attach the supplied right angle mounting brackets to the underside of the heater (front hole of bracket) using the rear most of the pre installed case screws as shows in the diagram. Check for strength.

Carefully place the heater (slightly tilted forward) onto the hooks at the bottom of the bracket & rotate back so the clips fix back into their original holes. Check that they are fixed correctly. If possible, have a second person help to check for alignment as the heater is attached. The heater is now ready to connect to the mains power.

Technical line drawing of a rectangular panel with internal grating and mounting brackets (no text or symbols)

Use the rear most of the pre-installed case screws Install right angle mounting bracket using the front hole

SAFETY FEATURES

1. A thermal overload protector is built in to prevent overheating. When an overheat temperature is reached, the heater will automatically shut off. It can only resume operation when the user resets the unit (see reset instructions below).

To reset your heater:

Unplug the heater and wait for 45 minutes for the unit to cool down. Then, turn on the unit again and operate normally.

1. The appliance has a tilt switch built into it so that if the appliance falls over, the element will stop working.

To reset your heater:

Turn the appliance off at the main power switch. Right the appliance back onto its castors NOTE: Take care as the appliance may be hot. Turn the power switch on.

CLEANING & MAINTENANCE

WARNING: ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING, DO NOT IMMERSE HEATER IN WATER!

With the heater disconnected from the power, clean the exterior body of the heater with a soft damp cloth. Always make sure that the heater is completely dry before connecting back to the mains supply. A vacuum cleaner can be used to clean the inlets & outlets of dust & fluff. To clean behind a wall mounted unit, the mounting clips can be disconnected & the heater rotated slightly forward (a 2 person job). Please make sure the unit is properly resecured after.

CAUTION: Do not use gasoline, benzene, thinner, harsh cleaners, etc. as they will damage the heater. NEVER use ALCOHOL OR SOLVENTS.

STORAGE: Store the heater with these instructions in the original packaging, in a cool, dry place.

WEEE WARNING

This product should not be disposed of with household waste. Please recycle where facilities exist and check with your local authority for recycling advice.

SPECIFICATIONS

MODEL INPUT	POWER RATED	POWER DIMENS	ONS (NO CASTORS)	WEIGHT, N.W G.W
OAPE1800B/W	220-240Vac 50Hz	1800W	775x440x85mm (WxHxD)	6Kg, 7.2Kg

HINTS & TIPS

Where possible, your electric panel convection heater should be connected to a power outlet that uses a separate 10 amp power circuit than other items. This will avoid overloading your household fuse.

In the event that your household fuse is overloaded and trips, please note this is normally caused by the use of excessive power outlets at the same time your heater is operating (for example, a steam iron, kettle, toaster etc.). Please ensure to check the use of the power circuit and adjust when heater is in use (i.e. turn off the heater when boiling a kettle).

If your heater does not work:

• Check that power is available to the heater & it is plugged in & turned on.
• Check that the heater temperatures are set correctly for the ambient temperature.
• Check that the thermal cut-out has not activated (see safety features).
• Do not try to repair the heater.

Should you still experience difficulty contbOmega Altise Service for assistance.

It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. Due to continual product development, Omega Altise reserves the right to alter specifications or appearances without notice.

Dispose of packaging responsibly – recycle where facilities are available.

A division of Shriro Australia Pty Ltd

104 Vanessa St Kingsgrove NSW 2208

In Australia: 1300 795 572

In New Zealand: [phone]

www.omegaaltise.com
