Product Type	Solar Panel
Model	SLSPNL10
Brand	SereneLife
Power Output	100W
Cell Type	High-Efficiency Monocrystalline
Maximum Power Voltage (Vmp)	18.8V
Maximum Power Current (Imp)	5.32A
Open-Circuit Voltage (Voc)	23.1V
Short-Circuit Current (Isc)	5.85A
Dimensions	35.4 x 26.4 x 1.4 inches
Weight	15.3 lbs
Cable Length	35.4 inches
Connector Type	Aviation Connector
Ingress Protection	IP67 (Dust-tight and Waterproof)
Fuse Rating	15A
Standby Current	< 12mA
Battery Compatibility	12V Lead-acid and Lithium-ion
Daily Output (approx.)	33.4Ah at 12V or 400Wh
Frame Material	Anodized Aluminum
Setup Time	Approximately 5 minutes
Portability	Portable with foam box for safe transport
Applications	Marine, Dry Camp, RVs, Off-grid
Cleaning	Soft cloth with mild detergent; no corrosive agents
Maintenance	Regular inspection of wiring, screws, and mounting brackets

Frequently Asked Questions - SLSPNL10 SereneLife

How do I install the SereneLife SLSPNL10 solar panel?

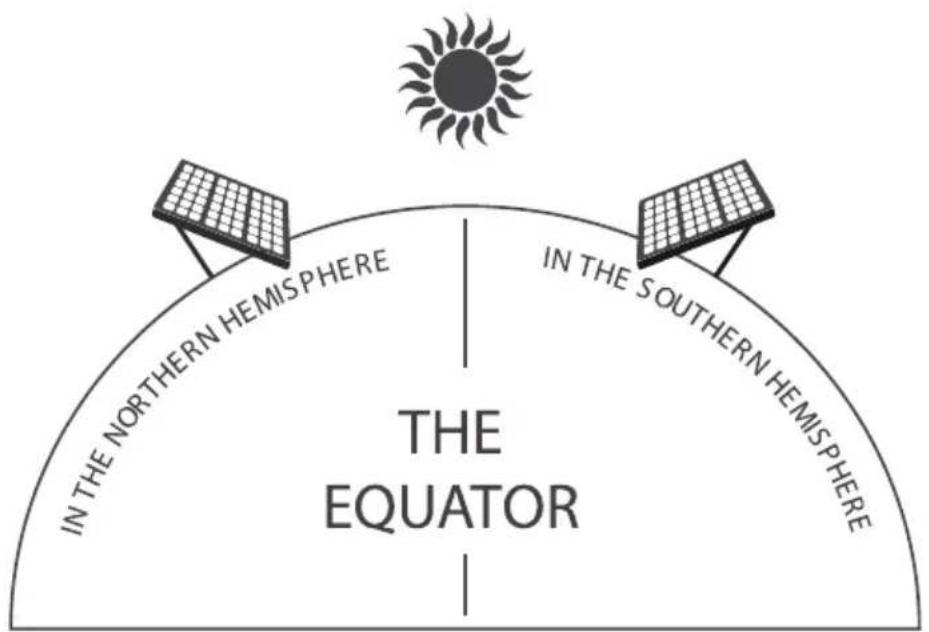

Place the panel in a location with direct sunlight, ensuring no shading. In the Northern Hemisphere, face south; in the Southern Hemisphere, face north. Use the included 3 ft. 11 AWG cable set to connect to a charge controller or battery. Secure the panel using the anodized aluminum frame. Refer to the wiring diagram in the manual for connections.

What type of battery can I use with this solar panel?

The panel is compatible with 12V lead-acid and lithium-ion batteries. A charge controller is recommended to prevent overcharging. Battery not included.

Can I use this solar panel in cloudy weather?

Yes, but output will be reduced. The panel generates electricity from diffuse sunlight, but optimal performance requires direct sunlight. For best results, ensure the panel is facing the sun.

How do I clean the solar panel?

Use a soft cloth with a mild detergent (non-corrosive) to clean the surface. Avoid abrasive materials or harsh chemicals. Clean at least once a year to maintain efficiency.

What is included in the box?

The box contains one 100W Mono Solar Panel and a 3 ft. 11 AWG cable set with aviation connectors. The panel is packaged in a foam box for safe transport.

Is the solar panel portable?

Yes, it is designed for portability. It weighs 15.3 lbs and comes with a foam box for easy storage and transport. Setup takes about 5 minutes.

What is the warranty for this product?

The warranty covers defects in materials and workmanship. However, modifications to the panel (e.g., drilling holes) void the warranty. For specific terms, contact SereneLife support.

Can I connect multiple panels together?

Yes, you can connect multiple panels in series or parallel to increase voltage or current. Ensure the total voltage does not exceed the charge controller's rating. Use matching panels for best performance.

What safety precautions should I take?

Avoid stepping on the panel, dropping it, or exposing it to sharp objects. Seal any penetrated surfaces to prevent water leakage. Keep electrical contacts clean and dry. Do not disassemble the panel.

How should I store the solar panel if not in use?

Store the panel in a cool, dry place, preferably in its original foam box. Avoid exposure to extreme temperatures or moisture. Keep it away from children and pets.

USER MANUAL SLSPNL10 SereneLife

Grid of black rectangular panels with uniform square grids, no text or symbols visible

★★★☆☆☆☆

☆☆☆☆□□▽☆☆☆□□□☆□○☆☆□□▽☆☆

100W with 3 ft. 11AWG Cable Set

USER MANUAL

Please read the manual carefully before installing or operating the Portable Mono Solar Panel Starter Kit to prevent personal injury or damage to the components. Contact Technical support for any questions concerning the installation.

SOLAR PANEL SPECIFICATION

Solar panels convert solar energy into electricity.

Parameter

Pmax (W)	100	Cell Type	MONO
Vmp (V)	18.8	Dimension	35.4 * 26.4 * 1.4 (Inch)
Imp (A)	5.32	Cable Length	35.4 (Inch)
Voc (V)	23.1	Type of Connector	Aviation connector
Isc (A)	5.85	Weight	15.3 (lbs)

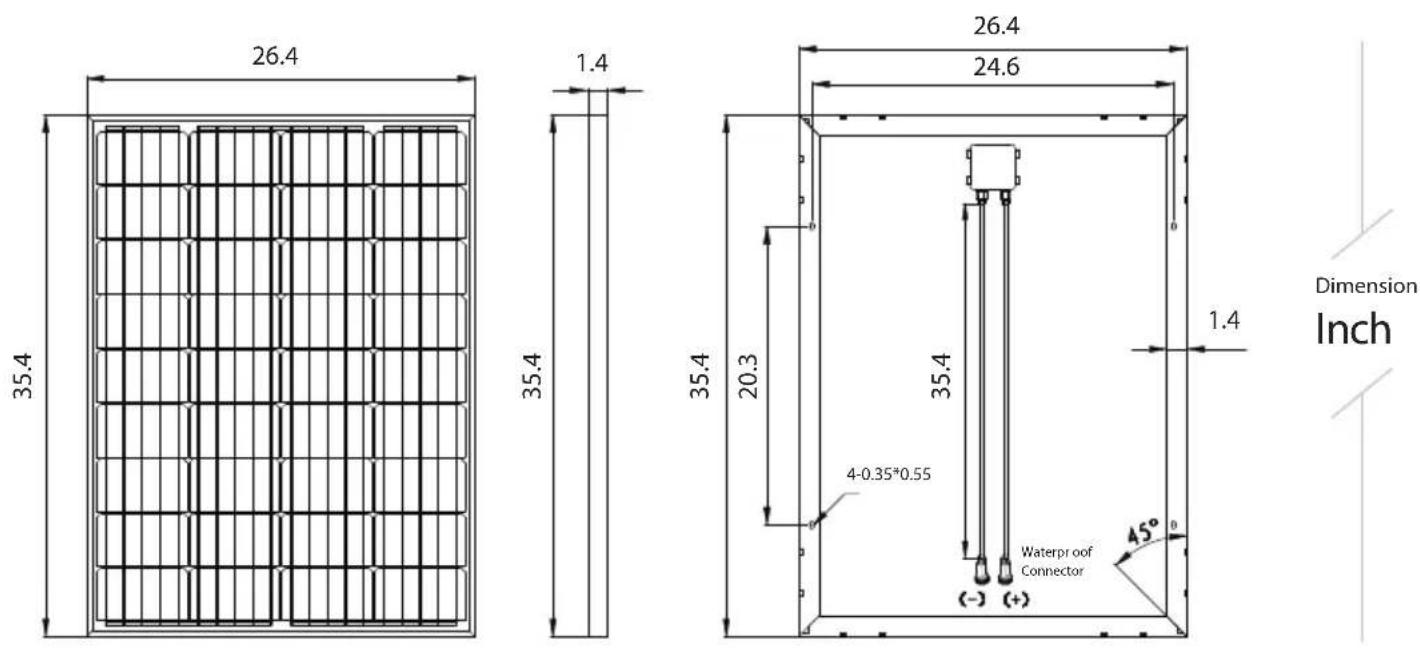

FRONT SIDE BACK

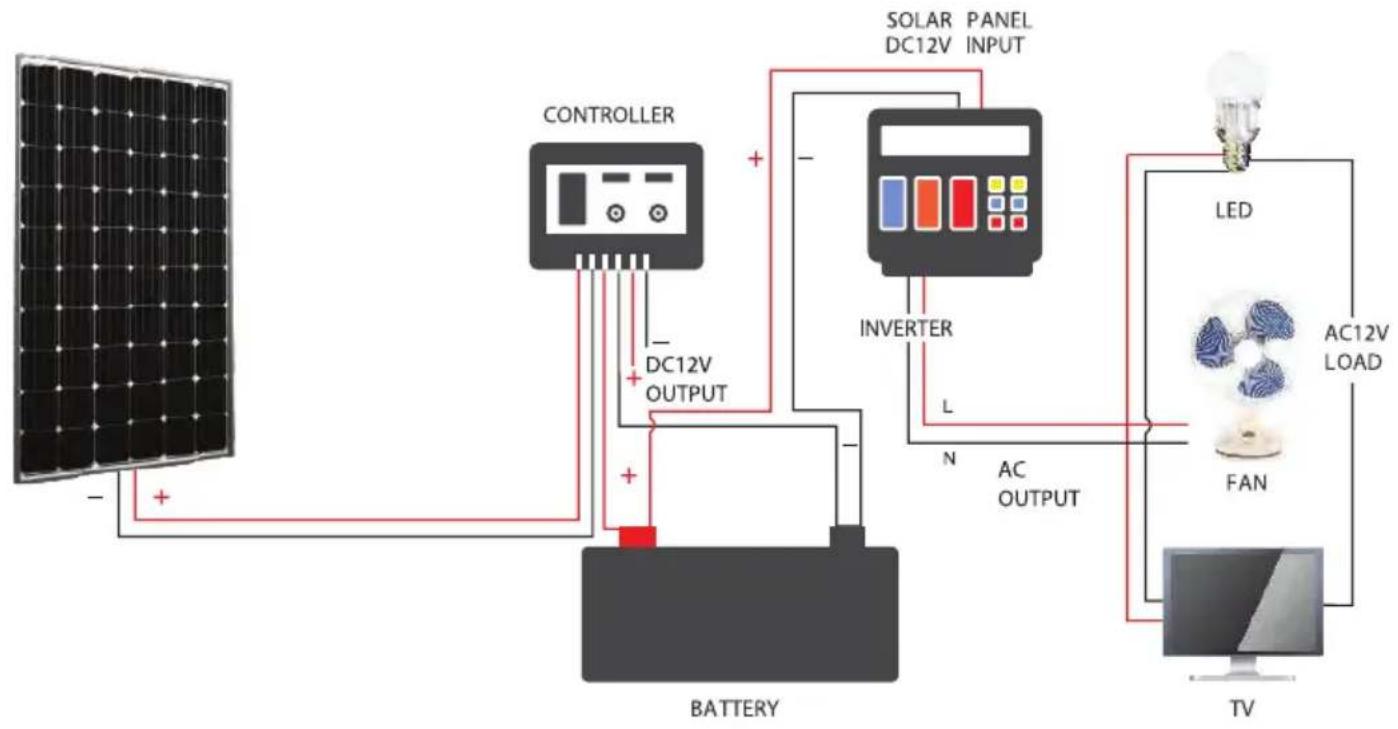

WIRING DIAGRAM

TIPS

• When you are using solar panels, please make sure the panels are facing the sun. Solar panels shall be installed in a position where there is sufficient sunlight. Please ensure that there is no shielding around the installation site.
• If Solar panels are installed in areas such as snow, low temperature, strong wind, water surface or near water area (which is vulnerable to salt-water corrosion), islands, deserts, etc., appropriate steps should be taken to ensure reliability and safety, and all electrical contact should be kept clean and dry.

WARNING & SAFETY INFORMATION

• The surfaces to be penetrated during installation shall be properly sealed to prevent water leakage;
• When you are installing the solar system, it is necessary to avoid the solar panels from anything sharp or heavy which could potentially break the tempered glass of solar panels.
• Please do not punch holes on solar panel frame or change the original structure of solar panels, otherwise it will affect the quality and lifespan of the solar panel, and the solar panel after additional processing will not be covered by the warranty.
• Solar panels are fragile, please handle with care, especially in the process of unpacking.
• Store solar panels in a cool and dry place before unpacking.
• When moving a solar panel, grab the aluminium frame of the solar panel rather than junction box or wires.
• Please protect the package of the solar panels. Please handle the solar panels carefully when loading and unloading. Do not distort solar panel frame or drop them to ground.
• Do not step on the solar panel, do not disassemble the solar panel or remove other accessories from solar panel.
• Dust or dirt on the surface of the solar panel will directly lead to a decrease in the output power of the solar panel. Apply soft cloth with moderate detergent to clean the panel at least over a year.
• Please do not use corrosive deter gent for cleaning.
• Check solar panel appearance & performance regularly for signs of deterioration. Inspect all wiring and connections regularly
• Check whether the fixing screw and mounting bracket are firm regularly. Adjust and reinforce them if necessary.

What's in the Box:

• (1) 100W Mono Solar Panel
• 3 ft. 11 AWG Cable Set

Features:

• Portable and Easy Set-Up
• Sleek Design for Aesthetic Quality
  • Grade A Mono Solar Cells
  • Higher Module Conversion Efficiency
• Optimally Generate about 33.4Ah in 12V Battery or 400WH per Day
• Anodized Aluminum Frame to Protect Solar Cells & Convenient for Installation
• Foam Box for Safe Transport and Easy Storage
• Dust Tight and Waterproof with IP67 Rating
• Set Up in Just 5 Minutes for Solar Starters
  • Used for Marine, Dry Camp, RVs, and Other Off-grid Applications

Technical Specs:

• Power Supply: 100W
- Fuse: 15A
- Battery Type: 12V Lead-acid and Lithium-ion Batteries (Battery Not Included in the System)
• Cell Type: High-Efficiency Monocrystalline
- Short-Circuit Current (Isc):5.85A
- Open-Circuit Voltage (Voc): 23.1V
• Maximum Power Current (Imp): 5.32A
- Standby Current: < 12mA
- Type of Connector: Aviation Connector
• Wire/Cable Length: 35.4 -inch
- Product Dimension: 35.4" x 26.4" x 1.4"-inches
