USER MANUAL MR-200 Fortis

Exterior view of a red and black fitness rower machine (no text or symbols visible)

MAGNETIC FLYWHEEL ROWING MACHINE

(FSFWRWGMC1A)

Safety & Warnings 3

Overview 5

Assembly 10

Adjustments 15

Function 19

Notes 22

SAFETY & WARNINGS

• Read all instructions before using the equipment and retain for reference.
• Before starting any exercise programme, consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Your physician's advice is essential if you are taking any medication that may affect your heart rate, blood pressure or cholesterol level.
• Follow your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising and consult your physician before continuing with your exercise program if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, shortness of breath, light headedness, dizziness or feelings of nausea.
• Keep away from children and pets. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Use on a solid, flat level surface with a protective cover for your floor or carpet. Leave at least 70cm clearance around the equipment.
• Ensure that all nuts and bolts are securely tightened before using the equipment. Examine regularly for damage and/or wear and tear.
• It is recommended that you lubricate all moving parts on a monthly basis.
• Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become entangled in the equipment.
• Do not place fingers or objects into the moving parts of the equipment.
• Observe the maximum weight capacity (120kg, subject to change).
  • This equipment is not suitable for therapeutic use.
• Move with caution when lifting and moving the equipment. Always use proper lifting technique and seek assistance if necessary.
• This product is intended for use in cool, dry conditions. Avoid storage in extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
• Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment or if you hear any unusual noises coming from the equipment during exercise, stop using the equipment immediately and contact help.kogan.com for support.

Transportation

To move the rowing machine, lift the rear stabiliser until the transportation wheels on the front stabiliser touch the ground. With the wheels on the ground, you can transport the rowing machine to the desired location with ease.

Line drawing of a humanoid robot pulling a mechanical device (no text or symbols present)

OVERVIEW

No.	Description Spec.		Qty
1	Front stabilizer 1
2	Washer	d8*Φ16*1.5	16
3	Screw	M8*55*20*S6	2
4	End cap		2
5	Nut	M8*H7.5*S6	3
6	Screw	ST4.2*25*Φ10.5	4
7	Handlebar		1
8	Foam grip	Φ23*3*180	2
9	End cap	Φ25*16	2
10	Left chain cover		1
11	Screw	ST4.2*19*Φ8	11
12	Screw	ST4.2*19*Φ8	6
13	Computer		1
14	Tension control		1
15	Washer	D5	1
16	Screw	M5	1
17	Screw	ST3*10*Φ5.6	10
18	Magnetic plate		1
19	Magnet	39*24.5*10	6
20 L/R	Magnet location grid	112.4*60.6*10.2	2
21	Nut	M10*1*H8*S15	4

No.	Description	Spec.	Qty
49	Pedal L/R 2
50	Pedal strap		2
51	Magnet	15*7	1
52	Spring washer	S8	8
53	Wheel	40*92	3
54	Casing pipe for idler wheel	14*8*78	3
55	Bearing	608Z	6
56	Rubber pad	M8*H5.5*S14	1
57	Right chain cover		1
58	Bolt	10*95*M6*25	1
59	Screw	M6*16*S5	1
60	Pull pin	8*100*105	1
61	Sensor wire		1
62	Sliding rail
63	Screw	M6*16*Φ12	4
64	Washer	S6*Φ12*1	4
65	Limit mat	33*Φ8*13	4
66	Limit axle	12*80*M6	2
67	Grommet	12*11*Φ3	1
68	End cap	J80*40*18	1
69	Rear support		1
22	Nut	M10*1*H5*S18	3
23 Axle		12*132*M10*1.0*24	1
24	Bearing	6000-ZZ	4
25	Aluminium wheel	t4.0* 200* 30	1
26	Shaft sleeve	33*45	1
27	Spring	1.5* 15*54*N9	1
28	Washer	d10* 20*1.5	1
29	Cover	118.5*11.8	1
30	Bolt	M6*55*15*S10	1
31	Circlip for shaft	d10	3
32	Axle	10*40* 6.1	1
33	Pulley	45*35	1
34	Wave washer	d10* 13.5*0.3	2
35 Bolt		10*72*M8*12.5*S17	1
36	Handlebar seat		1
37	Screw	M5*10* 10	2
38	Mesh belt	t1.3*18*2140	1
39	Belt		1
40	Bolt	M6*55*S10	1

No.	Description	Spec.	Qty
70	End cap 2
71	Saddle	DDPU986	1
72	Screw	M8*20*S6	8
73	Bolt	M8*125*15*S14	3
74	U shape baffle		2
75	Left seat supporting board		1
76	Right seat supporting board		1
77	Spacer	d8*Φ15*4	6
78	Spanner	S17-19	1
79	Allen wrench	S5	1
80	Allen wrench	S6	1
81	Spanner	S13-15-15	1
82	PC Sheet	Φ111*Φ16*0.5	1
83	Spiral spring	t0.5*22*5080	1
84	Axle	Φ10*130*M10*1.0	1
85	Wave washer	d10*Φ15.5*0.3	1
86	PC Sheet	Φ89.5*Φ16*0.5	1
87	Bearing	6300-2RS	1
88	Circlip for Hole	d35	1
41	Adjusting screw	M6 *40*Φ10*2.5	4
42	Adjusting U seat	32*10*1.5	4
43	Nut	M6*H6*S10	7
44	Main frame		1
45	Trunk wire 1		1
46	Washer	d12*Φ24*2	1
47	Knob	M12	1
48	Bolt	M12*Φ12.5*160*23*S19	4

No.	Description	Spec.	Qty
89	Bearing	16003-2RS	2
90	Braid wheel	112*67.5	1
91	Bearing	35*d17*16	1
92	Belt pulley		1
93	Nut	M10*1*H3*S14	1
94	Nut	M6*H5*S10	2
95	Bolt	M6*45*S10	1
96	Axle	5*43	1

Included Hardware

#2 d8*Φ16*1.5 (x6)	#3 M8*55*20*S6 (x2)	#46 d12*Φ24*2 (x1)	#47 M12 (x1)
#48M12*Φ12.5*160*S19 (x4)	#52 d8 (x4)	#58Φ10*95*M6*25 (x1)	#59 M6*16*S5 (x1)
#60 Φ8*100*105 (x1)	#63 M6*16*Φ12 (x1)	#64 d6*Φ12*1 (x1)	#65 Φ33*Φ8*13 (x1)
#66 Φ12*80*M6 (x1)	#72 M8*20*S6 (x4)	#79 S5	#80 S6
#78 #81

ASSEMBLY

Step 1:

#2 d8*Φ16*1.5 (x2)	#3 M8*55*20*S6 (x2)	#80 S6

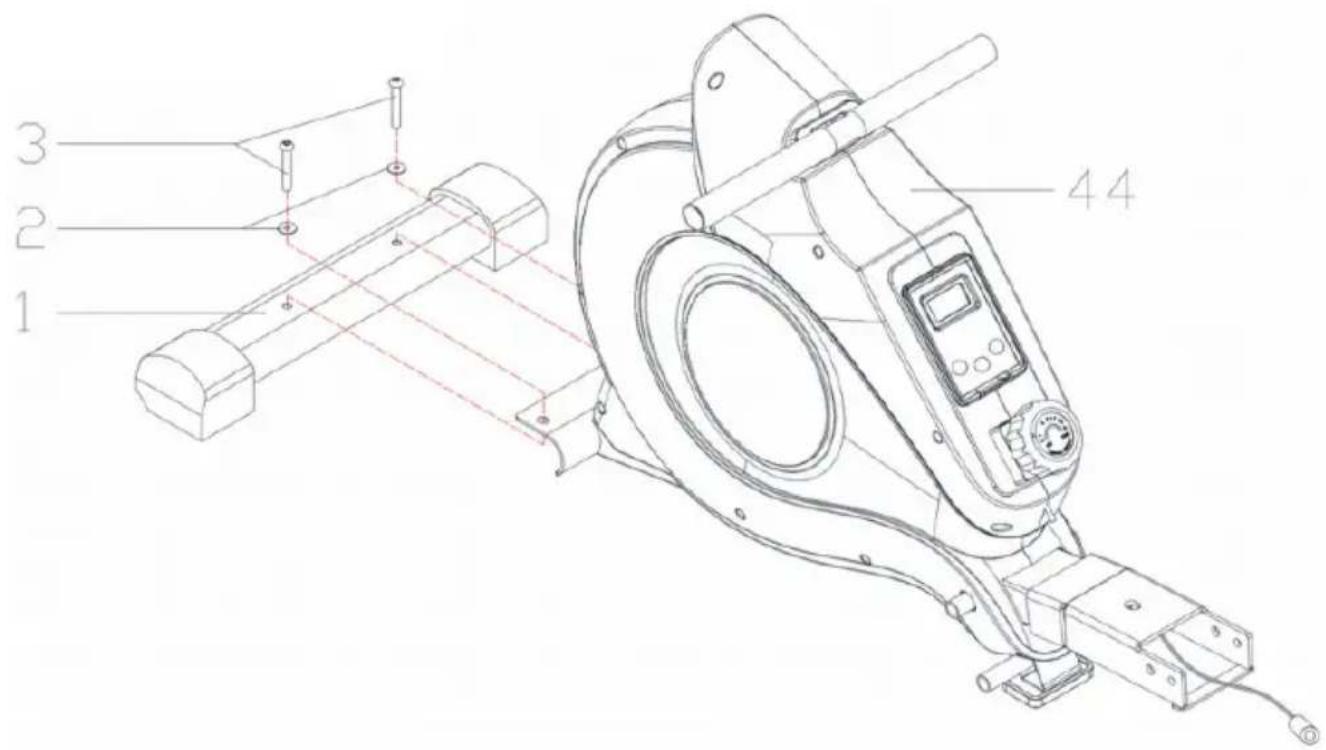

Attach the Front Stabilizer (No. 1) to the Main Frame (No. 44) using 2x Screws (No. 3) and 2x Washers (No. 2). Tighten and secure with Allen Wrench (No. 80).

Step 2:

#48 M12*Φ12.5*160*S19 (x4)	#78

Fix the 2 Bolts (No. 48) into the bottom hole in position B of Main Frame (No. 44) with Spanner (No. 78).
Attach the 2 Bolts (No. 48) into the upper hole in position A of the Main Frame (No. 44) through the Pedals (No. 49) and tighten with Spanner (No. 78).

Note:

The Pedals (No.49) should rest on the Bolts (No.48) that are in position B.

Step 3:

#63 M6*16*Φ12(x1)	#64 d6*Φ12*1(x1)	#65 Φ33*Φ8*13(x1)	#66 Φ12*80*M6(x1)	#81

Insert the Saddle (No. 71) into the Sliding Rail (No. 62).

Insert the Limit Axle (No. 66) into the hole on the back of the Sliding Rail (No. 62). Attach the Limit Mat (No. 65) onto the Limit Axle (No. 66) using 1x Screw (No. 63) and 1x Washer (No. 64) then tighten with Spanner (No. 81).

Step 4:

#72 M8*20*S6 (x4)	#2 d8*Φ16*1.5 (x4)	#52 d8 (x4)	#80 S6

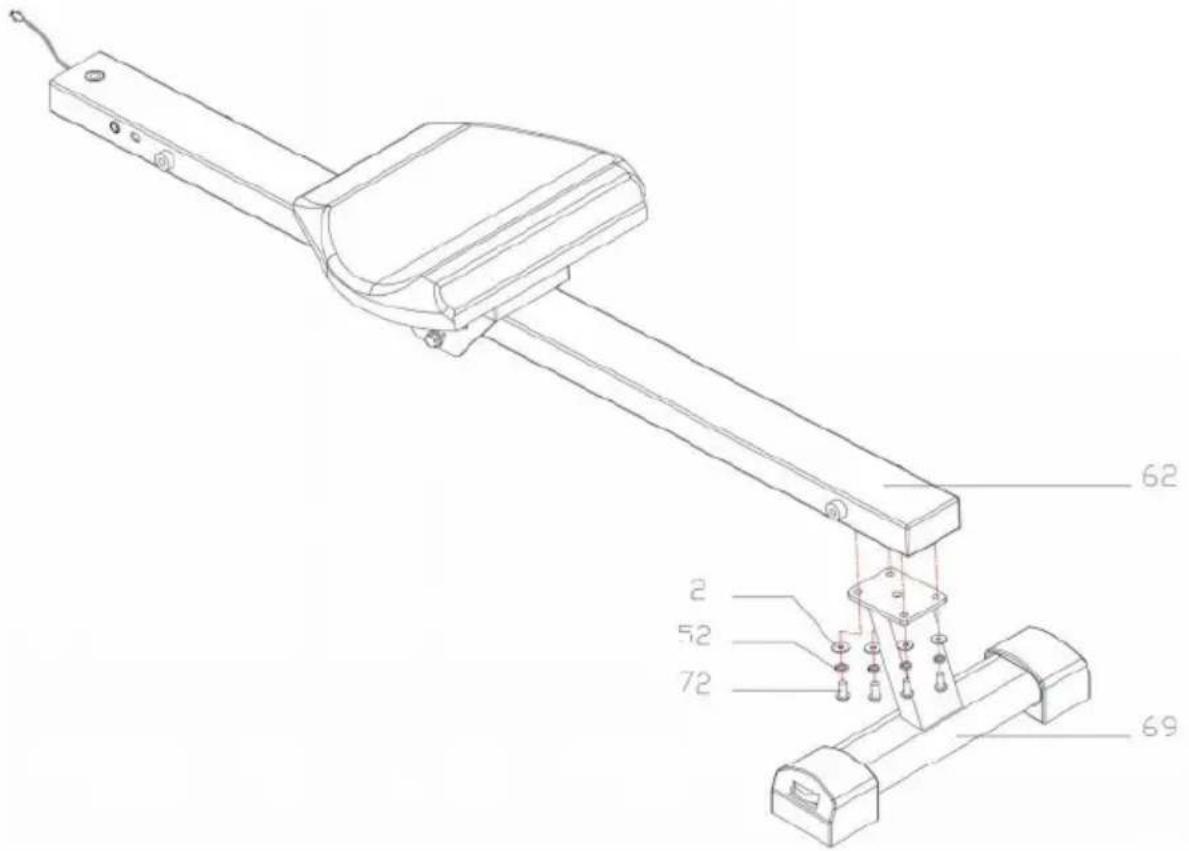

Attach the Sliding Rail (No. 62) onto the Rear Support (No. 69) using 4x Screws (No. 72), 4x Spring Washers (No. 52) and 4x Washers (No. 2). Tighten and secure with Allen Wrench (No. 80).

Step 5:

#58 Φ10*95*M6*25 (x1)		#60 Φ8*100*105 (x1)		#47 M12 (x1)
#59 M6*16*S5 (x1)	#46 d12*Φ24*2 (x1)		#79 S5		#80 S6

Connect Trunk Wire 1 (No. 45) to the Sensor Wire (No. 61).

Attach the Sliding Rail (No. 62) to the Main Frame (No. 44) using 1x Bolt (No. 58) and 1x Screw (No. 59).

Tighten and secure with Allen Wrench (No. 79) and Allen Wrench (No. 80).

Next, attach the top of the Sliding Rail (No. 62) to the Main Frame (No. 44) using 1x Knob (No. 47) and 1x Washer (No. 46), then insert the Pull Pin (No. 60).

Assembly is now complete.

ADJUSTMENTS

Pedal Adjustment

Line drawing of a flip-flop with two black arrows indicating direction (no text or symbols)

The pedal strap is adjustable and can be personalised to fit the user's foot size.

To adjust the pedal strap, remove the Velcro end of the strap from the mesh side by pulling it upward then to the left.

Once removed, you may increase the opening of the pedal strap by pulling the mesh end up and to the right.

To tighten, pull the Velcro end of the pedal strap upward then to the right and down to secure it to the mesh side of the strap.

Balance & Resistance

Balance: Adjust the End Caps (No. 70) on the rear stabiliser of the machine if the machine is unbalanced during use.

Resistance: Rotate the Tension Control Knob (No. 14) clockwise to increase resistance level from 1 (lowest) to highest (8). Rotate counter-clockwise to decrease resistance.

CAUTION: Moving parts, such as the seat, can cause injury. Keep hands clear of the sliding rail during use.

Folding the Machine

When not in use, you can save space by folding the Sliding Rail (No. 62).

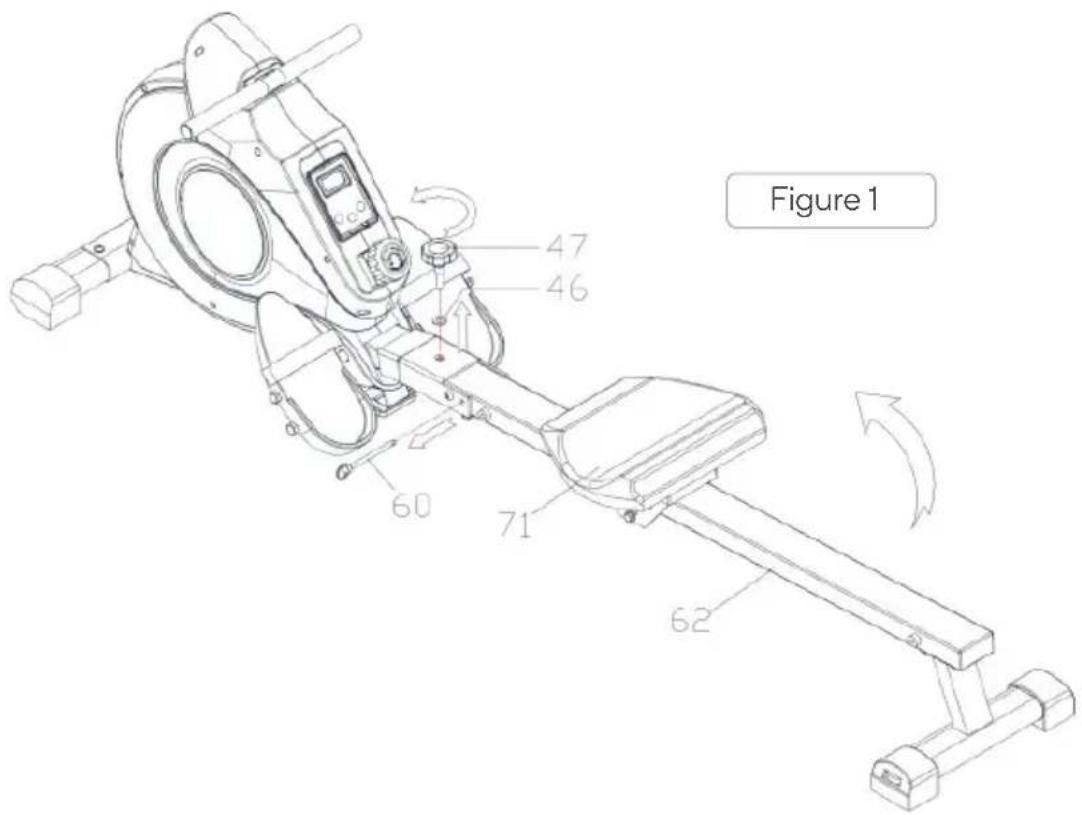

Disassemble Knob (No. 47) and Washer (No. 46) and pull out the Pull Pin (No. 60). Fold the sliding rail to vertical angle (as per Figure 1).

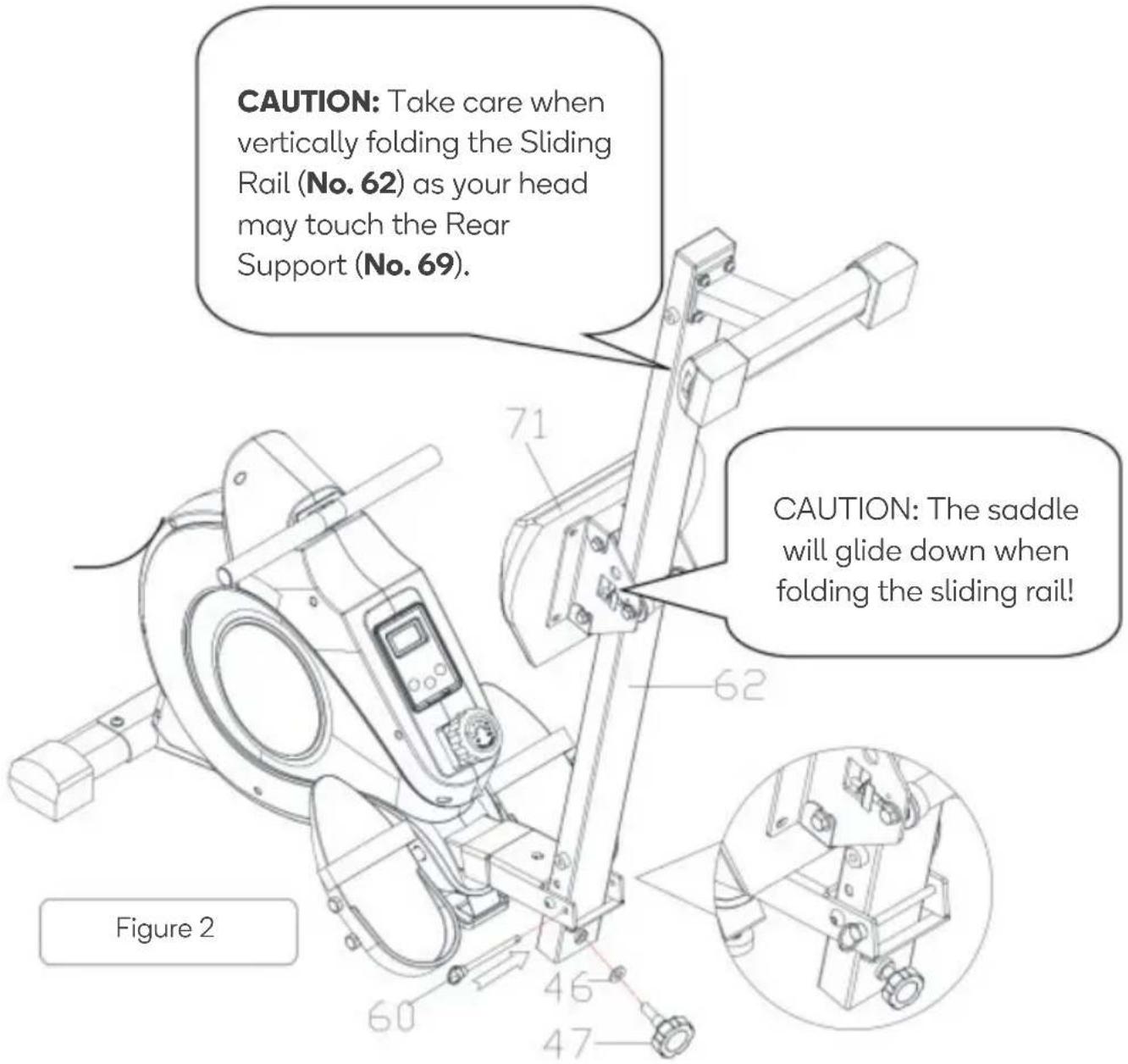

CAUTION: The saddle will glide down when folding the sliding rail.

Reinsert Pull Pin (No. 60) into the hole on the main frame, then tighten Knob (No. 47) and Washer (No. 46) to Sliding Rail (No. 62) (as per Figure 2).

FUNCTION

Press MODE to select desired function.

Functions

• Scan
  • Time (00:00 - 99:59) Keep track of workout time
  • Count (0 - 9999) Keep track of steps taken
  • Calories (0 - 999.9 KCAL) Keep track of calories burned
  • Total Count (0 - 9999 times/min) Total step count

Battery

If the monitor is not displaying properly, replace the battery (2x AAA) (Replacements not supplied).

Note:

This machine has an auto-shutoff feature. After 4 minutes without a signal, the monitor will switch off. It will turn back on when an exercise is begun or a key is pressed.

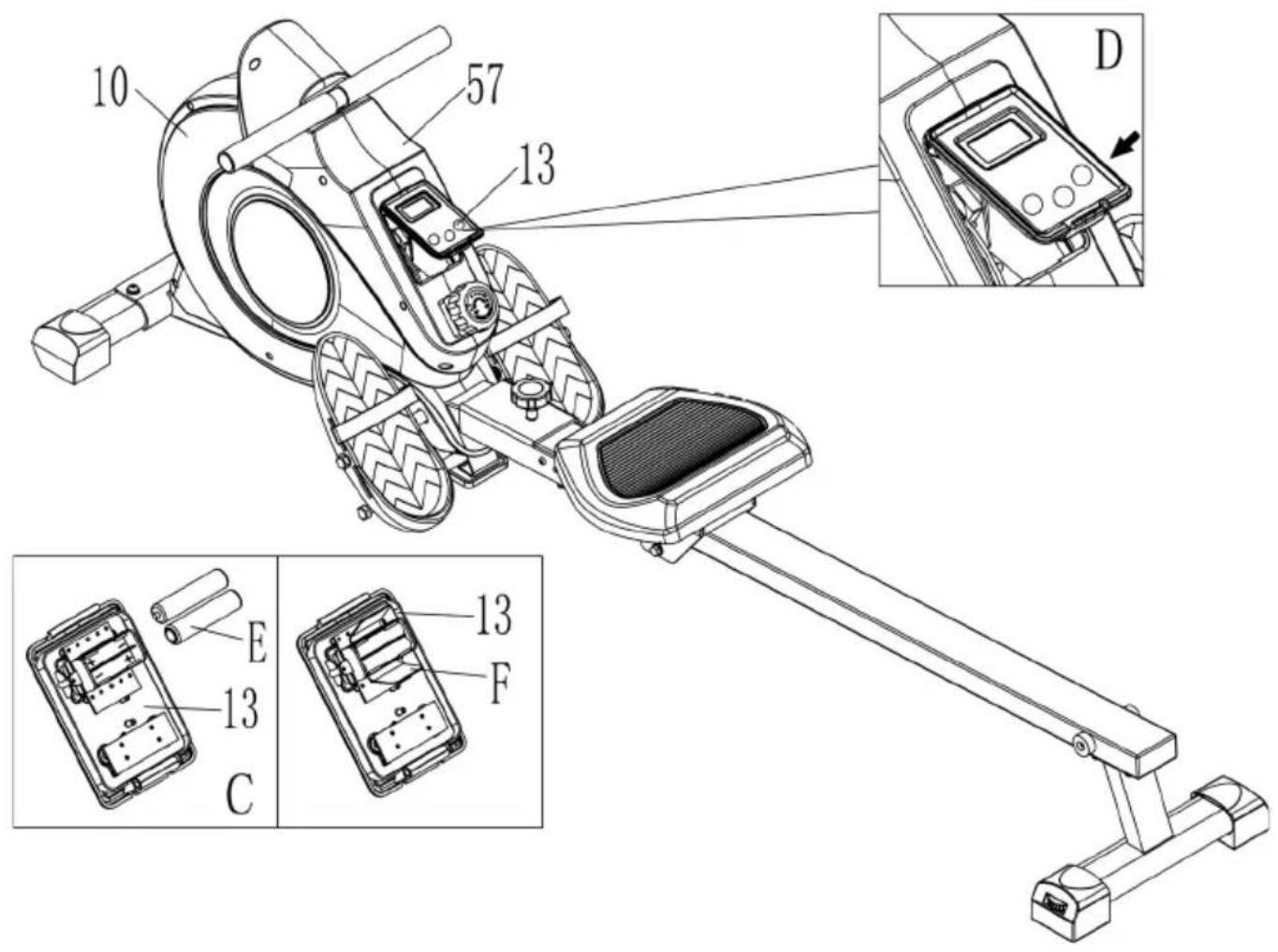

Replacing the computer batteries:

A: Remove the computer

Push the computer (13) buckle forward, and then lift the computer buckle up to remove it.

B: Remove the battery

Open the clasp (F), and then remove the old batteries (E).

C: Install new batteries

Insert the replacement batteries (E) (x2 AAA batteries), ensuring the polarity markings (+/-) of the batteries match on the battery compartment, then fasten the clasp (F).

D: Refit the computer

Clip the computer (No. 13) to the left and right chain covers (No. 10/57), and then push the computer (No. 13) down to clamp it on the left and right chain covers.

NOTES

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
