USER MANUAL MR-300 Fortis

natural_image Technical line drawing of a stationary exercise machine (no text or symbols present)

FORTIS MAGNETIC ROWING MACHINE

(MR-300)

FSMFWMR300A

SAFETY & WARNINGS

Read all the instructions in this guide before assembling or using this product. Do not skip, substitute, or modify any steps or procedures in this guide, as doing so could result in personal injury or product damage. Retain this guide for future reference.

  • Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Your physician's advice is essential if you are taking any medication that may affect your heart rate, blood pressure or cholesterol level.
  • Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, shortness of breath, light headedness, dizziness, or feelings of nausea. If you experience any of these conditions, you should consult your physician before continuing with your exercise program.
  • This equipment is intended for adult use only. Keep children and pets away from the machine. DO NOT leave children unattended in the same room with the equipment.
  • This equipment is designed for consumer use. Follow directions and use only as described.
  • Once fully assembled, inspect to ensure all hardware parts such as bolts, nuts and washers are positioned correctly and tightly secured.
  • Always inspect the safety chain guard that protects the moving parts of the rower to be in safe and good order.
  • Always inspect the seat, seat slider and grips to make sure they are in safe and stable position before using the rower.
    • It is recommended to lubricate all moving parts monthly.
  • Dry after each use to remove moisture. Wipe regularly with a mild, non-abrasive cleaner and water solution. To avoid damaging the finish, never use a petroleum-based solvent.
  • Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 2 feet (approximately 60 cm) of free space on each side.
  • Prior to assembly, ensure you have all the components and tools listed. Some components are pre-assembled to help with the assembly process.
  • Always use the equipment as intended. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the equipment during exercise, cease use immediately and contact help.kogan.com for assistance. Do not use until resolved.
  • Do not wear loose clothing while rowing.
  • Do not place fingers or any other objects into moving parts of the exercise equipment.
  • Do not exceed the maximum user weight of 120kgs.

  • Be careful when lifting and moving the equipment. Always use proper lifting technique and seek assistance if necessary.

  • The equipment is intended for use in cool, dry conditions. You should avoid storage in extreme cold, hot, or damp areas as this may lead to corrosion and other related problems.
    • This equipment is designed and intended for indoor use only, not for commercial use.
  • This equipment contains no user-serviceable parts. If it suffers any failure or damage, cease use immediately and contact help.kogan.com.

OVERVIEW

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for engineering or manufacturing purposes.

PartDescriptionQty
1 Main Frame x1
2 Handlebar x1
3 Seat Supporting Board R x1
4 Seat Supporting Board L x1
5Rear Support Framex1
6 Front Support Frame x1
7Magnetic Board Combinationx1
8 Front Stabiliser x1
9U Boardx4
10Nut M10 X 1 X H3 X S14x1
11Washer D10 X Φ20 X 1.5x1
12Axle Φ5 X 43x1
13Bearing 6000-2RSx5
14 Computerx1
15 Inductorx1
16 Hole Plugx3
17 Computer Palletx1
18Bolt M8 X 90 X 20 X S13x1
19Washer D8 X Φ16 X 1.5x1
20Nut M8 X H7.5 X S13x1
21Sleeve Φ16 X 2 X Φ13 X 3.5 X Φ8x2
22Screw M5 X 12x4
23Bolt M12 X Φ12.5 X 160 X 23 X S19x4
24Pedal 312 X 135 X 63x2
25Bandage 585 X 50x2
26Bearing 6300-2RSx1
27Bearingx1
28Belt Plateφ130 X 21.75 X 6PJx1
29Wave Washer D10 X Φ15.5 X 0.3x3
PartDescriptionQty
30Spacer on Shaft D10x4
31Ring D35x1
32Braid Wheel Φ112 X 67.5x1
33Spiral Spring T0.5 X 22 X 5080x1
34PC Sheet Φ89.5 X Φ16 X 0.5x1
35Axle Φ22 X 130x1
36Cap Φ118.5 X 11.8x1
37PC Sheet Φ111 X Φ16 X 0.5x1
38Bearing 16003-2RSx2
39Screw ST4.2 X 19 X Φ8x4
40Mesh Belt T1.5 X 22 X 2150x1
41Nut M10 X 1 X H5 X S17x3
42Belt 6PJ250x1
43Nut M10 X 1 X H8 X S15x4
44End CapΦ28 X 16x2
45Foam Gripφ26 X 3 X 208x2
46Bolt M6 X 55 X 15 X S10 x1
47Axle φ10 X 40 X Φ6.1x1
48Pulley Φ45 X 35x1
49Spring Washer D8x4
50Washer D10 X Φ30 X 2.5x1
51Pulley Φ28 X Φ15 X 63.6x2
52Bearing 608ZZx4
53Cover 110 X 78.4 X 77x1
54Cover 110 X 78.4 X 16.5x1
55Screw ST4.2 X 16 X Φ8x11
56Screw ST4.2 X 19 X Φ8x5
57Screw ST4.2 X 13 X Φ8x1
58Screw M5 X 10 X Φ10x2
59Battery Cover x1
60Batteryx2
61Tension Knob Φ1.5 X 700 X 42x1
62Sleeve Φ8.2 X Φ12 X 12x4
63Bolt M8 X 100 X 15 X S6x5
64Washer D8 X Φ16 X 1.5x15
65Nut M8 X H7.5 X S13x7
66Pin Φ8 X 100 X 105x1
67Bolt M8 X 16 X S6x4
68Housing 602 X 413 X 90x1
69Housing 602 X 413 X 91x1
70Water Bottle Holder 109 X 104 X 55x1
71Knob Φ58 X M10 X 15x1
72Knob M16 X 1.5 X 20 X Φ37x1
73Magnet Φ15 X 7x1
74Aluminium Wheel T4.0 X Φ200 X Φ30x1
75Sleeve Φ33 X 45 X 39 X 4-M6 X Φ60x1
76End Cap J80 X 40 X 18x2
77Axle Φ12 X 96 X M10 X 1.0x1
78Bolt M6 X 16 X S10x4
79Nut M6 X H6 X S10x7
80Bolt M6 X 40 X Φ10 X 2.5x2
81Adjusting U Seat 30 X 10 X 1.5x2
82Magnet 39 X 24.5 X 10x6
83End Cap Φ10 X 12x1
84Bolt Φ10 X 75 X M8 X 12.5 X S17x1
85Nut M8 X H7.5 X S13x1
PartDescriptionQty
86Washer D8 X Φ16 X 1.5x1
87Spring Φ1.5 X Φ16.7 X 49 X Φ11.3 X N12x1
88Magnet Location 45.5 X 130 X 10.5x2
89Screw ST3 X 10 X Φ5.6x8
90Bolt M8 X 55 X 20 X S6x2
91Screw ST4.2 X 25 X Φ10.5x4
92End Cap PT80 X 40 X 71.5 X 90 X 65 Leftx1
93End Cap PT80 X 40 X 71.5 X 90 X 65 Rightx1
94End Cap PT80 X 40 X 71.5 X 90 X 65x2
95Washer Φ16 X Φ8.5 X 1.5x6
96Spring Φ1.5 X Φ15 X 41 X N8x1
97Foot Pad Φ33 X Φ8 X 13x4
98Screw M6 X 16 X Φ12x4
99Washer D6 X Φ12 X 1.2x4
100Limit Shaft Φ12 X 80 X M6x2
101Washer D6 X Φ16 X 1.5x2
102Nut M6 X H6 X S10x2
103Crash Pad 60 X 40 X 15.2x1
104Screw M5 X 16 X Φ10x2
105Bolt M8 X 125 X 15 X S14x2
106Wheel Φ40 X 92x2
107Limit Wheel Φ28 X Φ8 X 16x2
108Bearing 608ZZx4
109Spacer Bush D8 X Φ15 X 4x6
110Seat DDPU986 365 X 290 x1
111Screw M5 X 20 X Φ8x1
ASpanner S6 x1
BSpanner S17x1

ASSEMBLY

Step 1:

Adjust the Rear Support Frame (5) to a maximum angle as shown in the image below.

Remove the pin (66). Open the front support frame (6) slowly in the direction shown in the image. Ensure not to clip two connecting wires in the tube. Fix the Front Support Frame (6) to the Main Frame (1) with knob (71) and washer (50). Insert the Pin (66) back to the original location.

#71 Φ58*M10*15 1PC #50 d10*Φ30*2.5 1PC

Step 2:

Attach the Front Stabiliser (8) to the Main Frame (1) using Bolt (90) and Washer (64). Tighten with a Spanner (A).

#90 M8*55*20*S6 2PCS #64 d8*Φ16*1.5 2PCS A S6 1PC 1 90 64 8

Step 3:

Remove the Screws (22) from the back of Computer (14) with the Spanner(A).

Connect the Computer Wire (14 a) with Inductor (15). Attach the Computer (14) to the Computer Pallet (17) using the Screw (22).

A S6 1PC 14 17 14a 22 15 14a 15

Step 4:

Remove the Bolt (67), Washer (64) and Spring Washer (49) from the Seat (110) using the Spanner (A).

Fix the Seat (110) to Seat Supporting Board L (4) and Seat Supporting Board R (3) with the Bolt (67), Washer (64) and Spring Washer (49).

A S6 1PC 110 3 64 49 67 64 49 67

Step 5:

Attach the Pedal (24) to the Main Frame (1) using Bolt (23). Tighten with the Spanner (B).

#23 V12 *Φ 12.5*160*23*S19 4PCS B S17-19-17 IPC

Step 6:

To use the Seat (110) for rowing exercise, pull out the Knob (72), rotate it clockwise 90 degrees then release it. The Seat (110) can now slide on the frame horizontally.

Technical line drawing of a mechanical exercise machine with labeled components and parts

Step 7:

Remove the Battery Cover (59) on the back of the computer (14). Insert two Batteries (60). Make sure the battery polarity (+/-) is correct while inserting the batteries.

After the batteries are inserted firmly, replace the Battery Cover (59). Power on the Computer.

14 59 60

BEFORE FIRST USE

Tension Adjustment

Increase Resistance:

Rotate the Tension Knob (61) clockwise (in the B direction as shown in the image) to increase the level of resistance. The resistance is greatest when the Tension Knob is rotated to setting 8.

Decrease Resistance:

Rotate the Tension knob (61) counter-clockwise to decrease the level of resistance. The resistance is least when the Tension Knob is rotated to setting 1.

A B 61

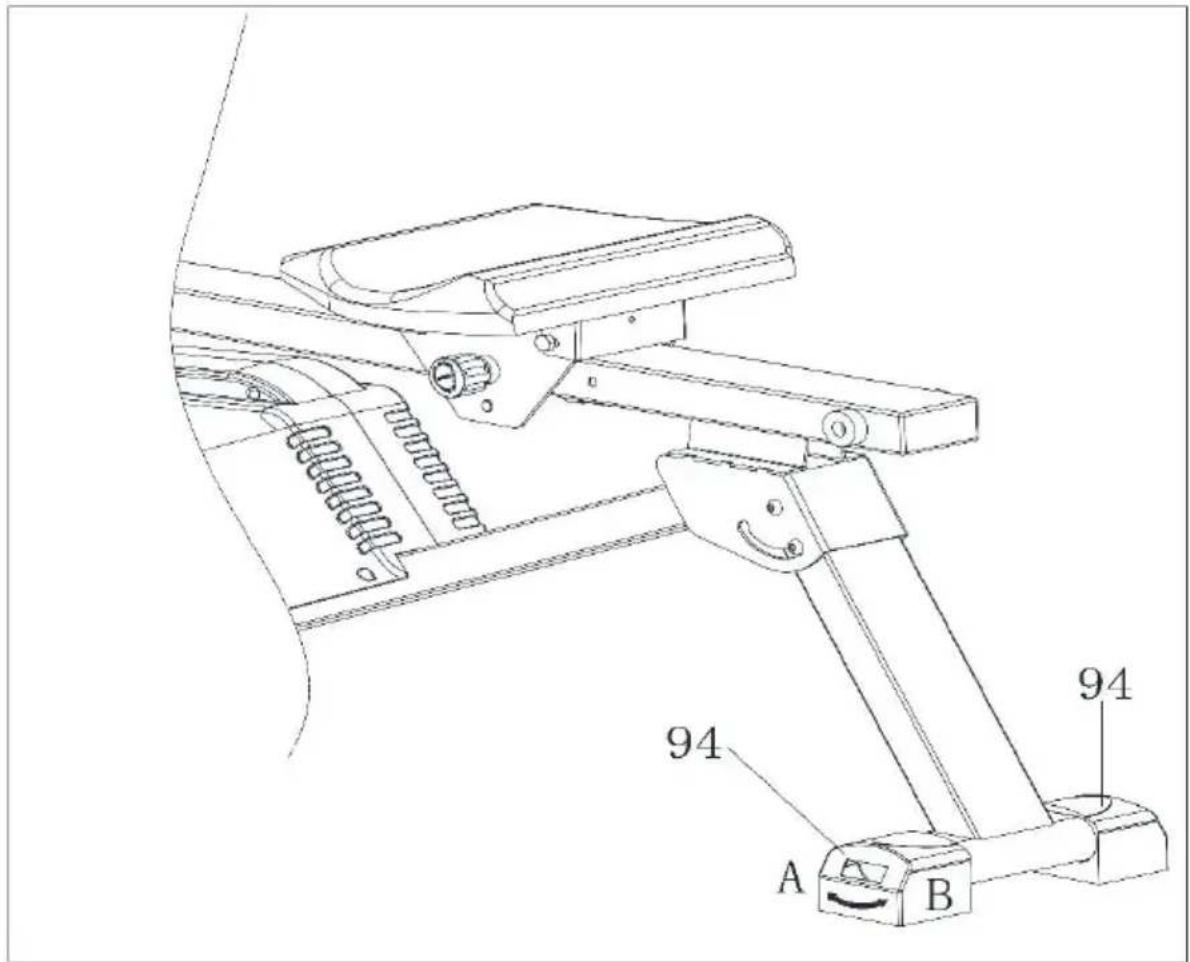

Balance Adjustment:

During use, if you notice that the machine is unbalanced, adjust the height of End Cap (94). To adjust, rotate the End Cap (94) in A or B direction (as shown in the image) until the machine becomes level with the floor surface.

94 A B 94

OPERATION

Functions

MODEPress this button to change the display or to choose a program.
SETIn the setting mode, press this button to increase the setting value for TIME, COUNT and CAL.
RESETIn setting mode, press this button to reset the value for TIME, COUNT and CAL.In monitor mode, hold this button for 3 seconds to reset all values to zero.
SCANPress MODE until “SCAN” appears. The computer will rotate through all the 4 functions: Time, Count, Calorie, Total Count. Each display will be held for 6 seconds.
COUNT (CNT)Shows an instant count with a range from 0 ~ 9999. The count value can be set in advance, when it approaches the preset count, the computer will beep for 10 seconds.
TIMECount the total time from exercise start to the end with a range from 0:00 ~ 99:59 minutes. Exercise time can be set in advance, when it approaches the preset time, the computer will beep for 10 seconds. The maximum pre-set time is 99 minutes.
CALORIES (CAL)Count the total calories burned from exercise start to the end with a range from 0.0 ~ 9999. The calorie value can be set in advance, when it approaches the preset calorie value, the computer will beep for 10 seconds.
TOTAL COUNT (TOTAL)The total count will be displayed after installing the batteries. The range is from 0 ~ 9999.
AUTO ON/OFF & AUTO START/STOPWhen the machine is not in operation for 4 minutes, the power will turn off automatically. Once motion begins, the computer will turn on automatically.

Battery

The computer uses x2 "AAA" (Um4 R03) batteries. When the display screen light begins to fade, remove the batteries, and replace them.

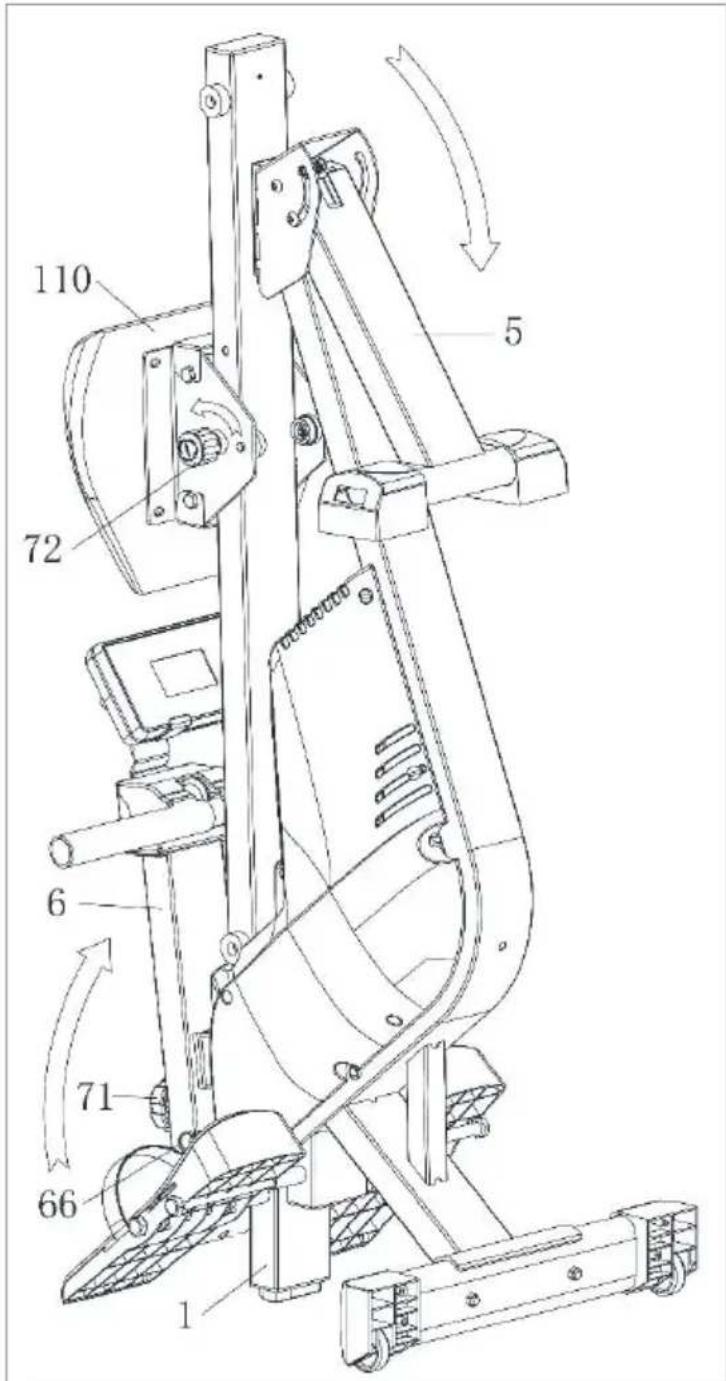

Folding the Machine

Rotate the Knob (72) counter-clockwise to 90 degrees. Insert to the hole in the Main frame (1) to fix the Seat (110).

Pull out the Pin (66) and loosen the Knob (71). Fold the Front Support Frame (6) as shown in the image.

Re-insert the Pin (66), then tighten the Knob (71) into the Front Support Frame (6).

Stand up the main frame and combine Rear Support Frame (5) as shown in the image.

110 72 5 6 71 66 1

Moving the Machine

To move the machine, lift up the Rear Support Frame (5) until the Transportation Wheels on the End Cap (94) of Front Stabiliser (8) touch the ground. Once the Transportation Wheels are on the ground, you can transport the machine to the desired location.

Fortis MR-300 - Moving the Machine - 1

natural_image Line drawing of a woman using a stationary exercise machine (no text or symbols present)
