Product Type	Tower Fan
Model	IZ-9035
Brand	Izzy
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	50-70W
Modes	Normal, Natural, Sleep
Fan Speeds	Low, Medium, High
Oscillation	Yes (SWING function)
Timer	1-15 hours (1-hour increments)
Remote Control	Yes (requires 3V CR3025 battery)
LED Display	Yes (shows temperature and timer)
Control Panel	Touch buttons: MODE, SPEED, TIMER, ON/OFF, SWING
Color	Black
Material	Plastic
Assembly Required	Yes (base and mounts)
Cleaning	Soft cloth; do not immerse or disassemble
Usage	Indoor domestic use only
Safety Features	Safety interlocks; automatic shut-off if tipped over? (not specified)
Warranty	2 years (from date of purchase)
Certifications	EU directives: EMC, Low Voltage, RoHS, Eco-design
Disposal	WEEE compliant; do not dispose as urban waste

Frequently Asked Questions - IZ-9035 Izzy

How do I assemble the Izzy IZ-9035 tower fan?

Remove the packaging, unscrew the nut from the base, pass the cable through the center holes of the two mounts, then tighten the front and rear mounts. Align the mounting holes and tighten the base nut securely.

How do I change the remote control battery?

Push the battery holder to the side and pull it out. Remove the old battery and insert a new 3V CR3025 lithium battery into the slot.

What are the different fan modes?

The fan has three modes: Normal (constant speed), Natural (simulates natural breeze), and Sleep (gradually decreases speed).

How do I set the timer on the fan?

Press the TIMER button repeatedly to set the desired time from 1 to 15 hours (in 1-hour increments). The fan will automatically turn off when the timer expires.

How do I clean the tower fan?

Switch off and unplug the fan. Use a soft cloth to clean the body. Do not disassemble the fan, use corrosive cleaners, or immerse it in water.

Can I use the fan outdoors?

No, this fan is designed for indoor domestic use only. Do not use it outdoors or in humid areas like bathrooms.

What does the SWING function do?

The SWING function enables the fan to oscillate left and right to distribute air over a wider area. Press the SWING button to activate or deactivate.

What should I do if the fan makes unusual noise?

If you notice strange noise, smell, or smoke, immediately turn off and unplug the fan. Contact an authorized BENRUBI Service Center for inspection.

What is the power consumption of the IZ-9035?

The fan has a rated input power of 50W to 70W at 220-240V, 50/60Hz.

How do I use the remote control?

Point the remote at the fan and press the ON/OFF button to start. Use SPEED, MODE, TIMER, and SWING buttons as on the control panel. Remove the protective film from the battery before first use.

USER MANUAL IZ-9035 Izzy

Black vertical electronic tower with ventilation grille (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

Technical line drawing of a mechanical component with a coiled cable and plug, no text or symbols present

Thank you for having chosen an appliance from the IZZY range.

Safety interlocks

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (pls see below “Guarantee and Customer Service”) Any us which does not conform to the instructions will absolve IZZY from an liability.

• Make sure your electricity supply is the same as the one shown on the underside of the appliance.
- Never leave the appliance unattended when operating.
- Close supervision is necessary when your appliance is being used near children or infirm persons. Ensure that they do not play with the appliance.
- This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, children or those with lack of experience and knowledge, unless they have been given supervision or instructic concerning use of the appliance by a person responsible for their safety.
WARNING: Do not expose babies and the elderly many hours in front of the fan's air.

- Switch off and unplug:

- When not in use.

- When you move it.

- Before cleaning.

- Never use the appliance for any other use than indicated. - The device is intended for indoor use. Do not use the device outdoors.

- The device is intended only for domestic use. Any other use will cancel the warranty.

• Always use the mixer on a secure, dry level surface.

- Do not operate or place the device or parts in places of high humidity or where it may get wet.

- Do not use this appliance in the immediate surroundings of a bath.

shower or a swimming pool or in places where it may get wet.

- Never let the power unit, cord or plug get wet. If the appliance does get wet, immediately remove the power cord from the wall outlet and do not put your hands in the water. Never run the wet appliance and contact one of the authorized BENRUBI service centers.

CAUTION: To prevent injury, do not place foreign objects, pencils, e through the grills when the appliance is plugged in or when it is in operation. CAUTION: To avoid injury, do not put your fingers through the grilles when the appliance is plugged in or when it is in operation.

• Leave plenty of free space around the appliance so that you do not block the grilles and the fan movement.
• Do not let the power cord of the appliance hang over the edge of a table or bench edge or where a child can grab it. Do not allow the power cord to touch any warm surface.
• Ensure that the power cord is not clamped from any object, e.g. furniture. Do not press the power cord and never place it under carpets or ma where there is a risk of stepping on it. Keep the power cord in a place when there is no danger of stumbling.
• Do not place the appliance next to fabrics, e.g. hanging curtains, etc. Do not place clothes on the appliance to dry or for any other reason.
• Before inserting or removing the socket, make sure the appliance turned OFF.
• Never use the cord to pull the plug out of the socket. Disconnect always by pulling on the plug.
• Ensure that the power cord does not come into contact with moving parts of the appliance.
• Do not use the appliance if it has been dropped or damaged in any way and contact an authorized BENRUBI Service Center.
• In case that you notice some strange noise, smell, smoke or anything unusual, do not use the appliance. Disconnect it from electricity and contact an authorized BENRUBI Service Center.
• Failure to use properly may cause injury.
• Never leave the power cable wrapped during use. Unwind it completely.
• Never use highly corrosive or abstractive cleaning agents. Never use metal scouring pads for cleaning.
• Do not move the appliance when it is in operation.
• Do not touch the appliance with wet or damp hands.

• Do not use an extension power cord.

• This appliance is not intended to be operated by means of an external timer or separate remote control system.

• Check the power cord periodically for possible damages.
• If the power cord or the plug of the appliance has been damaged, do not use the appliance and contact an authorized BENRUBI Service Center.
• In case of a possible damage, do not attempt to repair the appliance by yourself. Please contact one of the authorized BENRUBI service centers.
• Any repair made by an unauthorized BENRUBI Service Center CANCELS THE GUARANTEE.
• Any misuse of the device cancels the warranty.
• Only use original spare parts
• The appliance conforms to EU directive 2014/30/EU on Electromagnetic Compatibility, the 2014/35/ EU Low Voltage Directive, the2011/65/EU RoHS Directive and the directive 2009/125/EC for eco-design.

SAVE THESE INSTRUCTIONS

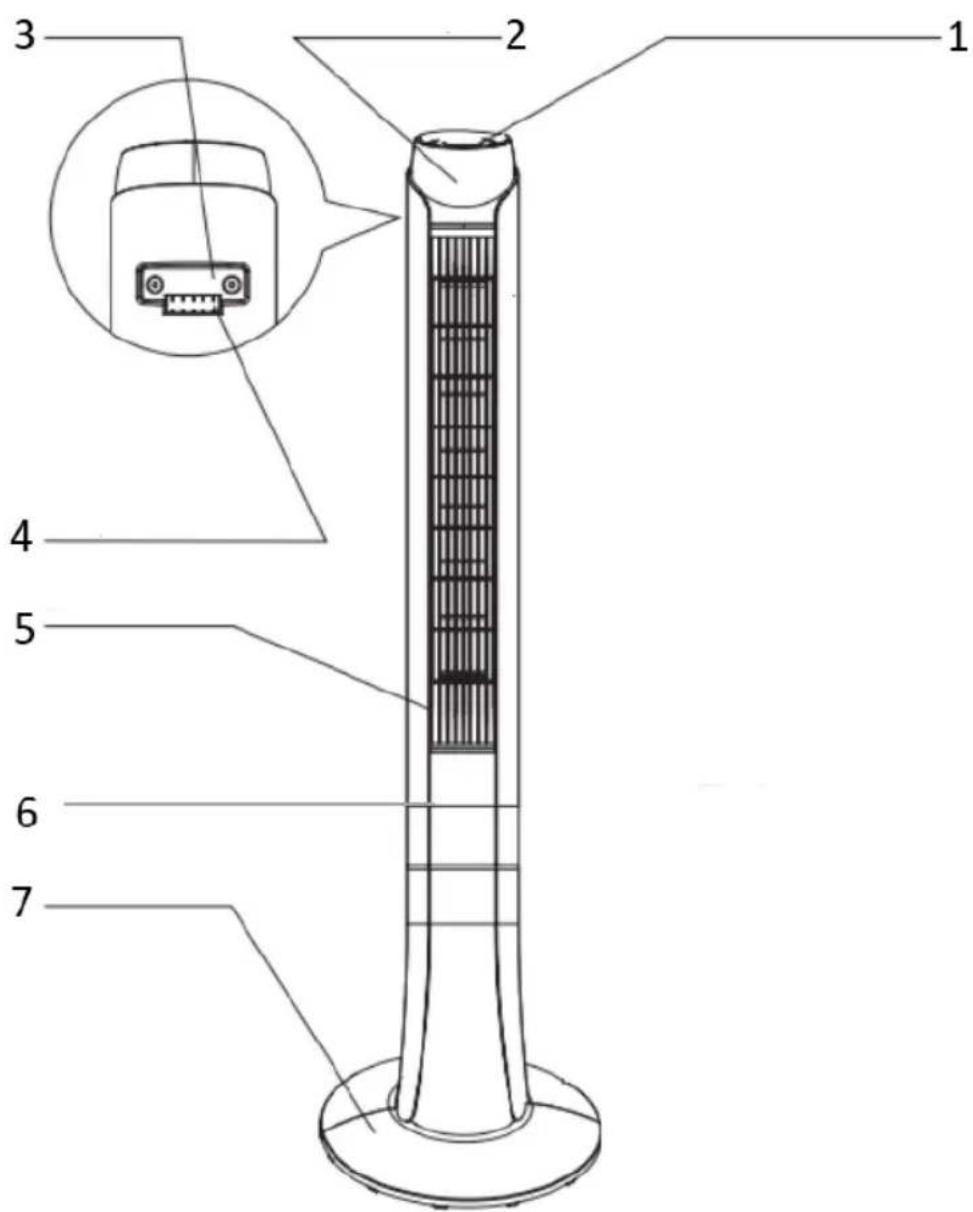

Parts of the Appliance

1. Control panel
2. LED display screen
3. Carrying handle
4. Remote control storage
5. Air outlet
6. Body
7. Base

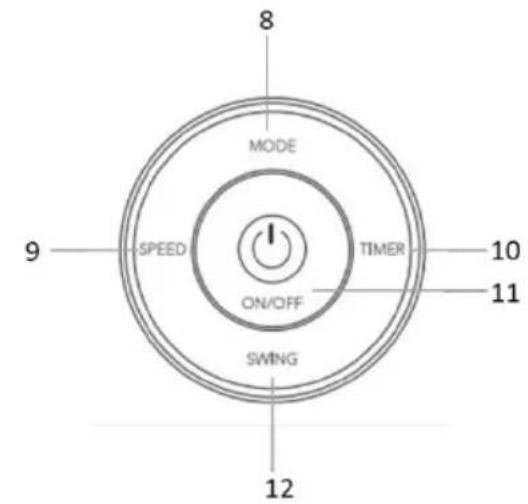

Control panel

1. "MODE" button
2. "SPEED" regulation button
3. "TIMER" button
4. "ON/OFF" button
5. "SWING" button

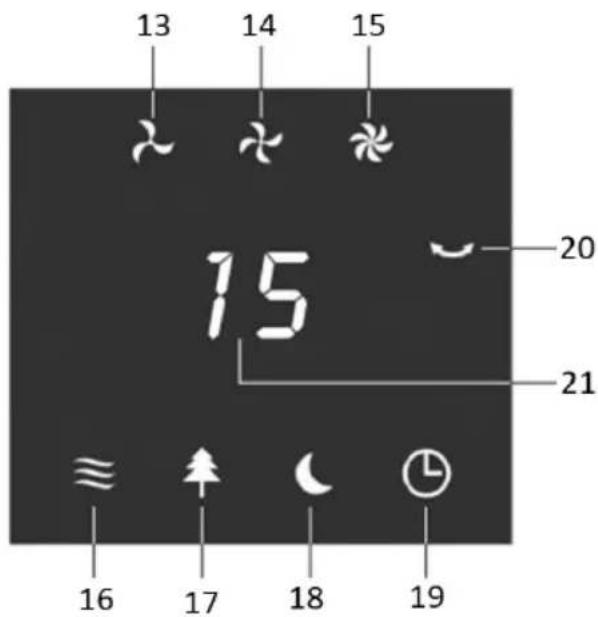

LED display screen

1. Low speed indication light
2. Medium speed indication light
3. High speed indication light
4. "NORMAL" mode indication light
5. "NATURAL" mode indication light
6. "SLEEP" mode indication light
7. "TIMER" indication light
8. "SWING" indication light
9. Temperature display

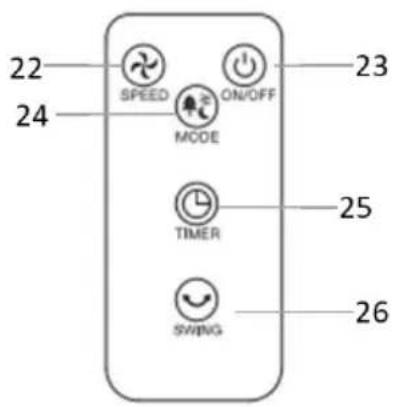

Remote control

1. "SPEED" regulation button
2. "ON/OFF" button
3. "MODE" button
4. "TIMER" button
5. "SWING" button

Fan Assembly

Remove the packaging.

1. Unscrew the nut from the base.

Technical line drawing of a mechanical component with a spring and plug assembly (no text or symbols)

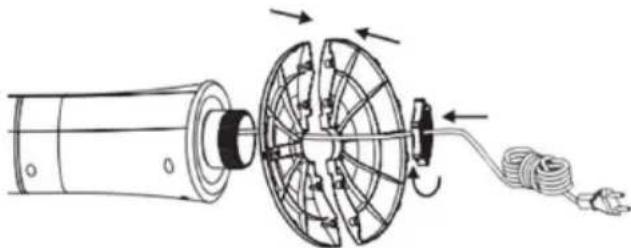

1. Pass the cable through the center holes of the two mounts and then tighten the front and rear mounts.

Technical line drawing of a mechanical assembly with rotating components and wiring (no text or symbols)

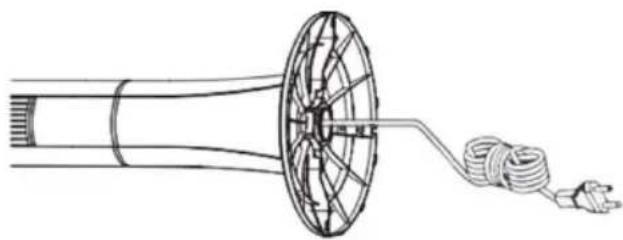

1. Align the mounting holes and tighten the base nut securely.

Technical line drawing of a mechanical component with a coiled cable and terminal connector (no text or symbols)

Changing Remote-Control Battery

Before first use, remove the protective film from the battery compartment.

The remote-control works with a 3V (CR3025) lithium battery.

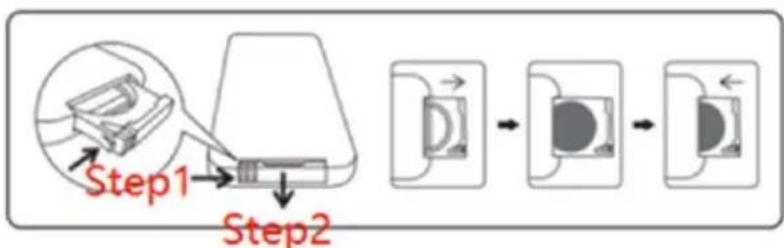

Change battery:

1. Push the battery holder to the side and pull it out.
2. Remove the battery and insert the new one into the slot.

Using the Fan (With the Control Panel)

CAUTION:

• Before using, make sure that all parts of the device are properly assembled and that there are no parts that have been damaged.
• Always place the device on a flat, dry and stable surface. There is a risk of damage if it is not installed on a flat and level surface.

• Before using, make sure that the appliance is in the "OFF" position.

• Plug in the appliance. A "beep" will sound.

• Press the ON/OFF button (11) on the control panel. The fan will be activated in the "NORMAL" mode.
• Press the “SPEED” button (9) consequently to adjust the speed of your choice. The corresponding “LOW” 🎨 (13), “MID” 🎨 (14) or “HIGH” 🎨 (15) speed indication lights will turn on depending on your choice.
• Select the desired function by pressing the "MODE" button (8). The corresponding indication lights ≈ "NORMAL" (16), ↑ "NATURAL" (17) or 📋 "SLEEP" will turn on depending on your choice.
• Press the "SWING" button (12) to select the oscillation function. The "SWING" indication light (20) will turn on. For static operation, the "SWING" indication light (20) should be off.
• To set the timer, press the “TIMER” button (10) consequently until the desired time is selected and the corresponding time will be displayed on the screen (21). The timer settings range from 1 hour to 15 hours (with one-hour setting). When the time you set is complete, the fan will automatically stop.
• Press the ON/OFF button (11) on the control panel to switch off the appliance.
• Disconnect from the power outlet when not in use.

Using the Fan (with the Remote Control)

CAUTION:

• Before using, make sure that all parts of the device are properly assembled and that there are no parts that have been damaged.
• Always place the device on a flat, dry and stable surface. There is a risk of damage if it is not installed on a flat and level surface.

• Before using, make sure that the appliance is in the "OFF" position.

• Plug in the appliance. A "beep" will sound.

• Press the ON/OFF button (23) on the remote control. The fan will be activated in the "NORMAL" mode.

• Press the “SPEED” button (22) consequently to adjust the speed of your choice. The corresponding “LOW” 🎨 (13), “MID” 🎨 (14) or “HIGH” 🎨 (15) speed indication lights will turn on depending on your choice.

• Select the desired function by pressing the "MODE" button (24). The corresponding indication lights ≈ "NORMAL" (16), 📁 "NATURAL" (17) or 📄 "SLEEP" will turn on depending on your choice.

• Press the "SWING" button (26) to select the oscillation function. The "SWING" indication light

(20) will turn on. For static operation, the "SWING" indication light (20) should be off.

1. To set the timer, press the "TIMER" button (25) consequently until the desired time is selected and the corresponding time will be displayed on the screen (21). The timer settings range from 1 hour to 15 hours (with one-hour setting). When the time you set is complete, the fan will automatically stop.
2. Press the "ON/OFF" button (23) on the remote control to switch off the appliance.
3. Disconnect from the power outlet when not in use.

Care and Cleaning

• Switch off and unplug the appliance before cleaning.
• Do not disassemble the fan to clean it.
• At regular intervals, clean the main body of the appliance with a soft cloth and dry thoroughly.
• Never use highly corrosive or abstractive cleaning agents. Never use metal brushes or sponges for cleaning and do not immerse the appliance in water.
• To ensure that the air circulates properly on the motor, keep the air outlets at the rear of the motor clean.

Storage

• Switch off and unplug the appliance before storing it.
• Store the appliance in a dry place without humidity.
• Before using the appliance for a long time, make sure it is clean and dry.
• Store the appliance where it is not reachable by children.

Technical Information

Model: Tower Fan IZ-9035

Voltage: AC 220\~240V

Frequency: 50/60Hz

Rated input: 50W-max70W

Important Information for Correct Disposal of the Product in Accordance with EC Directive 2002/96/EC

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

- BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by presenting purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRU Company to replace or repair the defective product.

- The warranty does not cover damages resulting from normal wear, breakage, scaling, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.

- Burns due to exposure to heat or flame.

- Damage from thermal shock (sudden temperature change or change of voltage).
