DS-K2811 - Access Control Hikvision - Free user manual and instructions

Product Type	Access Control Controller
Brand	Hikvision
Model	DS-K2811
Dimensions (W x H x D)	120 mm x 80 mm x 25 mm
Weight	~200 g
Power Supply	12 VDC, 1 A
Power Consumption	≤ 12 W
Supported Cards	13.56 MHz RFID (Mifare), EM 125 kHz
Reader Type	Integrated card reader and keypad
Communication Interface	RS-485, Wiegand 26/34
User Capacity	Up to 10,000 users
Event Log Capacity	Up to 100,000 events
Operating Temperature	-20°C to 60°C
Operating Humidity	10% to 90% (non-condensing)
Enclosure Rating	IP65 (indoor use recommended)
Main Functions	Access control, time attendance, door lock control, alarm input
Security Features	Tamper alarm, anti-passback, multiple authentication modes
Maintenance	Wipe with dry cloth; avoid solvents; check connections periodically
Spare Parts & Repairability	Contact Hikvision authorized service center for parts and repair
General Information	Wall mount; includes mounting bracket and screws; manual available online

Frequently Asked Questions - DS-K2811 Hikvision

How do I connect the DS-K2811 to a door lock?

Connect the door lock to the LOCK+ and LOCK- terminals. Ensure the lock voltage matches the controller output (12 VDC, max 1 A). Use a separate power supply if needed.

Can I use the DS-K2811 with a Wiegand reader?

Yes, the DS-K2811 supports Wiegand 26/34 input. Connect the reader's data lines to the W0 and W1 pins.

How to reset the device to factory defaults?

Press and hold the reset button (inside the enclosure) for 10 seconds until the LED blinks rapidly. The device will reboot with factory settings.

What types of cards does the DS-K2811 support?

It supports 13.56 MHz (Mifare) and 125 kHz EM cards. Ensure your cards are compatible with either frequency.

Is the DS-K2811 compatible with Hikvision's iVMS software?

Yes, the device can be integrated with Hikvision iVMS-4200 and other security management platforms via RS-485 or TCP/IP (with optional module).

How many users can be stored?

The device can store up to 10,000 user credentials and 100,000 event logs.

What is the maximum cable length for the keypad/reader?

For RS-485, maximum cable length is 1200 meters. For Wiegand, keep it under 150 meters to avoid signal degradation.

Can the DS-K2811 be used outdoors?

The device has an IP65 rating, but it is recommended for indoor or sheltered outdoor use. Direct exposure to rain or sun may reduce lifespan.

How do I add a new user via keypad?

Enter programming mode by pressing *# (default PIN). Then use the command 01 (add user) followed by the user ID and card/PIN. Refer to the manual for full command list.

What does the LED indicator mean?

Solid blue: powered on; Flashing blue: ready for card; Red: access denied; Green: access granted.

USER MANUAL DS-K2811 Hikvision

DS-K281X Series Access Controller

User Manual

Legal Information

©2022 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.

About this Manual

The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (https://www.hikvision.com/).

Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.

Trademarks

HIKVISION and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions.

Other trademarks and logos mentioned are the properties of their respective owners.

Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.

YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE

DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.

Available Model

Product Name Model
Access Controller DS-K2811
	DS-K2812
	DS-K2814

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help

This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

CE

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed

under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU, the RoHS Directive 2011/65/EU

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see:

www.recyclethis.info

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see:www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.

These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into Dangers and Cautions:

Dangers: Neglecting any of the warnings may cause serious injury or death.

Cautions: Neglecting any of the cautions may cause injury or equipment damage.

Dangers: Follow these safeguards to prevent serious injury or death.	Cautions: Follow these precautions to prevent potential injury or material damage.

Danger:

• All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region.
• Please use the power adapter, which is provided by normal company. The power consumption cannot be less than the required value.
• Do not connect several devices to one power adapter as adapter overload may cause over-heat or fire hazard.
• Please make sure that the power has been disconnected before you wire, install or dismantle the device.
• When the product is installed on wall or ceiling, the device shall be firmly fixed.
• If smoke, odors or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center.
• Do not ingest battery, Chemical Burn Hazard.
  This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
  Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the device yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)

Cautions:

• Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
• Do not place the device in extremely hot (refer to the specification of the device for the detailed operating temperature), cold, dusty or damp locations, and do not expose it to high electromagnetic radiation.
• The device cover for indoor use shall be kept from rain and moisture.
• Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden (ignorance can cause fire danger).
• Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time.
• Please use the provided glove when open up the device cover, avoid direct contact with the device cover, because the acidic sweat of the fingers may erode the surface coating of the device cover.
• Please use a soft and dry cloth when clean inside and outside surfaces of the device cover, do not use alkaline detergents.
• Please keep all wrappers after unpack them for future use. In case of any failure occurred, you need to return the device to the factory with the original wrapper. Transportation without the original wrapper may result in damage on the device and lead to additional costs.
• Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.

Contents

Chapter 1 Preventive and Cautionary Tips .... 1

Chapter 2 Product Description ...... 2

Chapter 3 Main Board Description .... 3

3.1 Single-Door Access Controller Main Board Description 3
3.2 Two-Door Access Controller Main Board Description 4
3.2.1 Four-Door Access Controller Main Board Description 5
3.3 Component Description .... 5
3.4 Battery Charging Board 7

Chapter 4 TerminalDescription .... 8

4.1 Single-Door Access Controller Terminal Description 8
4.2 Two-Door Access Controller Terminal Description 10
4.3 Four-Door Access Controller Terminal Description 13

Chapter 5 Installation ...... 17

5.1 Wall Mounting 17

Chapter 6 Terminal Wiring 19

6.1 Main Board Wiring 19
6.2 Wiegand Card Reader Wiring 20
6.3 RS-485 Card Reader Wiring 20
6.4 Cathode Lock Wiring 21
6.5 Anode Lock Wiring 22
6.6 Alarm Output Wiring 23
6.7 Exit Button Wiring 23
6.8 Door Contact Wiring 24
6.9 Power Supply Wiring 24

Chapter 7 Settings 26

7.1 Initialization (Option 1) 26

7.2 Initialization (Option 2) 26
7.3 Relay Output NO/NC Settings 27

7.3.1 Lock Relay Output Settings 27

7.3.2 Alarm Relay Output Settings 28

Chapter 8 Activation ...... 30

8.1 Activate via SADP 30
8.2 Activate Device via Client Software 31

Chapter 9 Client Software Configuration ...... 33

9.1 Configuration Flow of Client Software 33
9.2 Device Management 34

9.2.1 Add Device 34
9.2.2 Reset Device Password 37
9.2.3 Manage Added Devices 38

9.3 Group Management 39

9.3.1 Add Group 39
9.3.2 Import Resources to Group 40

9.4 Person Management 40

9.4.1 Add Organization 40
9.4.2 Import and Export Person Identify Information 41
9.4.3 Get Person Information from Access Control Device 43
9.4.4 Issue Cards to Persons in Batch 44
9.4.5 Report Card Loss 45
9.4.6 Set Card Issuing Parameters 45

9.5 Configure Schedule and Template 46

9.5.1 Add Holiday 46
9.5.2 Add Template 47

9.6 Set Access Group to Assign Access Authorization to Persons 49
9.7 Configure Advanced Functions 50

9.7.1 Configure Remaining Unlocked/Locked 50
9.7.2 Configure Anti-Passback 51
9.7.3 Configure Multi-door Interlocking 52
9.7.4 Configure First Person In 53
9.7.5 Configure Multi-Factor Authentication 54
9.7.6 Configure Card Reader Authentication Mode and Schedule 56
9.7.7 Configure Device Parameters 58
9.7.8 Configure Device Parameters 62

9.8 Door Control 63

9.8.1 Control Door Status 63
9.8.2 Check Real-Time Access Records 64

Appendix A. Tips for Scanning Fingerprint 65

Appendix B. DIP Switch Description 67

Appendix C. Custom Wiegand Rule Descriptions 68

Appendix D. Communication Matrix and Device Command 70

Chapter 1 Preventive and Cautionary Tips

Before connecting and operating your device, please be advised of the following tips:

• Ensure unit is installed in a well-ventilated, dust-free environment.
• Keep all liquids away from the device.
• Ensure environmental conditions meet factory specifications.
• Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it may cause damage to the sensitive electronics within the unit.
• Use the device in conjunction with an UPS if possible.
• Power down the unit before connecting and disconnecting accessories and peripherals.
• A factory recommended HDD should be used for this device.
• Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the manufacturer.
• It is recommended to choose a 12 V 7 AH lead-acid battery that meets the IEC 60896 standard. The battery wiring method is shown in the following figure.

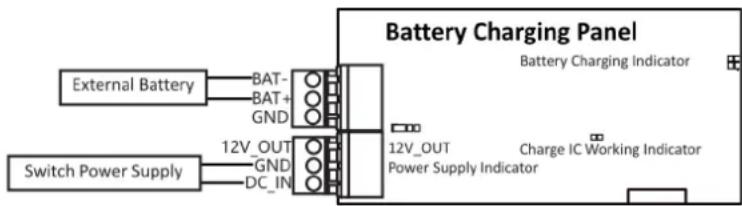

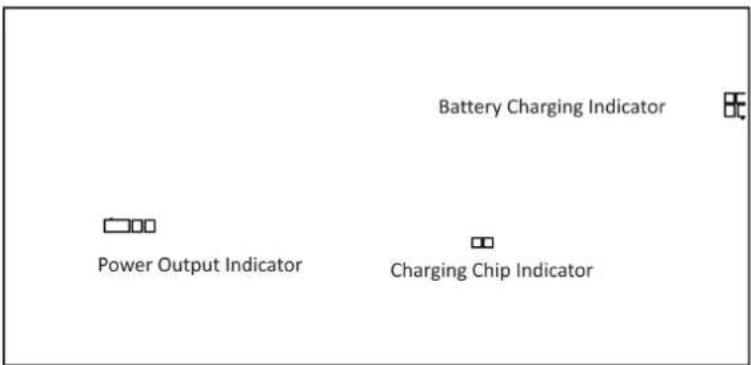

    I["Battery Charging Panel"] --> J["Battery Charging Indicator"]
    I --> K["Charge IC Working Indicator"]
    I --> L["Power Supply Indicator"]

Chapter 2 Product Description

• 32-bit high-speed processor
- Supports TCP/IP communication. The communication data is specially encrypted to relieve the concern of privacy leak
• Supports recognition and storage of card No. with maximum length of 20
• Supports up to 10,000 cards and 50,000 card presenting records
- Supports multi-door interlock function, inner-device anti-passback function, multiple authentications function, open door with first card function, super password function, M1 card encryption, online upgrade function and remote control of the doors
• IP address conflict detection
- Supports RS-485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26, W34 and is compatible with the third-party card reader with Wiegand interface
- Various indicators to show different status
- Supports record storage function when the device is offline and insufficient storage space storage alarm function
- Data can be permanently saved after the access controller is powered off
• Supports I/O linkage and event linkage

Chapter 3 Main Board Description

3.1 Single-Door Access Controller Main Board Description

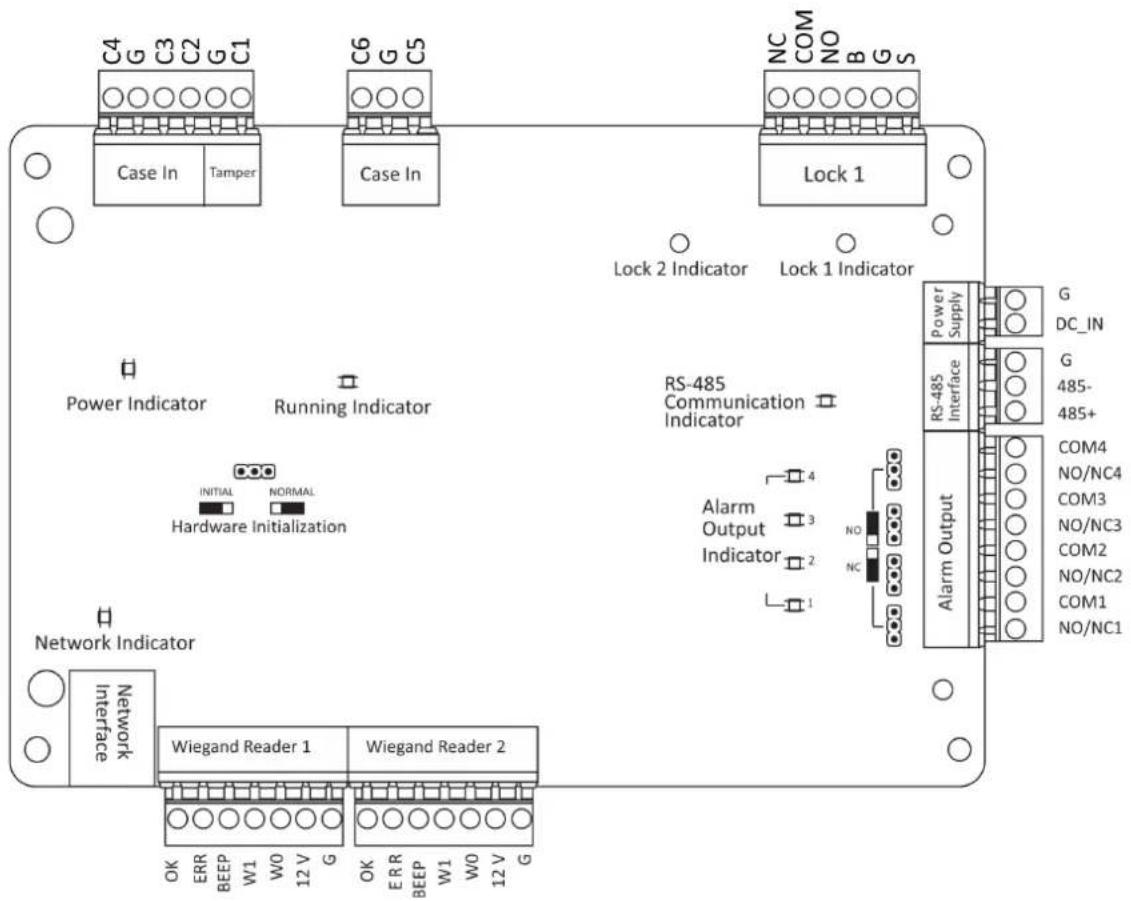

Figure 3-1 Single-Door Access Controller Main Board

3.2 Two-Door Access Controller Main Board Description

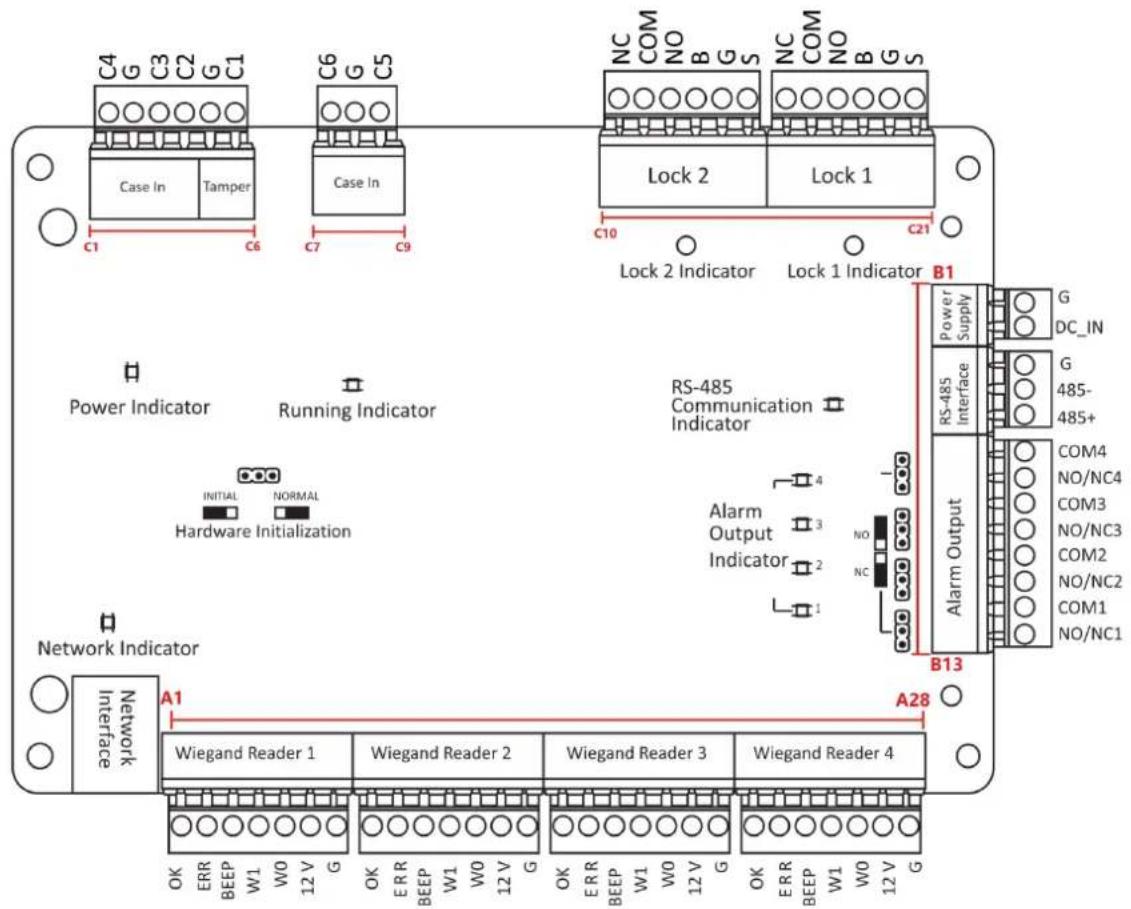

Figure 3-2 Two-Door Access Controller Main Board

3.2.1 Four-Door Access Controller Main Board Description

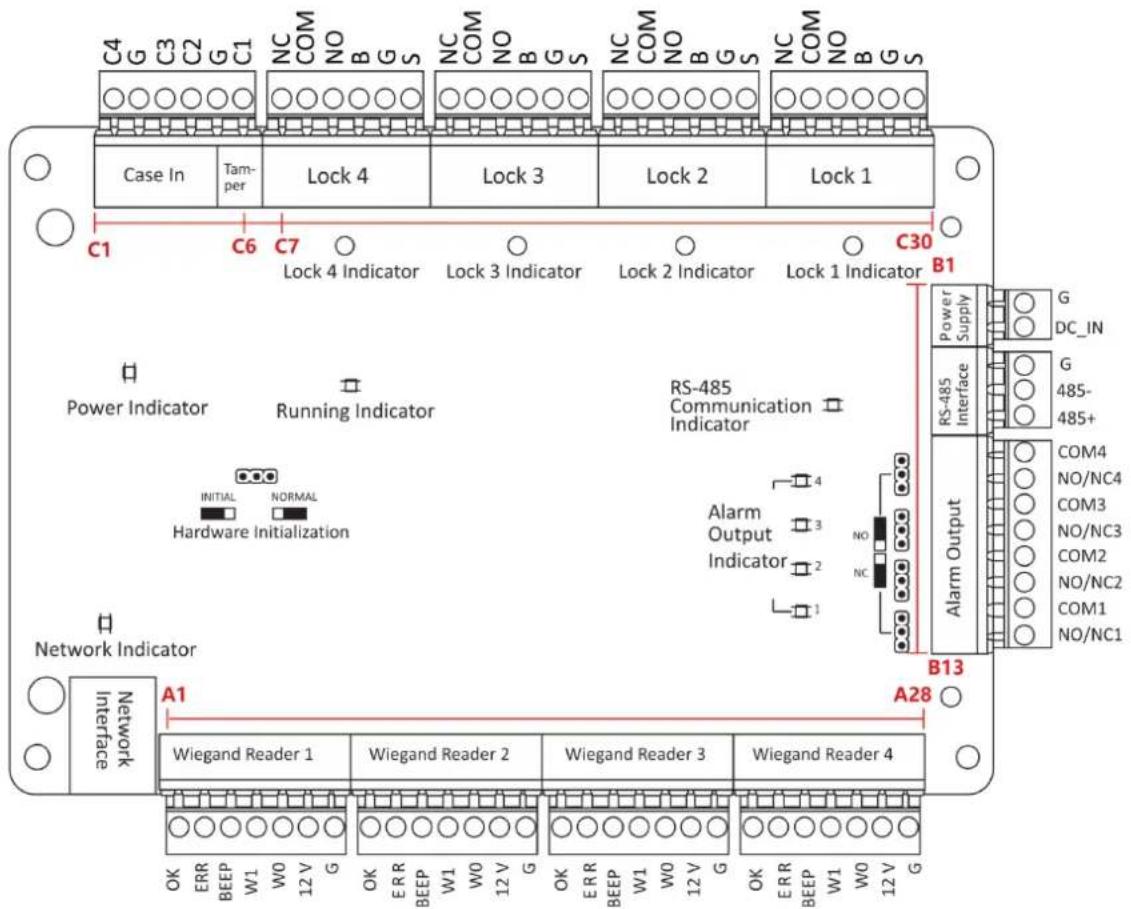

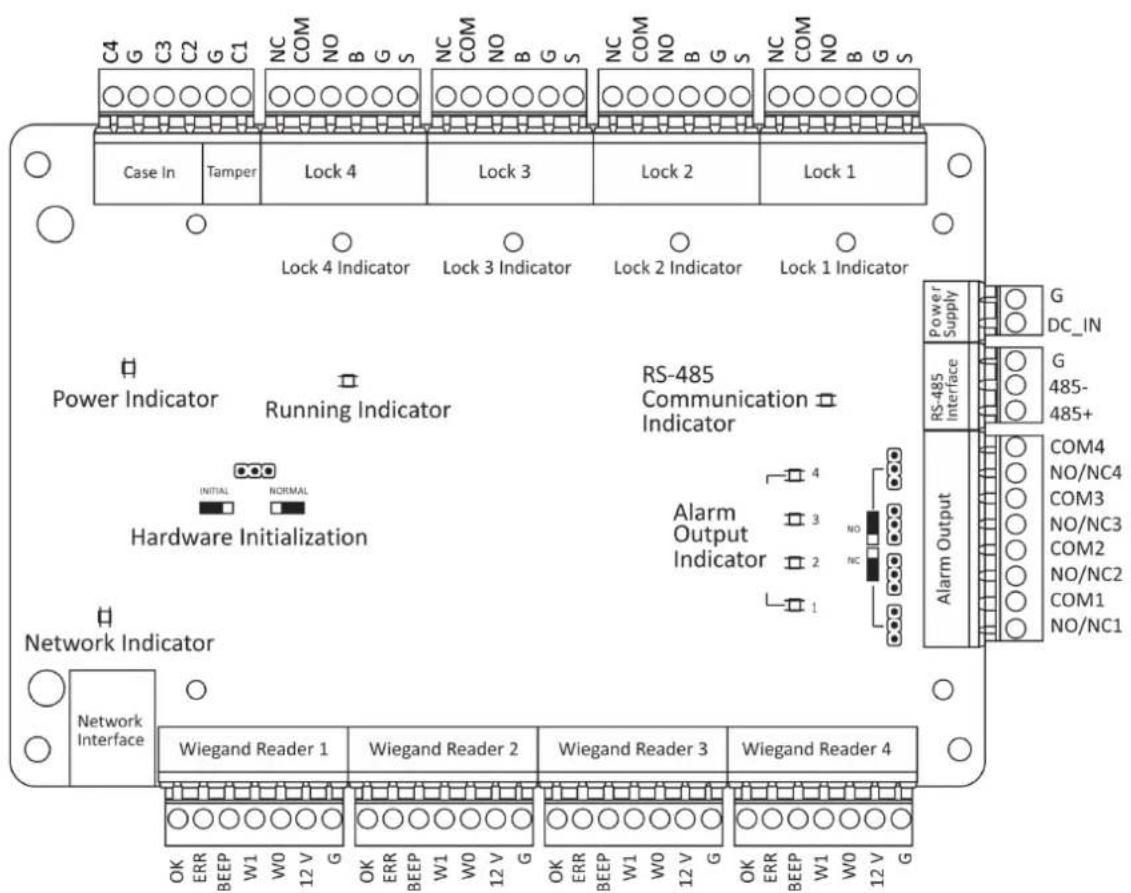

Figure 3-3 Four-Door Access Controller Main Board

3.3 Component Description

You can view the device's components and their descriptions.

Take four-door access controller as an example, the component diagram is shown below.

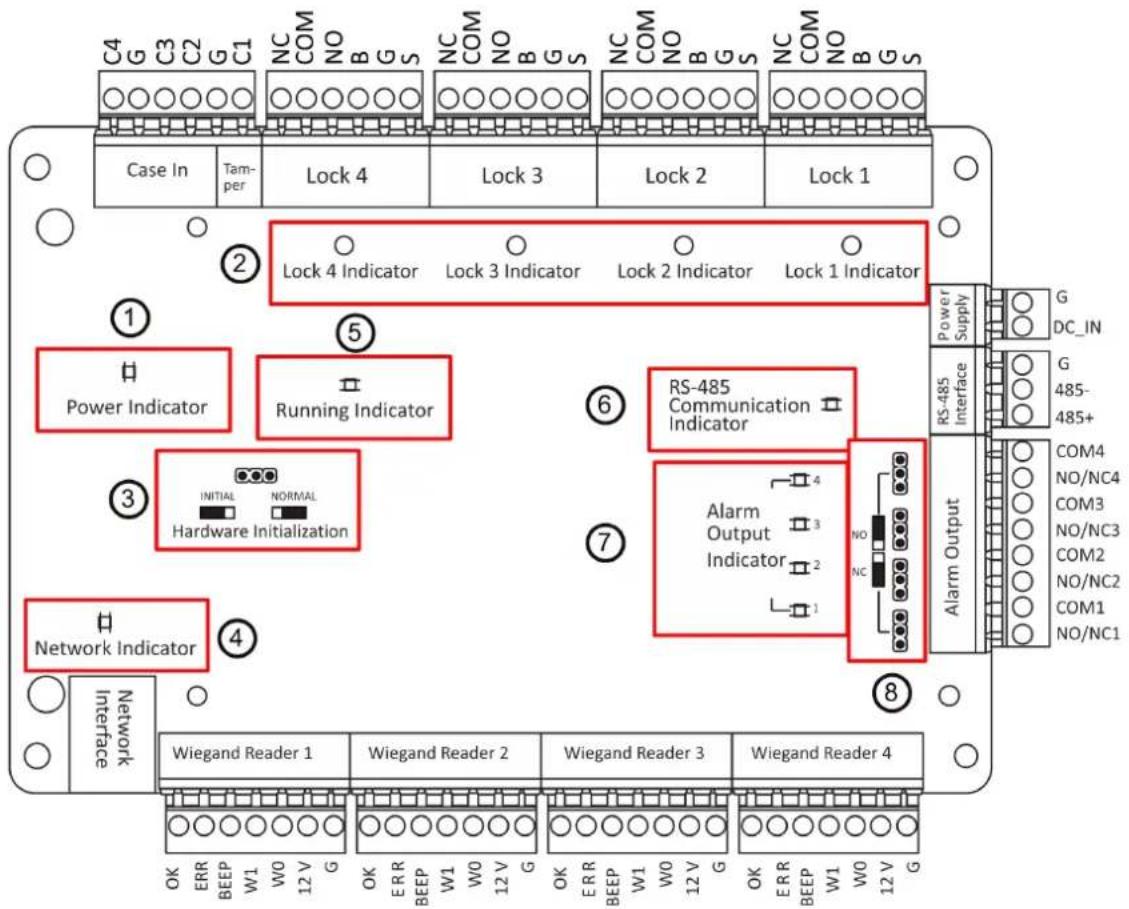

Figure 3-4 Four-Door Access Controller Component Diagram

Table 3-1 Four-Door Access Controller Component Description

No. Component Description
1 Power Indicator
2 Lock Indicator

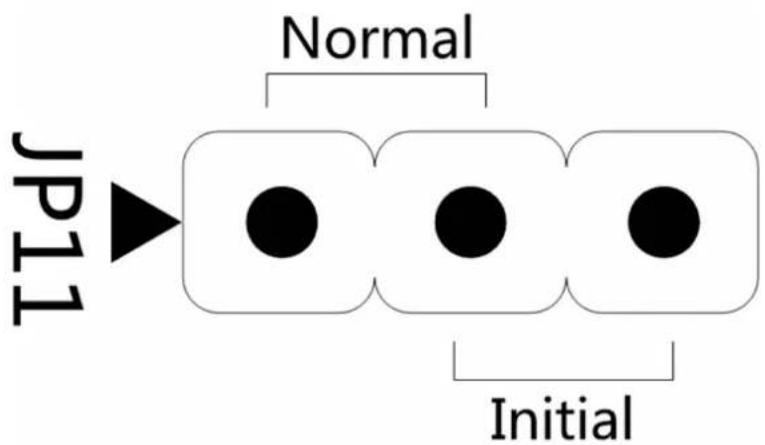

3 Hardware Initialization and Normal Working Choice
4 Network Indicator
5 Running Indicator
6 RS-485 Communication Indicator
7 Alarm Output Indicator
8 Door Relay Output Status (NC/NO) Choice

3.4 Battery Charging Board

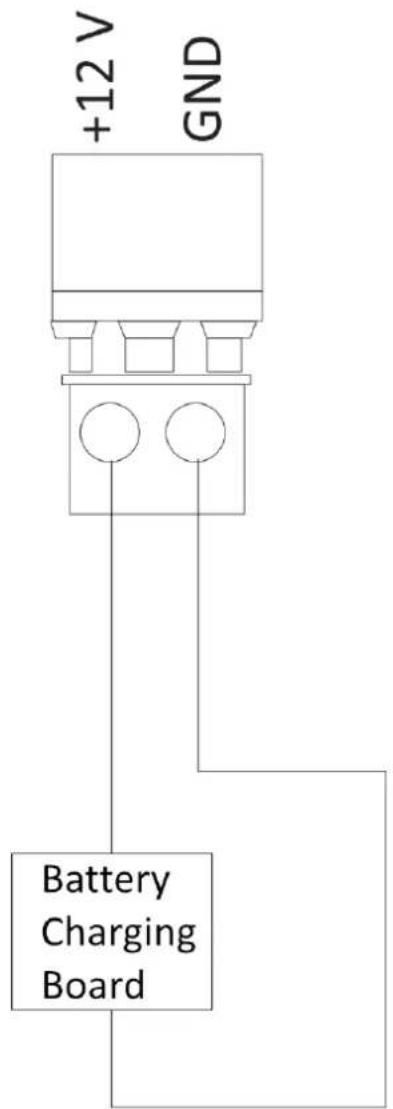

Figure 3-5 Battery Charging Board

Note

The battery charging boards are only for devices that support battery.

Chapter 4 Terminal Description

4.1 Single-Door Access Controller Terminal Description

You can view the single-door access controller's terminal description.

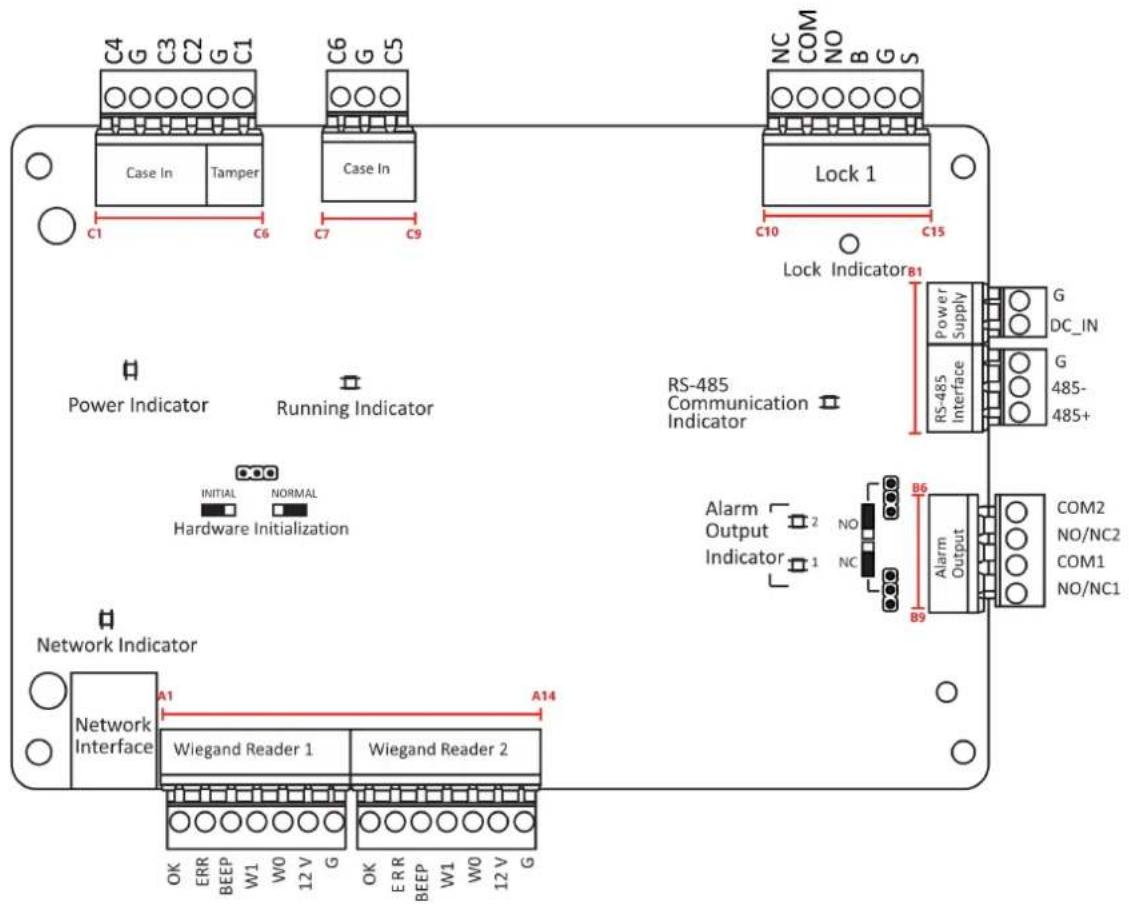

Figure 4-1 Single-Door Access Controller Main Board

Table 4-1 Single-Door Access Controller Terminal Description

No. Four-Door Access Controller
A1~A28 Wiegand Reader 1~4 OK Indicator of Card			Reader Control Output(Valid Card Output)
		ERR Indicator of Card	Reader Control Output(Invalid Card Output)
		BEEP Card Reader Buzzer	Control Output
		W1 Wiegand Card Reader	Data Input Data1
		W0 Wiegand Card Reader	Data Input Data0
		12 V Wiegand Card Reader	Data Input Data0
		G Grounding
B1 Power Supply G Grounding
B2 DC_IN Power In
B3 RS-485 Interface G Grounding
B4 485- Card Reader 485-
B5 485+ Card Reader 485+
B6~B13	Alarm Output	COM4 Alarm Relay 4Output	(Dry Contact)
		NO/NC4
		COM3 Alarm Relay 3 Output	(Dry Contact)
		NO/NC3
		COM2 Alarm Relay 2 Output	(Dry Contact)
		NO/NC2
		COM1 Alarm Relay 1 Output	(Dry Contact)
		NO/NC1
C1 Event In	C4 Event In 4
C2 G Grounding
C3 C3 Event In 3
C4 Tamper C2 Reserved
C5 G Grounding
C6 C1 Tamper
C7 Event In C6 Event In 6
C8 G Grounding
C9 C5 Event In 5
C10~C15 Lock 1 NC Lock	Relay Output (Dry)		Contact)
		COM
		NO
		B Exit Button In
		G Grounding
		S Door Contact

i Note

- RS-485 card reader ID should be set as 1 to 2. The table displayed below shows the relationship between the door No. and the ID.

Door No. RS-485 Card	d Reader ID Description
Door 1 1	Enter
	2	Exit

- For single-door access controller, the Wiegand card reader and door's relationship is as follows by default.

Door No.	Wiegand Card Reader	Description
Door 1 1	Enter
	2	Exit

4.2 Two-Door Access Controller Terminal Description

You can view the two-door access controller's terminal description.

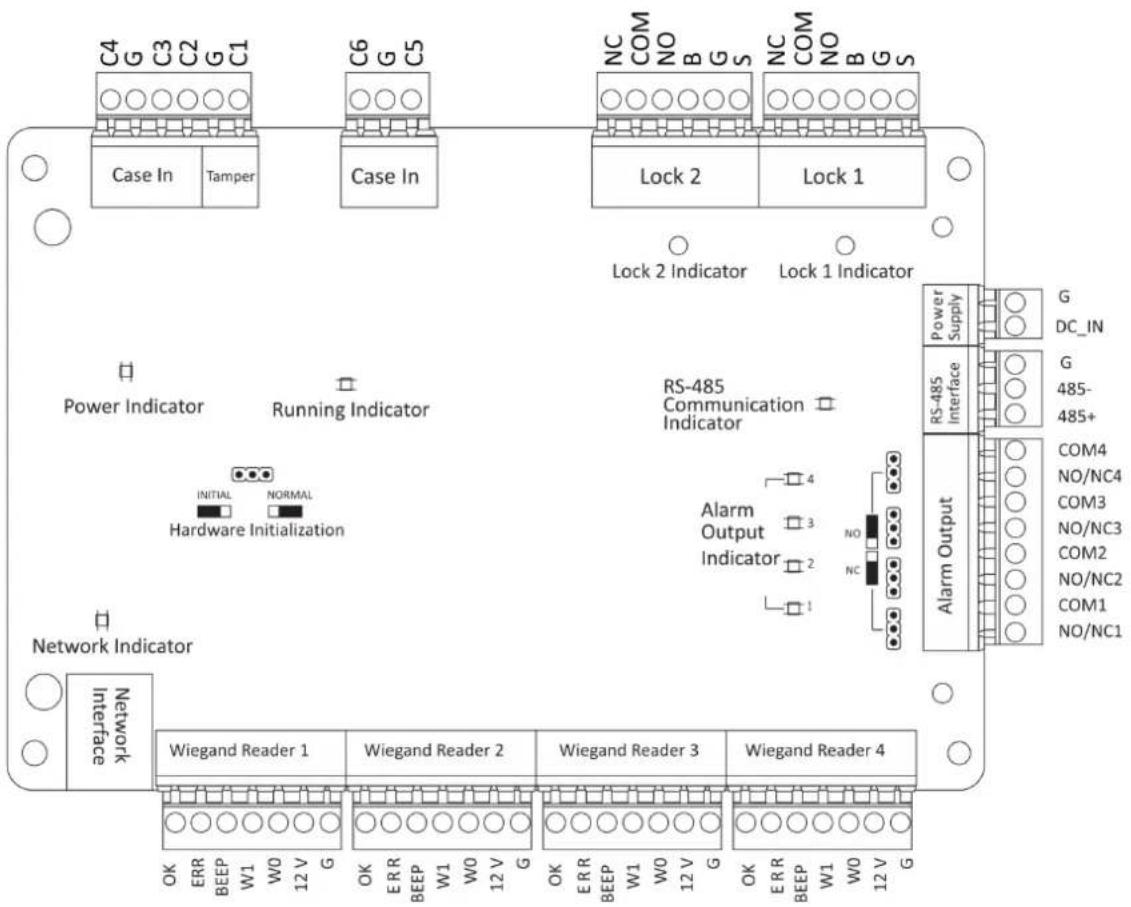

Figure 4-2 Two-Door Access Controller Main Board

Table 4-2 Two-Door Access Controller TerminalDescription

No. Four-Door Access Controller
A1~A28 Wiegand Reader	1~4 OK Indicator of Card		Reader Control Output(Valid Card Output)
		ERR Indicator of Card	Reader Control Output(Invalid Card Output)
		BEEP Card Reader Buzzer	Control Output
		W1 Wiegand Card Reader	Data Input Data1
		W0 Wiegand Card Reader	Data Input Data0
		12 V Wiegand Card Reader	Data Input Data0
		G Grounding
B1 Power Supply G Grounding
B2 DC_IN Power In
B3 RS-485 Interface G Grounding
B4 485- Card Reader 485-
B5 485+ Card Reader 485+
B6~B13 Alarm Output COM4 Alarm Relay 4Output			(Dry Contact)
		NO/NC4
		COM3 Alarm Relay 3 Output	(Dry Contact)
		NO/NC3
		COM2 Alarm Relay 2 Output	(Dry Contact)
		NO/NC2
		COM1 Alarm Relay 1 Output	(Dry Contact)
		NO/NC1
C1 Event In C4 Event In 4
C2 G Grounding
C3 C3 Event In 3
C4 Tamper	C2 Reserved
C5 G Grounding
C6 C1 Tamper
C7 Event In C6 Event In 6
C8 G Grounding
C9 C5 Event In 5
C10~C21	Lock 1~Lock 2	NC	Lock Relay Output (Dry Contact)
		COM
		NO
		B Exit Button In
		G Grounding
		S Door Contact

i Note

• RS-485 card reader ID should be set as 1 to 8.

Door No. RS-485 Card Reader ID Description
Door 1 1 Enter
	2 Exit
Door 2 3 Enter
	4 Exit

- For two-door access controller, the Wiegand card reader and door's relationship is as follows by default.

Door No. Wiegand Card Reader Description
Door 1 1 Enter
	2 Exit
Door 2 3 Enter
	4 Exit

4.3 Four-Door Access Controller Terminal Description

You can view the four-door access controller's terminal description.

Figure 4-3 Four-Door Access Controller Main Board

Table 4-3 Four-Door Access Controller TerminalDescription

No. Four-Door Access Controller
A1~A28 Wiegand Reader	1~4 OK Indicator of Card		Reader Control Output(Valid Card Output)
		ERR Indicator of Card	Reader Control Output(Invalid Card Output)
		BEEP Card Reader Buzzer	Control Output
		W1 Wiegand Card Reader	Data Input Data1
		W0 Wiegand Card Reader	Data Input Data0
		12 V Wiegand Card Reader	Data Input Data0
		G Grounding
B1 Power Supply G Grounding
B2 DC_IN Power In
B3 RS-485 Interface G Grounding
B4 485- Card Reader 485-
B5 485+ Card Reader 485+
B6~B13 Alarm Output COM4 Alarm Relay 4Output			(Dry Contact)
		NO/NC4
		COM3 Alarm Relay 3 Output	(Dry Contact)
		NO/NC3
		COM2 Alarm Relay 2 Output	(Dry Contact)
		NO/NC2
		COM1 Alarm Relay 1 Output	(Dry Contact)
		NO/NC1
C1 Event In C4 Event In 4
C2 G Grounding
C3 C3 Event In 3
C4 Tamper	C2 Reserved
C5 G Grounding
C6 C1 Tamper
C7~C30	Lock 1~4	NC	Lock Relay Output (Dry Contact)
		COM
		NO
		B	Exit Button In
		G Grounding
		S Door Contact

i Note

• RS-485 card ID should be set as 1 to 8.

Door No. RS-485 Card Reader ID Description
Door 1 1 Enter
	2 Exit
Door 2 3 Enter
	4 Exit
Door 3 5 Enter
	6 Exit
Door4 7 Enter
	8 Exit

- For four-door access controller, the Wiegand card reader and door's relationship is as follows by default.

Door No. Wiegand Card Reader Description
Door 1 1 Enter
	/ Exit
Door 2 2 Enter
	/ Exit
Door 3 3 Enter
	/ Exit
Door 4 4 Enter
	/ Exit

Chapter 5 Installation

5.1 Wall Mounting

The access controller can be installed on the wall.

Steps

1.

In the process of installing, after routing the cable through the knockout, the knockout should be sealed with flame-retardant clay or a plug that achieves the rating of V-1.

Open and take off the case door.

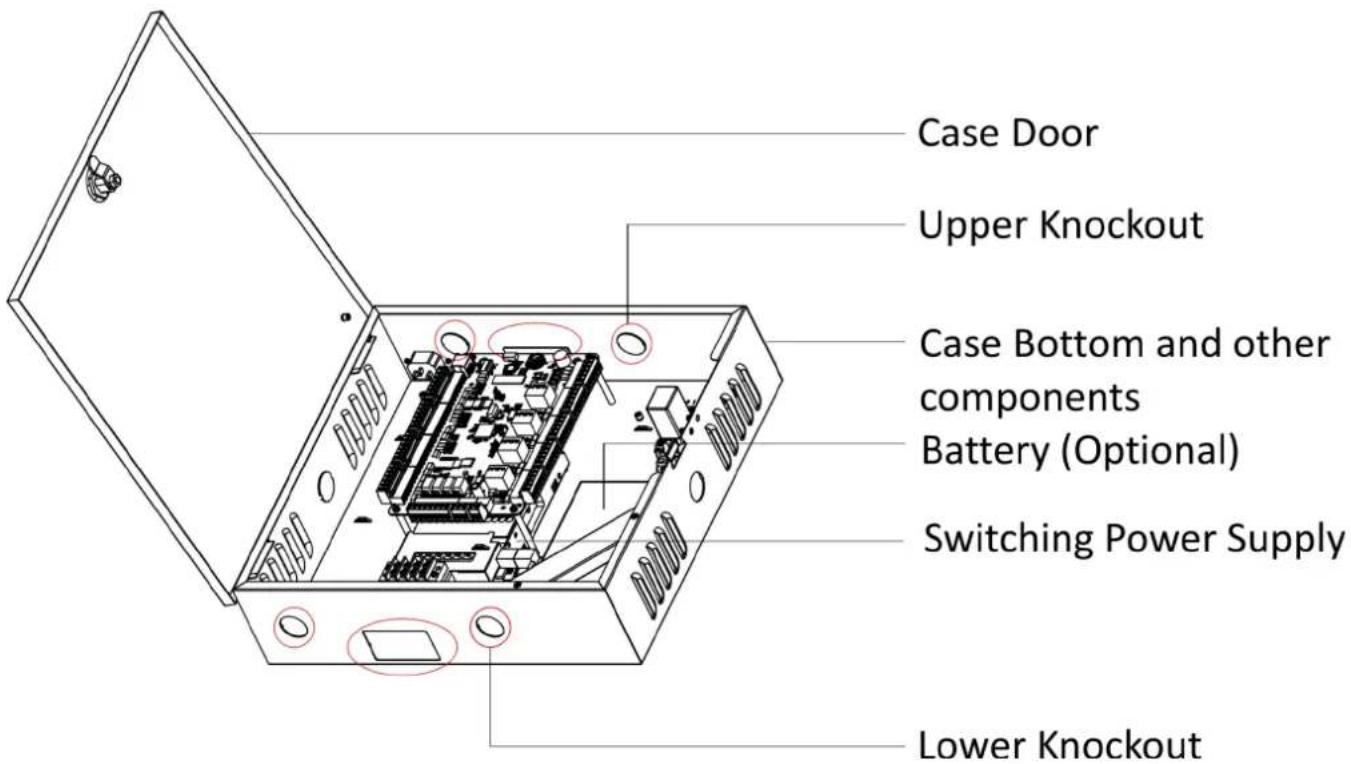

Figure 5-1 Open the case door

1. Secure the device on the wall with expansion screws.

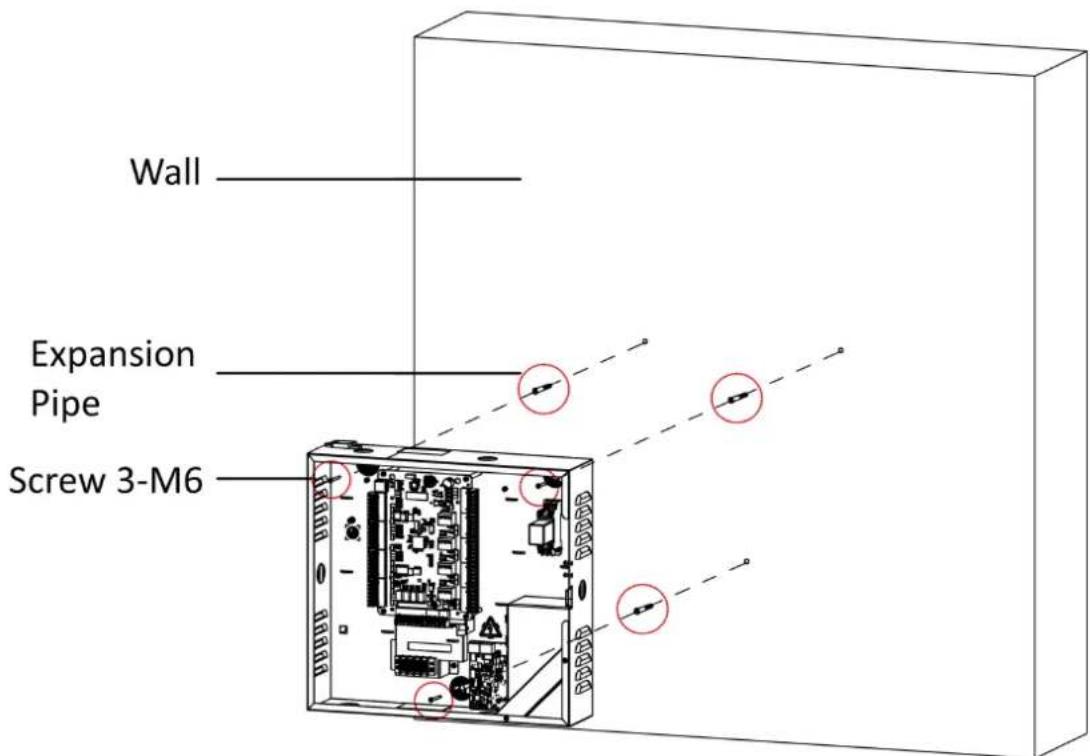

Figure 5-2 Secure the device

1. After wiring, recover the case door and bottom.

Note

When wiring, you can open knockouts to your actual needs.

Chapter 6 Terminal Wiring

Terminal Wiring Description of the Access Controller.

6.1 Main Board Wiring

You can view the main board wiring diagram.


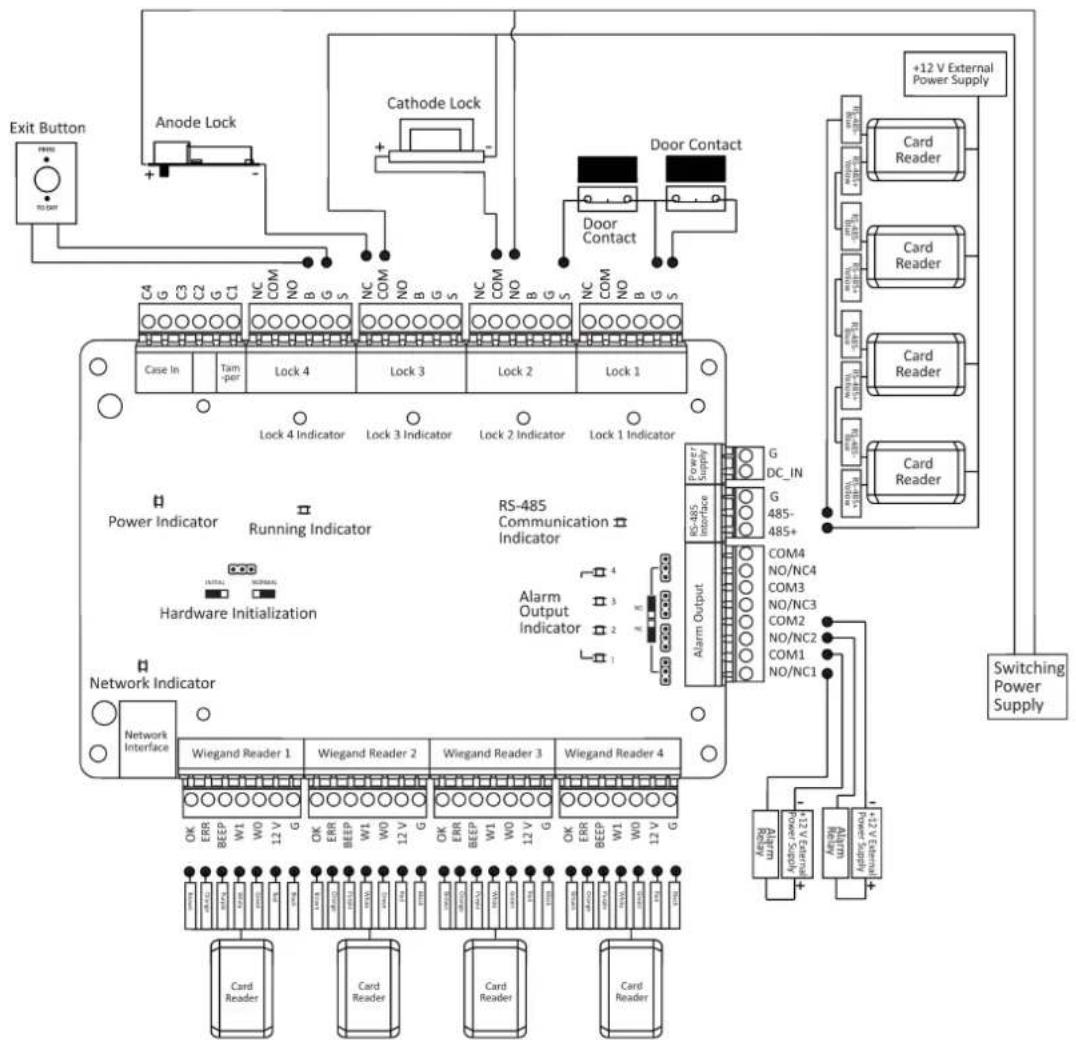

Figure 6-1 Access Controller Main Board Wiring

6.2 Wiegand Card Reader Wiring

You can view the Wiegand card reader wiring diagram.

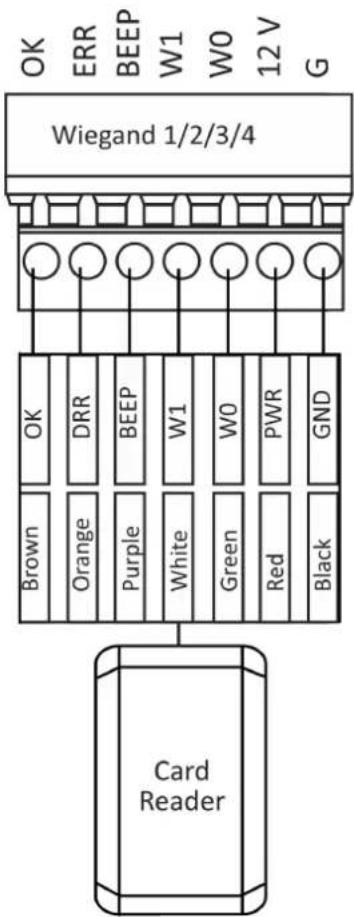

Figure 6-2 Wiegand Card Reader Wiring Diagram

Note

You must connect the OK/ERR/BZ, if using access controller to control the LED and buzzer of the Wiegand card reader.

6.3 RS-485 Card Reader Wiring

You can view the RS-485 card reader wiring diagram.

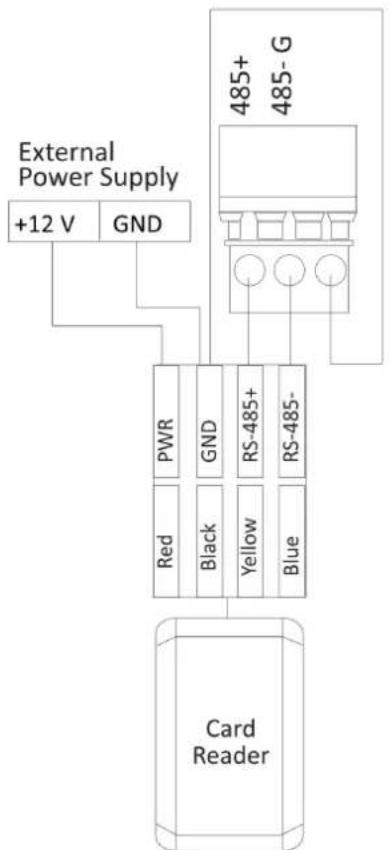

Figure 6-3 RS-485 Card Reader Wiring Diagram

Note

If the card reader is installed too far away from the access controller, you can use an external power supply.

6.4 Cathode Lock Wiring

You can view the cathode lock wiring diagram.

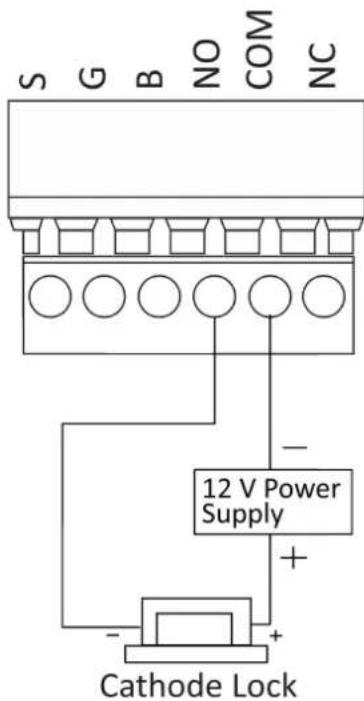

Figure 6-4 Wiring Diagram of Cathode Lock

6.5 Anode Lock Wiring

You can view the anode lock wiring diagram.

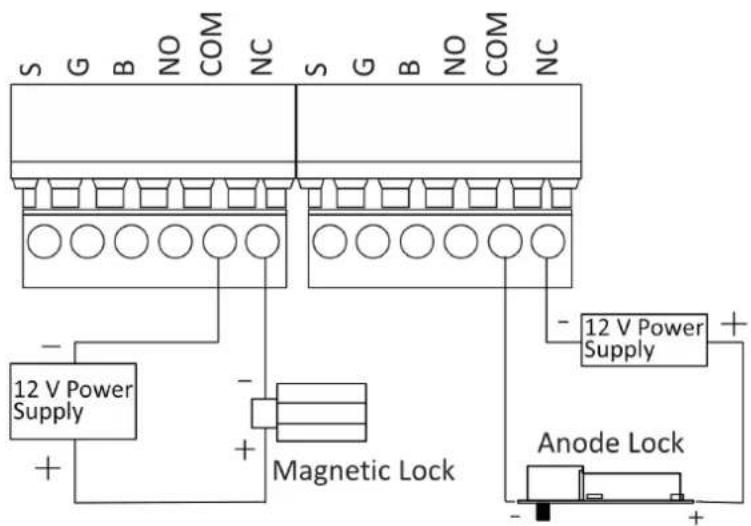

Figure 6-5 Wiring Diagram of Anode Lock

6.6 Alarm Output Wiring

You can view the Alarm Output Wiring diagram.

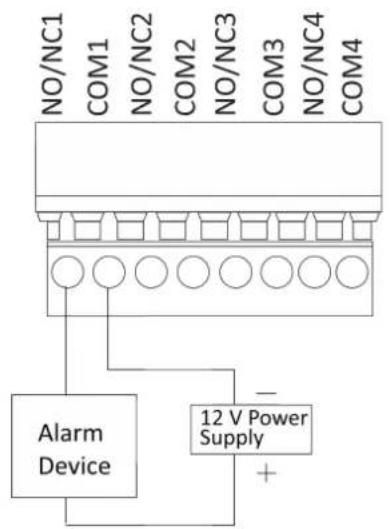

Figure 6-6 Alarm Output Wiring

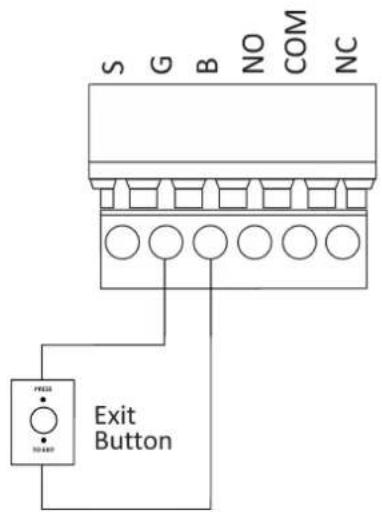

6.7 Exit Button Wiring

You can view the exit button wiring diagram

Figure 6-7 Exit Button Wiring

6.8 Door Contact Wiring

You can view the door contact wiring diagram.

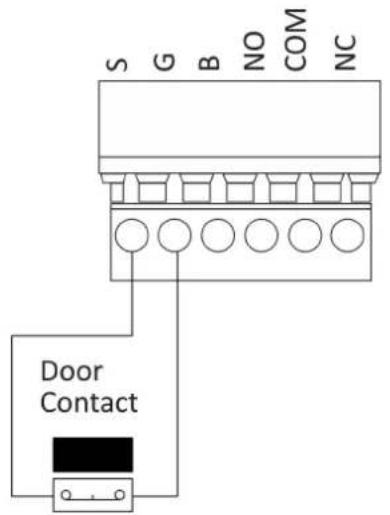

Figure 6-8 Door Contact Wiring

6.9 Power Supply Wiring

You can view the power supply wiring diagram.

Figure 6-9 Power Supply Wiring

Chapter 7 Settings

7.1 Initialization (Option 1)

You can initialize the device with the jumper cap.

Steps

1. Remove the jumper cap from the Normal terminal.
2. Cut off the power and restart the access controller.
   The controller buzzer buzzes a long beep.
3. When the beep stopped, plug the jumper cap back to Normal.
4. Cut off the power and restart the access controller.

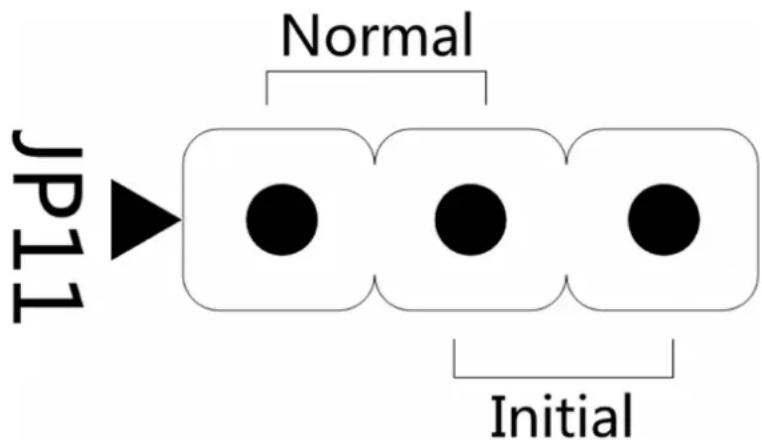

    note right of B "Normal"
    note left of A "Initial"

Figure 7-1 Initialization Jumper

Note

The device initialization will restore all the parameters to the default settings and all the device event logs will be deleted.

7.2 Initialization (Option 2)

You can initialize the device with the jumper cap.

Steps

1. Move the jumper cap from Normal to Initial.
2. Cut off the power and restart the access controller.
   The controller buzzer buzzes a long beep.
3. When the beep stopped, move the jumper cap back to Normal.
4. Cut off the power and restart the access controller.
        B
        C
        D
    end
    subgraph Initial
        D
    end

Figure 7-2 Initialization Jumper

Note

The device initialization will restore all the parameters to the default settings and all the device event logs will be deleted.

7.3 Relay Output NO/NC Settings

7.3.1 Lock Relay Output Settings

You can view the NO/NC status of the lock relay.

Lock Relay NO Status


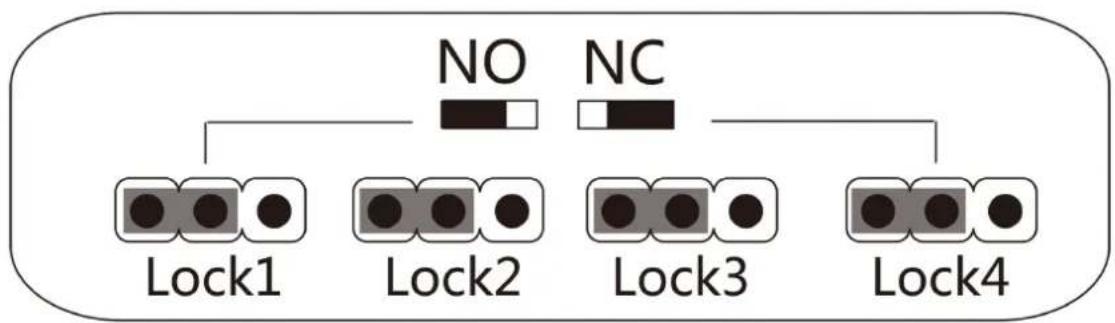

Figure 7-3 NO Status

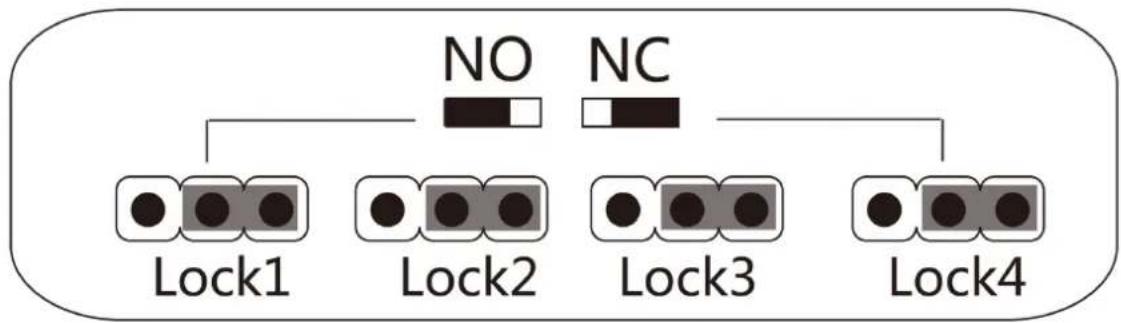

Lock Relay NC Status

Figure 7-4 NC Status

7.3.2 Alarm Relay Output Settings

You can view the NO/NC status of the alarm relay.

Alarm Relay Output NO Status


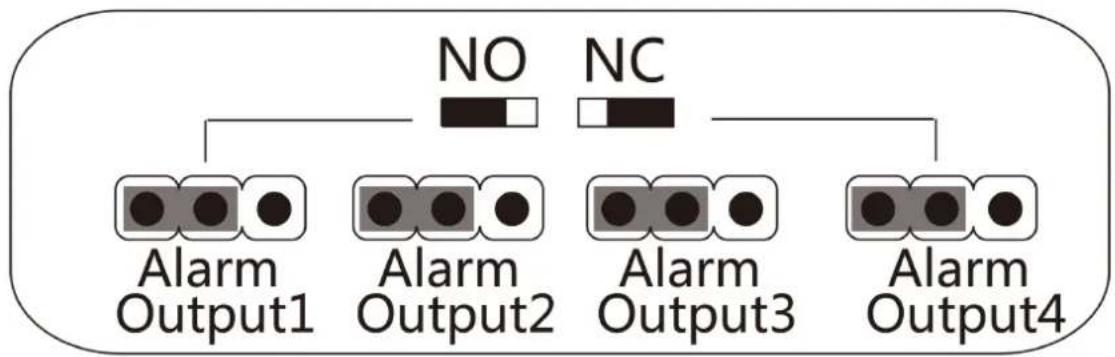

Figure 7-5 NO Status

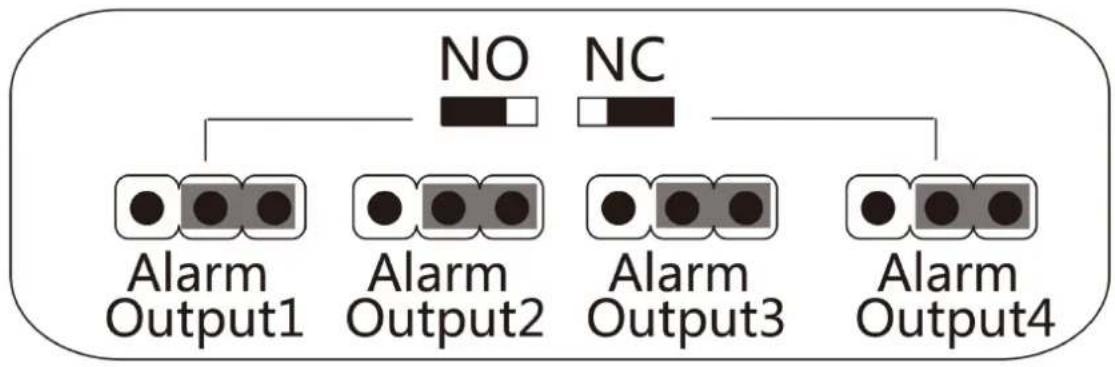

Alarm Relay Output NC Status

Figure 7-6 NC Status

Chapter 8 Activation

You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page.

Activation via the device, SADP tool and the client software are supported.

The default values of the device are as follows:

• The default IP address: 192.0.0.64
• The default port No.: 8000
• The default user name: admin

8.1 Activate via SADP

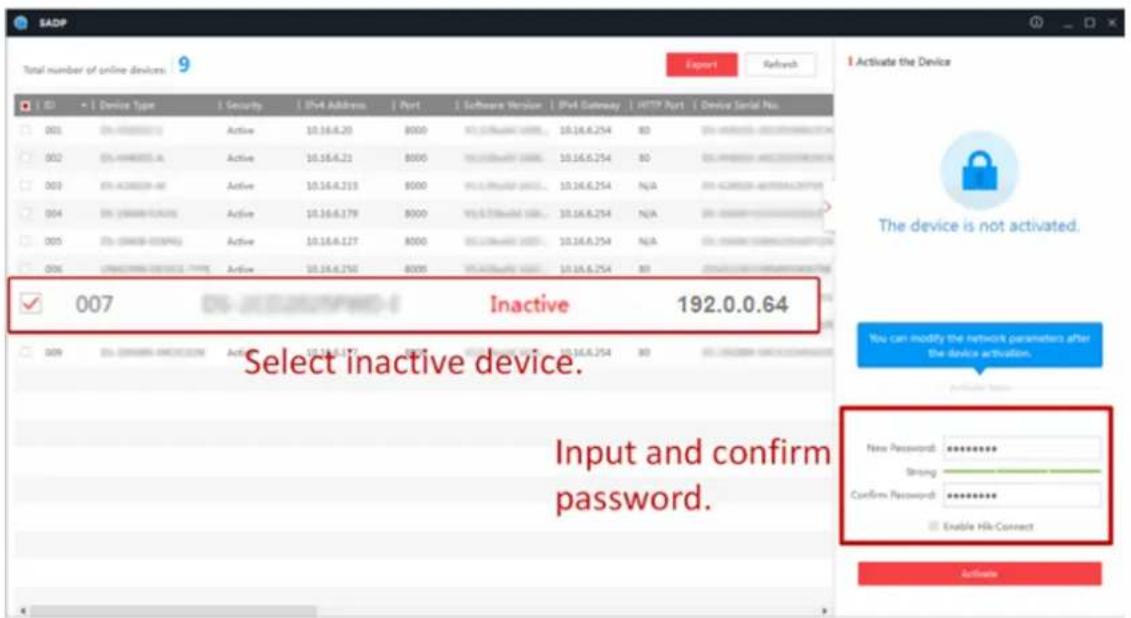

SADP is a tool to detect, activate and modify the IP address of the device over the LAN.

Before You Start

• Get the SADP software from the supplied disk or the official website http://www.hikvision.com/en/, and install the SADP according to the prompts.
• The device and the PC that runs the SADP tool should be within the same subnet.

The following steps show how to activate a device and modify its IP address. For batch activation and IP addresses modification, refer to User Manual of SADP for details.

Steps

1. Run the SADP software and search the online devices.
2. Find and select your device in online device list.
3. Input new password (admin password) and confirm the password.

Caution

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Note

Characters containing admin and nimda are not supported to be set as activation password.

1. Click Activate to start activation.

Status of the device becomes Active after successful activation.

1. Modify IP address of the device.

1) Select the device.
2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP.
3) Input the admin password and click Modify to activate your IP address modification.

8.2 Activate Device via Client Software

For some devices, you are required to create the password to activate them before they can be added to the software and work properly.

Steps

Note

This function should be supported by the device.

1. Enter the Device Management page.
2. Click ▼ on the right of Device Management and select Device.
3. Click Online Device to show the online device area.
   The searched online devices are displayed in the list.
4. Check the device status (shown on Security Level column) and select an inactive device.
5. Click Activate to open the Activation dialog.
6. Create a password in the password field, and confirm the password.

Caution

The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Note

Characters containing admin and nimda are not supported to be set as activation password.

1. Click OK to activate the device.

Chapter 9 Client Software Configuration

You can call the hotline to get the iVMS-4200 client software installation package.

9.1 Configuration Flow of Client Software

Follow the flow diagram below to configure on the client software.


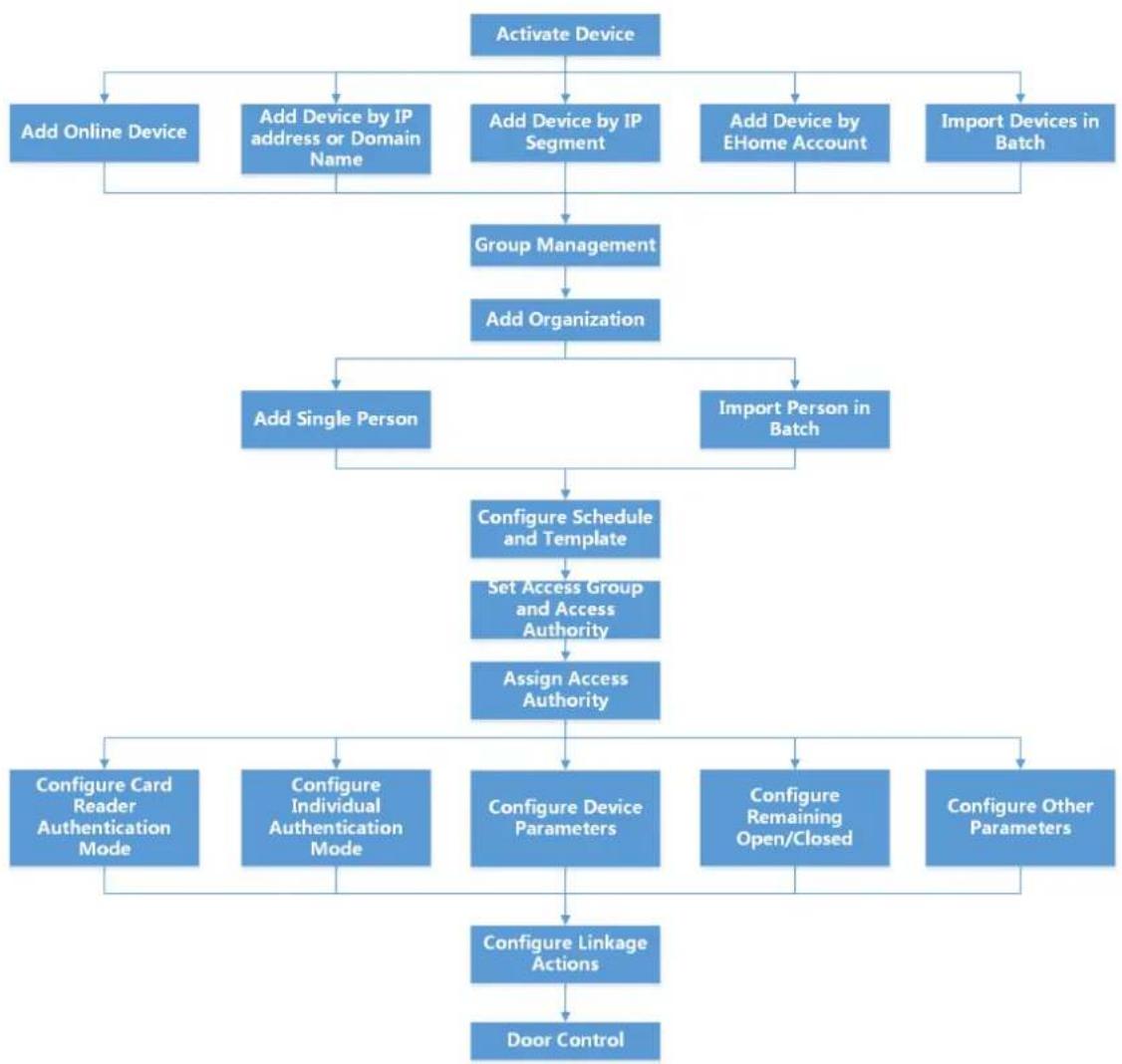

Figure 9-1 Flow Diagram of Configuration on Client Software

9.2 Device Management

The client supports managing access control devices and video intercom devices.

Example

You can control entrance & exit and manage attendance after adding access control devices to the client; you can perform video intercom with the indoor stations and door stations.

9.2.1 Add Device

After running the client, devices should be added to the client for the remote configuration and management.

After adding device(s), you can select a device and click Remote Configuration to configure further parameters of the selected device if needed. You can also

i Note

For some models of devices, you can open its general or advanced parameters configuration window. To open the original remote configuration window, press CTRL and click Remote Configuration.

After adding access control devices, you can select access control device from the list and click Device Status to view the device status.

Add Device by IP Address or Domain Name

You can add device by IP address or domain name.

Perform this task if you need to add device by IP address or domain name.

Steps

1. Open the Device Management module.
2. Click Device tab and select Hikvision Device as the device type.
3. Click Add to open the Add window.
4. Select IP/Domain as the adding mode.
5. Input the required information, including nickname, IP address, port number, user name, and password.

Address

Input the device IP address or domain name.

Port

Input the device port No. The default value is 8000.

User Name

Input the device user name. By default, the user name is admin.

Password

Input the device password.

Caution

The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

1. Optional: Check Synchronize Device Time to synchronize the device time with the PC running the client after adding the device to the client.

2. Optional: Check Export to Group to create a group by the device name.

Note

You can import all the channels of the device to the corresponding group by default.

1. Optional: Add the offline devices.

1) Check Add Offline Device.
2) Input the required information, including the device channel number and alarm input number.
3) Click Add.

When the offline device comes online, the software will connect it automatically.

1. Click Add to add the device.

Import Devices in a Batch

The devices can be added to the software in batch by inputting the device information in the pre-defined CSV file.

Perform this task to import devices in a batch.

Steps

1. Enter the Device Management page
2. Click Device → Hikvision Device → Add to open the adding device window.
3. Select Batch Import as the adding mode.
4. Click Export Template and then save the pre-defined template (CSV file) on your PC.
5. Open the exported template file and input the required information of the devices to be added on the corresponding column.

Adding Mode

You can input 0, 2, 3, 4, 5, or 6 which indicated different adding modes. 0 indicates that the device is added by IP address or domain name; 2 indicates that the device is added via IP server; 3 indicates that the device is added via HiDDNS; 4 indicates that the device is added via EHome protocol; 5 indicates that the device is added by serial port; 6 indicates that the device is added via Hik-Connect.

Address

Edit the address of the device. If you set 0 as the adding mode, you should input the IP address or domain name of the device; if you set 2 as the adding mode, you should input the IP address of the PC that installs the IP Server; if you set 3 as the adding mode, you should input www.hik-online.com.

Port

Input the device port No. The default value is 8000.

Device Information

If you set 0 as the adding mode, this field is not required; if you set 2 as the adding mode, input the device ID registered on the IP Server; if you set 3 as the adding mode, input the device domain name registered on HiDDNS server; if you set 4 as the adding mode, input the EHome account; if you set 6 as the adding mode, input the device serial No.

User Name

Input the device user name. By default, the user name is admin.

Password

Input the device password.

Caution

The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

Add Offline Device

You can input 1 to enable adding the offline device, and then the software will automatically connect it when the offline device comes online. 0 indicates disabling this function.

Export to Group

You can input 1 to create a group by the device name (nickname). All the channels of the device will be imported to the corresponding group by default. 0 indicates disabling this function.

Channel Number

If you set 1 for Add Offline Device, input the channel number of the device. If you set 0 for Add Offline Device, this field is not required.

Alarm Input Number

If you set 1 for Add Offline Device, input the alarm input number of the device. If you set 0 for Add Offline Device, this field is not required.

Serial Port No.

If you set 5 as the adding mode, input the serial port No. for the access control device.

Baud Rate

If you set 5 as the adding mode, input the baud rate of the access control device.

DIP

If you set 5 as the adding mode, input the DIP address of the access control device.

Hik-Connect Account

If you set 6 as the adding mode, input the Hik-Connect account.

Hik-Connect Password

If you set 6 as the adding mode, input the Hik-Connect account password.

1. Click ... and select the template file.
2. Click Add to import the devices.

9.2.2 Reset Device Password

If you forgot the password of the detected online devices, you can reset the device password via the client.

Steps

1. Enter Device Management page.
2. Click Online Device to show the online device area.

All the online devices sharing the same subnet will be displayed in the list.

1. Select the device from the list and click P on the Operation column.
2. Reset the device password.

- Click Generate to pop up the QR Code window and click Download to save the QR code to your PC. You can also take a photo of the QR code to save it to your phone. Send the picture to our technical support.

For the following operations for resetting the password, contact our technical support.

Caution

The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

9.2.3 Manage Added Devices

After adding devices to device list, you can manage the added devices including editing device parameters, remote configuration, viewing device status, etc.

Table 9-1 Manage Added Devices

Edit Device	Click ☑ to edit device information including device name, address, user name, password, etc.
Delete Device	Check one or more devices, and click Delete to delete the selected devices.
Remote Configuration	On the device list page, click 🔺 in the Operation column to perform remote configuration for a device. The 🔺 is in the rightmost column of the Device page. For details, refer to the user manual of device.
View Device Status Click	to view device status, including door No., door status, etc. NoteFor different devices, you will view different information about device status.
View Online User Click	to view the details of online user who access the device, including user name, user type, IP address and login time.
Refresh Device Information	Click ☑ to refresh and get the latest device information.
Upgrade Device View device status in the Firmware Upgrade column, check one or more upgradable devices, and click Upgrade Device Firmware to upgrade the selected devices. For details, refer to .
Get Events from Device	Check one device, and click Get Events from Device to synchronize events. For details, refer to .
Export Device Click Export Device, set the saving path and select device type to export the device details (such as device type, IP address, and port No.) to your local PC. NoteThe super user can enable Password Protection and enter the password, then the exported file of device information will be encrypted.

9.3 Group Management

The client provides groups to manage the added resources in different groups. You can group the resources into different groups according to the resources' locations.

Example

For example, on the 1st floor, there mounted 16 doors, 64 alarm inputs, and 16 alarm outputs. You can organize these resources into one group (named 1st Floor) for convenient management. You can control door status, and do some other operations of the devices after managing the resources by groups.

9.3.1 Add Group

You can add group to organize the added device for convenient management.

Steps

1. Enter the Device Management module.
2. Click Device Management → Group to enter the group management page.

3. Create a group.

4. Click Add Group and enter a group name as you want.

5. Click Create Group by Device Name and select an added device to create a new group by the name of the selected device.

Note

The resources (such as alarm inputs/outputs, access points, etc.) of this device will be imported to the group by default.

9.3.2 Import Resources to Group

You can import the device resources (such as alarm inputs/outputs, access points, etc.) to the added group in a batch.

Before You Start

Add a group for managing devices. Refer to Add Group.

Steps

1. Enter the Device Management module.
2. Click Device Management → Group to enter the group management page.
3. Select a group from the group list and select the resource type as Access Point, Alarm Input, Alarm Output, etc.
4. Click Import.
5. Select the thumbnails/names of the resources in the thumbnail/list view.

You can click or to switch the resource display mode to thumbnail view or to list view.

1. Click Import to import the selected resources to the group.

9.4 Person Management

You can add person information to the system for further operations such as access control, video intercom, time and attendance, etc. You can manage the added persons such as issuing cards to them in a batch, importing and exporting person information in a batch, etc.

9.4.1 Add Organization

You can add an organization and import person information to the organization for effective management of the persons. You can also add a turbodinate organization for the added one.

Steps

1. Enter Person module.
2. Select a parent organization in the left column and click Add in the upper-left corner to add an organization.
3. Create a name for the added organization.

Up to 10 levels of organizations can be added.

1. Optional: Perform the following operation(s).

Edit Organization Hover the mouse on an added organization and click 📄 to edit its name.

Delete Organization

Hover the mouse on an added organization and click ✗ to delete it.

• The lower-level organizations will be deleted as well if you delete an organization.
• Make sure there is no person added under the organization, or the organization cannot be deleted.

Show Persons in Sub Organization

Check Show Persons in Sub Organization and select an organization to show persons in its sub organizations.

9.4.2 Import and Export Person Identify Information

You can import the information of multiple persons to the client software in a batch. Meanwhile, you can also export the person information and save them in your PC.

Import Person Information

You can import the information of multiple persons (including identity information, fingerprint data, and fingerprint linked card number) to the client software in a batch by importing an Excel file from the local PC.

Perform this task when you need to import the person information to the client in a batch.

Steps

1. Enter Access Control → Person and Card.
2. Click Import Persons and select Person Information as the content to import.
3. In the pop-up window, click Download Template for Importing Person to download the template first.
4. Input the person information in the downloaded template.

f1 to f10

The person's fingerprint data.

f1card to f10card

The fingerprint's linked card number. If it links to no card, leave it empty.

If the person has multiple cards, separate the card No. with semicolon.

1. Enter Access Control → Person and Card, click Import Person and select the Excel file with person information.
2. Click OK to start importing.

Note

If the person No. already exists in the client software's database, it will replace the person information automatically after importing.

Import Person Pictures

After importing face pictures for the added persons to the client, the persons in the pictures can be identified by an added face recognition terminal. You can either import person pictures one by one, or import multiple pictures at a time according to your need.

Before You Start

Be sure to have imported person information to the client beforehand.

Steps

1. Enter the Person module.
2. Select an added organization in the list, or click Add in the upper-left corner to add an organization and then select it.
3. Click Import to open the Import panel and check Face.
4. Optional: Enable Verify by Device to check whether face recognition device managed in the client can recognize the face in the photo.
5. Click ... to select a face picture file.

Note

• The (folder of) face pictures should be in ZIP format.
  • Each picture file should be in JPG format and should be no larger than 200 KB.

• Each picture file should be named as "Person ID_Name". The Person ID should be the same with that of the imported person information.

• Click Import to start importing.

The importing progress and result will be displayed.

Export Person Information

You can export the added persons' information to the local PC in an Excel file.

Perform this task when you need to export the added person information in a batch.

Steps

1. Enter Access Control → Person and Card module.
2. Click Export Person and select Person Information as the content to export.
3. Select the path for saving the exported Excel file.
4. Select the items of person information to export.
5. Click OK to start exporting.

f1 to f10

The person's fingerprint data.

f1card to f10card

The fingerprint's linked card number. If it links to no card, leave it empty.

Export Person Pictures

You can export face picture file of the added persons and save in your PC.

Before You Start

• Make sure you have added persons and their face pictures to an organization.
- Make sure you have enabled the Export Person Information function to display the Export button. See for details.

Steps

1. Enter the Person module.
2. Optional: Select an organization in the list.

Note

All persons' face pictures will be exported if you do not select any organization.

1. Click Export on the top menu bar.

2. Enter the super user name and password for verification.

The Export panel is displayed.

1. Check Face as the content to export.

2. Click Export and set an encryption key to encrypt the exported file.

Note

• The exported file is in ZIP format.
- The exported face picture is named as "Person ID_Name_0" ("0" is for a full-frontal face).

9.4.3 Get Person Information from Access Control Device

If the access control device has been configured with person information (including person details, fingerprint, and issued card information), you can get the person information from the added device and import them to the client for further operations.

Steps

Note

• If the person name stored in the device is empty, the person name will be filled with the issued card No. after importing to the client.

• If the card number or person ID (employee ID) stored on the device already exists in the client database, the person with this card number or person ID will not be imported to the client.

• Enter Person module.

• Select an organization to import the persons.
• Click Get from Device.
• Select an added access control device or the enrollment station from the drop-down list.

Note

If you select the enrollment station, you should click Login, and enter IP address, port No., user name and password of the device.

1. Select the Getting Mode.

Note

The getting mode varies according to different devices. The access control device supports getting the person information by employee ID. Up to 5 employee IDs can be specified each time.

1. Click Import to start importing the person information to the client.

Note

Up to 2,000 persons and 5,000 cards can be imported.

The person information, including person details, person's fingerprint information (if configured), and the linked cards (if configured), will be imported to the selected organization.

9.4.4 Issue Cards to Persons in Batch

The client provides a convenient way to issue cards to multiple persons in a batch.

Steps

1. Enter Person module.
2. Click Batch Issue Cards.
   All the added persons with no card issued will display.
3. Set the card issuing parameters. For details, refer to Set Card Issuing Parameters.
4. Click Initialize to initialize the card enrollment station or card reader to make it ready for issuing cards.
5. Click the card number column and enter the card number.

6. Place the card on the card enrollment station.

7. Swipe the card on the card reader.

8. Enter the card number manually and press Enter key on your keyboard.

The card number will be read automatically and the card will be issued to the person in the list.

1. Repeat the above step to issue the cards to the persons in the list in sequence.

9.4.5 Report Card Loss

If the person lost his/her card, you can report the card loss so that the card's related access authorization will be inactive.

Steps

1. Enter Person module.
2. Select the person you want to report card loss for and click Edit to open the Edit Person window.
3. In the Credential → Card panel, click 📄 on the added card to set this card as lost card.

After reporting card loss, the access authorization of this card will be invalid and inactive. Other person who gets this card cannot access the doors by swiping this lost card.

1. Optional: If the lost card is found, you can click 📄 to cancel the loss.

After cancelling card loss, the access authorization of the person will be valid and active.

1. If the lost card is added in one access group and the access group is applied to the device already, after reporting card loss or cancelling card loss, a window will pop up to notify you to apply the changes to the device. After applying to device, these changes can take effect on the device.

9.4.6 Set Card Issuing Parameters

The client provides two modes for reading a card's number: via card enrollment station or via the card reader of the access control device. If a card enrollment station is available, connect it to the PC running the client by USB interface or COM, and place the card on the card enrollment to read the card number. If not, you can also swipe the card on the card reader of the added access control device to get the card number. As a result, before issuing a card to one person, you need to set the card issuing parameters including the issuing mode and related parameters.

When adding a card to one person, click Settings to open the Card Issuing Settings window.

Local Mode: Issue Card by Card Enrollment Station

Connect a card enrollment station to the PC running the client. You can place the card on the card enrollment station to get the card number.

Card Enrollment Station

Select the model of the connected card enrollment station

Note

Currently, the supported card enrollment station models include DS-K1F100-D8, DS-K1F100-M, DS-K1F100-D8E, and DS-K1F180-D8E.

Card Type

This field is only available when the model is DS-K1F100-D8E or DS-K1F180-D8E.

Select the card type as EM card or IC card according to the actual card type.

Serial Port

It is only available when the model is DS-K1F100-M.

Select the COM the card enrollment station connects to.

Buzzing

Enable or disable the buzzing when the card number is read successfully.

Card No. Type

Select the type of the card number according to actual needs.

M1 Card Encryption

This field is only available when the model is DS-K1F100-D8, DS-K1F100-D8E, or DS-K1F180-D8E. If the card is M1 card, and if you need to enable the M1 Card Encryption function, you should enable this function and select the sector of the card to encrypt.

Remote Mode: Issue Card by Card Reader

Select an access control device added in the client and swipe the card on its card reader to read the card number.

9.5 Configure Schedule and Template

You can configure the template including holiday and week schedule. After setting the template, you can adopt the configured template to access groups when setting the access groups, so that the access group will take effect in the time durations of the template.

Note

For access group settings, refer to Set Access Group to Assign Access Authorization to Persons.

9.5.1 Add Holiday

You can create holidays and set the days in the holidays, including start date, end date, and holiday duration in one day.

Steps

i Note

You can add up to 64 holidays in the software system.

1. Click Access Control → Schedule → Holiday to enter the Holiday page.
2. Click Add on the left panel.
3. Create a name for the holiday.
4. Optional: Enter the descriptions or some notifications of this holiday in the Remark box.
5. Add a holiday period to the holiday list and configure the holiday duration.

i Note

Up to 16 holiday periods can be added to one holiday.

1) Click Add in the Holiday List field.
2) Drag the cursor to draw the time duration, which means in that duration of time, the configured access group is activated.

i Note

Up to 8 time durations can be set to one holiday period.

3) Optional: Perform the following operations to edit the time durations.

• Move the cursor to the time duration and drag the time duration on the timeline bar to the desired position when the cursor turns to 📂
• Click the time duration and directly edit the start/end time in the appeared dialog.
• Move the cursor to the start or the end of time duration and drag to lengthen or shorten the time duration when the cursor turns to

4) Optional: Select the time duration(s) that need to be deleted, and then click ✗ in the Operation column to delete the selected time duration(s).
5) Optional: Click ☐ in the Operation column to clear all the time duration(s) in the time bar.
6) Optional: Click ✗ in the Operation column to delete this added holiday period from the holiday list.

1. Click Save.

9.5.2 Add Template

Template includes week schedule and holiday. You can set week schedule and assign the time duration of access authorization for different person or group. You can also select the added holiday(s) for the template.

Steps

i Note

You can add up to 255 templates in the software system.

1. Click Access Control → Schedule → Template to enter the Template page.

Note

There are two default templates: All-Day Authorized and All-Day Denied, and they cannot be edited or deleted.

All-Day Authorized

The access authorization is valid in each day of the week and it has no holiday.

All-Day Denied

The access authorization is invalid in each day of the week and it has no holiday.

1. Click Add on the left panel to create a new template.
2. Create a name for the template.
3. Enter the descriptions or some notification of this template in the Remark box.
4. Edit the week schedule to apply it to the template.

1) Click Week Schedule tab on the lower panel.
2) Select a day of the week and draw time duration(s) on the timeline bar.

Note

Up to 8 time duration(s) can be set for each day in the week schedule.

3) Optional: Perform the following operations to edit the time durations.

• Move the cursor to the time duration and drag the time duration on the timeline bar to the desired position when the cursor turns to 📂
• Click the time duration and directly edit the start/end time in the appeared dialog.
• Move the cursor to the start or the end of time duration and drag to lengthen or shorten the time duration when the cursor turns to

4) Repeat the two steps above to draw more time durations on the other days of the week.

1. Add a holiday to apply it to the template.

Note

Up to 4 holidays can be added to one template.

1) Click Holiday tab.
2) Select a holiday in the left list and it will be added to the selected list on the right panel.
3) Optional: Click Add to add a new holiday.

Note

For details about adding a holiday, refer to Add Holiday.

4) Optional: Select a selected holiday in the right list and click ✗ to remove the selected one, or click Clear to clear all the selected holiday(s) in the right list.

1. Click Save to save the settings and finish adding the template.

9.6 Set Access Group to Assign Access Authorization to Persons

After adding the person and configuring the person's credentials, you can create the access groups to define which person(s) can get access to which door(s) and then apply the access group to the access control device to take effect.

Steps

• For one person, you can add up to 4 access groups to one access control point of one device.
• You can add up to 128 access groups in total.

• When the access group settings are changed, you need to apply the access groups to the devices again to take effect. The access group changes include changes of template, access group settings, person's access group settings, and related person details (including card number, fingerprint, face picture, linkage between card number and fingerprint, linkage between card number and fingerprint, card password, card effective period, etc).

• Click Access Control → Access Group to enter the Access Group interface.

• Click Add to open the Add window.
• In the Name text field, create a name for the access group as you want.
• Select a template for the access group.

Note

You should configure the template before access group settings. Refer to Configure Schedule and Template for details.

1. In the left list of the Select Person field, select person(s) and the person(s) will be added to the selected list.
2. In the left list of the Select Door field, select door(s) or door station(s) for the selected persons to access, and the selected door(s) or door station(s) will be added to the selected list.
3. Click OK.
4. After adding the access groups, you need to apply them to the access control device to take effect.

1) Select the access group(s) to apply to the access control device.

To select multiple access groups, you can hold the Ctrl or Shift key and select access groups.

2) Click Apply All to Devices to start applying all the selected access group(s) to the access control device or door station.

Caution

• Be careful to click Apply All to Devices, since this operation will clear all the access groups of the selected devices and then apply the new access group, which may brings risk to the devices.
• You can click Apply Changes to Devices to only apply the changed part of the selected access group(s) to the device(s).

3) View the apply status in the Status column or click Applying Statusto view all the applied access group(s).

The selected persons in the applied access groups will have the authorization to enter/exit the selected doors/door stations with their linked card(s) or fingerprints.

1. Optional: Click to edit the access group if necessary.

9.7 Configure Advanced Functions

You can configure the advanced functions of access control to meet some special requirements in different scene.

i Note

• For the card related functions(the type of access control card), only the card(s) with access group applied will be listed when adding cards.
• The advanced functions should be supported by the device.
• Hover the cursor on the Advanced Function, and then Click to customize the advanced function(s) to be displayed.

9.7.1 Configure Remaining Unlocked/Locked

You can set the status of the door as unlocked or locked and set the elevator controller as free and controlled. For example, you can set the door remaining locked in the holiday, and set the door remaining unlocked in the specified period of the work day.

Before You Start

Add the access control devices to the system.

Steps

1. Click Access Control → Advanced Function → Remain Locked/Unlocked to enter the Remain Locked/Unlocked page.
2. Select the door or elevator controller that need to be configured on the left panel.
3. To set the door or elevator controller status during the work day, click the Week Schedule and perform the following operations.
   1) For door, click Remain Unlocked or Remain Locked.
   2) For elevator controller, click Free or Controlled.
   3) Drag the cursor to draw the time duration, which means in that duration of time, the configured access group is activated.

i Note

Up to 8 time durations can be set to each day in the week schedule.

4) Optional: Perform the following operations to edit the time durations.

• Move the cursor to the time duration and drag the time duration on the timeline bar to the desired position when the cursor turns to 📂
• Click the time duration and directly edit the start/end time in the appeared dialog.
• Move the cursor to the start or the end of time duration and drag to lengthen or shorten the time duration when the cursor turns to

5) Click Save.

Related Operations

Copy to Whole Week	Select one duration on the time bar, click Copy to Whole Week to copy all the duration settings on this time bar to other week days.
Delete Selected	Select one duration on the time bar, click Delete Selected to delete this duration.
Clear	Click Clear to clear all the duration settings in the week schedule.

1. To set the door status during the holiday, click the Holiday and perform the following operations.

1) Click Remain Unlocked or Remain Locked.
2) Click Add.
3) Enter the start date and end date.
4) Drag the cursor to draw the time duration, which means in that duration of time, the configured access group is activated.

Up to 8 time durations can be set to one holiday period.

5) Perform the following operations to edit the time durations.

• Move the cursor to the time duration and drag the time duration on the timeline bar to the desired position when the cursor turns to 📂
• Click the time duration and directly edit the start/end time in the appeared dialog.
• Move the cursor to the start or the end of time duration and drag to lengthen or shorten the time duration when the cursor turns to

6) Optional: Select the time duration(s) that need to be deleted, and then click ✗ in the Operation column to delete the selected time duration(s).
7) Optional: Click in the Operation column to clear all the time duration(s) in the time bar.
8) Optional: Click ✗ in the Operation column to delete this added holiday period from the holiday list.
9) Click Save.

1. Optional: Click Copy to copy the door status settings of this door to other door(s).

9.7.2 Configure Anti-Passback

You can set to only pass the access control point according to the specified path and only one person could pass the access control point after swiping the card.

Before You Start

Enable the anti-passing back function of the access control device.

Perform this task when you want to configure the anti-passing back for the access control device.

Steps

Note

Either the anti-passing back or multi-door interlocking function can be configured for an access control device at the same time. For the configuration of multi-door interlocking, refer to

Configure Multi-door Interlocking.

1. Click Access Control → Advanced Function → Anti-Passback to enter the Anti-Passpack Settings page.
2. Select an access control device on the left panel.
3. Select a card reader as the beginning of the path in the First Card Reader field.
4. Click ☑ of the selected first card reader in the Card Reader Afterward column to open the select card reader dialog.
5. Select the afterward card readers for the first card reader.

Note

Up to four afterward card readers can be added as afterward card readers for one card reader.

1. Click OK in the dialog to save the selections.

2. Click Save in the Anti-Passback Settings page to save the settings and take effect.

Example

Set Card Swiping Path

If you select Reader In_01 as the beginning, and select Reader In_02, Reader Out_04 as the linked card readers. Then you can only get through the access control point by swiping the card in the order as Reader In_01, Reader In_02 and Reader Out_04.

9.7.3 Configure Multi-door Interlocking

You can set the multi-door interlocking between multiple doors of the same access control device. To open one of the doors, other doors must keep closed. That means in the interlocking combined door group, up to one door can be opened at the same time.

Before You Start

Add access control device to the client, and make sure the device supports the multi-door interlocking function.

Steps

Note

• Multi-door Interlocking function is only supported by the access control device which has more than one access control points (doors).

• Either the anti-passing back or multi-door interlocking function can be configured for an access control device at the same time. For the configuration of anti-passing back function, refer to Configure Anti-Passback.

• Click Access Control → Advanced Function → Multi-door Interlocking.

• Select an access control device on the left panel.
• Click Add on the Multi-door Interlocking List panel to open Add Access Control Point to open the Add window.
• Select at least two access control points(doors) from the list.

Note

Up to four doors can be added in one multi-door interlocking combination.

1. Click OK to add the selected access control point(s) for interlocking.
   The configured multi-door interlocking combination will list on the Multi-door Interlocking List panel.
2. Optional: Select an added multi-door interlocking combination from the list and click Delete to delete the combination.
3. Click Apply to apply the settings to the access control device.

9.7.4 Configure First Person In

You can set multiple first persons for one access control point. After the first person is authorized, it allows multiple persons access the door or other authentication actions.

Before You Start

• Add access control device to the client, and make sure the device supports the first person in function.
• Add person and assign access authorization to designed person. For details, refer to Person Management and Set Access Group to Assign Access Authorization to Persons.

Steps

1. Click Access Control → Advanced Function → First Person In to enter the First Person In page.
2. Select an access control device in the list on the left panel.
3. Select the current mode as Enable Remaining Open after First Person, Disable Remaining Open after First Person, or Authorization by First Person from the drop-down list for each access control point of the selected device.

Enable Remaining Open after First Person

The door remains open for the configured time duration after the first person is authorized until the remain open duration ends. If you select this mode, you should set the consecutive authentication times and interval of consecutive authentication.

The remain open duration should be between 0 and 1440 minutes. By default, the remain open duration is 10 minutes.

Disable Remaining Open after First Person

Disable the function of first person in, namely normal authentication.

Authorization by First Person

All authentications (except for the authentications of super card, super password, duress card, and duress code) are allowed only after the first person authorization.

You can authenticate by the first person again to disable the first person mode.

1. Click Add on the First Person List panel.
2. Select person(s) in the left list and the person(s) will be add to the selected persons as the first person(s) of the doors.
   The added first person(s) will list in the First Person List
3. Optional: Select a first person from the list and click Delete to remove the person from the first person list.
4. Click Save.

9.7.5 Configure Multi-Factor Authentication

You can manage the persons by group and set the authentication for multiple persons of one access control point (door).

Before You Start

Set access group and apply the access group to the access control device. For details, refer to Set Access Group to Assign Access Authorization to Persons.

Perform this task when you want to set authentications for multiple cards of one access control point (door).

Steps

1. Click Access Control → Advanced Function → Multi-Factor Auth.
2. Select an access control device in device list on the left panel.
3. Add a person/card group for the access control device.

1) Click Add on the right panel.
2) Create a name for the group as desired.
3) Specify the start time and end time of the effective period for the person/card group.

4) Select members(s) and card(s) in the Available list, and the selected member(s) and card(s) will be added to the Selected list.

Make sure you have issue card to the person.

Make sure you have set access group and apply the access group to the access control device successfully.

5) Click Save.
6) Optional: Select the person/card group(s), and then click Delete to delete it(them).
7) Optional: Select the person/card group(s), and then click Apply to re-apply access group that failed to be applied previously to the access control device.

1. Select an access control point (door) of selected device on the left panel.
2. Enter the maximum interval when entering password.
3. Add an authentication group for the selected access control point.

1) Click Add on the Authentication Groups panel.
2) Select a configured template as the authentication template from the drop-down list.

For setting the template, refer to Configure Schedule and Template.

3) Select the authentication type as Local Authentication, Local Authentication and Remotely Open Door, or Local Authentication and Super Password from the drop-down list.

Local Authentication

Authentication by the access control device.

Local Authentication and Remotely Open Door

Authentication by the access control device and by the client. When the person swipes the card on the device, a window will pop up. You can unlock the door via the client.

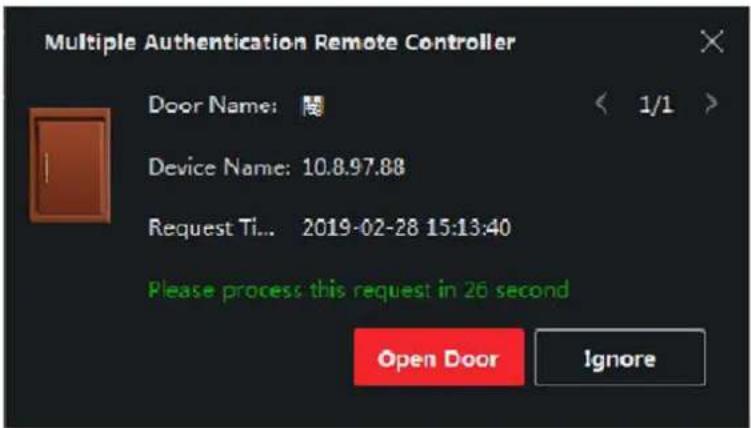

Figure 9-2 Remotely Open Door

You can check Offline Authentication to enable the super password authentication when the access control device is disconnected with the client.

Local Authentication and Super Password

Authentication by the access control device and by the super password.

4) Select the added person/card group in the left list below and it will be added to the Selected list on the right as the authentication group.
5) Click the added authentication group in the right list to set authentication times in the Auth Times column.

The authentication times should be larger than 0 and smaller than the added personnel quantity in the personnel group.

6) Click Save.

• For each access control point (door), up to four authentication groups can be added.
• For the authentication group of which authentication type is Local Authentication, up to 8 person/card groups can be added to the authentication group.

• For the authentication group of which authentication type is Local Authentication and Super Password or LocalAuthentication and Remotely Open Door, up to 7 person/card groups can be added to the authentication group.

• Click Save.

9.7.6 Configure Card Reader Authentication Mode and Schedule

You can set the passing rules for the card reader of the access control device according to your actual needs.

Steps

1. Click Access Control → Advanced Function → Authentication to enter the authentication mode configuration page.
2. Select a card reader on the left to configure.
3. Set card reader authentication mode.
   1) Click Configuration.

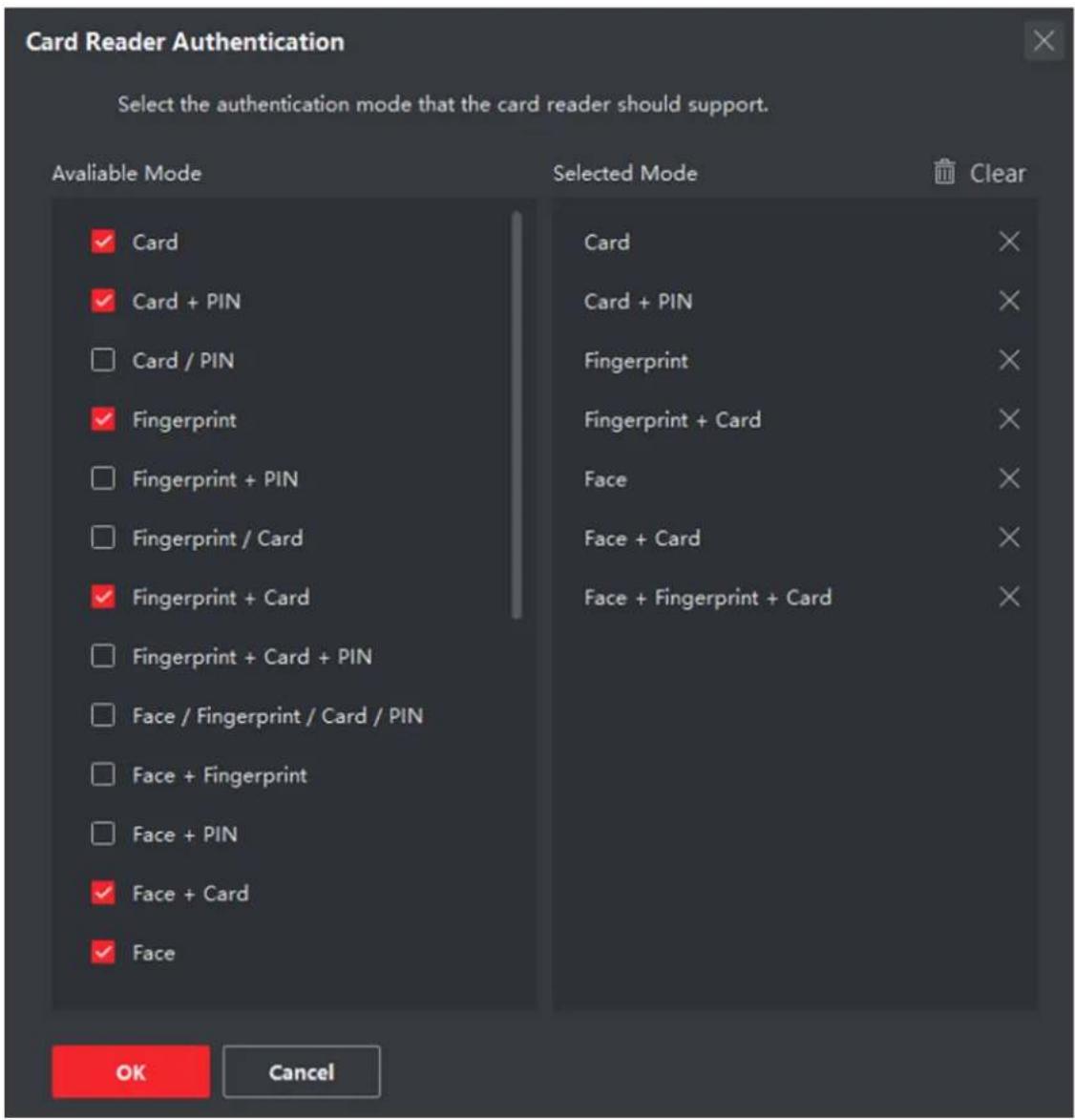

Figure 9-3 Select Card Reader Authentication Mode

2) Check the modes in the Available Mode list and they will be added to the selected modes list. 3) Click OK.

After selecting the modes, the selected modes will display as icons with different color.

1. Click the icon to select a card reader authentication mode, and drag the cursor to draw a color bar on the schedule, which means in that period of time, the card reader authentication is valid.
2. Repeat the above step to set other time periods.
3. Optional: Select a configured day and click Copy to Week to copy the same settings to the whole week.
4. Optional: Click Copy to to copy the settings to other card readers.
5. Click Save.

9.7.7 Configure Device Parameters

After adding the access control device, you can configure the parameters of access control device, access control points.

Configure Parameters for Access Control Device

After adding the access control device, you can configure its parameters, including overlaying user information on picture, uploading pictures after capturing, saving captured pictures, etc.

Before You Start

Add access control device to the client.

Steps

1. Click Access Control → Advanced Function → Device Parameters.

Note

If you can not find Device Parameter in the Advanced Function list, hover the cursor on the Advanced Function, and then Click to select the Device Parameter to be displayed.

1. Select an access device to show its parameters on the right page.

2. Turn the switch to ON to enable the corresponding functions.

Note

• The displayed parameters may vary for different access control devices.
• Some of the following parameters are not listed in the Basic Information page, click More to edit the parameters.

Enable NFC

If enable the function, the device can recognize the NFC card. You can present NFC card on the device.

Enable M1 Card

If enable the function, the device can recognize the M1 card. You can present M1 card on the device.

Enable EM Card

If enable the function, the device can recognize the EM card. You can present EM card on the device.

Enable CPU Card

Reserved. If enable the function, the device can recognize the CPU card. You can present CPU card on the device.

Enable ID Card

Reserved. If enable the function, the device can recognize the ID card. You can present ID card on the device.

1. Click OK.
2. Optional: Click Copy to, and then select the access control device(s) to copy the parameters in the page to the selected device(s).

Configure Parameters for Door

After adding the access control device, you can configure its access point (door) parameters.

Steps

1. Click Access Control → Advanced Function → Device Parameter.
2. Select an access control device on the left panel, and then click to show the doors or floors of the selected device.
3. Select a door or floor to show its parameters on the right page.
4. Edit the door or floor parameters.

Note

• The displayed parameters may vary for different access control devices.
• Some of the following parameters are not listed in the Basic Information page, click More to edit the parameters.

Name

Edit the card reader name as desired.

Door Contact

You can set the door sensor as remaining closed or remaining open. Usually, it is remaining closed.

Exit Button Type

You can set the exit button as remaining closed or remaining open. Usually, it is remaining open.

Open Duration

The door contact can be enabled with appropriate delay after person with extended access needs swipes her/his card.

Door Left Open Timeout Alarm

The alarm can be triggered if the door has not been closed in a configured time period. If it is set as 0, no alarm will be triggered.

Super Password

The specific person can open the door by inputting the super password.

1. Click Advanced to configure advanced parameters.

Extended Open Duration

The door contact can be enabled with appropriate delay after person with extended access needs swipes her/his card.

Duress Code

The door can open by inputting the duress code when there is duress. At the same time, the client can report the duress event.

Enable Locking Door when Door Closed

The door can be locked once it is closed even if the Door Locked Time is not reached.

Dismiss Code

Create a dismiss code which can be used to stop the buzzer of the card reader (by entering the dismiss code on the keypad).

Note

• The duress code and super password should be different.
• The duress code and super password should be different from the authentication password.

• The length of duress code and super password is according the device, usually it should contains 4 to 8 digits.

• Click OK.

• Optional: Click Copy to, and then select the door to copy the parameters in the page to the selected doors.

Note

The door or floor's status duration settings will be copied to the selected door as well.

Configure Parameters for Card Reader

After adding the access control device, you can configure its card reader parameters.

Steps

1. Click Access Control → Advanced Function → Device Parameter.

2. In the device list on the left, click to expand the door, select a card reader and you can edit the card reader's parameters on the right.

3. Edit the card reader basic parameters in the Basic Information page.

Note

• The displayed parameters may vary for different access control devices. There are part of parameters listed as follows. Refer to the user manual of the device for more details.
• Some of the following parameters are not listed in the Basic Information page, click More to edit the parameters.

Name

Edit the card reader name as desired.

Card Authentication Interval

If the interval between card swiping of the same card is less than the set value, the card swiping is invalid. You can set it as 0 to 255.

Enable Failed Attempts Limit of Authentication

Enable to report alarm when the card reading attempts reach the set value.

Card Reader Type/Card Reader Description

Get card reader type and description. They are read-only.

4. Click Advanced and you can configure more parameters.

Enable Card Reader

Enable the function and you can operate the functions below on the card reader.

OK LED Polarity/Error LED Polarity/Buzzer Polarity

Set OK LED Polarity/Error LED Polarity/Buzzer LED Polarity of main board according to the card reader parameters. Generally, adopts the defaultsettings.

Buzzer Polarity

Set Buzzer Polarity of main board according to the card reader parameters. Generally, adopts the default settings.

Buzzing Time

Set the card reader buzzing time. The available time ranges from 0 to 5,999s. 0 represents continuous buzzing.

Max. Interval When Entering PWD

When you inputting the password on the card reader, if the interval between pressing two digits is larger than the set value, the digits you pressed before will be cleared automatically.

Tampering Detection

Enable the anti-tamper detection for the card reader.

Communicate with Controller Every

When the access control device cannot connect with the card reader for longer than the set time, the card reader will turn offline automatically.

Fingerprint Recognition Level

Select the fingerprint recognition level from the drop-down list.

5. Click OK.

1. Optional: Click Copy to, and then select the card reader(s) to copy the parameters in the page to the selected card reader(s).

Configure Parameters for Alarm Output

After adding the access control device, if the device links to alarm outputs, you can configure the parameters.

Before You Start

Add access control device to the client, and make sure the device supports alarm output.

Steps

1. Click Access Control → Advanced Function → Device Parameter to enter access control parameter configuration page.
2. In the device list on the left, click ▶ to expand the door, select an alarm input and you can edit the alarm input's parameters on the right.
3. Set the alarm output parameters.

Name

Edit the card reader name as desired.

Alarm Output Active Time

How long the alarm output will last after triggered.

1. Click OK.

2. Optional: Set the switch on the upper right corner to ON to trigger the alarm output.

9.7.8 Configure Device Parameters

After adding the access control device, you can set its parameters such as network parameters.

Enable M1 Card Encryption

M1 card encryption can improve the security level of authentication.

Steps

Note

The function should be supported by the access control device and the card reader.

1. Enter the Access Control module.
2. On the navigation bar on the left, enter Advanced Function → More Parameters.
3. Select an access control device in the device list and click M1 Card Encryption to enter the M1 Card Encryption page.
4. Set the switch to on to enable the M1 card encryption function.
5. Set the sector ID.
   The sector ID ranges from 1 to 100.
6. Click Save to save the settings.

9.8 Door Control

In Monitoring module, you can view the real-time status of the doors managed by the added access control device. You can also control the doors such as open/close the door, or remain the door open/closed via the client remotely. The real-time access event are displayed in this module. You can view the access details and person details.

i Note

For the user with door control permission, the user can enter the Monitoring module and control the door. Or the icons used for control will not show. For setting the user permission, refer to Person Management.

9.8.1 Control Door Status

You can control the status for a single door, including opening door, closing door, remaining the door open, and remaining the door closed.

Steps

1. Click Monitoring to enter the status monitoring page.
2. Select an access point group on the upper-right corner.

i Note

For managing the access point group, refer to Group Management in the user manual of the client software.

The doors in the selected access control group will display.

1. Click a door icon to select a door, or press Ctrl and select multiple doors.
2. Click the following buttons to control the door.

Open Door

When the door is locked, unlock it and it will be open for once. After the open duration, the door will be closed and locked again automatically.

Close Door

When the door is unlocked, lock it and it will be closed. The person who has the access authorization can access the door with credentials.

Remain Open

The door will be unlocked (no matter closed or open). All the persons can access the door with no credentials required.

Remain Closed

The door will be closed and locked. No person can access the door even if he/she has the authorized credentials, except the super users.

Capture

Capture a picture manually.

The Capture button is available when the device supports capture function. The picture is saved in the PC running the client. For setting the saving path, refer to Set File Saving Path in the user manual of the client software.

Result

The icon of the doors will change in real-time according to the operation if the operation is succeeded.

9.8.2 Check Real-Time Access Records

The access records will display in real time, including card swiping records, fingerprint comparison records, etc. You can view the person information and view the picture captured during access.

Steps

1. Click Monitoring and select a group from the drop-down list on the upper-right corner.
   The access records triggered at the doors in the selected group will display in realtime. You can view the details of the records, including card No., person name, organization, event time, etc.
2. Optional: Check the event type and event status so that these events will show in the list if the events are detected. The events of unchecked type or status will not be displayed in the list.
3. Optional: Check Show Latest Event and the latest access record will be selected and displayed at the top of the record list.
4. Optional: Click the event to view the accessed person details, including person pictures (captured picture and profile), person No., person name, organization, phone, contact address, etc.

You can double click the captured picture to enlarge it to view the details.

1. Optional: Right click on the column name of the access event table to show or hide the column according to actual needs.

Appendix A. Tips for Scanning Fingerprint

Recommended Finger

Forefinger, middle finger or the third finger.

Correct Scanning

The figure displayed below is the correct way to scan your finger:

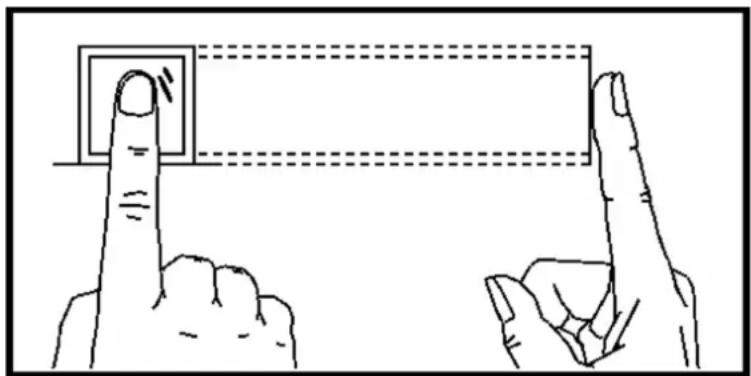

Illustration of two hands pointing at a square button with dashed lines indicating alignment or measurement (no text or symbols)

You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.

Incorrect Scanning

The figures of scanning fingerprint displayed below are incorrect:

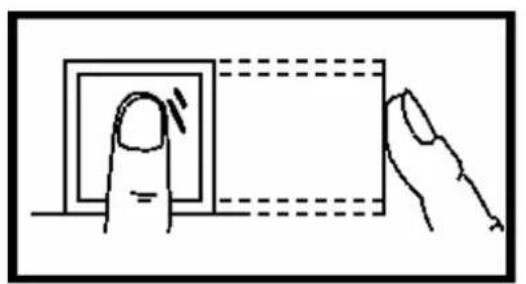

Illustration of a finger pressing a square button with motion arrows, next to a dashed rectangular frame (no text or symbols)

Vertical

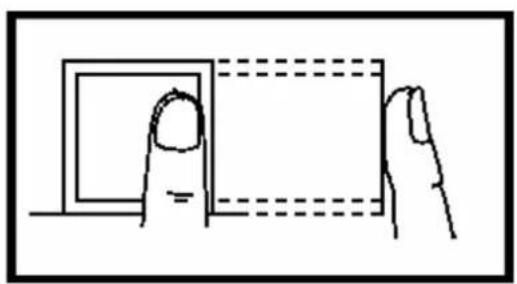

Line drawing of a finger pressing a square with dashed border (no text or symbols)

Edge I

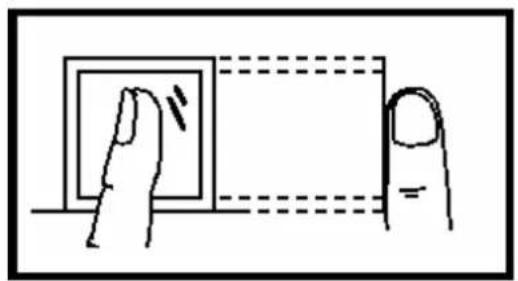

Simple line drawing of a finger pressing a button on a square panel (no text or symbols)

Side

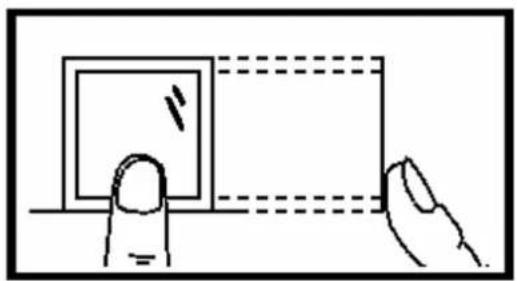

Simple line drawing of a hand pressing a square object on a rectangular surface (no text or symbols)

Edge II

Environment

The scanner should avoid direct sun light, high temperature, humid conditions and rain.

When it is dry, the scanner may not recognize your fingerprint successfully. You can blow your finger and scan again.

Others

If your fingerprint is shallow, or it is hard to scan your fingerprint, we recommend you to use other authentication methods.

If you have injuries on the scanned finger, the scanner may not recognize. You can change another finger and try again.

Appendix B. DIP Switch Description

No.1 to No 8 is from the low bit to the high bit.

When the switch is towards ON, it means the switch is enabled, otherwise, the switch is off. If you set the DIP switch like the figure displayed below, its binary value is 00001100, and its decimal value is 12.

Appendix C. Custom Wiegand Rule Descriptions

Take Wiegand 44 as an example, the setting values in the Custom Wiegand tab are as follows:

Custom Wiegand Name	Wiegand 44
Total Length 44
Transformation Rule (Decimal Digit)	byFormatRule[4]=[1][4][0][0]
Parity Mode XOR Parity
Odd Parity Start Bit Length
Even Parity Start Bit Length
XOR Parity Start Bit 0 Length per Group 4 Total Length 40
Card ID Start Bit 0 Length 32 Decimal Digit 10
Site Code Start Bit	Length Decimal Digit
OEM Start Bit	Length Decimal Digit
Manufacturer Code Start Bit	32 Length		8 Decimal Digit 3

Wiegand Data

Wiegand Data = Valid Data + Parity Data

Total Length

Wiegand data length.

Transportation Rule

4 bytes. Display the combination types of valid data. The example displays the combination of Card ID and Manufacturer Code. The valid data can be single rule, or combination of multiple rules.

Parity Mode

Valid parity for Wiegand data. You can select either odd parity or even parity.

Odd Parity Start Bit, and Length

If you select Odd Parity, these items are available. If the odd parity start bit is 1, and the length is 12, then the system will start odd parity calculation from bit 1. It will calculate 12 bits. The result will be in bit 0. (Bit 0 is the first bit.)

Even Parity Start Bit, and Length

If you select Even Parity, these items are available. If the even parity start bit is 12, and the length is 12, then the system will start even parity calculation from bit 12. It will calculate 12 bits. The result will be in the last bit.

XOR Parity Start Bit, Length per Group, and Total Length

If you select XOR Parity, these items are available. Depending on the table displayed above, the start bit is 0, the length per group is 4, and the total length is 40. It means that the system will calculate from bit 0, calculate every 4 bit, and calculate 40 bits in total (10 groups in total). The result will be in the last 4 bits. (The result length is the same as the length per group.)

Card ID Start Bit, Length, and Decimal Digit

If you use the transformation rule, these items are available. Depending on the table displayed above, the card ID start bit is 0, the length is 32, and the decimal digit is 10. It represents that from bit 0, there are 32 bits represent the card ID. (The length here is calculated by bit.) And the decimal digit length is 10 bits.

Site Code Start Bit, Length, and Decimal Digit

If you use the transformation rule, these items are available. For detailed information, see the explanation of the card ID.

OEM Start Bit, Length, and Decimal Digit

If you use the transformation rule, these items are available. For detailed information, see the explanation of the card ID.

Manufacturer Code Start Bit, Length, and Decimal Digit

If you use the transformation rule, these items are available. Depending on the table displayed above, the manufacturer code start bit is 32, length is 8, and decimal digit is 3. It represents that from bit 32, there are 8 bits are manufacturer code. (The length here is calculated by bit.) And the decimal length is 3.

Appendix D. Communication Matrix and Device Command

Communication Matrix

Scan the following QR code to get the device communication matrix.

Note that the matrix contains all communication ports of Hikvision access control and video intercom devices.

Figure D-1 QR Code of Communication Matrix

Device Command

Scan the following QR code to get the device common serial port commands.

Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices.

Figure D-2 Device Command

See Far, Go Further
