Product Type	Kids Hybrid Bike
Brand	Pazzaz
Model	Vivacity 24 inch Wheel Size Kids Hybrid Bike
Wheel Size	24 inches
Frame Material	High-tensile steel
Brakes	Front caliper brake, rear coaster brake
Gearing	6-speed derailleur system
Weight	Approximately 13.5 kg (29.8 lbs)
Overall Dimensions (L x W x H)	168 x 58 x 86 cm (66 x 23 x 34 in)
Seat Height Range	66 – 81 cm (26 – 32 in)
Recommended Rider Height	130 – 150 cm (51 – 59 in)
Maximum Rider Weight	50 kg (110 lbs)
Tires	24 x 2.0 in multi-surface tires
Chain Guard	Full chain guard included
Kickstand	Yes, included
Reflectors	Front, rear, and wheel reflectors
Tools Required for Assembly	Allen wrenches (included), Phillips screwdriver
Cleaning and Maintenance	Wipe frame with damp cloth; lubricate chain regularly; check tire pressure
Safety Standards	Meets CPSC safety standards for bicycles
Spare Parts Availability	Available through Pazzaz customer service or authorized dealers

Frequently Asked Questions - Vivacity 24 inch Wheel Size Kids Hybrid Bike Pazzaz

How do I adjust the seat height on the Pazzaz Vivacity 24 inch bike?

Loosen the seat post clamp using an Allen wrench, adjust the seat to the desired height (ensuring the minimum insertion mark is not exposed), and tighten the clamp securely.

What type of brakes does this bike have?

The bike features a front caliper brake and a rear coaster brake. The front brake lever is on the right handlebar, and the rear brake is engaged by pedaling backward.

Is the Pazzaz Vivacity suitable for off-road riding?

The bike has multi-surface tires and a hybrid design, making it suitable for light off-road paths, but it is primarily intended for paved roads and bike paths.

What is the recommended age range for this bike?

This 24-inch wheel size bike is generally suitable for children aged 8 to 12 years, depending on their height (130-150 cm).

How do I shift gears on the Vivacity bike?

The bike has a 6-speed system. Use the right-hand trigger shifter to change gears: push to shift to a harder gear, pull to shift to an easier gear. Avoid shifting under heavy load.

Does the bike come with training wheels?

No, training wheels are not included. The 24-inch size is designed for children who have already learned to balance. You may purchase aftermarket training wheels if needed.

How do I maintain the chain?

Clean the chain with a degreaser and a brush, then apply bicycle chain lubricant. Wipe off excess lubricant. Repeat every few months or after riding in wet conditions.

What is the maximum weight limit for the bike?

The maximum recommended rider weight is 50 kg (110 lbs). Exceeding this limit may affect safety and performance.

How do I inflate the tires?

The tires use Schrader valves (standard car valve). Inflate to the pressure range indicated on the tire sidewall, typically 40-65 psi (2.8-4.5 bar).

Where can I find replacement parts for this bike?

Replacement parts can be ordered through Pazzaz customer support or from authorized dealers. Common parts like brake pads, cables, and tires are widely available at bike shops.

USER MANUAL Vivacity 24 inch Wheel Size Kids Hybrid Bike Pazzaz

Line drawing of two bicycles with front wheel, rear wheel, and suspension rings (no text or symbols)

QUICK ASSEMBLY GUIDE

CONTENTS

WARNINGS......page 2

BOX CONTENTS......page 3

FITTING THE HANDLEBAR......page 4

FITTING THE SADDLE ......page 5

FITING THE FRONT WHEEL......page 6

FITTING THE PEDALS......page 8

FITTING THE REFLECTORS & BELL......page 9

FINAL CHECKS......page 10

WARNINGS

● Always check that brakes work before each use - failure to set brakes correctly may result in serious injury or even death.
- Ensure all nuts / bolts / screws are securely tightened and checked before use. Recommended torques (tightness levels) are available in the owners manual.
- Check bike regularly for signs of damage. Do not use again until repaired.
- Keep your bike in good condition by cleaning off dirt, keeping it well maintained and storing in a dry place.
- Always wear a helmet that meets the latest safety standards and make sure you follow the manufacturer's instructions.

IF YOU NEED ASSISTANCE WITH ASSEMBLY PLEASE CALL OUR CUSTOMER HELPLINE ON 0161 813 1745

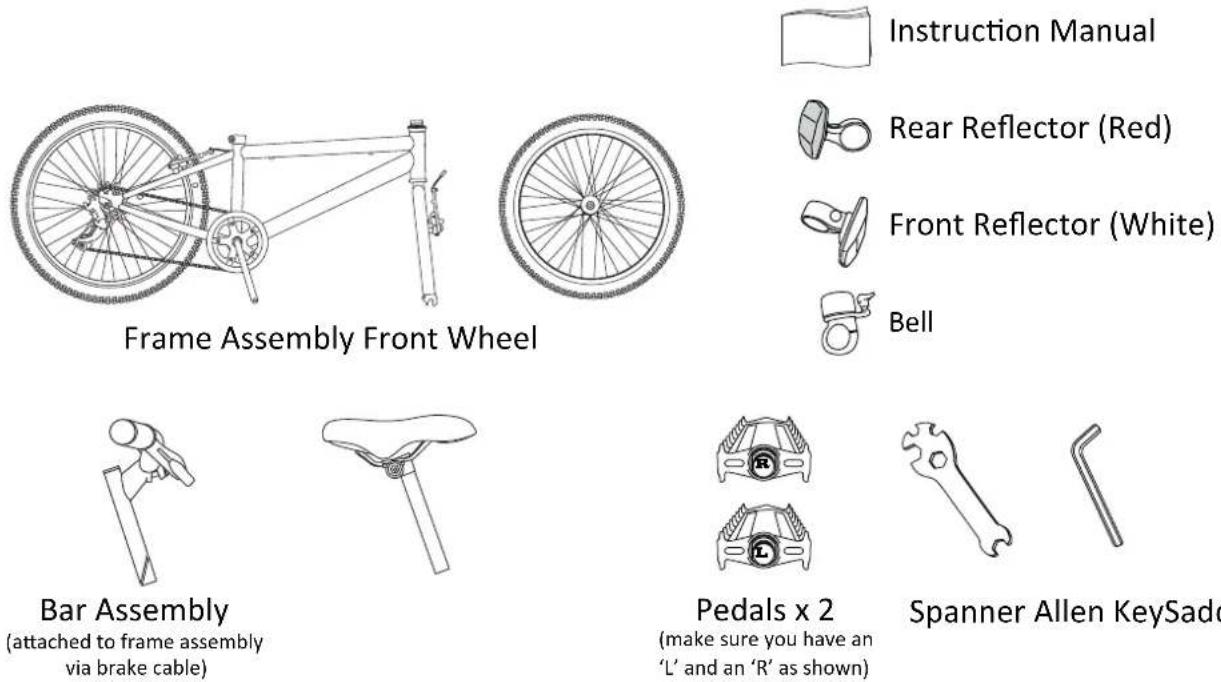

BOX CONTENTS

Please check contents of box carefully. If there are any parts missing please contact 03300 904 404 in the first instance where they will be able to assist you with replacements. Below is a list of parts you should have.

Instruction Manual

Rear Reflector (Red)

Front Reflector (White)

Bell

(attached to frame assembly via brake cable)

(make sure you have an 'L' and an 'R' as shown)

Spanner Allen KeySaddle Assembly

IF YOU ARE EXPERIENCING ANY PROBLEMS PLEASE CALL 0161 813 1745 BEFORE RETURNING BIKE TO STORE

1.- FITTING THE HANDLEBAR

Line drawing of a bicycle with a circular inset showing a person inside (no text or symbols)

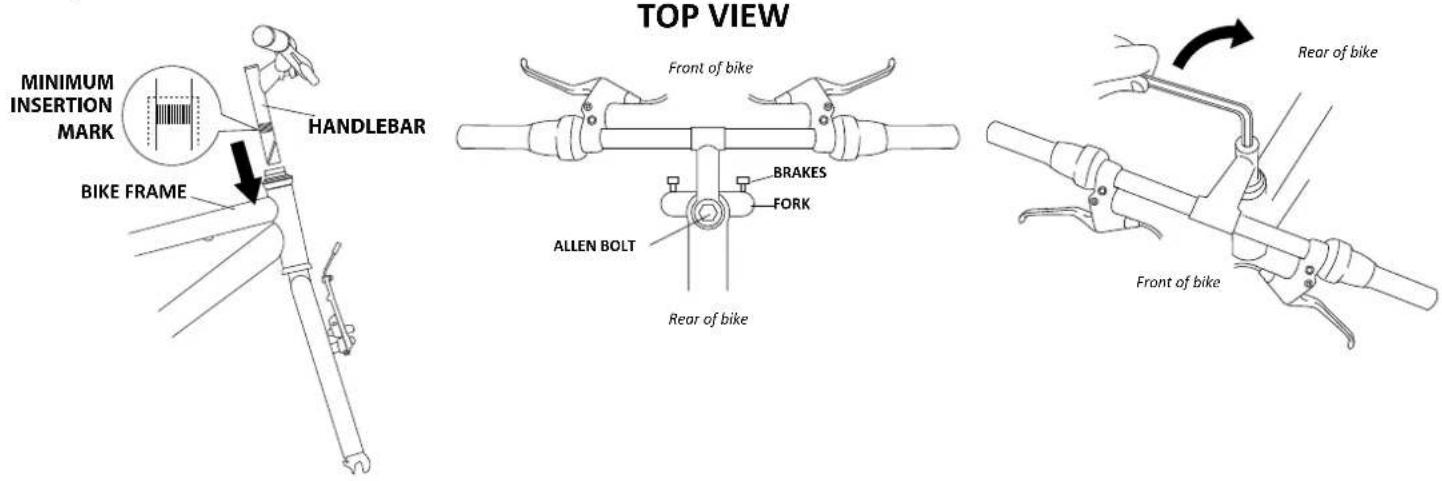

A Insert the handlebar into the frame. If necessary loosen the stem bolt at the top of the handlebars and stem to allow the wedge nut to move freely. Make sure the minimum insertion mark is not visible once this is fitted. The handlebar must be inserted beyond this point.

B The handlebar must be straight. Align this with the fork by looking downwards at it. The brakes must be facing the front of the bike. Use the allen key to tighten the bolt on top of the handlebar stem. Do not fully tighten until the end as you may need to adjust the height.

2.- FITTING THE SADDLE

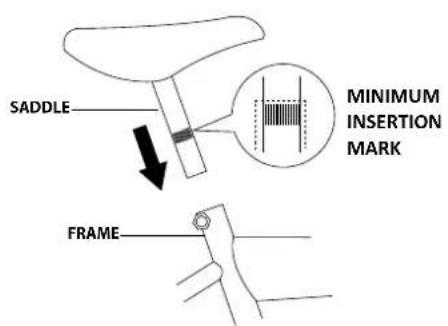

A Insert saddle into frame. Make sure the minumum insertion mark is not visible once this is fitted. The saddle must be inserted beyond this point

B Using the spanner provided, lock the seat in position by turning bolt in a clockwise direction. Do not fully tighten until the end as you may need to adjust the height.

Line drawing of a hand holding a bicycle seatbelt with a black arrow indicating clockwise motion (no text or symbols)

IF YOU ARE EXPERIENCING ANY PROBLEMS PLEASE CALL 0161 813 1745 BEFORE RETURNING BIKE TO STORE

Line drawing of a bicycle with front wheel, rear wheel, and seat (no text or symbols)

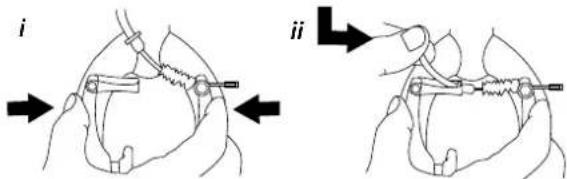

A Before fitting the front wheel, you must open the brake arms by releasing the brake cable:

i Pull rubber cable protector to the right so you can see the brake cable inside it. Squeeze brake arms together.
ii Pull the noodle out by moving it left then up and out of the metal housing

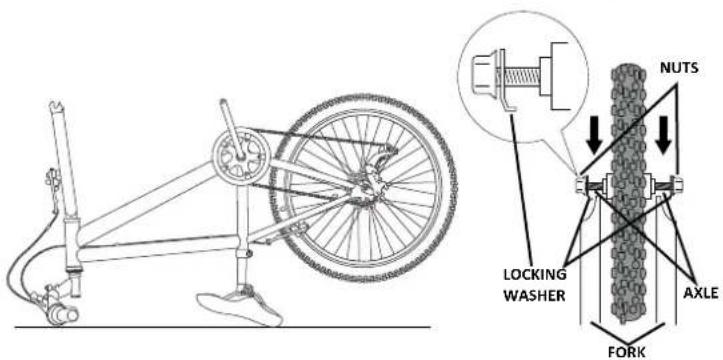

B Turn the bike upside down. Loosen the nuts on the front wheel axle by turning anti-clockwise - you need enough thread showing on the axle so the wheel slots easily onto the fork. Make sure the locking washers are on the outside of the fork as shown.

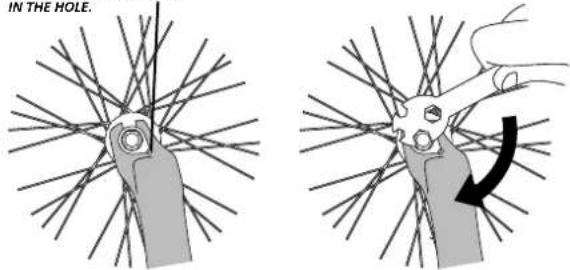

C Locking washers must be positioned correctly in this step:

Place the pointed side of the locking washer into the hole on the fork. Make sure the gap between the wheel and the fork is equal on both sides.

ii Tighten the nut with the spanner provided.

D Once the wheel is in place and tight, turn the bike the right way up

i Squeeze the brake arms together

ii Slot the brake cable noodle into the slot as shown

THE PIN ON THE LOCKING WASHER MUST BE PLACED IN THE HOLE.

CORRECT BRAKE & WHEEL FITTING IS VERY IMPORTANT FOR YOUR SAFETY IF YOU HAVE ANY PROBLEMS THERE IS MORE INFORMATION IN THE USER MANUAL FAILURE TO CORRECTLY SET THE BRAKES MAY RESULT IN SERIOUS INJURY

IF YOU ARE EXPERIENCING ANY PROBLEMS PLEASE CALL 0161 813 1745 BEFORE RETURNING BIKE TO STORE

4.- FITTING THE PEDALS

TOOLS NEEDED

SPANNER

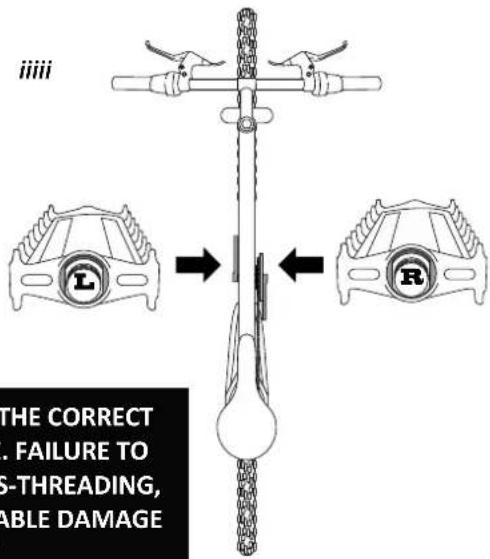

To fit the pedals correctly, you must position them the correct way around and screw them on in the right direction:

i Stickers indicate the left and right pedal. If these have dropped off, look at the end of the thread where it is imprinted.
ii The correct pedal needs to be attached to the matching side of the bike i.e. left pedal to left side and right pedal to right side.
iii IMPORTANT! Pedals need screwing in opposite directions so they don't fall off in use.
Left pedal is screwed in anti-clockwise / Right pedal is screwed in clockwise. Tighten pedals with spanner provided.

i

LEFT RIGHT

SCREW CLOCKWISE SCREW ANTI-CLOCK

PLEASE MAKE SURE YOU FIT THE CORRECT PEDAL TO THE CORRECT SIDE. FAILURE TO DO SO MAY RESULT IN CROSS-THREADING, WHICH CAN CAUSE IRREPARABLE DAMAGE NOT COVERED BY WARANTY

5.- FITTING THE REFLECTORS & BELL

Line drawing of a bicycle with front wheel and rear wheel (no text or symbols)

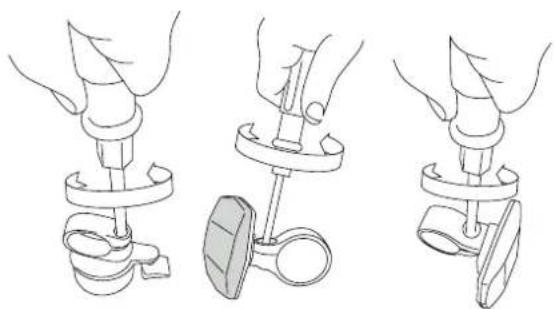

A First fully release the securing screws as shown (anti-clockwise)

Three-step line drawing of a mechanical clamp or bracket assembly (no text or symbols)

BELL RED REFLECTOR WHITE REFLECTOR

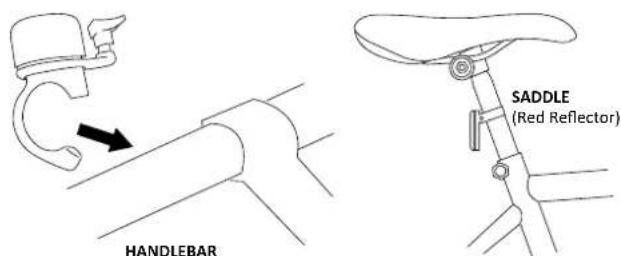

B Wrap the bell around the handlebar as shown, remembering to put it in a place where you can reach it easily whilst riding. Then wrap the white reflector around the handlebar near the centre, and wrap the red reflector in the same way around the saddle post.

(Bell and White Reflector)

Once these are in place, replace the screws and tighten by turning clockwise using a cross-head screwdriver

IF YOU ARE EXPERIENCING ANY PROBLEMS PLEASE CALL 0161 813 1745 BEFORE RETURNING BIKE TO STORE

6.- FINAL CHECKS

A You can now ensure your saddle and handlebars are at a comfortable riding position, and fully tighten. Always be aware of the minimum insertion mark and make sure these are inserted beyond this point.
B Check tyre pressures regularly. Recommended tyre pressures are clearly marked on the side of the tyre.
Check that all bolts and fixings are tight and secure. You should do this before every ride.
D Check functionality of brakes before every ride, you will find out more about this in the user manual included.

IMPORTANT: ENSURE ALL NUTS / BOLTS / SCREWS ARE TIGHT

RECOMMENDED TORQUES IN OWNER'S MANUAL APPENDIX

PLEASE READ OWNER'S MANUAL BEFORE RIDING THIS BIKE

ALWAYS CHECK BRAKE FUNCTIONALITY BEFORE RIDING

This assembly guide is copyrighted to Avocet Sports Limited. Any reproduction, in whole or in part, is strictly forbidden without prior written consent.

Argos

IF YOU ARE EXPERIENCING ANY PROBLEMS PLEASE CALL 0161 813 1745 BEFORE RETURNING BIKE TO STORE
