USER MANUAL Petal 20 inch Wheel Size Kids Heritage Bike Pazzaz

Line drawing of a bicycle with front wheel, rear wheel, and basket (no text or symbols)

QUICK ASSEMBLY GUIDE

CONTENTS

WARNINGS......page 2

BOX CONTENTS......page 3

FITTING THE HANDLEBAR......page 4

FITTING THE SADDLE ......page 5

FITING THE FRONT WHEEL......page 6

FITTING THE PEDALS......page 8

FITTING THE REFLECTORS & BELL......page 9

FINAL CHECKS......page 10

WARNINGS

● Always check that brakes work before each use - failure to set brakes correctly may result in serious injury or even death.
- Ensure all nuts / bolts / screws are securely tightened and checked before use. Recommended torques (tightness levels) are available in the owners manual.
- Check bike regularly for signs of damage. Do not use again until repaired.
- Keep your bike in good condition by cleaning off dirt, keeping it well maintained and storing in a dry place.
- Always wear a helmet that meets the latest safety standards and make sure you follow the manufacturer's instructions.

IF YOU NEED ASSISTANCE WITH ASSEMBLY PLEASE CALL OUR CUSTOMER HELPLINE ON 03300 904 404

BOX CONTENTS

Please check contents of box carefully. If there are any parts missing please contact 03300 904 404 in the first instance where they will be able to assist you with replacements.

Below is a list of parts you should have.

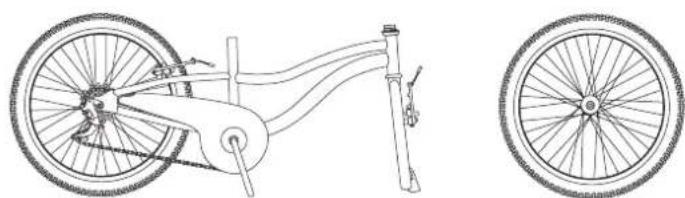

Line drawing of a bicycle frame with front and side views (no text or symbols)

Frame Assembly Front Wheel

Bar Assembly
(attached to frame assembly via brake cable)

Instruction Manual

Rear Reflector (Red)

Front Reflector (White)

Bell

Pedals x 2
(make sure you have an 'L' and an 'R' as shown)

Spanner Allen KeySaddle Assembly

IF YOU ARE EXPERIENCING ANY PROBLEMS PLEASE CALL 03300 904 404 BEFORE RETURNING BIKE TO STORE

1.- FITTING THE HANDLEBAR

Line drawing of a bicycle with front wheel and side seat, no text or symbols present

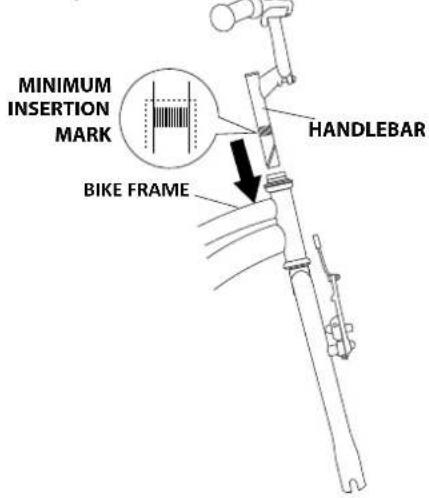

A Insert the handlebar into the frame. If necessary loosen the stem bolt at the top of the handlebars and stem to allow the wedge nut to move freely. Make sure the minimum insertion mark is not visible once this is fitted. The handlebar must be inserted beyond this point.

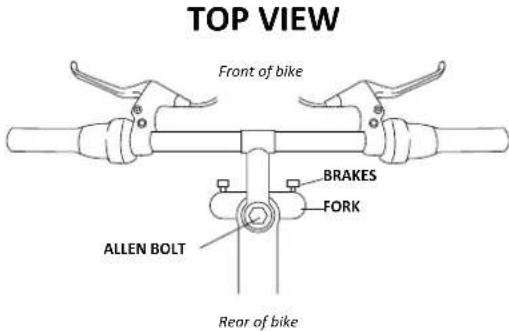

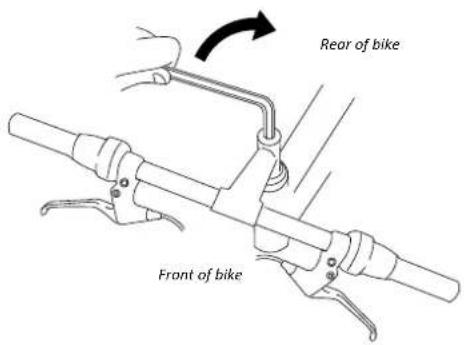

B The handlebar must be straight. Align this with the fork by looking downwards at it. The brakes must be facing the front of the bike. Use the allen key to tighten the bolt on top of the handlebar stem. Do not fully tighten until the end as you may need to adjust the height.

IF YOU ARE EXPERIENCING ANY PROBLEMS PLEASE CALL 03300 904 404 BEFORE RETURNING BIKE TO STORE

2.- FITTING THE SADDLE

Line drawing of a bicycle with front wheel and side seat, no text or symbols present

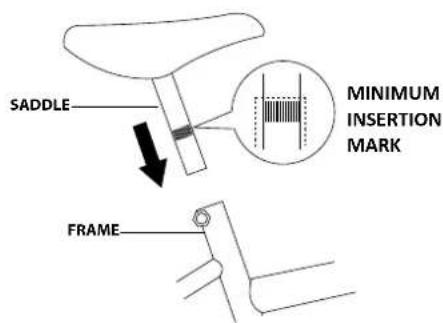

A Insert saddle into frame. Make sure the minimum insertion mark is not visible once this is fitted. The saddle must be inserted beyond this point

B Using the spanner provided, lock the seat in position by turning bolt in a clockwise direction. Do not fully tighten until the end as you may need to adjust the height.

Simple line drawing of a hand holding a bicycle seat with a curved arrow indicating rotation (no text or symbols)

IF YOU ARE EXPERIENCING ANY PROBLEMS PLEASE CALL 03300 904 404 BEFORE RETURNING BIKE TO STORE

Line drawing of a bicycle with front wheel and side seat (no text or symbols)

A You will need to release your caliper brakes to install or replace a wheel, slightly loosen the cable pinch bolt. Turn it anti-clockwise with the spanner provided as shown. This will open up the break pads so the wheel fits through.

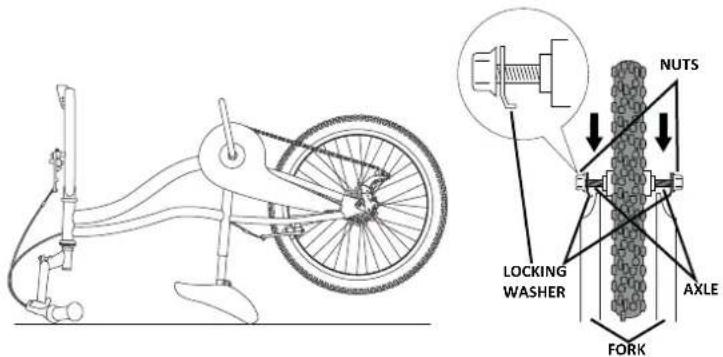

B Turn the bike upside down. Loosen the nuts on the front wheel axle by turning anti-clockwise - you need enough thread showing on the axle so the wheel slots easily onto the fork. Make sure the locking washers are on the outside of the fork as shown.

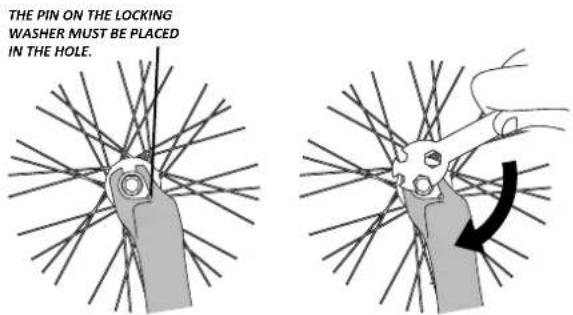

C Locking washers must be positioned correctly in this step:

Place the pointed side of the locking washer into the hole on the fork. Make sure the gap between the wheel and the fork is equal on both sides.

ii Tighten the nut with the spanner provided.

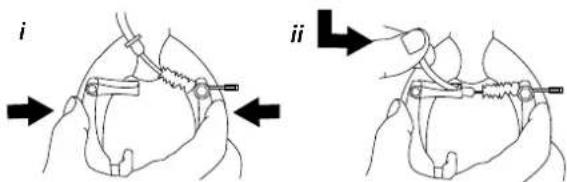

Once the wheel is in place and tight, turn the bike the right way up and squeeze the brake arms together until there is a 1 - 1.5 mm gap between the brake pads and the rim. Both sides should be equal. Whilst holding in place you then need to pull the brake cable tight, and tighten the cable pinch bolt by turning clockwise using the spanner provided as shown.

CORRECT BRAKE & WHEEL FITTING IS VERY IMPORTANT FOR YOUR SAFETY IF YOU HAVE ANY PROBLEMS THERE IS MORE INFORMATION IN THE USER MANUAL FAILURE TO CORRECTLY SET THE BRAKES MAY RESULT IN SERIOUS INJURY

IF YOU ARE EXPERIENCING ANY PROBLEMS PLEASE CALL 03300 904 404 BEFORE RETURNING BIKE TO STORE

4.- FITTING THE PEDALS

Line drawing of a bicycle with a circular seat and chain (no text or symbols)

To fit the pedals correctly, you must position them the correct way around and screw them on in the right direction:

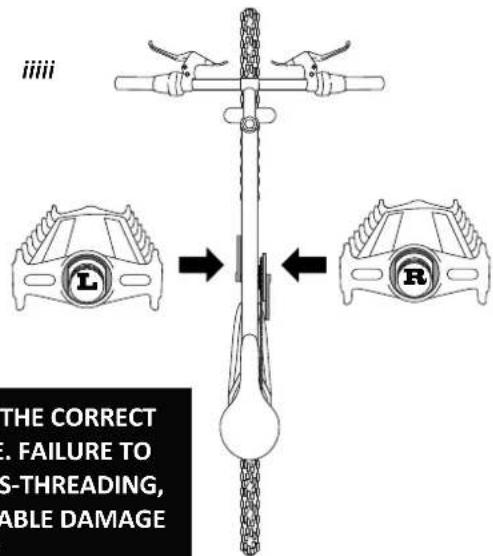

i Stickers indicate the left and right pedal. If these have dropped off, look at the end of the thread where it is imprinted.
ii The correct pedal needs to be attached to the matching side of the bike i.e. left pedal to left side and right pedal to right side.
iii IMPORTANT! Pedals need screwing in opposite directions so they don't fall off in use.

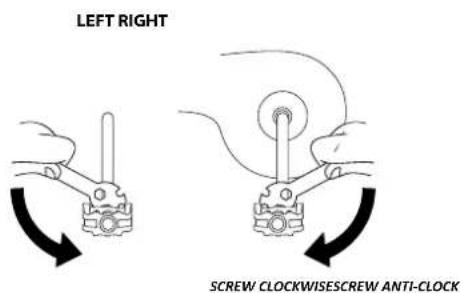

Left pedal is screwed in anti-clockwise / Right pedal is screwed in clockwise. Tighten pedals with spanner provided.

PLEASE MAKE SURE YOU FIT THE CORRECT PEDAL TO THE CORRECT SIDE. FAILURE TO DO SO MAY RESULT IN CROSS-THREADING, WHICH CAN CAUSE IRREPARABLE DAMAGE NOT COVERED BY WARANTY

5.- FITTING THE REFLECTORS & BELL

Line drawing of a bicycle with two circular components on its side (no text or symbols)

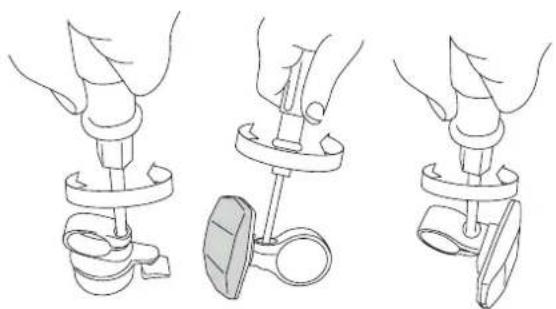

A First fully release the securing screws as shown (anti-clockwise)

Three-step line drawing of a mechanical clamp or bracket assembly (no text or symbols)

BELL RED REFLECTOR WHITE REFLECTOR

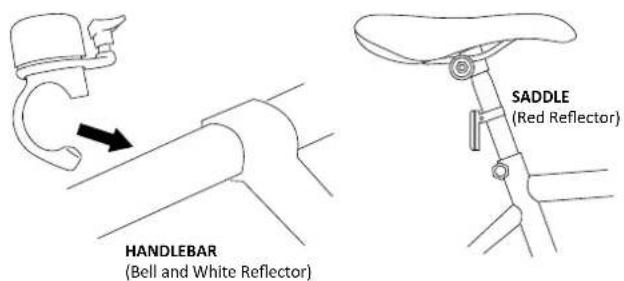

B Wrap the bell around the handlebar as shown, remembering to put it in a place where you can reach it easily whilst riding. Then wrap the white reflector around the handlebar near the centre, and wrap the red reflector in the same way around the saddle post.

Once these are in place, replace the screws and tighten by turning clockwise using a cross-head screwdriver

IF YOU ARE EXPERIENCING ANY PROBLEMS PLEASE CALL 03300 904 404 BEFORE RETURNING BIKE TO STORE

6.- FINAL CHECKS

Line drawing of a bicycle with no text or symbols

A You can now ensure your saddle and handlebars are at a comfortable riding position, and fully tighten. Always be aware of the minimum insertion mark and make sure these are inserted beyond this point.
B Check tyre pressures regularly. Recommended tyre pressures are clearly marked on the side of the tyre.
Check that all bolts and fixings are tight and secure. You should do this before every ride.
D Check functionality of brakes before every ride, you will find out more about this in the user manual included.

IMPORTANT: ENSURE ALL NUTS / BOLTS / SCREWS ARE TIGHT

RECOMMENDED TORQUES IN OWNER'S MANUAL APPENDIX

PLEASE READ OWNER'S MANUAL BEFORE RIDING THIS BIKE

ALWAYS CHECK BRAKE FUNCTIONALITY BEFORE RIDING

This assembly guide is copyrighted to Avocet Sports Limited. Any reproduction, in whole or in part, is strictly forbidden without prior written consent.

Argos

IF YOU ARE EXPERIENCING ANY PROBLEMS PLEASE CALL 03300 904 404 BEFORE RETURNING BIKE TO STORE
