Product Type	Portable Bed / Travel Crib
Brand	Baby Jogger
Model	City Suite
Dimensions (Assembled)	120 x 60 x 75 cm (47.2 x 23.6 x 29.5 in)
Folded Dimensions	75 x 30 x 30 cm (29.5 x 11.8 x 11.8 in)
Weight	9.5 kg (20.9 lbs)
Recommended Age	0 - 24 months
Maximum Weight Capacity	15 kg (33 lbs)
Material	Aluminum frame, polyester fabric, foam mattress
Mattress Included	Yes, 120 x 60 cm foam mattress
Assembly Required	Yes, simple fold-out assembly, no tools needed
Folding Mechanism	One-hand compact folding
Safety Features	Breathable mesh sides, lockable wheels, JPMA certified
Cleaning Instructions	Wipe frame with damp cloth; remove and machine wash mattress cover (cold water, mild detergent)
Storage	Includes carrying bag for transport and storage
Warranty	2 years limited warranty
Country of Origin	China

Frequently Asked Questions - City Suite BABY JOGGER

How do I assemble the Baby Jogger City Suite bed?

The bed unfolds in seconds: lift the frame from the folded position, pull up the sides until they click, and press down the mattress board. No tools required.

What is the weight limit for the bed?

The maximum weight capacity is 15 kg (33 lbs), suitable for children up to approximately 24 months.

Can I machine wash the mattress cover?

Yes, the mattress cover is removable and machine washable. Use cold water and a mild detergent. Air dry completely before reassembly.

Does the bed include a mattress?

Yes, it comes with a 120 x 60 cm foam mattress designed to fit perfectly.

Is the bed safe for overnight sleeping?

Yes, the City Suite bed meets JPMA safety standards and features breathable mesh sides for ventilation, making it suitable for unsupervised sleep.

How do I fold the bed for storage?

Press the folding buttons on the sides, lift the center strap, and the bed collapses into a compact bundle. It fits into the included carrying bag.

What are the folded dimensions?

The bed folds down to 75 x 30 x 30 cm (29.5 x 11.8 x 11.8 in), making it easy to transport.

Can I use a standard crib sheet?

The mattress is a standard 120 x 60 cm size, so most fitted crib sheets of that size will fit. Ensure the sheet is snug and not loose.

What warranty does Baby Jogger offer?

The bed comes with a 2-year limited warranty covering manufacturing defects. Register your product online to activate.

Are replacement parts available?

Yes, Baby Jogger offers spare parts such as mattress, fabric cover, and frame components. Contact customer support or visit their website.

USER MANUAL City Suite BABY JOGGER

Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.

PLAYARD

1 Top Rail Fold Button

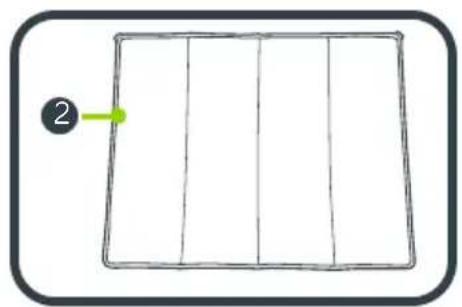

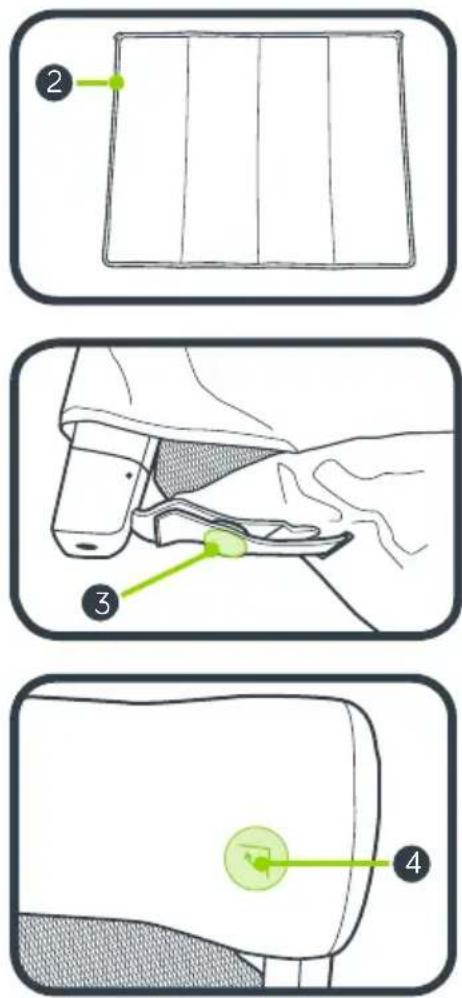

2 Mattress

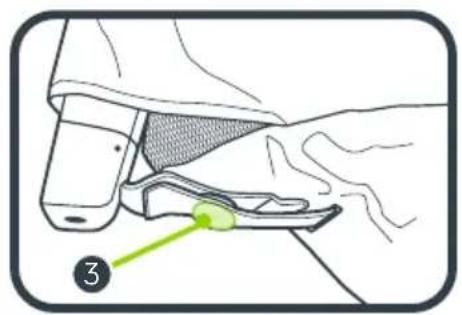

3 Mattress Snaps

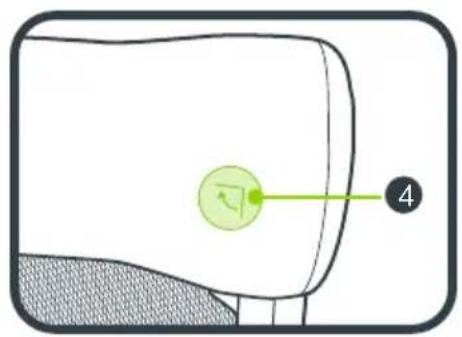

4 Leg Fold Buttons

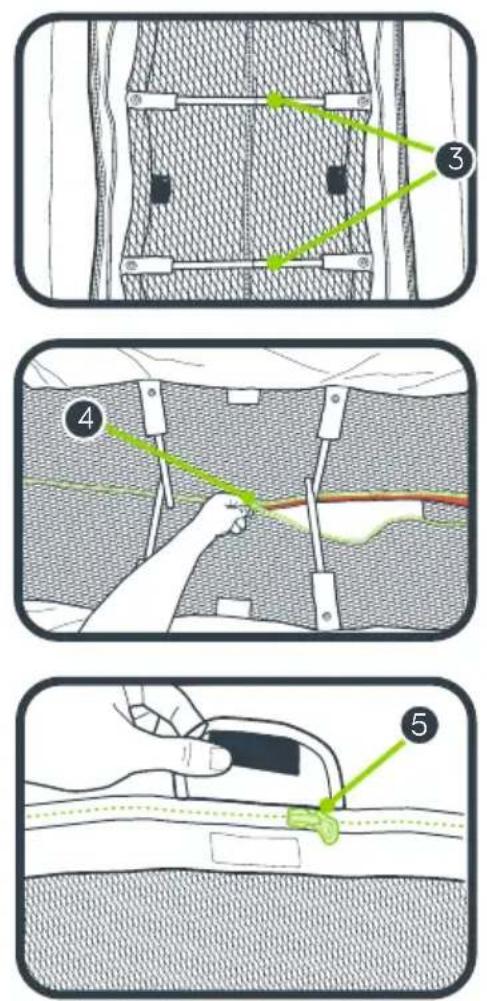

BASSINET MODE

1 Bassinet
2 Mattress Side Panel Covers

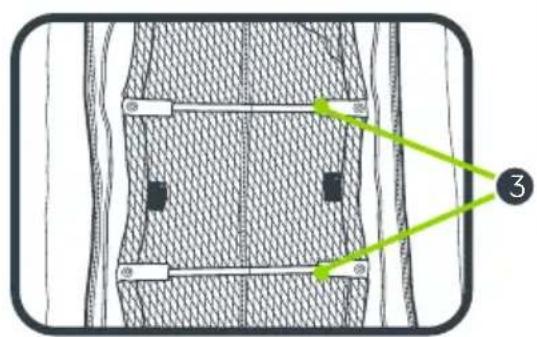

3 Bassinet Support Tubes

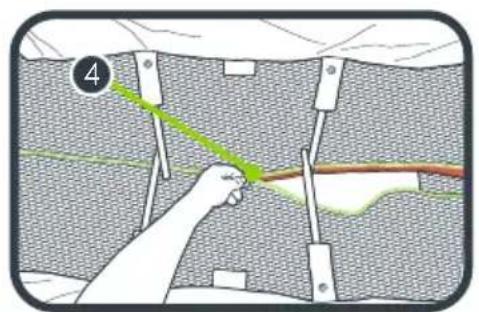

4 Bassinet Center Zipper
5 Bassinet Storage Zipper

WARNING

IMPORTANT - Keep these instructions for future reference.

Failure to follow these warnings and the instructions could result in serious injury or death.

SETTING UP THE PLAYARD:

• THIS PRODUCT REQUIRES ADULT ASSEMBLY.
- Keep fingers clear of top corners during setup. Be sure playard is completely set up before use. Check that the two top rails are completely latched, all legs are fully locked, the mattress pad is flat, the straps are securely fastened to the bottom of the unit. Always follow the instructions in the owner's manual to set up the playard.
- Never use this product if there are any loose or missing fasteners, loose joints, broken parts or torn fabric. Check before assembly and contact Baby Jogger at 1-800-241-1848 for replacement parts and instructions if needed. Never substitute parts.

USING THE PLAYARD

• The playard is for playing or sleeping. When used for playing, never leave child unattended and always keep child in view. When used for sleeping, you must still provide the supervision necessary for the continued safety of your child.
  • Always keep the playard away from hazards in the area that may injure your child.
• When child is able to pull to standing position, remove large toys and other object that could serve as steps for climbing out.
• Stop using this product when your child reaches 35 inches (89 cm) in height or is able to climb out.
• Do not modify playard. Accessories not approved by Baby Jogger should not be used.
• Child can become entrapped and die when improvised netting or covers are place on top of a playard. Never add such items to confine child in playard.

AVOIDING SUFFOCATION HAZARDS

- Unlike cribs that have rigid sides, the playard has flexible sides. As a result, the playard mattress is specially designed to prevent suffocation. The playard mattress has a solid base, a certain length and width, and is less than one inch thick in order to meet safety standards. Using a thicker or different sized mattress may allow a child's head to get between mattress and side of the playard causing suffocation.

• INFANTS CAN SUFFOCATE in gaps between a mattress too small or too thick and product sides.

- INFANTS CAN SUFFOCATE on soft bedding. NEVER add a mattress, pillow, comforter or padding. Use ONLY mattress provided by Baby Jogger.

- To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.

- Never use plastic shipping bags or other plastic film as mattress covers not sold and intended for that purpose. They can cause suffocation.

- Prevent possible suffocation or entanglement. Do not use a sheet with the pad.

- NEVER use a water mattress with the playard.

AVOID STRANGULATION HAZARDS

• Strings and cords can cause strangulation. Keep strings and cords away from child.
• NEVER place the playard near a window where cords from blinds or drapes can strangle child.
  • NEVER hang strings on or over the product.
• NEVER place items with a string around a child's neck, such as hood strings, pacifier cords, etc.
  • NEVER attach strings to toys.

THIS PRODUCT IS NOT INTENDED FOR COMMERCIAL USE.

WARNING

BASSINET MODE

- Infants have suffocated in gaps between extra padding and side of bassinet, and on soft bedding.

• Use ONLY mattress provided by Baby Jogger. NEVER add a pillow, comforter or another mattress for padding.

- FALL HAZARD: To help prevent falls, do not use this product when the infant begins to push up on hands and knees or weighs over 18 lb (8.2 kg), whichever comes first.

• Use bassinet with only one child at a time.

• NEVER place child under the bassinet.

- The bassinet must be fully assembled and installed. Do not modify bassinet or add any attachments that are not listed in the owner's manual.

- To help prevent heat build-up inside the playard and to avoid overheating your child, when using the bassinet DO NOT use an outdoor canopy.

- To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.

- If a sheet is used with the pad, use only the one provided by Baby Jogger that is specifically designed to fit the dimensions of the mattress pad.

- Ensure bassinet is properly stored when not in use.

AVOID STRANGULATION HAZARDS

- Strings and cords can cause strangulation. Keep strings and cords away from child.

- NEVER place the playard near a window where cords from blinds or drapes can strangle child.

- NEVERhang strings on or over the product.

- NEVER place items with a string around a child's neck, such as hood strings, pacifier cords, etc.

• NEVER attach strings to toys.

PLAYARD SET UP

1 Unzip playard bag.
2 Remove mattress and playard from bag.

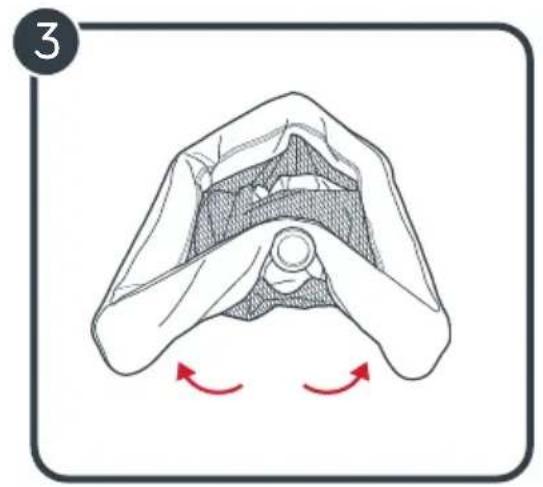

3 Place folded playard on the ground.
4 Unfold playard so that the opening of the playard is facing up.

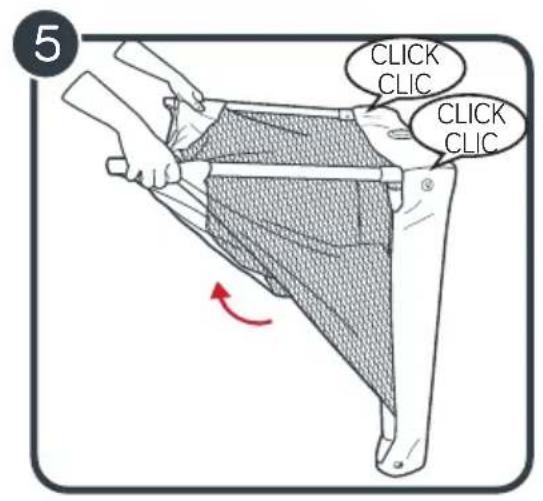

5 With one side resting on the ground, pull the legs out from the other side until they lock into place.
6 Repeat on the other side.

CHECK: Once playard is fully upright, make sure that all legs are completely locked into position.

7 Insert mattress into playard.

CHECK: Ensure that mattress cover is completely zipped.

8 Mattress should be flat on the floor of the playard.

9 Pull the snaps connected to the bottom corners of the mattress through the openings on the playard floor.

10 Secure all four snaps to the floor of the playard.

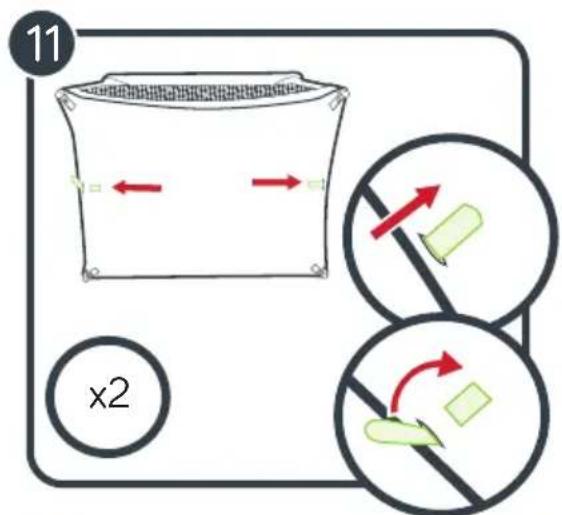

11 Pull the two tabs located on the bottom of the mattress through the openings on the bottom of the playard and fasten.

12 Playard frame is fully assembled.

⚠ WARNING- Make sure top rails and all legs are locked before using.

BASSINET SET UP

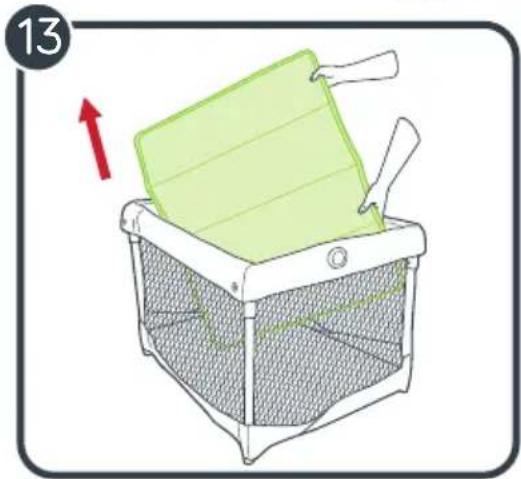

13 Release straps from bottom of playard. Pull mattress fully out of playard.
14 Locate zipper underneath flap.
15 Unzip bassinet storage zipper following around the entire top rail of playard.
16 Bassinet fabric and support tubes should all be accessible now.
17 Locate the bassinet center zipper and zip completely.

WARNING- Ensure that bassinet center zipper is fully zipped with no red visible.

18 With the bassinet fabric fully zipped, locate the bassinet support tubes.
19 Connect both sets of tubes.

CHECK: Bassinet support tubes MUST be assembled before placing mattress in bassinet. Ensure that mattress cover is completely zipped.

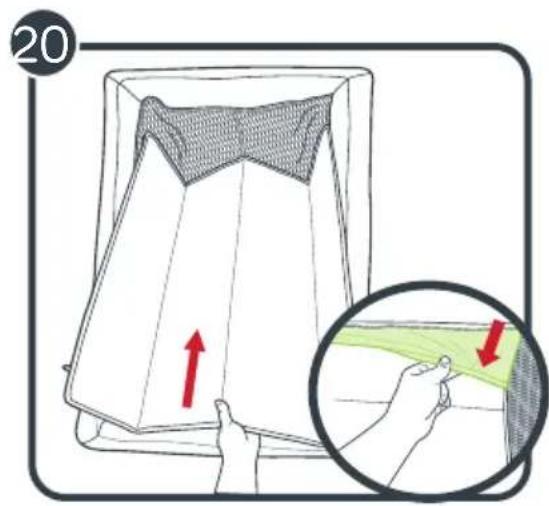

20 Fold mattress as shown to insert into bassinet. Tuck the outer panels of mattress into the mattress side panel covers on either side of the bassinet.

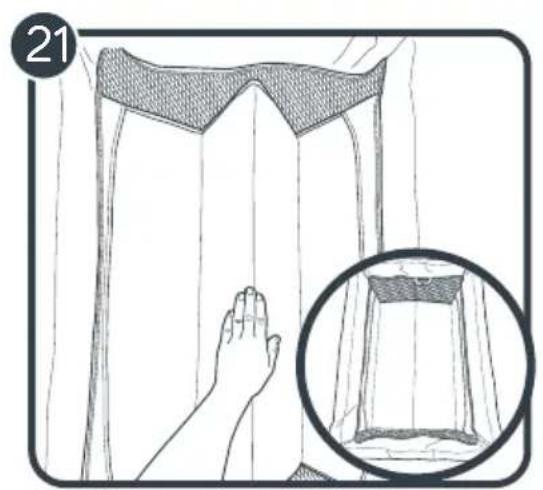

21 Push center of mattress down so that the two center panels of mattress are flat against the bottom of the bassinet.

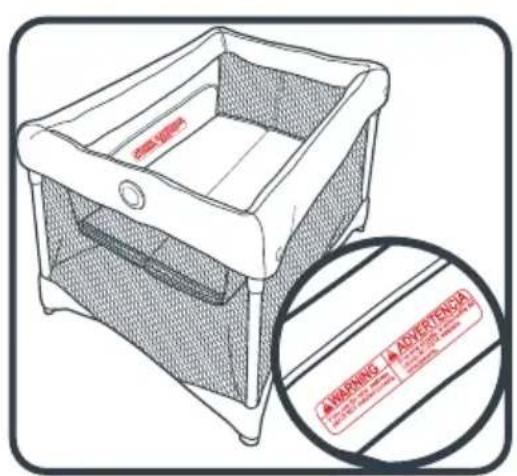

CHECK: If you can see the warning label on the bassinet, the mattress IS NOT installed correctly.

22 Bassinet is fully assembled.

BASSINET DISASSEMBLY AND STORAGE

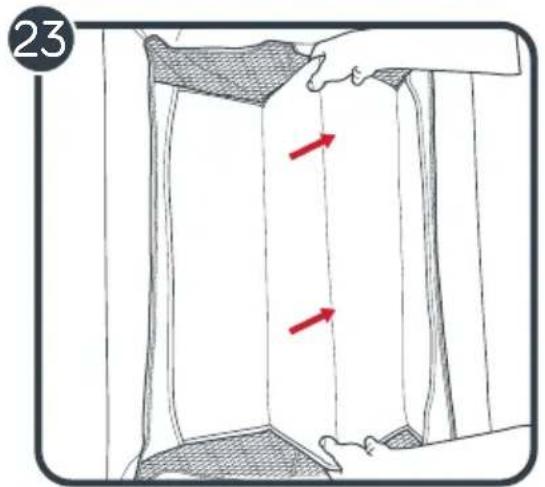

23 To begin bassinet disassembly, lift up on both sides of the center of the mattress to remove.
24 Disconnect each set of bassinet support tubes.
25 Unzip bassinet fabric.
26 Locate bassinet storage zipper inside the top rail and connect.
27 Completely zip up the bassinet fabric and tubes.

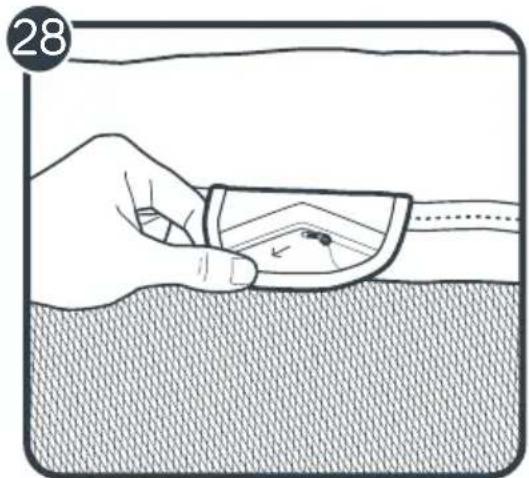

28 Close the zipper flap to cover the zipper.

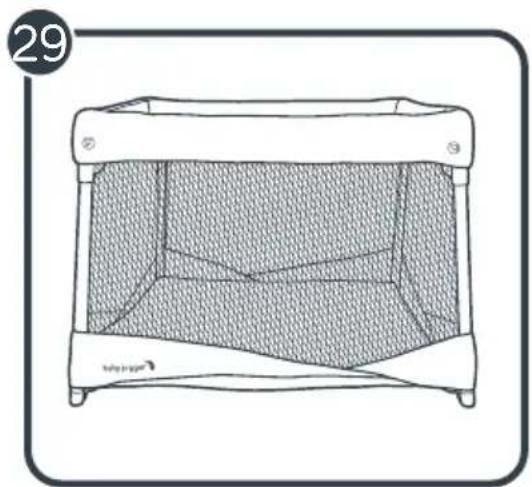

29 Bassinet is completely stored.

PLAYARD STORAGE

NOTE: If mattress is in playard, remove before attempting to store.

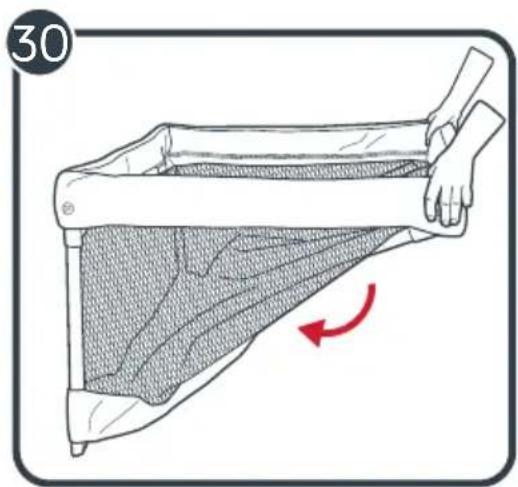

30 Start fold by pressing leg fold buttons on one side.

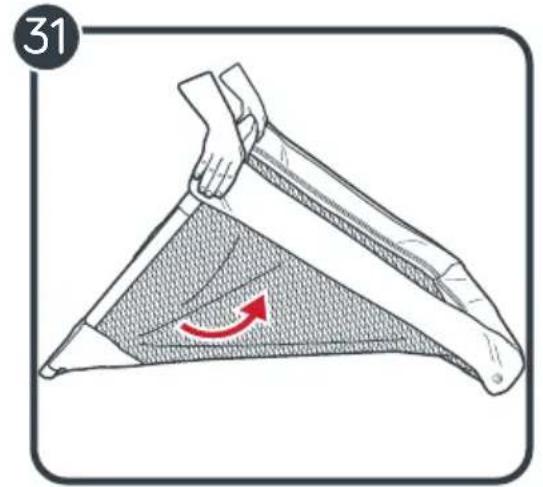

31 Press buttons on other side to complete leg fold.

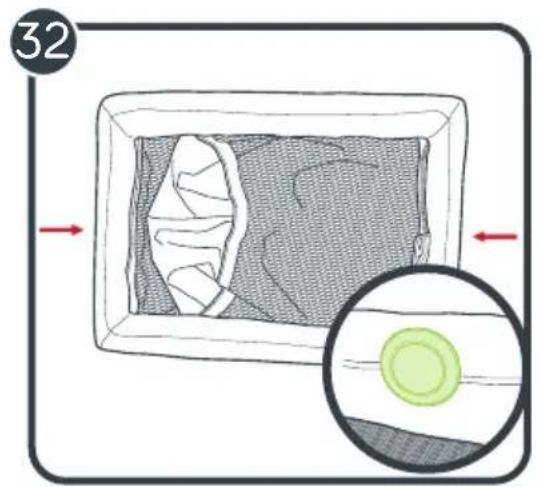

32 Locate top rail fold buttons.

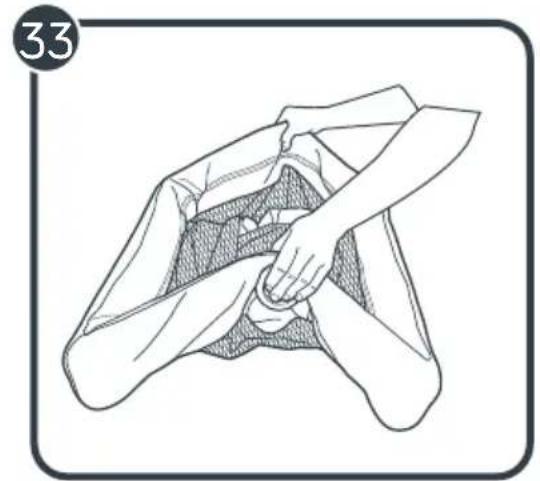

33 Press both buttons to fold frame in half.

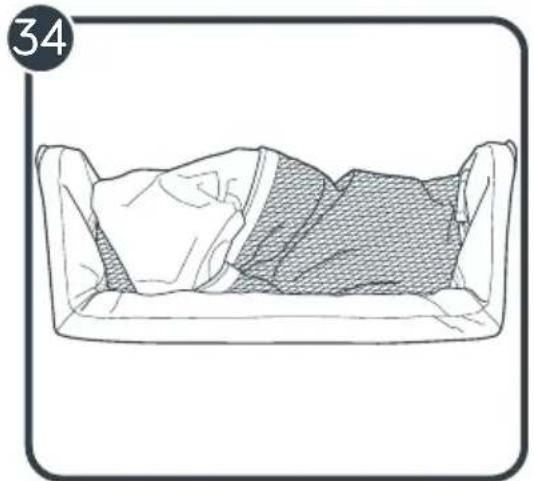

34 Playard is completely folded.

35 Place folded frame into carry bag as shown. Folded mattress should nest into frame to allow bag to be zipped.

36 Zip bag and playard is fully stored.

CARE AND MAINTENANCE

To preserve the longevity of your playard, it is important to perform simple, regular maintenance. From time to time, check your playard and bassinet for worn parts, torn material or loose stitching, and make sure that the joints and folding areas are still in good condition. Replace parts as needed, using only Baby Jogger replacement parts. All repairs should only be carried out by an authorized dealer

WASHING

Mattress

• Mattress cover is removable and machine washable.
• To wash, remove panel boards and wash in cold water with a mild detergent.
• To minimize shrinkage, simply re-insert panel boards to dry.
• Do not press, iron, dry clean, tumble dry or wring the fabric.
• If mattress cover needs to be replaced, only use parts from a Baby Jogger Authorized dealer. They are the only ones guaranteed to have been safety tested and designed to fit this mattress.

Playard and Bassinet Fabric

- Wipe clean using a mild soap and a damp cloth.

Plastic/Metal Parts

- Wipe clean using a mild soap and warm water.

STORING

• If playard is used at the beach, you MUST clean sand off your playard, including the feet, before storing. Sand in top rail lock and leg lock may cause damage.
  • DO NOT store outside.
  • DO NOT place heavy objects on top of playard.
• DO NOT store playard near direct heat source such as radiator or fire.
• Ensure that playard is fully dry before storing for prolonged periods.

REGISTER YOUR PLAYARD ONLINE AT

www.babyjogger.com/register

Baby Jogger's Limited Lifetime Warranty:

Baby Jogger warrants that the frame is free of manufacturer defects for the lifetime of the product. Manufacturer's defects include but are not limited to the breaking of welds and frame tube damage. Textile or soft side materials and all other components shall be warranted for one year from the date of purchase. Proof of purchase is required to make a warranty claim and the warranty is only extended to the original purchaser.

THIS WARRANTY DOES NOT COVER:

• Normal wear and tear
- Corrosion or rust
- Incorrect assembly, or the installation of third party parts or accessories not compatible with the original design
• Accidental or intentional damage, abuse or neglect
- Commercial use
- Improper storage/care of the unit

This warranty specifically excludes claims for indirect, incidental, or consequential damages. The implied warranties of merchantability and fitness for a particular purpose is according to the specific warranty period for this model unit at time of purchase. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are in your state, consult your local or state consumer affairs office or your State's Attorney General.

If your product was purchased outside of the United States, please contact the distributor in the country nearest you. Their contact information can be found on our website at http://www.babyjogger.com. Claims for warranty outside of the country in which the product was purchased may incur shipping charges.

NOTE: When contacting Baby Jogger distributor regarding your product, please have your product's serial number and manufacturing date ready.

Customer Care Contact Information:

E-Mail: [e-mail]

Call: 1-800-241-1848 8:30am - 5:30pm EST, Mon - Fri.

Fax: [phone]

Mail: Baby Jogger, LLC

4110 Premier Drive

High Point, NC 27265

www.babyjogger.com

PLEASE DO NOT CONTACT THE PLACE OF PURCHASE FOR PARTS OR WARRANTY ISSUES
