Product Type	Canister Vacuum Cleaner with PowerMate®
Model Number	125.81214610
Brand	Kenmore
Power Supply	120 V, 60 Hz AC, Polarized Plug
Amperage	12 A (typical)
Dimensions (H x W x D)	Approximately 12 x 15 x 12 in (canister)
Weight	Approximately 15 lb
Cord Length	20 ft (typical, auto-rewind)
Dust Collection	Disposable Dust Bag (Style Q, type 20-53013 or 20-54321)
Filtration	Motor Safety Filter (washable), HEPA Exhaust Filter (replaceable)
Attachments Included	Floor Brush, Crevice Tool, Dusting Brush, Attachment Holder
PowerMate® Features	Adjustable Pile Height (XLO, LO, MED, HI), Edge Cleaners, Overload Protector
Handle Controls	2-way On/Off Switch (CARPET/FLOOR), Suction Control
Additional Features	Thermal Protector, Cord Rewind Button, On-board Attachment Storage
Warranty	1 Year Limited Warranty (90 days for non-household use)
Help Line	1-877-531-7321 (8 am-5 pm EST M-F)
Replacement Parts	Dust Bags (20-53013, 20-54321), Exhaust Filter (20-86880), Motor Safety Filter (20-50104), Agitator Assembly (KC84REEJZ000), Belt (not specified in manual)
Manufacturer	Sears Brands Management Corporation, Hoffman Estates, IL 60179 USA

Frequently Asked Questions - 125.81214610 KENMORE

How do I change the dust bag?

Turn off and unplug the vacuum. Remove the hose, squeeze the hood release button, and lift the canister hood. Pull out the old bag, ensuring the bag mount flips forward. Insert a new bag (type 20-53013 or 20-54321) by sliding the cardboard tab into the slots until it locks. Tuck the bag inside, close the hood, and reattach the hose.

How do I clean the motor safety filter?

After removing the dust bag, lift the rubber retainer and pull out the motor safety filter. Wash it in warm soapy water, rinse thoroughly, and let it dry completely. Do not put it in the dishwasher. Slide it back into place under the ribs.

How often should I replace the exhaust filter?

Replace the HEPA exhaust filter when the entire surface is covered evenly with dust. It cannot be washed. To replace, release the latch, pull down the cover, remove the old cartridge, and insert a new one (part 20-86880) with the rubber seal upward. Snap the cover back.

What should I do if the PowerMate® stops working?

First, check if the overload protector has tripped. Turn off and unplug the vacuum, remove any jammed debris, and press the OVERLOAD PROTECTOR RESET button. If it still doesn’t run, inspect the belt and agitator for wear or blockage. The handle switch should be in CARPET position for the agitator to operate.

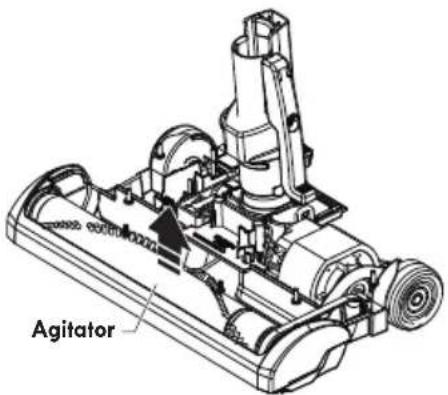

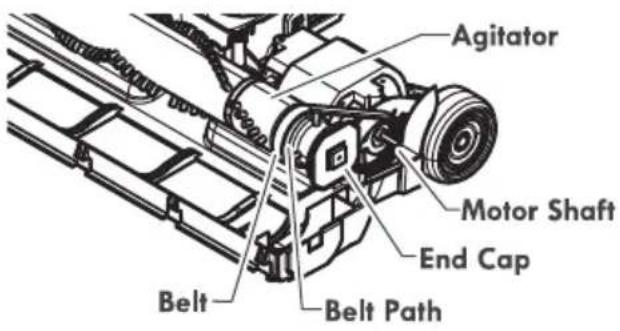

How do I change the belt and clean the agitator?

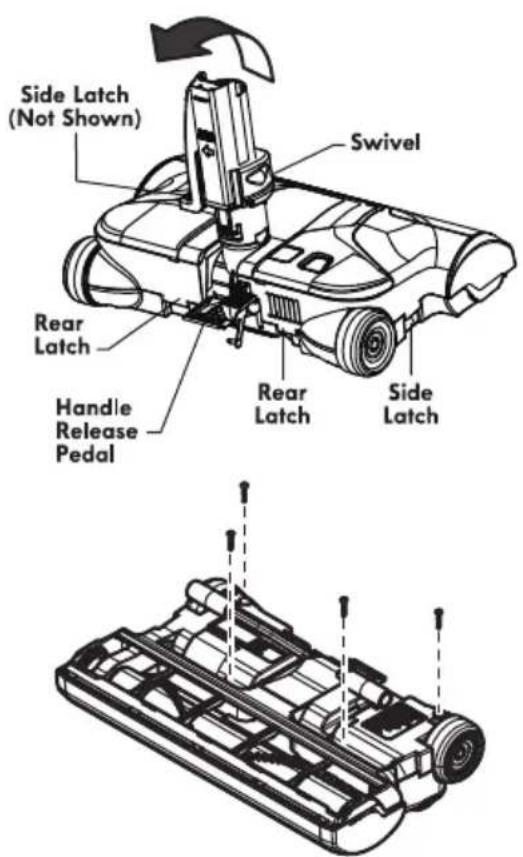

Turn off and unplug the vacuum. Remove the four screws on the bottom of the PowerMate®, then release the side and rear latches to lift off the cover. Lift out the agitator assembly and remove the worn belt. Clean hair and debris from the agitator and end caps. Install a new belt over the motor shaft and belt path, then reassemble.

What does the suction control do and how do I adjust it?

The suction control is at the base of the handle. Turning it opens an airflow hole to reduce suction for lightweight rugs and draperies, or closes it to increase suction for carpets and upholstery. Adjust as needed for different surfaces.

How do I use the attachments?

To use attachments, first remove the handle or wand from the PowerMate®. Slide the desired attachment (crevice tool, dusting brush, or floor brush) onto the wand or handle. Refer to the Attachment Use Table in the manual for recommended uses: crevice tool for corners, dusting brush for furniture, floor brush for bare floors.

What should I do if the vacuum cleaner overheats and shuts off?

The thermal protector automatically turns off the motor if a clog restricts airflow. Turn off and unplug the vacuum, let it cool for about 50 minutes. Check for and remove any clogs in the hose, wand, or PowerMate®. Ensure filters are clean. After cooling, plug in and restart. If it still doesn’t run, contact a service center.

How do I store the vacuum cleaner?

To store, place the PowerMate® flat and slide the U-shaped storage hook on the wand into the slot on the canister. The canister can be stored vertically. Disconnect the hose from the wand and canister to prevent stress, and loosely coil the hose.

What is covered under the Kenmore warranty?

The vacuum cleaner has a 1-year limited warranty from the date of sale against defects in material or workmanship. Repairs or replacement are free with proof of purchase. It does not cover expendable items (filters, belts, bags, bulbs), damage from misuse or improper maintenance, or unauthorized modifications. For full details, visit www.kenmore.com/warranty.

USER MANUAL 125.81214610 KENMORE

Vacuum Cleaner Help Line:

1-877-531-7321

8:00am-5:00pm EST, M-F

Sears Brands Management Corporation

Hoffman Estates, IL 60179 USA

www.kenmore.com

www.sears.com

TABLE OF CONTENTS

Before Using Your New Vacuum Cleaner 2

Kenmore Vacuum Cleaner Warranty 3

Important Safety Instructions 4

Parts and Features 5-7

Assembly Instructions 8

Operating Instructions 9-13

Performance/Safety Features 14

Canister Care 15-18

PowerMate® Care 19-21

Troubleshooting 22-23

BEFORE USING YOUR NEW VACUUM CLEANER

Please read this guide. It will help you assemble and operate your new Kenmore vacuum cleaner in the safest and most effective way.

For more information about vacuum cleaner care and operation, call the Vacuum Cleaner Help Line at 1-877-531-7321. You will need the complete model and serial numbers when requesting information. Your vacuum cleaner's model and serial numbers are located on the Model and Serial Number Plate.

Use the space below to record the model number and serial number of your new Kenmore vacuum cleaner.

Model No.

Serial No. ____

Date of Purchase ____

Keep this book and your sales check (receipt) in a safe place for future reference.

PACKING LIST

Your KENMORE VACUUM CLEANER is packaged with the following parts and components assembled separately in the carton:

• Canister Vacuum Cleaner (with Floor Brush)
• PowerMate®
• Crevice tool
• Handle & Hose Assembly
• Use & Care Guide
• Dusting brush
• Attachment holder

KENMORE VACUUM CLEANER WARRANTY

KENMORE LIMITED WARRANTY

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when it is correctly installed, operated and maintained according to all supplied instructions.

WITH PROOF OF SALE, a defective product will receive free repair or replacement at option of seller.

For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty

This warranty applies for only 90 DAYS from the sale date if this appliance is ever used for other than private household purposes.

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.
3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.
4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that was not in accord with electrical, gas or plumbing codes.
5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all supplied instructions.
6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
8. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
9. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certification logo.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions in this guide before assembling or using your vacuum cleaner.

WARNING:

Your safety is important to us. To reduce the risk of fire, electrical shock, injury to persons or damage when using your vacuum cleaner, follow basic safety precautions including the following:

Use your vacuum cleaner only as described in this guide. Use only with Sears recommended attachments.

Disconnect electrical supply before servicing or cleaning out the brush area. Failure to do so could result in brush unexpectedly starting causing personal injury from moving parts.

Do not leave vacuum cleaner when plugged in. Unplug from outlet when not in use and before performing maintenance.

To reduce the risk of electrical shock - Do not use outdoors or on wet surfaces.

Do not allow to be used as a toy. Close attention is necessary when used by or near children.

Do not use with a damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, return it to a Sears Service Center.

Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

Do not handle plug or vacuum cleaner with wet hands.

Do not put any objects into openings.

Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

Turn off all controls before unplugging.

Use extra care when cleaning on stairs.

Do not put on chairs, tables, etc. Keep on floor.

Do not use vacuum cleaner to pick up flammable or combustible liquids (gasoline, cleaning fluid, perfumes, etc.), or use in areas where they may be present. The fumes from these substances can create a fire hazard or explosion.

Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

Do not use vacuum cleaner without dust cup and/or filters in place.

Always change the dust bag after vacuuming carpet cleaners or freshener, powders, and fine dust. These products clog the bag, reduce airflow and can cause the bag to burst. Failure to change the bag could cause permanent damage to the vacuum cleaner.

Do not use the vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the vacuum cleaner.

Do not operate the vacuum cleaner without the exhaust filter or filter door in place.

The hose contains electrical wires. Do not use when damaged, cut, or punctured. Replace if cut or worn. Do not pick up sharp objects.

Always turn off and unplug vacuum cleaner before connecting or disconnecting either hose, wand, or PowerMate ^® .

Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

You are responsible for making sure that your vacuum cleaner is not used by anyone unable to operate it properly.

WARNING:

This product contains a chemical known to the state of California to cause cancer and birth defects or other reproductive harm.

SAVE THESE INSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your vacuum cleaner is intended for Household use. Read this Use & Care Guide carefully for important use and safety information. This guide contains safety statements under warning and caution symbols.

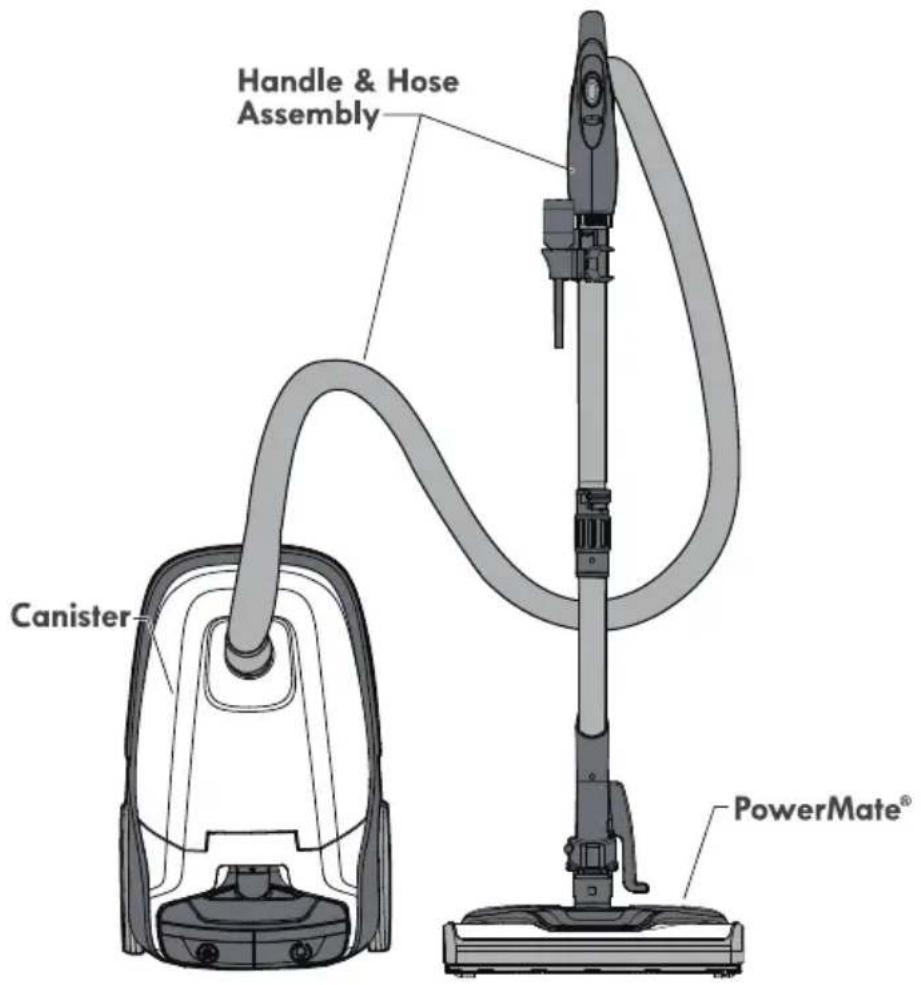

PARTS AND FEATURES

It is important to know your vacuum cleaner's parts and features to ensure its proper and safe use. Review these before using your vacuum cleaner.

REPLACEMENT PARTS

	.0N
tleB 20-53013*
Dust Bag (3-pack)	20-54321*
	20-50104*Dus
Exhaust Filter	20-86880*
Motor Safety Filter	20-81002*
PowerMate® Agitator Assembly	KC84REEJZ000
To order a replacement part call 1-844-553-6667or visit www.searspartsdirect.com* Available online at www.sears.com

traPtraP

Bag (8-pack)

Scan to reorder bags or go to kenmore.com/reorderCQ

NOTE: Detailed illustrations and listings of all vacuum cleaner parts are also available at searspartsdirect.com

CANISTER

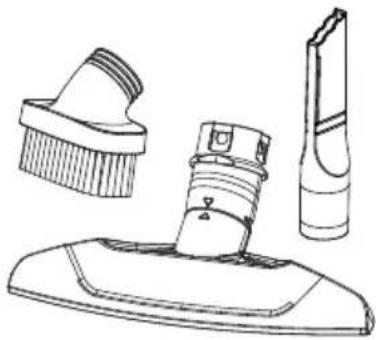

ATTACHMENTS

CREVICE TOOL

Line drawing of a cylindrical object with a serrated tip and segmented body (no text or symbols)

DUSTING BRUSH

Simple line drawing of a brush or brush with a pointed tip and textured base (no text or symbols)

ATTACHMENT HOLDER

Diagram of a mechanical device with a circular component and lever mechanism (no text or symbols)

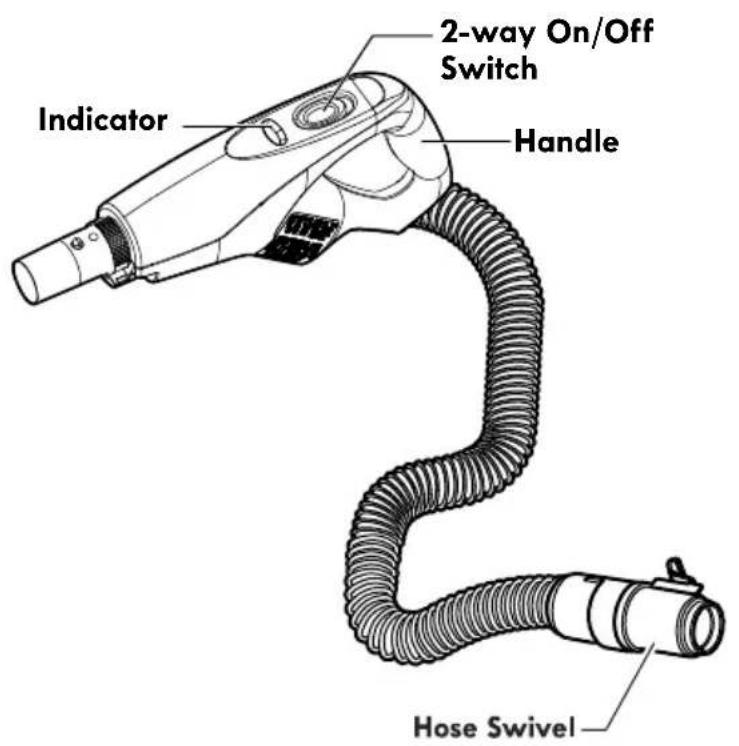

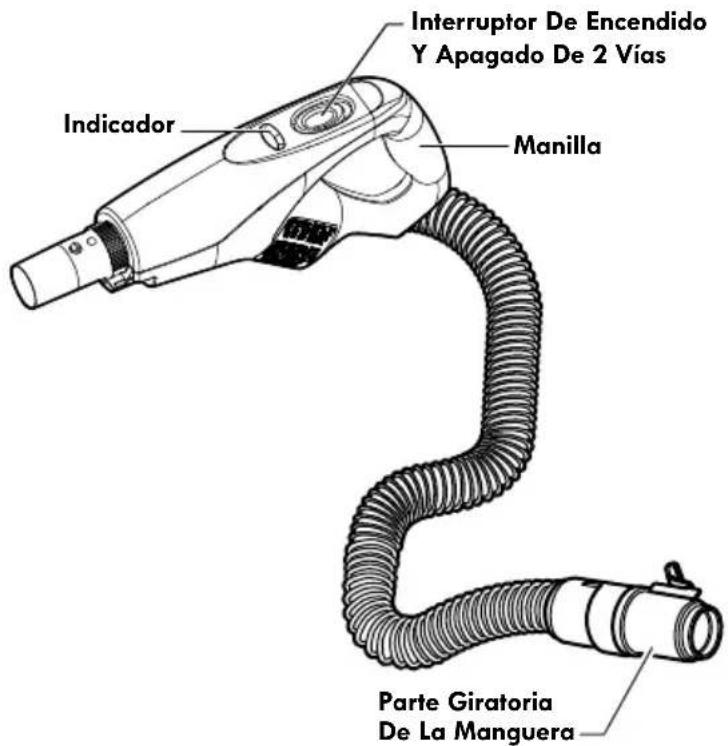

HANDLE & HOSE ASSEMBLY

WAND

Technical line drawing of a mechanical device with multiple ports and connectors (no text or symbols)

POWERMATE®

Please pay special attention to these hazard alert boxes, and follow any instructions given. WARNING statements alert you to such dangers as fire, electric shock, burns and personal injury. CAUTION statements alert you to such dangers as personal injury and/or property damage.

ASSEMBLY INSTRUCTIONS

Before assembling vacuum cleaner, check the PACKING LIST (page 2). Use this list to verify that you have received and identified all the components of your new Kenmore vacuum cleaner.

WARNING

Electrical Shock Hazard

DO NOT plug into electrical supply until assembly is complete. Failure to do so could result in electrical shock or injury.

POWERMATE®

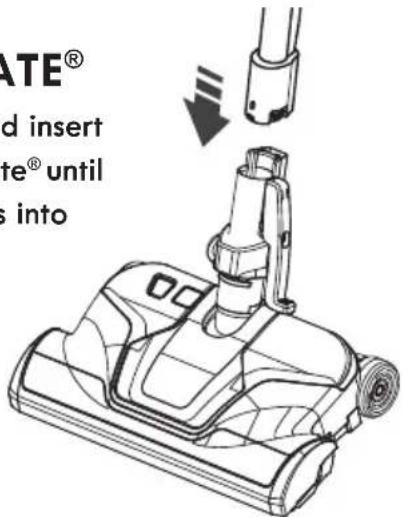

Align wand and insert onto PowerMate® until the wand locks into place.

HANDLE ASSEMBLY

Insert wand into handle until lock button snaps inplace.

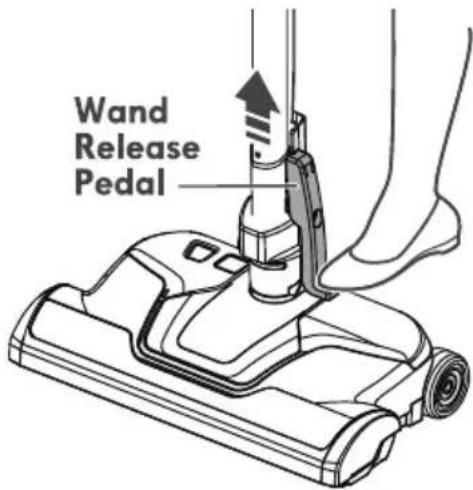

To remove: Press wand release button and pull up on handle.

To store: Disconnect hose from wand and canister to prevent stress on hose during storage. Store hose in a loosely coiled position so the hose covering is not stressed.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a mechanical component (no text or symbols)

WANDS

Align the wand and insert the upper wand into the lower wand until lock button snaps in place.

Connect the plug to the hand assembly and lock the cord onto the cord retainer.

Diagram of a vertical container with a downward arrow indicating flow or movement (no text or symbols present)

Diagram of a mechanical component with internal structure and directional arrow (no text or symbols)

ATTACHMENT HOLDER

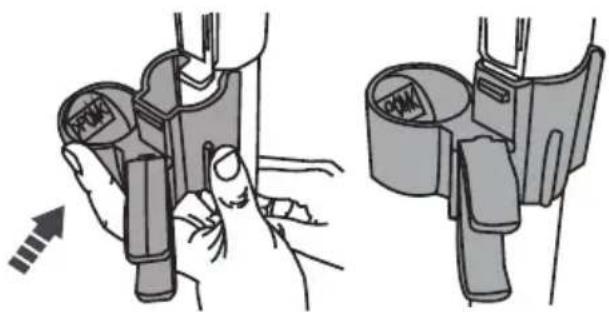

Align the attachment holder clip with the front of wand. Push and snap into place on wand.

Illustration of two mechanical components with arrows indicating motion (no text or symbols)

HOSE

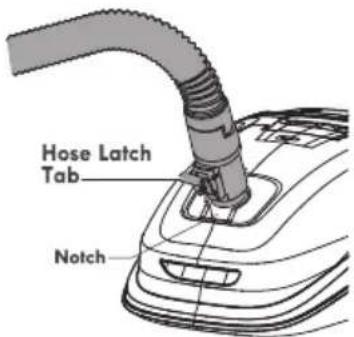

To install: Line up the hose latch tab with the notch in the canister hood, and insert hose into canister until it snaps into place.

IMPORTANT:

Push hose firmly into the canister until the hose latch tab snaps into place. The vacuum cleaner will not operate until hose is fully connected.

To remove: Do not open hood before removing hose. With hood closed, press the hose latch tab in to release and remove hose.

CANISTER

1. Open the canister hood.
2. Check to see that the dust bag is properly installed. See BAG CHANGING (page 16) for instructions.
3. Check to see that the motor safety filter is properly installed. See MOTOR SAFETY FILTER CLEANING (page 17) for instructions.

OPERATING INSTRUCTIONS

CAUTION

Moving parts! To reduce the risk of personal injury, DO NOT touch the agitator when vacuum cleaner is on. Contacting the agitator while it is rotating can cut, bruise or cause other injuries. Always turn off and unplug from electrical outlet before servicing. Use caution when operating near children.

HOW TO START

WARNING

Personal Injury and Product Damage Hazard

• ALWAYS turn off the vacuum cleaner before unplugging.
• The cord moves rapidly when rewinding. Keep children away and provide a clear path when rewinding the cord to prevent personal injury.
• DO NOT use outlets above counters. Damage from cord to items in surrounding area could occur.
- When any abnormality/failure occurs, stop using the product immediately and disconnect the power plug.

NOTE: To reduce the risk of electric shock, this vacuum cleaner has a polarized plug; one blade is wider than the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

WARNING

Personal Injury and Product Damage Hazard

• DO NOT run over power cord with PowerMate®. Personal injury or product damage could result.
  • DO NOT pull plug from wall by the power cord. If there is damage to the cord or plug, personal injury or property damage could result.

• Pull cord out of canister to desired length. The cord will not rewind until the cord rewind button is pushed.

Line drawing of a car's internal components with an arrow pointing to a plug (no text or symbols present)

1. Plug the polarized power cord into a 120 Volt outlet located near the floor.

To rewind: Turn off and unplug the vacuum cleaner. Hold the plug while rewinding to prevent damage or injury from the moving cord. Push cord rewind button.

Technical line drawing of a car interior showing internal compartments and structural elements (no text or labels)

1. Lower the wand from upright position by pressing on the HANDLE RELEASE pedal.

1. Select a pile height setting by pressing the height adjustment pedal on the rear of the PowerMate®. The pile height setting shows on the indicator.

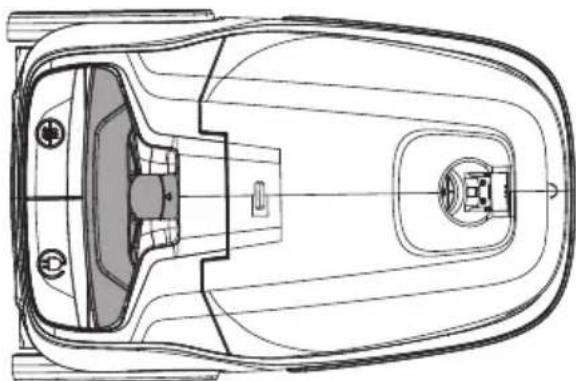

1. Push the power switch on the canister body to turn the vacuum suction ON or OFF.

Top-down line drawing of a car dashboard with two circular gauges and a central vent (no text or symbols)

To turn on the PowerMate ^® motor, slide the handle switch to the CARPET position. The PowerMate ^® agitator will start to spin.

To use the canister motor only, slide the handle switch to the FLOOR position. The PowerMate® agitator will stop spinning.

Agitator On Agitator OFF

SUGGESTED PILE HEIGHT SETTINGS

Attention: Refer to your carpet manufacturers cleaning recommendations. Some more delicate carpets may require that they be vacuumed with the PowerMate® agitator turned off to prevent carpet damage.

For best deep down cleaning, use the XLO setting. However, you may need to raise the height to make some jobs easier, such as scatter rugs and some deep pile carpets, and to prevent the vacuum cleaner from shutting off. Suggested settings are:

HI – Shag, deep pile, super-soft, or ultraplush carpets, and scatter rugs.

MED - Medium to deep pile.

LO – Low to medium pile.

XLO – The preferred setting for many carpets and also for bare floors.

NOTE: To protect bare floors, slide the 2-way On/Off switch to the FLOOR position to turn off agitator rotation.

CAUTION

DO NOT leave the PowerMate ^® running in one spot for any length of time. Damage to carpet may occur.

CAUTION

Product Damage Hazard

Use care if the PowerMate® and wand is left in the upright position as it may tip over easily. Property damage can occur if tipped.

VACUUMING TIPS

SUCTION CONTROL

The suction control allows you to change vacuum cleaner suction for different fabric and carpet weights.

• Opening control decreases suction for lightweight rugs.
• Closing control increases suction for upholstery and carpets.
• Keep the airflow passage open. Check each assembly area in REMOVING CLOGS (page 15) occasionally for clogs.

WARNING: Turn off and unplug vacuum cleaner from outlet before checking for clogs.

SUGGESTED SWEEPING PATTERN

For best cleaning action, the PowerMate® should be pushed straight away from you and pulled straight back. At the end of each pull stroke, the direction of the PowerMate® should be changed to point into the next section to be cleaned. This pattern should be continued across the carpet with slow, gliding motions.

NOTE: Fast, jerky strokes do not provide complete cleaning.

Illustration of a vacuum cleaner with directional arrows indicating airflow or movement (no text or symbols)

EDGE CLEANER

Active brush edge cleaners are on both sides of the PowerMate®. Guide either side of the PowerMate® along base-boards or next to furniture to help remove dirt trapped at carpet edges.

Technical line drawing of a mechanical component or bracket with vertical supports (no text or symbols)

POWERMATE® STORAGE

The lower wand has a U-shaped storage hook at its base that slides into the U-shaped slot on the canister. The storage hook allows the wands and PowerMate® to be stored with the canister to conserve storage space. The canister must be stored on end for this feature to be used.

The PowerMate ^® must be in the flat position for storage attachment. Use the handle release pedal to place it in this position. The wand will slip out of the slot as it is lifted up for use and will slide into the slot as it is lowered for storage.

ATTACHMENTS

CAUTION

DO NOT attach or remove handle or wands while vacuum cleaner is ON. This could cause sparking and damage the electrical contacts or electronic controls.

ATTACHMENT STORAGE

This vacuum cleaner is equipped with on-board attachment storage. The floor brush is stored in the canister, and the dusting brush and crevice tool are stored in the attachment holder on the wand. See ATTACHMENT USE TABLE on page 13.

Technical line drawing of a car interior frame with no visible text or symbols

Diagram of a cleaning or cleaning tool with a broom and cylindrical components (no text or symbols)

ATTACHMENTS ON HANDLE

NOTE: If the PowerMate® is attached, turn vacuum cleaner off before removing handle from wand.

1. Press wand release button and pull up on handle.

Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

1. Slide attachments onto handle as needed. The floor brush will click into place. See ATTACHMENT USE TABLE (page 13).

Line drawing of a vacuum cleaner with three different components (brush, bulb, and clip) shown without any text or symbols.

ATTACHMENTS ON WAND

1. To remove wand from PowerMate ^® , lock wand in upright position.
2. Press wand release pedal with foot and pull the wand straight up and out of PowerMate®.

1. Slide attachments onto wand as needed. The floor brush will click into place. See ATTACHMENT USE TABLE below.

Line drawing of a hairdryer brush and outlet with three different designs (no text or labels)

ATTACHMENT USE TABLE

		CLEANING AREA
ATTACHMENT		Furniture1	Cushions1	Drapes1	Stairs Floors	Floors/Rugs	Walls	detepraCeraBneewiteB
Crevice Tool		√	√
Floor Brush					√	√		√
PowerMate®						√ 2	√
Dusting Brush		√		√				√

1. Always clean attachments before using on fabrics.
2. The 2-way On/Off switch should be in the FLOOR position.

PERFORMANCE/SAFETY FEATURES

WARNING

Personal Injury Hazard

To avoid accidental agitator starting, always turn off and unplug the vacuum cleaner before cleaning the agitator area. Failure to do so can result in personal injury.

OVERLOAD PROTECTOR

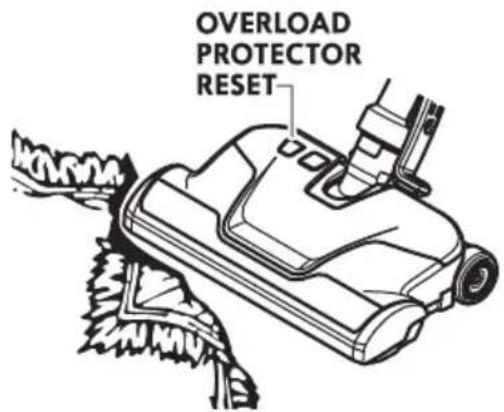

The PowerMate® has built-in protection against motor and belt damage should the agitator jam. If the agitator slows down or stops, the overload protector shuts off the PowerMate®. The canister motor will continue to run.

To correct problem: Turn off and unplug vacuum cleaner, remove obstruction, then press OVERLOAD PROTECTOR RESET button.

If the PowerMate ^® motor still does not run after reset, have the unit serviced by a Sears or other qualified service dealer.

SUCTION CONTROL

The suction control located at the base of the handle allows you to change the vacuum airflow.

Illustration of a hand holding a rolled-up document or scroll (no text or symbols visible)

Decrease suction for draperies and lightweight rugs by turning control to open the airflow hole.

Diagram of a piston-cylinder joint with a finger inserted, showing mechanical components without any text or symbols.

Increase suction for carpets, upholstery and bare floors by turning the control to close the airflow hole.

THERMAL PROTECTOR

This vacuum cleaner has a thermal protector which automatically trips to protect the vacuum cleaner from overheating. If a clog prevents the normal flow of air to the motor, the thermal protector turns the motor off automatically. This allows the motor to cool in order to prevent possible damage to the vacuum cleaner.

To correct problem: Turn off and unplug vacuum cleaner to allow the vacuum cleaner to cool and the thermal protector to reset. Check for and remove clogs, if necessary. Also check and clean or replace any clogged filters. Wait approximately fifty (50) minutes and plug the vacuum cleaner in and turn back on to see if the motor protector has reset.

If the canister motor does not resume operation after the reset procedure described above, have the unit serviced by a Sears or other qualified service dealer.

CANISTER CARE

REMOVING CLOGS

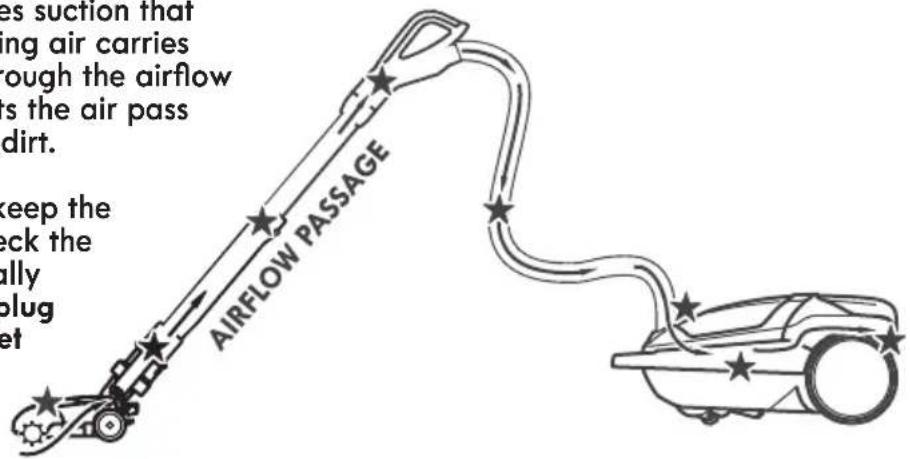

The vacuum cleaner creates suction that picks up dirt. Rapidly moving air carries the dirt to the dust bag through the airflow passages. The dust bag lets the air pass through, while it traps the dirt.

For best cleaning results, keep the airflow passage open. Check the starred (★areas occasionally for clogs. Turn off and unplug vacuum cleaner from outlet before checking.

TO CHECK FOR CLOGS:

• Check dust bag and change if full. See DUST BAG CHANGING (page 16).
• Check motor safety filter and exhaust filter and clean or replace if dirty. See MOTOR SAFETY FILTER CLEANING (page 17) and EXHAUST FILTER CHANGING (page 18).
• Check PowerMate ^® for any dirt or debris in the belt path area or in the agitator area. Carefully remove any string or debris located on the agitator or end caps. See TO CLEAN AGITATOR (page 20).

If the vacuum cleaner still has poor suction, do the following:

1. Connect the hose to the canister and turn vacuum cleaner on. Check the end of the hose for suction. If there is good suction on the hose handle, there is no clog in the hose. If the suction is bad, remove any dirt or debris in the hose and handle.
2. Connect hose handle to wand. Check the end of the wand for suction. If there is good suction at the end of the wand, there is no clog in the wand. If the suction is bad, remove any dirt or debris in the wand.
3. Check PowerMate® swivel. Remove any dirt or debris.

CLEANING EXTERIOR AND ATTACHMENTS

1. Turn off and unplug vacuum cleaner. DO NOT drip water on vacuum cleaner.
2. To clean exterior, or to reduce static electricity and dust build-up, wipe outersurface with a clean, soft cloth that has been dipped in a solution of mild liquiddetergent and water, then wrung dry. Wipe dry after cleaning.

CAUTION

Do not use attachments if they are wet. Attachments used in dirty areas, such as under a refrigerator, should not be used on other surfaces until they are washed. They could leave marks.

DUST BAG CHANGING

For best cleaning results, the dust bag should be changed when the suction is weak or the airflow is blocked.

NOTE: See REPLACEMENT PARTS for part number and purchase details (page 5).

1. Turn off and unplug vacuum cleaner.
2. Remove hose from canister.
3. Squeeze the hood release button, then lift canister hood.
4. Pull bag out of the bag mount.

Note: The bag mount will flip forward after removing bag. This will prevent the hood from closing until a new bag is installed.

1. Check the motor safety filter and clean or, if necessary, replace. See MOTOR SAFETY FILTER CLEANING (page 17).

DO NOT bend or crease the middle of the cardboard when installing the bag into the bag mount slots.

1. Rotate bag mount down and install bag into slots per illustration, pushing down until the cardboard tab locks into position and the holes align.

1. Tuck the bag securely into the bag cavity so that none of the bag will be pinched by the hood.
2. Close and latch canister hood.
3. Insert hose into canister until it snaps in place.
4. Plug cord into wall outlet.

CAUTION

NEVER REUSE A DUST BAG. Very fine materials, such as carpet freshener, face powder, fine dust, plaster, soot, new carpet lint, etc. can clog the bag and cause it to burst before it is full, which may damage the vacuum cleaner motor. Change bag more often when vacuuming these materials.

MOTOR SAFETY FILTER CLEANING

WARNING

Electrical Shock Hazard

Turn off and unplug vacuum cleaner from electrical outlet. Do not operate the vacuum cleaner without the motor safety filter. Be sure the filter is dry and properly installed to prevent motor failure and/or electrical shock.

MOTOR SAFETY FILTER

Check motor safety filter occasionally and clean when dirty.

NOTE: See REPLACEMENT PARTS for part number and purchase details (page 5).

1. Remove the bag as outlined in the DUST BAG CHANGING (page 16) section.

2. Lift the rubber retainer and pull out motor safety filter as shown.

1. Wash filter in warm soapy water, rinse, then dry. Do not clean in dishwasher or install while damp.

2. Slide the filter back into place under the ribs in the bag cavity.

3. Replace the bag as outlined in the DUST BAG CHANGING (page 16) section.

EXHAUST FILTER CHANGING

WARNING

Fire and/or Electrical Shock Hazard

Do not operate with a clogged exhaust filter or without the exhaust filter installed. Do not operate without filter cover installed.

EXHAUST FILTER - HEPA MEDIA

The exhaust filter cartridge must be replaced when dirty. Replace the filter when the entire surface area is covered evenly. The filter CANNOT be washed as it will lose its dust trapping ability.

NOTE: See REPLACEMENT PARTS for part number and purchase details (page 5).

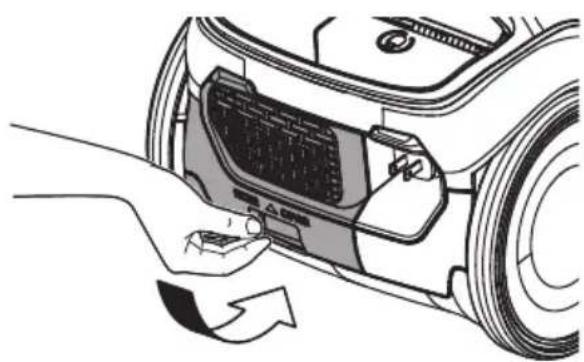

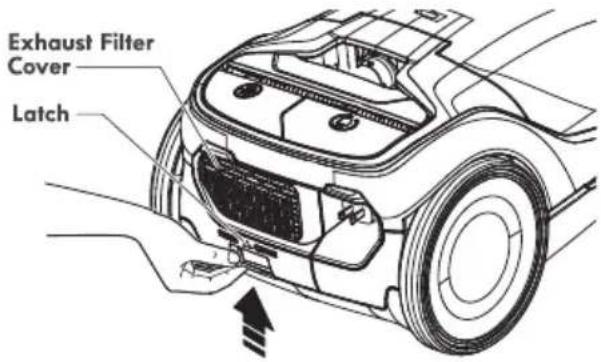

1. Push latch up to release the exhaust filter cover from slot in canister.

1. Pull filter cover down and outward to remove it from filter chamber in the canister.

2. Remove the exhaust filter cartridge from the filter cover.

1. Insert the new exhaust filter cartridge into the filter cover with the rubber seal upward.

Diagram showing a 3D mechanical component with internal structure and a separate 3D panel (no text or symbols)

1. To replace the exhaust filter cover, insert the two tabs on the cover into the slots at the top of the filter chamber.

1. Rotate filter cover down until it snaps into place.

Diagram of a car interior showing a hand inserting a component into the dashboard area (no text or symbols visible)

POWERMATE® CARE

Always follow all safety precautions when performing maintenance to the PowerMate®.

WARNING

Electrical Shock Or Personal Injury Hazard Always turn off and unplug vacuum cleaner before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting.

BELT CHANGING AND AGITATOR CLEANING

TO REMOVE BELT

1. Press handle release pedal and lower the swivel. Turn PowerMate® upside down and remove the four (4) screws securing base to PowerMate® cover.

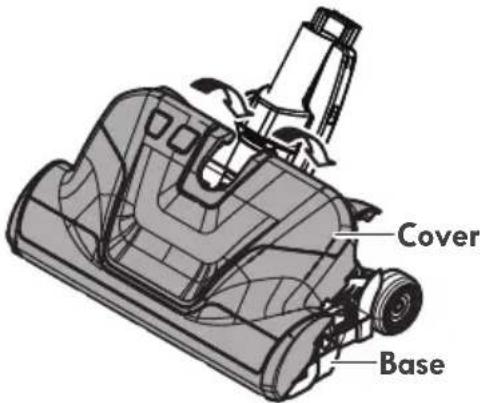

1. Turn PowerMate® right side up. Loosen the rear and side latches. (A flat blade screwdriver may be required.)

2. Grasp cover by rear and pull up to remove it from base.

Illustration of hands cleaning a car airbag with a tool (no text or symbols)

1. Lift agitator assembly out and remove worn belt.

1. Check and clean end cap areas. See picture on page 20 for complete agitator assembly.

TO CLEAN AGITATOR:

NOTE: In order to keep cleaning efficiency high and to prevent damage to your vacuum cleaner, the agitator must be cleaned every time the belt is changed.

The agitator must also be cleaned according to the following schedule:

Vacuum Cleaner Use Clean Agitator

HEAVY - every week (used daily)

MODERATE - every month (used 2-3 times/week)

LIGHT - every 2 months (used 1 time/week)

IMPORTANT

Turn off and unplug vacuum cleaner from electrical outlet. Check and remove hair, string and lint build-up in the PowerMate® agitator and end cap areas.

Remove any dirt or debris in the belt path area or in the brush unit area.

Carefully remove any string wound onto the agitator and end caps.

TO REPLACE BELT

1. Install new belt over motor shaft, then over belt path.

NOTE: See REPLACEMENT PARTS for part number and purchase details (page 5).

1. Line up front of cover and base. Rest cover on front edge of base as shown.

1. Rotate cover back. Press cover firmly until side and rear latches snap into place.

NOTE: Make sure there is no gap between the cover and base.

1. Turn PowerMate® upside down and replace the four (4) screws that secure the cover to the base.

AGITATOR SERVICING

WARNING

Electrical Shock Or Personal Injury Hazard

Always turn off and unplug vacuum cleaner before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting.

TO CHECK THE BRUSHES

When brushes are worn to the level of the base support bars, replace the agitator assembly.

TO REPLACE AGITATOR ASSEMBLY

1. Remove the floor brush from the PowerMate®.
2. Remove PowerMate® cover, belt and agitator assembly. See "To Remove Belt" in BELT CHANGING AND AGITATOR CLEANING (page 19).
3. Install new agitator assembly.
4. Reinstall belt and PowerMate® cover. See "To replace belt" in BELT CHANGING AND AGITATOR CLEANING (page 20).

NOTE: See REPLACEMENT PARTS for part number and purchase details (page 5).

TROUBLESHOOTING

Review this table to find do-it-yourself solutions for minor performance problems. Any other service needed should be performed by a Sears or other qualified service agent.

WARNING

Always turn off and unplug vacuum cleaner before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury.

PROBLEM	POSSIBLE CAUSE	POSSIBLE SOLUTION
Vacuum cleaner won't start.	1. Unplugged at wall outlet.2. Tripped circuit breaker/blown 2. fuse at household service panel.3. Loose hose electrical 3. Reconnect closures.	1. Plug in firmly, press ON/OFF switch. Reset circuit breaker or replace fuse. hose ends.
Poor job of dirt 1. Change pick-up. 2. Clear airflow passages.	bagFull or clogged dust bag.2. See clogged airflow passages.3. Dirty filters.4. Wrong pile height setting.5. Wrong suction control position selected.6. Hole in hose.7. Worn PowerMate® agitator.8. Worn or broken belt.9. Dirty agitator or end caps.10. Canister hood open.11. Tripped overload protector in PowerMate®. See OVERLOAD PROTECTOR (page 14).	3. Clean/change filters.4. Adjust setting.5. Adjust suction control.6. Replace hose.7. Change agitator.8&9. See BELT CHANGING AND AGITATOR CLEANING (page 19).10. Close and latch hood.11. Remove any items that may be caught or jammed, then reset. If vacuum cleaner starts and stops again, clean agitator and end caps, then reset.
Vacuum cleaner starts but shuts off.	1. Hose or hood electrical connections.2. Tripped overload protector in PowerMate®. See OVERLOAD PROTECTOR (page 14).3. Tripped thermal protector in canister.	1. Check connections, reconnect hose ends.2. Remove any items that may be caught or jammed, then reset. If vacuum cleaner starts and stops again, clean agitator and end caps, then reset.3. See THERMAL PROTECTOR (page 14).
PowerMate® will not run when attached.	1. PowerMate® connections unplugged.2. Worn or broken belt.3. Dirty agitator or end caps.4. Tripped overload protector in PowerMate®. See OVERLOAD PROTECTOR (page 14).5. Handle switch set to FLOOR position.	1. Plug in firmly.2&3. See BELT CHANGING AND AGITATOR CLEANING (page 19).4. Remove any items that may be caught or jammed, then reset. If vacuum cleaner starts and stops again, clean agitator and end caps, then reset.5. Slide handle switch to CARPET position to activate PowerMate®.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
Vacuum cleaner picks up moveable rugs -or-PowerMate® pushes too hard.	1. Wrong pile height setting.2. Suction too strong.	1. Adjust setting.2. Reduce suction by turning suction control on handle base to open airflow hole.
Cord won’t rewind. 1. Dirty power cord. 1. Clean the power cord.2. Cord jammed.		2. Pull out cord and rewind.
Vacuum cleaner leaves marks on carpet.	1. Wrong vacuuming pattern.	1. See VACUUMING TIPS (page 11).

TABLA DE CONTENIDOS

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Line drawing of a cylindrical object with a serrated tip and segmented body (no text or symbols)

CEPILLO PARA POLVO

Simple line drawing of a brush or plunger with no text or symbols

SOPORTE DE FIJACIÓN

Diagram of a mechanical device with a circular component and attached bracket (no text or symbols)

MANILLA Y CONJUNTO DE PIEZAS DE LA MANGUERA

VARA

Technical line drawing of a mechanical device with multiple ports and components (no text or symbols)

POWERMATE®

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

VARAS

Diagram of a device with a downward arrow indicating compression or disassembly (no text or symbols present)

Cross-sectional diagram of a mechanical component with an arrow indicating assembly or transformation (no text or symbols present)

SOPORTE DE FIJACIÓN

Illustration of two mechanical device configurations with hand positioning and directional arrows (no text or symbols)

MANGUERA

CÓMO COMENZAR

ADVERTENCIA

Line drawing of a car's internal components with a power plug inserted, showing no text or symbols.

Technical line drawing of a vehicle interior showing internal components and structural layout (no text or labels)

Top-down line drawing of a car dashboard with two circular gauges (no text or symbols)

AJUSTES DE ALTURA DE GROSOR SUGERIDOS

Illustration of a vacuum cleaner with directional arrows indicating airflow or movement (no text or symbols)

LIMPIADOR DE BORDES

Technical line drawing of a mechanical component or bracket with vertical lines indicating alignment (no text or symbols)

ALMACENAMIENTO DEL EQUIPO POWERMATE®

Technical line drawing of a mechanical component with cross-sectional and top views (no text or symbols)

ACCESORIOS EN LA MANILLA

Line drawing of a hand holding a device with a clip (no text or symbols)

Line drawing of a hairdryer with three different components (brush, bulb, and clip) shown without any text or symbols.

ACCESORIOS EN LA VARA

Line drawing of a cleaning brush and tool components (no text or symbols)

TABLA DE USO DE ACCESORIOS

Illustration of a hand holding a pen or ruler, showing measurement bands (no text or symbols)

Diagram of a piston-cylinder joint with a finger inserted, showing mechanical components without any text or symbols.

Diagram of a car interior showing a hand inserting a component into the dashboard (no text or symbols present)

CUIDADO DEL EQUIPO POWERMATE®

Technical line drawing of a vehicle chassis with mounting holes and structural components (no text or symbols)

Illustration of hands installing or adjusting a mechanical component (no text or symbols visible)

Technical line drawing of an internal combustion engine component (no text or labels)

Vacuum Cleaner Help Line

1-877-531-7321

8:00 am - 5:00 pm ET M-F

Refer to the Troubleshooting section of the Use & Care Guide.

For additional assistance, call the Vacuum Cleaner Help Line.
