Clean Air Mini RHAP1001 - Air purifier RUSSELL HOBBS - Free user manual and instructions

Product Type	Air Purifier
Brand	Russell Hobbs
Model	Clean Air Mini RHAP1001
Filter Type	HEPA Filter
Power Supply	220-240V AC (mains powered)
Timer Settings	2, 4, 8 hours (or off)
Fan Speeds	Low, Medium, High
Night Light Colors	Blue, Cyan, Green, Yellow, Orange, Red, Purple
Warranty	12 months (additional year free upon registration)
Cleaning	Wipe top with damp cloth; brush filter every 3 months
Filter Replacement	Replace when dirty or not improving air quality
Safety Features	Automatic shut-off? Not specified; unplug when not in use
User Manual	Available online or contact support
Contact	0345 209 7461 or https://mda.russellhobbs.com

Frequently Asked Questions - Clean Air Mini RHAP1001 RUSSELL HOBBS

How do I turn the air purifier on and off?

Press the Power button to switch on. The unit will beep and start operating. Press the same button again to turn it off; lights will go off.

How do I set the timer?

Press the Timer button repeatedly to select 2, 4, 8 hours, or TIMER OFF. The purifier will shut off after the set time.

How do I adjust the fan speed?

With the purifier on, press the Wind Speed button to cycle through Low, Medium, and High speeds.

How do I change the night light color?

Press the Light Control button when the purifier is on. The light cycles through blue, cyan, green, yellow, orange, red, purple. Press again to stop at your desired color. Press the button once more to turn the light off.

How do I replace the filter?

Remove the base of the air purifier, take out the old filter, remove any packaging from the new filter, install it, and refit the base securely.

What should I do if the air purifier doesn't turn on?

Check the appliance is plugged in, the socket is switched on, and test another appliance in the same socket. Inspect the cord and plug for damage. If recently used, allow to cool for 1 hour.

Why is my air purifier rattling?

Ensure the filter and base are secured properly and that nothing is touching the purifier.

What if I hear a grinding sound?

Immediately switch off the purifier and contact Customer Services.

How do I clean the air purifier?

Wipe the top with a damp cloth. Gently brush or vacuum the filter to remove dust every 3 months or more often in dusty environments. Do not wash the filter with water.

What is the warranty period?

The product is guaranteed for 12 months from the original purchase date. You can register online or by phone to get an additional year free, extending the warranty to 24 months.

USER MANUAL Clean Air Mini RHAP1001 RUSSELL HOBBS

Line drawing of a portable air purifier with control panel and ventilation grille (no text or symbols)

REGISTER TODAY FOR YOUR FREE ADDITIONAL YEAR GUARANTEE

GUARANTEE

At Russell Hobbs, we take all our customer feedback seriously.

Feel free to contact our Product Care Team, on 0345 209 7461 who will be more than happy to assist you.

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship, the faulty product must be returned to the place of purchase.

Refund or replacement is at the discretion of the retailer.

The following conditions apply:

• The product must be returned to the retailer with the original proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide and any other instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended use.
• This guarantee does not cover wear and tear, damage, misuse or consumable parts.
  • This does not affect your statutory rights.

RUSSELL HOBBS CONTACT DETAILS

Website: https://mda.russellhobbs.com

Telephone: [phone]

Address: Product Care, Green Bank Business Park, Hindley Green, Wigan, WN2 4AY

Note your serial number below for future reference.

Image for illustration purposes only

REGISTER ONLINE

Visit our website to register your full parts and labour guarantee online.

https://mda.russellhobbs.com

REGISTER BY PHONE

Call our friendly Product Care team on the number below.

0345 209 7461

IMPORTANT SAFETY INSTRUCTIONS

• It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to electrical parts.
• Do not use with a damaged cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • This product is intended for household use only.
• Do not use outdoors.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.
• Do not operate this appliance for anything other than its intended use.
• Do not immerse whole unit in water or other liquids for cleaning.
• Unplug from outlet when not in use. Do not leave unattended while plugged in.
• Do not use if it has been dropped, damaged, left outdoors or dropped into water.
• Keep the appliance away from water; do not allow it to get wet. If unit is wet, do not plug unit into wall socket or turn unit on.
• Do not handle the appliance with wet hands.
• Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp corners or edges, or expose cord to heated surfaces. Do not unplug by pulling on cord.
• To protect against electrical shock do not immerse cord, plug, or appliance in water or other liquid.
• Unplug from the mains outlet when not in use, before putting on and taking off parts, and before cleaning.
• Only use the unit when fully assembled.
• Never place your fingers or other objects into any part of the appliance. Be aware that loose clothing or hair may become trapped in the appliance if improperly used.
• Before use, ensure that all of the air vents of the appliance are clear and there is no restriction of air flow.

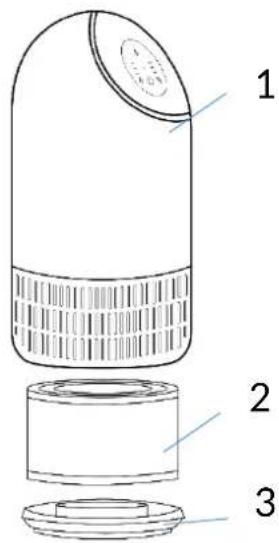

PARTS

1. Air Purifier Unit
2. HEPA Filter
3. Purifier Base

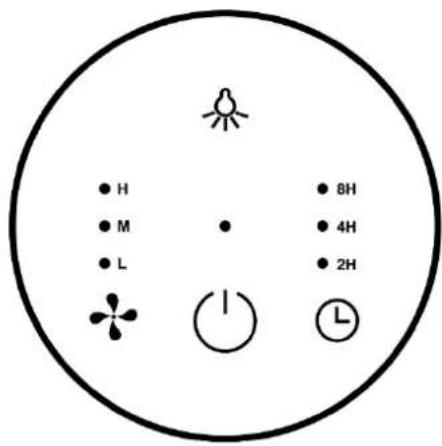

Power Button

Timer Button

Wind Speed Button

Light Control Button

Indicator

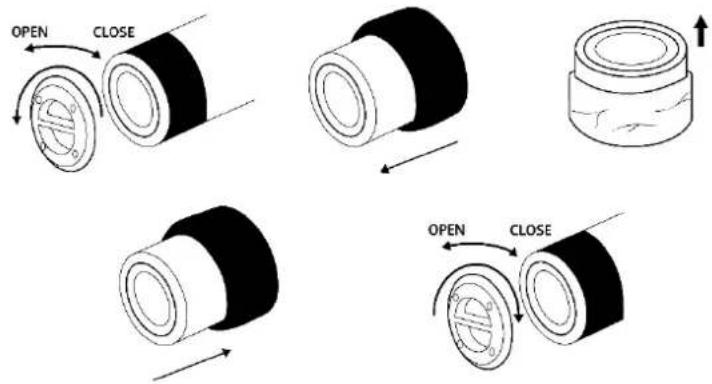

ASSEMBLY & FILTER INSTALLATION

Your air purifier comes pre-assembled in the box, requiring just to be plugged in.

To change the filter, remove the base of the air purifier.

Remove the old filter from the appliance.

Take the new filter out of any protective sleeves or packaging.

Install the new filter in the air purifier.

Refit the base to the air purifier.

OPERATING INSTRUCTIONS

Press the Power button to switch on the Air Purifier. It will emit a beep, and the machine will begin operating.

To turn off, press the Power button again and the lights will turn off.

Press the timer button to select between 2 hours, 4 hours, 8 hours, or TIMER OFF.

When the air purifier is switched on, press the Fan Speed button to control the operating speed. The purifier operates in low, middle, and high speed settings.

To set the colour, when the air purifier is in on, press the NIGHT LIGHT button. The light will cycle through blue/cyan/green/yellow/orange/red/purple. When you reach the desired colour for night light, press the button once more. To turn the light off, press the NIGHT LIGHT button again.

PROBLEM SOLVING
The air purifier doesn’t switch on	Check the appliance is plugged inCheck the socket is switched onCheck another appliance in the socketUnplug and check for any obvious signs of damage to cord or plugIf there is frost on the surface, allow to defrost.If recently used, allow to cool for 1 hour then try again
The air purifier is rattling	Check the filter and base is secured properlyCheck there is nothing in contact with the air purifier
Air purifier is making a grinding sound	Immediately switch off and contact Customer Services
Light hasn’t turned on	Check the appliance has switched on as first solution above.Press the Power ButtonHold the Power Button for 3 seconds.Press the light button.
The air smells or is dusty	Check the filter is properly installed.Ensure filter is clean and free from dustThe filter can be lightly brushed or vacuumed to remove dust. Do not wash with water.Replace filter with a new filter.

If you are still experiencing difficulties with the appliance please contact us BEFORE returning the appliance to the retailer it was purchased from:

Website: https://mda.russellhobbs.com

Telephone: [phone]

Address: Product Care, G2S, Green Bank Business Park, Hindley Green, Wigan, WN2 4AY

IMPORTANT!

KEEP APPLIANCE CLEAN

Wipe the top with a damp cloth and brush any dust from the filter at least once every 3 months.

The appliance may require more frequent washing if in a dusty environment.

3

MONTHS

Russell Hobbs

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship, the faulty product must be returned to the place of purchase.

By registering your product you will get an additional year guarantee free of charge. Additional cover can be purchased through the website.

REGISTER ONLINE

Visit our website to register your full parts and labour guarantee online.

https://mda.russellhobbs.com

REGISTER BY PHONE

Call our friendly Product Care team on the number below.

0345 209 7461

NOTES

REGISTER YOUR FREE

ADDITIONAL YEAR

GUARANTEE TODAY

https://mda.russellhobbs.com

Product Care, G2S Ltd, Green Bank Business Park,

Swan Lane, Hindley Green, Wigan, WN2 4AY

Red oval logo with white stylized letter 'R' and swirl design (no text or symbols)

Russell Hobbs

Russell Hobbs is a registered trademark used under license from Spectrum Brands (UK) Ltd. Made under license by G2S Limited, Wigan, WN2 4AY/G2S (NI) Ltd, Belfast, BT5 5AD

Russell Hobbs Support: call 0345 209 7461 or visit https://mda.russellhobbs.com

UK CA CE

Simple geometric diagram with two concentric squares (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

The ‘wheelie bin’ symbol is known as the ‘Crossed-out wheelie bin Symbol’. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste. Only discard electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment. For your nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.

SEDEX – Connecting businesses and their global suppliers to share ethical data and enabling improvement in ethical performance. Visit www.sedex.org.uk for further information.

We reserve the right, due to possible changes to design, to alter the instruction manual without prior notice.
