PATVSB3600 - Soundbar Pyle - Free user manual and instructions

Product Type	Soundbar
Brand	Pyle
Model	PATVSB3600
Dimensions (W x H x D)	38.6 x 3.1 x 2.8 inches
Weight	5.5 lbs
Power Output	100W RMS
Speaker Configuration	2.0 channel
Driver Size	2 x 3.5 inches
Bluetooth Version	5.0
Bluetooth Range	Up to 30 feet
Audio Inputs	HDMI ARC, Optical, 3.5mm AUX, USB
Audio Output	Subwoofer pre-out (RCA)
Remote Control	Included (CR2025 battery)
Wall Mountable	Yes (bracket included)
Power Supply	AC 100-240V, 50/60Hz (external adapter)
Standby Power Consumption	< 0.5W
Cleaning Instructions	Wipe with dry cloth; avoid liquids
Safety Certifications	FCC, CE, RoHS
Spare Parts Availability	Remote control, power adapter via Pyle support
Repairability	Consumer replaceable remote, power adapter; speaker repair by service center

Frequently Asked Questions - PATVSB3600 Pyle

How do I connect the soundbar to my TV via Bluetooth?

Press the Source button on the remote or soundbar until Bluetooth is selected. On your TV, enable Bluetooth and select PATVSB3600 from the device list. If a passcode is required, enter 0000.

Why is there no sound from the soundbar?

Check that the soundbar is powered on and the volume is not muted. Ensure the correct input source is selected. For ARC connections, enable HDMI ARC on your TV settings. Also verify the cable connections.

How do I reset the soundbar to factory defaults?

With the soundbar on, press and hold the Source button for about 5 seconds until the power LED flashes rapidly. The soundbar will restart and reset to factory settings.

Can I wall mount the soundbar?

Yes, the soundbar has keyhole mounts on the back. Use the included wall bracket and screws. Ensure the wall can support the weight (5.5 lbs) and follow the mounting instructions in the manual.

How do I use the optical input?

Connect an optical cable from your TV's optical output to the soundbar's optical input. Press the Source button until Optical is selected. You may need to set your TV audio output to PCM or Optical.

What should I do if the remote control stops working?

First, replace the CR2025 battery with a new one. Ensure there are no obstructions between the remote and the soundbar. If still not working, try re-pairing? The remote uses IR, so point it directly at the soundbar.

How do I clean the soundbar?

Unplug the soundbar. Use a soft, dry cloth to gently wipe the exterior. Do not use any liquids, solvents, or abrasive cleaners. Avoid getting moisture into any openings.

Does the soundbar support USB playback?

Yes, the USB port supports MP3 and WMA files from a USB flash drive (up to 32GB, FAT32 format). Insert the drive and press Source to select USB. Use the remote to control playback.

Can I connect a subwoofer to this soundbar?

Yes, there is a dedicated Subwoofer Pre-Out RCA jack on the back. Connect an active (powered) subwoofer using an RCA cable. The subwoofer output level is controlled via the remote.

How do I adjust the bass and treble?

Press the Bass or Treble button on the remote, then use the Volume +/- buttons to adjust. The setting is displayed on the soundbar's LED panel. Range is -6 to +6 dB.

USER MANUAL PATVSB3600 Pyle

PATVSB2600/ PATVSB3600/PATVSB4600

Wireless BT Sound Bar Speaker System

26"/36"/46"Wide Aluminum Alloy Sound Bar Speaker System

w AUX/BT/USB/RGB Lights and Remote Control

4 x 30atts / 6 x 30 Watts / 8 x 30 Watts

Features:

Marine/UTV/ATV Waterproof Soundbar Speaker

26"/36"/46" Sound Bar with Stylish Design

Built in USB Playback

Built-in 4/6/8 x 4-inch Woofer and 2 x 1-inch Treble

DC 12V Input

Colorful RGB Lights

Lighting, Easily turn On/Off the Light or Change the Color Mode

Front Panel Control Center

3.5mm Auxiliary Input

Marine Rated with Rugged Weatherproof Exterior

IPX5 Waterproofing/Weatherproofing

Weather Resistant Grill and Hardware

Bluetooth Connectivity:

Wireless Music Streaming Ability

Quick & Hassle-Free Device Pairing

Works with All of Your Favorite BT-Enabled Devices

(Smartphones, Tablets, Laptops, Computers, etc.)

Wireless BT Version 5.3

Wireless BT Network Name: 'PATVSB2600' / 'PATVSB3600' / 'PATVSB4600'

What's in the Box:

Sound Bar Speaker

Remote Control

Car Cigarette Lighter Cable

Bracket and Screws

USB Cable

3.5mm Audio Cable

Technical Specs:

Power Supply

120 Watts RMS/180 Watts Peak (PATVSB2600)

180 Watts RMS/270 Watts Peak (PATVSB3600)

240 Watts RMS/360 Watts Peak (PATVSB4600)

Construction Materials: Aluminum Alloy Sound Bar with silicone buttons

BT Range:up to 82 ft.

Aluminum Clamp System Fits 1.5"-2" Bars

Frequency Response: 20Hz-20KHz

Remote Control Battery: Need 2x'AAA' battery(not included)

Tweeters: 1" -inch

Product Dimensions (L x W x H):

24.46" x 4.84" x4.05' -inches

34.72" x 4.84" x4.05' -inches

43.23" x 4.84" x4.05' -inches

PYLE

PyleUSA.com

PATVSB2600

PATVSB3600

PATVSB4600

Aluminum Alloy Sound Bar Speaker System w AUX/BT/USB/RGB Lights and Remote Control

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

USER MANUAL

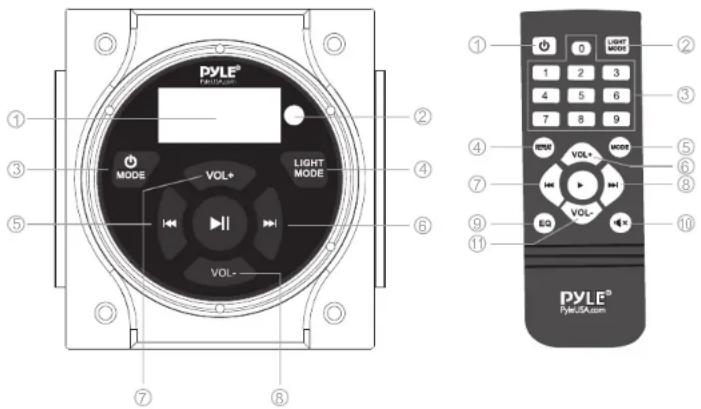

Panel control

Front panel control:

1. Display screen
2. Remote Control Receiver
3. MODE-Press this button to select input source
4. Light mode: Press this button to turn on/off the light or change the light color
5. Press this button to select next track
6. Press this button to select previous track
7. Vol+:Press this button to increase the volume
8. Vol:-Press this button to decrease the volume

Remote control

1. Power switch
2. Light mode: Press this button to turn on/off the light or change the light color
3. NUMBER PAD
4. Repeat: Press to repeat the current songs
5. Mode: Press to select input source
6. Vol+:Press this button to increase the volume
7. Press this button to select previous track
8. Press this button to select next track
9. EQ:Press to toggle between preset EQ curves
10. MUTE
11. Vol-:Press this button to decrease the volume

IMPORTANT SAFETY INSTRUCTIONS:

Do not use your mobile equipment during a motorized vehicle-safe driving and safety consideration of others should always be your highest priority.

In the event you should notice smoke, strange noises from this product, or any other a bnormal signs, immediately turn off the power.

Set your volume control at a low setting, then increase the volume slowly until you can hear it comfortably.

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:

Do not turn up the volume so high that you can't even hear what's around you.

Use cautions or temporarily discontinue use in potentially hazardous situations.

INSTALLATION INSTRUCTIONS:

Profession installation recommended. Do not attempt to service this product by yourself. Servicing of this product by persons without profession training and experience in electronic equipment and motorized vehicle accessories may be dangerous.

This product can be powered from a vehicles cigarette lighter/auxiliary power port, or hard wired directly to the battery through an optional relay/accessory switch.

This product has a weather resistant design, but it should not be submerged in or under water under any circumstances.

Use only the installation parts provided with the product.

Wash with a mild soap or detergent and lukewarm water using a clean sponge or a soft cloth. Rinse well with clean water.

“DON'T” -VERY IMPORTANT

Don't clean this product in hot sun or very hot days.

Don't use abrasive or highly alkaline cleaners on the main body.

Don't scrape the main body with razor blades, or other sharp instruments.

Don't even use, gasoline, acetone or carbon tetra chloride

BLUETOOTH OPERATION INSTRUCTIONS:

External devices which have built-in Bluetooth functions can be connected to this sound bar. If your devices is connected to the sound bar, you'll hear audible tones which will help for connecting.

1. At first be sure the sound bar is powered on, and turn the volume to low.
2. Press "MODE" button on the front panel and select Bluetooth mode.
3. Turn on the Bluetooth of your external device.
4. Search for available Bluetooth devices and make sure to be within range of your sound bar, and wait for your device to select "PATVSB2600" or "PATVSB2600" or "PATVSB4600".
5. You can now play music on your external device through the sound bar.

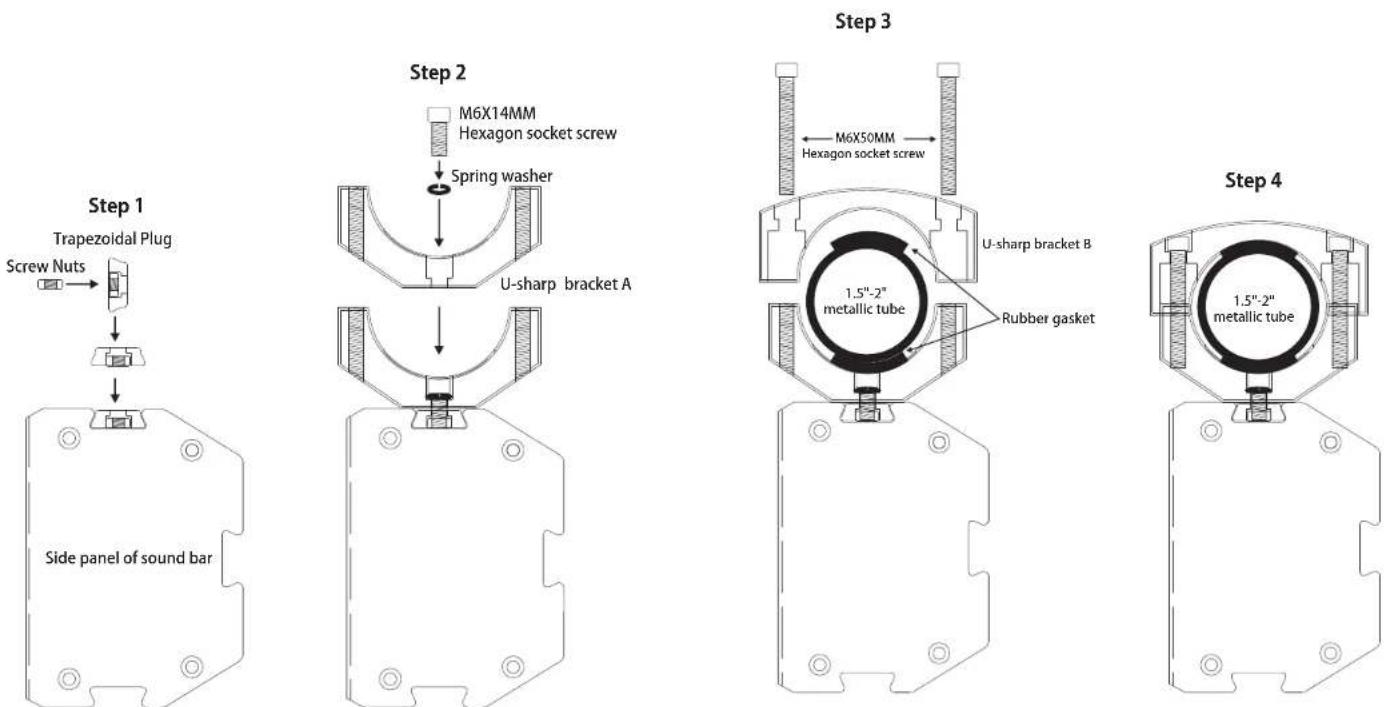

Installation method ①

Take the bracket and screws out of package

Installation method②

Take the bracket and screws out of package

Step 1

Step 2

Step 3

Step 4

Illustration of a laptop with a red checkmark on the screen (no text or symbols visible)
