Product Type	Electric Pressure Washer
Model	SLPRWAS46
Power Source	120V AC, 60Hz, 1400W
Max Pressure	1500 PSI
Max Water Flow	1.2 GPM (4.5 L/min)
Dimensions (L x W x H)	15.7 x 11.0 x 17.7 inches (40 x 28 x 45 cm)
Weight	7.7 lbs (3.5 kg)
Hose Length	20 ft (6 m)
Power Cord Length	16 ft (5 m)
Nozzle Types	Adjustable 0° to 40° spray nozzle, plus foam cannon
Water Supply	Garden hose connection (standard 3/4 inch)
Detergent Tank	Built-in 0.5 L detergent reservoir
Main Functions	High-pressure cleaning for cars, patios, siding, and outdoor furniture
Safety Features	Auto shut-off trigger, thermal overload protection, ground fault circuit interrupter (GFCI) plug
Maintenance	Regularly clean water filter, unhook hoses, store indoors
Spare Parts Availability	Nozzles, hoses, O-rings, and foam cannon available online
Warranty	1 year limited warranty

Frequently Asked Questions - SLPRWAS46 SereneLife

What type of oil should I use in my SereneLife pressure washer?

The SereneLife SLPRWAS46 is an electric pressure washer and does not require oil. It is a sealed unit with no engine.

How do I connect the pressure washer to my garden hose?

Connect the included high-pressure hose to the outlet on the machine. Then attach your garden hose to the water inlet. Make sure both connections are tight.

Can I use hot water with this pressure washer?

No, this unit is designed for cold water only. Using hot water can damage the pump and void the warranty.

Why is my pressure washer not starting?

Check that the unit is plugged into a working outlet and the GFCI is reset. Ensure the on/off switch is on. Also verify the water supply is connected and turned on.

How do I use the detergent feature?

Fill the detergent tank with appropriate pressure washer soap. Attach the low-pressure nozzle or foam cannon. Turn on the machine and spray.

What is the maximum pressure output?

The SereneLife SLPRWAS46 delivers up to 1500 PSI of water pressure.

Can I use extension cords?

Yes, but use a heavy-duty extension cord rated for 15 amps, with a minimum wire gauge of 14 AWG. Keep the cord as short as possible to avoid voltage drop.

How do I clean the water filter?

Unscrew the water inlet connector, remove the filter screen, rinse it under running water, and reinstall. Clean after every use if water is dirty.

What should I do if the pressure washer leaks water?

Check all hose connections for tightness. Also inspect O-rings for damage. If leaking from the pump area, contact SereneLife support.

Can I use bleach or other chemicals in the detergent tank?

Only use pressure washer-specific detergents. Harsh chemicals like bleach can damage seals and internal components.

USER MANUAL SLPRWAS46 SereneLife

Need service or repair?

Want to leave a comment?

PyleUSA.com/ContactUs

SereneLife

by PYLE

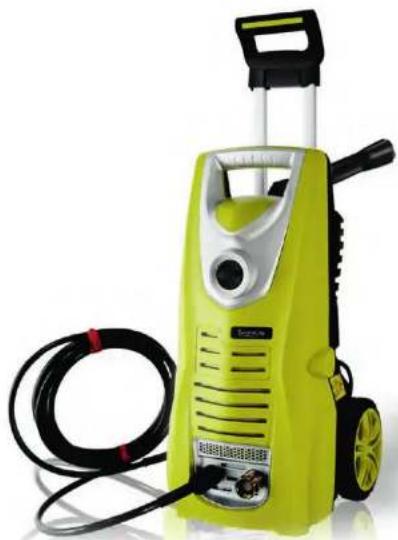

Green and silver electric water heater with attached cable, no visible text or symbols

*☆☆☆☆☆☆

Electric Outdoor Power Washer

WARNING: READ THE INSTRUCTION BEFORE OPERATION THIS MACHINE IS DESIGNED FOR DOMESTIC USE ONLY! COMMERCIAL OR INDUSTRIAL USE ARE PROHIBITED.

>> CONTENTS

Illustration of Appliance 1

General Instruction 2

Safety Instruction 3

Operation 4

Maintenance & Care 6

Troubleshooting 7

Storage 8

Schematic Drawing 9

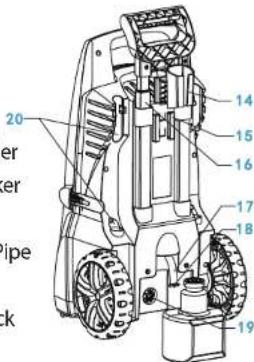

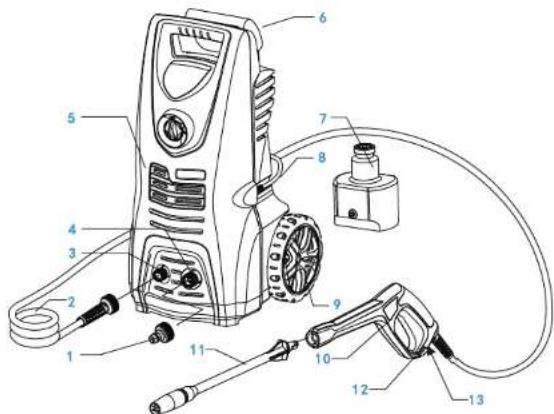

>> ILLUSTRATION OF APPLIANCE

Spare parts are subject to the specific model. The right of modification is reserved.

1. Water Supply Connector

2. High Pressure Hose

3. Water Outlet

4. Water Inlet

5. ON/OFF Switch

6. Transport Handle

7. Detergent Tank

8. Power Cord

9. Wheels

10. Trigger Gun

11. Spray Lance

12. Safety Lock

13. Hose Lock

14. Trigger Handlr Holder

15. Trigger Handle Locker

16. Retractable Rod

17. Detergent Suction Pipe

18. Filter

19. Degergent Tank Lock

20. Spraylance Holder

READ AND UNDERSTAND OPERATORS MANUAL BEFORE USING THIS MACHINE. FAILURE TO FOLLOW OPERATING INSTRUCTIONS COULD RESULT IN DEATH OR SERIOUS INJURY

>>GENERAL INSTRUCTION:

This high pressure washer is designed for domestic use only:

1. To clean cars, motorbikes, caravans, bicycles.
2. To clean patios, fences, garden walls, pathways, driveways and house facades, particularly useful for cleaning blocked driveway.
3. To remove of algae and moss from roofs, brickwork and guttering.
4. To clean garden tools and machinery, furniture and barbecues.
5. To clean hygienic of animal pens and their surrounding area.
   With accessories, replacement parts and detergents approved by factory. Observe the instructions provided with these detergents.

The packing material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

Read symbols in the operating instructions

Danger: Immediate danger that can cause severe injury or even death.

Warning: Possible hazardous situation that could lead to severe injury or even death.

Caution: Possible hazardous situation that could lead to mild injury to persons or damage to property.

The high pressure washer may not be directed at persons, animals, live electricalequipment or at the appliance itself. Protect the appliance against frost

>> SAFETY INSTRUCTION

Danger

1. Never touch the mains plug and the socket with wet hands.
2. The appliance must not be used if the power cord or important parts of the appliance, e.g. high pressure hoses, trigger gun or safety devices are damaged. Please arrange for it to be replaced immediately by an authorised repair agent or a skilled electrician.
3. The appliance may not be used in areas where a risk of explosion is present.
4. The high pressure washer must not be directed at other persons or directed by the user at him/herselfto clean clothing or footwear.
5. If the appliance is used in hazardous areas (e.g. filling stations) all of the safety provisions and operating instructions detailed in this manual must be observed.
6. Never use the appliance to clean objects containing hazardous substances.
7. Vehicle tyres or tyre valves are susceptible to damage from the high pressure washer and may burst. The first indication of this is a discoloration of the tyre. Damaged vehicle tyres/tyre valves are highly dangerous. Ensure that a distance of at least 30 em is observed when cleaning with the washer.
8. Risk of explosion. Do not spray flammable liquids. Never draw in fluids containing solvents or undiluted acids. This includes petrol, paint thinner and heating oil. The spray mist thus generated is highly inflammable, explosive and poisonous. Do not use acetone, undiluted acids or solvents as they are damaging to the materials from which is the appliance is made.

Warning

1. The mains plug and the coupling of an extension cable must be watertight and must never lay in the water.
2. Unsuitable extension cables can be hazardous. Only use extension cables outdoors which have been approved for this purpose and labeled with a sufficient cable cross-section: 1-10m: 1.5mm ^2 10-30m: 2.5mm ^2
3. Always fully unroll electrical cables.

4. High pressure hoses, fixtures and couplings are important for the safety of the appliance. Only use high pressure hoses, fixtures and couplings recommended by the manufacturer.

5. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities. The appliance must not be operated by children or persons who have not been instructed accordingly. Children should be supervised to prevent them from playing with the appliance.

6. The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children who are nearby.

Caution

1. Do not use the machine if the persons nearby do not wear safety protection device.
2. Wearing protective clothing and safety goggles to protect against splash back containing water or dirt.
3. Create stability for the appliance prior to all work on or with the appliance to prevent accidents or damage. The stability of the appliance is warranted when it is placed on to an even surface.
4. For safety reasons, we recommend that you operate the appliance only via an earth-leakage circuit breaker (max. 30mA).
5. Make sure that the power cord or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges.
6. Never leave the appliance unattended when it is in operation.

>> OPERATION

Special accessories expand the possibilities of using your appliance. Please contact the dealer for further information.

Illustrate accessories before start-up.

1. Install coupling for water connection (pic A).
   Screw the coupling to the water connection on the appliance.
2. Install high pressure hose (pic B. pic K).
   Insert the high pressure hose tightly in to coupling on the appliance, it will lock in audibly. Note: make sure the connection nipple is aligned correctly. Check the secure connection by pulling on the high pressure hose.
3. Install the storage of trigger gun (pic C).
   Insert the storage of trigger gun and push down all the way.
4. Install spray lance (pic F).
   Push the spray lance into the trigger gun and fasten it by turning it through 90 degree.

Water Supply

Impurities in the water can damage the high pressure pump and accessories. All high pressure washer (except hot water system) use cold water. The suitable water temperature is 41^ F to 140^ F.

Water Supply from Mains

Observe regulations of water supply.

For connection values, use fibre-reinforced water hose (not included) with a standard coupling, normally the length is 5m, connect the water hose to the appliance and water supply.

1. Open the water tap
2. Unlock the lever on the trigger gun
3. Pull on the lever of the trigger gun
4. Turn ON the appliance (pic G ON: open OFF: close)

Start Up

Dry runs lasting longer than two minutes lead to damages to the high pressure pump. If the appliance does not build up pressure within two minutes, switch it off and proceed as instructed in the Chapter "Troubleshooting". The trigger gun is subjected to recoil force when the water washer is discharged. Make sure that you have a firm footing and are also holding the trigger gun and spray lance firmly. The spray lance has two main settings stream and fan for easy cleaning (pic H).

Simple line drawing of a tool with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Caution

Prior to cleaning, make sure that the high pressure washer is placed safely on level ground. Wear protective goggles and protective clothing during the cleaning process.

Notes: Release the lever of the trigger gun, the device will switch off again. High pressure washer remains in the system.

Working with Detergent

Use detergent when cleaning. Remove the lid from the detergent bottle and press the detergent bottle into detergent (pic E).

Notes: The device is under low pressure when using detergent and pulling out spray lance.

Release the lever on the trigger gun, lock the lever on the trigger gun, insert the spray lance into trigger gun when interrupting operation. (as pic Q)

Finish Operation

1. Turn off tap.
2. Press the lever on the trigger gun to release any remaining pressure and water in the system.
3. Pull out the mains plug.
4. Store the water hose and high pressure hose.

>> MAINTENANCE AND CARE

Turn off the appliance and remove the mains plug prior to any care and maintenance work. Prior to longer periods of storage, pull out the filter (18) in the detergent bottle and clean under running

water. Pull out the filter in the water connection and clean under running water (pic J). Use the needle to clean the residue (pic M). In winter, please do not put the machine outside without draining the water to avoid damage to the machine. Just put it in a room with frost prevention.

TROUBLESHOOTING

Symptom Cause	Recommended Action
Appliance is not running	1. Machine not plugged in2. Defective socket3. Defective extension cable4. Incorrect mains voltage5. Switch is off6. Fuse has blown	1. Plug in machine2. Try another socket3. Try another extension cable4. Check voltage correctly5. Turn on switch6. Replace fuse
Pump stop working	Lack of water lead to high temperature	Check water flow quantity ~ put the hose in the 10 (bottle per minute)
Fluctuating pressure	1. Spray lance blocked2. Pump is sucking air3. Impurities in pump	1. Clean lance with needle2. Check that hoses and connections are airtight3. Contact the dealer
Appliance does not reach operation pressure	1. Spray lance blocked or worn2. Short supply of water3. Hose kinked4. Filter blocked5. Hose blocked	1. Clean or change spray lance2. Check inlet flow rate3. Straighten out hose4. Clean filter5. Clean hose
Trigger gun can't be used	Trigger gun is locked Unlock	Trigger gun safety
Machine often starts and stops by itself	1. Safety valve worn out2. Pump, high pressure hose, trigger gun is leaking	1. Contact the nearest service center2. Contact the nearest service center

The content in this instruction manual (include accessories) IS kept the final modifying and explanation rights

Appliance is Leaking

Slight leakage from the appliance pump is normal. If the leakage increases contract the authorized customer service.

Transport Instruction

Mind the weight of appliance during moving. Put the appliance a level ground. Pull out the telescopic rod (Max. length 410mm, as pic D) to move the appliance.

>> STORAGE

1. Place the appliance on a level ground
2. Disconnect trigger gun and high pressure hose
3. Disconnect high pressure hose with outlet
4. Put the trigger gun into the trigger gun holder
5. Wind back power cord and high pressure
   Please store the machine properly especially during winter

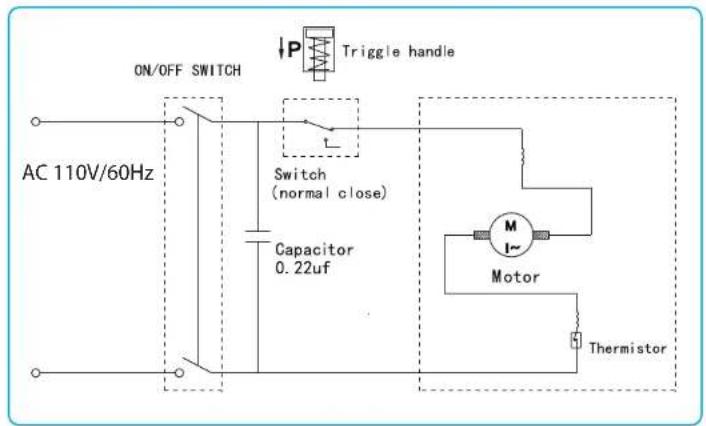

SCHEMATIC DRAWING

SLPRWAS46

PURE CLEAN PRESSURE WASHER

ELECTRIC OUTDOOR POWER WASHER

Features:

• High-Powered Pressure Washer
• Simple & Hassle-Free Plug-in Operation
- Trigger Activated Spraying Nozzle
• Integrated Liquid Detergent / Shampoo Dispenser Bottle
• Adjustable Water Flow Jet-Stream
- Input Valve for Directly Connecting Water Hose
• Universal Threaded Water Hose Connector
- Compact & Lightweight Design for Mobility
• Water-Resistant Construction Housing
• Convenient Carry Handle & Rolling Wheels
• Used for Cleaning Homes, Cars, Boats, RVs, Driveways & Decks

What's in the Box:

• Pressure Washer
• Trigger Spray-Gun
• Nozzle Wand Attachment
  • Water Hose, 16.5' ft.
  • Water Hose Coupling Connector

Technical Specs:

• Max. Pressure: Up to 2030+ PSI
• Power Output: 1800 Watt
• Water Flow: 380L / per Hour (1.67 Gal. per Min.)
• Max. Operating Pressure: 85bar (8.5Mpa)
• Liquid/Detergent Tank Capacity: 400ml
• Marine Grade Rating: IP-X5
• Construction Material: Engineered PP
• U.S. Universal Water Hose Threading
• High pressure Water Hose Material: Reinforced PVC
• Power Cord Length: 35' ft.
• Power Supply: 110V
- Dimensions (L x W x H): 11.6" x 11.6" x 21.6" -inches
- Sold as: 1
