Product Type	Portable Toilet
Model	AZSLCATL320
Brand	SereneLife
Fresh Water Tank Capacity	10 L (provides up to 50 flushes)
Waste Holding Tank Capacity	20 L
Construction Material	High density polyethylene
Flush Mechanism	Manual piston pump with T-type 3-way flush nozzle
Slide Valve	Double sealed, removable for cleaning
Waste Level Indicator	Visual indicator turns red when full
Pour Spout	Rotating, no-splash design
Seat	Adult-sized, well-constructed lid and seat
Latching System	Heavy duty, corrosion resistant side latches
Seals	Double sealed drain valve and C/D rings to prevent leakage and odor
Compatibility	Suitable with any brand of portable toilet chemicals and deodorizers
Temperature Range	Avoid temperatures above 50°C
Maintenance	Lubricate slide valve seals with silicone spray; clean with mild, non-abrasive cleaner
Storage	Empty both tanks, pump dry, store away from direct sunlight
Accessories Included	Seat cover, hinge pin, piston pump assembly, caps, latches, seals, pour spout assembly
Assembly Required	No, fully assembled; simple preparation before use
Weight (empty approx.)	~8 kg (estimated based on capacity)
Dimensions (approx.)	450 x 400 x 450 mm (estimated)

Frequently Asked Questions - AZSLCATL320 SereneLife

How do I prepare the portable toilet for first use?

Set the toilet on its front side, remove the cap on the waste holding tank, add deodorizer as per instructions, and tighten the cap. Then set upright, remove the fresh water tank cap on the right rear side, fill with fresh water to the top, and tighten the cap.

Can I add deodorizer to the fresh water tank?

No. Deodorizer must only be added to the waste holding tank (lower tank) through its dedicated cap. Avoid adding through the bowl to prevent splashing. Rinse any spills immediately.

How many flushes can I get from a full fresh water tank?

The 10L fresh water tank provides up to 50 flushes.

How do I flush the toilet?

Depress the Flush Pump to add water to the bowl. After use, pull the Slide Valve handle out, depress the Flush Pump again to rinse, then close the Slide Valve by pushing it fully in.

When should I empty the waste holding tank?

Empty the 20L waste tank when the contents reach approximately 2 cm below the Slide Valve, or when the waste level indicator turns red.

How do I separate and empty the waste tank?

Ensure the slide valve is fully closed. Pull outward on the side latches, then lift the water tank upward. Carry the waste tank using the molded handle. Remove the pour spout cap (pointing upward) and slowly pour out contents. Rinse with fresh water, shake, and empty before reassembling.

What kind of maintenance is required?

Periodically lubricate the slide valve seals with silicone spray or white grease. The slide valve can be unscrewed counterclockwise for cleaning. Clean the exterior with a mild, non-abrasive bathroom cleaner.

Can I use any brand of chemicals with this toilet?

Yes, the toilet is compatible with all brands of portable toilet chemicals and deodorizers.

How should I store the toilet when not in use?

Empty both the fresh water and waste holding tanks. Depress the bellows pump several times to clear any remaining water. Store the toilet away from direct sunlight.

Is the seat strong enough for adults?

Yes, the seat and lid are adult-sized and well-constructed to support an adult user. However, do not lean against the lid when the toilet is in use.

USER MANUAL AZSLCATL320 SereneLife

Exterior view of a gray portable water filter or shower unit with open lid and control panel (no visible text or symbols)

Assembly & Care Instructions

Parts Listing

IMPORTANT

Before using our product, please familiarise yourself with the components.

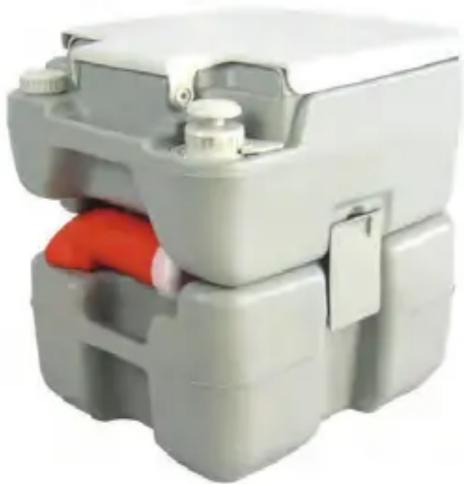

White plastic mechanical device with red internal component, no visible text or symbols

Features

• High density polyethylene construction.
• Completely self contained.
- No external connections required.
- Secure clamps and latches.
- All parts are easily replaced by end users.
- 20L waste holding tank.
- 10L fresh water tank.
- Easy to carry and clean.
- Adult sized seat and lid are well constructed.
- Always flushes with clean water, no water is re-circulated.
- Completely self-contained. No external water or power connections.
- Fresh water capacity provides up to 50 flushes.
- Attractive matt finish conceals marks, and allows scrubbing without damage.
- Double sealed drain valve protects against leakage and odour.
- Heavy duty, corrosion resistant side latches lock tanks together.
- Detached waste holding tank is easy to empty.
- Both tanks are single piece construction with no leaking seams.
- Waste level indicator tells you when to empty.
- No splash rotating pour spout.
- Innovative T-type 3 way flush nozzle ensures a full bowl coverage.
- Upgraded piston pump works more efficiently.
- Selectable bracket can increase the height.

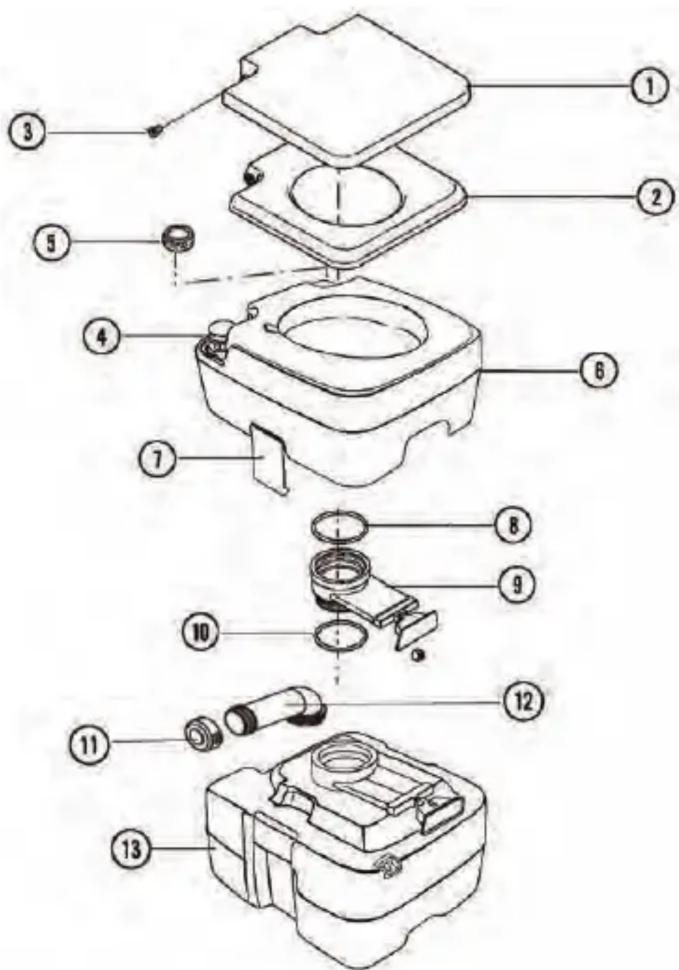

No.	Part No.	Description
1	CHH-T-009	Seat Cover
2	CHH-T-010	Seat
3	CHH-T-011	Hinge Pin
4	CHH-T-015	Piston Pump Assembly
5	CHH-T-019	Cap, Fresh Water Holding Tank
6	CHH-T-012	Fresh Water Holding Tank Assembly
7	CHH-T-021	Latch Assembly
8	CHH-T-003	Sealed C Ring
9	CHH-T-014	Slide Valve Assembly
10	CHH-T-004	Sealed D Ring
11	CHH-T-023	Cap. Rotating Pour Spout.
12	CHH-T-025	Rotating Pour Spout
13	CHH-T-024	Waste Holding Tank 20L

Assembly & Care Instructions

PREPARING FOR USE

1. Set the SLCATL320 on its front side so that the cap on the waste holding tank is in a vertical position. Remove the cap and add deodoriser following instructions on the deodoriser container. Tighten the cap firmly.
2. Set the toilet in an upright position and remove the cap located on the right rear side of the fresh water tank. Fill with fresh water up to the top of the fresh water tank. Then tighten the cap firmly.

Caution:

A. Do not add deodoriser to top fresh water tank.
B. Avoid adding holding tank deodoriser through bowl. Use cap on the bottom rear tank if possible. Rinse off any spilled or splashed deodoriser immediately.
C. Atmospheric pressure and temperature changes may cause pressure build up in lower holding tank. Caution should be used when first opening the slide valve.

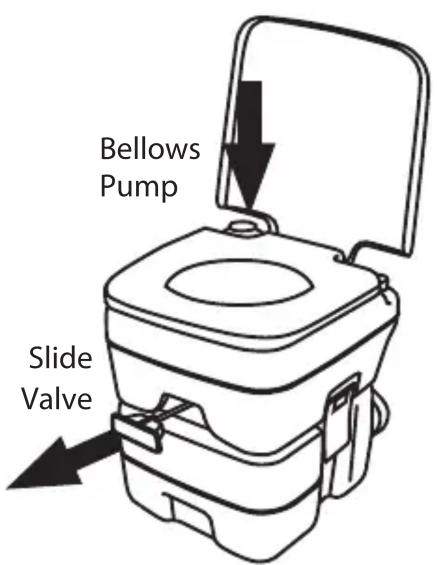

USE AND OPERATION

1. Depress Flush Pump to add water to the bowl.
2. After use, pull Slide Valve handle out.
3. Depress Flush Pump again to rinse the bowl.
4. Close Slide Valve by pushing in fully.

EMPTYING WASTE HOLDING TANK

The SLCATL320 has a 20L waste holding tank. It should be emptied when contents reaches approximately 2cm below Slide Valve, or the level indicator turns to red.

1. Separate tanks by pulling outward on side latches, then lifting upward on water tank. Make sure slide valve is completely closed.
2. Use moulded handle to carry the holding tank.
3. Remove pour spout cap while it is pointing upward.
4. To avoid splashing, slowly pour contents out of the tank. Add fresh water, close cap and shake tank to rinse.
5. Remove cap and pour rinse water out of the tank. Close cap firmly and assemble fresh water tank and waste holding tank together again.
6. Prepare for continued use by following steps 1 and 2 of "Preparing for Use".

SAFETY INSTRUCTION

1. Handle with care.
2. Avoid exposure to direct sunlight for extended periods of time.
3. Avoid high temperatures over 50^ C.
4. To avoid injury DO NOT lean against lid when being used.
5. Ensure waste tank is cleaned regularly.
6. Suitable for use with any brand of portable toilet chemicals and deodorisers.

MAINTENANCE

1. Lubricate Slide Valve seals periodically with silicone spray or white grease lubricant.
2. The Slide Valve may be removed for cleaning or inspection by simply unscrewing in a counter clockwise direction.
3. Clean exterior of toilet with a mild, non-abrasive bathroom cleaner.

STORAGE

To store our Portable Toilet when not in use:

1. Empty the top tank and waste holding tank.
2. Make sure all water is cleared from the bellows pump by depressing pump several times.
3. Stored away from direct sunlight.

Note: A small amount of water may remain in the top tank but will be harmless during storage.
