USER MANUAL PLE770BS Pyle

with SUB Volume Adjustable for Subwoofer Channel

USER GUIDE

Please take a few minute to read the instruction manual and operating instructions. This will tell you how to use the receiver system. Here, you will find unit features and operation instructions to ensure trouble free use and installation. Please retain these operating instructions for future reference.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DON'T EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.

THIS DEVISE IS INTENDED FOR CONTINUOUS OPERATION!

*Designs and specifications are subject to change without notice. *Caution: Please use 4 Ω speakers.

BEFORE USE

1. Ensure that the power line voltage is AC 110V/220V

If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

2. Protect the Power Cord

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Simple line drawing of a crossed-out mechanical device with no text or symbols

3. Do not block any ventilation openings.

Blocking up the vents will make the temperature in the unit become higher and will damage the unit.

Simple line drawing of a figure lying on a box with a cross mark (no text or symbols)

4. Avoid water dust and moisture

Do not place objects filled with liquids, such as vases, on the unit.

Simple line drawing of a boat with people on it and two smaller figures nearby (no text or symbols)

5. Do not place in low temperature

Ensure the ambient temperature is greater than 41^ F.

Simple line drawing of a cliffside with a cross symbol indicating a risk or failure (no text or labels)

6. Install this sound system in a well ventilated, cool, dry, clean place.

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light).

Illustration of a crossed-out electrical circuit with wires and components (no text or symbols)

7. Avoid tiny metals to fall inside the unit

To prevent short circuit avoid tiny metals (ex. pins, coins, needle) to fall inside the unit.

Simple line drawing of a fish inside a rectangular container with a cross symbol (no text or labels)

1. DO NOT OPEN THE UNIT as this might result in damage to the circuitry or electrical shock. If a foreign object should get into the unit, contact your dealer or service company.

Cartoon illustration of a box with a cross symbol crossed out, containing no readable text or symbols.

9. Avoid cleaning with volatile solution

Do not attempt to clean the unit with chemical solvents as this might damage the finish. Use a clean, dry or slightly damp cloth.

Cartoon illustration of a smiling character with crossed arms and a large rectangular object, surrounded by two smaller figures (no text or symbols)

PLE550BS CONTROLS & FUNCTIONS

5 Bands Graphic Equalizer with SUB Volume Adjustable for Subwoofer Channel

1. FADER CONTROL

This control adjusts the volume between the front and rear speakers in 4 speaker system.

2. VOLUME CONTROL

This control adjusts the output level.

3. SUBWOOFER VOLUME

This control adjusts output level of subwoofer.

4. SUBWOOFER FREQ

This switch selects subwoofer frequency 43 or 63Hz.

5. INPUT SELECTOR SWITCH

This switch selects the BT input or CD input.

6. PREAMP CONTROLS

Control the frequency response of the Booster or cut, with the five tone controls each 45Hz, 100Hz, 700Hz, 2KHz, 15KHz.

PLE550BS WIRING DIAGRAM


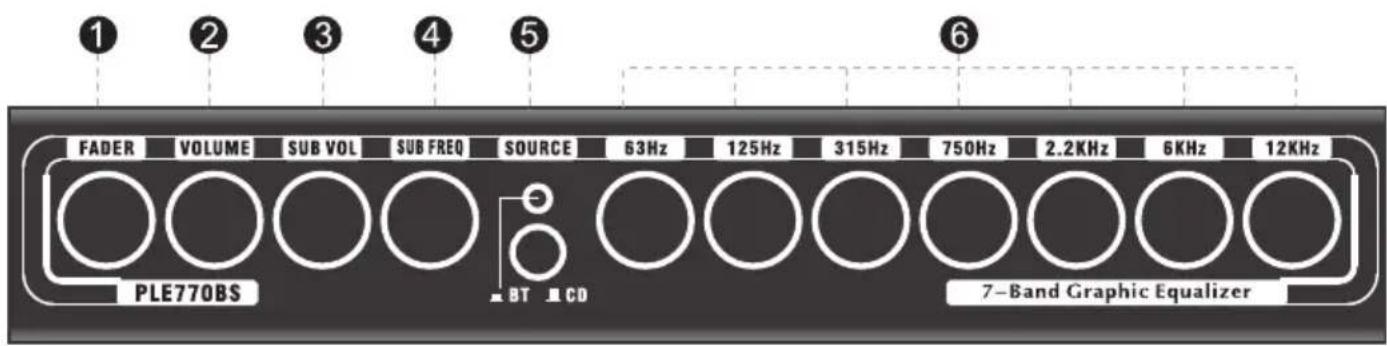

PLE770BS CONTROLS & FUNCTIONS

5 Bands Graphic Equalizer with SUB Volume Adjustable for Subwoofer Channel

1. FADER CONTROL

This control adjusts the volume between the front and rear speakers in 4 speaker system.

2. VOLUME CONTROL

This control adjusts the output level.

3. SUBWOOFER VOLUME

This control adjusts output level of subwoofer.

4. SUBWOOFER FREQ

This switch selects subwoofer frequency 43 or 63Hz.

5. INPUT SELECTOR SWITCH

This switch selects the BT input or CD input.

6. PREAMP CONTROLS

Control the frequency response of the Booster or cut, with the five tone controls each 63Hz, 125Hz, 315Hz, 750Hz, 2.2KHz, 6KHz, 12KHz.

PLE770BS WIRING DIAGRAM

PLE550BS

Features:

• Five Equalization Bands
• Tone Adjustable From -12DB To +12DB
• Low Pass Filter With Selectable Frequency Control
  • Built-in BT for Wireless Music Streaming
• Blue LED Indicator for BT
• Two Stereo RCA Output
  • Auxiliary Stereo RCA Inputs
• Input Selector
  • Master System Volume
• Fader Function for Front & Rear Channel
• SUB Volume Adjustable for Subwoofer Channel
• Mounting Hardware Included
  • RCA Auxiliary Input (Rear) inputs for MP3, DVD, or Phone

What's in the box:

• Equalizer
• Screw
• Bracket
• Power Plug

Technical Specs:

• Low Bass Equalizer Frequency: 45Hz
  • Bass Equalizer Frequency: 100Hz
  • Mid-Bass Equalizer Frequency: 700Hz
  • Mid Equalizer Frequency: 2 KHz
  • High Equalizer Frequency: 15 KHz
  • Each Frequency Adjustable: -12dB to +12dB
  • Output Voltage: 5V RMS @ 0.05% THD
  • Voltage: 11V-14.5V
  • S/N Ratio: 100dB
• Separation: > 60dB
  • Frequency Response:20Hz\~ 25 KHz
• Subwoofer Frequency: 40Hz / 150Hz
  • Product Dimensions: 7" x 4.72"x 1.18"-inches

PLE770BS

Features:

• Seven Equalization Bands
• Tone Adjustable From -12DB To +12DB
• Low Pass Filter With Selectable Frequency Control
  • Built-in BT for Wireless Music Streaming
• Blue LED Indicator for BT
• Two Stereo RCA Output
  • Auxiliary Stereo RCA Inputs
• Input Selector
• Master System Volume
• Fader Function for Front & Rear Channel
• SUB Volume Adjustable for Subwoofer Channel
• Mounting Hardware Included
  • RCA Auxiliary Input (Rear) inputs for MP3, DVD, or Phone

What's in the box:

• Equalizer
• Screw
• Bracket
• Power Plug

Technical Specs:

• Low Bass Equalizer Frequency: 63Hz
  • Bass Equalizer Frequency: 125Hz/315Hz
  • Mid-Bass Equalizer Frequency: 750Hz
  • Mid Equalizer Frequency: 2.2 KHz
  • Mid-High Equalizer Frequency: 6KHz
  • High Equalizer Frequency: 12 KHz
  • Each Frequency Adjustable: -12dB to +12dB
  • Output Voltage: 5V RMS @ 0.05% THD
  • Voltage: 11V-14.5V
• S/N Ratio: 100dB
• Separation: > 60dB
  • Frequency Response:20Hz\~ 25 KHz
• Subwoofer Frequency: 40Hz / 150Hz
• Product Dimensions:7" x 4.72"x 1.18"-inches
