KVC3121BL - Vacuum Cleaner Kunft - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	Kunft
Model	KVC3121BL
Color	Blue
Type	Bagless Cylinder
Dimensions (L x W x H)	400 x 300 x 250 mm
Weight	4.8 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	1200 W
Suction Power	250 air watts
Dust Capacity	1.5 L
Filtration System	HEPA 13 washable filter
Noise Level	≤ 78 dB(A)
Cord Length	5.0 m
Operating Radius	8.5 m
Accessories Included	Crevice tool, upholstery brush, floor nozzle
Material	ABS plastic
Safety Features	Overheat protection, automatic shut-off
Maintenance	Washable filter, empty dust container
Spare Parts	Replacement HEPA filter
Warranty	2 years

Frequently Asked Questions - KVC3121BL Kunft

How do I clean the HEPA filter?

Remove the filter from the vacuum and tap it gently to remove loose dust. Wash it under lukewarm water (do not use detergent) and let it air dry completely for at least 24 hours before reinstalling.

Why is my vacuum losing suction?

Check for blockages in the hose, nozzle, or dust container. Also, ensure the HEPA filter is clean and not clogged. Empty the dust container if full.

Can I use the vacuum on hardwood floors?

Yes, the included floor nozzle is suitable for hardwood. You can also turn off the rotating brush if available to prevent scratches.

How do I replace the dust container?

Press the release button on the dust container and lift it out. Empty the container, then rinse it with water if needed. Ensure it is completely dry before reattaching.

What accessories are included?

The vacuum comes with a crevice tool, upholstery brush, and a floor nozzle for everyday cleaning.

How often should I replace the filter?

The HEPA filter should be replaced every 6 to 12 months depending on usage. Wash it monthly to maintain performance.

Is there a warranty?

Yes, the Kunft KVC3121BL comes with a 2-year limited warranty covering manufacturing defects. Register your product online to activate.

How do I store the vacuum?

Store the vacuum in a dry place. You can wrap the cord around the cord hooks on the back of the unit. Keep accessories in a storage compartment if available.

The vacuum won't turn on, what should I do?

First, check that the power cord is securely plugged in. Then, press the power button again. If it still doesn't work, check for overheating - let it cool for 30 minutes and try again.

Can I wash the dust container?

Yes, the dust container is washable. Remove it from the vacuum and rinse it with water. Ensure it is fully dry before reinstalling to prevent mold or damage.

USER MANUAL KVC3121BL Kunft

Exterior view of a modern vacuum cleaner (no text or symbols visible)

Abstract line drawing of a stylized bird or creature with curved lines and a circular base (no text or symbols)

vacuum cleaner

is perfectly enough

KVC3121 BL

kunft.®

Dear client,

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality. To simplify the use of this appliance, this instruction manual has been provided.

The instructions must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

vacuum cleaner KVC3121 BL

EN

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables ...... 6
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions ...... 6

1. OPERATING INSTRUCTIONS 8

2.1. Product Description....8
2.2. Using the Product 8

1. TECHNICAL SPECIFICATIONS .....11
2. POST-SALE SERVICE 12
3. ENVIRONMENTAL PROTECTION 12

kunft.®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any ma-

vacuum cleaner

KVC3121 BL

EN

nual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

kunft.®

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

vacuum cleaner

KVC3121 BL

EN

- Read all instructions before using the product.

- Maintenance and service operations are only to be carried out by authorized professionals.

- Any damage caused by manual modifications to the product is not covered by the warranty.

- If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

kunft.®

2. OPERATING INSTRUCTIONS

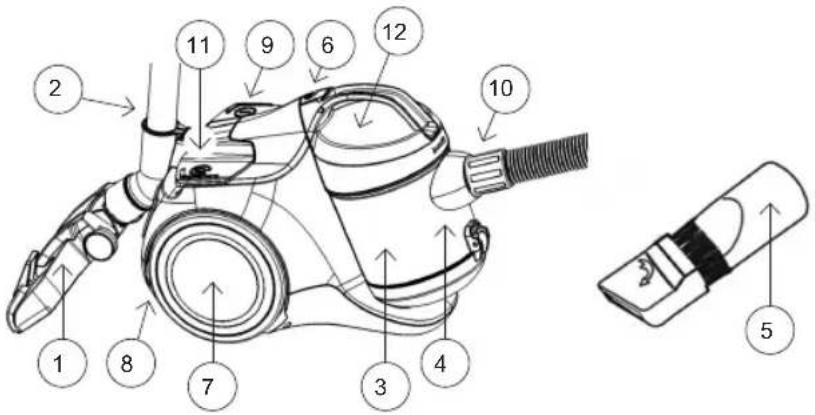

2.1. Product Description

1. Floor Brush 7. Back wheel
2. Extending telescopic tube 8. Back wheel rubber
3. Dust cup 9. Power button
4. Hose connector 10. Hose
5. Compressed brush 11. Cord rewind pedal
6. Release button 12. Dust chamber and handle

2.2. Using the Product

HOW TO USE

ASSEMBLY BEFORE USE

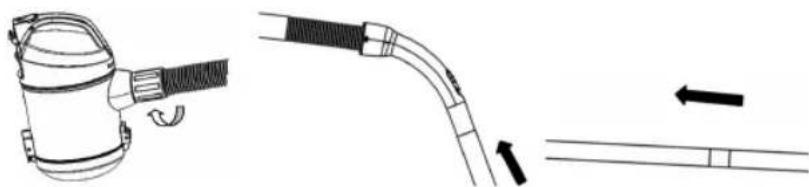

Fig. 1 shows the connection of the hose and the vacuum cleaner:

Attach the hose connector to the front of the vacuum cleaner by inserting it in the inlet hole and turn right. If you want to disassemble it, turn the hose connector left and then pull out.

Fig. 2 shows the connection of the hose and the extending tube:

Hold the hose connector and insert it in the larger tube hole.

Fig. 3 shows the adjustment of the extending tube:

Place the tube into the larger hole of the other one.

Fig. 4 shows the connection of the tube and the floor brush:

Insert the extension tube into the brush hole and rotate it to lock.

Fig. 5 shows how to check the winding of the power cord.

You can pull the power cord out of the machine and stop it when you see the yellow mark. Make sure the red mark is not out. When

vacuum cleaner

KVC3121 BL

EN

your sweep is over, switch off the appliance, unplug it from the power socket, and then push the cord rewind pedal until the cord is completely inside the machine.

Fig. 6 shows the power button

Plug the appliance into the power socket and push the power button to control the work of the machine.

Technical line drawing of a spray gun and pipe assembly (no text or symbols)

Technical line drawing of a vacuum cleaner assembly (no text or symbols)

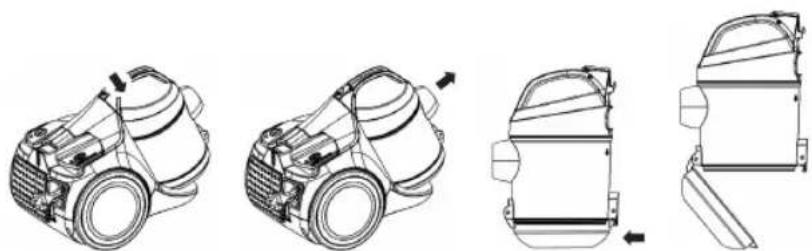

1. As shown in Fig. 7, hold the dust container and handle and push the release button.
2. As shown in Fig. 8, remove the dust container from the machine.
3. As shown in Fig. 9, put the dust container into the rubbish bin, push the release button to open the bottom of the dust chamber, and the dirt and dust will fall into the bin on their own.
4. As shown in Fig. 10, close the dust container after cleaning.

Technical line drawings of a vacuum cleaner's internal components, showing exploded and assembled views (no text or labels)

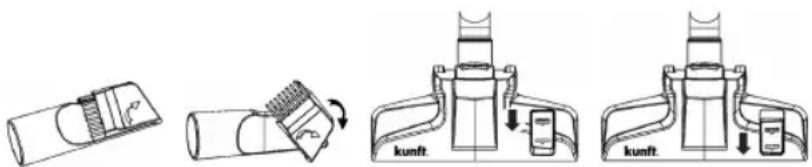

1. As shown in Fig. 11, you can use the compressed brush in corners and gaps.
2. As shown in Fig. 12, use the other side of the compressed brush with bristles to clean sofas, curtains and to clean the dust on ornaments.
3. As shown in Fig. 13, step on the pedal of the brush tool to let the bristles out to clean floors.
4. As shown in Fig. 14, step on the pedal of the brush tool once again to put the bristles in to clean carpets.

Fig. 11 Fig. 12 Fig. 13 Fig. 14

2.3. Maintenance

1. The filter should be cleaned twice a year, and whenever there is obvious dirt on the filter.
2. Fit the filter properly before using the vacuum cleaner again.
3. The filter cannot be washed in the washing machine or by a blower.

4. Using a wet filter will reduce the suction power and damage the motor.

5. Maintenance steps:

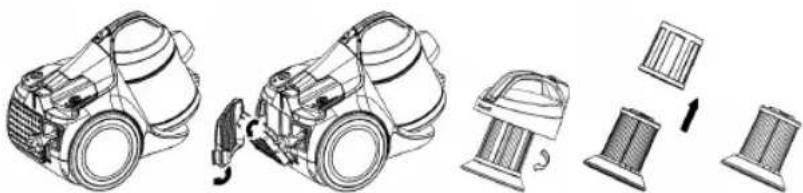

1) As shown in Fig. 15, press the outlet lock to open the outlet board.
2) As shown in Fig. 16, remove the outlet filter.
3) As shown in Fig.17, rotate the HEPA cover to separate it from the container cover
4) As shown in Fig.18, remove the HEPA cover
5) As shown in Fig.19, remove and wash the HEPA.
6) Wash the HEPA cover, the HEPA assembly, the outlet sponge and the dust container in water without detergent and dry the parts before use.
7) Fix the HEPA assembly on the container cover and make sure the three salient cubes are locked in the grooves of the dust container.
8) Rotate the HEPA assembly in the direction of the mark on the container cover.

vacuum cleaner

KVC3121 BL

EN

9) Assemble the cover and the dust container according to the mark outside.
10) Place the dust container assembly into the machine. During this process, first insert the container in the right position and then press the dust container handle, there is a click if the operation is successful.

Technical line drawings of a vacuum cleaner assembly showing internal components and mounting features (no text or labels)

Fig. 15 Fig. 16 Fig. 17 Fig. 18 Fig. 19

3. TECHNICAL SPECIFICATIONS

Nominal Voltage and Frequency 220-240V\~50-60Hz

Annual Energy Consumption 27 kWh/an

Nominal power 700 W

Sound Pressure 78 dB

kunft.®

4. PoSt-SaLE SErvlcE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENvIroNMENtaL ProtEctloN

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.
