Brand	Kunft
Model	KC6455
Product Type	Refrigerator-Freezer Combi (Frost Free)
Dimensions (Approx.)	Width: 610-830 mm, Height: 975-1055 mm, Depth: 840 mm
Power Supply	220-240 V ~ 50 Hz, single phase
Climate Class	N, ST, T (16°C to 43°C)
Refrigerant	R600a (Isobutane), flammable
Temperature Control	Rotary knob with settings 0 (Off) to 7 (Coldest); optimal setting 2-4
Freezer Compartments	3 drawers; upper, middle, lower; star rating: *** (≤ -18°C)
Defrosting	Automatic in fridge compartment; manual in freezer (when frost >10 mm)
Lighting	LED light (must be replaced by service agent)
Door Reversible	Yes, from right to left (instructions provided)
Energy Saving	Medium temperature setting; avoid frequent door opening; good ventilation
Cleaning	Mild detergent and warm water; do not use abrasive cleaners or sharp objects
Safety Features	Child lock (supervision required for children 8+); flammable refrigerant warning
Warranty	2 years against manufacturing defects (from date of purchase)
Accessories Included	Shelves, crisper box, door shelves, freezer drawers, ice tray (if applicable)

Frequently Asked Questions - KC6455 Kunft

How do I set the temperature on my Kunft KC6455 refrigerator?

The temperature is controlled by a rotary knob inside the fridge compartment. Settings range from 0 (off) to 7 (coldest). For normal use, select 2, 3, or 4. Rotate clockwise to turn on and adjust.

How often should I defrost the freezer?

Defrost the freezer when the frost layer is thicker than 10 mm, typically at least once a month. If the door is opened frequently or in high humidity, defrost every two weeks.

Can I reverse the door opening direction?

Yes, the door can be reversed from right to left. Follow the detailed steps in the manual. Ensure the appliance is unplugged before starting. You will need a screwdriver and spanner.

Why is my refrigerator making unusual noises?

Normal sounds include compressor hums and clicks before starting. Unusual noises may be due to the appliance not being level, touching the wall, or items inside rolling. Adjust the feet or move bottles.

How do I clean the interior?

Unplug the appliance. Clean with a mild detergent and warm water, then rinse with a bicarbonate of soda solution. Wipe dry before replacing shelves. Do not use abrasive cleaners.

What should I do if the light is not working?

The LED light must be replaced by a qualified service agent. Do not attempt to replace it yourself. Contact customer support for assistance.

What is the recommended storage temperature for different foods?

For the fridge, keep at 0-4°C for fresh food. The freezer should be at -18°C or below. Meat and seafood freeze well for up to 3 months; dairy and eggs in the fridge for weeks.

How can I save energy with my refrigerator?

Avoid leaving the door open for long. Set the temperature to a medium setting (2-4). Keep the appliance away from heat sources and ensure good ventilation around it. Don't store hot food.

What should I do if the refrigerator stops cooling?

Check if the power cord is plugged in and the outlet works. Ensure the thermostat is not set to 0. If the compressor runs continuously or the temperature is too warm, allow 24 hours to stabilize after loading food.

Is the refrigerant flammable?

Yes, the appliance uses R600a (isobutane) which is flammable. In case of a refrigerant leak, avoid open flames, ventilate the room, and contact a professional for service. Do not damage the refrigerant circuit.

USER MANUAL KC6455 Kunft

Line drawing of a kitchen refrigerator with a small refrigerator beside it (no text or symbols on the refrigerator itself)

refrigerator freezer

kunft.®

refrigerator freezer

KC6455

EN

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS......4

1.1. Power Supply....6
1.2. Power Cord and Other Cables......6
1.3. Humidity and Water 6
1.4. Cleaning....6
1.5. General Precautions ...... 7

1. OPERATING INSTRUCTIONS....17

2.1. Product Description.... 17
2.2. Product usage....17
2.3. Maintenance 25
2.4. Troubleshooting 28

1. POST-SALE SERVICE....29

2. ENVIRONMENTAL PROTECTION 29

2

3

kunft.®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user.Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope,

refrigerator freezer

KC6455

EN

any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

kunft.®

Children shall not play with the appliance.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main

refrigerator freezer

KC6455

EN

power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these

kunft.®

instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life will be properly informed on its usage and safety notices.

- For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Safety for children and others who are vulnerable people

According to EN standard

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

According to IEC standard

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless

refrigerator freezer

KC6455

EN

they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
- Keep all packaging away from children as there is risk of suffocation.
- If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
- If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

⚠ WARNING -This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farmhouses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

kunft®

• WARNING - Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• WARNING - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• WARNING - Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING - Do not damage the refrigerant circuit.
• WARNING - Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• WARNING - The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame.
• WARNING - When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING - Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

refrigerator freezer

KC6455

EN

- WARNING - Food needs to be packed in bags before putting into the refrigerator, and liquids need to be packed in bottles or capped containers to avoid difficulties cleaning the product.

Warning: Risk of fire / flammable materials

• The symbol is a warning and indicates the refrigerant and insulation blowing gas are flammable.
• WARNING - During using, service and disposal the appliance, please pay attention to a similar symbol, which is located on rear of appliance (rear panel or compressor)

There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

Replacing the illuminating lamps

• WARNING - The illuminating lamps must not be replaced by the user! If the illuminating lamps are damaged, contact the customer helpline for assistance.
• This warning is only for refrigerators that contain illuminating lamps.

Refrigerant

- The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is

kunft®

nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged.

• The refrigerant (R600a) is flammable.
• WARNING - Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.
• If the refrigerant circuit should be damaged:

- Avoid open flames and sources of ignition.

- Thoroughly ventilate the room where the appliance is located.

• It is dangerous to alter the specifications or modify this product in any way.
• Any damage to the cord may cause a short-circuit, fire, and/or electric shock.

⚠️ Electrical safety

• The power cord must not be lengthened.
• Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
• Make sure that you can access the main plug of the appliance.
• Do not pull the main cable.

refrigerator freezer

KC6455

EN

• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
• You must not operate the appliance without the interior lighting lamp cover.
• The fridge should only be supplied with single phase alternating current of 220\~240V / 50Hz. If the supply voltage fluctuates outside this range, an automatic A.C. voltage regulator of more than 350W should be used for safety reasons. The fridge must be plugged in to its own power socket instead of a shared one with other electric appliances. Its plug must match the socket with ground wire.

Daily use

• Do not store flammable gases or liquids in the appliance. There is an explosion risk.
• Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).
• When unplugging always pull the plug from the mains socket, do not pull on the cable.
• Do not place hot items near the plastic components of this appliance.
• Do not place food products directly against the air outlet on the rear wall.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.

kunft®

• The appliance manufacturer's storage recommendations should be strictly adhered to.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Frozen food can cause frost burns if consumed straight from the freezer compartment.
• Do not place the appliance in direct sunlight.
• Keep burning candles, lamps and other items with naked flames away from the appliance so that they do not set the appliance on fire.
• The appliance is intended for keeping food stuffs and/or beverages in normal households as explained in this instruction booklet. The appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Never use the base, drawers, doors etc. to stand on or as supports.
• Frozen food must not be refrozen once it has been thawed out.

refrigerator freezer

KC6455

EN

• Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.
• To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.
• This refrigerating appliance is not intended to be used as a built-in appliance.

Installation

Important!

• For electrical connection carefully, follow the instructions given in this manual.
• Unpack the appliance and check if there is any damage.
• Do not connect the appliance if it is damaged. Report possible damages immediately to the place where you bought it. In this case, retain the packaging.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• There should be adequate air circulation around the appliance, otherwise it may lead to overheating. To achieve sufficient ventilation, follow the installation instructions.
• Wherever possible, the back of the product should not be too close to a wall to avoid touching or catching warm parts (compres-

kunft®

sor, condenser) to prevent the risk of a fire, follow the installation instructions.

• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the appliance is installed.

Service

• Any electrical work required for servicing the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.
• If the appliance is Frost Free.
• If the appliance contains freezer compartment.

refrigerator freezer

KC6455

EN

2. OPERATING INSTRUCTIONS

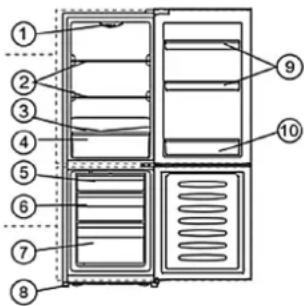

2.1. Product Description

1. Controller.
2. Storage shelf.
3. Crisper box Cover
4. Crisper box
5. Upper freezer drawer
6. Middle freezer drawer
7. Lower freezer drawer
8. Adjustable feet
9. Upper door shelf
10. Lower door shelf

Note: Due to continued changes to our products, your refrigerator may be slightly different from this instruction manual, but its functions and using methods remain the same.

Note: To get more space in the freezer, you can remove drawers (except the bottom drawer in freezer!). To get the best use out of this product, please place all shelves, drawers in their original positions as shown in the illustration above.

2.2. Product usage

Installing your new appliance

Before using the appliance for the first time, you should be informed of the following tips.

Ventilation of appliance

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.

Suggestion: It is advisable for there to be at least 50-70mm of space between the back of the appliance and the wall, at least 100mm from its top, at least 100mm between its side and the wall and a clear space in front to allow the doors to open 135°. As shown in following diagrams.

kunft®

Note:

This appliance performs well within the climate class N, ST or N, ST, T showed in the table below.

It may not work properly if being left at a temperature above or below the indicated range for a long period.

Climate class Ambient temperature

SN +10°C to +32°C

N +16°C to +32°C

ST +16°C to +38°C

T +16°C to +43°C

- Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heat sources such as stoves, fires or heaters.

Levelling of appliance

• For sufficient levelling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted. You can adjust them manually by hand or by using a suitable spanner.
• To allow the doors to self-close, tilt the top backwards by about 10mm.

Remove and install the door shelf

Warning: The door shelf must not be removed and installed by the user! If the door shelf is damaged, contact the customer helpline for assistance. To replace the door shelf, the below steps can be followed:

Remove the door shelf

Press the right side of the door shelf inward, while holding the left side. When the shelf notch has been detached from the refrigerator door, remove the rack diagonally upwards.

Firstly, tilt the left side of the door shelf and make sure the notch has been fastened to the door. Then press the right side inwards and push it down to the right place.

refrigerator freezer

KC6455

EN

Reversing the door

The side at which the door opens can be changed, from the right side (as supplied) to the left side, if the installation site so requires.

Warning! When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket.

Note: Before you start laying the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator.

To reverse the door, the following steps are generally recommended.

1. Stand the refrigerator upright. Open the upper door to take out all door racks (to avoid damage to the racks) and then close the door.

2. Remove the Upper hinge cover (right) ①, then remove the screws ②, and remove part ③. Put the just detached part ① back in the plastic bag, place screws ② and part ③ on the side for use.

Note: Please hold the upper door during step 2 to prevent the door from dropping.

1. Remove the upper door and place it on a smooth surface with its panel upwards. Loosen screws ①, and remove part ②, then install part ② to the left side with screws ①.

1. Loosen screws ① used to fix the middle hinge ② and remove middle hinge ②. Then remove the lower door.

1. Place the lower door on a smooth surface with the panel facing upwards. Loose screws ①, and remove part ②, then install part ② to the left side with screws ①.

1. Change screw hole covers on middle cover plate from left to right (as shown in figure below).

1. Place refrigerator flatwise, remove part ③ and then loose screws ④. Remove parts ⑤, ② and part ①.

kunft®

1. Screw out lower hinge, change it to the near hole site, and then screw it back.

1. Revert to step 7, change part① to left and parts ②, ⑤ to right and then fix part ① with screws ④. Finally, install part ③.

1. Move the lower door and adjust its position to align lower hole site and upper hinge axis. Turn the middle hinge by 180, adjust the middle hinge to an appropriate position and then install it.

1. Screw out the upper hinge axis, turn the upper hinge over and fix axis on it. Then place it at side for use.

1. Remove the screw hole cover①, then install it on the right side ②, as shown in figure below.

1. Move the upper door to an appropriate position, adjust part ① and upper door, and then fix part ① with screws ② (Please hold upper door when installing), and then install other part ③ (in the plastic bag).

Note: When installing part ③, firstly, fully push it from left to right, then push it down tight.

1. Open the upper door, mount door racks and then close it.

Door shelf

It is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc. Do not place too many heavy things in the shelf.

refrigerator freezer

KC6455

EN

Operation

Using your appliance

The "Description of the appliance" section lists the accessories that come with your appliance, and this following section contains Instructions on how to correctly use them.

Starting up and temperature regulation

• Insert the plug of the connection lead into the plug socket with protective earth contact. When the refrigerator compartment door is opened, the internal light is switched on.
• The temperature selector knob is located on the top of the refrigerator compartment.

Setting 0 means:

Off.

Rotate the knob clockwise to turn on the appliance.

Setting 1 means:

Highest temperature, warmest setting.

Setting 7 (end-stop) means:

Lowest temperature, coldest setting.

Order	Compartments type	Target storage temp.[°C]	Appropriate food
1 Fridge			Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods that are not suitable for freezing.
2	^*** * Freezer	<-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3	*** Freezer	<-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), not suitable for frozen fresh food.

kunft®

4	** Freezer	<-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), not suitable for frozen fresh food.
5	* Freezer	<-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
6	0 - star	-6~0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days).Partially encapsulated processed foods (non-freezable foods)
7	Chill	-2 ~+3	Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0 X and above 0^ is recommended for consumption within the same day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0^ )
8	Fresh Food	0~+4	Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days)
9	Wine	+5 ~+20 Red wine, white wine, sparkling wine etc.

Note: please store different foods according to the compartments or target storage temperature of your purchased products.

Important! Normally we advise that you select a setting of 2 or 3 or 4, if you want the temperature higher or lower please turn the knob to a higher or lower setting accordingly. When you turn the knob to a lower temperature it can consume more energy, while a higher temperature can be more energy-saving and therefore increase the energy efficiency.

Note: High temperature setting will accelerate food waste.

- For optimum food preservation, a medium setting is generally the most suitable.

Important! High ambient temperatures (e.g. on hot summer days) and a cold setting (position 6 to 7) may cause the compressor to run continuously or even non-stop!

Reason: when the ambient temperature is high, the compressor must run continuously to maintain the low temperature in the appliance.

refrigerator freezer

KC6455

EN

Helpful hints and tips

Energy saving tips

We recommend that you follow the tips below to save energy.

• Try to avoid keeping the door open for long periods in order to conserve energy.
• Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker, etc.).
• Don't set the temperature colder than necessary.
• Don't store warm food or evaporating liquid in the appliance.
• Place the appliance in a well ventilated, dry room. Please refer to the "Installing your new appliance" chapter.
• If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration.

Hints for fresh food refrigeration

• Do not place hot food directly into the refrigerator or freezer, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.
• Do cover or wrap the food, particularly if it has a strong flavour.
• Place food so that air can circulate freely around it.

Tips for refrigeration

• Meat (all types): wrap in clingfilm and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers.
• Cooked food, cold dishes, etc.: they should be covered and may be placed on any shelf.
• Fruit and vegetables: they should be stored in the crisper box.
• Butter and cheese: should be placed in aluminium foil or polyethylene(plastic) bags while removing as much air as possible.
• Milk bottles: should have a lid and be stored in the door shelf.

Tips for freezing

• When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment.
• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
• Wrap up the food in aluminium foil or polyethylene food wraps which are airtight,
• Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter.

kunft®

- It is recommended to label and date each frozen package in order to keep track of storage times.

Hints for the storage of frozen food

• Ensure that frozen food has been stored correctly by the food retailer.
• Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer.

Switching off your appliance

If the appliance needs to be switched off for an extended period, the following steps should be taken to prevent mould growing on the appliance.

1. Remove all food.
2. Remove the power plug from the mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly to allow air to circulate.

refrigerator freezer

KC6455

EN

2.3. Maintenance

Caution!

Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

• Do not clean the appliance with metal objects, steam cleaner, essential oils, organic solvents or abrasive cleansers.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

For hygienic reasons, the appliance (including exterior and interior accessories) should be cleaned regularly at least every two months.

Caution! Danger of electrical shock! The appliance must not be connected to the mains during cleaning. Before cleaning, switch the appliance off and remove the plug from the mains socket.

Exterior cleaning

To maintain good appearance of your appliance, you should clean it regularly.

• Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.
• Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth.

Caution!

Don't use sharp objects as they are likely to scratch the surface.

Don't use thinner, car detergent, Clorox, essential oil, abrasive cleansers or organic.

Interior cleaning

You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and crisper box.

Thoroughly dry all surfaces and removable parts.

A layer of frost may form on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, choose a time when the food stocks are low and proceed as follows:

1. Remove existing food and accessories, unplug the appliance from the mains power and leave the doors open.
   Ventilate the room thoroughly to accelerate the thawing process.
2. When defrosting is completed, clean your freezer as described above.

kunft®

Caution! Don't use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket.

Door seals cleaning

Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.

Caution! Only after the door seals are completely dry should the appliance be powered on.

Defrosting

Why defrost

- Water contained in food or transferred to the inside of the fridge by opening doors may form a frost layer inside. Thick frost will hinder refrigeration. If it is more than 10mm thick, you should defrost.

Defrosting in fresh food storage compartment

- It is automatically controlled by switching the temperature regulator on or off so that there is no need to defrost. Water from defrosting will be automatically drained into a drip tray through a drainpipe at the back of the fridge.

Defrosting in frozen-food storage compartment

• The freezer compartment is manually defrosted. Before defrosting, take the food out.
  • Take the ice tray out or put it in the fresh food compartment temporarily.
• Set the temperature regulator knob to position "0" (where the compressor will stop working) and leave the door refrigerator door open until ice and frost dissolve thoroughly and accumulate at the bottom of the freezer chamber. Wipe off the water with a soft cloth.
• To speed up the defrosting process, you may put a bowl of warm water (about 50^ ) in the freezer chamber and scrape away the ice and frost with a defrosting spatula. After doing so, be sure to set the temperature regulator knob to its original position.
• It is not advisable to heat the freezer chamber directly with hot water or a hair dryer while defrosting to avoid deformation of the inner casing.
• It is also not advisable to scrape off ice and frost or to separate food from the containers which have been congealed together with sharp tools or wooden bars, so as not to damage the inner casing or the surface of the evaporator.

refrigerator freezer

KC6455

EN

Warning! Before defrosting, switch off the appliance by turning the temperature regulator to position "0".

Important! The fridge should be defrosted at least once a month. If the door is opened frequently while in use or if the appliance is used in extreme humidity, we advise the user to defrost every two weeks.

Replacing the LED light:

Warning: The LED light must not be replaced by the user! If the LED light is damaged, contact the customer helpline for assistance. To replace the LED light, the below steps can be followed:

1. Unplug your appliance.
2. Remove light cover by pushing up and out. Then remove the controller box.
3. Hold the LED cover with one hand and pull it with the other hand while pressing the connector latch.
4. Replace LED light and snap it correctly in place.

Disposal of the appliance

It is prohibited to dispose of this appliance as household waste.

Packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.

Before disposal of the appliance

1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug.

Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Regularly clean surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h. Flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for freezing of fresh food.

kunft®

2.4. Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below.

Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

Problem Possible cause & Solution

Appliance is not working correctly	Check whether the power cord is plugged into the power outlet properly.
	Check the fuse or circuit of your power supply, replace if necessary.
	The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem.
Odours from the compartments	The interior may need to be cleaned
	Some food, containers or wrapping cause odours.
Noise from the appliance	The sounds below are quite normal:• Compressor running noises.• Clicking noise before the compressor starts.Other unusual noises are due to the reasons below and may need you to check and take action:• The cabinet is not level.• The back of appliance touches the wall.• Bottles or containers fallen or rolling.
The motor runs continuously	It is normal to frequently hear the sound of the motor; it will need to work harder under n following circumstances:• Temperature setting is colder than necessary.• Large quantity of warm food has recently been stored within the appliance.• The temperature outside the appliance is too high.• Doors are kept open too long or too often.• After you install the appliance or if it has been switched off for a long time.
A layer of frost forms in the compartment	Ensure food is placed within the appliance to allow sufficient ventilation. Ensure that door is fully closed. To remove the frost, please refer to the cleaning and care chapter.

refrigerator freezer

KC6455

EN

Temperature inside is too warm	You may have left the doors open too long or too frequently; or something is keeping the doors open; or the appliance does not have sufficient clearance at the sides, back and top.
Temperature inside is too cold	Increase the temperature by following the temperature regulation instructions.
Doors can't be closed easily	Check whether the top of the refrigerator is tilted back by 10-15mm to allow the doors to self-close, or if something inside is preventing the doors from closing.
Water drips on the floor	The water pan (located at the rear bottom of the cabinet) may not be properly levelled, or the draining spout (located underneath the top of the compressor depot) may not be properly positioned to direct water into this pan, or the waterspout is blocked. You may need to pull the refrigerator away from the wall to check the pan and spout.
The light is not working	The light may be damaged.

3. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

kunft.®

frigorífico combi

KC6455

ES

Estimado cliente:

Diagram showing two mechanical or structural components with arrows indicating motion, no text or symbols present

refrigerator freezer

is perfectly enough

KC6455

Imported, produced and distributed by:
