JFE60-014962 - Oven Jocel - Free user manual and instructions

Product Type	Built-in Electric Oven
Brand	Jocel
Model	JFE60-014962
Dimensions (W x H x D)	595 x 595 x 550 mm
Weight	Approx. 30 kg
Power Supply	220-240 V, 50 Hz
Energy Class	A
Oven Capacity	60 Litres
Heating Functions	Convection, Grill, Fan Forced, Top & Bottom Heat, Defrost
Temperature Range	50°C to 250°C
Control Type	Mechanical Dials with Timer
Interior Light	Yes
Cleaning Type	Easy-clean Enamel Interior
Safety Features	Child Lock, Auto Shut-off, Overheat Protection
Spare Parts Availability	Contact Jocel Support
Repairability Index	7/10
Included Accessories	2 Oven Racks, 1 Baking Tray, Grill Grid

Frequently Asked Questions - JFE60-014962 Jocel

How do I set the cooking time on my Jocel oven?

Turn the timer knob clockwise to the desired time. The oven will automatically shut off when the time is up. Please refer to the manual for detailed instructions.

What does the defrost function do?

The defrost function uses gentle fan circulation to thaw frozen food without cooking it. Place the food on a rack and select the defrost setting.

How do I clean the oven interior?

Wipe the interior with a damp cloth and mild detergent after each use. For baked-on spills, use a non-abrasive oven cleaner. Do not use steam cleaners.

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire rack or blocking air circulation. Do not let foil touch the heating elements to prevent fire hazards.

What should I do if the oven doesn't heat up?

Check the power supply and ensure the thermostat is set above room temperature. If the problem persists, contact Jocel support.

How do I activate the child lock?

Press and hold the child lock button for 3 seconds until the indicator lights up. To deactivate, press and hold again.

Is the oven energy efficient?

Yes, it is rated energy class A, which means low energy consumption. Using the convection function can further reduce cooking time and energy.

How do I replace the interior light bulb?

Disconnect the oven from power. Remove the glass cover, replace with a 25W/300°C halogen bulb, and refit the cover. See manual for model-specific steps.

What are the oven's dimensions for installation?

The built-in cavity should be at least 560 x 590 x 550 mm (WxHxD) for proper ventilation. Refer to the installation guide for exact measurements.

Can I download the manual online?

Yes, the manual for model JFE60-014962 is available for free download in PDF format at notice-facile.com.

USER MANUAL JFE60-014962 Jocel

Exterior view of a modern kitchen microwave oven with control knobs and a blank screen (no visible text or symbols)

MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES INSTRUCTION MANUAL

PORTUGUÊS

ÍNDICE

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

Important safeguards....20

Getting to know your electric over....21

Specification 21

Operation instructions....22

Helpful hints 22

Using your rotisserie oven 22

How to bake 22

How touse the rotisserie function ....23

How to use the convection function....23

Toasting 23

Cleaning 23

General warranty terms 25

Declaration of conformity 26

IMPORTANT SAFEGUARDS

When using electrical appliances, basic precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces, use handles or knobs.
3. Close supervision is necessary when any appliances is used by or near children.
4. To protect against electric shock, do not immerse cord, plug, or any parts of the oven in water or other liquids.
5. Do not let cord hang over edge of table or counter, or touch hot surfaces.
6. Do not operate appliances with damaged cord or plug or after the appliances Malfunctions, or has been damaged in any manner. Return appliances to the nearest Authorized Service Center for examination, repair, or adjustment.
7. The use of accessory attachments not recommended may cause hazard or injury.
8. Do not place on or near a hot gas or electric burner, or in a heated oven or in a microwave oven.
9. When operate the oven keep at least four inches of space on all sides of the oven to allow for adequate air circulation.
10. Unplug form outlet when not in use and before cleaning. Allow to cool before Putting on or taking off parts, and before cleaning.
11. To disconnect, turn the control to OFF, then remove the plug, always hold the plug, but never pull the cord.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
13. Do not cover any part of the oven with metal foil.
14. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock. Never leave the appliances unattended while broiling or toasting.
15. Oversized foods or metal utensils must not be inserted in toaster oven as they may create a fire or risk of electric shock.
16. A fire cause if the oven is covered or touching in inflammable material, including curtains draperies walls. And like when on operation. 00 not store any item on the oven during operation.
17. Extreme caution should be exercised when using containers constructed of anything other than metal or glass.
18. Do not place any of the following materials in the oven: cardboard, plastic, paper or anything similar.
19. Always wear protective, insulated oven gloves when inserting or removing.
20. items from the hot oven.
21. Do not use outdoors.
22. Do not use appliance for other than intended use.
23. This appliance is for HOUSEHOLD USE ONLY.

SAFETY NOTICE: KEEP OUT OF CHILDREN REACHAND THERE IS ALWAYS ATTENDED BY AN ADULT WHILE OPERATING THE APPLIANCE.

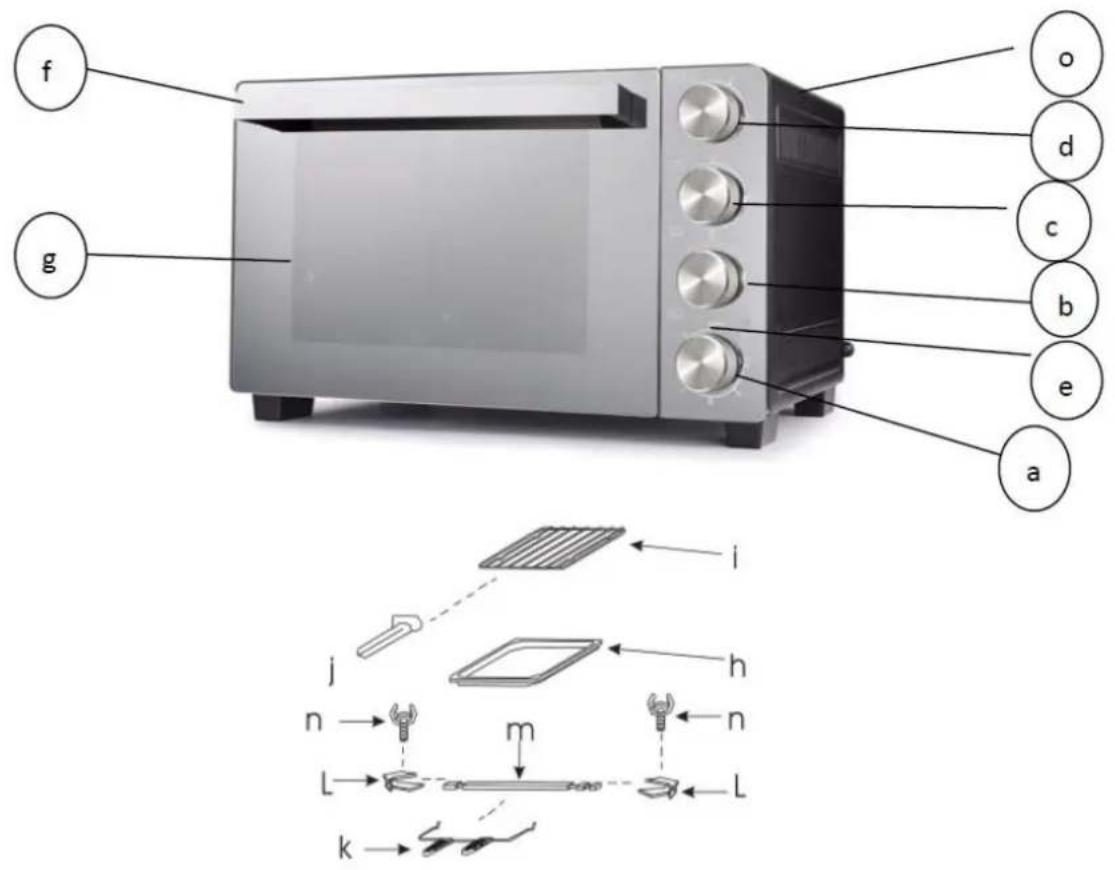

GETTING TO KNOW YOUR ELECTRIC OVER

- Main Component:

The interior lamp works with TIMER.

a. Timer Control Knob i. Wire Rack
b. Function Control Knob j. Tray Handle
c. Heater Control Knob k. Rotisserie Handle
d. Temperature Control Knob I. Butterfly Skewer
e. Indicator Light m. Rotisserie Skewer
f. Door Handle n. Thumbscrew
g. Door Glass o. Housing
h. Bake Tray

SPECIFICATION

Capacity 60L

Voltage 220V

Frequency 50Hz

Power 2000W

OPERATION INSTRUCTIONS

This product is intended for household use only.

READ BEFORE USING YOUR ROTISSERIE & CONVECTION OVEN

Before using your oven for the first lime:

Be sure to:

1. Make sure that the oven is unplugged and the TIMER switch is in the "OFF" position.
2. Remove all racks and pans and wash them in hot water or in the dishwasher.
3. Thoroughly dry all accessories and reassemble in oven. Plug oven into power point and you are ready to use your new oven.
4. After reassembling your oven We recommend that you run it at the MAX
5. temperature for approximately 15 minutes to eliminate any packing oil that may remain after shipping.

- HELPFUL HINTS

Do not worry about the smoke for the first operating, as it is normally for the first heating, and will disappear within 20 minutes. In general, it is not necessary to preheat the oven, but you may better result if you heat the oven before cooking some delicate meals, such as rare medium meat and cakes.

USING YOUR ROTISSERIE OVEN

- HOW TO BAKE

1. Place the removable rack into the desired position.
2. Place the bake pan on the wire rack. Shut the oven door.
3. Turn the timer dial to the desired cooking time.
4. Turn the "TOP" heating selection knob and set the desired temperature.
5. When finish baking, turn the time dial till position "0", to switch off the oven.

• HOW TOUSE THE ROTISSERIE FUNCTION

1. Turn the top and bottom temperature knob to max level 250^ C while set the timer button approximately 15 minutes (to preheat the oven).

Caution: The body and inner oven can be very hot after preheating.

1. Slowly insert the food that need to be roasted into the rotisserie bar.
2. Insert the butterfly skewer at both ends of the food and lock with thumbscrews.
3. Make sure the food is centered at the rotisserie bar.
4. Insert both ends of rotisserie bar into the socket (inner oven) make sure the square ends of the rotisserie bar are inserted into the drive socket.
5. Turn the cooking function knob ( ) to sign position (if you need convection function as well, please set the cooking function to ( ) sign position).
6. Turn the time control knob to desired cooking time after setting the heating selection and temperature.
7. After the process of the roasting completes, turn the timer knob to "off" sign position.
8. Remove the rotisserie bar by placing the rotisserie handle under the grooves on either side of the rotisserie bars. Lift the left side of the rotisserie bar first by lifting it up and then pull out the rotisserie bar from the drive socket.

• HOW TO USE THE CONVECTION FUNCTION

1. Set the function knob to convection function and rotisserie function ( ☐ ) if you need convection function and rotisserie function at the same time.
2. Set the function knob to convection function ( ☑ ) if you need convection function only.

- TOASTING

1. Set the top and bottom Temperature Control to 250°C.
2. Place food to be toasted on the Bake Rack.
3. Ensure Crumb Tray is in place.
4. Turn the Time Control to desired darkness.
5. Bell will ring to signal the end of the Toast cycle.

- CLEANING

1. It is important that you clean the entire appliance after each use to prevent an accumulation of grease and avoid unpleasant odors.

2. Allow the appliance to cool and unplug from outlet before cleaning.

3. Do not immerse appliance in water or wash it under water-spout.

4. Removable wire rack, bake pan, crumb tray can be washed, as normal kitchenware.
5. Clean outside of appliance with a damp sponge.
6. Do not use abrasive cleaners or sharp utensils to clean the oven, as scratching may weaker it and cause shattering.
7. Let all parts and surfaces dry thoroughly prior to using.

ELIMINATION: Do not dispose of this product as household waste. Collection of said waste separately for special treatment is required.

This model is being followed forward with a Community Directive 2002/96 / EC of the Waste Electrical and Electronic Equipment Commission (WEEE). To ensure that this device is eliminated, it will be a chance to destroy the human environment and a health human, that you have to be killed if it is eliminated in format.

The non-product symbol can not be treated as normal household waste. I should be taken to a collection point for a recycling of electrical and electronic devices.

This appliance requires a week of specialized treatment. For more information about treatment, recovery and recycling of this product, please contact your county, waste disposal service or a shop where the buyer.

For more information about handling, returning and leaving this product, contact your local office, waste disposal service or a store where you purchased the product.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc.
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.

2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below:

Product ELECTRIC OVEN

Brand JOCEL

Model JFE60-014962

Complies with the following European directive and standards implementation

Low Voltage

2014/35/EU

EN 60335-1: 2012 + A11: 2014 + A13:

2017 + A13: 2017

EN 60335-2-9: 2003 + A1: 2004 + A2:

2006 + A12: 2007 + A13: 2010 + AC:

2011 + AC: 2012

EN 62233: 2008

Electromagnetic Compatibility

2014/30/EU

EN 55014-1: 2006+ A1: 2009+A2: 2011

EN 61000-3-2: 2014

EN 61000-3-3:2013

EN 55014-2: 2015
