USER MANUAL JFE45-014948 Jocel

Black JOCEL portable oven with open lid and control knobs (no visible text or symbols on main subject)

JFE45-014948

Please read carefully this Instruction Manual

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

When using your Toaster Oven, basic safety precautions should always be observed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Always use handles or knobs.
3. Close supervision is necessary when any appliance is used by or near children.
4. To protect against electric shock, do not immerse cord, plug or any parts of the oven in water or any other liquids.
5. Do not let cord hang over edge of table or counter, or touch hot surfaces.
6. Do not operate appliance with damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause hazard or injury.
8. Do not place on or near a hot gas or electric burner.
9. When operating the oven, keep at least four inches of free space on all sides of the oven to allow for adequate air circulation.
10. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning.
11. To disconnect, turn the time control to "O", then remove the plug. Always hold the plug, and never pull the cord.
12. Extreme caution must be used when moving the pan containing hot oil or other hot liquids.
13. Do not cover any part of the oven with metal foil. This may cause the oven to overheat.
14. Use extreme caution when removing the tray, racks or disposing of hot grease or other hot liquids.
15. Do not clean the inside of the oven with metal scouring pads, pieces can break off the pad and touch electrical parts, creating a risk of electric shock.

16. Oversized foods or metal utensils must not be inserted in the cavity as they may create a fire or risk of electric shock.

17. A fire may occur if the oven is covered or touching flammable materials, including the curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.

18. Extreme cautions should be exercised when using cooking or baking containers constructed of anything other than metal or ovenproof glass.
19. Be sure that nothing touches the top or bottom elements of the oven.
20. Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar.
21. Do not store any materials other than manufacturer's recommended accessories in this oven when not in use.
22. Always wear protective, insulated oven gloves when inserting or removing items from the hot oven.
23. This appliance has a tempered, safety glass door. The glass is stronger than ordinary glass and more resistant to breakage. Tempered glass can still break around edges. Avoid scratching door surface or nicking edges.
24. This appliance is OFF when the Timer Control is in the "O" position.
25. Do not use outdoors.
26. Do not use appliance for other than intended use

SAVE THESE INSTRUCTIONS FOR HOME USE ONLY

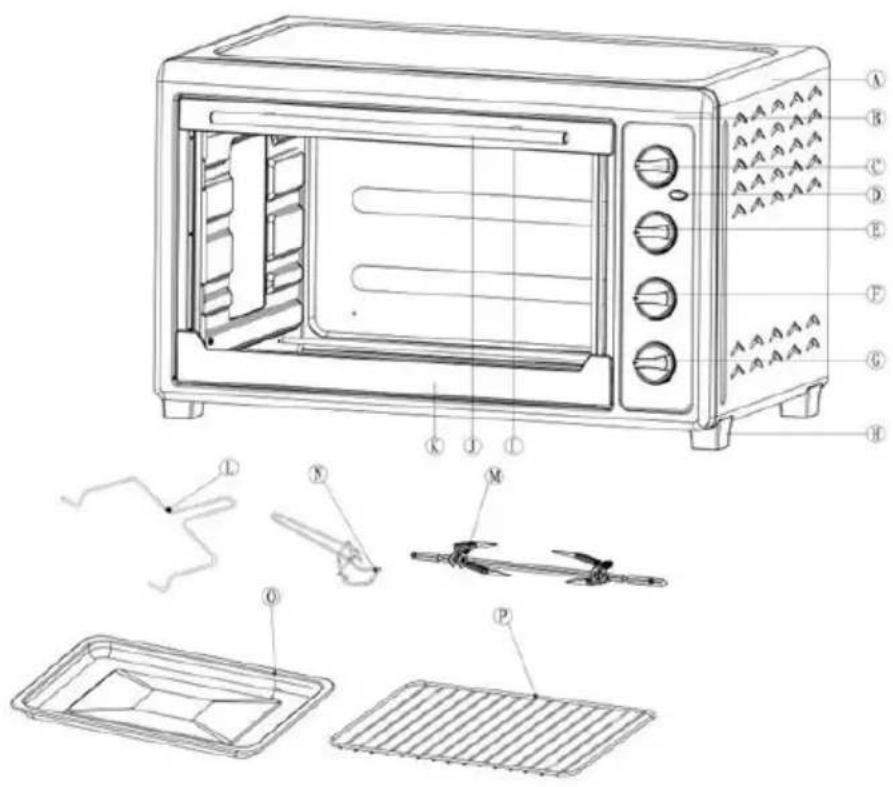

MAIN COMPONENTEN:

A. Housing
B. Front panel
C. Function control knob
D. Indicator light
E. Temperature control knob
F. Power
G. Timer
H. Oven foot

I. Upper door frame
J. Handle
K. Lower door frame
L. Rotisserie handle
M. Rotisserie
N. Tray handle
O. Bake tray
P. Wire Rack

Before using your toaster oven for the first time, be sure to:

1. Read all of the instruction included in this manual.
2. Make sure that the oven is unplugged and the Timer Knob is in the "O" position.
3. Wash all the accessories in hot, soapy water or in the dishwasher.

4. Thoroughly dry all accessories and re-assemble in oven, plug oven into outlet and you are ready to use your new oven.

5. After re-assembling your oven, we recommend that you run it at the highest temperature (230°C) on the Toast Function (☐) for approximately 15 minutes to eliminate any packing residue that may remain after shipping. This will also remove all traces of odor initially present.

Initial start-up operation may result in minimal smell and smoke. This is normal and harmless. It is due to burning of the protective substance applied to the heating elements in the factory.

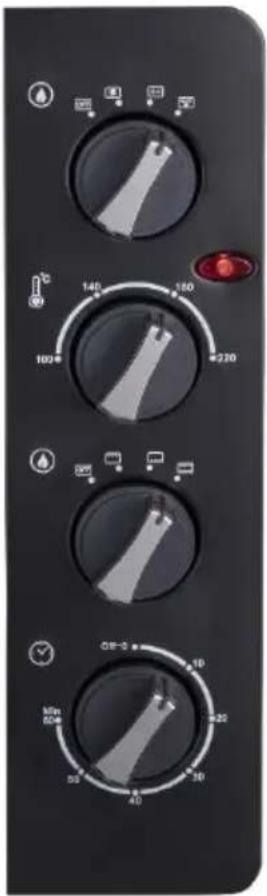

Please familiarize yourself with the following oven functions and accessories prior to first use:

• Temperature Control:

Choose the desired temperature from 100^ C to 230^ C for cooking.

• Function Control & Power:

Select the desire function and power for the cooking.

There are 3 rack positions inside the oven for a variety of cooking needs

Broil ( ):

The upper heating elements work, suitable for broiling fish, steak, poultry, pork chops, etc.

Bake ( ):

The lower heating elements work, suitable for baking cakes, pies, cookies etc food that don't need browning or crispy surface.

Toast ( ):

Both upper and lower heating elements work together, suitable for toasting bread, muffins, frozen waffles, pizza, etc.

Convection ( )\*

Both the rotisserie and convection function works together;

- Timer Control:

You could choose up to 60 minutes according to your cooking need. There is a bell ring at the end of the programmed time.

- Power "ON" indicator light:

It's illuminated whenever the oven is turned on.

- Bake Tray:

For use in broiling and roasting meat, poultry, fish and various other foods. Also to be used as a drip pan to catch the oil drippings.

- Tray Handle:

Allows you to pick up the wire rack, and bake tray when they are hot.

WARNING: TO AVOID RISK OF INJURY OR BURNS, DO NOT TOUCH HOT SURFACES WHEN OVEN IS IN USE.ALWAYS USE OVEN MITTS.

HOW TO USE CONVECTION

Convection cooking combines hot air movement by means of a fan with the regular features (broil, bake and toast). Convection cooking provides faster cooking in many cases than regular radiant types toaster oven. The fan gently sends air to every area of the food, quickly browning, crisping and sealing in moisture and flavor. It produces more even temperature all around the food by air movement, so that food cooks/bakes/broils evenly versus the normal ovens hot and cold spots. The convection feature allows cooking/baking at lower temperatures, which saves energy and helps keep the kitchen cooler. Convection air is superheated and it circulates around the food so it cooks food significantly faster than conventional ovens.

The convection fan works automatically when the function control knob is turned on

*position;

HOW TO USE ROTISSERIE

We recommend you do not cook a roast larger than 1,8-2,2 Kg. on the rotisserie skewer. Chicken should be bound in a string to prevent the chicken legs or wings from unraveling during roasting and so that rotisserie assemble will rotate smoothly. For best results we recommend you preheat the oven for 15 minutes on 250°C.

Operation

1. Set the temperature control to desired heat.

2. Insert the meat or poultry that you are going to cook onto the rotisserie skewer. Making sure that the meat or poultry is secured tightly with the skewer clamps and thumbscrews. Make sure that the meat or poultry is centered onto the skewer.

3. Insert the pointed end of the rotisserie skewer into the drive socket, located on the right hand side of the oven wall. Make sure that the square end of the rotisserie skewer rests on the rotisserie skewer support located on the left hand side of the oven wall.

4. Slide the bake tray onto the lowest position to catch the food drippings.
5. Turn the heater function control to your desired function, and set the control knob to position;
6. Turn the time control to your desired cooking time.
7. When the cooking is completed, the oven bell will ring; turn the function control to "O".
8. Remove the rotisserie skewer from the oven by placing the hooks of the rotisserie handle under the grooves on either side of the rotisserie skewer; lift the left side of the rotisserie skewer first by lifting it up and out. Then pull the rotisserie skewer out of the drive socket and carefully remove the roast from the oven.
9. Take the meat or poultry off the rotisserie skewer and place on a cutting board or platter.

HOW TO BROIL

For best results, it is recommended that you preheat the oven for 15 minutes on 230^ C.

Operation

1. Place food on the wire rack and slide into the top rack position. Food should be placed as close as possible to the top heating element without touching it.
2. Put bake tray at the lowest rack position to catch possible dripping.
3. To prevent fire hazards, it is suggested to wrap food with aluminum foil
4. Set temperature knob to appropriate temperature.
5. Brush food with sauces or oil, as desired.
6. Set function knob to Broil Function. (☐)
7. Turn timer knob to your desired cooking time.
8. Turn food over midway through the prescribed cooking time.
9. When broiling is completed, turn the function knob to "O" position.

HOW TO BAKE

Please note that the BAKE function uses only the bottom heating elements. For best results, it is recommended that you preheat the oven for 15 minutes on 230^ C.

Operation

1. Place food on the wire rack or bake tray and slide into the lowest rack position.
   Food should be placed as close as possible to the lower heating element without touching it.
2. To prevent fire hazards, it is suggested to wrap food with aluminum foil
3. Set temperature knob to appropriate temperature.
4. Brush food with sauces or oil, as desired.
5. Set function knob to Bake Function (
6. Turn time knob to your desired cooking time.
7. Turn food over midway through the prescribed cooking time.
8. When BAKE is complete, turn the function knob to "O" position.

Positioning of the Wire Racks

Cookies – Use bottom and middle Support Guides.

Layer Cakes – Use bottom Support Guide only (bake one at a time).

Pies – Use bottom and middle Support Guides.

HOW TO TOAST

Please note that the TOAST function uses all the heating elements. Large capacity oven allows for toasting 4 to 6 slices of bread, 6 muffins, frozen waffles or frozen pancakes. When toasting only 1 or 2 items, place food on the bake rack in the center of the oven.

Operation

1. Place food on the wire rack and slide into the middle rack position.
2. Set temperature knob to appropriate temperature.
3. Set function knob to Toast Function. ()
4. Make sure the crumb tray is placed at the bottom of inside oven.
5. Turn time knob to your desired cooking time.
6. When toast is completed, bell will ring to signal the end of the toast cycle.
7. Turn the function knob to "O" position.

Note: Wire Rack should be placed in the middle of the oven with the indentations pointing down.

CARE & CLEANE

Be sure to unplug the oven and allow it to cool before cleaning.

• To clean, wipe the walls with a damp sponge, cloth or nylon scouring pad and mild detergent. DO NOT USE STEEL WOOL SCOURING PADS, ABRASIVE CLEANERS OR SCRAPE THE WALLS WITH A METAL UTENSIL, AS ALL OF THESE METHODS MAY DAMAGE THE CONTINUOUS CLEAN COATING.
• All accessories should be washed in hot soapy water or can be cleaned in a dishwasher. The door can be wiped with a damp sponge and wiped dry with a paper or cloth towel. Clean the outside with a damp sponge. DO NOT USE AN ABRASIVE CLEANER AS IT MAY DAMAGE THE EXTERIOR FINISH.
  • DO NOT USE AN ABRASIVE CLEANER OR STEEL WOOL SCOURING PAD ON THE DRIP PAN AS IT MAY DAMAGE THE PORCELAIN ENAMEL FINISH.
• LET ALL PARTS AND SURFACES DRY THOROUGHLY PRIOR TO PLUGGING OVEN IN AND USING.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

We declare on our responsibility that the machine indicated below

Product ELECTRICAL OVEN

Brand JOCEL

Model JFE45-014948

Complies with the following European directives and standards implementation

Low Voltage 2006/95/CE EN 60335-1: 2012;

EN 60335-2-9:2003+A1:2004+A2:2006+

A12:2007+A13:2010

EN 62233:2008

Electromagnetic Compatibility 2004/108/CE

EN 61000-3-2:2006+A1:2009+A2:2009

EN 55014-1:2006+A1:2009+A2:2011

EN 61000-3-3:2008

EN55014-2:1997+A1:2001+A2:2008

Country of Origin : R.P.C.
