| Product Type | Condenser Microphone |
| Brand | Schoeps |
| Model | CCM 21 |
| Category | Microphone |
| Transducer | Condenser |

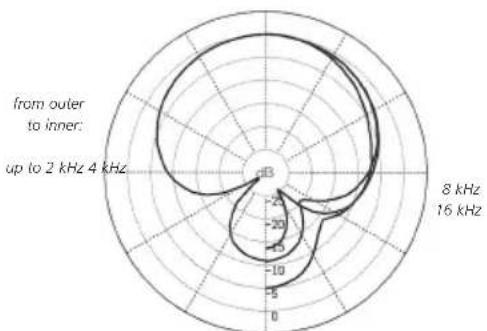

| Polar Pattern | Cardioid |
| Frequency Range | 20 Hz - 20 kHz |
| Sensitivity | 13 mV/Pa ± 1 dB |
| Equivalent Noise Level | 15 dB-A |
| Max SPL | 132 dB (0.5% THD) |
| Impedance | 25 ohms |

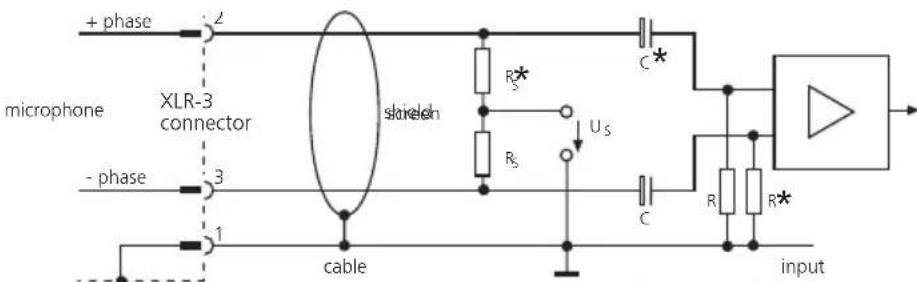

| Power Supply | 48 V Phantom Power (P48) |
| Current Consumption | 4 mA |
| Connector | 3-pin XLR |
| Dimensions | 104 mm x 20 mm (length x diameter) |
| Weight | 65 g |
| Finish | Matte nickel |
| Included Accessories | Pouch, windscreen, stand adapter |
| Maintenance | Clean with a dry, soft cloth; use a brush for capsule |
| Safety | Do not expose to moisture or extreme temperatures |
| Spare Parts & Reparability | Replacement capsules and electronic modules available |
| General Information | Compact microphone for professional recording and broadcast |
Frequently Asked Questions - CCM 21 Schoeps
What phantom power does the CCM 21 require?
The Schoeps CCM 21 requires 48 V phantom power (P48) as per the standard for condenser microphones.
What is the polar pattern of the CCM 21?
The CCM 21 features a cardioid polar pattern, which picks up sound primarily from the front and rejects sound from the rear.
Can the CCM 21 be used for vocals?
Yes, the CCM 21 is suitable for vocals, especially in studio or live applications where a neutral and detailed sound is desired.
How do I clean the CCM 21 microphone?
Wipe the body with a dry, soft cloth. For the capsule, use a soft brush to remove dust. Avoid moisture and strong solvents.

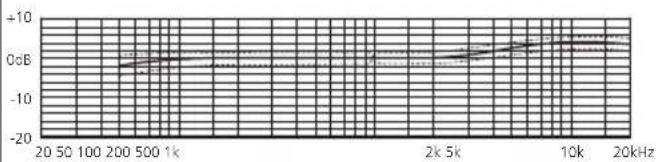

What is the frequency response of the CCM 21?
The CCM 21 has a frequency response of 20 Hz to 20 kHz with a slight presence rise, typical for Schoeps cardioid models.
Is the CCM 21 compatible with wireless systems?
The microphone has a standard 3-pin XLR output. It can be connected to wireless transmitters that provide 48 V phantom power and accept XLR input.
What is the maximum SPL the CCM 21 can handle?
The CCM 21 can handle a maximum SPL of 132 dB at 0.5% THD, making it suitable for loud sound sources.
Does the CCM 21 come with a mount or clip?
Yes, it typically includes a stand adapter and a pouch. A shock mount may be sold separately.
How long is the cable on the CCM 21?
The CCM 21 is a coaxial connector microphone and does not have an attached cable. It connects directly to an XLR cable or a preamplifier.
Can I use the CCM 21 outdoors?
Yes, but it is recommended to use a windscreen to protect the capsule from wind noise and moisture. The CCM 21 is not designed for harsh weather without protection.
