Product Type	Cordless Line Trimmer
Brand	AEG
Model	ALT58BT
Rated Voltage	58 V
High Speed (No Load)	6700 r/min (380 mm cut swath), 6400 r/min (430 mm cut swath)
Low Speed (No Load)	5200 r/min (380 mm cut swath), 4800 r/min (430 mm cut swath)

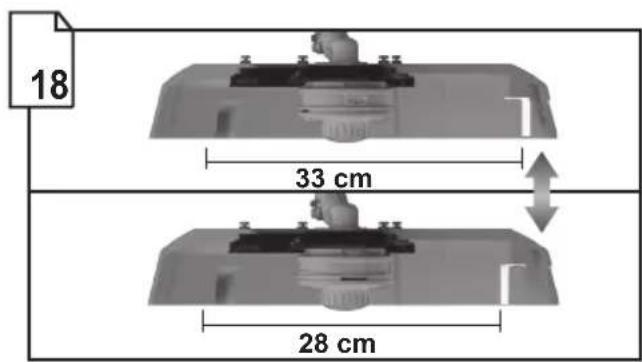

Cutting Swath	380 mm / 430 mm
Cutting Line Diameter	2.4 mm
Weight (without battery pack, with harness)	4.8 kg
Noise Level (Sound Pressure at Operator)	90.3 dB(A) (K=2.5 dB)
Noise Level (Sound Power)	104.6 dB(A) (K=2.5 dB)
Vibration Level (Front Handle)	3.0 m/s² (K=1.5 m/s²)
Vibration Level (Rear Handle)	2.5 m/s² (K=1.5 m/s²)
Battery Model (Included)	ALT58TLI401 (battery pack not included)
Compatible Battery Packs	ABP58LI-201, ABP58LI-401
Compatible Charger	ABC58S
Replacement Line Part Number	528721000 (2.4 mm twist line)
Protection Features	Two-handed operation, guards, line cut-off blade, double insulation (Class II)
Maintenance	Clean with soft dry cloth; use only specified nylon line; check bolts regularly
Intended Use	Outdoor cutting of long grass/weeds at ground level; not for hedges

Frequently Asked Questions - ALT58BT AEG

What battery packs are compatible with the AEG ALT58BT?

The ALT58BT is compatible with AEG 58V battery packs: ABP58LI-201 (2.0Ah) and ABP58LI-401 (4.0Ah). The battery and charger are sold separately.

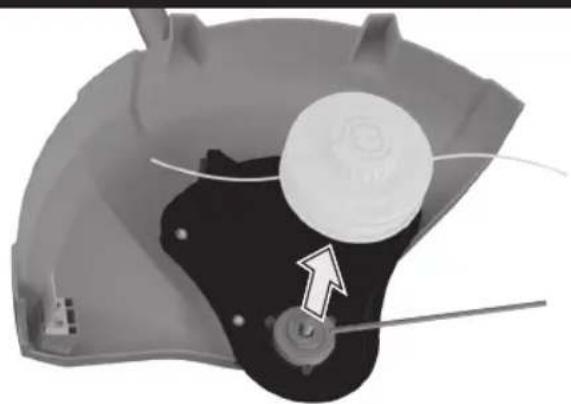

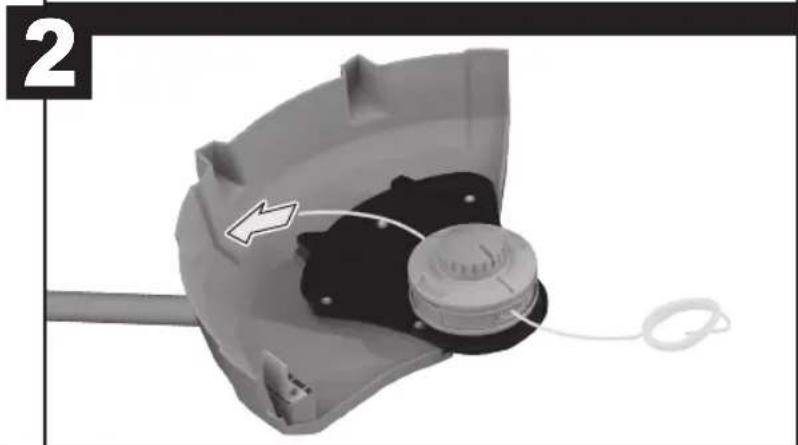

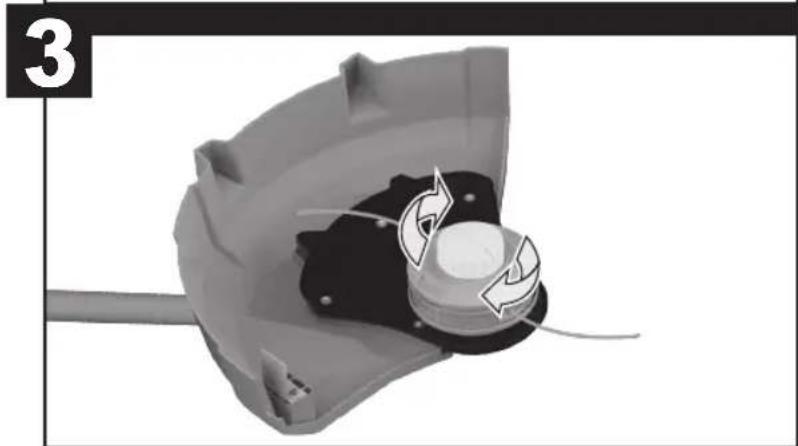

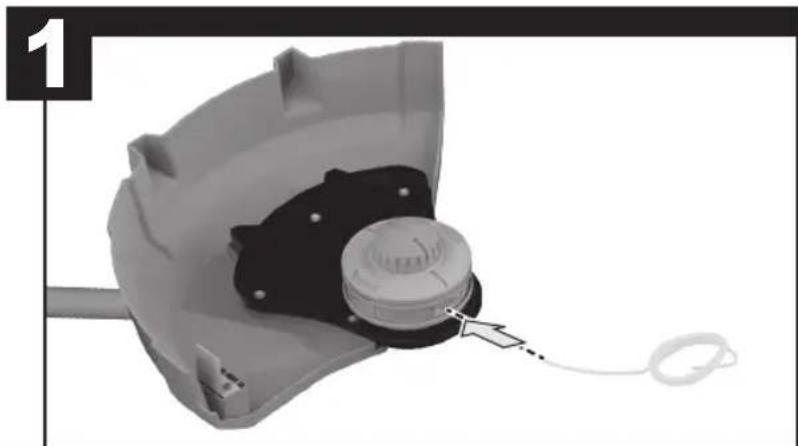

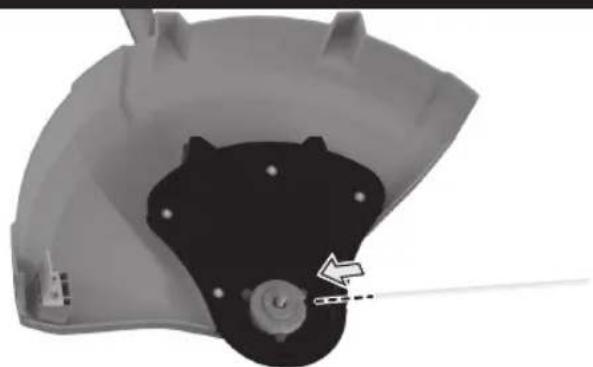

How do I replace the cutting line on the ALT58BT?

First, remove the battery pack. Use only 2.4 mm diameter nylon filament line (part number 528721000). Follow the manual instructions to wind the line onto the spool, then feed through the eyelets. The integrated cut-off blade on the guard automatically trims the line to the correct length.

What is the cutting swath of the ALT58BT?

The ALT58BT offers two cutting swaths: 380 mm at high speed and 430 mm at low speed. This allows you to balance power and coverage depending on grass condition.

Can I use metal blades on this trimmer?

No. The ALT58BT is designed exclusively for nylon filament line. Using metal blades is dangerous and can damage the product; the manual explicitly warns against it.

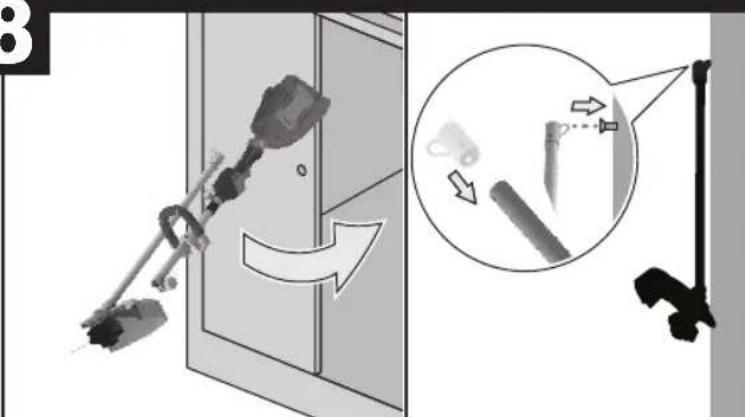

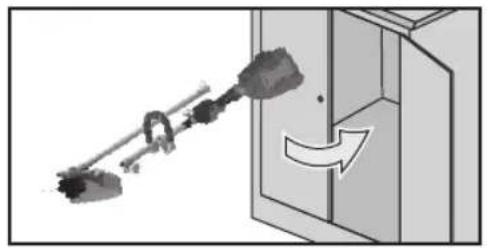

How do I store the trimmer when not in use?

Remove the battery pack, clean the product, and allow it to cool. Store in a cool, dry, well-ventilated place inaccessible to children. Keep away from corrosive agents like garden chemicals. Do not store outdoors.

Is the ALT58BT suitable for wet grass?

The manual advises avoiding use on wet grass for safety reasons. Wet grass can reduce traction and increase the risk of slipping. Always operate in dry conditions.

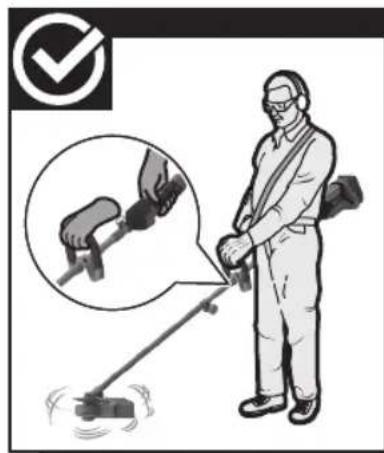

What safety gear should I wear when using this trimmer?

Always wear eye and hearing protection. Additionally, wear heavy long trousers, boots, gloves, and secure long hair above shoulder level. Use head protection if there is risk of falling objects.

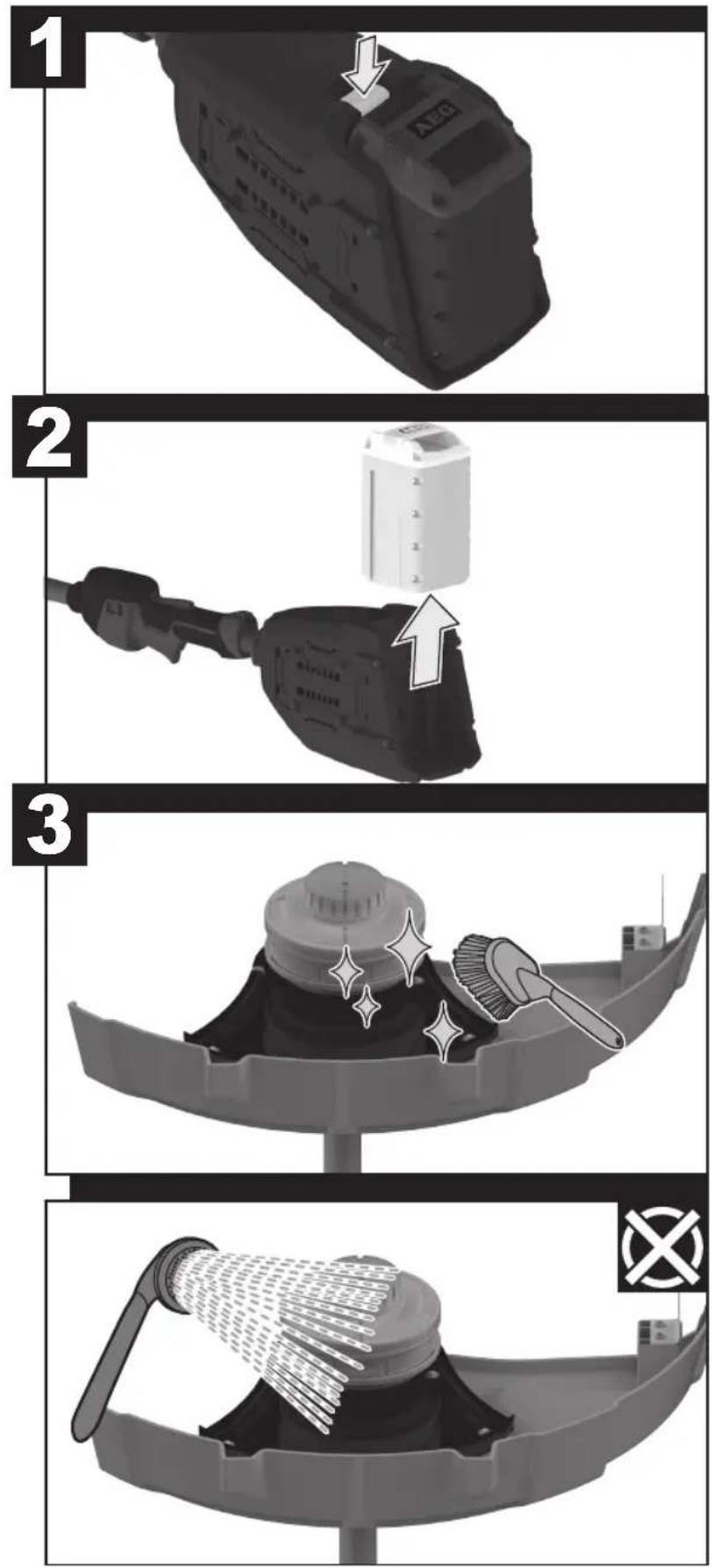

How do I clean the ALT58BT after use?

Use a soft, dry cloth to clean the product. Do not use water or solvents. Ensure ventilation openings are free of debris. The cut-off blade on the guard is very sharp; avoid touching it during cleaning.

What is the noise level of this trimmer?

The A-weighted sound pressure level at the operator position is 90.3 dB(A) with uncertainty 2.5 dB. The sound power level is 104.6 dB(A). Hearing protection is recommended.

How can I reduce vibration when using the trimmer?

Keep your body warm, wear gloves, take frequent breaks, and limit daily exposure. Ensure the product is well-maintained, as dull line or loose parts increase vibration. Exercise hands after operation.

USER MANUAL ALT58BT AEG

Original instructions

Important!

It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product.

Subject to technical modifications.

ALT58TLI401

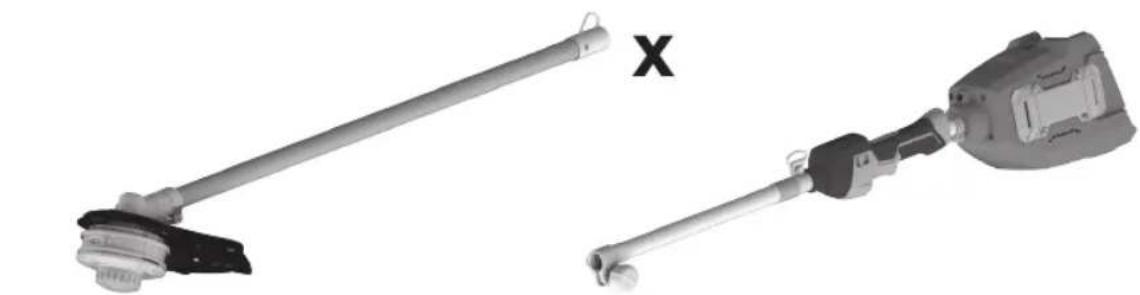

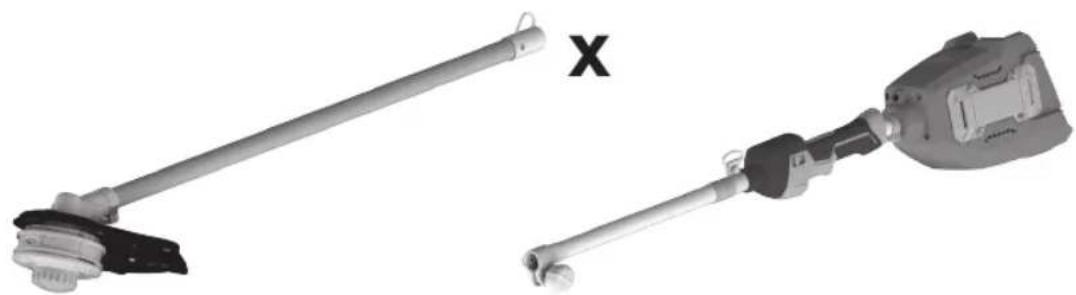

Two mechanical components with no visible text or symbols

x 1 1

x 1

x 1

Close-up of a black and gray mechanical clamp or bracket (no text or symbols visible)

x 1

Simple 3D-rendered white tool with a rectangular head and long shaft (no text or symbols)

x 1

Line drawing of a mechanical device with attached spring and chain (no text or symbols)

x 1

Exterior view of a gray portable electronic device with a cable and power plug (no text or symbols visible)

x 1

3D rendered mechanical component with no visible text or symbols

x 1

ALT58BT

Two mechanical components with no visible text or symbols

x 1 1

Close-up of a U-shaped metal clamp or bracket component (no text or symbols visible)

x 1x 1 x 1

Simple 3D-rendered white object resembling a tool or meter, no text or symbols visible

x 1

Line drawing of a mechanical tool or device with curved and looped ends (no text or symbols)

x 1

Exterior view of a gray rectangular device with ventilation slots and a cable (no text or symbols visible)

Exterior view of a mechanical component labeled AEG (no other text or symbols visible)

4

Illustration of a sprinkler spraying water over grass, with no text or symbols present.

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

1

Mechanical assembly diagram showing a lever mechanism with a handle and curved arm (no text or symbols)

2

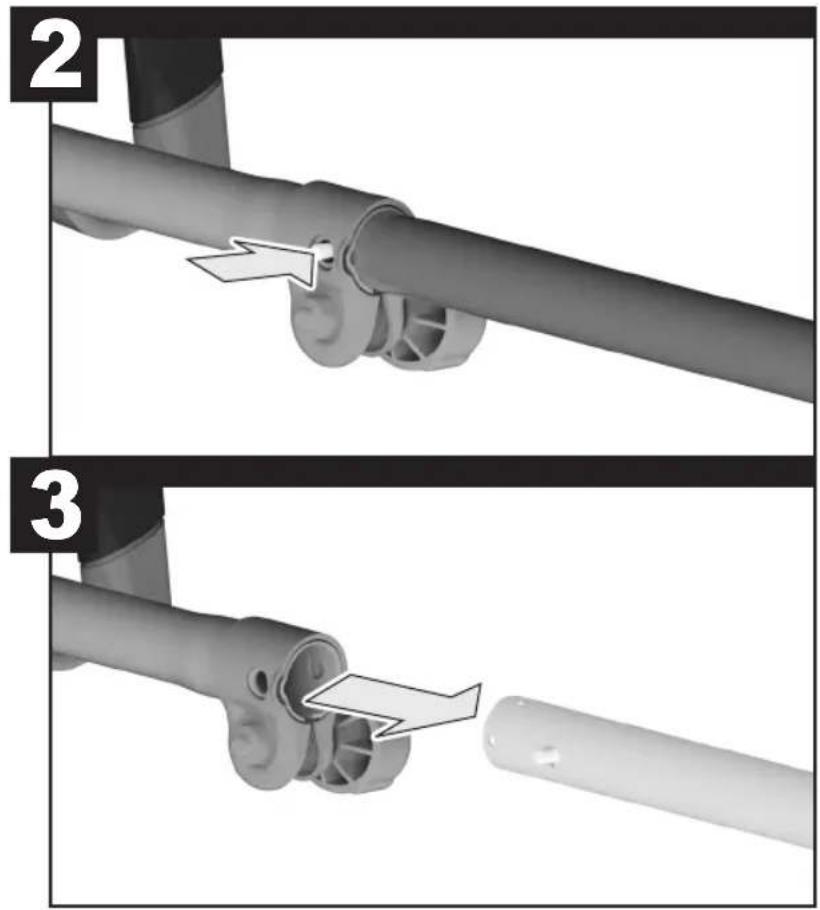

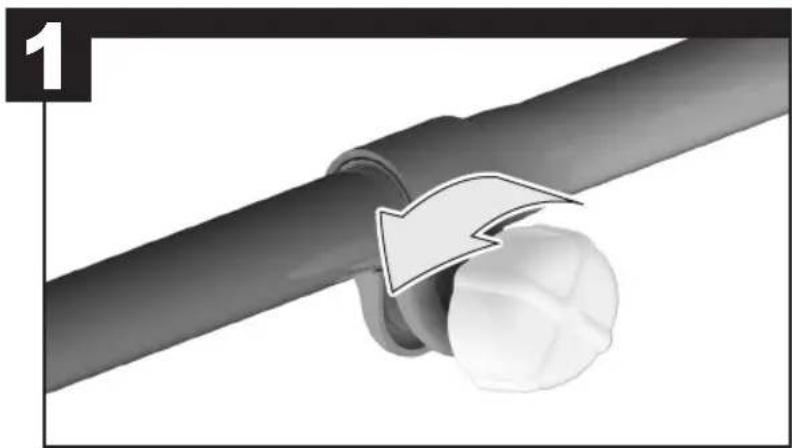

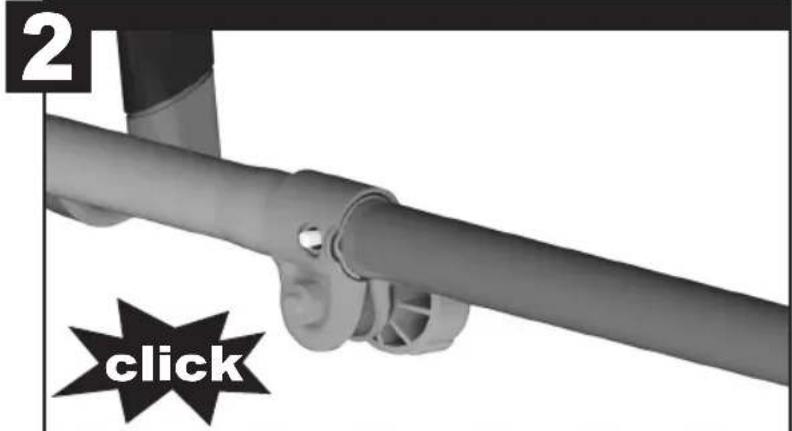

Mechanical assembly diagram showing a pipe with clamping elements and directional arrows (no text or symbols)

3

Mechanical assembly diagram showing a pipe clamp and valve mechanism (no text or symbols)

1

Mechanical assembly diagram showing a pipe fitting with a curved pipe and valve mechanism (no text or symbols)

2

Mechanical assembly diagram showing a pipe joint with clamping elements and directional arrows indicating motion (no text or symbols)

3

Mechanical assembly diagram showing a pipe with a handle and valve, no text or symbols present

Close-up of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols)

Close-up of a mechanical component with a white cylindrical shaft and a metallic bracket, showing a directional arrow (no text or symbols)

Close-up of a black pipe fitting with a white plastic cap, no text or symbols visible

Close-up of a black pipe fitting with a white circular component, no text or symbols visible

Mechanical component with a lever and a labeled part (no readable text or symbols)

Mechanical component with attached spring and chain, no visible text or symbols

Mechanical component diagram showing a motor assembly with a cable and pin (no text or symbols)

Mechanical component diagram showing a motor assembly with a paperclip and cable (no text or symbols)

Mechanical component diagram showing a piston-like assembly with rotating arrows indicating motion (no text or symbols)

Close-up of a black electrical plug with a small component inserted, showing a white arrow pointing to the plug's tip (no text or symbols visible)

Close-up of a black electrical plug connected to a white cylindrical component with an arrow pointing to the plug (no text or symbols visible)

3D rendered mechanical part with a double-headed arrow indicating a dimension or force (no text or symbols)

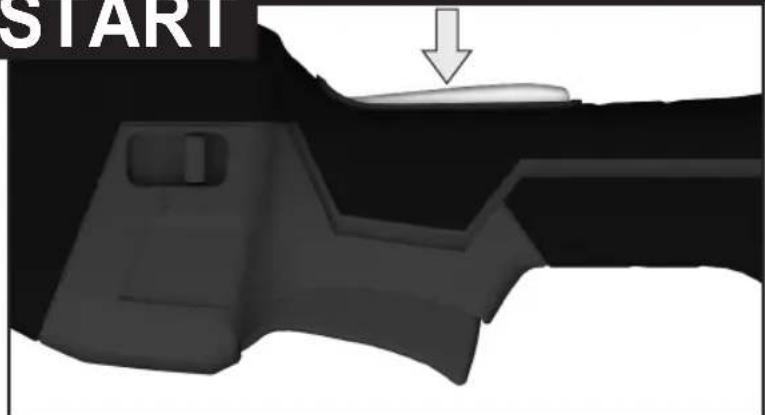

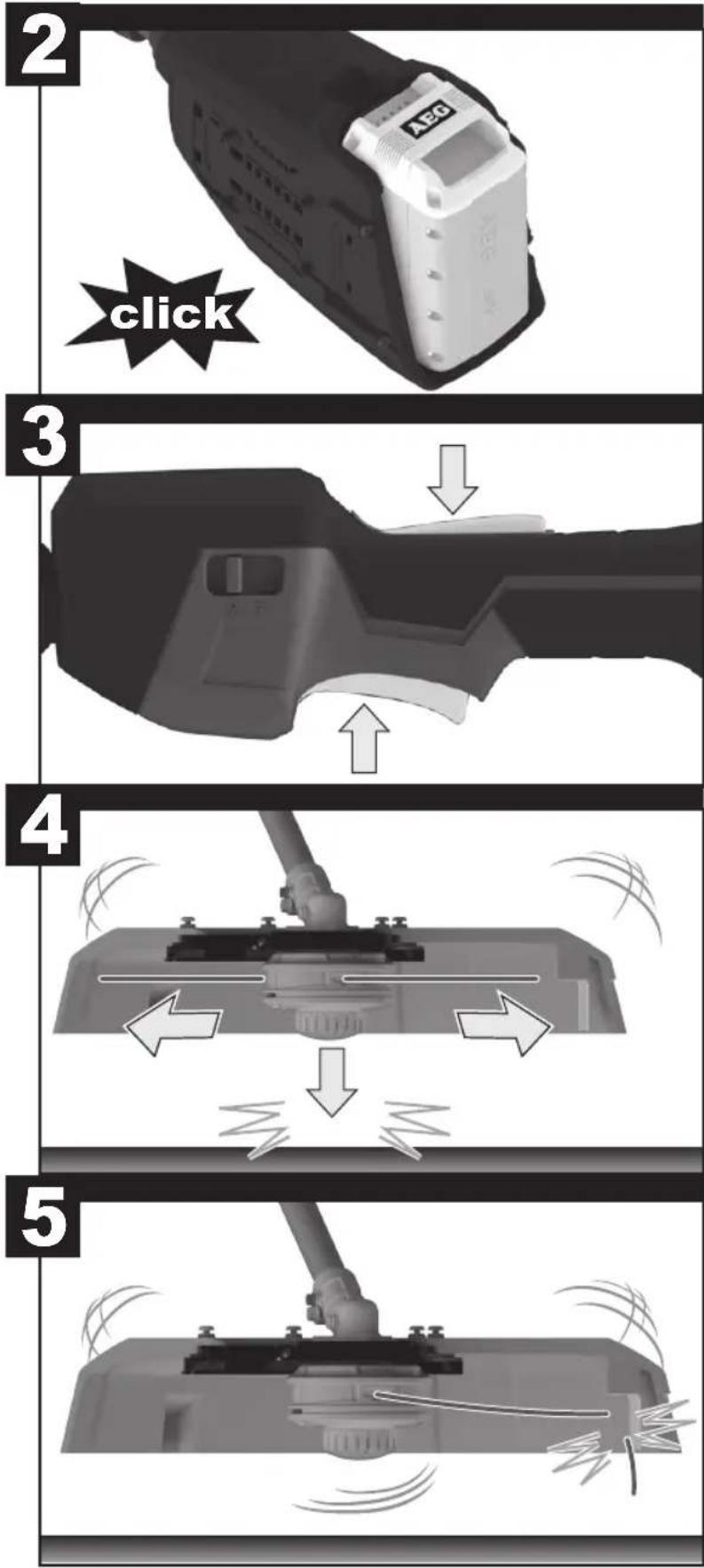

START

3D rendered mechanical component with a white arrow pointing to a curved surface (no text or symbols)

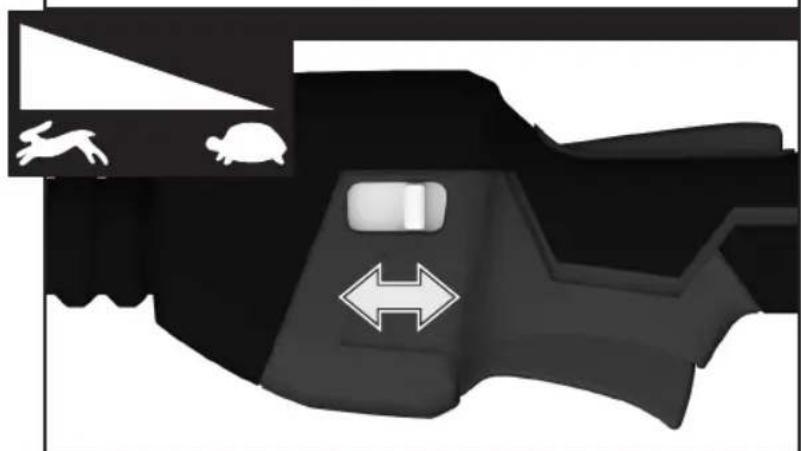

Diagram showing a vehicle interior with a rabbit and a turtle, and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical component with circular arrows indicating rotation or cycle (no text or symbols)

5

Mechanical component diagram showing a piston and wheel assembly (no text or symbols)

1

3D mechanical assembly diagram showing a component with a central hub and mounting base (no text or symbols visible)

2

3D rendering of a mechanical component with a black housing and a circular component, showing no text or symbols.

3

3D rendering of a mechanical component with a highlighted circular feature and directional arrow (no text or symbols)

4

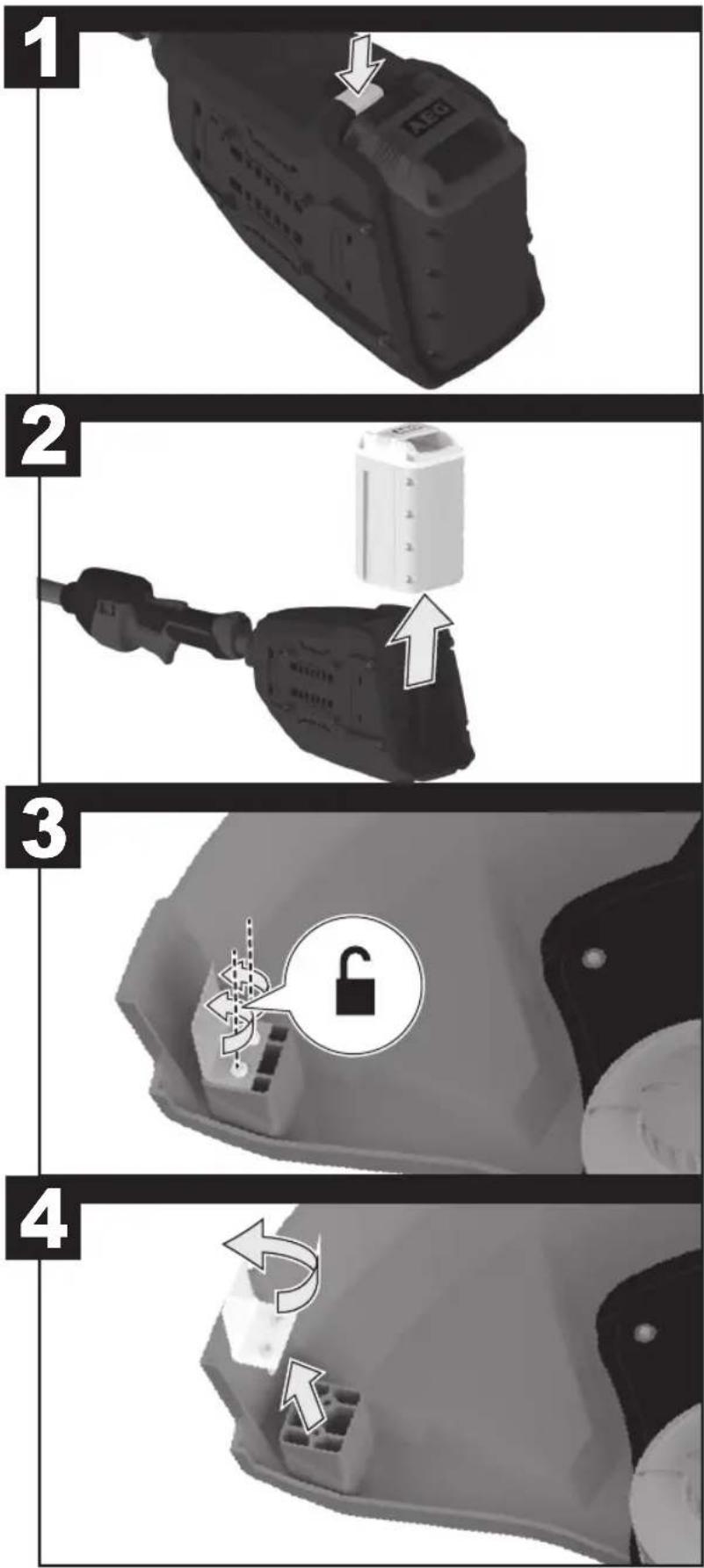

Diagram showing a lock mechanism inside a container with rotating arrows indicating cycle (no text or symbols)

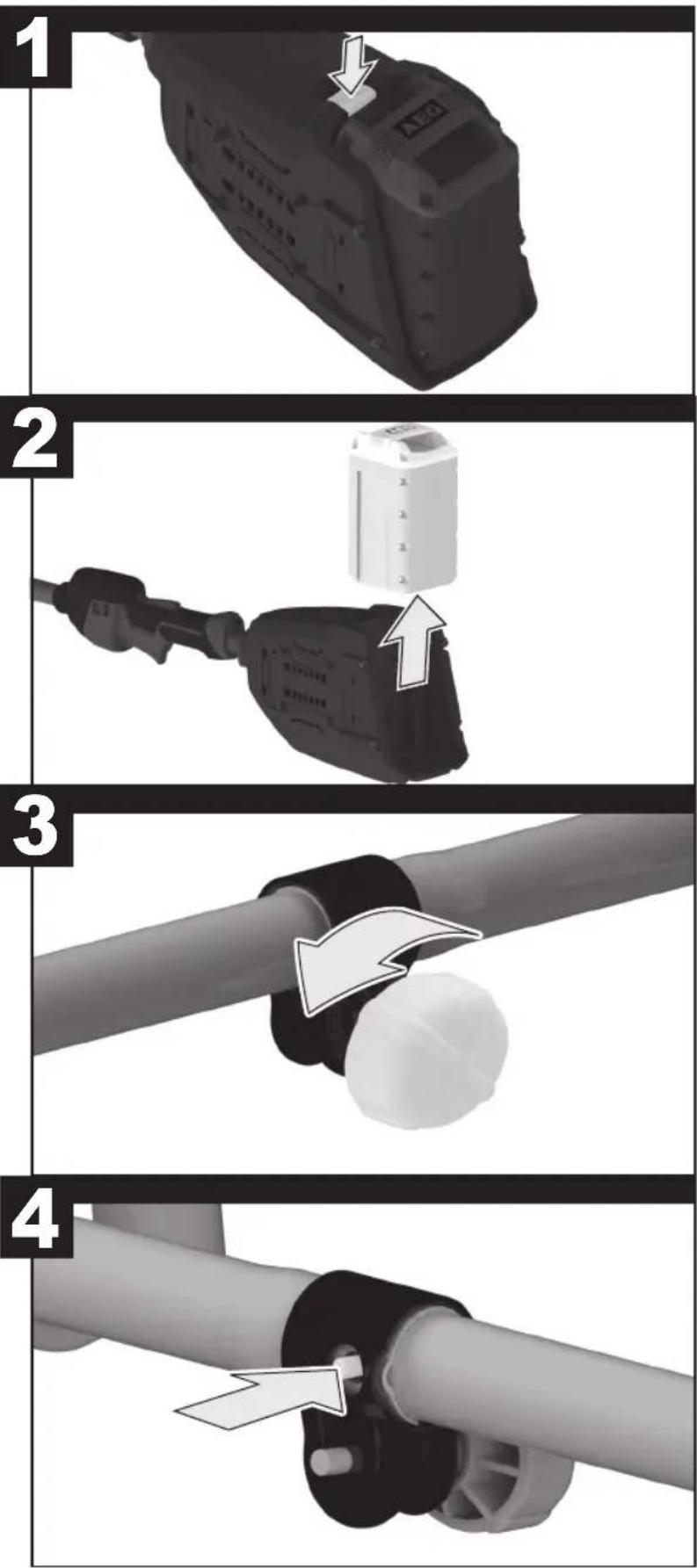

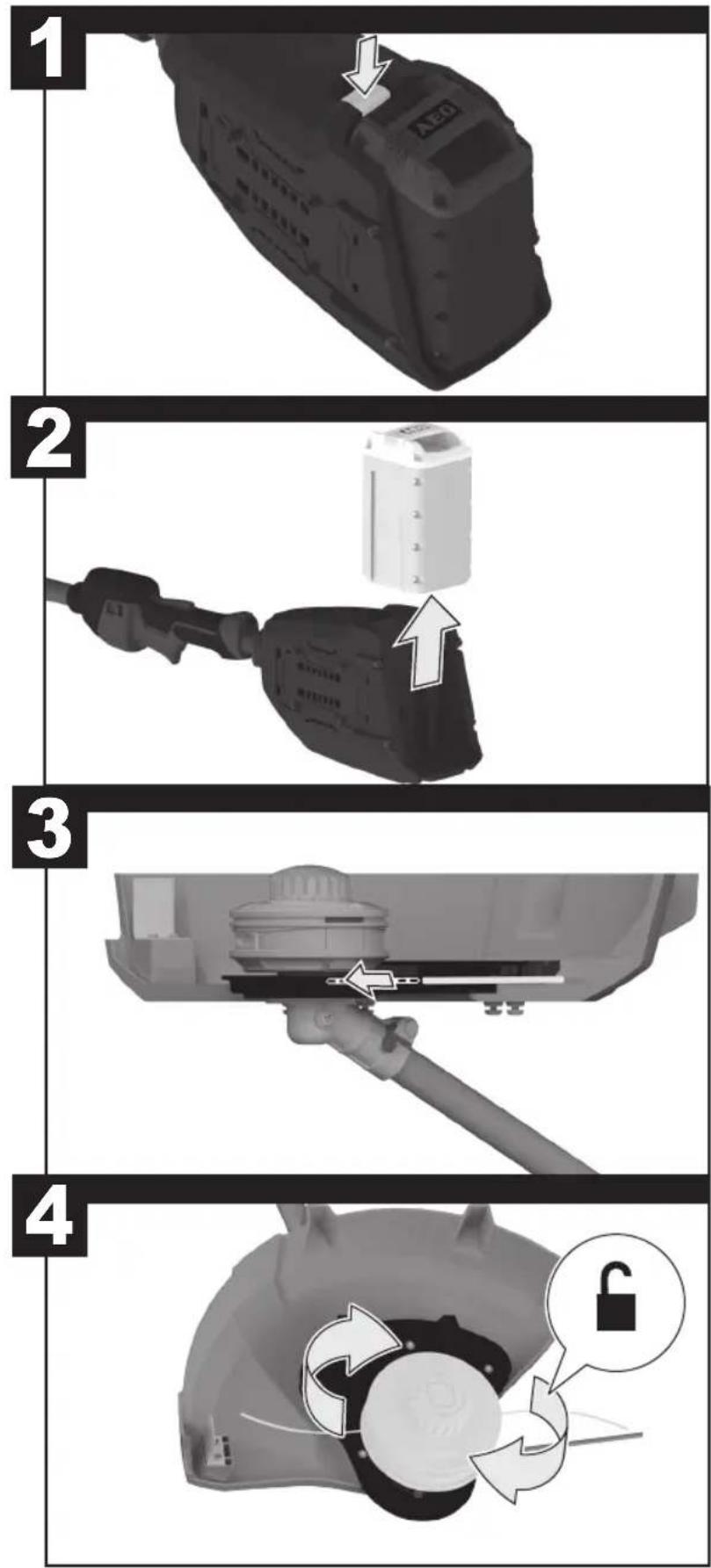

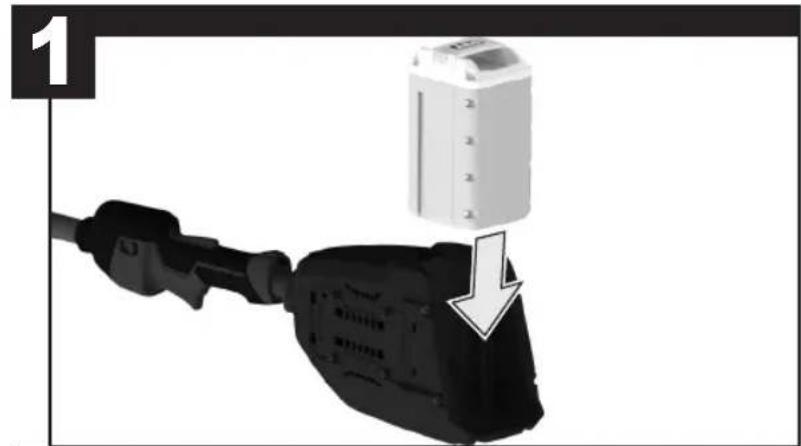

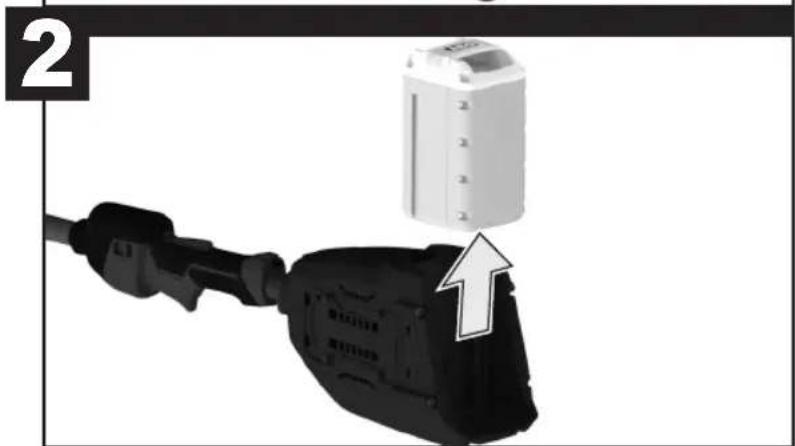

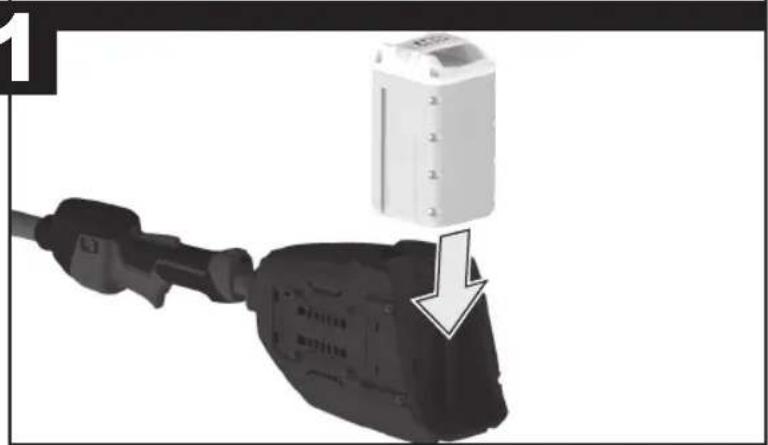

    A["1: Display component"] --> B["2: Plug-in battery"]
    B --> C["3: Lock lock with reset mechanism"]
    C --> D["4: Close-up of battery with lock and reset"]

5

Close-up of a mechanical component with a highlighted section showing internal components and arrows indicating motion (no text or symbols)

6

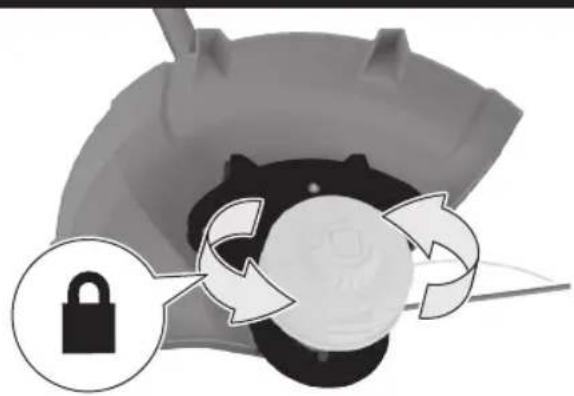

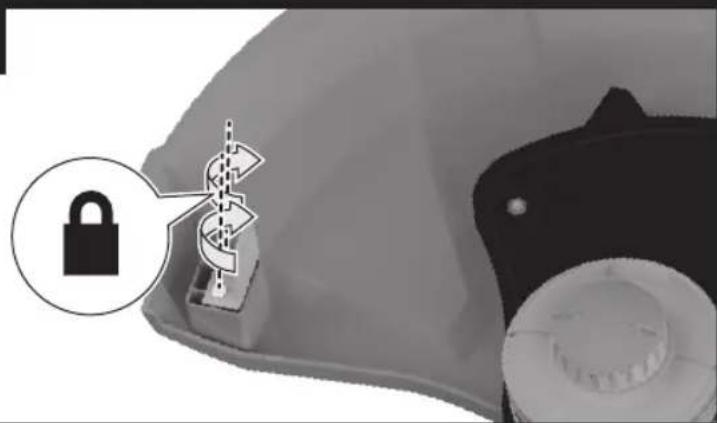

Close-up of a mechanical component with a lock icon and directional arrows, no visible text or symbols

Illustration of a hand using a tool to brush or brush over grass (no text or symbols)

Illustration of a person using a handheld device with a magnified inset showing the tool (no text or symbols present)

Illustration of a hand holding a fuel injector with a stopper, no text or symbols present

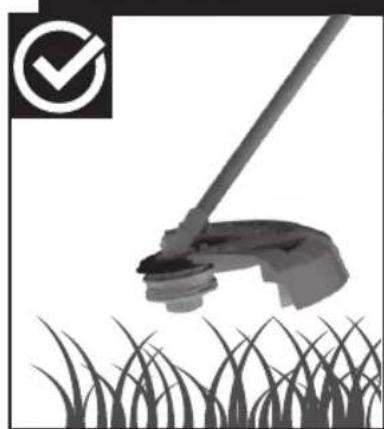

Illustration of a hand holding a tool over grass, with a checkmark symbol in the corner (no text or symbols on the diagram itself)

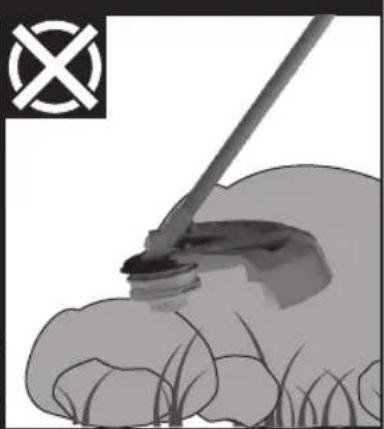

Illustration of a hand holding a tool over grass, with a crossed-out symbol in the corner (no text or symbols on the diagram itself)

Illustration of a hand cleaning a mop with motion lines indicating movement (no text or symbols)

Close-up of a black electrical plug with a white cylindrical component inserted, showing a downward arrow indicating a drop (no text or symbols present)

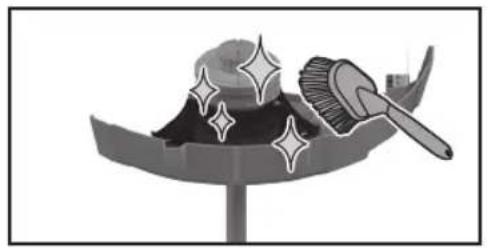

Illustration of a decorative hat with sparkles and a brush, no text or symbols present

Diagram of a mechanical device with a lever and directional arrow, no text or symbols present

5

Close-up of a hand holding a white cylindrical object with a black plastic clip attached, showing a directional arrow (no text or symbols visible)

6

Illustration of a gray cylindrical object being inserted into a white cylindrical device with a light bulb (no text or symbols)

7

3D rendered image of a gray cylindrical object with a handle and circular hole, labeled 'click' in a black starburst (no other text or symbols)

8

TECHNICAL DATA
CORDLESS LINE TRIMMER

Rated voltage		58 V
High speed 6700 r/min - Cut swath 380 mm
	6400 r/min - Cut swath 430 mm
Low speed 5200 r/min - Cut swath 380 mm
	4800 r/min - Cut swath 430 mm
Cutting line diameter 2.4 mm
Cutting swath 380/430 mm
Weight without battery pack (with harness)		4.8 kg
Noise emission level (in accordance with EN 50636-2-91 Annex CC)
A-weighted sound pressure level at the operator position LpA 90.3 dB (A)
Uncertainty K	2.5 dB
A-weighted sound power level LwA		104.6 dB (A)
Uncertainty K	2.5 dB
Vibration Level (in accordance with EN 50636-2-91 Annex BB)
Front handle ah		3.0 m/s ^2
Rear handle ah		2.5 m/s ^2
Uncertainty K		1.5 m/s ^2

BATTERY AND CHARGER

Model	ALT58TLI401 ALT58BT
Battery pack	ABP58LI-401	Not included
Charger	ABC58S	Not included
Compatible battery packs	ABP58LI-201ABP58LI-401
Compatible charger	ABC58S
Battery pack weight
- 4.0Ah	1.83 kg
- 2.0Ah	1.24 kg
REPLACEMENT PART
2.4 mm twist line	528721000

WARNING!

The vibration emission level given in this information sheet has been measured in accordance with a standardised test method and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

INTENDED USE

The cordless line trimmer is intended to be used only by adults who have read and understood the instructions and warnings in this manual and can be considered responsible for their actions. The

product is only intended for use outdoors in a well-ventilated area. For safety reasons, the product must be adequately controlled by a two-handed operation.

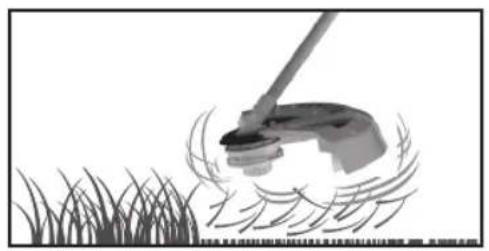

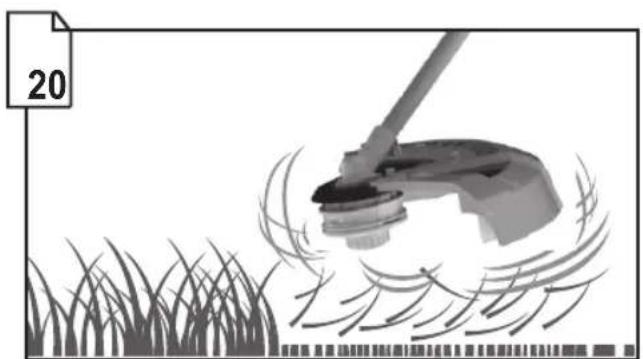

When fitted with the line trimmer head (and appropriate guard), the

product is intended for cutting long grass, pulpy weeds, and similar vegetation at or about ground level.

The cutting plane should be approximately parallel to the ground surface. The product should not be used to cut or trim hedges, bushes, or other vegetation where the cutting plane is not parallel to the ground surface.

Do not use the product for any other purpose.

GENERAL SAFETY WARNINGS

⚠ WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
⚠ WARNING! When using the product, the safety rules must be followed. For your own safety and that of bystanders, please read these instructions before operating the product. Please keep the instruction safe for later use.
WARNING! The product is not intended to be used by children or persons with reduced physical, mental, or sensory capabilities. Children should be adequately supervised to ensure they do not play with the product.
WARNING! Some regions have regulations that restrict the use of the product. Check with your local authority for advice.

TRAINING

■ Do not allow children or people unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator.
- Read the instructions carefully. Be familiar with all controls and the proper use of the product.
- Keep bystanders, children, and pets 15 m away from the area of operation. Stop the product if anyone enters the area.
■ Do not use the product when you are tired, ill, or under the influence of alcohol, drugs, or under medication.
- Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

PREPARATION

■ Wear full eye and hearing protection while operating the product. If working in an area where there is a risk of falling objects, head protection must be worn.
■ Hearing protection may restrict the operator's ability to hear warning sounds, pay particular attention to potential hazards around and inside the working area.
■ Wear heavy, long trousers, boots, and gloves. Do not wear loose fitting clothing, short trousers, jewellery of any kind, or use with bare feet.

• Secure long hair so it is above shoulder level to prevent entanglement in moving parts.

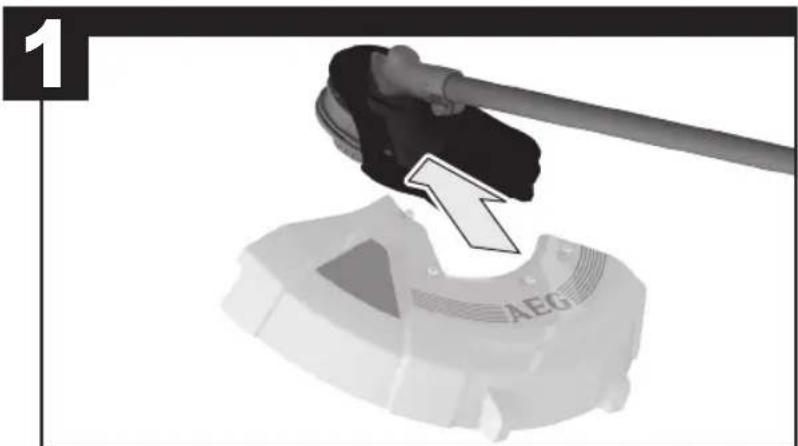

  ■ Do not operate the product unless all guards, deflectors, and handles are properly and securely attached.
• Consider the environment in which you are working. Keep the working area free from wires, sticks, stones, and debris, which if struck by the cutter can become thrown objects.

BATTERY TOOL USE AND CARE

■ Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
■ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

LINE TRIMMER SAFETY WARNINGS

■ Do not allow children, persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge or people unfamiliar with these instructions to use the product.

■ Use the product in daylight or with good artificial light.
■ Avoid using on wet grass.
- Keep proper footing and balance at all times and be sure of proper footing on slopes.
■ Do not walk backwards when using the product.
■ Walk, never run.
- Keep the head attachment below waist level.
■ Do not operate the product with damaged guards or without guards in place.
■ Never fit a metal replacement line.

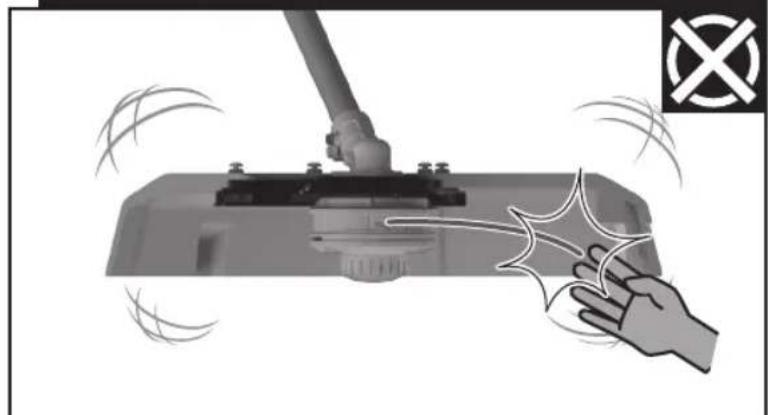

- Keep hands and feet away from the cutting means at all times and especially when switching on the motor.

■ Beware, the cutting elements continue to rotate after the motor is switched off.
■ Beware of objects thrown by the cutting means. Clear debris like small stones, gravel, and other foreign objects from the work area before starting operation. Wires or string may become entangled with the cutting means.

■ Switch off and remove the battery pack. Make sure all moving parts have come to a complete stop:

• before servicing
  • before leaving the product unattended
  • before clearing a blockage
  ● before checking, cleaning, and working on the product
  • before changing accessories
  • after striking a foreign object
  • whenever performing maintenance
• whenever the product starts to vibrate abnormally

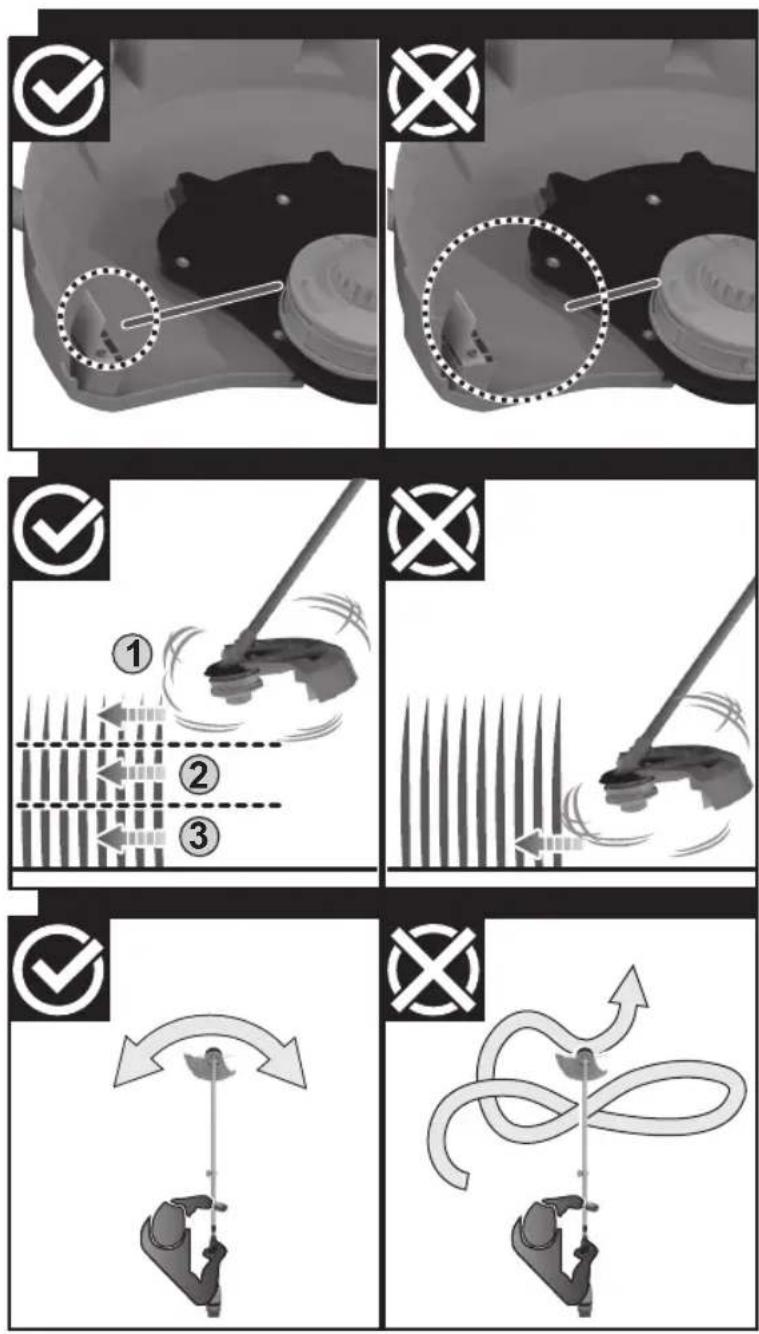

The small blade fitted to the lawn guard is designed to trim the new extended line to the correct length for safe and optimum performance. It is very sharp, do not touch it particularly when cleaning the product.
■ Always ensure that ventilation openings are kept clear of debris.

■ Before use and after any impact, check that there are no damaged parts. A defective switch or any part that is damaged should be properly repaired or replaced by an authorised service centre.

■ Make sure the cutting head attachment is properly installed and securely fastened.

■ Make sure all guards, deflectors, and handles are properly and securely attached.
■ Do not modify the product in any way, this may increase the risk of injury to yourself or others.
- Use only the manufacturer's replacement cutting line. Do not use any other cutting attachment.
- Immediately switch off and remove the battery pack in the event of accident or breakdown. Don't operate the product again until it has been fully checked by an authorised service centre.

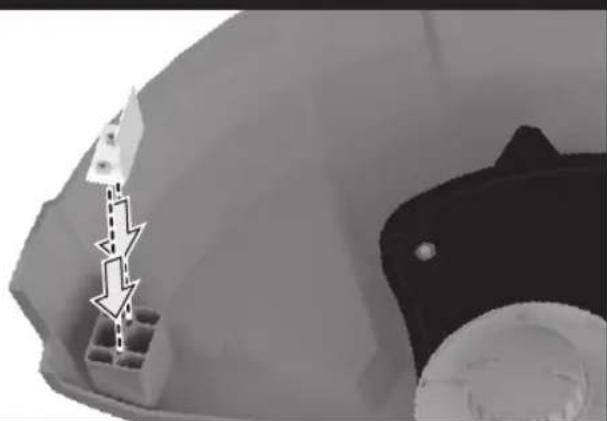

WARNING! Ensure that the line cut-off blade in guard is properly positioned and secured before each use.

ADDITIONAL BATTERY SAFETY WARNINGS

WARNING! To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack, or charger in fluid or allow a fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

TRANSPORTATION AND STORAGE

■ Stop the product, remove the battery pack, and allow the product to cool down before storing or transporting.
■ Clean all foreign material from the product.
- Do not store or transport the product with batteries fitted, remove, and secure separately. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep away from corrosive agents, such as garden chemicals and deicing salts. Do not store outdoors.
■ For transportation in vehicles, secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party.

Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

WARNING! Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.

WARNING! Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service, bring the product to an authorised service centre. When servicing, use only original replacement parts.

■ Switch off and remove the battery pack before conducting any maintenance or cleaning work.
■ You may make adjustments and repairs described here. For other repairs, contact the authorised service centre.

■ Before any maintenance or adjustment, disable the product by removing from the power source.
■ For replacement line, use only nylon filament line of the diameter described in the specification table of this manual.

■ After extending new cutter line, always return the product to its normal operating position before starting.
■ After each use, clean the product with a soft, dry cloth. Any part that is damaged should be properly repaired or replaced by an authorised service centre.
- Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure the product is in safe working condition.
■ Bring the product to an authorised service centre to replace damaged or unreadable labels.

RESIDUAL RISKS

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise during use and the operator should pay special attention to avoid the following:

■ injury caused by vibration
- Hold the product by designated handles and restrict working time and exposure.
■ injury caused by exposure to noise
— Wear hearing protection and limit exposure.
■ injury caused by flying debris.
— Wear eye protection at all times.

RISK REDUCTION

It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome. Symptoms may include tingling, numbness, and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking, and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

• Keep your body warm in cold weather. When operating the product, wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome.
  ■ After each period of operation, exercise to increase blood circulation.
  ■ Take frequent work breaks. Limit the amount of exposure per day.

WARNING! Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

SYMBOLS

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Regulatory Compliance Mark (RCM). Product meets applicable regulatory requirements.

Please read the instructions carefully before starting the product.

Wear ear protection.

Wear eye protection.

Do not expose to rain or damp condition.

Beware of thrown or flying objects.

Do not use metal blade(s) on the product.

Rotational direction and maximum speed of the shaft for the cutting attachment.

Keep hands away from cut-off blade.

Pull: Quick release tab

Remove the battery pack before starting any work on the product.

Class II tool, double insulation

Do not dispose of electric tools together with household waste material! In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

The following signal words and meanings are intended to explain the levels of risk associated with this product:

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

Without safety alert symbol

Indicates a situation that may result in property damage.

AEG

www.aegpowertools.com.au

www.aegpowertools.co.nz

Techtronic Industries Australia Pty Ltd

31 Gilby Road, Mount Waverley,

VIC, 3149, Australia

Techtronic Industries N.Z. Limited

Unit C, 70 Business Parade South,

Highbrook, Auckland 2013, New Zealand

960087208-02

AEG is a registered trademark used under

license from AB Electrolux (publ).
