Product Type	Electric Griddle
Brand	Beautiful
Model	12"x22" Extra Large
Cooking Surface Dimensions	12 x 22 inches (30.5 x 55.9 cm)
Overall Dimensions (approx.)	14 x 24 x 6 inches (with backsplash and handles)
Weight (approx.)	12 lbs
Power Supply	120V AC, 60Hz
Power Rating (estimated)	1500W
Temperature Range	200°F - 400°F, plus WARM setting
Control Type	Removable probe with dial and power indicator light
Cooking Surface	Non-stick coating
Backsplash	Detachable stainless steel, dishwasher safe (top rack)
Drip Tray	Removable, dishwasher safe (top rack)
Handles	Cool-touch
Feet	Non-skid
Power Cord Length (approx.)	2.5 ft
Safety Features	Polarized plug; probe must be inserted before plugging in
Warranty	Limited 2-year warranty
Included Accessories	Temperature control probe, backsplash, drip tray
Recommended Use	Indoor countertop cooking

Frequently Asked Questions - 12”x22” Extra Large Electric Beautiful

What is the recommended temperature for pancakes?

Set the griddle to 375°F - 400°F. Cook for 4-7 minutes, flipping when bubbles form on top.

Can I use cooking spray on the non-stick surface?

No. Do not use cooking sprays as they can cause buildup and affect non-stick performance.

How should I clean the griddle surface?

Allow to cool completely. Wipe with a damp soapy sponge. For stubborn food, use a paste of baking soda and water; let stand, then rub with a soft cloth or plastic pad. Avoid abrasive cleaners.

Is the drip tray dishwasher safe?

Yes, the drip tray and backsplash are top rack dishwasher safe. Alternatively, wash by hand in soapy water.

Why does the indicator light turn on and off during cooking?

This is normal. The light cycles on and off to maintain the selected temperature.

Can I use metal utensils on the griddle?

No. Always use heat-proof spatulas or wooden utensils to prevent scratching the non-stick surface.

How should I store the griddle?

Ensure the griddle is cool and dry. Store the drip tray in place, remove backsplash, and keep in a clean dry place or its original box.

What is the warranty period?

The product comes with a limited two-year warranty from date of purchase against mechanical defects. Proof of purchase required.

How do I attach the backsplash?

Insert the three tabs on the bottom of the backsplash into the corresponding slots on the back of the griddle until secure.

What should I do if the plug doesn't fit into the outlet?

The plug is polarized (one blade wider). If it doesn't fit, reverse the plug. If still no fit, contact a qualified electrician. Do not modify the plug.

USER MANUAL 12”x22” Extra Large Electric Beautiful

Exterior view of a modern flat-screen grater with a black lid and control knob (no text or symbols visible)

12" x 22" Extra Large Electric Griddle Instruction Manual

12" x 22" Extra Grande Plancha Manual de instrucciones

Black-and-white photo of a woman sitting on a kitchen counter surrounded by shelves with food items like air fryers, thermos, and refrigerators (no visible text or symbols)

The kitchen is my family's happy place. It's where we cook and eat and bake and laugh and share our most beautiful moments together. That's what inspired the creation of Beautiful, my new collection of easy-to-use kitchenware that you'll want to keep out on your kitchen counter. So whether your kitchen has flour all over the place from a kid's baking session or you're throwing an adult dinner party, I hope every step will be simple, delicious and beautiful!

$$ - D _ {1} e J \equiv 9 $$

www.cookwithbeautiful.com

Section 1: Safety

Important Safeguards....6-8
Additional Important Safeguards....8
Notes on the Plug 9
Notes on the Cord 9
Plasticizer Warning 10
Electric Power 10

Section 2: Instructions

Getting to Know Your XL Griddle 12
Temperature Control Probe 13
Before Using for the First Time.... 13-14
Operation 14-16
XL Griddle Cooking Chart 17
USDA Cooking Guidelines.... 18
User Maintenance Instructions 18
Care & Cleaning Instructions 18-19
Storing Instructions 20
Warranty 21-22

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.
2. Do not touch hot surfaces. Use handles or knobs. Use oven mitts or potholders.
3. To protect against electrical shock, do not immerse cord or plugs or temperature control probe in water or other liquid.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
5. Close supervision is necessary when any appliance is used by or near children.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Contact Consumer Service.

8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

9. Do not use outdoors.

10. Do not let cord hang over the edge of table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
    CAUTION: Use the temperature control probe supplied with this XL Griddle only. The use of any other temperature control probe may cause fire, electric shock, or injury.
13. Turn the temperature control dial to the OFF position before inserting the probe into the socket on the side of the XL Griddle. (Figure 3) Then plug cord into a 120V AC electrical outlet. To disconnect, turn the temperature control dial to OFF, then remove plug from wall outlet.
14. Do not use XL Gridle for other than intended use. Use with wall receptacle only.

SAVE THESE INSTRUCTIONS

ADDITIONAL IMPORTANT SAFEGUARDS

CAUTION HOT SURFACES: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, fires or other injury to persons or damage to property.

CAUTION: This appliance is hot during operation and retains heat for some time after turning OFF. Always use oven mitts when handling hot materials and allow metal parts to cool before cleaning. Do not place anything on top of the XL Griddle while it is operating or while it is hot.

1. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance.
2. The cord to this appliance should be plugged into a 120 V AC electrical outlet only.
3. If this appliance begins to malfunction during use, immediately unplug the cord. Then remove the temperature control probe. Do not use or attempt to repair the malfunctioning appliance.
4. Do not leave this appliance unattended during use.

NOTES ON THE PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

NOTES ON THE CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used:

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance;
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord; and
3) The longer cord should be arranged so that it will not drape over the countertop or table top where it can be pulled on by children or tripped over.

PLASTICIZER WARNING

CAUTION: To prevent Plasticizers from migrating to the finish of the counter top or table top or other furniture, place NON-PLASTIC coasters or place mats between the appliance and the finish of the counter top or table top. Failure to do so may cause the finish to darken; permanent blemishes may occur, or stains can appear.

ELECTRIC POWER

If the electrical circuit is overloaded with other appliances, your appliance may not operate properly. It should be operated on a separate electrical circuit from other appliances.

Section 2

Instructions

Getting to Know Your XL Griddle

Product may vary slightly from illustrations

1. Detachable Stainless Steel Backsplash

2. Polarized Plug

3. Non-Stick XL Cooking Surface

4. Cool Touch Handles

5. Probe Socket

6. Non-Skid Feet

7. Removable Temperature Control Probe

8. Grease Drain

9. Drip Tray

Temperature Control Probe

CAUTION: Use the temperature control probe supplied with this XL Griddle only. The use of any other temperature control probe may cause fire, electric shock, or injury.

1. The temperature control probe is the nerve center and brain of the XL Griddle. Treat it carefully. Dropping or banging the probe could change its calibration and render temperature settings inaccurate.
2. Rotate the control dial to select any temperature from 200^ F to 400^ F as called for in the recipe. Use the WARM setting for serving.
3. The indicator light on the temperature control probe will illuminate as soon as the dial is rotated. The indicator light will turn OFF once the selected temperature has been reached.

1. Probe

2. Control Dial

3. Power Indicator Light

4. Polarized Plug

Before Using for the First Time

1. Carefully unpack the XL Griddle and remove all packaging materials.
2. Place the non-stick XL Griddle on a clean, stable, flat working surface.

NOTE: Some countertop and table surfaces, such as Corian® and other surfaces, are not designed to withstand the prolonged heat generated by this XL Griddle. We recommend placing a hot pad or trivet under the XL

Griddle to avoid possible damage to the surface. Make sure the sides and back of the XL Griddle are at least 4 inches away from any walls, cabinets, or objects on the counter or table.

1. Before cooking on the XL Griddle for the first time, wash backsplash in mild dishwashing soap, wipe away any residue, and allow to dry.
2. Use a dampened soapy sponge or paper towel to lightly clean the XL Griddle surface. Rinse with clean sponge and wipe non-stick surface dry.
3. Attach backsplash. There are 3 tabs on the bottom of the backsplash and 3 corresponding slots located on the back of the XL Griddle. (Figure 1) Insert the 3 bottom tabs into the 3 slots located on the back of the XL Griddle. (Figure 1)
4. Slide the drip tray into the front of the XL Griddle. (Figure 2)
5. Condition the XL Griddle's non-stick surface. Turn the temperature control dial to the OFF position. Insert probe into the socket on the side of the XL Griddle. (Figure 3) Check to make sure probe is securely in place.
6. Coat the non-stick XL Griddle surface with vegetable shortening.
7. Plug cord into a 120 V AC wall outlet. Turn the temperature control dial to 400^ . The control probe's power indicator light will illuminate.
8. Allow the XL Griddle non-stick surface to heat. When 400 °F is reached, the indicator light will turn OFF.
9. Turn the temperature control dial to the OFF position and unplug from electrical outlet. Allow the XL Griddle to cool completely. Use a clean paper towel to remove any excess oil. Your XL Griddle surface is now conditioned and ready for use.
10. Remove the temperature control probe from XL Griddle and store in a clean, safe place for next use.

Operation

1. Attach backsplash. Insert the 3 tabs on the bottom of the backsplash into the 3 corresponding slots located on the back of the XL Griddle. (Figure 1)

2. Make sure drip tray is in position under the grease drain in the front of the XL Griddle. (Figure 2)

3. Turn the temperature control dial to the OFF position and insert probe into the socket on the side of the XL Griddle. (Figure 3) Check to make sure probe is securely in place.

4. Plug cord into a 120 V AC electrical outlet.

IMPORTANT: ALWAYS INSERT PROBE INTO GRIDDLE'S SOCKET FIRST, then plug cord into a 120V AC electrical outlet.

1. To preheat, turn the temperature control dial to the desired temperature. The indicator light on the temperature control probe will illuminate as soon as the dial is rotated. The indicator light will turn OFF once the selected temperature has been reached. Allow 10 minutes for the XL Griddle to preheat before cooking.
2. Add food to the non-stick griddle surface and cook according to the recipe. Adjust temperature control dial from 200°F to 400°F as necessary. After foods are cooked, use the WARM setting for serving.

IMPORTANT: Always use heat-proof spatulas or wooden utensils to prevent damage to the XL Griddle's non-stick surface.

NOTE: During cooking, the indicator light will turn on and off as the proper temperature is maintained.

CAUTION: XL Griddle surfaces are hot during use.

CAUTION: DO NOT USE COOKING SPRAYS. SPRAYS CAN CAUSE BUILD-UP THAT MAY AFFECT THE NON-STICK PERFORMANCE OF THE GRIDDLE SURFACE.

1. When cooking bacon or foods containing large quantities of grease, push grease towards the front grease drain.
2. Be sure to check the drip tray periodically. When full, use caution to carefully slide drip tray out from the front of the XL Griddle and dispose of the grease. Clean drip tray and replace. (Figure 4)
3. When cooking is completed, turn the temperature control dial to the OFF position. The indicator light will turn OFF. Unplug from electrical outlet.
4. Allow the XL Griddle to cool before removing the temperature control probe.
5. To clean the temperature control probe, simply wipe down with a soft, damp cloth.

IMPORTANT: Dry the temperature control probe thoroughly before next use.

NOTE: The temperature control probe is not submersible.

Figure 1

3D diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Figure 2

3D rendering of a rectangular mechanical component with an arrow indicating direction (no text or symbols)

Figure 3

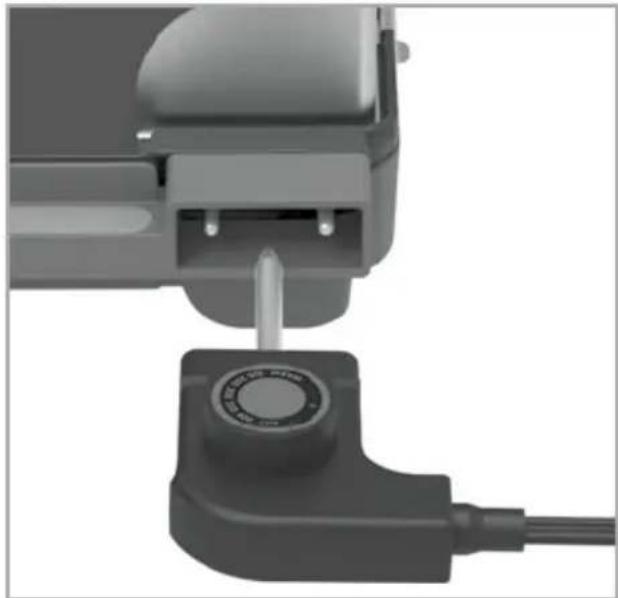

Close-up of a mechanical device with a circular button and cable, no visible text or symbols

Figure 4

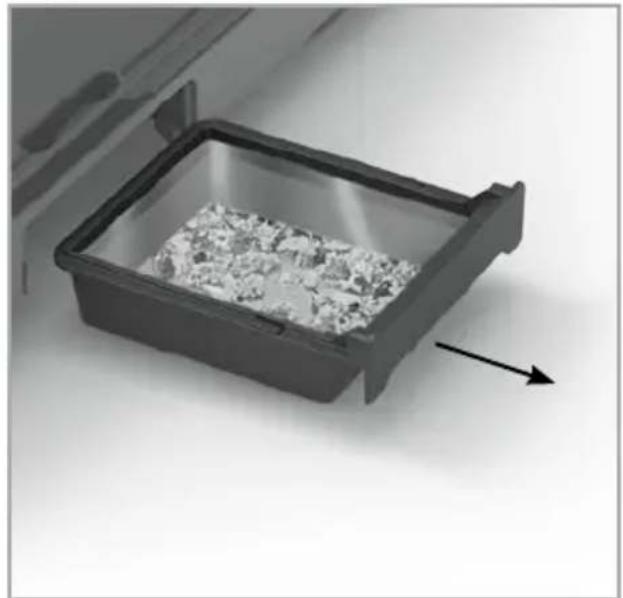

3D rendering of a rectangular container with granular material inside, marked by an arrow (no text or symbols)

XL Griddle cooking chart

NOTE: This chart is intended as a general guide. Please check temperatures with a meat thermometer and follow United States Department of Agriculture food safety guidelines listed below.

FOOD TEMPERATURE TIME DIRECTIONS
Bacon	325 °F - 350 °F	8 - 14 minutes	Set to appropriate temperature and adjust as needed. Flip as needed.
Sausage	325 °F - 350 °F	20 - 30 minutes	Set to appropriate temperature and adjust as needed. Turn sausages to achieve browned color.
French Toast	350 °F	6 - 10 minutes	Flip French Toast when browned, halfway into cooking time.
Hamburger	350 °F	3 - 14 minutes	Flip burgers halfway into cooking time.
Ham Slices	350 °F	14 - 18 minutes	Flip ham halfway into cooking time.
Sandwiches	350 °F	6 - 10 minutes	Butter outside and brown both sides of the bread.
Pancakes	375 °F - 400 °F	4 - 7 minutes	Pour batter onto the XL Griddle surface. When bubbles form on the top side, flip pancakes.
Pork Chops	350 °F	20 - 30 minutes	Brown both sides of the pork chops, then reduce temperature to 325°F Flip chops halfway into cooking time.
Steaks	400 °F Rare400 °F Medium400 °F Well	4 - 6 minutes7 - 12 minutes13 - 18 minutes	Flip steaks halfway into cooking time.

USDA cooking guidelines

The USDA recommends that meats such as beef and lamb, etc. should be cooked to an internal temperature of 145^ F/63°C. Pork should be cooked to an internal temperature of 160^ F/71°C and poultry products should be cooked to an internal temperature of 170^ F/77°C - 180^ F/82°C to be sure any harmful bacteria has been killed. When reheating meat/poultry products, they should also be cooked to an internal temperature of 165^ F/74°C.

User Maintenance Instructions

This appliance requires little maintenance. It contains no user serviceable parts. Do not try to repair it yourself. Any servicing requiring disassembly other than cleaning must be performed by a qualified appliance repair technician.

CAUTION: DO NOT USE COOKING SPRAYS. SPRAYS CAN CAUSE BUILD-UP THAT MAY AFFECT THE NON-STICK PERFORMANCE OF THE GRIDDLE SURFACE.

WARNING: To avoid electric shock, turn the temperature control dial to the OFF position. Then unplug temperature control from electrical outlet before removing probe from the XL Griddle.

1. Always remove the temperature control probe when not in use and before cleaning.

Care & Cleaning Instructions

1. Never cut food on the XL Griddle surface.
2. Always use heat-proof spatulas or wooden utensils to prevent damage to the XL Griddle's non-stick surface.
   CAUTION: Do not immerse the cord, plug or temperature control probe in water or any other liquid.
   CAUTION: To avoid accidental burns, allow your XL Griddle to cool thoroughly before cleaning.

3. When cooking is completed, turn the temperature control dial to the OFF position, then unplug cord from wall outlet. Allow XL Griddle to cool completely.
   CAUTION: The probe may become hot after use. Allow to cool before handling.

4. Remove temperature control probe from the XL Griddle.

5. If necessary, wipe temperature control dial and probe with a damp, soft cloth. Dry temperature control probe completely. Set aside for later use.

CAUTION: The temperature control probe is not submersible.

CAUTION: Probe and probe socket must be completely dry before use.

1. Remove drip tray; dispose of contents. Lift to remove the stainless steel backsplash from the back of the XL Griddle.

2. Both the drip tray and the backsplash are top rack dishwasher safe. Or wash by hand in soapy water; rinse and dry thoroughly.

3. Use a dampened soapy sponge or paper towel to clean the backsplash and XL Griddle surface. Rinse sponge and wipe non-stick XL Griddle surface dry.

4. For stubborn food particles, sprinkle baking soda directly on stained areas. Moisten the baking soda by adding a few drops of water to form a paste. Allow the paste to stand for up to an hour. Rub with a soft damp cloth or use a plastic, non-scratch scouring pad until the stain is lifted. To avoid damage to the non-stick surface, do not rub vigorously when using a scrubbing pad.

5. Loosen cooked-on food with a plastic cleaning pad. Avoid hard scouring of the non-stick finish as this may cause surface scratches. Do not use steel wool, scouring pads, or abrasive cleaners on any part of the XL Griddle.

6. Repeat procedure as needed.

NOTE: The performance of the non-stick coating will not be affected due to stains.

Storing Instructions

1. Make sure the XL Griddle's temperature control probe is unplugged and all parts are clean and dry before storing. Slide the drip tray into the front of the XL Griddle for storage. Remove the backsplash and store for later use.
2. Never store the XL Griddle while it is hot or wet.
3. Store the XL Griddle, temperature control probe and backsplash in its box or in a clean, dry place for next use.

Limited Two-Year Warranty

Sensio Inc. dba Made by Gather™ hereby warrants that for a period of TWO YEARS from the date of purchase, this product will be free from mechanical defects in material and workmanship, and for 90 days in respect to non-mechanical parts. At its sole discretion, Sensio Inc. dba Made by Gather™ will either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. The warranty is only valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt, as proof of purchase is required to obtain warranty validation. Retail stores selling this product do not have the right to alter, modify, or in any way revise the terms and conditions of the warranty.

Exclusions:

The warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use of the product, use of improper voltage or current, improper routine maintenance, use contrary to the operating instructions, disassembly, repair, or alteration by anyone other than qualified Sensio Inc. dba Made by Gather™ personnel. Also, the warranty does not cover Acts of God such as fire, floods, hurricanes, or tornadoes.

Sensio Inc. dba Made by Gather™ shall not be liable for any incidental or consequential damages caused by the breach of any express or implied

warranty. Apart from the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in time to the duration of the warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, and therefore, the above exclusions or limitations may not apply to you. The warranty covers specific legal rights which may vary by state, province and/or jurisdiction.

How To Obtain Warranty Service:

You must contact Customer Service at our toll-free number: 1-877-775-3564. A Customer Service Representative will attempt to resolve warranty issues over the phone. If the Customer Service Representative is unable to resolve the problem, you will be provided with a case number and asked to return the product to Sensio Inc. dba Made by Gather™ Attach a tag to the product that includes: your name, address, daytime contact telephone number, case number, and description of the problem.

Also, include a copy of the original sales receipt. Carefully package the tagged product with the sales receipt, and send it (with shipping and insurance prepaid) to SENSIO Inc.'s address. Sensio Inc. dba Made by Gather™ shall bear no responsibility or liability for the returned product while in transit to Sensio Inc. DBA Made by Gather™ Customer Service Center.

Beautiful™ Kitchenware

Sección 1

Seguridad

3D diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Figura 2

3D rendering of a rectangular plastic component with an arrow indicating direction (no text or symbols)

Figura 3

Close-up of a mechanical device with a circular button and cable, no visible text or symbols

Figura 4

3D rendering of a rectangular container with granular material inside, placed on a plain surface with an arrow indicating direction (no text or symbols)

Exterior view of a black rectangular flat-screen grater with a small side-mounted button (no text or symbols visible)

12" x 22" Extra Large Electric Griddle Instruction Manual

12" x 22" Extra Grande Plancha Manual de instrucciones
