Product Type	Bluetooth Speaker
Brand	Crosley
Model	Octave CR3110A
Power Supply	AC 100-240V ~50/60Hz
Power Consumption	25W
Speaker Output	5W x2 (stereo) + 15W (subwoofer)
Bluetooth Version	2.1
USB Playback	Supports up to 32GB USB drives
Aux Input	3.5mm auxiliary input
Controls	Volume, Treble, Bass, Play/Pause, Mode, Forward & Backward Skip
Standby Operation	Long press Mode to enter/exit standby; red indicator
Indicators	Bluetooth (blue), AUX (green), USB (orange), Standby (red)
Auto Power Off	After 15 minutes of no audio input (ERP compliant)
Safety Features	Polarized plug, do not open, protect from water, ventilation slots
Package Contents	Bluetooth Speaker, Power Cord
Customer Service	1-888-CROSLEY, 8am-6pm EST Mon-Fri

Frequently Asked Questions - Octave CR3110A Crosley

How do I pair my phone with the Crosley Octave CR3110A via Bluetooth?

Press the Mode button to select Bluetooth mode (blue indicator). On your phone, search for 'CROSLEY CR3110A' and pair. You will hear a confirmation sound.

How can I connect an external device using the AUX input?

Press Mode to select AUX mode (green indicator). Connect a 3.5mm auxiliary cable (not included) from your device to the Aux In Jack on the speaker.

Can I play music from a USB drive?

Yes. Press Mode to select USB mode (orange indicator). Insert a USB drive (32GB or smaller) into the USB port. Use Forward & Backward Skip to change tracks.

What should I do if there is no sound from the speaker?

Check that the volume is turned up, the correct mode is selected (Bluetooth, AUX, or USB), and the volume on your connected device is also turned up.

How do I reset the speaker?

There is no dedicated reset button. To reset, simply unplug the power cord, wait a few seconds, and plug it back in. Then turn on the speaker.

How can I adjust the sound quality?

Use the Treble and Bass knobs to adjust high and low frequencies, and the Volume knob for overall volume.

What is the standby feature and how do I use it?

Standby is a low-power mode. To enter it, long press the Mode button until the red indicator lights. Press Mode again to exit standby and return to Bluetooth mode.

Does the speaker automatically turn off?

Yes, to save energy, the speaker will automatically power off after 15 minutes of no audio input. To resume, turn the power off and on again.

Can I use the speaker while it is charging?

The speaker is powered by AC (plugged in), so it operates continuously while connected. It does not have a battery.

How should I clean and maintain the speaker?

Unplug the speaker before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquids or sprays, and avoid getting moisture in any openings.

USER MANUAL Octave CR3110A Crosley

Line drawing of a rectangular electronic device with three cylindrical ports on top (no text or symbols)

Questions, problems, missing parts?

Before returning to the store, call Customer Service

8 a.m. – 6 p.m., EST, Monday – Friday

1-888-CROSLEY

www.crosleyradio.com

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Bluetooth Speaker
• Power cord

Please contact Crosley Customer Service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power AC 100-240V \~ 50/60 Hz

Power consumption 25 W

Speaker 5 W X 2 + 15W

Note:

• Design and specifications are subject to change without notice.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 15 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

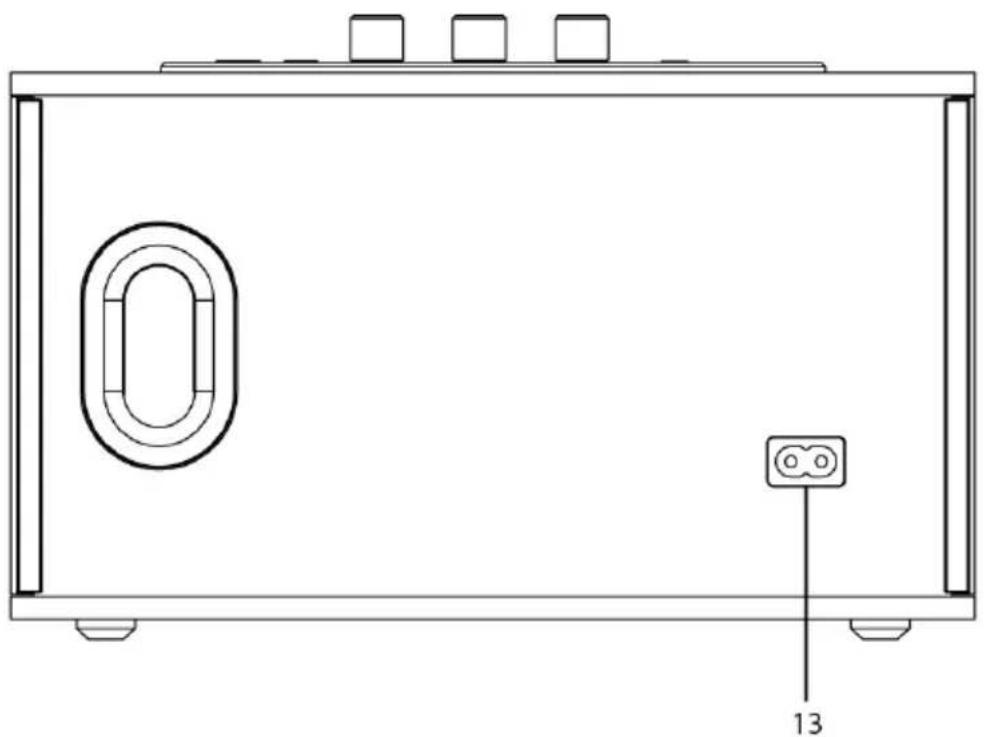

Product Description

Technical line drawing of a rectangular device with a circular opening and a small connector, labeled with number 13 (no text or symbols on the device itself)

1. Aux In Jack
2. Bluetooth Indicator
3. AUX Indicator
4. USB Indicator
5. Standby Indicator
6. USB Port

7. Volume Knob

8. Treble Knob

9. Bass Knob
10. Play/Pause Button
11. Mode Button
12. Forward & Backward Skip Button
13. Power Jack

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Connect the Power plug to the Power Jack of the unit.

Standby Operation

To put the unit in Standby Mode, long press the Mode Button. To exit Standby Mode, press the Mode Button again. The unit will automatically go to Bluetooth Mode once out of Standby Mode.

Note: The Standby Indicator will be red while in Standby Mode.

Bluetooth Operation

1. Press the Mode Button to select the Bluetooth mode, you will hear an activation sound from the unit.
   Note: The Bluetooth Indicator will be blue.
2. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CR3110A" and pair.
3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit.
4. Play and stream music from your device to the unit.
5. During playback, press the Play/Pause Button to suspend and resume song.
6. During playback, short press the Forward & Backward Skip button to go to the next song. Long press the Forward & Backward Skip button to go to the previous song.
   Note: Bluetooth version - *2.1*

Aux Input Connection

You can connect an audio device to this unit and play your music through its speakers. To do this, press the Mode Button to Aux-In Mode (The Aux Indicator will be green), connect a 3.5 mm auxiliary cable (Not Included) between your audio device to the Aux In Jack of this unit and start playing the music.

USB Playback

1. Press the Mode Button to select the USB mode.
   Note: The USB Indicator will be orange.
2. Insert a USB device into the USB port.
3. To Forward Skip, short press the Forward & Backward Skip button.
4. To Backward Skip, long press the Forward & Backward Skip button.
5. To stop and resume the playback, press the Play/Pause button.
   Note:
6. Only use 32 GB or smaller USB

Troubleshooting

There is no power

• No power at the power outlet.
• Power adaptor is not connected correctly.

There is no sound

• Make sure the volume is turned up.
• Mode is in the Bluetooth position.
• Make sure the volume on your third party device is turned up.

FCC Statements

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.
