Product Type	Leaf Blower
Model	BL4
Brand	Baumr-AG
Engine Type	2-stroke petrol engine
Displacement	26 cc
Fuel Type	Petrol mixed with 2-stroke oil (40:1 ratio)
Air Speed	Up to 180 mph (290 km/h)
Air Volume	450 cfm (12.7 m³/min)
Weight	4.5 kg (9.9 lbs)
Dimensions (L x W x H)	85 x 25 x 30 cm (33.5 x 9.8 x 11.8 in)
Fuel Tank Capacity	0.6 L (20.3 fl oz)
Starting System	Recoil starter
Noise Level	95 dB(A) (at operator ear)
Vibration Level	7.5 m/s² (uncertainty K=1.5 m/s²)
Ignition Type	Electronic (CDI)
Spark Plug Type	NGK BPMR7A or equivalent
Carburetor Type	Diaphragm
Intended Use	Residential leaf blowing and light debris clearing
Safety Features	Throttle lock, anti-vibration system, protective guard
Maintenance	Regular air filter cleaning, spark plug replacement, fuel system checks
Included Accessories	Blower tube, nozzle, fuel mixing bottle, tool kit

Frequently Asked Questions - BL4 Baumr-AG

What fuel mixture does the Baumr-AG BL4 leaf blower require?

The BL4 uses a 2-stroke engine. Mix unleaded petrol with a high-quality 2-stroke oil at a ratio of 40:1 (40 parts fuel to 1 part oil). Use a fuel mixing container for accuracy.

How do I start the leaf blower?

1. Fill the fuel tank with the correct mixture. 2. Set the choke lever to the 'CLOSE' position. 3. Press the primer bulb 6-8 times. 4. Pull the starter grip firmly until the engine starts. 5. Then open the choke slowly.

What is the recommended maintenance schedule?

After each use: clean the air filter and exterior. Every 20 hours: replace spark plug, clean fuel filter, and check carburetor. At season end: drain fuel, run engine dry, and store in a dry place.

Why does the blower stop running after a few minutes?

Possible causes: clogged air filter, stale fuel, or faulty spark plug. Clean or replace the air filter, use fresh fuel mixture, and check the spark plug for deposits or gap issues.

Can I use the leaf blower for wet leaves?

It is designed for dry leaves and light debris. Wet leaves are heavier and may clog the blower tube. For wet leaves, consider using a rake or wait until they dry.

What safety gear should I wear?

Always wear safety goggles, ear protection, gloves, and sturdy footwear. Long pants and a long-sleeved shirt are recommended to protect from flying debris.

How do I clean the air filter?

Remove the air filter cover and take out the foam element. Wash it in warm soapy water, rinse, and squeeze dry (do not twist). Re-oil with 2-stroke oil and reinstall.

What is the correct spark plug gap?

The correct gap is 0.6 to 0.7 mm (0.024 to 0.028 inches). Use a feeler gauge to measure and adjust if necessary.

Where can I get replacement parts?

Replacement parts such as air filters, spark plugs, and fuel filters are available online or from authorised Baumr-AG dealers. Use genuine parts for best performance.

How should I store the leaf blower for long periods?

Drain the fuel tank and run the engine until it stalls. Clean the blower thoroughly. Remove the spark plug and add a teaspoon of oil into the cylinder, then pull the starter slowly. Store in a dry, sheltered location.

USER MANUAL BL4 Baumr-AG

[Revision 2.0 May 2023]

THE BATTERY MAY HAVE SOME CHARGE ON ARRIVAL, IT IS IMPORTANT HOWEVER THAT THE BATTERY IS CHARGED PRIOR TO USE.

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Intended Use

The device is intended for household use and as a hobby device in the garden. You may use this tool for the purposes listed below:

• Clearing hard surfaces such as driveways and walkways.
• Keep driveways, garages, and decks free from leaves, pine needles, and other small debris.

Non-intended use

Do not use the appliance to blow heavy things, such as nails, stones, tree branches. Do not use the appliance to clear furniture. Do not direct the blower tube to eyes.

General Safety Rules

When using electric gardening appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury including the following:

• Avoid Dangerous Environment – Don't use appliances in damp or wet locations.
• Don't Use in rainy conditions.
• Keep Children Away – All visitors should be kept at a distance from work area.
• Dress Properly – Do not wear loose clothing or jewellery. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.
• Use Safety Glasses – Always use face or dust mask if operation is dusty.
• Use the Right Appliance – Do not use appliance for any job except that for which it is intended.
• Don't Force the Appliance – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
• Don't Overreach – Keep proper footing and balance at all times.
• Stay Alert – Watch what you are doing. Use common sense. Do not operate appliance when you are tired.
• Store Idle Appliances Indoors – When not in use, appliances should be stored indoors in dry, and high or locked-up place – out of reach of children.
• Check Damaged Parts – Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorised service centre.

Electrical Safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions water entering a power tool will increase the risk of electric shock.

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries

• Prevent unintentional starting. Ensure the switch is in the OFF position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly, do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from moving parts, loose clothes, jewellery, or long hair can be caught in moving parts.
• It's necessary for you to do daily inspection before use and after dropping or other impacts to identify any significant defects.

Battery Tool Use and Safety Rules

• Do not charge appliance in rain, or in wet locations.
• Do not use battery-operated appliance in rain.
• Prevent unintentional starting. Ensure the switch is in the OFF position before connecting to battery pack, picking up or carrying the appliance.
• Remove or disconnect battery before servicing, cleaning, or removing material from the gardening appliance.
• Use only batteries from the manufacturer.
• Use only chargers from the manufacturer.
• Do not dispose of the batteries in a fire. The cell may explode. Check with local codes for possible special disposal instructions.
• Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
• Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.
• When battery pack is not in use, keep it away from other metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion, or risk of injury.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion, or risk of injury.

Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts.
• This will ensure that the safety of the power tool is maintained.

Maintenance

• After use and before storage, disconnect the machine from the battery and check for damage.
- When not in use store the machine out of the reach of children.
- Garden Blower should only be repaired by an authorised repairer.
- Use only manufactures recommended replacement parts and accessories.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	EXHAUST FUMESCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing, and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator. Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.

Table of Contents

Safety 2

Safety Symbols....5

Parts Identification ....8

Assembly....9

Blower Tube Assembly....9

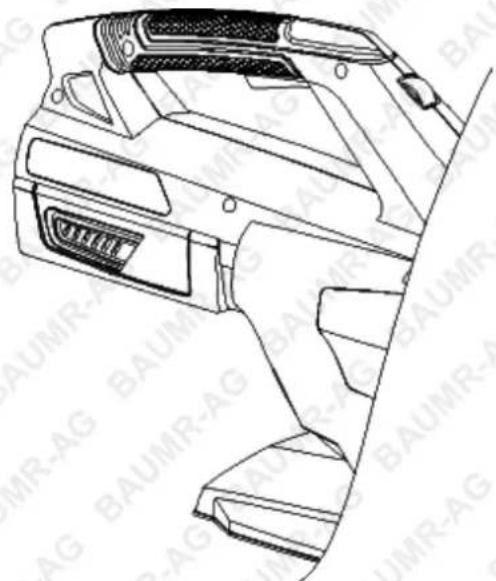

Installing and Removing the Battery Pack....10

Operation....11

Starting/Stopping the Garden Blower....11

Operating the Blower 11

Lithium Battery Care and Maintenance....12

Top 3 Battery Care Requirements....12

DANGER - CHARGING THE BATTERY ....13

Maintenance....14

General Maintenance....14

Battery Pack Removal and Preparation for Recycling 14

Storage 15

Specifications ....16

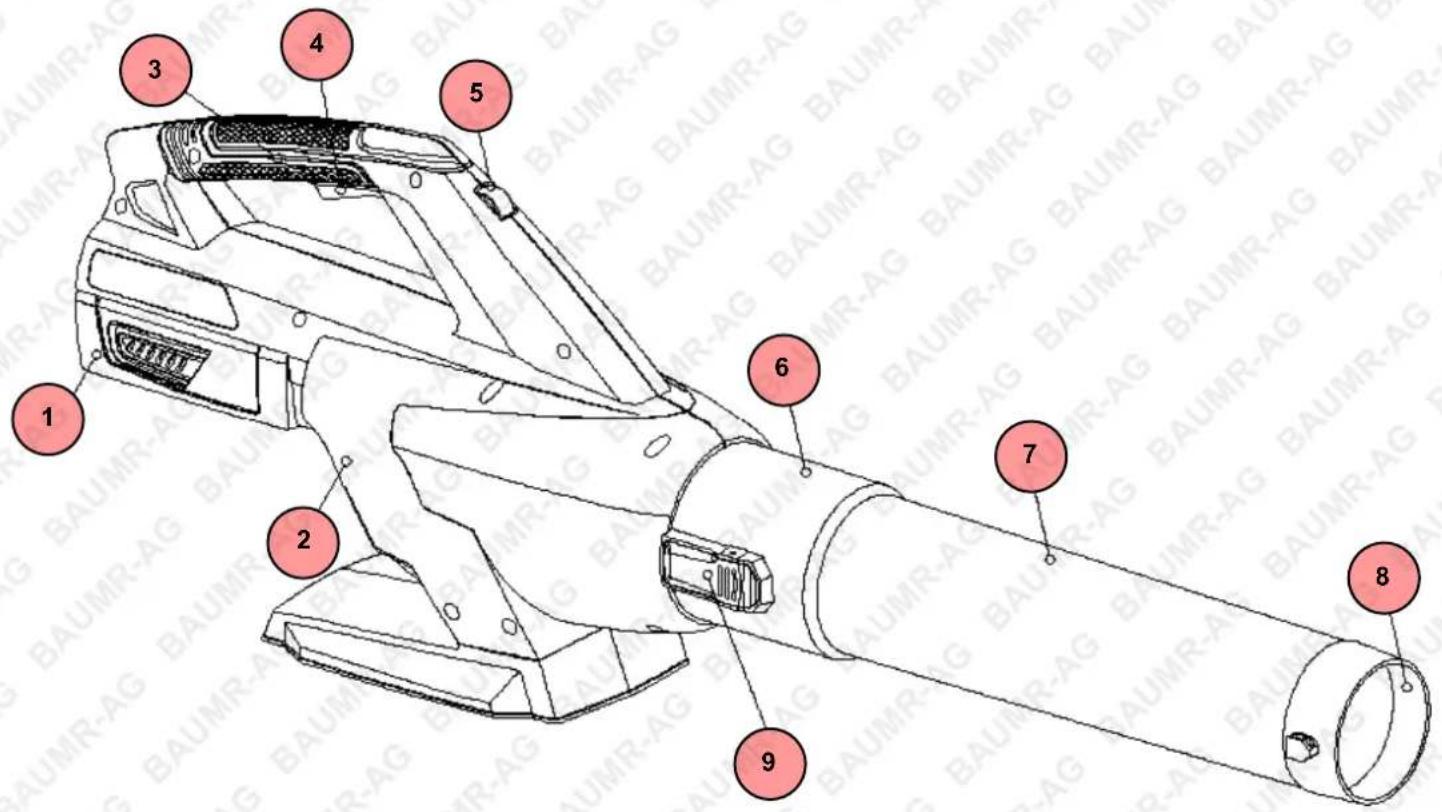

Parts Identification

No.	Name
1	Battery pack
2	Blower housing
3	Handle
4	Control trigger
5	Speed adjustment knob
6	Blower housing outlet
7	Blower tube
8	Blower tube outlet
9	Blower housing connection button

Assembly

WARNING! This product requires assembly. Carefully remove the product and any accessories from the box. Make sure that all items are included. Do not use this product if any parts are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury. Inspect the product carefully to make sure no breakage or damage occurred during shipping. Do not discard the packing material until you have carefully inspected and satisfactorily operated the product. If any parts are damaged or missing, do not operate this product until the parts are replaced. Using a product with damaged or missing parts could result in serious personal injury. Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury. To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the product when assembling parts.

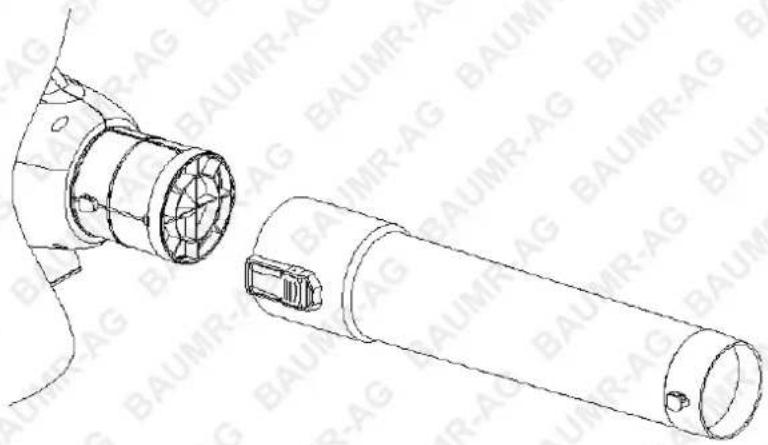

Blower Tube Assembly

The blower tube can be installed on the blower without using any tools.

1. Slide the blower tube over the outlet on the blower assembly.
2. Push the connection button on the blower tube forward and match with the outlet fully.

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Installing and Removing the Battery Pack

1. To insert the battery, slide it into the battery cradle on the blower, aligning the ribs in the cradle with the slots in the battery until it latches into place. Check that the battery is securely locked into place.

Technical line drawing of a mechanical component with no visible text or symbols

1. To remove the battery, press and hold the latch on the rear of the battery pack and slide the battery away from the garden blower.

Technical line drawing of a connector housing with two views (top and side), no text or symbols present.

Operation

Starting/Stopping the Garden Blower

CAUTION! When starting the blower, please check whether the battery pack is charged and adjust the speed to the minimum.

1. To start the garden blower, first press the control trigger (4). Adjust the speed adjustment knob (5) to Min., The garden blower will start to run in low speed.
2. Press the speed adjustment knob (5) to adjust the minimum speed to the maximum speed.
3. To decrease speed, press the speed adjustment knob (5) to adjust the maximum speed to the minimum speed.
4. To stop the blower, press the speed adjustment knob (5) to adjust the maximum speed to the minimum speed, Release the control trigger (4).
5. To conserve battery life, the garden blower will only operate in "minimum" mode for 30 seconds and then adjust the speed to the maximum speed.

Operating the Blower

1. To prevent scattering debris, blow around the outer edges of a debris pile. Never blow directly into the centre of a pile.
2. To reduce sound levels, limit the number of pieces of equipment used at any one time.
3. Use rakes and brooms to loosen debris before blowing. In dusty conditions, slightly dampen surfaces when water is available.
4. Conserve water by using blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches, and gardens.
5. Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away.
6. After using blowers or other equipment, don't forget to clean up. Dispose of debris properly.

Lithium Battery Care and Maintenance

Top 3 Battery Care Requirements

1. Charge battery before first use. The battery may arrive with some charge, regardless of this the battery must be charged for 90 minutes on the initial charge and 90 minutes for each subsequent charge.
2. Charge battery immediately when it is depleted. Do not store a depleted battery. This will permanently impact the life of the battery. If the battery is going to be stored for a period of time, fully charge the battery before storing.
3. Disconnect battery when not in use. To prolong the life of a battery, disconnect it from the unit when not in use. Disconnect chargers from the battery once charged.

To ensure the battery maintains optimum performance, follow the guidelines outlined below.

• For best results, charge batteries in temperatures between 10^ and 30^
• When battery is charged, disconnect the charger from the power supply and remove the battery from the charger.
• If a battery is stored or otherwise unused for an extended period, and the battery has no charge remaining when you check it, consider it to be damaged. Do not attempt to recharge it or to use it. Replace it with a new battery.
  • Use only with the battery charger specified by the manufacturer.
• Ensure that the battery charger electrical cord is not subjected to damage or stress. Do not operate the battery charger if it has a damaged electrical cord or plug.
• Do not use the charger in wet areas or expose it to rain or water.
• The typical estimated life of a Lithium-Ion battery is about two to three years or 300 to 500 charge cycles, whichever occurs first. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again
• Explosion hazard – protect the battery against heat, for example, direct sunlight and fire. Do not store batteries in vehicles or locations subject to heat.
• Batteries can explode in the presence of an ignition source, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. Exploding batteries can propel debris and chemicals.
• Do not open the battery – danger of short-circuiting and/or explosion.
• Do not attempt to destroy or disassemble the battery pack or remove any of its components.
• Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or personal injury may result.
• Explosion hazard – do not open and/or short-circuit the battery.
• Poison hazard – battery leakage (liquid ejection). Under extreme conditions, liquid may be ejected from the battery – avoid contact. If contact accidentally occurs, immediately seek medical attention, and flush with water. If liquid contacts eyes, immediately seek medical attention, flush with clean water for at least 10 minutes. Liquid ejected from the battery may cause irritation or burns.
• Dispose of non-serviceable batteries in an environmentally responsible manner and according to local regulations.

Failure to adhere to the requirements above may result in the battery becoming inoperative or battery life being reduced. In extreme cases or abuse, battery overheating, or fire may result.

DANGER - CHARGING THE BATTERY

Like mobile phones, laptops, cordless vacuum cleaners etc., this product contains a lithium-ion battery pack. Lithium-ion batteries allow fast charging and high capacities, however care must be taken to reduce chances of a fault and increase safety in case a fault occurs. Catastrophic faults with larger lithium-ion batteries have a tendency to result in large amounts of smoke and fire. Be sure to follow the points below to reduce the likelihood of danger while charging.

• Never charge a battery that has been damaged or subjected to a forceful impact.
• Never charge a battery that has been exposed to moisture or water.
• Never charge a battery with a charger that wasn't supplied with the battery.
• Never use a battery in a device that it wasn't specifically designed for.
• Never use a battery with a modified or damaged device.
• Never modify the battery, product, charger, circuitry, or wiring.
• Never charge a battery when the battery or charger is displaying a problem or charging incorrectly.
  • Always charge batteries on a non-combustible surface, for example, on a concrete floor.

- Never charge a battery in an exit path that may be used by people to leave a room or building in case of an emergency, for example, the hallway or foyer of a residence.

- Never charge a battery in an area or building that doesn't have the recommended number of working smoke detectors that have been tested in accordance with local guidelines.

- Always charge batteries at least 3m away from anything combustible, such as floors, wall surfaces, furniture, storage shelves etc.

- Always charge batteries in an open area (outside if possible) ensuring the battery and charger are away from moisture and water.

- Always ensure batteries are charged under adult supervision. Do not charge batteries while no one is home or while people are sleeping.

Maintenance

WARNING! Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken, or destroy plastic which may result in serious personal injury. When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. To avoid serious personal injury, always remove the battery pack from the tool when cleaning or performing any maintenance.

General Maintenance

• Before each use, inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc.
• Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced.
• Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.
  • Use clean clothes to remove dirt, dust, oil, grease, etc.
• Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at an authorised service centre.

Battery Pack Removal and Preparation for Recycling

Contact the manufacturer for replacement parts and accessories.

WARNING! Upon removal, cover the battery packs terminals with heavy-duty adhesive tape. Do not attempt to destroy or disassemble battery pack or remove any of its components. Lithiumion and nickel-cadmium batteries must be recycled or disposed of properly. Also, never touch both terminals with metal objects and/or body parts as short circuit may result. Keep away from children. Failure to comply with these warnings could result in fire and/or serious injury.

Storage

• Clean the blower thoroughly before storing. Store the garden blower in a dry, well-ventilated place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts.
• Store and charge your batteries in a cool area. Temperatures above or below normal room temperature will shorten battery pack life.
• Never store batteries in a discharged condition. Wait for battery pack to cool and fully charge immediately.
• All batteries gradually lose their charge. The higher the temperature, the quicker they lose their charge. If you store your unit for long periods of time without using it, recharge the batteries every month or two. This practice will prolong battery pack life.
  • Storage of the charger and battery:
• For long-term storage, it is preferable that the battery is fully charged and stored in a dry place at a temperature between 10-25°C.
• The charger should be stored in the same conditions as the battery. Take care that no foreign objects such as metallic chips can enter through the ventilation slots of the charger.

CAUTION! Use only the supplied charger and batteries from the manufacturer.

Specifications

Battery

40V 2Ah, Lithium-Ion

Fast Speed 210 km/h

Low Speed 77 km/h

Charger 240V

Charging Time 90 Min

Running Time 30 Min. by Low Speed, 8 Min. by Fast Speed

Power Plug Australian Standard

Note: Minimal Assembly required

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

edisons

.com.au

©2023 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
