USER MANUAL BVX250 Baumr-AG

[Revision 5.0 May 2022]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add adequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Petrol Powered Blower/Vacuum Safety

• Inspect the unit before use. Replace any missing or damaged parts.
• Check for fuel leaks. Make sure all fasteners are in place and secure. Replace parts that are cracked, chipped, or damaged in any way. Do not operate the unit with loose or damaged parts.
• Carefully inspect the area before starting the unit. Remove all debris and hard or sharp objects such as glass, wire, etc.
• Be aware of the risk of injury to the head, hands, and feet.
• Clear the area of children, bystanders, and pets at a minimum, keep all children, bystanders, and pets outside of a 50-foot (15 m) radius; there still may be a risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the unit immediately.
• Use only original equipment manufacturer replacement parts.
• Squeeze the throttle control and check that it returns automatically to the idle position. Make all adjustments or repairs before using unit.
• Do not operate this unit when tired, ill, or under the influence of alcohol, drugs, or medications.
• This unit is intended for adult use only. Do not allow children or untrained individuals to use the unit.
• Familiarize yourself with the controls and proper use of your unit prior to using.

During Operation

• Never start or run the unit inside a closed room or building. Breathing exhaust fumes can be fatal. Operate this unit only in a well-ventilated outdoor area.
• Use the unit only in daylight or good artificial light.
• Avoid accidental starting. Be in the starting position whenever pulling the starter rope. The operator and unit must be in a stable position while starting.
• Only use this tool for its intended purpose.
• Do not overreach. Always keep proper footing and balance.
• Always hold the unit with both hands when operating. Keep a firm grip on handle or grips.
• Keep hands, face, and feet at a distance from all moving parts.
• Do not touch the engine or muffler. These parts get extremely hot from operation, even after the unit is turned off.
• Do not operate the engine faster than the speed needed to blow, or vacuum.
• Do not operate the unit with loose or damaged parts. Stop the unit, switch the engine to off, and disconnect the spark plug for maintenance or repair.
• Use only original equipment manufacturer replacement parts and accessories for this unit. These are available from your authorized service dealer. Use of any unauthorised parts or accessories could lead to serious injury to the user, or damage to the unit, and void your warranty.
• Keep unit clean of vegetation and other materials.
• To reduce fire hazard, replace faulty muffler and spark arrestor. Keep the engine and muffler free from grass, leaves, excessive grease, or carbon build up.

Other Safety Warnings

• Allow the engine to cool before storing or transporting.
• Store the unit in a dry area, locked up or up high to prevent unauthorized use or damage, out of the reach of children.
• Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean, and free from debris. Clean after each use, see Cleaning and Storage instructions.
• Keep these instructions. Refer to them often and use them to instruct other users. If you loan someone this unit, also loan them these instructions.

Specific Rules for Blower/Vacuums

• Do not use the machine to pick up humid material, water, liquids, pieces of glass, iron, stones, or tin cans, this could be extremely dangerous for you and the machine.
• Do not use the machine to pick up hot embers or material which is burning, smoking, or smouldering. Do not use the machine to pick up lit cigarettes. Do not use the machine to pick up material which has been contaminated by flammable or explosive materials. Do not suck in highly flammable fumes. Always check that the material picked up by your machine is not flammable, toxic, or explosive.
• Do not use the vacuum mode without the dust bag in place.
  • Always keep the area to be cleaned free from wires, stones, debris, tin cans, and other obstacles.
• Avoid colliding with hard objects which could damage your machine.
• Keep bystanders and animals at least 5m away from the working area.
• Do not manually insert objects into the blower/vacuum tube.
• Do not insert your hands and fingers into the vacuum opening or exhaust opening.
• Hold the machine firmly in both hands when working with it.
• The machine must not be used by anyone under the age of 16.

DANGER

Using an engine or wood/charcoal/gas fuelled appliance indoors CAN KILL YOU IN MINUTES. Engine exhaust and wood/charcoal/gas fumes contain carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a building, home, garage, boat, caravan or tent EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

Avoid other hazards - READ MANUAL BEFORE USE.

GENERAL:

• Do not operate in a hazardous location. Such areas include where there is a risk of explosion of petrol fumes, leaking gas or explosive dusts.
• Do not operate in a confined area where exhaust gases or wood/charcoal/gas fumes could reach dangerous concentrations.

PRODUCTS FEATURING AN ENGINE

- Follow all warnings in the section titled "GENERAL".

• Explosion hazard - never smoke while refuelling.
  • Take care not to spill fuel. When refuelling the engine, ensure that the engine has been allowed to cool. Prevent spilling of fuel as this may also ignite with a hot engine.
• Never refuel while engine is running.

GENERATORS

• Follow all warnings in the sections titled "GENERAL" and "PRODUCTS FEATURING AN ENGINE".
• The output of this generator is potentially lethal. The generator should not be connected to a fixed electrical installation except by an appropriately licensed person.
• Not weatherproof – protect your machine. This machine is not weatherproof and should not be exposed to direct sunlight, high ambient temperature, damp conditions, wet conditions or high humidity conditions.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines.Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator.Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.

Table of Contents

Safety....2

Safety Symbols 5

Parts Identification....8

Assembly 9

Connecting the Vacuum/Mulch Nozzles....9

Connecting the Vacuum....11

Operation 13

Starting....13

Stopping 16

Blower Mode 16

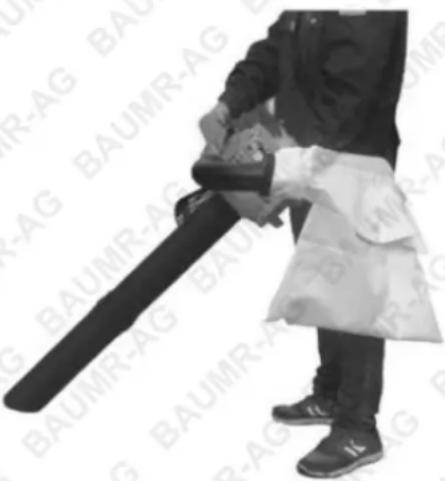

Vacuum Mode 16

Oil and Fuel Mixing Instructions ....16

Engine Adjustments ...... 17

Maintenance 18

Maintenance Schedule....18

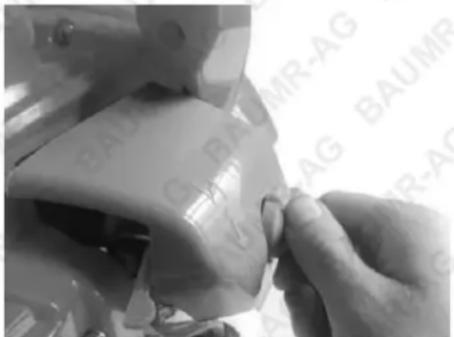

Checking the Air Filter 18

Checking the Spark Plug....19

Checking the Fuel Filter....19

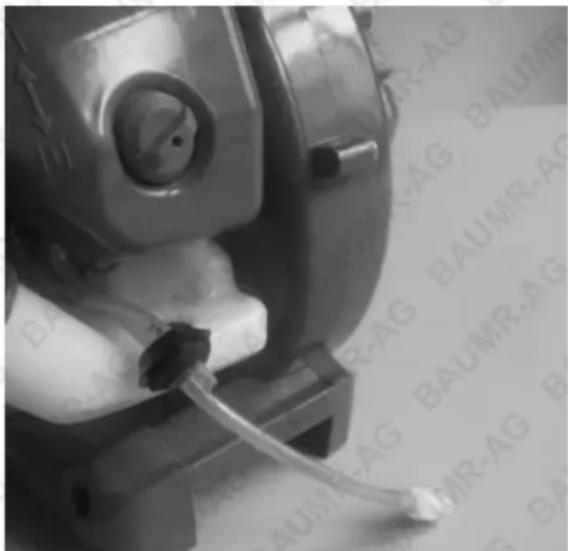

Lubrication....19

Cleaning, Storage and Transporting 20

Cleaning....20

Storage....20

Long Term Storage ....20

Transporting....20

Specifications....21

Parts Identification

1 2 3 4 5 6

7 8 9

10 11 12 13 14 15

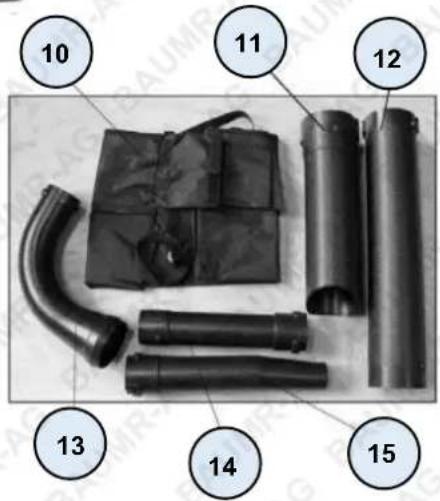

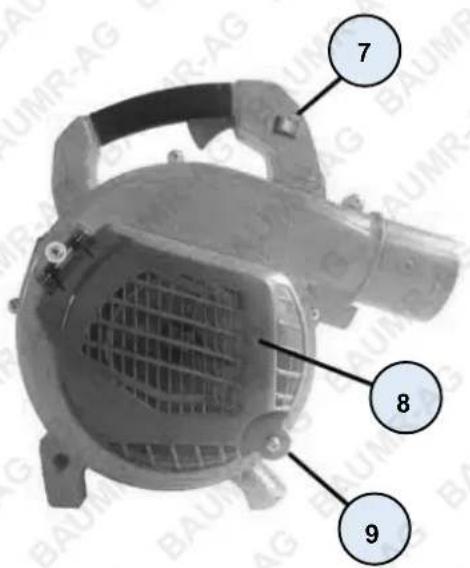

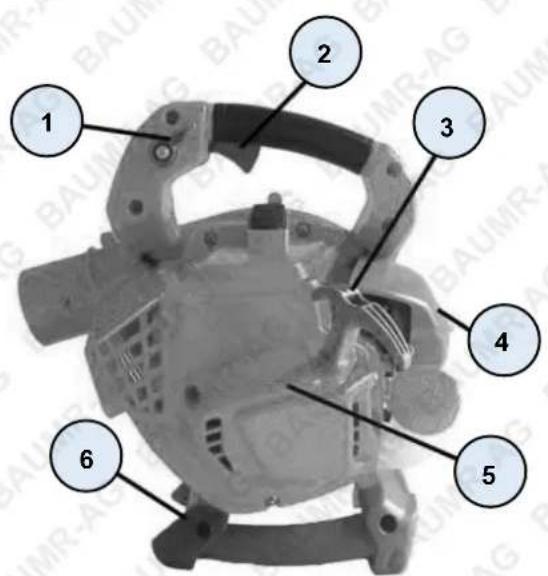

No.	Name	No.	Name
1	Throttle lock	9	Cage-locking screw
2	Throttle control	10	Mulch collection bag
3	Starter rope handle	11	Vacuum/Mulch nozzle
4	Air cleaner cover	12	Vacuum/Mulch nozzle extension
5	Engine cover	13	Mulch collection bag adapter
6	Auxiliary handle	14	Blower nozzle
7	ON/OFF switch	15	Blower nozzle extension
8 Cage

Spare parts available for purchase, scan QR code below:

QR code image containing encoded data, no visible human-readable text

Assembly

Two red Bäumr-AG electric shaver and a black Bäumr-AG bag, displayed against a white background with repeated 'BAUMR-AG' text (no other signage or symbols visible)

VACUUM CONFIGURATION
NOTE: Place the unit on the ground or on a work bench to make attachment installation or removal easier.

Connecting the Vacuum/Mulch Nozzles

1. Line up the stud with the L groove as shown (Fig.3).

Close-up of hands holding a black mechanical component with two yellow arrows pointing to features (no visible text or symbols)

Figure 3

2-Stroke Petrol Powered Blower/Vacuum - BVX250

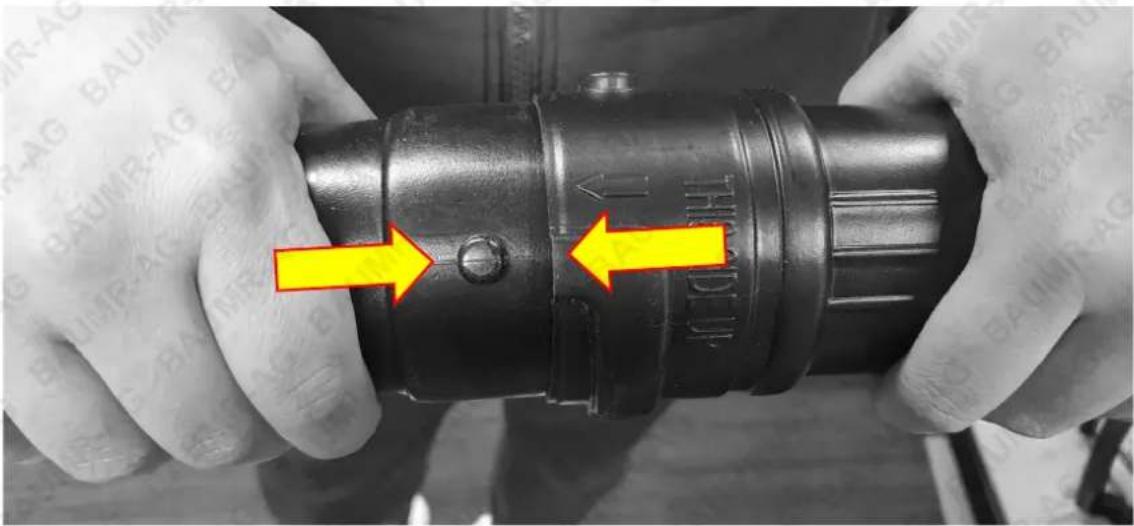

1. Push the stud into the L groove (Fig. 4).

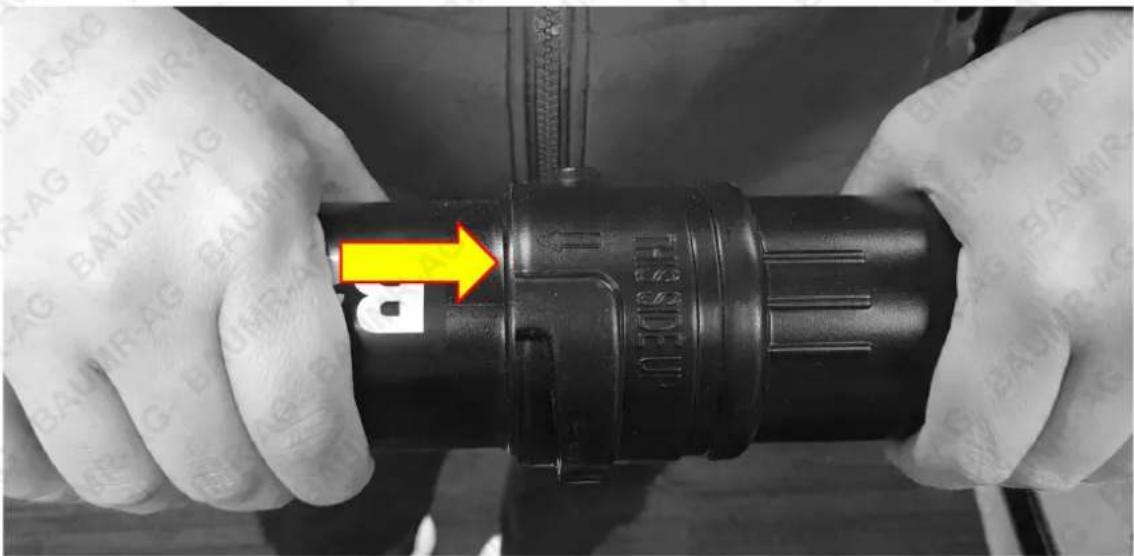

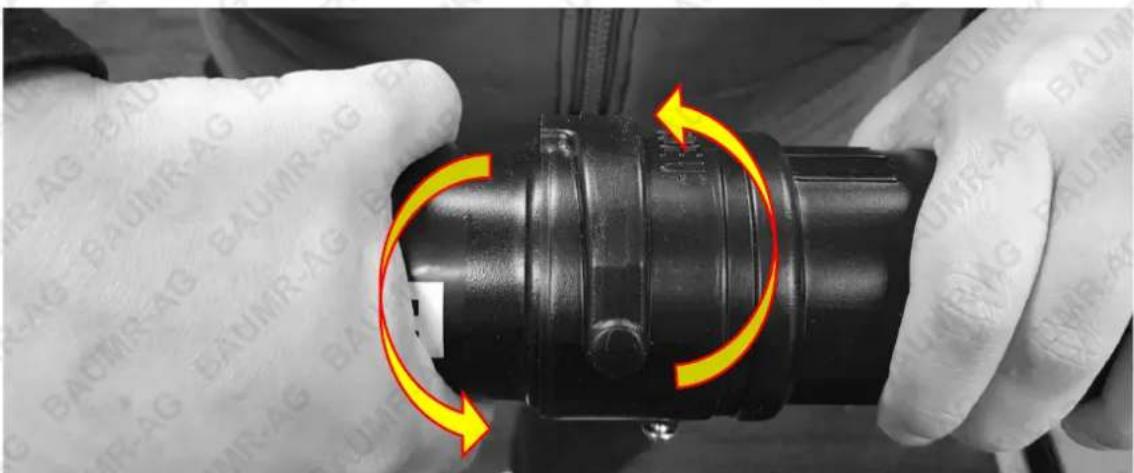

1. Twist both halves in opposite directions until you feel it click into place, some force will be required (Fig.5).

Close-up of gloved hands holding a black mechanical component with yellow circular arrows indicating rotation or adjustment (no text or symbols visible)

Figure 5

Connecting the Vacuum

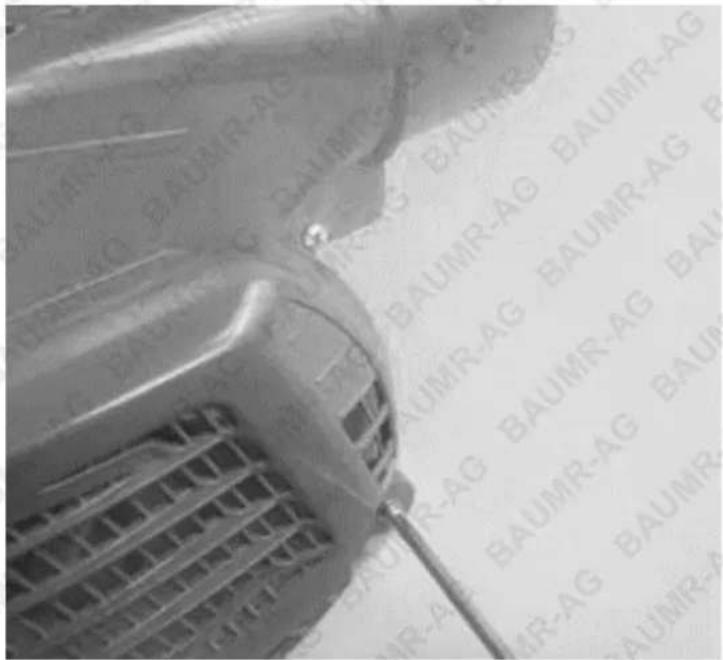

1. Loosen the Cage Screw and pull down the Cage (Fig.6).

Close-up of a car hood with visible 'BAUMR-AG' branding on the back panel, likely from a vehicle or industrial setting.

Fig 6

1. Install vacuum attachments in sequence as shown, aligning the grooves on the nozzles with the pegs. Slide the nozzles clockwise onto the pegs, Tighten the screw in place to secure (Fig.7).

Screw

Fig 7

1. Rotate the connector pipe clockwise to lock, the arrowhead on the connector pipe should be on the same line with the case. Tighten the screw in place to secure (Fig.8).

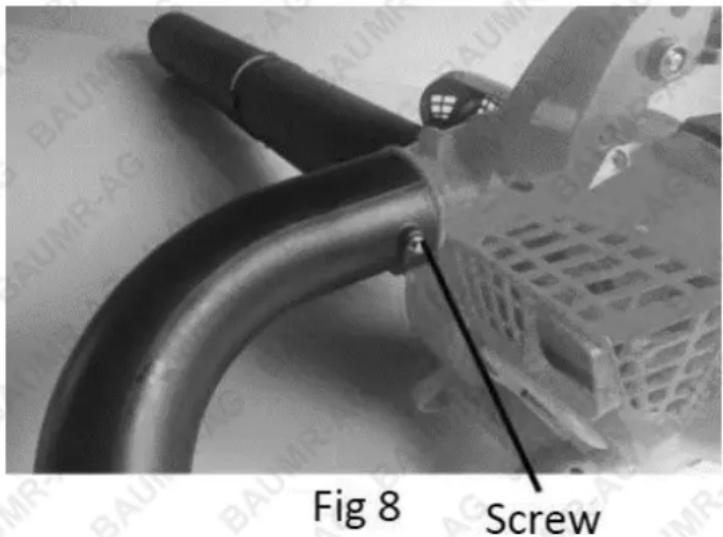

Fig 8 Screw

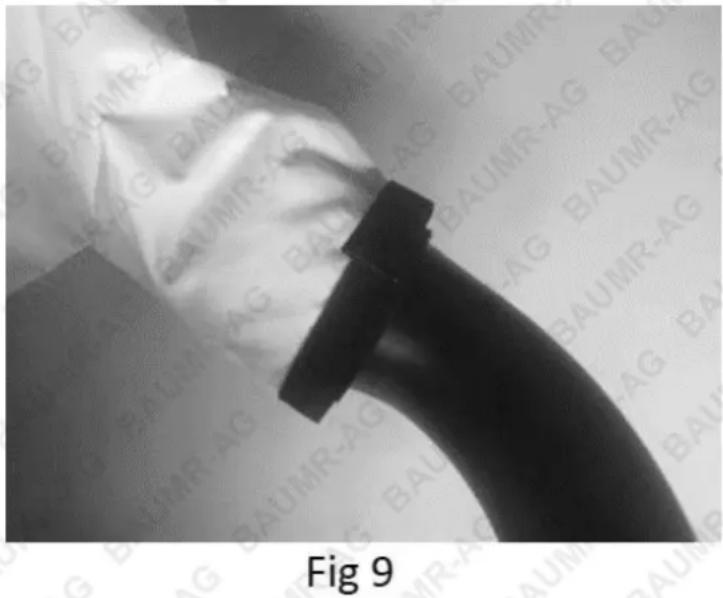

1. Insert the connector pipe into the side opening of the vacuum bag. Wrap the Velcro strap around the bag and pipe to secure the bag in place. Place the shoulder strap over your left shoulder and adjust the Shoulder Strap Adjustment as necessary (Fig.9).

Close-up of a black plastic object with a white cloth background, labeled 'Fig 9' at bottom (no other text or symbols visible)

Operation

Starting

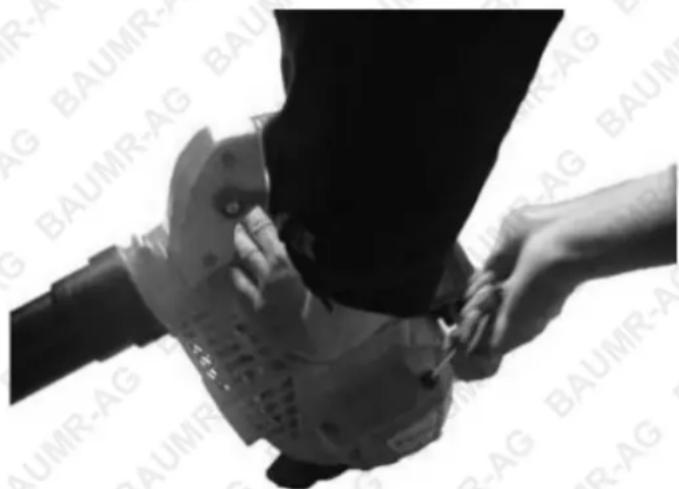

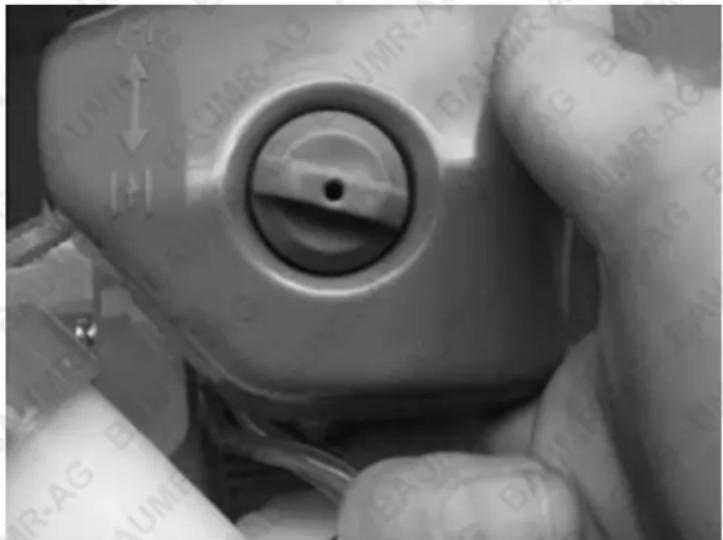

1. Fill the fuel tank with the amount of fuel/oil mixture needed for the job.

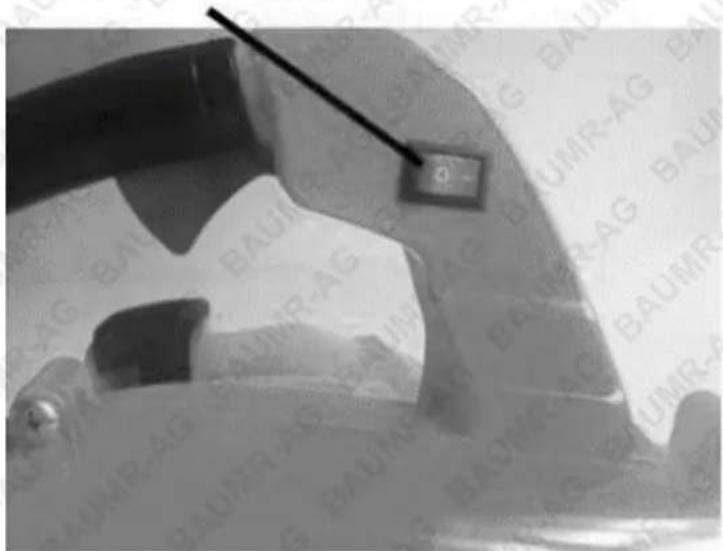

2. Turn switch to the ON position ("I"), (Fig.10).

ON/OFF switch

Close-up of a mechanical component with a black arrow pointing to a small square feature, no visible text or symbols.

Fig 10

1. (ONLY FOR COLD ENGINE START) Pull the choke to the fully extended position so that the choke is closed (Fig.11).

Close

Fig 11

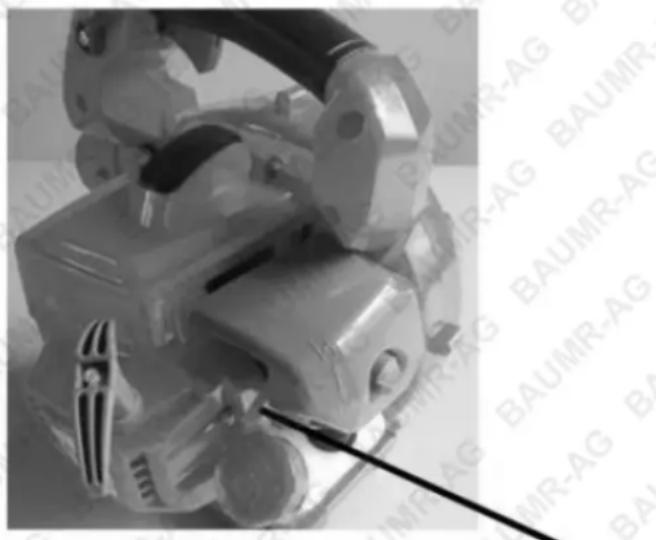

1. Press and release the primer bulb 7-10 times until it is full of fuel (Fig.12).

Close-up of a hand holding a small mechanical component with a circular dial (no visible text or symbols)

Fig 12

1. Place the unit firmly on the ground or on a very sturdy work surface. Make sure all bystanders are a minimum of 50 feet (15m) away. Do not attempt to start near pilot lights or any open flame. Do not smoke.

Grasp the Starter Rope with one hand and press the engine cover with the other, pull the starter rope slowly until you feel the engine engage and then start the machine by pulling the starter rope upwards briskly.

The unit should start within 5 pulls, then make the choke full open (Fig.13). Once warm, the engine should start on the first pull. If it fails to start, re-prime the bulb and ensure the choke lever is in the correct position (Fig.14).

Close-up of hands operating a robotic device with a small tool, no visible text or symbols

Fig 13

Close-up of a mechanical device with a tool inserted, no visible text or symbols on the device itself.

Fig 14

Full open

1. Squeeze the throttle control slightly to warm up the engine for 15 to 30 seconds. In cold weather, move the throttle slowly until the engine warms up for 30 to 60 seconds.

NOTE: When starting the engine in hot or cold conditions it may be necessary to squeeze the throttle open while pulling the starter rope.

When the Engine Starts:

For maximum performance and operating life, allow the engine to warm-up before use.

1. Run the engine for 2-3 minutes at idle speed until the operating temperature is reached.
2. As the engine warms-up, open the choke gradually by slowly pushing the choke control into the fully retracted position.
3. The engine should now be ready for use.

If the Engine Does Not Start:

Repeat the appropriate starting procedures. If the engine still will not start, follow the Starting a Flooded Engine instructions below.

Starting a Flooded Engine

1. Disconnect the spark plug lead and use the spark plug wrench to remove the spark plug in an anti-clockwise direction (Fig.15).

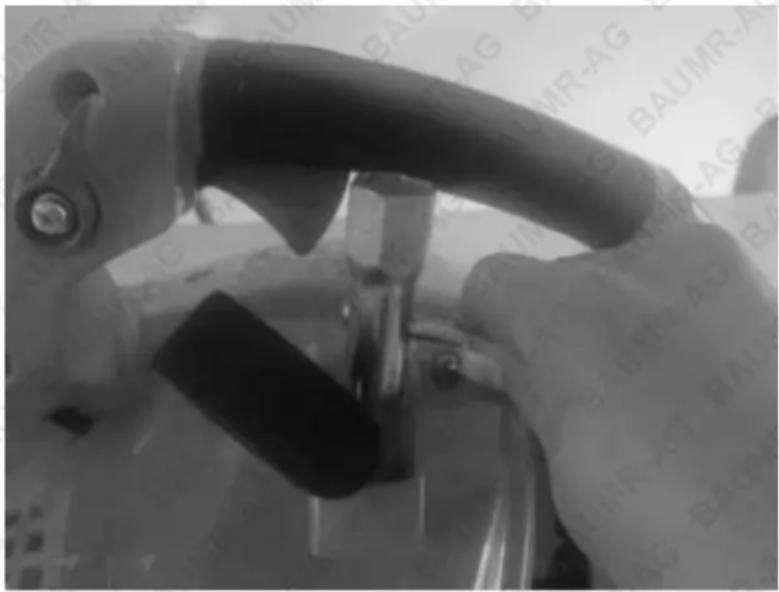

Close-up of a hand holding a black tool, possibly a manual or mechanical component (no visible text or symbols)

Fig 15

1. If the spark plug is fouled or is soaked with fuel, clean or replace the plug, as required.
2. Clear any excess fuel from the combustion chamber by cranking the engine several times while the spark plug is removed.
3. Install the spark plug and firmly tighten it with the spark plug wrench. If a torque wrench is available, torque the spark plug (16,7 - 18,6 Nm). Reconnect the spark plug lead.

WARNING! Incorrect spark plug installation can result in serious engine damage.

Stopping

1. Release your hand from the throttle control. Allow the engine to cool down by idling.
2. If your unit is equipped with a spring loaded ON/OFF switch, press, and hold the button to the "O" position until the unit stops. Otherwise, push the switch to the OFF position.

WARNING! If the engine continues to run with the ignition button in the "OFF" position, stop the engine by pulling the choke out to the fully closed position or opening the cage.

Blower Mode

Before operating the unit, check for the following: The operator is wearing proper clothing, eye, and ear protection. All blower attachments should be properly installed and secure.

1. Start the unit.
2. Direct the nozzle in the direction in which to blow (Fig.16).
3. Pull the throttle control.
4. Set the throttle lock at any desired speed by pushing the knob to the lock position. To adjust throttle speed, push the throttle lock to the off position, adjust, and relock the throttle control.

Vacuum Mode

Before operating the unit, check for the following: All vacuum attachments should be properly installed and secure. Make sure Mulch Collection Bag is not twisted or constricted in any way.

1. Start the unit.
2. Place collection bag strap over the left shoulder and adjust the strap as necessary (Fig.17).
3. Pull the trigger to start the vacuum.
4. Set the throttle lock at desired speed.
5. Empty the bag as necessary by removing it from unit and opening the zipper located at the top edge.

NOTE: Do not operate this unit with the cage side up or the handle side down. When operating the unit for collecting, if the

entrance of the collecting pipe is jammed with lots of leaves, do slow down the engine speed, and then make the pipe clean immediately, or else it will seriously damage your machine.

Person holding a small black smokestack, standing against a patterned background (no text or symbols visible)

Fig 16

Person holding a long black object, wearing a white protective bag (no visible text or symbols)

Fig 17

Oil and Fuel Mixing Instructions

1. Fuel used for this model is a mixture of unleaded fuel and approved 2-stroke oil. When mixing fuel with two-stroke engine oil, use only 90 octane or higher unleaded petrol known to be of good quality. This will help to avoid possible damage to engine fuel lines and other engine parts.

2. When preparing fuel mixture, mix only the amount needed for the job you are to do. Always use fresh fuel/oil mixture for optimum performance of your unit. Stale fuel mixture will lead to difficulty in starting your unit and poor performance. Do not use fuel that has been stored. Two-stroke fuel may separate. Shake fuel container thoroughly before each use.

3. Thoroughly mix the correct ratio of 2-stroke engine oil with unleaded petrol in a separate container.

4. Pour the mixture into the fuel tank of the unit. Be careful not to overfill the tank.
5. Replace the fuel cap.

WARNING! Failure to follow proper fuel mixing instructions may cause damage to the engine. Do not smoke while filling the tank. Never operate this machine without the fuel cap securely in place. Do not mix fuel and oil directly into the engine fuel tank of the unit. Never fill the fuel tank to the very top. Never add fuel to the tank in a closed non-ventilated area. Keep sparks and open flames at a distance from the work area. Be sure to wipe off spilled fuel before attempting to start the engine. Do not attempt to refuel a hot engine.

Engine Adjustments

The idle speed of the engine is adjustable. An idle adjustment screw is on the rear side of the carburettor, you could adjust the idle speed of the engine with a socket spanner through the hole of the engine cover (Fig.18).

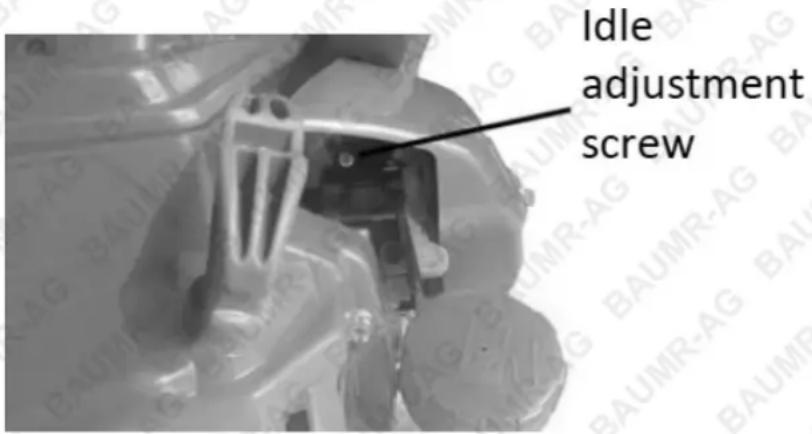

Idle adjustment screw

Fig 18

NOTE: Careless adjustments can seriously damage your unit. An authorised service dealer should be the only one to make carburettor adjustments.

Adjusting the Engine Idle Speed

IMPORTANT! The machine pipes and air vent cover must be installed while adjusting the engine idle speed. The Engine idle speed will also be affected if either the air vent cover or machine are blocked, damaged, or incorrectly installed.

If, after checking the fuel and cleaning the air filter, the engine still will not idle, adjust the idle speed screw as follows:

1. Start the engine and let it run at a high idle for a minute to warm up. Refer to Starting.
2. Release the throttle trigger and let the engine idle. If the engine stops, use a small Philips or at blade to turn the idle speed screw in, clockwise, 1/8 of a turn at a time (as needed) until the engine idles smoothly (Fig.18).

NOTE: Checking the fuel, cleaning the air filter, and adjusting the idle speed should solve most engine problems. If not and all the following are true:

• The engine will not idle.
• The engine hesitates or stalls on acceleration.

• There is a loss of engine power.

Check the spark plug for proper gap and condition. If problem still occurs, have the carburettor adjusted by an authorised service dealer.

Maintenance

Some maintenance procedures may require special tools or skills. If you are unsure about these procedures, take your unit to an authorised service dealer. Never do maintenance or repairs with running. Always do maintenance and repairs on a cool unit. Disconnect the spark plug wire to the unit will not start.

Maintenance Schedule

Frequency Maintenance Required
Daily	Remove dirt and debris from the blower exterior.Inspect the engine, tank, and hoses for possible leaks, and repair, as needed.Inspect the engine cooling fins for accumulation of dirt or debris, and clean, as necessary.Inspect the entire blower for damage, loose or missing components or fastenings, and repair, as needed.
Every 5 hours	Clean and re-oil the air filter.
Every 10/15 hours	Check spark plug condition and gap.
Every 50 hours	Inspect the entire blower and tubes for damage, including loose or missing components, and repair, as needed.Check spark plug condition and gap.Check fuel filter.
Periodically	Clean the spark arrestor screen.

Checking the Air Filter

This should be done more frequently in dusty/dirty conditions.

1. Accumulated dust in the air filter will reduce engine efficiency, increase fuel consumption, and allow abrasive particles to pass into the engine. Remove the air filter as often as necessary to maintain it.
2. Light dust coatings on the surface can easily be removed by gently tapping the filter.
3. Heavy deposits should be washed out with a suitable solvent.
4. Remove the filter cover by pressing the part of the inside cover, as shown in Fig.20.

Close-up of a hand adjusting a white plastic component with visible adhesive (no text or symbols)

Fig 19

Close-up of a black plastic component with a circular hole and internal grid pattern (no text or symbols visible)

Fig 20

Checking the Spark Plug

1. Use the spark plug wrench to remove the spark plug (turn anti-clockwise to remove) (Fig.15).
2. Clean and adjust the spark plug gap to 0.6-0.7mm (Fig.21). Replace any damaged or visibly warn spark plug.
3. Install the spark plug in the cylinder head, and then tighten it firmly with the spark plug wrench. If a torque wrench is available, torque the spark plug to 148-165 inch/pounds (16,7 - 18,6 Nm).

Close-up of a spark plug with threaded end and metallic body (no visible text or symbols)

Fig 21

WARNING! Never allow dirt or debris to enter the cylinder bore. Before removing the spark plug, thoroughly clean the spark plug and cylinder head area. Allow the engine to cool before ing the spark plug. Incorrect spark plug installation can result in serious engine damage.

Checking the Fuel Filter

1. The fuel tank is fitted with a filter. The filter is situated at the free end of the fuel pipe and can be picked out. (Fig.22).
2. Check the fuel filter periodically. Do not allow dust to enter the fuel tank. A clogged filter will cause difficulty in starting the engine or abnormalities in engine performance.
3. When the filter is dirty, replace the filter.
4. When the inside of the fuel tank is dirty, it can be cleaned by rinsing the tank out with petrol.

Lubrication

1. Remove the spark plug.

2. Pour approximately 7ml of oil into the cylinder through the spark plug hole.

3. Before reinstalling the spark plug, pull the recoil starter 2 or 3 times to distribute the oil over the cylinder walls.

Close-up of a mechanical device with attached cable and circular components, no visible text or symbols

Fig 22

Cleaning, Storage and Transporting

Cleaning

• Use a small soft brush to clean the outside of the unit. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic housing or handle. Wipe off any moisture with a soft cloth.
• Empty the vacuum bag. Turn it inside out and shake off any excess debris. Hand wash the empty vacuum bag annually with soapy water and allow to air dry.

Storage

• Never store the unit with fuel in the tank.
• Allow the engine to cool before storing.
• Lock up the unit to prevent unauthorised use or damage.
• Store the unit in a dry, well-ventilated area.
  • Store unit out of reach of children.

Long Term Storage

Should the unit be stored for an extended time, use the following storage procedure:

1. Drain all fuel from the fuel tank. Do not store mixed fuel for more than 60 days.
2. Start the engine and allow it to run until it stalls. This ensures that all the fuel has been drained from the carburettor.
3. Allow the engine to cool.
4. Thoroughly clean the unit and inspect for any loose or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts, or bolts. The unit is ready for storage.

Transporting

• Allow the engine to cool before transporting.
• Secure the unit while transporting.
• Tighten the fuel cap before transporting.

Specifications

Type	2 Stroke blower vacuum
Emission	Euro V
Displacement	24CC / 1HP
Max. Engine Performance	0.65kw/8000r/min
Idle Speed (RPM)	3200±320
Maximum Engine Speed (RPM)	8000±500
Operating Noise Level(7m) dB(A)	103dB(A)
Carburettor Type	Diaphragm
Fuel consumption(g/kWh)	≤600
Oil	2 stroke lube oil (L-EQ)
Oil Capacity	50:1 Gasoline and oil mixing ratio 50:1
Ignition System	CDI (Capacitor discharge ignition)
Starting System	Recoil and hand -operated
Average Air Volume (m3/s)	0.13
Dissection of distance	≥8m
Overall Dimension(mm)	585×295×395
Gross Weight (Kg)	6.9kg
Net Weight(kg) BLOWER	4.1kg
Vacuum Bag	50L
vacuum bag comes with zip	YES
Fuel Type	90 octane or higher unleaded petrol known to be of good quality
Fuel Capacity(L)	0.45L
Blowing Capacity(km/hr.)	320
Air Volume (CFM)	310
Engine Oil Type	Not necessary
Engine oil volume (L)	Not necessary
Noise Level	103dB(A)

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

■ The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business or employee, or financially affect the user, business or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

Bäumr-AG®.com.au

©2022 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
