MX7 - Bike Valk - Free user manual and instructions
Find the device manual for free MX7 Valk in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Brand | Valk |
| Model | MX7 |
| Product Type | Bicycle |
| Category | Mountain Bike |
| Frame Material | Aluminum |
| Wheel Size | 27.5 inches |
| Number of Speeds | 21 speeds |
| Brake Type | Disc brakes |
| Weight | 13.5 kg (29.8 lbs) |
| Dimensions (L x H) | 180 x 100 cm (71 x 39 in) |
| Suspension | Front suspension (80mm travel) |
| Recommended Rider Height | 160-185 cm (5'3" - 6'1") |
| Maximum Load Capacity | 120 kg (265 lbs) |
| Tire Size | 27.5 x 2.1 inches |
| Gear Shifters | Shimano Tourney, 3x7 |
| Pedal Type | Platform pedals with reflectors |
| Accessories Included | Bell, reflectors, kickstand |
| Power Source | No power source (manual) |
| Maintenance Required | Regular cleaning, chain lubrication, brake adjustment |
| Safety Features | Reflectors, bell, braking system |
| Spare Parts Availability | Standard bike parts (Shimano compatible) |
| Warranty | 1 year (frame and components) |
Frequently Asked Questions - MX7 Valk
How do I adjust the saddle height on my Valk MX7?
Loosen the seatpost clamp using the quick-release lever or Allen key. Adjust the saddle to hip height when standing next to the bike, then tighten the clamp securely.
What tire pressure is recommended for the 27.5-inch tires?
For typical riding, inflate tires to 30-50 psi (2-3.5 bar). Check sidewall for max pressure. Adjust based on rider weight and terrain.
How do I shift gears on the MX7?
Use the left shifter for the front derailleur (3 gears) and the right shifter for the rear (7 gears). Pedal lightly while shifting to ensure smooth changes.
How do I clean and lubricate the chain?
Clean the chain with a degreaser and a brush, then wipe dry. Apply a bicycle-specific lubricant to each link, and wipe off excess to prevent dirt buildup.

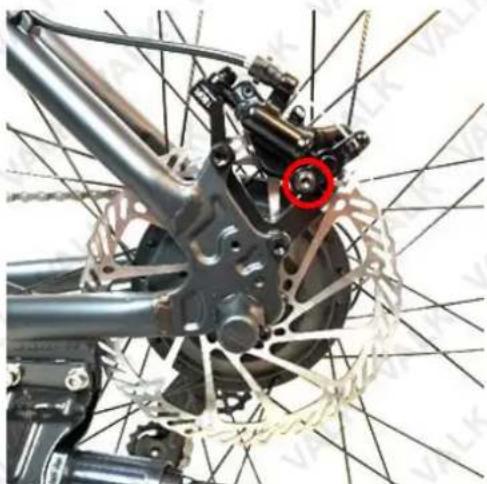

What should I do if the brakes are making noise?
Squeaking disc brakes can be caused by contamination. Clean the rotor with isopropyl alcohol and sand the pads lightly. If noise persists, replace the pads.
Is the bike fully assembled upon delivery?
The bike is partially assembled. You will need to attach the front wheel, handlebars, pedals, and saddle. A basic tool kit is usually included.
What is the maximum weight limit for the Valk MX7?
The maximum load capacity, including rider and cargo, is 120 kg (265 lbs). Exceeding this can damage the frame or components.

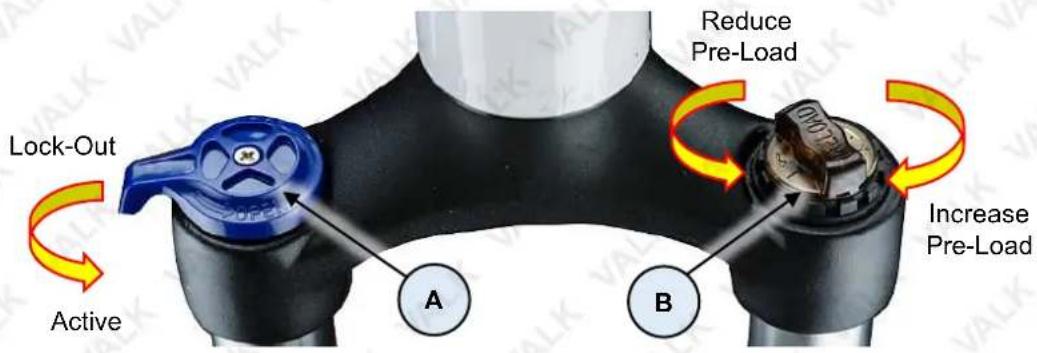

How do I adjust the front suspension?
The front fork has a preload adjuster. Turn clockwise for stiffer suspension, counterclockwise for softer. Set it based on your weight and terrain.
Can I add a child seat or trailer?
It is not recommended due to frame design. For child transport, use a dedicated child seat compatible with the frame, but check local regulations and weight limits.
How do I register my warranty?
Register your Valk MX7 online at the Valk website within 30 days of purchase. You will need the model number and purchase receipt.
