VC-B20U - Video Conferencing System Lumens - Free user manual and instructions

Type	Video Conferencing System
Brand	Lumens
Model	VC-B20U
Dimensions (L x W x H)	267.69 x 123 x 155.60 mm
Weight	1.3 kg
Power Supply	External power adapter included
Video Resolution	Up to 1080p @ 60fps (USB 3.0)
Lens	F2.8 super fine lens, 10x optical zoom
Connectivity	USB 3.0, RS232, IR
Remote Control	Included
Pan/Tilt	Yes, with remote and VISCA control
Preset Positions	Up to 10 via remote, up to 127 via VISCA
Backlight Compensation	Yes
Supported Systems	Windows 7+, Mac OS X 10.8+, Chrome OS
Package Contents	Camera, power adapter, power cord, remote control, USB 3.0 cable
Cleaning	Unplug all cables, use a damp cloth
Safety	Do not expose to rain or moisture; professional installation recommended

Frequently Asked Questions - VC-B20U Lumens

How do I connect the VC-B20U to my computer?

Use the included USB 3.0 cable to connect the camera's USB 3.0 connector to a USB 3.0 port on your computer. For optimal performance, ensure your system meets the requirements (Windows 7+, Mac OS X 10.8+, or Chrome OS).

Why is there no image from the camera?

First, check that the power cable is connected and the camera is turned on (green LED). Ensure your display supports the output resolution (default 1080p). Try replacing the USB cable. If using USB 2.0, reduce resolution to 720p.

How do I save a camera preset position?

Using the remote control, press Preset followed by a digit (0-9) to save the current lens position. For up to 127 positions, use the VISCA command via RS232.

How do I clean the camera lens?

Unplug all cables before cleaning. Use a soft, damp cloth to wipe the exterior. Do not use liquid or aerosol cleaners. For the lens, use a lens cleaning cloth or blower.

What is the maximum resolution supported?

The camera supports up to 1920x1080 at 60 fps via USB 3.0 in YUV2 and MJPEG formats. Over USB 2.0, maximum resolution is 640x480 at 30 fps.

Can I use the camera with Mac?

Yes, the VC-B20U is compatible with Mac OS X 10.8 or above. If you experience flickering or freezing, set DIP switch 4 at the bottom of the camera to ON for Mac OS X 10.10 or below.

How do I adjust the focus?

Press AF on the remote for auto-focus. For manual focus, press MF and then use the Focus +/- buttons to adjust.

Why does the camera go into standby mode automatically?

The camera automatically enters standby mode 5 seconds after the video is turned off in your conferencing software. This saves power and protects privacy. It will wake up when video is turned on again.

How do I change the power frequency setting?

Use the DIP switches at the bottom of the camera. Set DIP 3 to ON for 60 Hz, OFF for 50 Hz. Refer to the manual for details.

What should I do if the remote control doesn't work?

Ensure the camera is connected to a computer and video software is running. Keep the camera away from direct sunlight and avoid interference from energy-saving bulbs or IR touch screens. If multiple cameras are used, operate only one remote at a time.

USER MANUAL VC-B20U Lumens

Installation Guide - English

[Important]

To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.MyLumens.com

Table of Contents

Copyright Information......2

Chapter 1 Safety Instructions .... 3

KCC Warning 5

Chapter 2 Package Contents......6

Chapter 3 Product Overview ...... 7

3.1 Overview....7
3.2 Description of LED indicator....8
3.3 System Requirements 8

Chapter 4 Instruction for Installation ...... 9

4.1 Preparation Before Installation 9
4.2 Instruction for installation....9
4.3 Connecting the device....12

Chapter 5 Setting Menu Description....14

5.1 Functions of remote control.... 14

Chapter 6 Descriptions of Major Functions....15

6.1 I would like to save the current lens position data.... 15
6.2 I would like to clear the saved position data....15
6.3 I would like to turn on the back light compensation function...... 15
6.4 I would like to adjust the shooting angle of the lens....15
6.5 I would like to zoom in/out images 16
6.6 I would like to adjust the focal length 16

Chapter 7 DIP Switch Setting....17

7.1 DIP SWITCH 17

Chapter 8 Troubleshooting....18

Appendix 1 Supported Resolutions....20

Copyrights © Lumens Digital Optics Inc. All rights reserved.

Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc.

Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product.

In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. The information in this file is subject to change without prior notice.

To fully explain or describe how this product should be used, this manual may refer to names of other products or companies without any intention of infringement.

Disclaimer of warranties: Lumens Digital Optics Inc. is neither responsible for any possible technological, editorial errors or omissions, nor responsible for any incidental or related damages arising from providing this file, using, or operating this product.

Please use the product following the safety instructions below:

1 Operation

1.1 Please use the product in the recommended operating environment.
1.2 Do not place the product in tilted position.
1.3 Do not place the product on an unstable trolley, stand or table.
1.4 Do not use this product near water or source of heat.
1.5 Use attachments only as recommended.
1.6 Use the type of power source indicated on this product. If you are not sure of the type of power available, consult your dealer or local electricity company for advice.
1.7 Always take the following precautions when handling the plug. Failure to do so may result in sparks or fire:

■ Ensure the plug is free of dust before inserting it into a socket.
■ Ensure that the plug is inserted into the socket securely.

1.8 Do not overload wall sockets, extension cords or multi-way plug boards to avoid potential risks.

1.9 Do not block slots and openings in the case of this product as poor ventilation may lead to overheating of this product.
1.10 Except as specifically instructed in this User Manual, do not attempt to open or remove covers by yourself. It may expose you to electric shock or other hazards. Refer all servicing to licensed service personnel.
1.11 Unplug this product from the outlet and refer servicing to licensed service personnel when the following situations happen:

■ If the power cords are damaged or frayed.
■ If liquid is spilled into the product or the product has been exposed to rain or water.

2 Installation

2.1 For security considerations, please make sure the standard hanging rack you bought is in line with UL or CE safety approbations and installed by technician personnel approved by agents.

3 Storage

3.1 Do not place the Product where the cord can be stepped on as this may result in fraying or damage to the lead or the plug.
3.2 Never push objects of any kind through cabinet slots. Never allow liquid of any kind to spill into the Product.
3.3 Unplug this product during thunderstorms or if it is not going to be used for an extended period.
3.4 Do not place this product or accessories on top of vibrating equipment or heated objects.

4 Cleaning

4.1 Unplug all the cables before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners.

5 Remote control (if the accessories are equipped with remote control)

5.1 Using an incorrect battery type in the remote control may result in breakdown. Follow local instructions on how to dispose of used batteries.

■ Precautions

Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

If HD Camera will not be used for an extended time, unplug it from the power socket.

Note

Risk of Electric Shock Please do not open it by yourself

Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to licensed service personnel.

This symbol indicates that this equipment may contain dangerous voltage which could cause electric shock

This symbol indicates that there are important operating and maintenance instructions in this User Manual with this unit.

■ FCC Warning

This HD Camera has been tested and found to comply with the limits for a Class A digital device, pursuant to Article 15-J of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation.

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of Industry Canada.

This product is intended for use in a commercial, industrial, or educational environment. It is not intended for residential use.

This is a Class A product. In a residential environment it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, reception room or hall.

■ KCC Warning

Chapter 2 Package Contents

VC-B20U

Black camera lens mounted on a flat base (no visible text or symbols)

Power Cord

Line drawing of a coiled electrical plug with two connectors (no text or symbols)

Appearance may vary depending on country/region

Instruction for installation

Power Adapter

Remote Control

USB cable (USB 3.0)

3.1 Overview

1. Camera lens	2. Power LED indicator
3. Standby LED indicator	4. Power input
5. Camera Control (RS232 IN)	6. USB 3.0 Connector

3.2 Description of LED indicator

3.2.1 Power :

3.2.1.1 No light: Power off
3.2.1.2 Orange light: In standby mode
3.2.1.3 Green light: In use

3.2.2 Standby:

3.2.2.1 No light: Power on
3.2.2.2 Orange light: Startup in progress or in standby mode; USB not connected
3.2.2.3 Green light: In standby mode, to connect USB
3.2.2.4 Flickering orange: Power off in progress

3.3 System Requirements

1. Windows System: Windows 7 or above
2. Chrome system
3. MAC System: Mac OS X 10.8 or above
   When connecting to MAC, please refer to Chapter 7 DIP Switch Setting, to modify DIP Switch

4.1 Preparation Before Installation

Installation and connection of HD camera requires special skills. To install by yourself, please follow necessary steps, ensure steady and tight installation of the device, and pay attention to your safety to avoid any accident.

4.1.1 Ensure the safety of the installation environment. Please do not install the device on unstable ceiling or in a place where the device is in danger of falling to avoid any accident.

4.1.2 Please check whether accessories in the box are complete or not. Please contact the supplier for any shortage, and make sure to keep the accessories in the box intact.

4.1.3 Please choose a proper place for installation of camera in advance. Please determine an installation place according to the following requirements.

4.1.1.1 Confirm the position for the object to be captured.

4.1.1.2 Confirm whether the camera is set at a proper distance from other light sources.

4.2 Instruction for installation

4.2.1 I would like to install camera on the desk

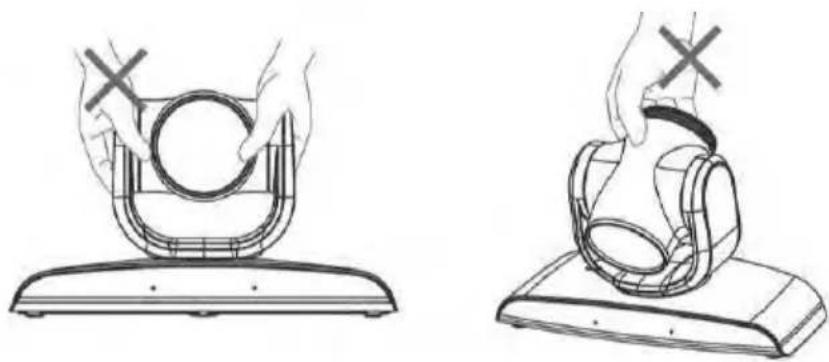

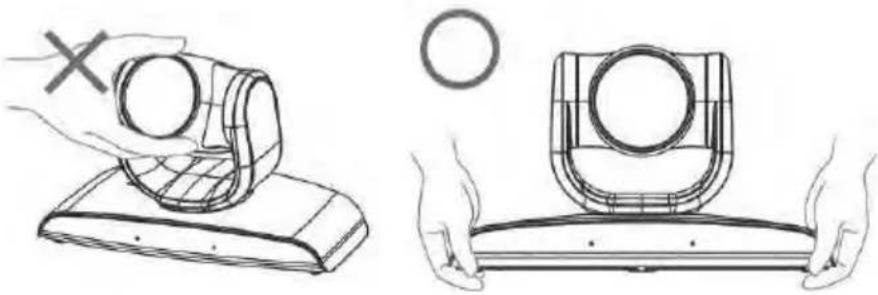

4.2.1.1 Precautions for installation

◆ Please install the machine on a flat desk
◆ Do not grab the camera head by hand when handling the device
◆ Do not rotate the camera head by hand. Improper rotation may result in breakdown of the camera

Illustration showing two hand-drawn views of a device with a cross mark and a circle, no text or symbols present.

4.2.1.2 Installation steps

1. Install the camera on the wall with VC-AC03

Illustration of a business meeting with people seated at a table facing a large screen displaying a group of people (no text or symbols visible)

For the installation of VC-AC03, please refer to VC-AC03 Quick Installation Guide

4.2.1.3 Camera size

Length x Width x Height : 267.69 x 123 x 155.60 mm Weight : 1.3 Kg

4.2.1.4 Precautions for installation

1. Before installation, please confirm the orientation of the machine relative to the object to be captured
2. It is recommended that the machine should be set at a distance of more than 1 meter away from the object to be captured.
   Please adjust for a best distance according to the magnification of the lens

4.3 Connecting the device

4.3.1 Image output

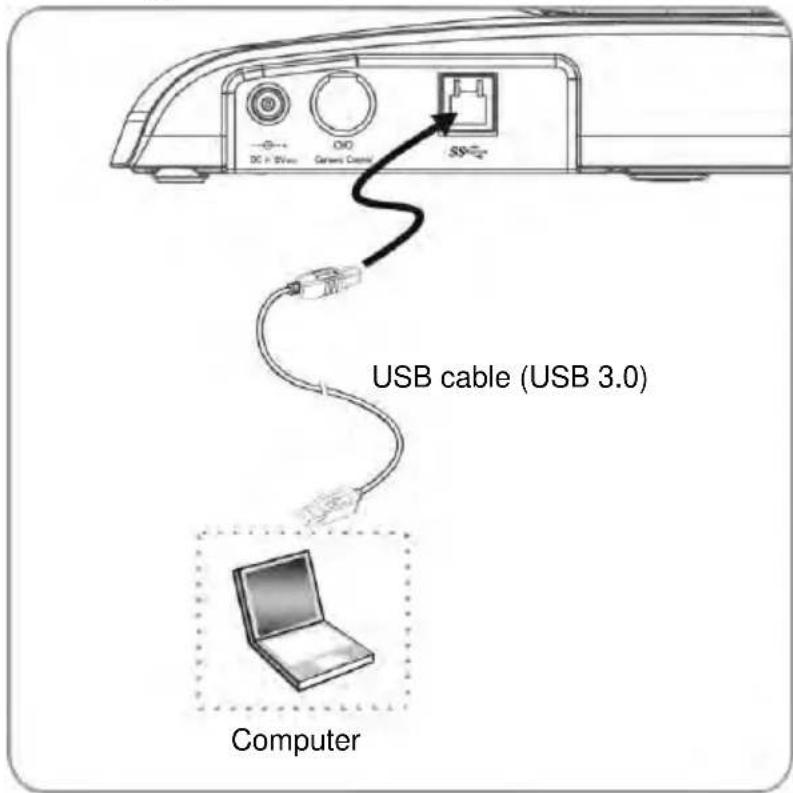

4.3.1.1 Connecting to a computer

4.3.2 Use Compact Camera Controller to control the camera

4.3.3 IR Out

IR Out includes IR Right and IR Left, use VISCA command to switch:

1. IR right and IR left ON
2. IR left OFF, IR right ON

3. IR left ON, IR right OFF

4. NA (no signal from IR receiver)

5.1 Functions of remote control

The below functions are listed alphabetically.

	Item	Description
	<,>,▲,▼	Move the lens
	Back Light	Turn on/off back light compensation
	Camera select	NA
	Focus-Manual / Far/Near	Turn on manual focus to adjust the focal length
	Focus-Auto	Auto focus
	Freeze	NA
	Home-Enter	Go back to the main page / Execute
	Info	NA
	L/R Direction Set	L/R Direction / Normal
	Menu	NA
	Mirror	Rotate the image (OFF / Mirror / Flip / Rotate)
	Pan/Tilt Reset	Clear the Pan / Tilt setting
	Picture	NA
	Power	Power Switch
	Preset	Appoint an ID (0 ~ 9) to save the current position data
	Reset	Appoint an ID (0 ~ 9) to delete the current position data
	Zoom-Fast	Adjust image size
	Zoom-Slow	Fine-tune image size

6.1 I would like to save the current lens position data

1. Press [Preset + ID] on the remote control to save the current position data.

2. ID shall be a digit [0 \~ 9].

3. Use VISCA command to store position data to [0 \~ 127]

6.2 I would like to clear the saved position data

1. Press [Reset + ID] on the remote control to clear the given position data.

2. ID shall be a digit [0 \~ 9].

3. Use VISCA command to clear position data stored in [0 \~ 127]

6.3 I would like to turn on the back light compensation function

1. Press [Back Light] on the remote control to turn on or turn off the back light compensation

6.4 I would like to adjust the shooting angle of the lens

1. Press [Tilt ▲] or [Tilt ▼] on the remote control to adjust the angle upward or downward.
2. Press [Pan ▶] or [Pan ◀] on the remote control to adjust the angle to right or left.
3. Press [Pan - Tilt Reset] on the remote control to reset the angle to the center point.

6.5 I would like to zoom in/out images

6.5.1 Adjust image size

1. Press [Fast +] on the remote control to zoom in images.
2. Press [Fast -] on the remote control to zoom out images.

6.5.2 Fine-tune image size

1. Press [Slow +] on the remote control to zoom in images.
2. Press [Slow -] on the remote control to zoom out images.

6.6 I would like to adjust the focal length

6.6.1 Auto tune

1. Press [AF] on the remote control to adjust automatically.

6.6.2 Manual focus

1. Press [MF] on the remote control to turn on the manual focus function.
2. Press Focus - [+] or Focus - [-] to adjust.

Please turn off the machine before changing DIP switch setting.

7.1 DIP SWITCH

Setting	Function Descriptions
	For general use
	For ISO Mode
	Power Frequency 60 Hz
	Power Frequency 50 Hz

This chapter describes problems you may encounter while using VC-B20U. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center.

No.	Problems	Solutions
1.	Boot without power signal	1. Make sure you have plugged in the power cord.
2.	There is no image output from VC-B20U	1. Check the power.2. Make sure the display supports the output resolution; in general, the resolution is 1080p60/1080i60/720p60.3. Replace the cables and make sure they are not faulty.
3.	VC-B20U cannot be operated by remote control	1. Please confirm that VC-B20U has been connected to the computer, and launch video software.2. Please prevent VC-B20U from direct sunshine.3. Make sure the energy-saving bulb and the IR touch screen are as far as possible in order to avoid interference.4. When several VC-B20U are connected in the same area, the operation of two remote controls at the same time may result in signal interference. It is recommended to use one remote control only.
4.	Windows vista/ Windows 7 do not support YUV2 1920 x 1080 resolution @60 fps	1. YUV2 1920 x 1080@60 fps is supported by USB 3.0 only. Please connect to USB 3.0 Host2. If the YUV2 1920 x 1080@60 fps is connected to but not supported by the USB 3.0 Host, please adjust the resolution to 720P
5.	When connected to the MAC computer, the video screen flicker or freeze	If Mac OS X 10.10 or below is used, please switch the DIP Switch-DIP4 at the bottom of the camera to ON.
6.	Automatically activate Standby mode	5 seconds after the user turns off the video of the video conference software, VC-B20U will activate Standby mode automatically. The lens will be closedautomatically (to comply with personal privacy requirement). When the user turns on the video once again, VC-B20U will automatically activate the Power on mode.

Appendix 1 Supported Resolutions

Format	Resolution	FPS	Support USB 3.0	Support USB 2.0	Remark
YUV2	1920x1080	60	YES	NA
		50	YES	NA
		30	YES	NA
		25	YES	NA
	1280x720	60	YES	NA
		50	YES	NA
		30	YES	NA
		25	YES	NA
	960x540	60	YES	NA
		50	YES	NA
		30	YES	NA
		25	YES	NA
	640x480	60	YES	NA
		50	YES	NA
		30	YES	YES
		25	YES	YES
	640x360	60	YES	NA
		50	YES	NA
		30	YES	YES
		25	YES	YES
MJPEG	1920x1080	60	YES	NA
		50	YES	NA
		30	YES	YES
		25	YES	YES
	1280x720	60	YES	NA
		50	YES	NA
		30	YES	YES
		25	YES	YES
	960x540	60	YES	NA
		50	YES	NA
		30	YES	YES
		25	YES	YES
	640x480	60	YES	YES
		50	YES	YES
		30	YES	YES
		25	YES	YES
	640x360	60	YES	YES
		50	YES	YES
		30	YES	YES
		25	YES	YES
