INN-553 - Generator Innoliving - Free user manual and instructions

Product Type	Ozone generator for air and water
Brand	Innoliving
Model	INN-553
Power Supply	220-240 V~, 50 Hz, 18 W
Modes	5 automatic modes: Food disinfection, Bactericide, Purification, Deodorization, Sanitation
Timer Settings	Preset durations: 5, 10, 15, 30, 60 minutes
Included Accessories	Air tube, 2 air stones, user manual
Safety Class	Class II (double insulated)
Certification	CE
Country of Origin	China
Manufacturer	Innoliving Spa, Via Merloni 9, 60131 Ancona, Italy
Operation	For indoor use only
Ventilation Requirement	Place at least 20 cm from walls
Do Not Cover	Do not cover with blankets or similar during use
Water Ozonation	Keep unit above water level; use with water depth 20-40 cm
Air Ozonation	Leave room for 30-40 minutes when sterilizing air in non-ventilated room
Operating Temperature	Up to 42°C
Cleaning	Unplug before cleaning; do not use aggressive detergents
Storage	Keep in dry place away from direct sunlight
Maintenance	Check tube and stones for blockages; replace if needed
Troubleshooting	If stone doesn't produce air, check tube or stone; if no ozone, contact customer care
Usage Limitations	Not for outdoor use, near pools, showers, etc.

Frequently Asked Questions - INN-553 Innoliving

How do I use the ozone generator for water?

Connect the air tube to the air outlet on the side, attach the stone to the tube end, and place the stone into water. Ensure the unit is higher than the water surface to avoid water ingress. Then select the appropriate mode.

How long should I run each mode?

Each mode has a preset duration: Food disinfection (5 min), Bactericide (10 min), Purification (15 min), Deodorization (30 min), Sanitation (60 min). The device stops automatically after the time.

Is it safe to be in the room while it's operating?

For air sterilization in a non-ventilated room, leave the room for 30-40 minutes. Ozone concentrations can be harmful; always ensure proper ventilation.

How do I clean the device?

Unplug the device before cleaning. Use a soft, dry cloth. Do not use aggressive detergents or immerse in water.

What should I do if the stone doesn't produce air?

Check if the air tube is bent or blocked. Unfold the tube or replace it. Also ensure the stone is not clogged. If the issue persists, contact customer care.

Can I use it outdoors?

No, the device is designed for indoor use only. Do not use near pools, swimming pools, showers, or in direct sunlight.

What is the warranty?

The manual does not specify a warranty period. Typically, Innoliving offers a standard warranty; refer to your purchase documents or contact the manufacturer for details.

How does ozone purification work?

Ozone (O₃) is a powerful oxidizer that breaks down odors, bacteria, viruses, and chemicals. It improves air quality and, when dissolved in water, helps clean food and surfaces.

Can I use the device continuously?

The device has preset timer modes (5-60 minutes). It is not intended for continuous use; allow the device to cool down between cycles. Overuse may reduce lifespan.

Where should I place the device?

Place on a flat, stable surface at least 20 cm from walls. Do not cover it or place it near heat sources or incandescent surfaces.

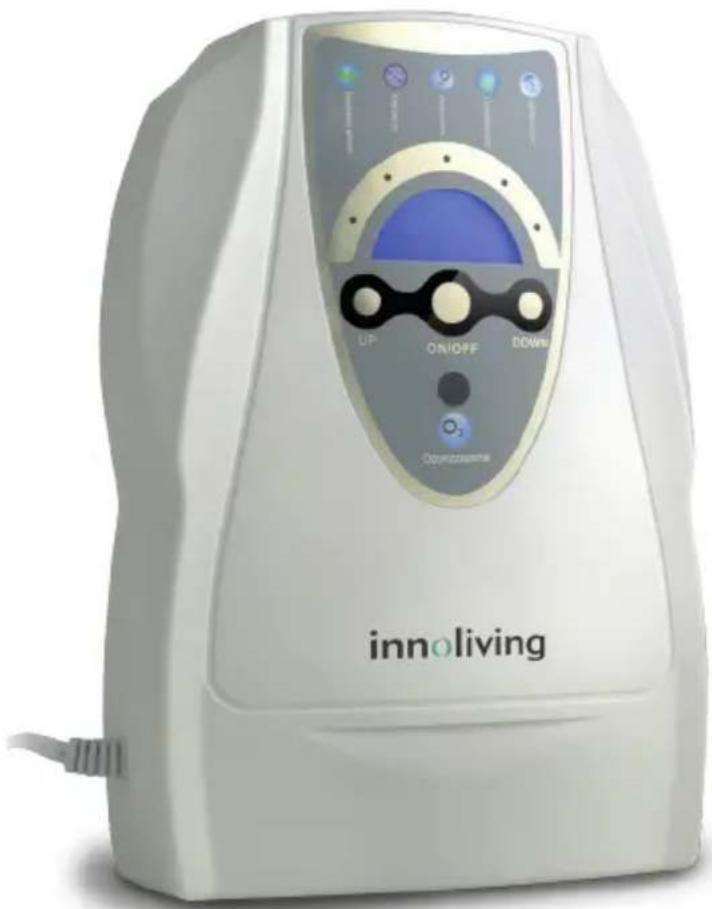

USER MANUAL INN-553 Innoliving

innoliving easy tech, easy life

GENERATORE DI OZONO PER ARIA E ACQUA

INN-553

MANUALE D'USO

USER MANUAL

Thank you for purchasing the Ozone-Purifier water and air "INN-553".

Please read carefully before the use

BEFORE THE USE, READ CAREFULLY THE FOLLOWING INSTRUCTION MANUAL AND KEEP IT FOR FUTURE NEEDS.

Before using the appliance, read carefully the instructions and first of all the safety warnings, following them. Keep this manual, for the entire useful life of the appliance, for consultation purposes.

Failure to follow the instructions could cause accidents and void the warranty, relieving the manufacturer of any responsibility.

SAFETY WARNINGS

• The packaging elements (plastic bags, cardboard, polystyrene etc.) must not be left within the reach of children as they are potential sources of danger and must be disposed according to the current regulations.
• This appliance must be used only for the purpose for which it was designed, or as an ozone generator for domestic use. Any other use is considered non-compliant and therefore dangerous.
• This appliance can be used by children from 8 years of age and by people with reduced sensory or mental physical abilities or lack of experience and knowledge if under surveillance or if they have received instructions regarding the use of the appliance in security and if they understand the dangers involved. The cleaning and maintenance operations carried out by the user must not be carried out by children, unless they are over 8 years old and operate under supervision. Keep the appliance out of the reach of children under the age of 8.
• Make sure that children do not play with the appliance.

• Use the product placing it only on flat and stable surfaces, avoiding inclined surfaces.

• Do not use the device outdoors or near pools, swimming pools, showers etc.

• Do not insert objects into the slots.
• Avoid exposure of children and the elderly to the direct flow of the product.
• Do not leave the appliance exposed to direct sunlight for a long period of time.
• Do not use aggressive detergents to clean the product.
• Do not let the appliance to come into contact with incandescent surfaces.
• This appliance must only be used for the purpose for which it was designed.
• Avoid dropping the appliance.
• Do not use the product if it has fallen to the ground, if there are visible signs of damage.
• In case of failure or malfunction of the appliance, turn it off, unplug and do not try to tamper with it. Don't try to fix it yourself. For any repairs, contact an authorized technical assistance center only.
• Unplug the cable when not in use.
• Use a socket easy to reach in case of danger.
• If the cable is damaged, it must be replaced by the manufacturer or by the customer care or by a qualified technician in order to prevent any risk.
• Don't pull the cable to lift, move or unplug the appliance.
• Use the appliance in a well-ventilated area. During use, the appliance must be kept at a distance of at least 20 cm from the walls to ensure the correct operation of the air vents. The appliance must not be placed

immediately under or beyond a curtain or similar. Do not cover the appliance with blankets or the like during use.

Do not place the cable under mats, cloths or similar. Keep the cable far from paths or when there is the risk to stumble or fall.

• Do not place objects on top of the appliance.
• Turn the appliance off before disconnecting form the electric power.
• It is recommended to use it in dry environments, if you use it in a damp environment, make sure that the water never comes into contact with the appliance.
• Do not place the ozone generator near naked flames or heat sources.
• Turn the appliance off for care and maintenance.
• Do not turn the ozone generator upside down.
• Do not immerse the ozone generator in water or other liquid
• When used to ozonize water, the unit must be higher than the water surface to avoid the direct contact with water.
• Please, do not use in high temperature environment (above 42°C) or places with high humidity. These environments may reduce the effect or shorten the usage life.
• When this unit is used in a non-ventilated room to sterilize air, please, leave the room for 30-40 minutes.

FUNCTION

Ozone can improve the indoor air quality, remove bacteria and remove peculiar smell.

Ozone dissolved in water can be used to wash face, bathing, wash dishes, clean food and vegetables.

This ozone generator can be used to ozonize water and air, it has 5 automatic working modes, to adapt as much as possible to the function needed.

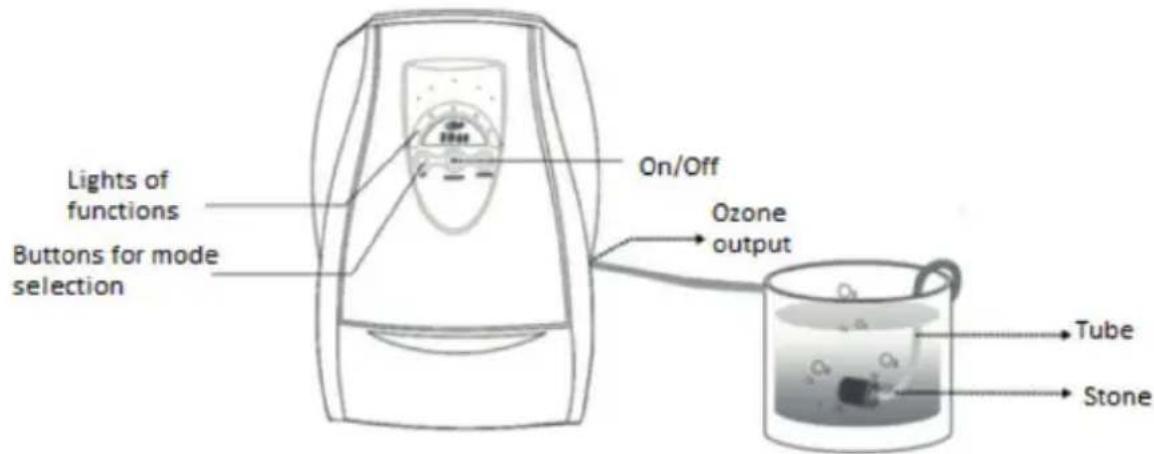

COMPONENTS

This device consists of: main body, air outlet tube, 2 air stones and an instruction manual.

OPERATION

• Connect the plug to the electric power
• Press the ON/OFF button. Select the ozone purification mode with the "+" or "-" button.
• Pressing the + or – buttons the screen will light on the selected function.

Use in water: connect the air tube to the air outlet connection on the side, then put the stone on the opposite end of the tube. Then, put the stone into the water container to ozonize water or food inside.

To turn off, press the ON/OF button. The motor will continue to run for a few seconds and it will stop when a beep is heard. After this, you can disconnect it from the electricity supply.

MODES OF USE

APPLICATION AREA MODE AND TIME FUNCTIONS
- Wash fish and meat- Preserve food	Food disinfection/Freschezza alimenti(5 minutes)	- It removes odors- It removes bacteria- It preserves the freshness of food
- Clean fruit and vegetable Bactericide/Antibatterico(10 minutes)		- It dissolves and removes pesticides from the surfaces of fruit and vegetables- It removes bacteria from the surfaces of fruit and vegeta-bles
- Care of children objects- Care of pet's objects- House care- Oral hygiene- Surface cleaning	Purification/Purificazione(15 minutes)	- Deodorizza e igienizza effica-It e-lectively deodorizes and sanitizes baby toys and items.- It keeps your pet's corner clean- It keeps flies, roaches and other insects away from the rubbish bin- It kills bacteria in the oral cavity, cleaning brushing tools- It is2 useful to clean cooking surfaces or surfaces where to eat on.
- Shoe-racks and dressers- Freshly painted and decorated homes- Room deodorization- Cooking	Deodorization/Deodorizzazione(30 minutes)	- It prevents the appearance of strong odors, bacteria and even moisture and fungus from trainers or leather shoes.- It decomposes and prevents the formation of formal-dehydes, which are di-cult to remove.- It removes dust particles from smoke- It keeps fresh air free from cooking odors
- Surfaces and fabrics cleaning	Sanitation/lgienizzazione(60 minutes)	- It removes bacteria surfaces and objects- It eliminates odors from fabrics and clothes, whitens clothes.

TROUBLE SHOOTING

ProblemReason Solutions
- The stone doesn’t produce air	- The tube is broken or the stone is blocked	- Unfold the tube or change it
- The appliance produces air but no ozoneo	- The appliance doesn’t work well	- Contact the customer care
- The display is off - Check the appliance is well plugged	- Plug better
- Strange noise during the use	- Too less water during water ozonation- The surface on which is placed the appliance is not stable or flat	- Add water, the generator works better with water from20 to 40 cm.- Place the appliance on a flat surface

DATA LABEL

Innoliving Spa

Via Merloni 9 - 60131 Ancona - Italy

INN-553 GENERATORE DI OZONO ACQUA E ARIA OZONE GENERATOR FOR WATER AND AIR 220-240V \~ 50Hz 18W

MADE IN CHINA

LOT N.

This product complies with all the applicable European regulations

Read carefully the user manual

Class II insulated electrical appliance

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 " 2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE) "

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.
