Product Type	Mincer / Food Processor
Brand	Izzy
Model	Multi+ 600 C-5160
Power	600 W
Bowl Capacity	0.6 liters (for liquids)
Speed Settings	2 speeds (gentle and firm pressure on start button)
Blade System	Upper and lower blades on fixed shaft; third blade optional
Safety Features	Safety interlocks; sharp blade warning; lid must be secured
Dishwasher Safe Parts	Bowl, lid, and blades (upper basket)
Motor Unit Cleaning	Damp sponge only; never immerse in water
Maximum Continuous Use	10 seconds with 10-second pauses
Suitable For	Mincing, blending, baby food, ice crushing, chopping vegetables, nuts, cheese
Not Suitable For	Glutinous foods or substances
Warranty Period	2 years from purchase date
Customer Service	BENRUBI Company, [phone], [e-mail]
Authorized Service Centers	Visit www.benrubi.gr for nearest center
Accessories Availability	Replacement bowl, lid, blades available at authorized service centers
Power Cord	Damaged cord must be replaced by authorized service center

Frequently Asked Questions - Multi+ 600 C-5160 Izzy

How should I clean the motor unit?

Use only a damp sponge to clean the motor unit. Never place it in water or under running water.

Can I put the bowl and blades in the dishwasher?

Yes, the bowl, lid, and blades are dishwasher safe (place in the upper basket). Do not use steel wire balls to clean the bowl.

What is the maximum liquid capacity?

Do not exceed 0.6 liters when processing liquids.

How long can I operate the appliance continuously?

Maximum continuous use is 10 seconds. Use pulses with 10-second pauses between them.

What should I do if the appliance does not work?

Check if it is plugged in. If it still does not work, return it to an authorized BENRUBI Service Center for examination or repair.

Are spare blades available?

Yes, the upper blade, lower blade, bowl, and lid are available for purchase at all authorized service centers.

Can I crush ice with this appliance?

Yes, use all three blades and run the appliance with pulses for ice crushing.

Is the appliance safe for making baby food?

Yes, it can be used for baby food. Always ensure ingredients are not hot and check for any unblended pieces before serving.

What is the warranty period?

The product is guaranteed against manufacturing defects for two (2) years from the date of purchase.

Can I put hot ingredients in the bowl?

No, do not put hot ingredients into the bowl. Allow food to cool for a few minutes before processing.

USER MANUAL Multi+ 600 C-5160 Izzy

Close-up of a transparent kitchen blender with a black plastic lid and internal stirrer (no visible text or symbols)

ΜΠΕΝΡΟΥΜΠΗ

Technical line drawing of a mechanical component with two views: one showing a rotating shaft and arrow, the other showing internal spiral grooves (no text or symbols)

Χρήση

Thank you for choosing an appliance of the IZZY range.

Safety Interlocks

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (pls see below “Guarantee and Customer Service”)

When using electrical appliances, to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including the following:

• Read all instructions carefully.
• To safeguard against electric shock, do not place cord, plug or appliance in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• This appliance is not intended for use by individuals (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under supervision and have been given instructions concerning use of the appliance by a person responsible for their safety.

- Unplug from outlet when not in use and before cleaning.

- Do not operate any appliance with a damaged cord or plug, in case of appliance malfunctions or if the appliance has been damaged in any manner. Return the appliance to the nearest authorized BENRUBI service facility for examination, repair or replacement.

- The use of accessory attachments not recommended by manufacturer may cause malfunctions.

- Do not use outdoors.

- Do not let the cord hang over the edges of tables or counters, or touch hot surfaces.

- Do not place the appliance on or near hot gas or electric burners, or in a heated oven.

• This product has been designed for domestic use only. For any sort of

commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and guarantee is no more valid.

• Do not use your food processor if any part is broken.
• Any intervention other than normal cleaning and maintenance by the customer must be carried out by an approved BENRUBI service centre.
• Do not put the appliance, the power cord or the plug into water or any other liquid.
• Make sure that the cover is securely locked in place before operating the appliance.
• The blade and discs are sharp. Handle carefully. After use store out of reach of children.
• Make sure that the cover is securely locked in place before operating the appliance.
• If the power cord or the plug are damaged, do not use your appliance. To avoid any risk, these must be replaced by an approved BENRUBI service centre.
• For your own safety, please use only the original accessories and spare parts which are suitable for your appliance.

Warning: the blades of the knife are extremely sharp. Handle them with caution.

• After much use, the blades will become blunt and should be changed. New blades are equal to a new appliance.
- Never remove the lid until the knife has stopped completely.
- This appliance is designed to process small quantities. Do not exceed the quantities indicated in these instructions for use.

CAUTION: Maximum time of processing should not exceed 10 second continuous use. In order to achieve below processing times, use the appliance with pulses and intermediate 10 second pauses.

• Do not use this appliance to mix glutinous food or substances.
• Do not use this appliance for other uses than the use intended.
• For your safety, this appliance conforms to the appliance standards, regulations and directives of Low Voltage, Electromagnetic Compatibility, Environment, etc.

SAVE THESE INSTRUCTIONS

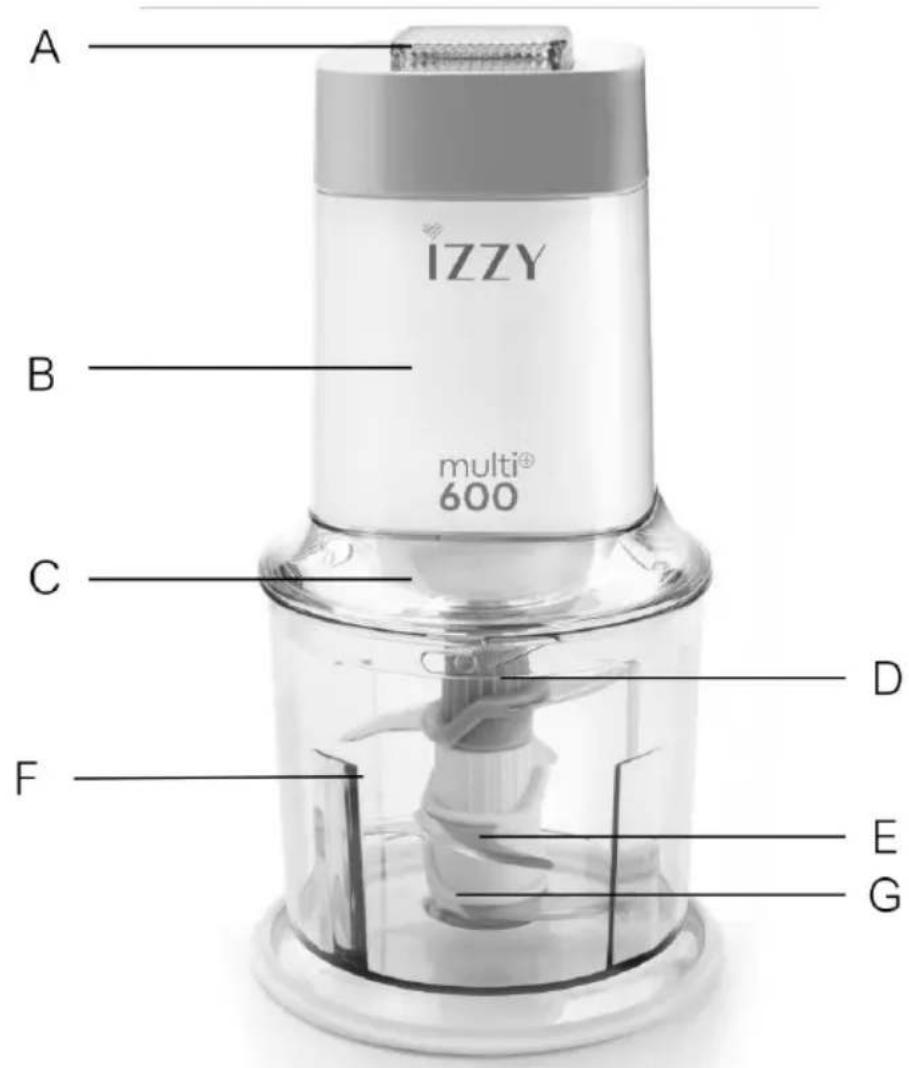

Parts of the Appliance

A. Start Button / speed selector
B. Motor Unit
C. Lid
D. Upper Blade
E. Lower Blade
F. Bowl
G. Fixed Shaft

* Parts C, D, E, F, G are available for purchase at all authorized service centers

Technical line drawing of a mechanical component with directional arrows indicating rotation (no text or symbols)

Using Your Appliance

Before the first use, clean the various parts of the appliance.

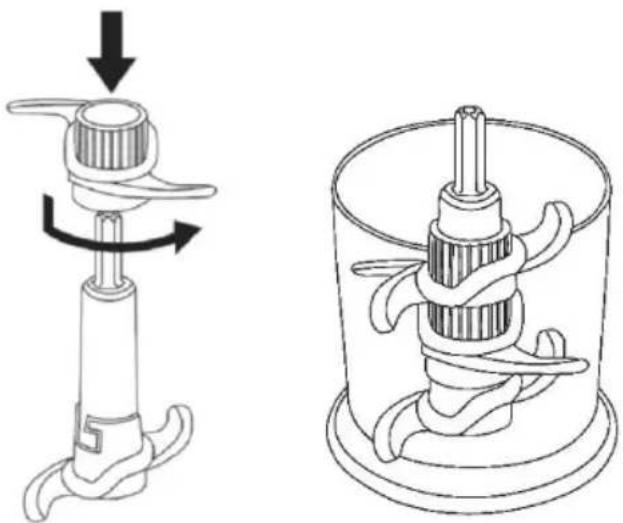

CAUTION: Before use, make sure that the upper blade (D) is properly positioned and tightened on the shaft (G).

Notes:

• The start button (A) allows you to use 2 speeds:
* speed 1 (min): gentle pressure
* speed 2 (max): firmer pressure.
- For liquids, never exceed 0.6 lt.

WARNING: Make sure the white rubber ring on the lid of the bowl is always in the correct place. When you clean the bowl, make sure you don't move the rubber ring form the initial place.

Mincing and Blending

• Put the second blade (D) onto the lower blade (E) and bring it to its locked position by turning anticlockwise.
• Fit the third (D) upper (E) and lower blades (E) onto the fixed shaft (H) in the bowl (F). Pour in the ingredients and lock the lid (C).
• Place the motor unit (B) onto the assembly by turning it slightly.
• Plug in the appliance and press the start button (A), at the same time holding the appliance by the motor unit.
• At the end of preparation, release the button (A), unplug the appliance and wait until the blades come to a complete stop.
• Remove the motor unit, the lid and the blades to pour out the preparation. You can separate the upper blade from the lower blade by turning it clockwise and pulling it up.

Baby Food

To mix or blend cooked food:

- Chop the food into small pieces, add some broth (meat or vegetables) and mix the ingredients while pulses. To blend the mixed food, press the start button continuously until you reach the desired result.

For fruit purées:

- Chop the fruits into small pieces, add some milk, water or juice and mix the ingredients with pulses. To blend the fruits, press the start button continuously until you reach the desired result.

Caution: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.

Note: The lid of the bowl does not form an air-tight seal. Therefore, when mixing liquids there is a possibility of limited leakage from the bowl. To overcome this, avoid overfilling, remove the top blade and do not exceed 0.6 lt

CAUTION: Maximum time of processing should not exceed 10 second continuous use. In order to achieve below processing times, use the appliance with pulses and intermediate 10 second pauses.

Larger Quantities

If you want to blend or cut bigger quantities, use the upper blade (D). Cut into small pieces, close the lid and press the button.

Ingredients	Max. Quantity	Max. Time	Recommended blades	Recommended Speed
Parsley	40gr.	10 sec	1st or 2nd	1 or 2
Onions	300gr.	10 sec	2nd or 3rd	1
Garlic	150gr.	5 sec	1st or 2nd	1
Rusks	30gr.	15 sec	1st or 2nd	1 or 2
Almonds	150gr.	15 sec	2nd or 3rd	2
Hazelnuts	150gr.	15 sec	2nd or 3rd	2
Walnuts	150gr.	15 sec	2nd or 3rd	2
Yellow cheese	150gr.	15 sec	2nd or 3rd	2
Boiled ham	250gr.	15 sec	1st or 2nd	2
Meat (boiled)	200gr.	20 sec	1st or 2nd	2
Light pastries	0,6lt	15 sec	2nd or 3rd	1 or 2
Cooked soop	0,6lt	15 sec	1st or 2nd	2
Prunes	160gr.	9 sec	1st or 2nd	2
Fruit	160gr.	9 sec	2nd or 3rd	2

CAUTION: DO NOT OPERATE THE UNIT WHEN EMPTY.

CAUTION: DO NOT PUT HOT INGREDIENTS INTO THE BOWL. BEFORE FOOD PREPARATION, ALLOW FOOD TO COOL DOWN FOR A FEW MINUTES.

Useful Tips

This appliance has unique specifications such as the third blade and powerful motor of 600W. Please find hereafter a few tips for the most common uses.

1. CHEESE: Perfectly grades every kind of cheese (even soft cheese). Use both blades and/or the third blade and run the appliance with pulses.
2. TOMATO, NUTS, ONIONS etc.: For fine chopping, use both blades and/or the third blade and run the appliance with pulses.
3. CASTOR SUGAR: Use the single blade (low blade). For better result, make sure that sugar's quantity covers totally the blade.

4. ICE: For ice crushing, use the three blades and run the appliance with pulses.

5. BABY FOOD/CREAMY PREPARATIONS: To mix or blend cooked food:

6. With liquid foods (e.g. baby food crème) use the low blade to mix the ingredients. Make sure that food is not hot and quantity does not exceed the 600ml.

7. For chopping cooked food (vegetables, meat etc.) and fruit, use both blades and/or the third blade and run the appliance with pulses. To blend food or make fruit purées, press the start button with breaks (for a few seconds) until you reach the desired result.

CAUTION: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.

IN GENERAL:

For better results: when using all three blades (with solid food), please make sure that the quantity of ingredients fully covers the second blade and reaches up just below the upper blade.

Recipes

Eggplant salad

Ingredients

2 big eggplants

1 red pepper

1 dry onion small size

2 cloves of garlic

100-150gr olive oil

Vinegar (as per your preference)

Salt

Bake the eggplants into the oven at 200^ C until they become soft. Pill them off and cut them in big cubes. Put half the quantity into the bowl of Multi adding the pepper, the onion, the garlic and the salt. Put on half the quantity of oil and vinegar. Close the lid of the bowl and press the operation button with breaks. Repeat the same operation with the remaining quantity.

Mojito Cocktail

Ingredients:

1/2 lime

2 ts sugar

8 spearmint leaves

50 ml rum soda sugar syrup (optional)

ice

1. To prepare the sugar syrup: boil 1 cup of sugar with 1 cup of water until it melts. Let the syrup cool and keep it in a glass bottle.
2. Wash the 1/2 lime, dry it and cut it in 3 pieces.
3. Beat fine with a pestle lime, sugar and spearmint in a tall glass.
4. Crush the ice in the Multi and put it in the glass.
5. Add rum.
6. Stir well and add a little soda.
7. Add a little sugar syrup, if desirable.
8. Garnish with spearmint leaves and serve.

Strawberry sorbet

Ingredients:

5 cups of strawberries well washed, peeled and cut in small pieces.

1 1/2 cup of sugar

A little water

1. Mash the strawberries in the Multi.
2. Add 1 1/2 cup of sugar and continue beating. Check the mixture and add a little water, fruit or sugar, depending on how thick you want it to be.
3. Place the Multi bowl with the strawberries inside in the freezer for about 2 hours.
4. Take the bowl out of the freezer and beat the mixture again until it gets fluffy.
5. Put it back in the freezer for 2 more hours and repeat. Finally, put the mixture in a plastic or metallic bowl and put it in the freezer.
6. The sorbet is ready for serving after 3 hours approximately. When you serve it stir well with a fork, so that it gets fluffier.

Instead of strawberries you may use peach, lemon or any other fruit that you like. Don't forget to adjust the sugar to water ratio, depending on how thick you wish your mixture to be.

Truffles

Ingredients:

3 cups of walnuts

1 cups of brown sugar

2 cups breadcrumbs smashed in the Multi

4 ts of cacao powder

Orange zest

1 cup of water

Chocolate truffle or couverture or betel or cacao powder or sugar.

1. Smash in the Multi walnuts and brown sugar to the desired size.
2. Put them in a bowl and mix them with the breadcrumbs, cacao powder, orange zest and water.
3. Mash well and shape little balls.
4. Sprinkle with chocolate truffle or melted couverture or betel or cacao powder or betel.

Alternatively, roll the truffles into cacao or sugar.

Care and Cleaning

• Always unplug the appliance first.
- Only use a damp sponge to clean the motor unit (B). Never place it in water, or under running water.
- The bowl (G), the blades (F, E, D), and the lid (C) can all be cleaned in the dishwasher (upper basket).

WARNING: Never use washing steel wire balls to clean the bowl.

Troubleshooting

• Please verify whether the appliance is plugged in.
• If you have followed all the instructions in the booklet and the appliance still does not work return the appliance to the nearest authorized Benrubi Service Center for examination or repair.

Important Information for Correct Disposal of the Product in Accordance with EC Directive 2002/96/EC

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

• BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by presenting purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRUBI Company to replace or repair the defective product.
• The warranty does not cover damages resulting from normal wear, breakage, scaling, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.
- Burns due to exposure to heat or flame.
- Damage from thermal shock (sudden temperature change or change of voltage).

FOR MORE INFORMATION PLEASE CONTACT:

(NEW) H. BENRUBI & FILS SA

27 Aghiou Thoma str, GR15124, Maroussi – Athens,

Tel./Customer Support: [phone]

e-mail: [e-mail]
