Product Type	Refrigerator
Brand	Schneider
Model	S-SBS 590.4 A+ ICMIXK
Energy Class	A+
Total Capacity	590 L
Refrigerator Capacity	390 L
Freezer Capacity	200 L
Dimensions (H x W x D)	1790 x 910 x 770 mm
Weight	95 kg
Power Consumption	200 kWh/year
Noise Level	42 dB
Defrost Type	Automatic (No Frost)
Cooling System	Static
Ice Maker	Built-in
Water Dispenser	Yes
Shelves Material	Tempered glass
Door Alarm	Yes
Climate Class	N-ST
Condenser Cleaning	Every 6 months
Water Filter Replacement	Every 6 months
Repairability Index	8/10

Frequently Asked Questions - S-SBS 590.4 A+ ICMIXK SCHNEIDER

How do I level the refrigerator?

Adjust the front leveling feet by turning them clockwise or counterclockwise until the refrigerator is stable and level. Use a spirit level on top of the appliance.

What is the recommended temperature setting?

Set the refrigerator compartment to 4°C (39°F) and the freezer to -18°C (0°F) for optimal food preservation and energy efficiency.

How do I use the ice maker?

Ensure the water supply is connected and the ice maker switch is on. The first batch of ice may take up to 24 hours. Discard the first few batches if ice appears cloudy or has an odor.

How often should I replace the water filter?

Replace the water filter every 6 months or when the filter indicator light turns on. Use only Schneider approved filters to ensure performance.

Why is my refrigerator not cooling properly?

Check if the temperature settings are correct, ensure the door is sealing properly, clean the condenser coils, and allow adequate ventilation around the appliance. Also verify that the ice maker is not blocking air flow.

How do I clean the condenser coils?

Unplug the refrigerator, locate the coils (usually at the back or bottom), use a vacuum cleaner with a brush attachment to remove dust and debris. Clean them every 6 months.

Can I reverse the door swing?

Yes, the doors can be reversed. Refer to the manual for detailed instructions. Tools required: screwdriver, wrench. It is easier with two people.

What does the alarm signal mean?

A door open alarm sounds if the door is left ajar for more than a minute. Close the door firmly. If the alarm persists, check the door gasket for obstructions.

How do I defrost the freezer?

This model features No Frost technology, so manual defrosting is not required. Ice buildup may indicate a problem; check if the door is sealing correctly or if the defrost system has failed.

Where can I find spare parts?

Spare parts can be ordered from Schneider authorized service centers or online retailers. Provide the model number S-SBS 590.4 A+ ICMIXK for accurate parts.

USER MANUAL S-SBS 590.4 A+ ICMIXK SCHNEIDER

Exterior view of a modern stainless steel double door refrigerator with front panel and side door (no visible text or symbols)

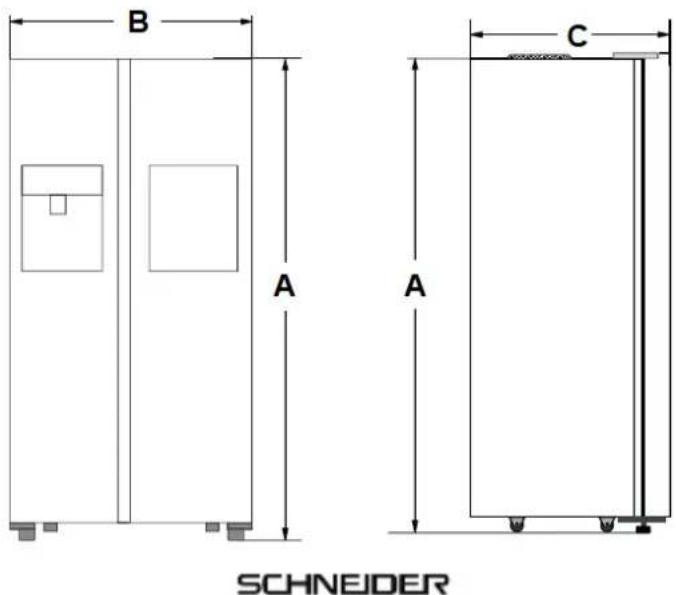

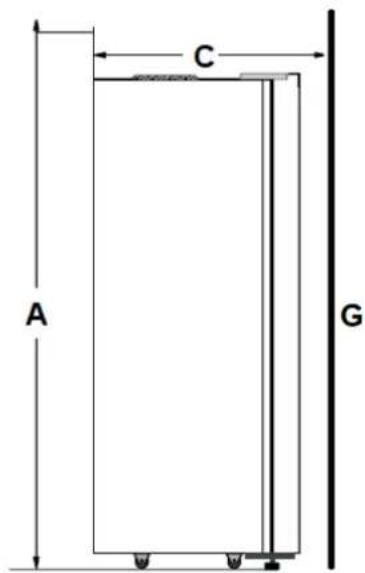

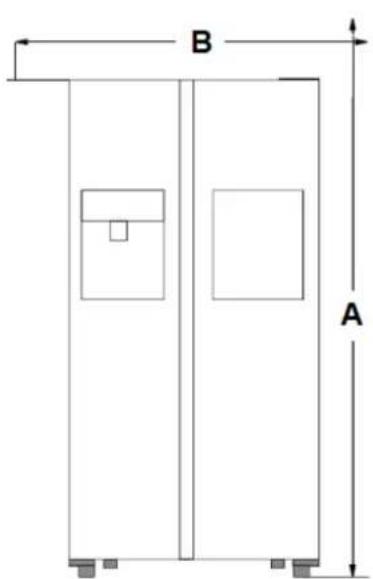

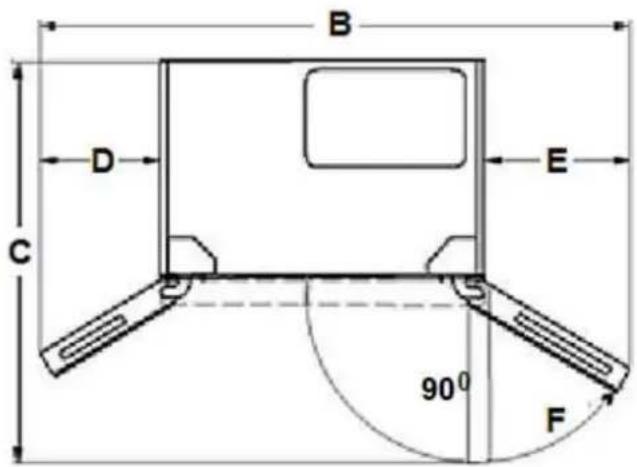

A	B	C	G
mind. 1880 mm	mind. 951 mm	mind. 726 mm	Wand

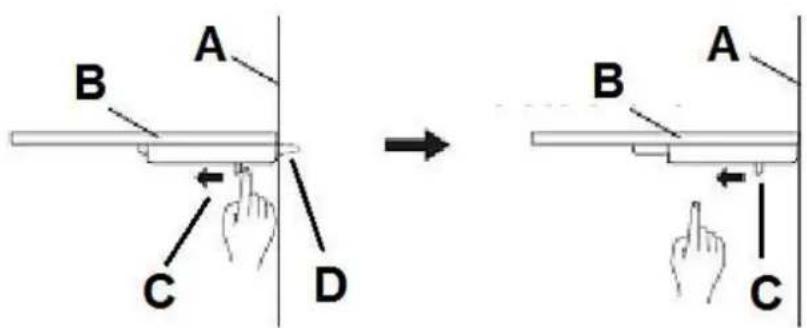

Diagram showing a door mechanism with an inset close-up of a hand holding a small object, no text or symbols present.

Line drawing of a hand pressing down on a rectangular device (no text or symbols)

Line drawing of a hand pressing down on a square button inside a device casing (no text or symbols)

ENTNAHME VON ZERSTOßENEM EIS (CRUSHED ICE)

Illustration of a hand pouring liquid into a container (no text or symbols)

Line drawing of a hand pressing down on a rectangular device (no text or symbols)

Line drawing of a hand pressing a button on a device panel (no text or symbols)

Diagram of a train window with an open trunk and a curved arrow indicating motion (no text or symbols)

Abb. ähnlich.

Simple line drawing of a door with an arrow indicating clockwise motion (no text or symbols)

MILCHPRODUKTE UND EIER

Interior view of a refrigerator with open door and side panel (no visible text or symbols)

Interior view of a refrigerator with a visible door and front panel (no text or symbols)

Interior view of a refrigerator with a single door lid (no visible text or symbols)

Interior view of a refrigerator with open door and side panel (no visible text or symbols)

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information....73

1.1 Signal words....74
1.2 Safety instructions....74

1. Climatic classes....79

2. Installation....79

3.1 Unpacking and positioning....79
3.2 Space and ventilation requirements....80

3.2.1 Space requirement....80
3.2.2 Ventilation....81

3.3 Levelling....84
3.4 Connection to the drinking water supply 85

1. Operation....85

4.1 Before initial operation 85
4.2 Description of the appliance....87
4.3 Display, operating buttons and indicators of the display 88
4.4 Key lock 90
4.5 Setting of the temperatures....91

4.5.1 Setting of the temperature of the freezer....92
4.5.2 Setting of the temperature of the fridge 93

4.6 Selection of the modes 94

4.6.1 Fast Freezing Mode 94
4.6.2 Fast Cooling Mode 95

4.7 Home Bar 96
4.8 Door alarm 97
4.9 Ice cube maker and ice/water dispenser....97
4.9.1 Before initial operation....99

4.9.2 Use of the ice/water dispenser....100
4.9.3 How to switch off the ice cube maker....103
4.9.4 Water filter 105

4.10 Power failure.... 105

4.11 The fridge 106

4.11.1 Door trays of the fridge....107
4.11.2 Glass shelves of the fridge 108
4.11.3 Crispers 109

4.12 The freezer .... 110

4.12.1 Door trays of the freezer....111
4.12.2 Glass shelves of the freezer 111
4.12.3 Freezer drawers....111
4.12.4 Meaning of the *-labelling of freezers.... 112

4.13 Storage of food.... 113

1. Environmental protection 118

5.1 Environmental protection: disposal 118
5.2 Environmental protection: energy saving....118
5.3 Operational parameters....119

1. Cleaning and maintenance....120

6.1 Defrosting.... 121
6.2 Cleaning and maintenance of the ice cube maker....122

6.2.1 Cleaning of the ice storage box 122
6.2.2 Flushing of the ice/water dispenser....123
6.2.3 Replacing of the water filter....124

6.3 Replacing of the illuminant....125

1. Troubleshooting....125
2. Decommissioning....128
3. Technical data....129
4. Waste management.... 131
5. Guarantee conditions.... 132

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packaging with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.
i The appliance is intended for cooling food only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazard involved. Children between 3 and 8 years are allowed to load and unloan refrigerators. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.
2. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
3. The technical data of your energy supplier must meet the data on the rating plate of the appliance.
4. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).
5. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the aftersales service or the shop you purchased the appliance at. ^26 Original spare parts should be used only.
6. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
7. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.
8. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!
9. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

To reduce the risk of burns, electrocution, fire or injury to persons

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.
2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the aftersales service or the shop you purchased the appliance at immediately. ^27
3. If gas is set free at the installation site:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel or thermostat.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.
2. Do not install the appliance near of volatile or combustible materials (e.g. gas, fuel, alcohol, paints) and in rooms which may have poor air circulation (e.g. garage).
3. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.
4. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!
5. Always observe the required minimum distances for proper ventilation.
6. The appliance must be connected to a suitable drinking water supply only.
7. The connection of the appliance to the drinking water supply must be carried out by a qualified professional.
8. Never put your hands in the ice dispenser opening; this can cause serious injury. RISK OF INJURY!
9. Never touch the blades inside the ice cube maker. RISK OF INJURY!
10. If the ice cubes become discoloured, do not use the ice cubes under any circumstances but dispose of them. Do not use the ice cube

maker any longer. Contact the aftersales service or the shop you purchased the appliance at. ^28

1. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.

2. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.

3. Do not use a socket board or a multi socket when connecting the appliance to the mains.

4. Never place portable multiple sockets or portable power supplies behind the appliance. RISK OF FIRE!

5. Do not connect the appliance to an energy saving plug (e.g. Sava Plug) and to inverters which convert direct current (DC) into alternating current (AC), e.g. solar systems, power supply of ships.

6. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.

7. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.

8. The technical data of your energy supplier must meet the data on the model plate of the appliance.

9. Your domestic circuit must be equipped with an automatic circuit breaker.

10. Do not modify the appliance.

11. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!

12. Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!

13. Remove possible dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!

14. Keep the cord away from heated surfaces.

15. The power plug must always be accessible after installation.

16. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.

17. Do not put any heat-radiating appliances onto your appliance.

18. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.

19. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.

20. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!

21. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.
22. Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.
23. Contact with frozen food, ice and metal components in the freezer compartment can cause injuries similar to burns.
24. Children must never play with the appliance.
25. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate
26. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time.
2. Do not put any bottled or canned beverages (neither still nor carbonated) into the freezer compartment of the appliance as their containers could explode.
3. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.
4. Never stow food and / or storage containers, especially containers made of metal, in the freezer while your hands are damp or wet. Ensure that your hands are always dry. RISK OF FROSTBITE!

NOTICE!

1. Do not store dry ice in the appliance.
2. 1- (*), 2- (**), and 3-stars (***) freezers are not suitable for freezing fresh food (see also chapter MEANING OF THE *-LABELLING OF FREEZERS).

3. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.

4. When you move the appliance using the rollers (depending on model), only move it forwards or backwards as the rollers are not pivotable and do not allow any lateral motion. Lateral motion can damage the appliance and floor seriously.

5. Do not tilt the appliance more than 45^0 .

6. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.

7. Leave the appliance in an upright position for 4 - 6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.

8. If you use the appliance for the first time or the appliance has been disconnected from the mains for a longer period of time, allow the appliance to cool down for 3 until 4 hours on medium temperature setting before you place any fresh or frozen food in the appliance. If you place food in the appliance before it has reached its normal operating temperature, the food can thaw and / or spoil.

9. Never use the door for moving the appliance as you will damage the hinges.

10. The appliance must be transported and installed by at least two persons.

11. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.

12. Do not operate the appliance unless all components are installed properly.

13. Do not stand or lean on the base, the drawers, the doors etc of the appliance.

14. Never close the doors of the appliance while shelves or drawers are extended, otherwise you will damage the shelves / drawers and the appliance.

15. Do not put hot liquids or hot foodstuff into the appliance.

16. Do not place or insert any objects into the ice/water dispenser opening of the ice cube maker as this can damage the appliance.

17. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

18. Do not place any food directly against the air outlet on the rear wall.

19. Do not overfill the shelves / drawers /door trays to protect them from damage.

20. Clean the appliance at least once a month (s. chapter CLEANING AND MAINTENANCE).

21. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Climatic classes

Look at chap. « TECHNICAL DATA » for information about the CLIMATIC CLASS of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+10°→+32°C	e.g. unheated cellar
N	+16°→+32°C	inner home temperature
ST	+16°→+38°C	inner home temperature
T	+16°→+43°C	inner home temperature

3. Installation

i All dimensions in these chapters are given in millimetres.

The minimum distances required for proper ventilation can be found in chapter 3.2.2 VENTILATION.

3.1 Unpacking and positioning

WARNING! While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.

2. Remove all packaging materials.

3. The accessories of your appliance can be protected from damage due to transportation (adhesive tapes etc.). Remove such tapes very carefully. Remove remains of such tapes with a damp cloth using lukewarm water and a mild

detergent (see also chapter CLEANING AND MAINTENANCE). Never remove any components of the back of the appliance!

1. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.

2. If installation near a heat source is unavoidable, use a suitable insulation plate or keep the following minimum distances to the heat source:

To another refrigerators:	min. 20 mm
To electric cookers:	min. 30 mm
To radiators or ovens:	min. 300 mm

1. Install the appliance in a dry and well-ventilated place.
2. Protect the appliance from direct sunlight.
3. The door(s) must open completely and without hindrance.
4. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
5. Check that the appliance and the power cord are not damaged.
6. Connect the appliance to the mains properly.
7. The rating plate is inside the appliance or at the back.

3.2 Space and ventilation requirements

i Observe the required minimum distances for proper ventilation.

3.2.1 Space requirement

SPACE REQUIREMENT OF THE APPLIANCE WHEN THE DOORS ARE CLOSED

i Please observe the additional front and lateral space requirement of the open door(s) relevant to the door opening angle of your appliance (s. fig. below).

B = WIDTH / C = DEPTH / D AND E = LATERAL SPACE REQUIREMENT

i Observe the required minimum distances for proper ventilation.

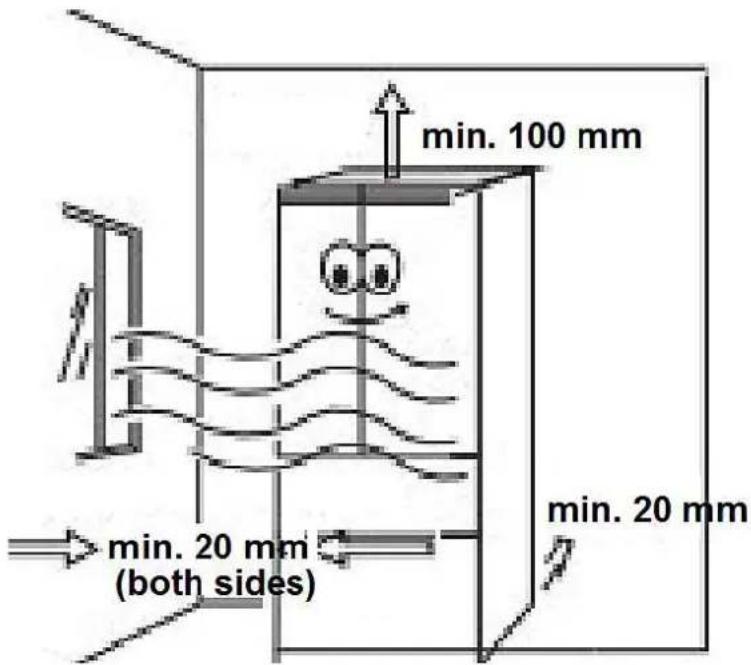

MINIMUM DISTANCES REQUIRED FOR PROPER VENTILATION:

Back ↔ wall	min. 20 mm
Sides ↔ wall	min. 20 mm
Free space above	min. 100 mm

SPACE REQUIREMENT OF THE APPLIANCE WHEN THE DOORS ARE CLOSED (INCL. MINIMUM DISTANCES FOR PROPER VENTILATION)

A = HEIGHT / B = WIDTH / C = DEPTH

i Please observe the additional front and lateral space requirement of the open door(s) relevant to the door opening angle of your appliance.

The following minimum distances are recommended by the manufacturer to ensure optimum efficiency of the appliance:

Back ↔ wall	min. 100 mm
Right / left ↔ any piece of furniture / wall	min. 100 mm
Free space above	min. 300 mm

i These minimum distances may be less, but to do so can increase the power consumption of the appliance.

3.3 Levelling

Use the adjustable supporting feet for proper levelling and for proper air circulation in the lower sectors of the appliance. Adjust the supporting feet using a suitable spanner.

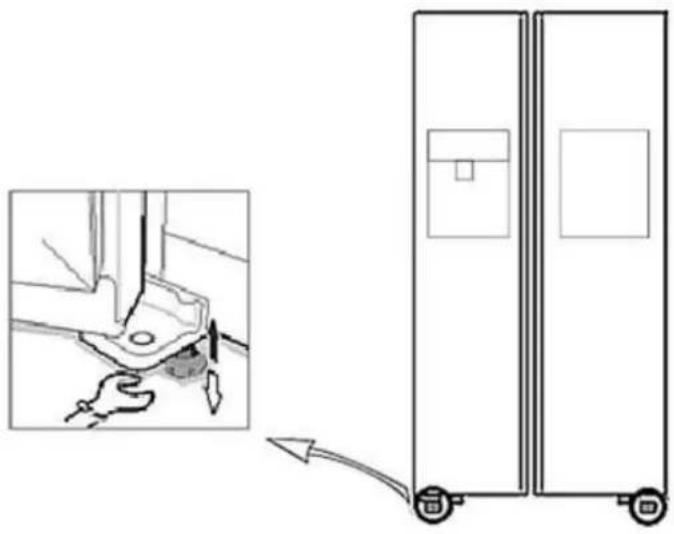

Diagram showing a hand pressing down on a door panel next to a refrigerator, with an inset close-up of the hand (no text or symbols)

Fig. similar: fig. serves as an example only.

TURN THE SUPPORTING FEET CLOCKWISE	➤ the appliance is lifted
TURN THE SUPPORTING FEET ANTICLOCKWISE	➤ the appliance is lowered

The appliance must stand in a stable and level position to ensure proper operation. The 2 front supporting feet and the 2 rear rollers ^29 must stand firmly on the ground so that the appliance does not wobble. Adjust the supporting feet accordingly. The firm contact of the supporting feet and the rollers with the ground also ensures that the appliance does not vibrate, move or roll away unintentionally.
If you have to move the appliance, set the adjustable feet to minimum position so the appliance can be moved on its rollers ^30 easily. Readjust the appliance when transport has been completed.

NOTICE! The rollers (depending on model) are no castors and intended to move the appliance forward and backwards only. Lateral movements can damage your floor and the rollers.

3.4 Connection to the drinking water supply

The customer is responsible for the installation. If the manufacturer's help is needed to repair any damage due to improper installation, this repair work is not covered by the guarantee. Improper installation may cause serious personal injuries and/or property damage. The manufacturer cannot be held liable for such injuries or damages.
⚠ WARNING! The appliance must be connected to a suitable drinking water supply system only!
⚠ WARNING! The connection of the appliance to the drinking water supply must be carried out by a qualified professional.
⚠ WARNING! Any damages which are caused by an appliance that is not connected to the drinking water supply properly are not subject to the guarantee!

INSTRUCTIONS FOR THE INSTALLER (QUALIFIED PROFESSIONAL)

The appliance must be connected to a suitable drinking water supply system only!
i Ensure that sufficient space is provided for the tap of the water supply.
i The appliance must be connected to the cold-water connection of the drinking water supply.
i Ensure that the water pressure is within the proper range (see following table)!

MINIMUM WATER PRESSURE	MAXIMUM WATER PRESSURE
1.4 bar	6.9 bar

4. Operation

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

4.1 Before initial operation

WARNING! While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

NOTICE! Leave the appliance in an upright position for at least 4 - 6 hours before you connect it to the mains to ensure, that the oil has flowed back into the compressor.

NOTICE! If you use the appliance for the first time or the appliance has been disconnected from the mains for a longer period of time, allow the appliance to cool down for 3 until 4 hours on medium temperature setting (s. chapter 4.5 SETTING OF THE TEMPERATURES) before you place any fresh or frozen food in the appliance. If you place food in the appliance before it has reached its normal operating temperature, the food can thaw and / or spoil.

NOTICE! Strictly observe the instructions regarding the initial operation of the ice cube maker and ice/water dispenser; s. chapter 4.9.1 BEFORE INITIAL OPERATION.

1. Remove all packaging materials.
2. Adjust the feet and clean the appliance (see chapter CLEANING AND MAINTENANCE).
3. Do not start the appliance immediately after installation. Wait at least 4 - 6 hours to ensure proper operation.
4. Connection to the drinking water supply; s. chapter 3.4 CONNECTION TO THE DRINKING WATER SUPPLY.
5. The settings of the temperature of both the fridge and freezer can be adjusted manually by pressing the relevant buttons until the desired values will be indicated (s. chapter 4.5 SETTING OF THE TEMPERATURES).
6. If operation was interrupted, wait 5 minutes before restart.
7. The appliance needs some time to balance temperatures when you have changed the settings before or when you have stored additional food in the appliance. The duration of this period of time depends on the range of the change, the ambient temperature, the amount of food and the frequency of door-openings. When you set the temperature of the fridge these aspects should be taken into account.
8. Operate the appliance according to the instructions described in the following chapters.

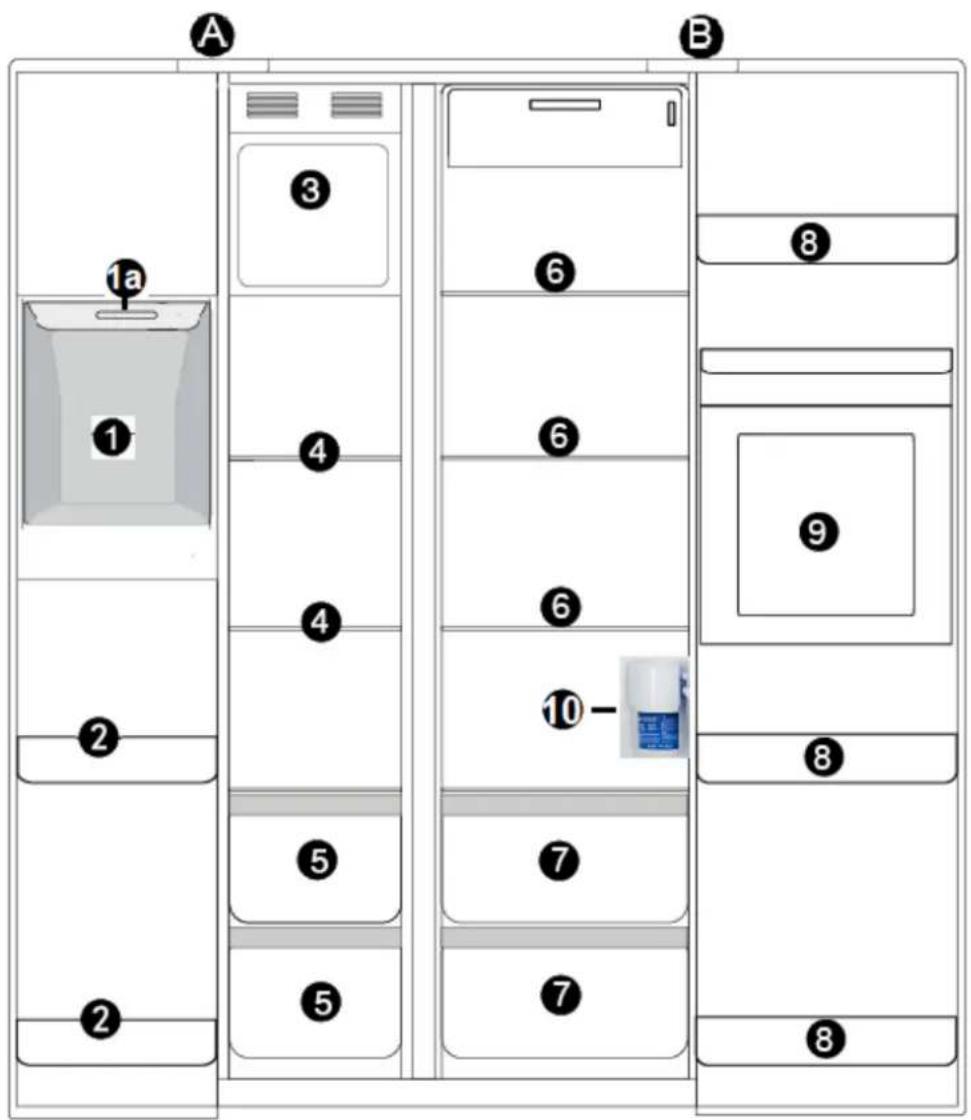

4.2 Description of the appliance

Fig. serves as an example only: modifications are possible.

A	FREEZER
1 // 1a	ICE/WATER DISPENSER // INSULATION COVER
2	DOOR TRAYS
3	ICE CUBE MAKER / ICE STORAGE BOX
4	GLASS SHELVES
5	FREEZER DRAWERS
B	FRIDGE
6	GLASS SHELVES
7	CRISPERS INCL. BREAK-PROOF GLASS COVERS
8	DOOR TRAYS
9	HOME BAR
10	WATER FILTER of the ice/water dispenser system

4.3 Display, operating buttons and indicators of the display

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

◆ Operate the appliance according to the instructions about the control of the functions and modes described in the following paragraphs.

When you operate the appliance for the first time, the default temperatures are:

FRIDGE	+5°C
FREEZER	-18°C

The settings of the temperature of both the fridge and freezer can be adjusted manually, if required (s. chapter 4.5 SETTING OF THE TEMPERATURES).

DISPLAY

During normal operation (display is on), the display indicates the set temperature of both the fridge and freezer.

The appliance is equipped with an AUTOMATIC KEY LOCK. If the display is on, the doors of the appliance are closed and you do not press any operating button within a few seconds ^31 , the key lock will be activated automatically. The operating buttons are locked; see also chapter 4.4 KEY LOCK.

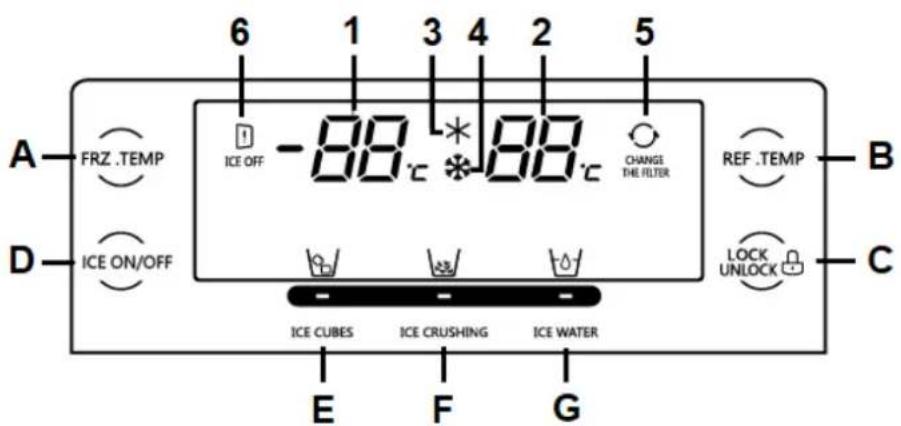

OPERATING BUTTONS AND INDICATORS OF THE DISPLAY:

Fig. similar: modifications are possible.

OPERATING BUTTONS OF THE DISPLAY
A	Button «FRZ. TEMP» (FREEZER TEMPERATURE)➢ Button for the setting of the temperature of the freezer.
B	Button «REF. TEMP» (FRIDGE TEMPERATURE)➢ Button for the setting of the temperature of the fridge.
C	Button «LOCK/UNLOCK» (KEY LOCK)➢ Button for the activation / deactivation of the key lock.
D	Button «ICE ON/OFF» (ICE CUBE MAKER: ON/OFF)➢ Button for the activation / deactivation of the ice cube maker.
E / F / G	Operating buttons of the ICE/WATER DISPENSER; s. chapter 4.9.2 USE OF THE ICE/WATER DISPENSER.
INDICATORS OF THE DISPLAY
1	Indicator of the temperature of the FREEZER in ^0 C
2	Indicator of the temperature of the FRIDGE in ^0 C
3	Operational status indicator of the SUPER FRIDGE MODE
4	Operational status indicator of the SUPER FREEZE MODE
5	Warning indicator «CHANGE THE FILTER»
6	Warning indicator «ICE OFF» (ice cube maker is switched off)

4.4 Key lock

- Your appliance is equipped with an automatic KEY LOCK.

The operating buttons of the display will be locked automatically after each operation (you can also activate the key lock manually ^2 ; s. below). Before you can carry out further settings of the temperatures or modes, you always have to unlock the operating buttons.
If you press the other operating buttons of the display while the KEY LOCK is activated, the temperature indicators of both the fridge and freezer flash. This is not a functional error. You must deactivate the KEY LOCK first before you can make any settings (s. below "HOW TO DEACTIVATE THE KEY LOCK").

AUTOMATIC ACTIVATION OF THE KEY LOCK

1. If the display is on, the doors are closed and you do not press any operating button within a few seconds ^33 , the key lock will be activated automatically.
2. An acoustic signal sounds. ^34
3. The operating buttons of the display are locked; except the button « LOCK/UNLOCK ».

HOW TO ACTIVATE THE KEY LOCK MANUALLY ^35

1. Press and hold the button « LOCK/UNLOCK » for 3 seconds.

1. An acoustic signal sounds. ^36

2. The operating buttons of the display are locked; except the button « LOCK/UNLOCK ».

HOW TO DEACTIVATE THE KEY LOCK

1. Press and hold the button « MODE » for 3 seconds.

1. An acoustic signal sounds. ^37

2. The operating buttons of the display are released again.

i If the KEY LOCK is activated, none of the following settings below can be carried out.

4.5 Setting of the temperatures

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

NOTICE! If you want to switch off the appliance for a longer period of time, disconnect it from the mains (unplug!). S. also Chapter

The settings of the temperature of both the fridge and freezer can be adjusted manually by pressing the relevant buttons until the desired values will be indicated (s. chapter 4.3 DISPLAY, OPERATING BUTTONS AND INDICATORS OF THE DISPLAY).
When you set a temperature, you set an average temperature for the whole refrigerator. Temperatures inside each area may vary from the temperature values indicated on the display, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperatures inside the appliance. When you set the temperature of both the fridge and freezer these aspects should be taken into account

WHEN YOU OPERATE THE APPLIANCE FOR THE FIRST TIME, THE DEFAULT TEMPERATURES ARE:

FRIDGE	+ 5 ^0 C
FREEZER	- 18 ^0 C

i These settings can be changed as needed.

When the ambient temperature is very high, it is recommended to set the temperature of the fridge and / or freezer to a colder setting if needed. If the colder setting should cause strong formation of encrusted ice, please select a lower setting.
i High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.
To perform the following settings the display must be unlocked.

4.5.1 Setting of the temperature of the freezer

The default temperature of the freezer is -18^ .
The adjustable temperature range of the freezer is from -15 ^ to -23 ^ .

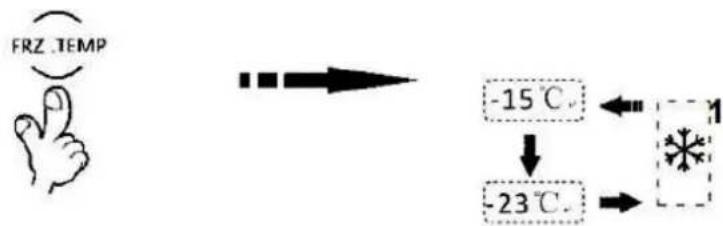

HOW TO SET THE TEMPERATURE OF THE FREEZER

1. If the operating buttons of the display are locked, press and hold the button « LOCK/UNLOCK » for 3 seconds. The operating buttons are unlocked.
2. Press the button « FRZ. TEMP (A) » (freezer temperature) repeatedly until the desired temperature is displayed (1)
3. After a few seconds without using any operating buttons, the set temperature will be activated.
4. The temperature changes by 1 ^0C each time you press the button « FRZ. TEMP (A) »; s. fig. below.


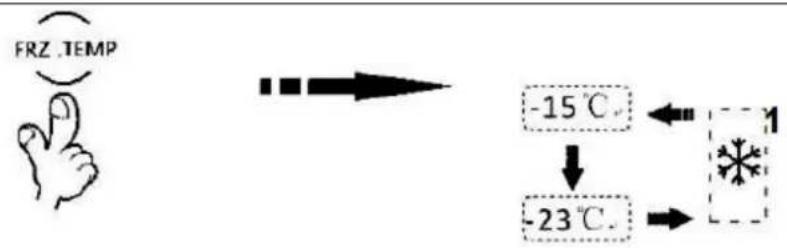

THE SEQUENCE OF THE TEMPERATURE SETTING IS:

$$ \begin{array}{l} -15^{\circ}\mathrm{C} \sim -16^{\circ}\mathrm{C} \sim -17^{\circ}\mathrm{C} \sim -18^{\circ}\mathrm{C} \sim -19^{\circ}\mathrm{C} \sim -20^{\circ}\mathrm{C} \sim -21^{\circ}\mathrm{C} \ -22^{\circ}\mathrm{C} \sim -23^{\circ}\mathrm{C} \sim \text{※}^{1} \sim -15^{\circ}\mathrm{C} \end{array} $$

1 = FAST FREEZING MODE; s. chapter 4.6.1

CAUTION! Do not put any bottled or canned beverages (neither still nor carbonated) into the freezer compartment of the appliance as their containers could explode.

4.5.2 Setting of the temperature of the fridge

The default temperature of the fridge is +5 °C.
The adjustable temperature range of the fridge is from +8 ^ C to +2 ^ C.

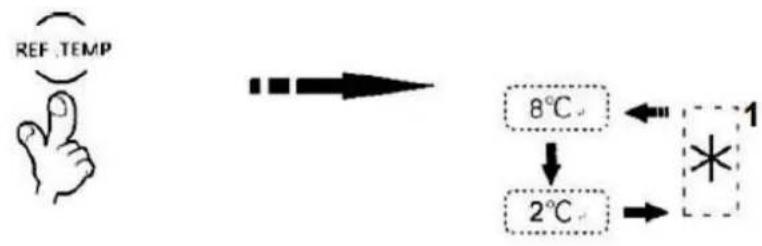

HOW TO SET THE TEMPERATURE OF THE FRIDGE

1. If the operating buttons of the display are locked, press and hold the button « LOCK/UNLOCK » for 3 seconds. The operating buttons are unlocked.
2. Press the button « REF. TEMP (B) » (fridge temperature) repeatedly until the desired temperature is displayed (1)
3. After a few seconds without using any operating buttons, the set temperature will be activated.
4. The temperature changes by 1 °C each time you press the button « REF. TEMP (B) »; s. fig. below.

THE SEQUENCE OF THE TEMPERATURE SETTING IS:

$$ 8 ^ {\circ} \mathrm{C} \sim 7 ^ {\circ} \mathrm{C} \sim 6 ^ {\circ} \mathrm{C} \sim 5 ^ {\circ} \mathrm{C} \sim 4 ^ {\circ} \mathrm{C} \sim 3 ^ {\circ} \mathrm{C} \sim 2 ^ {\circ} \mathrm{C} \sim * ^ {1} \sim 8 ^ {\circ} \mathrm{C} $$

1 = FAST COOLING MODE; s. chapter 4.6.2

4.6 Selection of the modes

NOTICE! The temperatures given in the following chapters are guide values only. The actual temperatures inside each area (fridge / freezer) may vary from the temperature values indicated on the display, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperatures inside the appliance.

THE FOLLOWING MODES CAN BE SET

→ FAST FREEZING MODE (freezer only)
→ FAST COOLING MODE (fridge only)

4.6.1 Fast Freezing Mode

CAUTION! Do not put any bottled or canned beverages (neither still nor carbonated) into the freezer compartment of the appliance as their containers could explode.

The temperature of the freezer will be set to -28^ automatically.
After 24 hours or when the temperature of the freezer has reached -28 °C, the FAST FREEZING MODE switches off automatically and the temperature of the freezer will be reset to the previous setting.

When the FAST FREEZING MODE is activated, the temperature of the fridge does not change.

i In the FAST FREEZING MODE, the compressor operates continuously.
The FAST FREEZING MODE decreases the freezing temperature rapidly and makes sure that the food will be frozen faster as usual. Thereby this function helps to preserve vitamins and nutrients of fresh food for a longer period of time.
i Select this mode when you like to freeze fresh meat or fish for long term storage.

HOW TO ACTIVATE THE FAST FREEZING MODE

1. If the operating buttons of the display are locked, press and hold the button « LOCK/UNLOCK » for 3 seconds. The operating buttons are unlocked.

1. Press the button « FRZ. TEMP (A) » (freezer temperature) repeatedly until the operational status indicator of the FAST FREEZING MODE is displayed.

1. After a few seconds without using any operating buttons, the FAST FREEZING MODE will be activated.
2. After 24 hours or when the temperature of the freezer has reached -28 °C, the FAST FREEZING MODE switches off automatically.

4.6.2 Fast Cooling Mode

The temperature of the fridge will be set to +2^ automatically.
After 150 minutes (2 12 h) the FAST COOLING MODE switches off automatically and the temperature of the fridge will be reset to the previous setting.

When the FAST COOLING MODE is activated, the temperature of the freezer does not change.
The FAST COOLING MODE decreases the refrigeration temperature rapidly and makes sure that the food will be cooled faster as usual. Thereby this mode helps to keep the stored food fresh for a longer period of time.

HOW TO ACTIVATE THE FAST COOLING MODE

1. If the operating buttons of the display are locked, press and hold the button « LOCK/UNLOCK » for 3 seconds. The operating buttons are unlocked.

1. Press the button « REF. TEMP (B) » (fridge temperature) repeatedly until the operational status indicator of the FAST COOLING MODE is displayed.

1. After a few seconds without using any operating buttons, the FAST COOLING MODE will be activated.

2. After 150 minutes (2 12 h) the FAST COOLING MODE switches off automatically.

4.7 Home Bar

• Your fridge is equipped with a Home Bar; s. chapter 4.2 DESCRIPTION OF THE APPLIANCE.
  The flap of the HOME BAR is on the outside of the fridge door.
• Beverages stored in the HOME BAR can be taken easily and conveniently by using the flap on the outside of the fridge door.
  Using the Home Bar can also save energy, as it is not necessary to open the entire fridge door to take the beverages from the Bar.

HOW TO USE THE HOME BAR

1. Open the door of the fridge.
2. Put the beverages in the HOME BAR.
3. Close the door of the fridge.
4. Cool the beverages for a certain time.
5. You can now open the flap of the HOME BAR from the outside at any time to take beverages without having to open the entire door of fridge.

4.8 Door alarm

The appliance is equipped with an automatic alarm which indicates that one of the doors of the appliance are opened for a longer period of time.
1. If one of the doors is opened for more than 60 seconds, an acoustic warning signal sounds.
2. Close the door(s) properly to stop the acoustic warning signal.

NOTICE! In order to save energy a prolonged opening of the doors should be avoided.

4.9 Ice cube maker and ice/water dispenser

⚠ WARNING! Never put your hands in the ice/water dispenser opening; this can cause serious injury. RISK OF INJURY!

⚠ WARNING! Never touch the blades inside the ice cube maker. RISK OF INJURY!

⚠ WARNING! If the ice cubes become discoloured, do not use the ice cubes under any circumstances but dispose of them. Do not use the ice cube maker any longer. Contact the aftersales service or the shop where you purchased the appliance at. ^38

⚠ WARNING! Remove all overflowed or spilled water from the appliance or the floor. RISK OF SLIPPING! RISK OF ELECTRIC SHOCK!

NOTICE! Do not place or insert any objects into the ice/water dispenser opening of the ice cube maker as this can damage the appliance.

NOTICE! To avoid breakage, do not use thin or fragile crystal glass to take ice cubes, crushed ice or chilled water from the ice/water dispenser.

NOTICE! Flush a water system connected to a water supply if no water has been taken from the ice/water dispenser for 5 days.

GENERAL INFORMATION

The ice cube maker can make about 1.5 kg ice cubes in 24 hours.
i Noises may be heard if the ice cubes produced by the ice cube maker fall into the ice storage box. These noises are normal and not a malfunction of the appliance.
When the ice storage box is filled with ice cubes, the ice cube production stops automatically.
i Empty the water collection tray of the ice/water dispenser regularly to prevent an overflowing of water.
Do not use vessels that are too deep, too large, too narrow or too soft; use suitable vessels (drinking vessels, glasses, cups) only.
Hold the suitable vessel close to the ice/water dispenser opening, but leave enough space between the vessel and the ice/water dispenser opening, otherwise the taking from the dispenser may be impaired.
When you have taken ice or water from the dispenser and released the ice/water dispenser lever, hold the vessel under the ice/water dispenser opening for 2 - 3 more seconds to catch falling ice or water.

POWER FAILURE OR DISCONNECTION OF THE FRIDGE-FREEZER FROM THE MAINS

In the event of a power failure or if you disconnect the fridge-freezer from the mains, the ice cubes in the ice storage box will no longer be cooled and will begin to melt. This can cause the melting water to leak and flow onto the floor.
Always remove the ice cubes from the ice storage box in an event of a power failure, when you disconnect the fridge-freezer from the mains or as a precaution when you go on holiday.

TROUBLESHOOTING

i If the ice cube maker has only been in operation for a short time, it is normal that there is only a small amount of ice cubes in the ice storage box. The appliance needs a certain period of time to produce a sufficient quantity of ice cubes.

If the ice cubes stick together and block the ice dispenser opening or remaining crushed ice blocks the ice dispenser opening so that the ice cube maker does not work properly anymore, proceed as follows.

1. To remove the blockage of the ice dispenser opening, remove the remaining crushed ice from the dispenser opening carefully or break up the ice cubes. Dispose of the crushed ice and the ice cubes.

i Never put your hands in the ice dispenser opening; this can cause serious injury!

Do not place or insert any objects, etc. into the ice dispenser opening as this can damage the appliance.

1. Let the ice cube maker produce a new quantity of ice cubes.
2. The ice cube maker should work properly.

4.9.1 Before initial operation

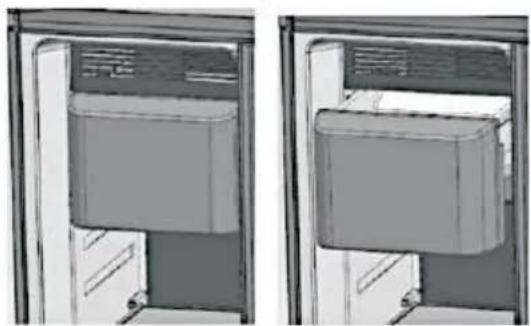

BEFORE INITIAL OPERATION OF THE ICE CUBE MAKER OR IF THE ICE CUBE MAKER HAS NOT BEEN USED FOR A LONG TIME

1. Ensure that the fridge-freezer is connected to the drinking water supply properly.
2. Clean the ice cube maker; s. chapter 6.2 CLEANING AND MAINTENANCE OF THE ICE CUBE MAKER ff.
3. Open the water tap.
4. It is absolutely necessary to remove the insulation cover; store the insulation cover in a safe place. The insulation covers on the top of the ice/water dispenser (inner side of the freezer door); s. fig. below and s. fig. in chapter 4.2 DESCRIPTION OF THE APPLIANCE.

Line drawing of a hand pressing down on a rectangular device (no text or symbols)

Fig. similar: modifications are possible.

1. Switch on the ice cube maker; s. chapter 4.9.2 USE OF THE ICE/WATER DISPENSER.
2. As soon as the set freezer temperature is reached, the ice cube maker produces ice cubes.

Chilled water is available after approx. 5 hours.
➢ Ice cubes or crushed ice are available after approx. 12 hours.

WARNING! When you use the ice cube maker for the first time, discard the ice cubes of the first production run from the ice storage box. These ice cubes are not suitable for consumption.

⚠ WARNING! When you use water from the water dispenser for the first time, take at least 2 litres of water from the dispenser and dispose of it. The first 2 litres of water are not suitable for drinking.

NOTICE! The insulation cover must be removed before the ice cube maker is switched on. The insulation cover must not be reinstalled while the ice cube maker is in operation.

Line drawing of a hand pressing down on a rectangular device (no text or symbols)

Fig. similar: modifications are possible.

NOTICE! Reinstall the insulation cover when the ice cube maker is switched off only.

NOTICE! Please also note chapter 6.2 CLEANING AND MAINTENANCE OF THE ICE CUBE MAKER et seq.

4.9.2 Use of the ice/water dispenser

NOTICE! Do not use the water dispenser without having placed a suitable vessel under the dispenser opening.

i Always ensure that

a) the fridge-freezer is connected to the drinking water supply properly!
b) the water tap is open.
c) the insulation cover is removed.
d) the ice cube maker is switched on.

If you select the function « ICE CUBES » after you have used the function « ICE CRUSHING », some crushed ice may still fall out of the ice dispenser opening.
Release the ice/water dispenser lever in time to prevent ice from falling to the floor or water from overflowing the vessel (glass/cup). When you have taken ice or water from the dispenser and released the ice/water dispenser lever, hold the vessel under the ice/water dispenser opening for 2 - 3 more seconds to catch falling ice or water.

OPERATING BUTTONS OF THE ICE/WATER DISPENSER

Fig. similar: modifications are possible.

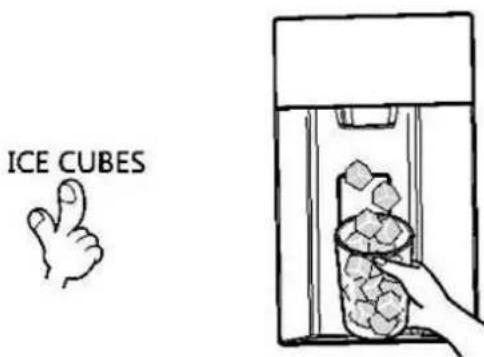

1. Press the button « ICE CUBES ».
2. Hold a suitable vessel (glass/cup) under the ice/water dispenser opening.
3. When the related indicator «■» goes on, press and hold the ice/water dispenser lever using the vessel.
4. Ice cubes fall into the vessel.
5. When the vessel is full, release the ice/water dispenser lever.

CRUSHED ICE

1. Press the button « ICE CRUSHING ».

2. Hold a suitable vessel (glass/cup) under the ice/water dispenser opening.

1. When the related indicator « — » goes on, press and hold the ice/water dispenser lever using the vessel.

2. Crushed ice fall into the vessel.

3. When the vessel is full, release the ice/water dispenser lever.

ICE CRUSHING

Simple line drawing of a hand pouring granular material into a container (no text or symbols)

CHILLED WATER

1. Press the button « ICE WATER ».

2. Hold a suitable vessel (glass/cup) under the ice/water dispenser opening.

1. When the related indicator « ■ » goes on, press and hold the ice/water dispenser lever using the vessel.

2. Chilled water flow into the vessel.

3. When the vessel is full, release the ice/water dispenser lever.

ICE WATER

Simple line drawing of a hand pouring liquid into a cup (no text or symbols)

SCHNEIDER

NOTICE! If the water taken from the dispenser has an unusual taste, flush the water system thoroughly. Take at least 5 litres of water from the ice/water dispenser using a suitable vessel. If the water still has an unusual smell or taste after flushing the system, you must change the water filter.

4.9.3 How to switch off the ice cube maker

Switch off the ice cube maker if you do not want to use the ice cube maker for a certain period of time. Proceed as follows.

HOW TO SWITCH OFF THE ICE CUBE MAKER (PRODUCTION OF ICE ONLY)

1. Press and hold the button « ICE ON/OFF » for 3 seconds.
2. The warning indicator « ICE OFF » goes on.

1. The ice cube maker is switched off.

2. Install the insulation cover; s. fig. below.

Line drawing of a hand pressing down on a small electronic device (no text or symbols)

Fig. similar: modifications are possible.

Only the ice cube maker is switched off: i.e. only the ice production is stopped. Chilled water ca be still taken as long as the fridge-freezer is connected to the drinking water supply and the water tap is open. However, the ice which is already produced (ice storage box) up to the time the ice cube maker is switched off can still be taken further on.

HOW TO SWITCH OFF THE ICE CUBE MAKER COMPLETELY

1. A few hours before you switch off the ice cube maker, close the water tap and disconnect the fridge-freezer from the drinking water supply so that no residual water remains in the system.

2. After a few hours: press and hold the button « ICE ON/OFF » for 3 seconds.

1. The warning indicator « ICE OFF » goes on.

2. The ice cube maker is switched off.

3. Empty the ice storage box, clean it and reinstall it; s. chapter 6.2 CLEANING AND MAINTENANCE OF THE ICE CUBE MAKER et seq.

If you do not empty the ice storage box, the remaining ice cubes may fall out of the dispenser during an automatic system test.

1. Install the insulation cover; s. fig. below.

Line drawing of a hand pressing down on a small electronic device (no text or symbols)

Fig. similar: modifications are possible.

NOTICE! Install the insulation cover when the ice cube maker is switched off only.

NOTICE! The insulation cover must be removed before the ice cube maker is switched on again.

4.9.4 Water filter

The water filter of the ice/water dispenser system is inside the fridge; s. fig. in chapter 4.2 DESCRIPTION OF THE APPLIANCE.
The water filter of the ice/water dispenser system must be replaced after 6 months (180 days) of operation.

i After 165 days of operation, the warning indicator « CHANGE THE FILTER CHANGE THE FILTER » will flash to remind you to replace the water filter any time soon. If you do not replace the water filter at this time, the warning indicator will be on continuously after 180 days.

How to replace the water filter is described in chapter 6.2.3 REPLACING OF THE WATER FILTER.

You can order suitable water filters at

www.pkm-online.de

NOTICE! The water filter filters particles from the water only.

NOTICE! If the fridge-freezer has not been used for a longer period of time or if the water taken from the dispenser has an unusual taste, flush the water system thoroughly. Take at least 5 litres of water from the ice/water dispenser using a suitable vessel. If the water still has an unusual smell or taste after flushing the system, you must change the water filter.

4.10 Power failure

Max storage time in case of malfunctions: s. chapter TECHNICAL DATA.
i In the event of an unforeseen power failure:

➢ reduce the opening frequency of the doors
➢ do not put any new food in the appliance to avoid a rapid rise of the temperature inside the appliance.

In the event of a foreseeable power failure, you can activate the FAST FREEZING MODE and the FAST COOLING MODE as a precautionary measure to set the appliance to the lowest temperatures so that both the fridge and freezer are maximally cooled at the time of the power failure.
In the event of a longer lasting power failure, the ice cubes in the ice storage box will begin to melt at some point. In this case, remove the ice storage box and dispose of the ice cubes to prevent melt water from getting into the freezer.

4.11 The fridge

The cooling compartment is not intended for storing food for a longer period of time. So, use the cooling compartment for short-term storage only. Different temperature areas due to the air circulation occur in the appliance. Use these different temperature areas to store different kinds of food.

COMPARTMENT	STARS (*)	TARGET STORAGE TEMPERATURE	SUITABLE FOOD
FRIDGE	-	+2 °C - +8 °C	➤ Eggs, ready meals, packaged foods, fruits and vegetables, dairy products, cakes, drinks and other food that is not suitable for freezing.
SHELVES	Food from wheat flour, milk etc. The shelves are removable for cleaning. Adjust the shelves relevant to your needs.
CRISPER	Fruit, vegetable, etc.
DOOR TRAYS	Eggs, beverage cans, bottled beverages, packaged foodstuffs etc.
HOME BAR	Beverages in bottles, etc.

Store covered or packaged food in the appliance only so the smell or taste of the food will not diffuse. The following materials are suitable for proper packaging:

◆ Food safe cling film / airtight bags and aluminium foil.
◆ Food safe covering hoods.
◆ Food safe containers made of plastic / glass / ceramics.
- Store fresh, packaged food on the shelves, fresh fruit and vegetable in the crisper.

◆ Store fresh meat packaged in protective foil for max. 2 days.
Let warm food such as cooked meals cool down before you store them in the appliance.
◆ Store food in such a way that the cooled air can circulate properly.
Do not place heavy bottles in the bottle pocket as it can come off the door.

NOTICE! Food (especially oily and fatty food) must not come into direct contact with the inner lining of the fridge. The direct contact with the inner lining can cause stains or damages. If liquids have been spilled in the interior of the appliance, remove them immediately using warm water to prevent damages.

4.11.1 Door trays of the fridge

❖ The door trays can be removed according to the appliance.

HOW TO REMOVE THE DOOR TRAYS

i Remove all stored food of the relevant door trays before.

1. Hold a door tray with both hands.
2. First, push the side of the door tray without the holder or the boss/slug inwards carefully (in the direction of the arrow) and release it (s. fig. below).
3. Release the other side of the door tray from the holder or the boss/slug carefully.
4. Remove the door tray carefully.

A	DOOR TRAY
B	INNER LINING OF THE DOOR
C	HOLDER OR BOSS/SLUG

HOW TO REINSERT THE DOOR TRAYS

1. Hold the door tray with both hands.
2. First, carefully insert the side of the door tray where the holder or the boss/slug (C) is located.
3. Push the other side of the door tray inwards carefully and insert the door tray.
4. Ensure that the door tray is reinserted properly.

The door trays can be removed and reinserted for cleaning as shown above ^39 .

4.11.2 Glass shelves of the fridge

❖ The glass shelves can be removed according to the appliance.

NOTICE! Each of the glass shelves is secured by two safety-latches. The locking sliders for the manual closing and opening of the latches are on both sides below the respective glass shelves. You must open the latches on both sides of the glass shelves when removing the shelves.

HOW TO OPEN THE LATCHES AND REMOVE THE GLASS SHELVES

i Remove all stored food of the relevant glass shelves before.

1. To open the latches of a glass shelf, push the right locking slider of the glass shelf to the left (s. fig. below) and the left locking slider to the right (without figure) simultaneously.

LATCH CLOSED
LATCH OPEN

A	INNER SIDE OF THE APPLIANCE
B	GLASS SHELF
C	LOCKING SLIDER:➢ Push the right looking slider to the left (s. fig. above).➢ Push the left looking slider to the right (without figure).
D	LOCKING PIN OF THE LATCH

1. Pull the glass shelf on the guide rails forward carefully and remove it.

HOW TO REINSERT THE GLASS SHELVES AND CLOSE THE LATCHES

1. To reinsert the glass shelf, push it back in position on the guide rails carefully.
2. Ensure that the area is free and has no obstacles.
3. Close the latches.

➢ Push the right looking slider to the right.
➢ Push the left looking slider to the left.
The glass shelves can be removed and reinserted for cleaning as shown above ^40 .

4.11.3 Crispers

❖ The crispers can be removed according to the appliance.

HOW TO REMOVE / REINSERT THE CRISPERS

1. Remove all stored vegetables or fruits of the relevant crisper before.
2. Pull the crisper forward carefully and lift it slightly until you can remove it.
3. Proceed in reverse order to reinsert the crisper.

Diagram of a door with a curved arrow indicating direction (no text or symbols)

Fig. similar

i Any of the crispers can be removed and reinserted for cleaning as shown above.

4.12 The freezer

⚠ WARNING! Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.
⚠ WARNING! Contact with frozen food, ice and metal components in the freezer compartment can cause injuries similar to burns.
⚠️ CAUTION! Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.
CAUTION! Do not put any bottled or canned beverages (neither still nor carbonated) into the freezer compartment of the appliance as their containers could explode.

The freezer is intended for long-term storage of food. Please observe the advice for max. storage time on the packaging of frozen food products. Do not refreeze defrosted food.

Protect fresh food you want to freeze using aluminium foil, cling film, air and water tight plastic bags, polyethylene containers or other suitable plastic containers with a lid.
Leave some free space between the single pieces of frozen food as proper air circulation is required.
The food is frozen completely after 24 hours (you find the relevant information about the maximum freezing capacity within 24 hours in chapter TECHNICAL DATA).
Only buy frozen food, when its packaging is not damaged. Damaged packaging may indicate an interruption of the cold chain.
Avoid or reduce variations in temperature: buy frozen food at the end of shopping and transport it in thermally insulated bags.
Do not refreeze defrosted and semi-defrosted food. Consume within 24 hours.
- Observe the complete information on the packaging of frozen food.

NOTICE! Food (especially oily and fatty food) must not come into direct contact with the inner lining of the freezer. The direct contact with the inner lining can cause stains or damages. If liquids have been spilled in the interior of the appliance, remove them immediately using warm water to prevent damages.

4.12.1 Door trays of the freezer

❖ The door trays of the freezer can be removed according to the appliance.
To remove the door trays, please follow the instructions given in chapter 4.11.1 DOOR TRAYS OF THE FRIDGE.

4.12.2 Glass shelves of the freezer

NOTICE! Each of the glass shelves is secured by two safety-latches ^41 . The locking sliders for the manual closing and opening of the latches are on both sides below the respective glass shelves. You must open the latches on both sides of the glass shelves when removing the shelves.

The glass shelves of the freezer can be removed according to the appliance.
To remove the glass shelves, please follow the instructions given in chapter 4.11.2 GLASS SHELVES OF THE FRIDGE.

4.12.3 Freezer drawers

❖ The freezer drawers can be removed according to the appliance.

HOW TO REMOVE / REINSERT THE FREEZER DRAWERS

1. Remove all stored food of the relevant freezer drawer before.
2. Pull the freezer drawer forward carefully and lift it slightly until you can remove it.
3. Proceed in reverse order to reinsert the freezer drawer.

Diagram of a door with a lever and directional arrows indicating movement (no text or symbols)

i Any of the freezer drawers can be removed and reinserted for cleaning as shown above.

4.12.4 Meaning of the \*-labelling of freezers

i 1- (*), 2- (**), and 3-stars (***) freezers are not suitable for freezing fresh food.
2-stars ( ^ ) and 3-stars ( ^* ) freezers are suitable for storing frozen food (prefrozen) and ice or for making ice and ice cubes.

COMPARTMENTS	STARS(*)	TARGET STORAGE TEMPERATURE	SUITABLE FOOD
FREEZER	(***)*	-18^0C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 3 monthsiSuitable for freezing fresh food.
FREEZER	***	-18^0C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 3 monthsiNot suitable for freezing fresh food.
FREEZER	**	-12^0C	➢Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.➢Recommended storage period: 2 monthsiNot suitable for freezing fresh food.
FREEZER	*	≤ -6 °C	Suitable for seafood (fish, shrimps, shellfish), freshwater and meat products.Recommended storage period: 1 monthNot suitable for freezing fresh food.
0*-COMPARTMENT	-	-6 °C - 0 °C	Suitable for fresh meat products (pork, beef, chicken, etc.) and processed food consumed or processed within the same day or within the next three days after storage (max.).Not suitable for freezing food or for storing frozen food.

4.13 Storage of food

The operation of your appliance is described generally in the chapters « OPERATION » et seq.; the following explanations will help you to store your food properly.
i Food must not get in touch with the surfaces inside the appliance directly. It has to be wrapped separately in aluminium foil or in cellophane foil or in airtight plastic boxes.

STORING FOOD IN THE REFRIGERATOR COMPARTMENT

The fridge helps to extend the storage times of fresh perishable foods.

PROPER STORAGE OF FRESH FOOD ENSURES BEST RESULTS

➢ Store food that is very fresh and of good quality only.
➢ Ensure that food is well wrapped or covered before it is stored. This will help to maintain the freshness of food and prevent it from dehydrating, deteriorating in colour or losing taste It will also prevent odour transfer.
- Vegetables and fruit need not be wrapped if they are stored in the crisper of the fridge compartment.
Make sure that strong smelling food is wrapped or covered in storage and kept away from foods such as butter, milk and cream as they can be spoiled by strong odours.
➢ Cool hot food down before placing it in the fridge compartment.

DAIRY FOODS AND EGGS

Most pre-packed dairy foods have a recommended „use by / best before / best by / date stamped on them. Store them in the fridge compartment and use within the recommended time.
- Butter can be spoiled by strong smelling foods so it is best stored in a sealed container.
➢ Eggs should be stored in the fridge compartment.

RED MEAT

➢ Place fresh red meat on a plate and cover it with waxed paper, plastic wrap or foil.
➢ Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

POULTRY

➢ Fresh whole birds should be rinsed inside and outside with cold running water, dried and placed on a plate covered with plastic wrap or foil.
➢ Poultry pieces should also be stored this way.
Whole poultry must only be filled immediately before cooking to avoid food poisoning.

FISH AND SEAFOOD

Whole fish and fillets should be used on the day of purchase. Until required, they should be stored in the fridge on a plate which is covered with plastic wrap, waxed paper or foil loosely.
If storing overnight or longer, take particular care to select very fresh fish.
Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.
Keep shellfish chilled at all times. Use within 1 – 2 days.

PRECOOKED FOOD AND LEFTOVERS

These should be stored in suitable covered containers so that the food will not dry out.
▶ Keep for 1-2 days only.
➢ Reheat leftovers once only and until steaming hot.

CRISPER

The crisper is the optimum storage location for fresh fruit and vegetables.
➢ Take care not to store the following food at temperatures of less than 7 °C for long periods: citrus fruit, melons, pineapple, papaya, passion fruit, cucumber, peppers, tomatoes.
Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying.
➢ Do not refrigerate avocados (until they are ripe), bananas and mangoes.

FREEZING AND STORING OF FOOD IN THE FREEZER COMPARTMENT

To store deep-frozen food.
To make ice cubes.
To freeze food.

NOTICE! Ensure that the door of the freezer compartment has been closed properly.

PURCHASING OF FROZEN FOOD

The packaging must not be damaged.
➢ Use by the „use by /best before/best by/“ date.
If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

STORING OF FROZEN FOOD

➢ Store at -18 °C or colder.
- Avoid opening the freezer compartment door unnecessarily.

FREEZING OF FRESH FOOD

➢ Freeze fresh and undamaged food only.
To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.

NOTICE! Keep food to be frozen away from food which is already frozen.

THE FOLLOWING FOOD IS SUITABLE FOR FREEZING

➢ Cakes and pastries.
▶ Fish and seafood.
▶ Meat, game and poultry.
▶ Vegetables, fruit and herbs.
Eggs without shells.
➢ Dairy products such as cheese and butter.
➢ Ready meals and leftovers such as soups, stews, cooked meat and fish.
▶ Potato dishes and soufflés.
▶ Desserts.

THE FOLLOWING FOOD IS NOT SUITABLE FOR FREEZING

Types of vegetables, which are usually consumed raw, such as lettuce or radishes.
Eggs in shells.
▶ Grapes, whole apples, pears and peaches.
➢ Hard-boiled eggs, yogurt, soured milk, sour cream, and mayonnaise.

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

SUITABLE PACKAGING

➢ Plastic film, tubular film made of polyethylene, aluminium foil.

These products are available from specialist outlets.

RECOMMENDED STORAGE TIMES OF FROZEN FOOD IN THE FREEZER COMPARTMENT

◆ These times vary depending on the type of food.
The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

FOOD	STORAGE TIME
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

IMPORTANT INSTRUCTIONS!

When you freeze fresh foods with a „use by / best before / best by“ date, you must freeze them before this date expires.
Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
i Once defrosted, food should be consumed quickly.

5. Environmental protection

5.1 Environmental protection: disposal

Appliances bearing this symbol « 》 must not be disposed of together with household waste throughout the EU. To prevent potential damage to the environment or human health from uncontrolled waste disposal and to promote the sustainable reuse of material resources, responsibly supply the appliance to a recycling centre.

5.2 Environmental protection: energy saving

❖ Install the appliance in a dry and well-ventilated place.
- Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
◆ Protect the appliance from direct sunlight.
Do not line the drawers with aluminium foil, waxed paper or paper layers; otherwise optimum circulation of the cold air is impeded so the appliance cannot work at best performance.
◆ Cooked food can be stored in the appliance. Let it cool down to room temperature before you put it into your appliance.
◆ Store your food in colourless, airtight and tasteless materials.
Some food like meat, fish etc. may become dry and release strong odours. You can avoid these by wrapping them into aluminium foil or plastic wrap or putting them into an airtight bag or container.
Allow ample storage place for your food. Do not overfill your appliance.
- Wrap your food in plastic wrap or suitable paper and place each kind of food in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.

Let warm or hot food cool down to room temperature before you put it into your appliance. Otherwise the energy consumption will increase and encrusted ice will be generated.
If you buy frozen food, the packaging must not be damaged and the product must be properly stored (sales container -18 ^0 C or lower).
Put the frozen food you want to defrost into the cooling-compartment of your appliance.
How to defrost frozen food depends on your kitchen-equipment and the purpose, you want to use the frozen food for.

√ room temperature
√ in the cooling-compartment of your appliance
√ in an electrical oven ^42
√ in a microwave ^43

✿ Try opening the door as little as possible, especially when the weather is warm and humid. If you open the door, close it as fast as possible.
- Permanently check, that the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.
◆ Defrost the appliance periodically as encrusted ice will decrease the power and increase the energy consumption of the appliance.

5.3 Operational parameters

The appliance can only reach the relevant temperatures when:

1. the ambient temperature meets the climatic class.
2. the doors close properly.
3. you do not open the doors too often or too long.
4. the door seals are in proper condition.
5. the appliance is properly positioned.
6. you have not overfilled the appliance.
7. you do not store warm or hot food in the appliance.

⚠️ DANGER! Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

WARNING! Remove possible dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!

NOTICE! Clean the appliance at least once a month.

1. Always keep the appliance clean so that unpleasant odours do not occur.
2. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
3. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

DETERGENT

Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents! Do not use any organic detergents! ^44 Do not use essential oils!
These instructions are valid for all surfaces of your appliance.

EXTERNAL CLEANING

1. Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

INTERNAL CLEANING

1. Clean the shelves and the inside with warm water and a mild detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Check the water drain and clean it if needed.

DOOR SEALS

Clean with warm water and a mild, non-acidic detergent. Do not restart the appliance until the door seals have dried completely.

6.1 Defrosting

FRIDGE

The fridge is defrosted automatically (NoFrost).

FREEZER

The freezer is defrosted automatically (NoFrost).

FREEZER: (optional procedure if encrusted ice should have occurred):

⚠ WARNING! Disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
⚠ WARNING! Never use any mechanical items, knives or other sharpedged objects to remove the encrusted ice. Never use a steam cleaner. RISK OF ELECTRICAL SHOCK!
⚠ WARNING! Do not use hairdryers, electrical heaters or other technical devices to accelerate the defrosting-progress. RISK OF ELECTRICAL SHOCK!

1. Remove the contents from the freezing-compartment and put them into a cooling box.

2. Place a container in front of the appliance to catch the water.

3. When the encrusted ice melts put some dry cloths into the freezer-compartment to hold the water back.

4. Do not use hot water to accelerate the defrosting operation.

5. Remove the big pieces of ice first.
6. Afterwards remove the small pieces of ice.
7. Wipe and dry the appliance and door seals with dry and soft cloths.
8. After cleaning leave the door open for some time to ventilate the appliance.

6.2 Cleaning and maintenance of the ice cube maker

- Clean the ice cube maker regularly. Always clean the ice cube maker before the first use or if the ice cube maker has not been used for a long time.

⚠ WARNING! If the ice cubes become discoloured, do not use the ice cubes under any circumstances but dispose of them. Do not use the ice cube maker any longer. Contact the aftersales service or the shop where you purchased the appliance at. ^45

6.2.1 Cleaning of the ice storage box

You have to remove the ice storage box for cleaning.

HOW TO REMOVE AND CLEAN THE ICE STORAGE BOX

1. Close the water tap, switch off the ice cube maker and disconnect the fridge-freezer from the mains.

2. To remove the ice storage box, lift it with both hands and pull it out.

Two side-by-side diagrams showing front and side views of a refrigerator with doors and refrigerators (no text or symbols)

1. Clean the ice storage box using clear, warm water only and dry it thoroughly.

HOW TO REINSERT THE ICE STORAGE BOX

1. To reinsert the ice storage box, align the bottom of the box to the lateral rails and push the box in the fridge-freezer. Ensure that the ice storage box is inserted properly.

Interior view of a refrigerator with a single drawer unit (no visible text or symbols)

Interior view of a refrigerator with open door and side panel (no visible text or symbols)

1. Connect the fridge-freezer to the mains again, open the water tap and switch on the ice cube maker.

⚠ WARNING! Never put your hands in the ice/water dispenser opening; this can cause serious injury. RISK OF INJURY!
⚠ WARNING! Never touch the blades inside the ice cube maker. RISK OF INJURY!
⚠ WARNING! Remove all overflowed or spilled water from the appliance or the floor. RISK OF SLIPPING! RISK OF ELECTRIC SHOCK!

NOTICE! Do not place or insert any objects into the ice/water dispenser opening of the ice cube maker as this can damage the appliance.

6.2.2 Flushing of the ice/water dispenser

To flush the ice/water dispenser, take approx. 2 litres water from the dispenser using a suitable vessel. Dispose of the taken water.
If the fridge-freezer has not been used for a longer period of time or if the water taken from the dispenser has an unusual taste, flush the water system thoroughly. Take at least 5 litres of water from the ice/water dispenser using a suitable vessel. If the water still has an unusual smell or taste after flushing the system, you must change the water filter.

NOTICE! Flush a water system connected to a water supply if no water has been taken from the ice/water dispenser for 5 days.

6.2.3 Replacing of the water filter

The water filter of the ice/water dispenser system must be replaced after 6 months (180 days) of operation.
The water filter is inside the fridge; s. fig. in chapter 4.2 DESCRIPTION OF THE APPLIANCE.

CHANGE

THE FILTER

i After 165 days of operation, the warning indicator « CHANGE THE FILTER CHANGE THE FILTER » will flash to remind you to replace the water filter any time soon. If you do not replace the water filter at this time, the warning indicator will be on continuously after 180 days.

HOW TO REPLACE THE WATER FILTER

1. Switch off the ice cube maker, close the water tap and disconnect the fridge-freezer from the mains.
2. Open the door of the fridge.
3. Unscrew the water filter according to the arrow marker on the water filter.
4. Insert a new water filter and screw it properly.
5. Connect the fridge-freezer to the mains, open the water tap and switch on the ice cube maker again.
6. Press and hold the button « ICE WATER » for more than 5 seconds to confirm the replacement of the water filter.
7. The warning indicator « CHANGE THE FILTER CHANGE THE FILTER » goes out.
8. Air may get into the water system during the filter replacement. To remove this air from the water system, take water from the ice/water dispenser using a suitable vessel. The system is vented when the water flows evenly.
9. Dispose of the used water filter properly.

NOTICE! The water filter filters particles from the water only.

You can order suitable water filters at

www.pkm-online.de

6.3 Replacing of the illuminant

⚠ WARNING! The LED-illuminant must be replaced by a competent person only. If the LED-illuminant is damaged, please contact a qualified professional (not covered by the guarantee).

7. Troubleshooting

When the appliance is put into operation for the first time, the system performs a self-test. Some water may leak from ice/water dispenser opening during the self-test. This is normal and not a malfunction.

Malfunction
Possible cause	Measure
THE APPLIANCE DOES NOT WORK AT ALL.
1. The plug of the appliance is not connected to the socket.2. The plug has become loose.3. The socket is not supplied with energy.4. The fuse is switched off.5. The voltage is too low.	1. Connect the appliance to the mains properly.2. Check the plug.3. Check the corresponding socket by connecting it with another appliance.4. Check the fuse box.5. Compare the data on the model plate with the data of your energy supplier.
THE COMPRESSOR DOES NOT WORK AT ALL.
1. Incorrect energy supply.	1. Check the energy supply.
THE COMPRESSOR OPERATES FOR TOO LONG.
1. The appliance has been switched off for a while.2. Too much or too hot food in the appliance.3. Doors opened too often or too long.	1. The appliance needs some time to reach the preset temperature.2. Remove any hot food.3. Do not open the door too often/too long.
FORMATION OF ENCRUSTED ICE.
1. The air outlets may be blocked by food.2. The door is not properly closed.3. The door seal is damaged or soiled.	1. Store the food in another place.2. Close the door properly.3. Clean and / or replace the door seal.
THE DOOR MAKES A STRANGE SOUND WHEN OPENED.
1. The door seals are soiled.	1. Clean the door seals.
UNCOMMON NOISE.
1. The appliance is not installed on a flat and level ground. The appliance touches a wall or another object.2. Frozen food is stored improperly.3. Items have dropped behind the appliance.	1. Install the appliance properly.2. Store food properly.3. Remove the items.
WATER DRIPS ON THE FLOOR.
1. The water pan ^46 (located at the rear bottom of the cabinet) may not be properly levelled, or the draining spout (located underneath the top of the compressor depot) may not be properly positioned to direct water into this pan, or the water spout is blocked.	1. You may need to pull the refrigerator away from the wall to check the pan and spout.
THE LIGHT IS NOT WORKING.
1. The LED light may be damaged.2. The control system has disabled the lights due to the door being kept open too long.	1. Refer to replace LED lights in CLEANING AND CARE chapter.2. Close and reopen the door to reactivate the lights.

THE ICE CUBE MAKER IS NOT WORKING.

1. The ice cube maker is switched off.
2. The freezer door is not properly closed.
3. The water tap is closed.

4. The water pressure is too low.

5. Switch on the ice cube maker.

6. Close the freezer door properly.
7. Open the water tap.
8. Check the water pressure. The water pressure must be between 1.4 and 6.9 bar.

THE ICE/WATER DISPENSER OPENING IS BLOCKED.

1. Ice cubes stick together and block the ice/water dispenser opening.

2. Crushed ice blocks the ice/water dispenser opening.

3. Remove the blockage; s. chapter 4.9 / -TROUBLESHOOTING-

4. Remove the blockage; s. chapter 4.9 / -TROUBLESHOOTING-

i If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

THE OPERATING CONDITIONS DESCRIBED BELOW ARE NORMAL AND DO NOT INDICATE A MALFUNCTION.

The refrigerant generates a sound similar to flowing water.
Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

DISTINCT NOISE

When you operate the appliance for the first time or the temperature falls below a certain level, the appliance will operate with high power to reach the preset temperature.

CONDENSED WATER IN / ON THE APPLIANCE

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures.

CLICKING

You will hear the compressor click if it is activated or deactivated.

HUM

is caused by the compressor while running.

KNOCKING / SNAPPING

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

8. Decommissioning

DECOMMISSIONING, TEMPORARILY

IF THE APPLIANCE IS NOT USED FOR A LONGER PERIOD OF TIME:

1. disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
2. disconnect the appliance from the drinking water supply. Empty and clean the ice storage box. Reinsert the ice storage box.
3. remove all food stored in the appliance.
4. dry the inside of the appliance with a cloth and leave the door open for a few days.

WHILE AWAY ON AN AVERAGE VACATION / HOLIDAY (14-21 DAYS):

1. do the same as described above, or
2. let the appliance operate and

a. remove all perishable food from the cooling compartment.
b. clean the cooling compartment.
c. freeze all food which is suitable to be frozen.
d. Close the water tap, switch off the ice cube maker. Empty and clean the ice storage box. Reinsert the ice storage box.

IF YOU WANT TO MOVE THE APPLIANCE:

1. secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. do not damage the feet of the appliance.

DECOMMISSIONING, ULTIMATE

1. Disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
2. Disconnect the appliance from the drinking water supply and empty the ice storage box.
3. Cut off the power cord at the appliance.
4. Completely remove every door of the appliance.
5. Leave the shelves in their position so that children are not able to get into the appliance.
6. Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

9. Technical data

TECHNICAL DATA*

Model	Side by Side Fridge-Freezer
Climatic class	SN / N / ST / T(ambient temperature 10 - 43 °C)
NoFrost: fridge / freezer	yes / yes
Energy efficiency class**	A+
Annual energy consumption in kW/h***	438.00
Voltage / frequency	220 - 240 V AC / 50 Hz
Volume gross in l	618
Net volume fridge / freezer in l	372 / 169
Stars	4****
Max. freezing capacity within 24 h	12.00 kg
Max. storage time / malfunction	6.00 h
Noise emission	42 dB/A
Adjustable thermostat	yes
Compressor	1
Refrigerant / total quantity	R600a / 75 g
Automatic ice cube maker incl. water dispenser	✓ / fixed connection to the drinking water supply
Water hose incl. connectors	6 metres included
Changeable door hinge
Display	✓
Home Bar	1
Internal light: Fridge	yes / LED
Internal light: Freezer	yes / LED
Glass shelves in the fridge	3
Glass shelves in the freezer	3
Door trays (in total)	5
Crispers incl. break-proof glass cover	2
Freezer drawers incl. break-proof glass cover	2
Adjustable supporting feet	ycs
Defrosting process: fridge / freezer	NoFrost / NoFrost
Dimensions appliance H*W*D in cm	178.00*91.10*70.60
Weight net / gross in kg	97.00 / 107.00

◆ Technical modifications reserved.

*	According to regulation (EU) No. 1060/2010
**	On a scale from A+++ (highest efficiency) to D (lowest efficiency).
***	Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.

10. Waste management

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!
2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!
3. Old and unused appliances must be sent for disposal to the responsible recycling centre or contact the retailer you purchased the appliance at. They may accept the appliance for environmentally sound recycling. Never expose to open flames.
4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

REFRIGERANT:

1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.
2. ⚠ WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the SCHNEIDER-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a SCHNEIDER-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

SCHNEIDER

August 2014

SERVICE INFORMATION

SCHNEIDER

Aftersales service information on the leaflet inside this instruction manual.
