Product Type	Tumble Dryer
Brand	Electrolux
Model	EDH903R9WB
Capacity	9 kg
Drying System	Heat Pump
Energy Efficiency Class	A+++
Dimensions (H x W x D)	85 x 60 x 65 cm
Weight	50 kg
Power Supply	230 V, 50 Hz
Rated Power	700 W
Noise Level	65 dB(A)
Drying Programs	Cotton, Synthetics, Delicates, Wool, Quick, Mix, Eco, Outdoor, Shirts, Bed Linen, Refresh, Time Program
Sensor Drying	Yes
Anti-Crease Function	Yes
Delay Start	Up to 24 hours
Child Lock	Yes
Condenser Self-Cleaning	Yes
Lint Filter	Located in door, easy to clean
Water Tank Location	Top drawer
Installation Type	Freestanding
Spare Parts Availability	Available from authorized service centers

Frequently Asked Questions - EDH903R9WB ELECTROLUX

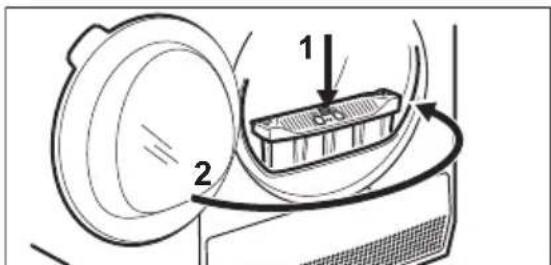

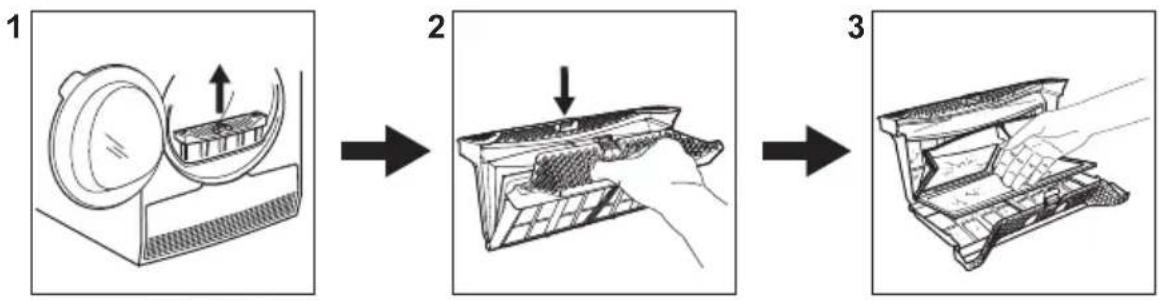

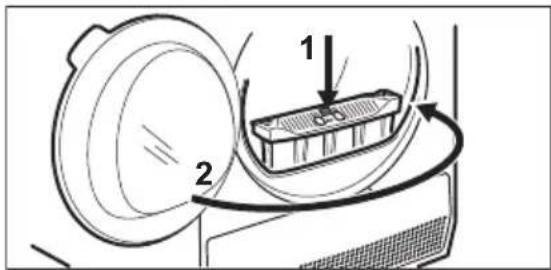

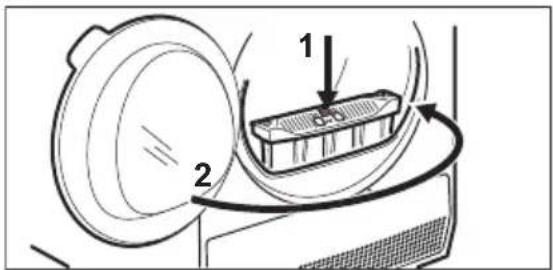

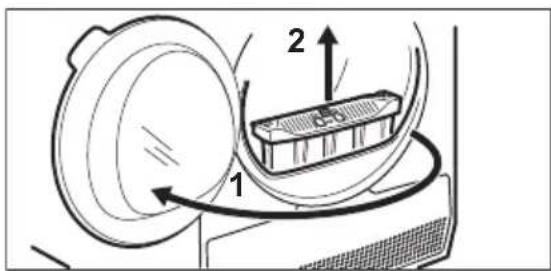

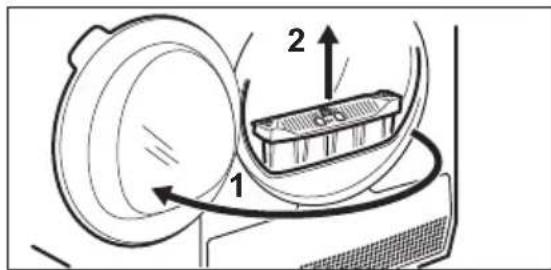

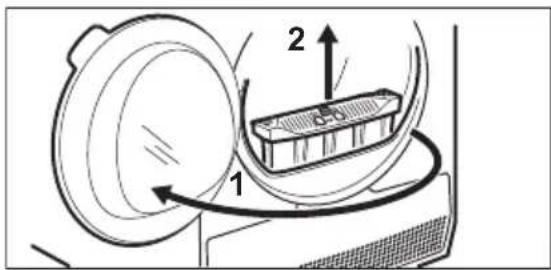

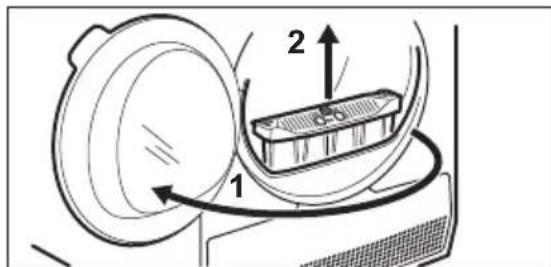

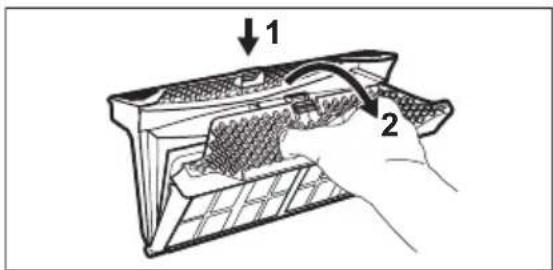

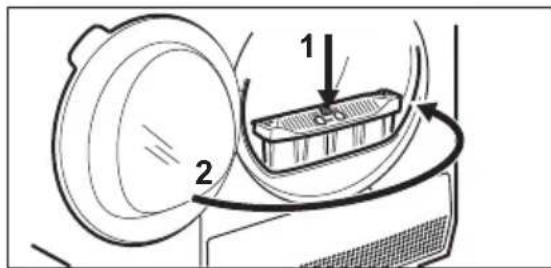

How do I clean the lint filter?

After each drying cycle, open the door and pull the lint filter upward. Remove lint by hand or with a soft brush, rinse under running water if needed, then dry it thoroughly before reinstalling.

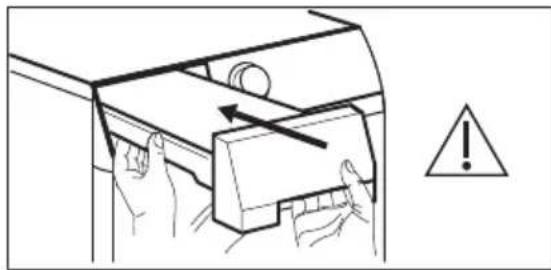

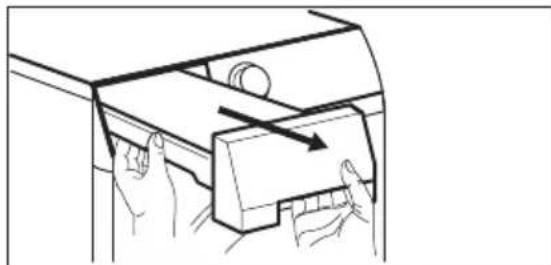

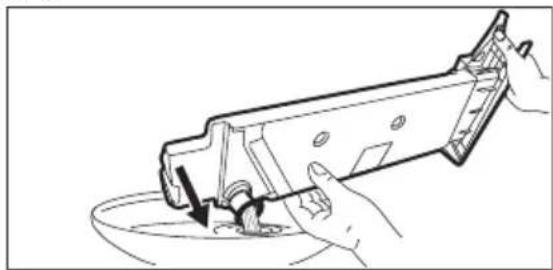

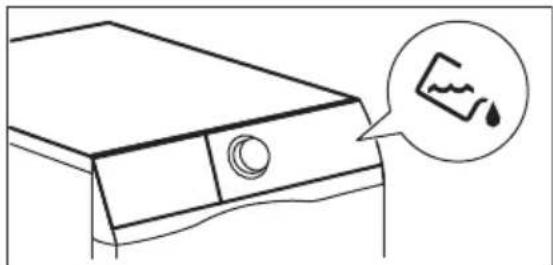

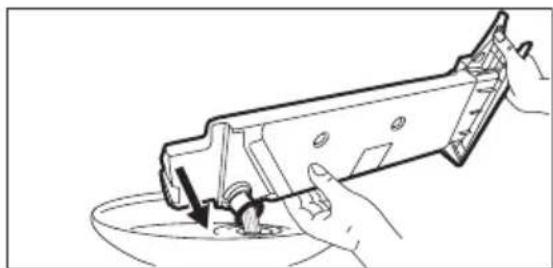

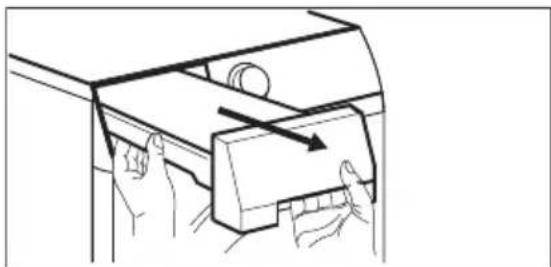

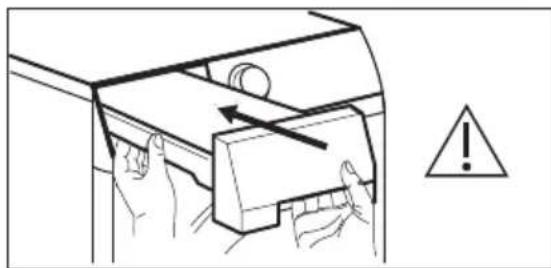

Where is the water tank and how do I empty it?

The water tank is located in the top drawer. Pull out the drawer, empty the water into a sink, and push it back firmly. Alternatively, you can connect a drain hose (not supplied) for continuous drainage.

What does the 'Condenser Self-Cleaning' feature do?

This function automatically cleans the condenser during the drying cycle using condensed water, reducing the need for manual cleaning. The system flushes the condenser at regular intervals to maintain efficiency.

How do I activate the child lock?

Press and hold the 'Child Lock' button (usually marked with a padlock icon) for 3-5 seconds until the symbol appears on the display. Repeat to unlock.

Why is the drying cycle taking longer than expected?

Possible reasons include: overloaded drum, clogged lint filter, blocked condenser, low ambient temperature, or selected program with lower heat. Try reducing the load or cleaning the filter/condenser.

Can I stack my washing machine on top of this dryer?

This dryer is designed for freestanding use only. If you wish to stack, you must use a stacking kit specifically designed for this model and follow the installation instructions strictly to ensure stability.

How do I use the delay start function?

Select your drying program, then press the 'Delay Start' button repeatedly to set the desired delay time (e.g., 3, 6, 9 hours). Press 'Start/Pause' to begin the countdown. The dryer will start automatically at the set time.

What should I do if the dryer stops mid-cycle?

Check for a power outage, a full water tank, or a clogged lint filter. If the display shows an error code, refer to the troubleshooting section of the manual. Press 'Start/Pause' to resume if the issue is resolved.

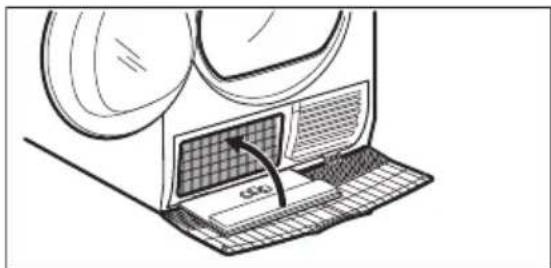

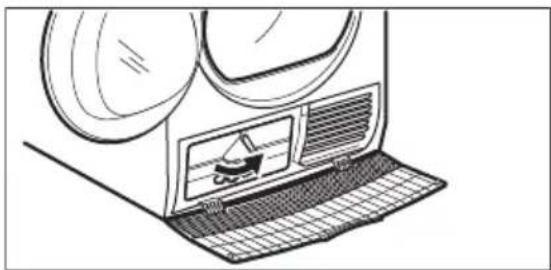

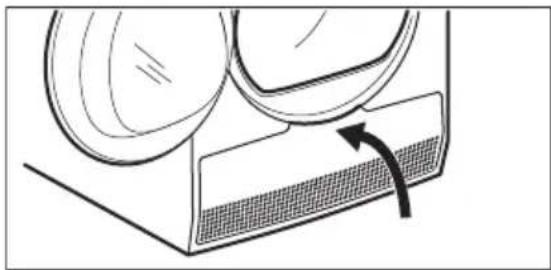

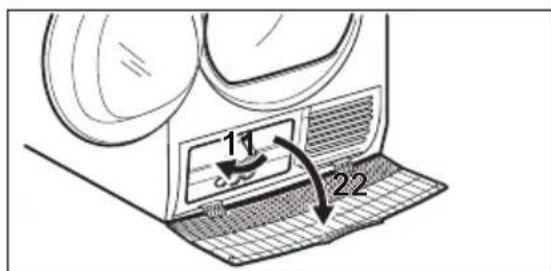

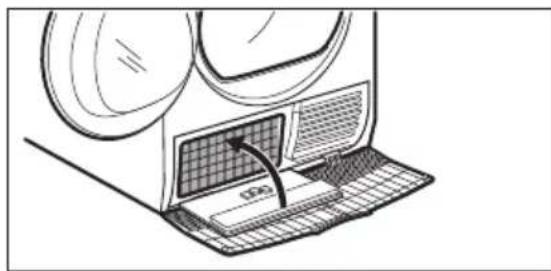

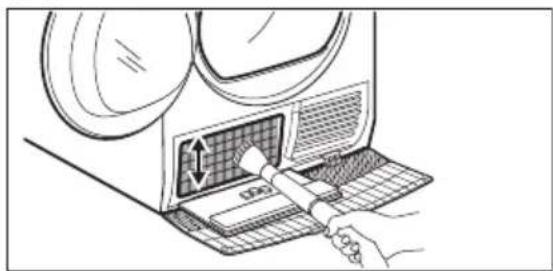

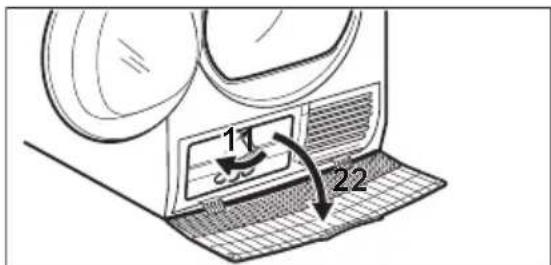

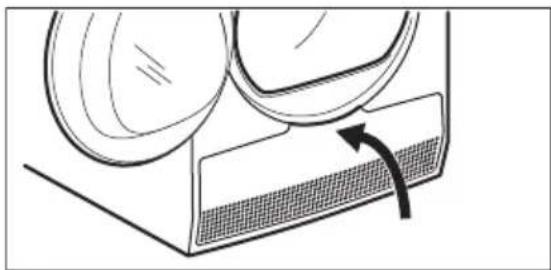

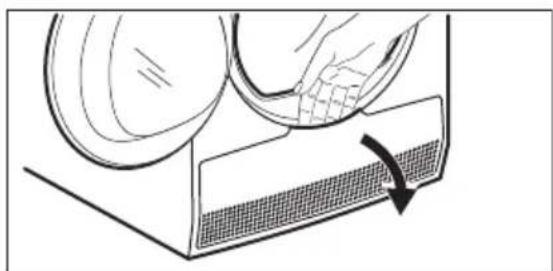

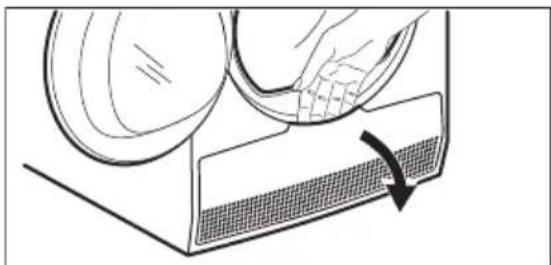

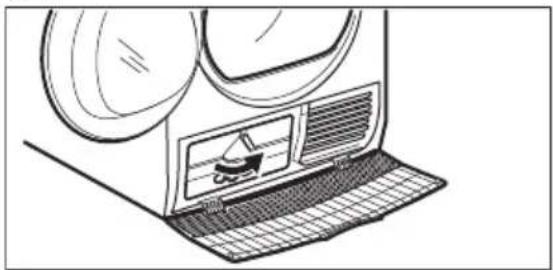

How do I clean the condenser manually?

Turn off and unplug the dryer. Open the lower flap, pull out the condenser, rinse it with water from the back to remove lint, shake off excess water, and reinsert it securely. Do not use brushes or sharp objects.

What programs can I use for delicate fabrics?

Use the 'Delicates' program for gentle drying at low temperature. For wool items, select the 'Wool' program which has a special drum movement to prevent shrinkage. Always check garment care labels.

USER MANUAL EDH903R9WB ELECTROLUX

EN Tumble Dryer User Manual 2

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time. Welcome to Electrolux.

Visit our website:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. ⚠ SAFETY INFORMATION

Before beginning the installation and use of this appliance, carefully read the supplied instructions. The

manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Read the supplied instructions.

Warning: Risk of fire / Flammable materials. The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep detergents away from children.

• Keep children and pets away from the appliance when the door is open.

• If the appliance has a child safety device, it should be activated.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

- Do not change the specification of this appliance.

- The appliance can be installed as freestanding or below a kitchen counter with correct space (refer to the Installation leaflet).

- Do not install the appliance behind a lockable door, a sliding door or a door with a hinge on the opposite side, that would prevent the appliance door from being fully open.

- The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.

- WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

- Connect the mains plug to the mains socket only at the end of the installation process. Make sure that the mains plug is accessible after installation.

- Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels, including open fires.

- WARNING: Do not install the appliance in an environment with no air exchange.

The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

- WARNING: In the appliance enclosure or in the built - in structure, keep ventilation opening clear of obstruction.

- WARNING: Do not damage the refrigerant circuit.

• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• Do not exceed the maximum load of 9,0 kg (refer to the "Programme chart" chapter).
• Do not use the appliance if items have been soiled with industrial chemicals.
• Wipe away lint or packaging debris that has accumulated around the appliance.
• Do not run the appliance without a filter. Clean the lint filter before or after each use.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should only be used as specified by the product manufacturer's instructions.
• Remove all objects from items that could be a source of fire ignition such as lighters or matches.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

2. SAFETY INSTRUCTIONS

2.1 Installation

Warning: Risk of fire / Flammable als.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Do not install the appliance in an environment with no air exchange The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not install or use the appliance where the temperature can be lower than 5°C or higher than 35°C.
• The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.
• Make sure that there is air circulation between the appliance and the floor.
  • Always keep the appliance vertical when it is being moved.
• The rear surface of the appliance must be put against a wall.
• When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• WARNING: This appliance is designed to be installed / connected

to a grounding connection in the building.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
  • Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains plug with wet hands.

2.3 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

Warning: Risk of fire / Flammable metals. The appliance contains variable gas, propane (R290), a gas high level of environmental patibility. Keep fire and ignition lies away from the appliance. Be not to cause damage to the terant circuit containing propane.

• This appliance is for household (indoors) use only.
- Do not dry damaged (torn, frayed) items that contain padding or fillings.
- If laundry has been washed with a stain remover, carry out an additional rinse cycle before starting a drying cycle.
- Dry only fabrics that are suitable to dry in the appliance. Follow the cleaning instruction on the item label.
- Do not drink or prepare food with the condensed water/distilled water. It can cause health problems to people and pets.
- Do not sit or stand on the open door of the appliance.
- Do not dry dripping wet clothes in the appliance.

2.4 Internal lighting

WARNING!

Risk of injury.

• Visible LED radiation, do not look directly into the beam.
• To replace the internal lighting, contact the Authorised Service Centre.

2.5 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

Warning: Risk of fire / Flammable materials. The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• Be careful when you clean the appliance to prevent damage to the cooling system.

2.6 Compressor

WARNING!

Risk of damage to the appliance.

- The compressor and its system in the tumble dryer is filled with a special agent which is free from fluoro-chlorohydrocarbons. This system must stay

tight. The damage of the system can cause a leakage.

2.7 Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.8 Disposal

WARNING!

Risk of injury or suffocation.

Warning: Risk of fire / Risk of material d appliance.

• Disconnect the appliance from the mains electrical and water supplies.
• Cut off the mains electrical cable close to the appliance and dispose of it.
  • The appliance contains flammable gas (R290). Contact your municipal authority for information on how to discard the appliance correctly.
• Remove the door catch to prevent children or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

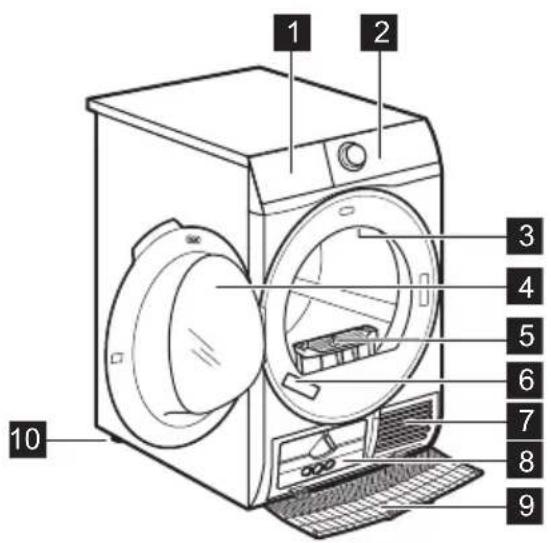

3. PRODUCT DESCRIPTION

1 Water container
2 Control panel
3 Internal light
4 Appliance door
5 Filter
6 Rating plate
7 Airflow slots
8 Heat Exchanger lid
9 Heat Exchanger cover
10 Adjustable feet

For ease of loading laundry or ease of installation the door is reversible. (see separate leaflet).

4. CONTROL PANEL

1 Programme knob
2 Extra Anticrease touch button
3 Dryness Level touch button
4 Display
5 Time Dry touch button
6 Start/Pause touch button
7 Delay Start touch button
8 Remote touch button

9 End Alert touch button
10 Reverse Plus touch button
11 Extra Silent touch button
12 On/Off button

Press the touch buttons with your finger in the area with the symbol or name of the option. Do not wear gloves when you operate the control panel. Make sure that the control panel is always clean and dry.

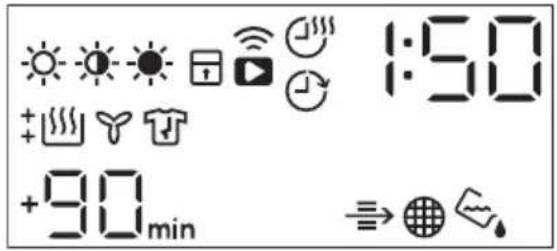

4.1 Display

Symbol on the display Symbol description
	laundry dryness option: iron dry, cupboard dry, extra dry
	time drying option on
	delay start option on
	indicator: Wi-Fi connection
	remote start option on
	indicator: check Heat Exchanger
	indicator: clean filter
	indicator: drain the water container
	child lock on
	wrong selection
	indicator: drying phase
	indicator: cooling phase
	indicator: anti-crease phase
1:50	programme duration
+30min., +60min. +90min. +2h	extension of default anti-crease phase: +30min, +60min, +90min, +2h)
:10-2:00	time drying selection (10min-2h)
1h-20h	delay start selection (1h-20h)

5. WI-FI - CONNECTIVITY SETUP

This chapter describes how to connect the smart appliance to the Wi-Fi network and to link it to a mobile devices.

By this functionality you can receive notifications, monitor and control your tumble dryer from your mobile devices.

To connect the appliance to enjoy the full range of features and services you need:

• Wireless network at home with internet connection enabled.
• Mobile device connected to wireless network.

Frequency/Protocol	Wi-Fi: 2.4 /802.11 bgn
	Wi-Fi: 5 /802.11 an (for indoor use only)
	Bluetooth Low Ener-gy 5.0: 2.4 GHz / DSSS
Max power Wi-Fi: 2.4 GHz: <20 dBm
Bluetooth Low Ener-gy 5.0: <20 dBm
Encryption WPA, WPA2

i Minimum requirements: Operating system compatibility iOS 9.3/Android 5.1 and above. Install the Electrolux Life app, create an account and accept the Terms and Conditions and Electrolux's Privacy Policy to use the connected features. Stable Internet and good WiFi connection with 2.4GHz or 5 GHz wireless frequency is required. Minimum requirements, apps and services are subject to change without notice.

5.1 Installing Electrolux Life

When connecting the tumble dryer to the application, stand near it with Your smart device.

Make sure that your smart device is connected to the wireless network.

1. Go to the App Store on your smart device.
2. Download and install App Electrolux Life.
3. Make sure you started a Wi-fi connection in the dryer. If not go to the section below.
4. Start the application. Select the country and language and login with Your email and password. If you do not have an account, create a new one following the instructions in Electrolux Life.

5.2 Configuring the dryer wireless connection

Have Electrolux Life downloaded and installed on your smart device.

1. In the App - tap on Add appliance and follow the instructions on the App for appliance connection.
2. Press the on/off button for a few seconds to activate the appliance.
3. Select a programme by turning the programme dial.
4. Press and hold Remote touch button for 3 seconds.

The text pop up for about 5 seconds and the icon starts flashing and wireless module begins starting up. It may takes about 10 seconds before it is ready. When the wireless module is ready, the text (Access Point) is on to inform you, that the access point will be open for about 3 minute.

1. Configure the Electrolux Life app on your smart device.
2. If the connectivity is configured, AP (Access Point) symbol is off and the icon will stop blinking and lit steadily to confirm that the configuration was successful.

Every time you switch the appliance on, the appliance takes about 10 seconds to connect to the network automatically. When the indicator 🔍 stops blinking the connection is ready.

To switch the wireless connection

off, Press and hold Remote touch button for 3 seconds until the first acoustic signal: appears on the display.

If you switch the appliance off and on again, the wireless connection is automatically off.

To remove the wireless

credentials, Press and hold Remote touch button for 10 seconds until the second acoustic signal: — — — appears on the display.

5.3 Remote Start

Electrolux Life allows you to control your laundry through a mobile device. It contains a large number of programmes, useful features and product information tailored perfectly to the appliance.

Through the app you can select the programmes already available from the appliance control panel, plus unlock additional programmes available only from a mobile device.

Additional programmes can change over the time along with new versions of the app.

It's personalized laundry care - all from your mobile device.

When the App is installed and the wireless connection is complete, you can start and stop a drying programme remotely by activate remote start.

The Remote Control activates automatically when you press the Start/Pause button to start the programme, but it is also possible to start a drying programme

Activate Remote Start

Press the Remote button.

The indicators appears on the display. Now it is possible to start the programme remotely.

Deactivate Remote Start

Press the Remote touch button.

The ▶ icon is off and the remote start is deactivated.

If the door is open, the Remote Start is deactivated.

Over-the-air update

WARNING!

During the update it is highly recommended to not turn off or unplug the appliance.

The App may propose an update for downloading new features.

The update is accepted via App only.

If a programme is running, the App notifies that the update will start at the end of the programme.

During the update, the appliance shows UPd in the display.

The appliance will usable again at the end of the update, without any notification about successful update.

If an error occurs, the appliance shows

Err in the display: just press any buttons or turn the knob to return to normal use.

6. PROGRAMME TABLE

Programme	Load 1)	Properties / Fabric type2)
Favourite ☆	The load depends on a mem-orised pro-gramme	You can do your configuration of programme and options and memorise in the appliance memory (See chapter "Settings - Favourite ☆").
Cottons 9,0 kg Cotton fabrics.		/ [IMAGE]
Mixed + 6 kg		Mix of garments made of cotton, cotton-synthetic blend and syn-thetic fabric. / [IMAGE]
Bedding + 4,5 kg		Up to three bed linen sets, one of which can be double size. / [IMAGE]
Energy Saver 9,0 kg		Cycle to be used to dry cotton with "cotton cupboard" dryness level, with maximum energy sav-ing. / [IMAGE]
Refresh 1kg Refreshing textiles that were in storage.
□ App Program	The load depends on a selec-ted pro-gramme in the app	App Program gives you additional pro-grammes that you can select from the App (see chapter "WI-FI - CONNECTIVITY SET-UP" to connect the smart appliance to the Wi-Fi network and to link it to a mobile devices).
Drying Rack3)	1kg (or 1 pair of sport shoes)	For drying sport shoes only with Drying Rack (see separate user manual provided with Dry-ing Rack).
Hygienic Care 3 kg		Dries and adds a hygienic treatment to your garments maintaining a higher temperature phase over time that reduces the presence of micro-organisms. Programme to treat wet clothes. Not suitable for delicate garments.
Silk 1 kg		Gentle drying of hand-washable silks.
Duvet 3 kg		Single or double duvets and pillows (with feather, down or synthetic fillings).
Wool 1 kg		The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of wool garments labelled as "hand wash" provided that the garments are dried according to the instructions issued by the manufacturer of this machine. Follow the garment care label for other laundry instructions. M2001
Delicates 4 kg		Delicate fabrics such as viscose, rayon, acrylic, and their blends.

1) The maximum weight refers to dry items.

2) For fabric mark meaning see chapter HINTS AND TIPS: Preparing the laundry.

3) Only with the Drying Rack (standard accessory or optional, depending on model).

7. OPTIONS

7.1 Extra Anticrease

Extends the anti-crease phase by 30,60,90 or 2 hours at the end of the drying cycle. This function reduces creases. The laundry can be removed during the anti-crease phase.

7.2 Dryness Level

This function helps to increase dryness of the laundry. There are 3 options:

• Extra Dry
• Cupboard Dry
• Iron Dry

7.3 Time Dry

You can set the programme duration, from a minimum of 10 minutes to a maximum of 2 hours. The required duration is related to the quantity of laundry in the appliance.

We recommend that you set a short duration for small quantities of laundry or for only one item.

TIME DRYING RECOMMENDATION
10 - 20 min	action of cool air only (no heater).
20 - 40 min	additional drying to improve dryness after previous drying cycle.
>40 min	full drying of the small laundry loads up to 4 kg, well spun (>1200 rpm).

7.4 Time Dry on Wool programme

Option suitable for Wool programme to adjust final dryness level.

7.5 Time Dry on Drying Rack programme

Option suitable for Drying Rack programme.

7.9 Options table

You can set the programme duration, from a minimum of 10 minutes to a maximum of 2 hours. The setting of the duration is related to the quantity of laundry in the appliance.

We recommend that you set a short duration for small quantities of laundry or for only one item.

7.6 End Alert

The buzzer sounds at the:

• cycle end
• start and end of the anti-crease phase
• cycle interruption
  The buzzer function is by default always on. You can use this function to activate or deactivate the sound.

You can activate the End Alert option with all programmes.

7.7 Reverse Plus

Increase drum reversing frequency to reduce items twisting and entanglement. To increase uniformity of drying result and help reduce creases. Recommended for large or long items (e.g. sheets, trousers, long dresses)"

7.8 Extra Silent

The appliance operates with low noise without effect on the drying quality. The appliance operates slowly with longer cycle time.

Programs1)	Dryness Level	Extra Anti-crease	Extra Silent	Reverse Plus	Time Dry
Favourite	[8Z3S]	ds on a memorised program
Cottons ■
Mixed + ■
Programs^1)	Dryness Level	Extra Anti-crease	Extra Silent	Reverse Plus	Time Dry
Bedding + ■ ■ ■ ■ ■
Energy Saver ■ ■
Refresh ■
App Program Depends on a selected program in the app
Drying Rack					■ 2)
Hygienic Care ■
Silk ■ ■
Duvet ■
Wool 📄					■ 3)
Delicates	■ ■

1) Together with the program you can set 1 or more options. To activate or deactivate them, press the related touch button.

2) See chapter OPTIONS: Time Dry on Drying Rack program

3) See chapter OPTIONS: Time Dry on Wool program

8. SETTINGS

A. Time Dry touch button

B. Start/Pause touch button

C. Delay Start touch button

D. Remote touch button

E. End Alert touch button

F. Reverse Plus touch button

G. Extra Silent touch button

H. Extra Anticrease touch button

I. Dryness Level touch button

8.1 Child lock function

This option prevents children playing with the appliance while a programme is operating. The touch buttons are locked.

Only the on/off button is unlocked.

Activating the child lock option:

1. Press the on/off button to activate the appliance.
2. Press and hold touch button (E) for a few seconds.

The child lock indicator comes on.

It is possible to deactivate the child lock option while a programme operates. Press and hold the same touch buttons until the child lock indicator goes off. The Child Lock function isn't available for 8 s after switching on the appliance.

8.2 Favourite

App Program cycle cannot be saved as a Favourite on the appliance.

You can do your configuration of programme and options and memorise in the appliance memory.

To memorise your configuration:

1. Press the on/off button to activate the appliance
2. Set the programme and available options.
3. Press the (F) button for some seconds.

The sound and the message on the display confirm that the configuration is memorised.

To activate your memorised configuration:

1. Press the on/off button to activate the appliance.
2. Use the programme knob to set Favourite ☆ position.

Previously memorised configuration of programme and options will be restore.

8.3 Adjustment of the remaining moisture

Every time you enter in the "Adjustment of remaining laundry moisture" mode, previously set degree of remaining moisture will change into next value (e.g. previously set will change into 1).

To change the default degree of remaining moisture:

1. Press the on/off button to activate the appliance.
2. Use the programme knob to set any programme.
3. Wait approximately 8 seconds.
4. Press and hold buttons (F) and (E) at the same time.

One of these indicators comes on:

- maximum dryness

- 1 - more dry laundry

-2-standard dry laundry

1. Press and hold buttons (F) and (E) again until the indicator of the correct level comes on.

If the display returns to the normal mode (the time of the selected programme from step 2. will be displayed), while setting the degree of remaining moisture, press and hold buttons (F) and (E) once again to enter to the "Adjustment of remaining laundry moisture" mode (previously set degree of remaining moisture will change into next value).

1. To accept the selected degree of remaining moisture, wait 5 s and the display returns to the normal mode.

Dryness level Display symbol
-0-maximum dryness	+###
-1-more dry laundry	+###
-2-standard dry laundry	###

8.4 Water container indicator

By default, the water container indicator is on. It comes on when the programme is completed or when it is necessary to empty the water container.

If a draining kit is installed (additional accessory), the appliance automatically drains the water from the water container. In this case we recommend that you deactivate the indicator of the water container.

Deactivating the water container indicator:

1. Press the on/off button to activate the appliance.

2. Wait approximately 8 seconds.

3. Press and hold touch buttons (A) and (C) at the same time.

The display shows one of these 2 configurations:

- The display shows "Off". After 5 s the display returns to normal mode.

9. BEFORE FIRST USE

Rear drum locks are removed automatically when dryer is activated for the first time. Possible to hear some noise.

To unlock the rear drum locks:

1. Switch on the appliance.
2. Set any programme.
3. Press the Start/Pause button.

Drum starts to rotate. Rear drum locks are automatically deactivated.

Before you use the appliance to dry items:

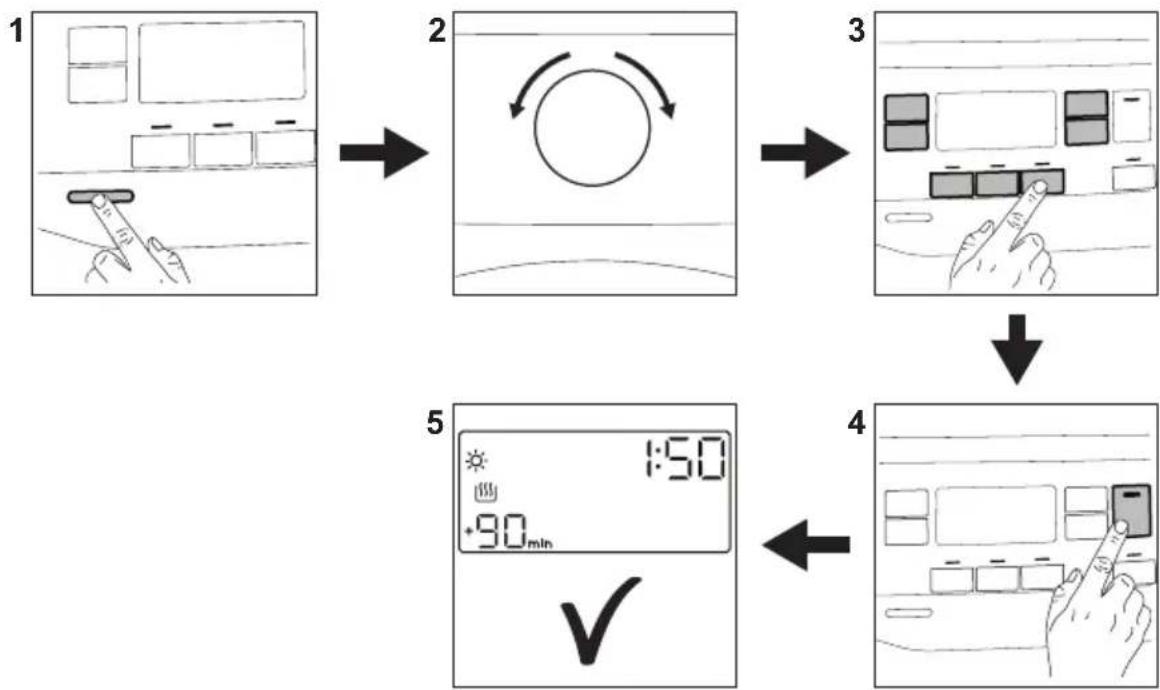

10. DAILY USE

10.1 Start a programme without delay start

1. Prepare the laundry and load the appliance.

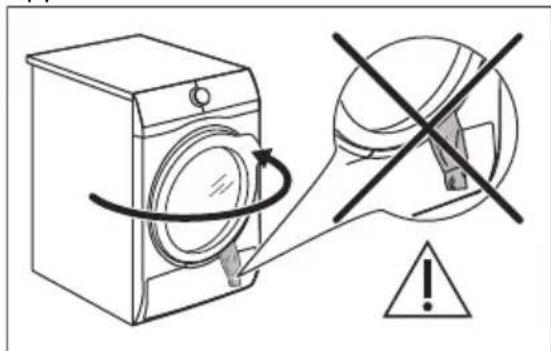

CAUTION!

Make sure that when you close the door, the laundry does not get caught between the appliance door and the rubber seal.

1. Press the on/off button to activate the appliance.

- The display shows "On". After 5 s the display returns to normal mode.

• Clean the tumble dryer drum with a moist cloth.
• Start a 1 hour programme with moist laundry.

At the beginning of the drying cycle (first 3-5 min) there could be a slightly higher sound level. This is due to the compressor starting up. This is normal for compressor powered appliances such as refrigerators and freezers.

1. Set the correct programme and options for the type of load.

The display shows the programme duration.

Real drying time will depend on type of the load (quantity and composition), the room temperature and the humidity of your laundry after spin drying phase.

1. Press the Start/Pause touch button. The programme starts.

10.2 Starting the programme with delay start

1. Set the correct programme and options for the type of load.
2. Press the delay start button again and again until the display shows the delay time you want to set.

You can delay the start of a programme from a minimum of 30 minutes to a maximum of 20 hours.

3. Press the Start/Pause touch button.

The display shows the countdown of the delay start.

When the countdown is completed, the programme starts.

10.3 Change a programme

1. Press the on/off button to deactivate appliance
2. Press the on/off button to activate the appliance.
3. Set the programme.

10.4 At the end of the programme

When the programme is completed:

• An intermittent acoustic signal operates.
• The display shows
• The indicator is on.
• The indicators Filter and Tank may come on.

- The Start/Pause indicator is on.

The appliance continues to operate with the anti-crease phase for approximately 30 minutes or more if Extra Anticrease option was set (see chapter Option - Extra Anticrease).

The anti-crease phase reduces creasing.

You can remove the laundry before the anti-crease phase is completed. We recommend, for better results, that you remove the laundry when the phase is almost completed.

When the anti-crease phase is completed:

• The display still shows
- The indicator is off.
• The indicators 📋 Filter and 🌐 Tank remain on.
- Start/Pause indicator goes off.

1. Press the on/off button to deactivate the appliance.

2. Open the appliance door.

3. Remove the laundry.

4. Close the appliance door.

Possible causes of unsatisfactory drying results:

• Inadequate default dryness level settings. See chapter Adjustment of default dryness level
• Room temperature is too low or too high. Optimal room temperature is between 18^ - 25^ .

Always clean the filter and empty the water container when a programme is completed.

10.5 Stand-by function

To reduce energy consumption, this function automatically deactivates the appliance:

• After 5 minutes if you do not start the programme.
• After 5 minutes from the end of the programme.

11. HINTS AND TIPS

11.1 Preparing the laundry

Very often the clothes after washing cycle are kneaded and tangled altogether. Drying kneaded and tangled clothes is inefficient. To assure proper air flow and even drying it is recommended to shake and load one by one the clothes to the tumble dryer.

To assure proper drying process:

• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g. apron ribbons). Tie them before you start a programme.
• Remove all items from pockets.
• Turn items with the internal layer made of cotton inside out. Cotton layer must be faced outwards.

• Always set the programme suitable for the type of laundry.
- Do not put light and dark colours together.
- Use suitable programme for cottons, jersey and knitwear to reduce shrinkage.
- Do not exceed the maximum load stated in the programmes chapter or shown on the display.
- Dry only the laundry that is suitable for tumble drying. Refer to the fabric label on the items.
- Do not dry large and small items together. Small items can be trapped inside the large items and remain wet.
- Shake the large clothes, fabrics before placing in the tumble dryer. It is to avoid moist places inside the fabric after the drying cycle.

Fabric label Description
	Laundry is suitable for tumble drying.
	Laundry is suitable for tumble drying at higher temperatures.
	Laundry is suitable for tumble drying at low temperatures only.
	Laundry is not suitable for tumble drying.

12. CARE AND CLEANING

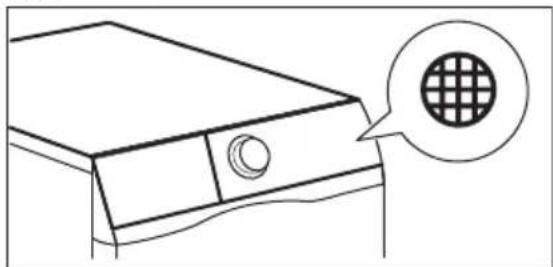

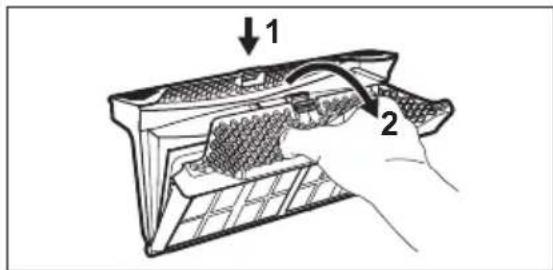

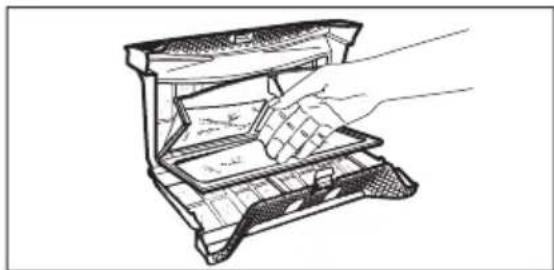

12.1 Cleaning the filter

CAUTION!

Avoid the use of water to clean the filter. Instead throw away lint in the dustbin (avoid dispersion of plastic fiber in water ambient).

To achieve the best drying performances clean the filter regularly, clogged filter lead to longer cycles and energy consumption increase. Use your hand to clean the filter, and if necessary, a vacuum cleaner.

1.2.

Line drawing of a washing machine with a circular grid pattern on the side (no text or symbols)

1.

1.

Line drawing of a hand inserting a component into an open device (no text or symbols)

5.1)

Line drawing of a hand holding a tool interacting with a curved object (no text or symbols)

1.

1) If necessary remove fluff from the filter socket and gasket. You can use a vacuum cleaner.

12.2 Emptying the water container

1.2.

Line drawing of a washing machine with a circular icon showing water droplets (no text or symbols)

Line drawing of hands operating a mechanical device with an arrow indicating motion (no text or symbols)

3.4.

Line drawing of hands using a tool to clean or prepare a bowl (no text or symbols present)

Diagram showing hands operating a mechanical device with an arrow indicating motion, and a warning triangle symbol (no text or labels)

You can use the water from the water container as an alternative to distilled water (e.g. for steam ironing). Before you use the water, remove dirt residues with a filter.

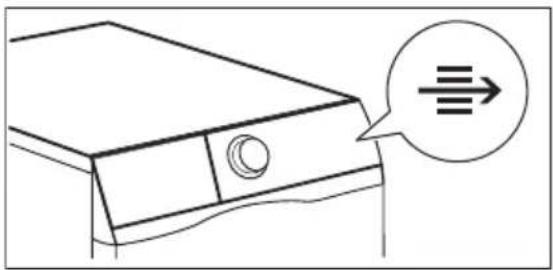

12.3 Cleaning the Heat Exchanger

1.2.

Simple line drawing of a cabinet with a circular arrow pointing to it, no text or symbols present.

3.4.

Diagram showing a hand pressing down on a textured surface with an arrow indicating rotation (no text or symbols present)

5.6.

Diagram of a hand operating a device with a grid and directional arrow, no text or symbols present

Diagram of a solar panel installation with cooling fan and grid base (no text or symbols)

7.8.

Line drawing of a kitchen appliance with a gridded base and ventilation unit (no text or symbols)

Diagram of a mechanical component with a meshed base and curved arrow indicating rotation (no text or symbols)

1.

CAUTION!

Do not touch the metal surface with bare hands. Risk of injury. Wear protective gloves. Clean carefully to avoid damaging the metal surface.

12.4 Cleaning the drum

WARNING!

Disconnect the appliance before you clean it.

Use a standard neutral soap detergent to clean the inner surface of the drum and drum lifters. Dry the cleaned surfaces with a soft cloth.

CAUTION!

Do not use abrasive materials or steel wool to clean the drum.

12.5 Cleaning the control panel and housing

Use a standard neutral soap detergent to clean the control panel and housing.

Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth.

CAUTION!

Do not use furniture cleaning agents or cleaning agents which can cause corrosion.

12.6 Cleaning the airflow slots

Use a vacuum cleaner to remove fluff from the airflow slots.

13. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

13.1 Error Codes

The appliance does not start or it stops during operation.

First try to find a solution to the problem (refer to the table). If the problem persists, contact the Authorised Service Centre.

WARNING!

Deactivate the appliance before carrying out any check.

In case of major problems, the acoustic signals operate, the display shows an error code and the Start/Pause button may flash continuously:

Error code Possible cause Remedy
E5A	Appliance motor overloaded. Too much laundry or entrap in the drum.	The programme was not completed. Remove the laundry from the drum, set the programme and restart the cycle.
E97	Internal fail. No communication between electronic elements of the appliance.	The programme was not finished properly or the appliance stopped too early. Switch the appliance off and on again.If the error code appears again, contact the Authorised Service Centre.
EH0	The mains supply is unstable. When the appliance is showing EH0, please wait until main supply is stable than press start. If the appliance pause the cycle without any indication then press the cycle start. If the warning will occur check the power cord / socket integrity or main supply.

If the display shows other error codes, deactivate and activate the appliance. If the problem continues, contact the Authorised Service Centre.

In case of different problem with the tumble dryer check the table below for possible solutions.

13.2 Troubleshooting

Problem Possible solution
You cannot activate the appliance. Make sure that the mains plug is connected to the mains socket.
Check fuse in fuse box (domestic installation).
The programme does not start. Press Start/Pause.
Make sure that the appliance door is closed.
The appliance door does not close. Make sure that the installation of the filter is correct.
Make sure that the laundry is not caught between the appliance door and the rubber seal.
The appliance stops during operation. Make sure that the water container is empty. Press Start/Pause to start the programme again.
Load is too small, increase the load or use the Time Drying programme.
The cycle time is too long or unsatisfactory drying result.1)	Make sure that the weight of the laundry is suitable for the duration of the programme.
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry	in the washing machine again.
Ensure that the room temperature is	higher than +5°C and lower than +35°C. Optimal room temperature is 18°C to 25°C.
Set the Time Drying or the Extra Dry pro-gramme.2)
The App cannot connect to the dryer. Check if your smart device is connected to the wireless network. Check your home network and router. Restart the router. Consider setting the router to 2.4GHz wireless frequency instead of 5GHz. Contact your wireless service provider if there are problems with the wireless net-work.
The dryer, the smart device, or both,	need to be configured again.
The App frequently cannot connect to the dryer.	Try to move the home router as near the dryer as possible or consider purchasing a wireless range extender.
Turn the microwave off. Avoid using the	microwave and the Remote Control of the dryer at the same time. The microwaves disrupt the Wi-Fi signal.
The display shows — — —	If you want to set a new programme, de-activate and activate the appliance.
Make sure that the options are suitable	for the programme.

1) After maximum 5 hours, the programme ends automatically.
2) It can happen that some area remains humid when drying big items (e.g. bed sheets).

If the drying results are not satisfactory

• The set programme was incorrect.
• The filter is clogged.
• The Heat Exchanger is clogged.
• There was too much laundry in the appliance.
• The drum is dirty.

• Incorrect setting of the conductivity sensor (See chapter "Settings - Adjustment of the remaining laundry moisture degree" for better setting).
  • The airflow slots are clogged.
• Room temperature is too low or too high ( optimal room temperature 18^ to 25^ )

14. TECHNICAL DATA

Height x Width x Depth 850 x 596 x 638 mm (maximum 662 mm)

Max. depth with the appliance door open 1107 mm

Max. width with the appliance door open 958 mm

Adjustable height 850 mm (+ 15 mm - feet adjustment)

Drum volume 118 l

Maximum load 9,0 kg

Voltage 220-240 V

Frequency 50 Hz

Total power 700 W

Type of use Household

Permitted ambient temperature + 5°C to + 35°C

Level of protection against ingress of sol- IPX4id particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture

Gas designation R290

Weight 0,149 kg

15. QUICK GUIDE

15.1 Daily use

1. Push the On/Off button to turn on the appliance.
2. Use the programme dial to set the programme.
3. Together with the programme you can set 1 or more special options. To

activate or deactivate an option touch the relevant button.

1. To start the programme, Touch the Start/Pause button.
2. The appliance starts.

15.2 Cleaning the filter

At the end of each cycle the filter symbol

appears on the display and you must clean the filter.

15.3 Programme table

Programme	Load^1)	Properties / Fabric type^2)
Favourite ☆	The load depends on a mem- orised pro- gramme	You can do your configuration of programme and options and memorise in the appliance memory (See chapter "Settings - Favourite ☆").
Cottons 9,0 kg Cotton fabrics.		/ [IMAGE]
Mixed + 6 kg		Mix of garments made of cotton, cotton-synthetic blend and syn- thetic fabric. / [IMAGE]
Bedding + 4,5 kg		Up to three bed linen sets, one of which can be double size. / [IMAGE]
Energy Saver 9,0 kg		Cycle to be used to dry cotton with "cotton cupboard" dryness level, with maximum energy sav- ing. / [IMAGE]
Refresh 1kg Refreshing textiles that were in storage.
□ App Program	The load depends on a selec- ted pro- gramme in the app	App Program gives you additional pro- grammes that you can select from the App (see chapter "WI-FI - CONNECTIVITY SET- UP" to connect the smart appliance to the Wi- Fi network and to link it to a mobile devices).
Programme	Load 1)	Properties / Fabric type2)
Drying Rack3)	1kg (or 1 pair of sport shoes)	For drying sport shoes only with Drying Rack (see separate user manual provided with Drying Rack).
Hygienic Care 3 kg		Dries and adds a hygienic treatment to your garments maintaining a higher temperature phase over time that reduces the presence of micro-organisms. Programme to treat wet clothes. Not suitable for delicate garments.
Silk 1 kg		Gentle drying of hand-washable silks.
Duvet 3 kg		Single or double duvets and pillows (with feather, down or synthetic fillings).
Wool [IMAGE]	1 kg	The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of wool garments labelled as "hand wash" provided that the garments are dried according to the instructions issued by the manufacturer of this machine. Follow the garment care label for other laundry instructions. M2001
Delicates 4 kg		Delicate fabrics such as viscose, rayon, acrylic, and their blends.

1) The maximum weight refers to dry items.

2) For fabric mark meaning see chapter HINTS AND TIPS: Preparing the laundry.

3) Only with the Drying Rack (standard accessory or optional, depending on model).

16. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by

recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol 📄 with the household waste. Return the

product to your local recycling facility or contact your municipal office.

Being ensured permissible content limitation of some toxic chemicals (RoHS compliant).

RoHS

Compliant

MỤC LỤC

1. THÔNG TIN AN TOÀN....29
2. HƯỚNG DÂN VỀ AN TOÀN 32
3. MÔ TẢ SẢN PHẨM......34
4. BẢNG ĐIỀU KHIỂN......35
5. THIẾT LÂP KẾT NỐI - WI-FI 36
6. BẢNG CHƯƠNG TRÌNH...... 39
7. TỦY CHON....40
8. CÀI ĐẶT 42
9. TRƯỚC KHI SỬ DỤNG LẦN ĐẦU 44
10. SỬ DUNG HÀNG NGÀY 45
11. CÁC MEO VÀ LỜI KHUYÊN...... 46
12. BẢO TRÌ VÀ LÀM SACH 47
13. XÙ LÝ SƯ CỔ 49
14. DŨ LIÊU KỸ THUÂT....52
15. HƯỚNG DẮN NHANH......53
16. CÁC VĂN ĐỀ VỀ MÔI TRƯỜNG.... 55

CHÚNG TÔI NGHĨ ĐẾN BẠN

5. ⚫HIẾT LẬP KẾT NỔI - WI-FI

CẦN TRỌNG!

Line drawing of a device with a circular grid pattern on the right side (no text or symbols)

1.

1.

Line drawing of a hand inserting a component into a device (no text or symbols)

5.1)

Line drawing of a hand holding a tool interacting with a car wheel (no text or symbols)

1.

Line drawing of a cabinet with a circular icon showing a water drop symbol (no text or labels)

Line drawing of hands operating a mechanical device with an arrow indicating motion (no text or symbols)

3.4.

Line drawing of hands using a tool to clean or brush a cylindrical object into a bowl (no text or symbols)

Illustration of hands using a tool to adjust a component, with an exclamation mark and warning triangle (no text or symbols)

Line drawing of a server cabinet with a circular arrow indicating data flow (no text or symbols)

3.4.

Diagram of a device with a mesh cover and directional arrow, no text or symbols present

5.6.

Line drawing of a hand inserting a device into a microwave oven (no text or symbols)

Diagram of a microwave oven with a grid-patterned vent and airflow direction arrow (no text or symbols)

7.8.

Technical line drawing of a mechanical device with a mesh base and ventilation panel (no text or symbols)

Diagram of a mechanical component with a meshed base and curved arrow indicating rotation (no text or symbols)

9.

CẦN TRỌNG!

Repeating pattern of gray geometric shapes on white background, no text or symbols present
