Product Type	Combination Microwave with Grill and Convection
Capacity	35 L
Dimensions (W x D x H)	540 x 500 x 350 mm
Weight	22.5 kg
Power Consumption	2900 W
Microwave Power	900 W
Grill Power	1100 W
Convection Power	1550 W
Display Type	Digital LED
Control Type	Touch + Rotary Knob
Functions	Auto Cook, Auto Defrost, Reheat, Keep Warm, Ferment
Defrost Mode	Weight-Based and Time Defrost
Interior Coating	Ceramic Enamel
Door Type	Drop-Down with Handle
Child Lock	Yes
Auto Shut-Off	Yes
Cleaning	EasyClean Interior, Steam Clean Function
Included Accessories	Glass Turntable, Metal Rack, Grill Tray
Repairability Index	8.2 / 10
Spare Parts Availability	Major Parts Available via Samsung Service
Energy Efficiency Class	A
Noise Level	60 dB (max)

Frequently Asked Questions - MC35R8088LE SAMSUNG

How do I set the clock on my Samsung MC35R8088LE?

Press the Clock button, then use the rotary dial to set hour and minute. Confirm by pressing Clock again.

Can I use metal containers in this microwave?

No, metal containers are not safe in microwave mode. Only use microwave-safe glass, ceramic, or plastic. Metal can be used in grill or convection mode if specified.

How do I clean the ceramic enamel interior?

Use a soft cloth with mild detergent. For stubborn stains, use the Steam Clean function: pour water into a bowl and run the cycle. Wipe dry afterward.

What is the maximum cooking time for convection?

Convection cooking can be set up to 90 minutes per cycle. For longer cooking, restart the cycle.

How do I use the auto defrost feature?

Press Auto Defrost, select the food type, enter the weight using the dial, then press Start. The microwave will calculate the time.

My microwave shows 'E' error. What does it mean?

Error codes like 'E-01' indicate sensor issues. Unplug the microwave for 30 seconds and retry. If persistent, contact Samsung support.

Can I remove the turntable for cleaning?

Yes, the glass turntable can be lifted off and washed with warm soapy water. Ensure it is dry before replacing.

How do I disable the child lock?

Press and hold the Stop button for 3 seconds until the lock icon disappears.

What is the recommended installation clearance?

Leave at least 10 cm clearance on the sides, 15 cm above, and 5 cm at the rear for proper ventilation.

Where can I find replacement parts like the grill tray?

Genuine Samsung parts are available at Samsung Parts website or authorized service centers. Use the model number MC35R8088LE to search.

USER MANUAL MC35R8088LE SAMSUNG

17/5/2021 2:38:27 PM

Nội dung

Simple line drawing of a circular mechanical component with a central hub and two arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a 3D shape with a circular arrow labeled 'A' pointing to its edge (no text or symbols beyond the label)

Simple line drawing of a chicken inside a tray with directional arrows, enclosed in a grid pattern (no text or symbols)

Simple line drawing of a round chicken on a plate (no text or symbols)

Simple line drawing of a round object placed on a circular base (no text or symbols)

17/5/2021 2:36:00 PM

ContentsContents

Using this user manual 3

The following symbols are used in this User Manual: 3

Safety instructions 3

Important safety instructions 3

General safety 6

Microwave operation precautions 7

Limited warranty 8

Grounding method 8

Installation 9

What's included 9

Accessories 9

Installation site 10

Turntable 10

Maintenance 11

Cleaning 11

Replacement (repair) 11

Care against an extended period of disuse 11

Before you start 12

Clock 12

Sound On/Off 12

About microwave energy 13

Cookware for microwave 13

Operations 14

Control panel 14

Manual mode 16

Auto mode 21

Special functions 22

Cooking Smart 23

Auto cooking 23

Manual cooking 29

Quick & Easy 37

Troubleshooting 38

Checkpoints 38

Information codes 41

Technical specifications 41

2 English

Using this user manual

You have just purchased a SAMSUNG microwave oven. Your Owner's Instructions contains valuable information on cooking with your microwave oven:

• Safety precautions
  • Suitable accessories and cookware
• Useful cooking tips
• Cooking tips

The following symbols are used in this User Manual:

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

NOTE

Useful tips, recommendations, or information that helps users manipulate the product.

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

This appliance is intended to be used in household only and it is not intended to be used such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;

English 3

Safety instructions

• by clients in hotels, motels and other residential environments;
  • bed and breakfast type environments.
  Only use utensils that are suitable for use in microwave ovens. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
  The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
  If smoke is observed (emitted), switch off or unplug the appliance and keep the door closed in order to stifle any flames.
  Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
  The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
  Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

The oven should be cleaned regularly and any food deposits removed.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

The microwave oven is intended to be used on the counter top (freestanding) use only, the microwave oven shall not be placed in a cabinet.

Metallic containers for food and beverages are not allowed during microwave cooking.

The care should be taken not to displace the turntable when removing containers from the appliance.

The appliance shall not be cleaned with a steam cleaner.

The appliance should not be cleaned with a water jet.

The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This oven should be positioned proper direction and height permitting easy access to cavity and control area.

Before using the your oven first time, oven should be operated with the water during 10 minute and then used.

If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.

The microwave oven has to be positioned so that plug is accessible.

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

A steam cleaner is not to be used.

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

The appliance must not be installed behind a decorative door in order to avoid overheating.

WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

English 5

Safety instructions

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

The door or the outer surface may get hot when the appliance is operating.

The temperature of accessible surfaces may be high when the appliance is operating.

The surfaces are liable to get hot during use.

The appliances are not intended to be operated by means of an external timer or separate remote-control system.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

General safety

Any modifications or repairs must be performed by qualified personnel only. Do not heat food or liquids sealed in containers for the microwave function. Do not use benzene, thinner, alcohol, or steam or high-pressure cleaners to clean the oven.

Do not install the oven: near a heater or flammable material; locations that are humid, oily, dusty or exposed to direct sunlight or water; or where gas may leak; or an uneven surface.

This oven must be properly grounded in accordance with local and national codes. Regularly use a dry cloth to remove foreign substances from the power plug terminals and contacts.

Do not pull, excessively bend, or place heavy objects on the power cord. If there is a gas leak (propane, LP, etc) ventilate immediately. Do not touch the power cord.

Do not touch the power cord with wet hands.

While the oven is operating, do not turn it off by unplugging the power cord. Do not insert fingers or foreign substances. If foreign substances enter the oven, unplug the power cord and contact a local Samsung service centre.

Do not apply excessive pressure or impact to the oven.

Do not place the oven over fragile objects.

Ensure the power voltage, frequency, and current matches the product specifications.

Firmly plug the power plug into the wall socket. Do not use multiple plug adapters, extension cords, or electric transformers.

Do not hook the power cord on metal objects. Make sure the cord is between objects or behind the oven.

Do not use a damaged power plug, power cord, or loose wall socket. For damaged power plugs or cords, contact a local Samsung service centre.

Do not pour or directly spray water onto the oven.

Do not place objects on the oven, inside, or on the oven door.

Do not spray volatile materials such as insecticide on the oven.

Do not store flammable materials in the oven. Because alcohol vapours can contact hot parts of the oven, use caution when heating food or drinks containing alcohol.

Children may bump themselves or catch their fingers on the door. When opening/closing the door, keep children away.

Microwave warning

Microwave heating of beverages may result in delayed eruptive boiling: always use caution when handling the container. Always allow beverages to stand at least 20 seconds before handling. If necessary, stir during heating. Always stir after heating.

In the event of scalding, follow these First Aid instructions:

1. Immerse the scalded area in cold water for at least 10 minutes.

2. Cover with a clean, dry dressing.

3. Do not apply any creams, oils, or lotions.

To avoid damaging the tray or rack, do not put the tray or rack in water shortly after cooking.

Do not use the oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of hot oils.

Microwave oven precautions

Only use microwave-safe utensils. Do not use metallic containers, gold or silver trimmed dinnerware, skewers, etc.

Remove wire twist ties. Electric arcing may occur.

Do not use the oven to dry papers or clothes.

Use shorter times for small amounts of food to prevent overheating or burning. Keep the power cord and power plug away from water and heat sources.

To avoid the risk of explosion, do not heat eggs with shells or hard-boiled eggs. Do not heat airtight or vacuum-sealed containers, nuts, tomatoes, etc.

Do not cover the ventilation slots with cloth or paper. This is a fire hazard. The oven may overheat and turn off automatically and will remain off until it cools sufficiently.

Always use oven mitts when removing a dish.

Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.

Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.

Do not operate the oven when it is empty. The oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the oven is started accidentally.

Install the oven in compliance with the clearances in this manual. (See Installing your microwave oven.)

Use caution when connecting other electrical appliances to sockets near the oven.

Microwave operation precautions

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

- Do not operate the oven with the door open. Do not tamper with the safety interlocks (door latches). Do not insert anything into the safety interlock holes.

- Do not place any object between the oven door and front face or allow food or cleaner residue to accumulate on sealing surfaces. Keep the door and door sealing surfaces clean by wiping with a damp cloth and then with a soft, dry cloth after each use.

- Do not operate the oven if it is damaged. Only operate after it has been repaired by a qualified technician.

Important: the oven door must close properly. The door must not be bent; the door hinges must not be broken or loose; the door seals and sealing surfaces must not be damaged.

- All adjustments or repairs must be done by a qualified technician.

Safety instructions

Limited warranty

Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit or accessory was caused by the customer. Items this stipulation covers include:

- Door, handles, out-panel, or control panel that are dented, scratched, or broken.

- A broken or missing tray, guide roller, coupler, or wire rack.

Use this oven only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your oven.

Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact a local Samsung service centre or find help and information online at www.samsung.com.

Use this oven for heating food only. It is intended for domestic use only. Do not heat any type of textiles or cushions filled with grains. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the oven.

To avoid deterioration of the oven surface and hazardous situations, always keep the oven clean and well maintained.

Grounding method

You must plug the product to the grounded outlet.

• Otherwise, there is a risk of electric shock, fire, or product damage.
• If the power outlet is not equipped with a grounded terminal, purchase a ground wire and connect it to the ground conductor.

CAUTION

Do not connect the ground wire to the gas pipe, water pipe, or phone lines.

8 English

Installation

What's included

Make sure all parts and accessories are included in the product package. If you have a problem with the oven or accessories, contact a local Samsung customer centre or the retailer.

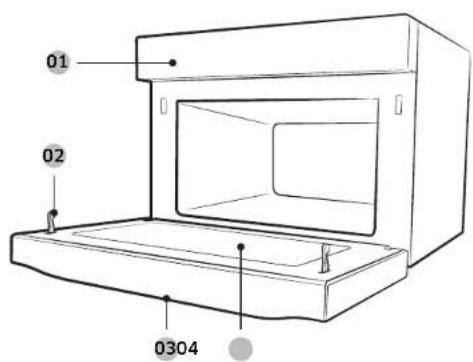

Oven at a glance

01 Control panel
02 Safety Door Lock
03 Door Handle
04 Door

Accessories

The oven comes with different accessories that help you prepare different types of food.

Roller ring Turntable Crusty plate

Low rack High rack Pro Steamer

NOTE

Availability of accessories with an asterisk (*) depends on the oven model.

Roller ring Put in the centre of the base. It supports the turntable.

Turntable Put on the roller ring with the centre fitting the coupler. It serves as a cooking base.

Racks Use one of these racks as appropriate to cook two dishes simultaneously. A smaller dish on the turntable, and the other on the selected rack. You can use these racks with Grill Convection or Combination Cooking.NOTEDo not use wire racks with Microwave mode.

Crusty plate Put on the turntable. Use this to brown food, or to keep pastries or pizza crisp.

Installation

Pro Steamer (MC35R8088L^ models only)

• The Pro Steamer is a set of the stainless-steel cover, steam tray, and Crusty plate, which is designed for steam cooking. Use the Pro Steamer to brown food such as pastry and pizza dough with Microwave mode. Do not use with other cooking modes.
  • See the Steam cooking guide on page 36.

CAUTION

• The Pro Steamer is dedicated to this model. Do not use the Pro Steamer with other models or products. A fire or property damage may occur.
• Do not use the Pro Steamer without water or food inside. Fill the Pro Steamer with at least 500 ml of water before use. Otherwise, cooking may be incomplete, or a fire or property damage may occur.
• Make sure to use oven gloves when taking the Pro Steamer out because the Pro Steamer becomes very hot when cooking is complete.
• Make sure to properly assemble the Pro Steamer including the cover before cooking. Eggs or chestnuts may explode without the cover or Crusty plate.

Installation site

01 85 cm from the floor
02 10 cm from the rear wall
03 10 cm from the side
04 20 cm from above

• Select a flat, level surface approx. 85 cm above the floor. The surface must support the weight of the oven.
• Secure room for ventilation, at least 10 cm from the rear wall and both sides, and 20 cm from above.
• Do not install the oven in hot or damp surroundings, such as next to other microwave ovens or radiators.
• Conform to the power supply specifications of this oven. Use only approved extension cables if you need to use.
• Wipe the interior and the door scal with a damp cloth before using your oven for the first time.

Turntable

Technical line drawing of a mechanical component with a circular base and central hub (no text or symbols)

Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely.

NOTE

Do not operate the oven without the turntable on the roller ring.

10 English

Maintenance

Cleaning

Clean the oven regularly to prevent impurities from building up on or inside the oven. Also pay special attention to the door, door sealing, and turntable and roller ring (applicable models only).

If the door won't open or close smoothly, first check if the door seals have built up impurities. Use a soft cloth in soapy water to clean both the inner and outer sides of the oven. Rinse and dry well.

To remove stubborn impurities with bad smells from inside the oven

1. With an empty oven, put a cup of diluted lemon juice on the centre of the turntable.

2. Heat the oven for 10 minutes at max power.

3. When the cycle is complete, wait until the oven cools down. Then, open the door and clean the cooking chamber.

To clean inside swing-heater models

Simple line drawing of a triangular shape with an arrow labeled 'A' pointing to its top edge (no text or symbols beyond the label)

To clean the upper area of the cooking chamber, lower the top heating element by 45^ (A) as shown. This will help clean the upper area. When done, reposition the top heating element.

CAUTION

• Keep the door and door sealing clean and ensure the door opens and closes smoothly. Otherwise, the oven's lifecycle may be shortened.
  • Take caution not to spill water into the oven vents.
• Do not use any abrasive or chemical substances for cleaning.
  • After each use of the oven, use a mild detergent to clean the cooking chamber after waiting for the oven to cool down.

Replacement (repair)

WARNING

This oven has no user-removable parts inside. Do not try to replace or repair the oven yourself.

• If you encounter a problem with hinges, sealing, and/or the door, contact a qualified technician or a local Samsung service centre for technical assistance.
• If you want to replace the light bulb, contact a local Samsung service centre. Do not replace it yourself.
• If you encounter a problem with the outer housing of the oven, first unplug the power cord from the power source, and then contact a local Samsung service centre.

Care against an extended period of disuse

If you don't use the oven for an extended period of time, unplug the power cord and move the oven to a dry, dust-free location. Dust and moisture that builds up inside the oven may affect the performance of the oven.

English 11

Before you start Before you start

There are a couple of components that you should know before going directly to a recipe. Before or during any cooking mode, you can set/change the clock or the kitchen timer to your needs.

Clock

It is important to set the correct clock time to ensure correct automatic operations.

1. Turn on the oven and wait for several seconds to enter Standby state. The hour element blinks.
2. Use the arrow buttons to set the hour, and then press OK. The minute element blinks.
3. Use the arrow buttons to set the minute, and then press OK.

Sound On/Off

You can turn on or off the key tone, beep, or alarm. This setting is available only in Standby state (when the current time is displayed).

1. To mute the sound, hold down for 3 seconds. "OFF" appears on the display.
2. To unmute the sound, hold down ∨ again for 3 seconds. "ON" appears on the display.

NOTE

• To change the current time later, hold down the up arrow () for 3 seconds and follow the above steps.
• The clock time cannot be changed during operations.

12 English

About microwave energy

Microwaves are high-frequency electromagnetic waves. The oven uses the prebuilt magnetron to generate microwaves which are used to cook or reheat food without deforming or discolouring the food.

Simple line drawing of a chicken on a tray with directional arrows, enclosed in a dashed grid (no text or symbols)

1. The microwaves generated by the magnetron are distributed uniformly through the whirling distribution system. This is why the food is cooked evenly.

2. The microwaves are absorbed down to the food up to a depth of approx. 2.5 cm. Then, the microwaves are dissipated inside the food as cooking continues.

3. The cooking time is affected by the following conditions of the food.

• Quantity and density
- Moisture content
- Initial temperature (especially, when frozen)

NOTE

The cooked food keeps heat in its core after cooking is complete. This is why you must respect the standing time specified in this manual, which ensures cooking evenly down to the core.

Cookware for microwave

Cookware used for Microwave Mode must allow microwaves to pass through and penetrate food. Metals such as stainless steel, aluminum and copper reflect microwaves. Therefore, do not use cookware made of metallic materials. Cookware marked microwave - safe is always safe for use. For additional information on appropriate cookware refer to the following guide and place a glass of water or some food on the turntable.

Requirements:

• Flat bottom and straight sides
• Tight-fitting lid
  • Well-balanced pan with handles that weigh less than the main pan

Material		Microwave-safe	Description
Aluminium foil Use for a small serving zone to protect against overcooking. Arcing can occur if the foil is near the oven wall or if using an excessive amount of foil.
Crusty plate Do not use for preheating for more than 8 minutes.
Bone china or earthenware Porcelain, pottery, glazed earthenware and bone china are usually microwave-safe, unless decorated with a metal trim.
Disposable polyester cardboard dishes		○	Some frozen foods are packaged in these dishes.
Fast-food packaging	Polystyrene cups or containers	○	Overheating may cause these to melt.
	Paper bags or newspaper	×	These may catch fire.
	Recycled paper or metal trims	×	These may cause arcing

English 13

Before you start

Material		Microwave-safe	Description
Glassware O	von-to-table ware	○	Microwave safe unless decorated with metal trims.
	Fine glassware Delicate glassware	○	may break or crack by rapid heating.
	Glass jars Appropriate for warming only.Remove the lid before cooking.	○
Metal Dishes	These may cause arcing of fire.	○
	Freezer bag with twist-ties	×
Paper Plates	cups, napkins, and kitchen paper	○	Use to cook for a short time. These absorb excess moisture.
	Recycled paper Causes arcing.	○
Plastic Containers Use thermoplastic containers			only. Some plastics may warp or discolour at high temperatures.
			after cooking.
			proof bags only.
Wax or grease-proof paper Use to maintain moisture and prevent spattering.

O: Microwave safe : Use caution : Microwave unsafe ✗

Operations

Control panel

The front panel comes in a wide range of materials and colours. For improved quality, the actual appearance of the oven is subject to change without notice.

01	Feature panel	Press to select a desired cooking mode or function.
02	Display	Shows necessary information of selected function or settings.
03	Up / Down	Use to adjust the setting value for your selection.
04	OK	Press to confirm your settings.
05	Back	Press to return to the default setting.
06	Temperature/Power Level	Use to change the temperature or power level.
07	Turntable	Press to toggle on and off the turntable.
08	Start	Press to start cooking. This button is also used to fast preheat the oven at maximum power level.
09	Stop	Press to stop operation. This button is also used to cancel the current mode.
10	Child Lock	Press and hold for 3 seconds to activate or deactivate. Child Lock is available only in Standby state.

NOTE

• Standby state: After 5 minutes of inactivity on the control panel, the oven enters Standby state where only the current time is displayed. After 25 more minutes of inactivity, the oven enters Stop state.
• Stop state: When the oven restarts after powering off, only the relevant buttons to the last user action are lit.

Feature overview

Feature			Temperature range	Default temperature	Max. time
Manual mode		Hot Blast	160-230 °C 200 °C 60 min.
			Hot Blast is similar to Convection mode. However, the heating elements generate stronger heat and distribute stronger air current inside the oven. This is designed to cook faster while keeping or improving the taste.
			40-230 °C 180 °C 60 min.
		Convection	The heating elements generate heat, which is evenly distributed inside the oven by the convection fan. Use this mode for frozen food or baking.
		Convection Combo	40-200 °C 100-450 W	180 °C 450 W	60 min.
			The heating elements generate heat and the convection fan distributes the heat inside the oven, which is reinforced by the microwave energy.

Feature			Temperature range	Default temperature	Max. time
Manual mode		Microwave	100-900 W 900 W 90 min.
			The microwave energy enables food to be cooked or reheated without changing either the form or the colour.
		Grill	180 °C 180 °C 60 min.
			Use this for grilling food such as meat.
		Grill Combo	180 °C100-600 W	180 °C600 W	60 min.
			The heating elements generate heat, which is reinforced by the microwave energy.
Auto mode		Hot Blast Auto	To accommodate first-time users of Hot Blast mode, the oven offers 10 auto programmes.
		Auto	For cooking beginners, the oven offers a total of 25 auto cooking programmes.
		Power Defrost	The oven offers 5 defrosting programmes for your convenience.
Special functions		Keep Warm	50-80 °C 60 °C 3 hrs.
			Use this only for keeping foods warm that have just been cooked.

Operations

Manual mode

Step 1. Select mode

On the feature panel, press a manual mode., for example, Convection. The default temperature (or power level) blinks.

Step 2. Set temperature or Power level

Use the A buttons to adjust the default temperature (or power level). When done, press OK to move to the time elements.

NOTE

The power level, unless otherwise mentioned, is adjusted according to the set temperature.

If the power level or temperature is not specified within 5 seconds, the oven moves to the cooking time session.

Step 3. Set cooking time

Use the A Buttons to set the cooking time. When done, press START ( )

NOTE

You can set cooking time after preheating.

Step 4. Preheat

The oven starts preheating until it reaches the set temperature. When complete, the oven beeps and the indicator disappears.

CAUTION

• Always use oven gloves while taking out food.
- Microwave oven may operate for 5 minutes to be cooled when the temperature of oven cavity is hot after cooking. *will be displayed.

To change the cooking time during cooking

Use the ∆ buttons to adjust the cooking time. Your changes will be applied instantly, and the oven resumes cooking with the new settings.

To change the temperature or power level during cooking

Press _w The temperature (or power level) element blinks.

Use the √ Buttons to adjust the temperature (or power level), and then press OK or ↓ to confirm the changes.

To stop operation

Press Stop (9) once to stop operation, or twice to cancel the current mode and enter Standby state.

16 English

Hot Blast

Hot Blast is similar to Convection mode. However, the heating elements generate stronger heat and distribute stronger air flow inside the oven. This is designed to cook faster while keeping or improving the taste. You can use the Low rack, or combination of the Low rack and Crusty plate on the turntable.

Step 1 > Step 2 > Step 3 > Step 4

Hot Blast Temperature Cooking time Preheating

1. Put the Low rack, or combination of the Low rack and Crusty plate on the turntable.

Simple line drawing of a round object on a plate (no text or symbols)

1. Put food in suitable cookware, then on the rack, and then close the door.
2. Follow steps 1-4 in the Manual mode on page 16.
3. When cooking is complete, "0:00" blinks. Use oven gloves to take out food.

CAUTION

Do not use this mode for baking breads, or cooking confectionery. The stronger heat can burn the top of the foods.

Convection

The heating elements generate heat, which is evenly distributed inside the oven by the convection fan. You can use the Low rack, or combination of the Low rack and Crusty plate on the turntable. Use this mode for biscuits, individual scones, rolls, and cakes as well as fruit cakes, choux, and sourflés.

Step 1 > Step 2 > Step 3 > Step 4

Convection Temperature Cooking time Preheating

1. Put the Low rack, or combination of the Low rack and Crusty plate on the turntable.
2. Put food in suitable cookware, then on the rack, and then close the door.
3. Follow steps 1-4 in the Manual mode on page 16.
4. When cooking is complete, "0:00" blinks. Use oven gloves to take out food.

Simple line drawing of a round object on a circular base (no text or symbols)

Operations

Convection Combo

This combination mode combines the microwave energy with hot air, resulting in reduced cooking time and producing a brown, crispy surface of the food. Use this for all kinds of meat and poultry as well as casseroles and gratin dishes, sponge cakes and light fruit cakes, pies and crumbles, roast vegetables, scones, and breads.

Step 1		Step 2		Step 3		Step 4
Convection Combo	>	Temperature and Power level	>	Cooking time Preheating

Simple line drawing of a round chicken on a plate (no text or symbols)

CAUTION

Use only ovenproof cookware, such as glasses, potteries, or bone china without metal trim.

Microwave

Microwaves are high-frequency electromagnetic waves. The microwave energy enables food to be cooked or reheated without changing either the form or the colour.

- Use only microwave-safe cookware.

Step 1

Step 2

Step 3

Step 4

Microwave Power level Cooking time -

1. Put food on a microwave-safe container, and then put the container in the centre of the turntable.

- For steam cooking, use Pro Steamer. (Refer to the To use Pro Steamer section.)

1. Close the door.
2. Follow steps 1-3 in the Manual mode on page 16.
3. When cooking is complete, "0:00" blinks. Use oven gloves to take out food.

Simple start

To simply heat food for a short period of time at maximum power (900 W), select Microwave, and then press START ( ^① )

18 English

Power level

Level Percentage (%) Output power (W) Description
HIGH 100 900 Use to heat up liquid.
HIGH LOW 83 750 Use to heat up and cook.
MEDIUM HIGH 67 600
MEDIUM 50 450 Use to cook meat and heat up			vegetables.
MEDIUM LOW 33 300
DEFROST 20 180 Use to defrost before cooking.
LOW 11 100 Use to defrost vegetables.

To use Pro Steamer

You can manually steam cook your food using Pro Steamer.

01 Steam plate / Crusty plate
02 Steam tray
03 Stainless steel lid

1. Pour 500 ml of cold water into the steam plate. Put the steam tray on the steam plate, add food on the tray, and then close the stainless steel lid. Put Pro Steamer in the centre of the turntable.
2. Follow the steps 2-4 in the Microwave section for the rest of the cook settings.

- For detailed cooking instructions, refer to the Steam cooking guide on page 36.)

NOTE

Always check your cooking settings before leaving the oven unattended.

CAUTION

Make sure you close the lid onto the Pro steamer so that it fits into the steam plate/crusty plate. The eggs or the chestnuts may explode if the lid is not closed properly.

CAUTION

• Never use this Pro Steamer with a different product or model. It may cause a fire or fatal damage to the product.
• Do not use the Pro Steamer without water or food inside. When you use this Pro Steamer, pour at least 500 ml of water before use, if the amount of water is less than 500 ml, it may cause incomplete cooking, or may cause a fire or fatal damage to the product.
• Caution must be taken when removing the container from inside the Pro Steamer after cooking, as it will be very hot.

English 19

Operations

Grill

The heating elements generate heat. Make sure they are in the horizontal position.

Step 1 Step 2 Step 3 Step 4

Grill - Cooking time -

1. Put the High rack, or the combination of High rack and Crusty plate on the turntable.
2. Put food in suitable cookware, then on the rack, and then close the door.
3. Follow steps 1 and 3 in the Manual mode on page 16.
4. When cooking is complete, "0:00" blinks. Use oven gloves to take out food.

Grill Combo

The heating elements generate heat, which is reinforced by the microwave energy. Use only microwave-safe cookware, such as glass or ceramic cookware.

Step 1 Step 2 Step 3 Step 4

Grill Combo Power level Cooking time

1. Put the High rack, or the combination of High rack and Crusty plate on the turntable.
2. Put food in suitable cookware, then on the rack, and then close the door.
3. Follow steps 1-3 in the Manual mode on page 16.
4. When cooking is complete, "0:00" blinks. Use oven gloves to take out food.

20 English

Auto mode

The oven offers 3 different auto modes for your convenience: Hot Blast Auto, Auto Cook, and Power Defrost. Select one that best fits your needs.

Step 1. Select mode

On the feature panel, press an auto mode, for example, Hot Blast Auto. The default programme number blinks.

Step 2. Select programme

Use the A Buttons to select a preferred programme and the press OK. The default weight for the programme blinks.

Step 3. Set serving size or weight

Use the A' buttons to set the serving size (or weight). When done, press START (###).

CAUTION

Always use oven gloves while taking out food.

NOTE

The cooking time is pre-programmed according to the auto mode, which cannot be changed.

Hot Blast Auto

Hot Blast is similar to Convection mode. However, the heating elements generate stronger heat and distribute stronger air flow inside the oven. This is designed to cook faster while keeping or improving the taste.

To accommodate first-time users of Hot Blast mode, the oven offers 10 auto programmes.

Step 1

Step 2

Step 3

Hot Blast Auto 1 to 10 Serving size

1. Put food in suitable cookware, then on the turntable, and then close the door.
2. Follow steps 1-3 in the Auto mode on page 21.
3. When cooking is complete, "0:00" blinks. Use oven gloves to take out food.

CAUTION

Do not use this mode for baking breads, or cooking confectionery. The stronger heat can burn the top of the foods.

English 21

Operations

Auto Cook

For cooking beginners, the oven offers a total of 25 auto cooking programmes. Take advantage of this feature to save you time or shorten your learning curve. The cooking time and temperature will be adjusted according to the selected recipe.

Step 1

Step 2

Step 3

Auto 1 to 25 Serving size

1. Put food in suitable cookware, then on the turntable, and then close the door.
2. Follow steps 1-3 in the Auto mode on page 21.
3. When cooking is complete, "0:00" blinks. Use oven gloves to take out food.

Power Defrost

The oven offers 5 defrosting programmes for your convenience. The time and power level are automatically adjusted according to the selected programme.

Step 1

Step 2

Step 3

Power Defrost 1 to 5 weight

1. Put food in suitable cookware, then on the turntable, and then close the door.
2. Follow steps 1-3 in the Auto mode on page 21.
3. When cooking is complete, "0:00" blinks. Use oven gloves to take out food.

Special functions

Keep Warm

With this function, only the convection heating element operates, and it cycles on and off to keep food warm.

When cooking is complete,

1. On the feature panel, press .The default temperature (60 °C) blinks.

1. Use the A buttons to adjust the temperature, and then press OK to move to the time element.

1. Use the A buttons to set the time, and then press START (The oven starts warming.

CAUTION

• Always use oven gloves while taking out food.
- Do not use this function to reheat cold foods. Use this only for keeping foods warm that have just been cooked.
- Do not run this function for more than 3 hour. Otherwise, this may affect the food quality.
• To keep food crispy, do not cover the food with Keep Warm.

NOTE

To change the temperature during the cycle, press ¼ and repeat step 2 above.

22 English

Cooking Smart

Keep Warm guide

Food Temperature (°C)	Standing time (min.)	Directions
Meals 80 30 For keeping meal, chicken, gratin, pizza, potatoes, and plated meals warm.
Drinks 80 30 For keeping water, milk, and coffee warm.
Breads/ pastries	60 30 For keeping bread, toast, rolls, muffins, and cake warm.
Dishes/ crockery	70 30 For prehealing dishes and crockery. Arrange the dishes over the turntable. Do not overload. (maximum load: 7 kg)

Auto cooking

Hot Blast Auto guide

Food Serving		size (g)	Directions
H1	Frozen Pan Pizza	400-450	Remove a package and place the Pizza on a low rack. Put in the oven. After cooking, stand for 2-3 minutes.
H2	Homemade Pizza	500-550	IngredientsPizza dough (200-220 g)150 g strong white bread flour, 3 g dried yeast, 0.5 tbsp olive oil, 100 ml warm water, 0.5 tbsp sugar and saltTopping100 g Sliced Vegetables, 100 g Tomato puree, 80-100 g grated Mozzarella cheeseMethodPut the flour, yeast, oil, salt and warm water in a bowl and mix to a wettish dough. Knead in a mixer or by hand about 5-10 mins. Cover with lid and prove for 30 min.Roll out into crusty plate. Spread the tomato puree on the dough and add vegetables.Sprinkle cheese evenly on top.put them on the low rack. After cooking, stand for 2-3 minutes.

English 23

Cooking Smart

Food Serving		size (g)	Directions
H3	Homemade Lasagne	1000-1100	Ingredients2 tbsp olive oil, 500 g minced beef, 100 g tomato sauce, 100 ml beef stock, 150 g dried lasagne sheets, 1 onion (chopped) 1 tsp each of dried parsley flakes, oregano, basil, 200 g grated mozzarella cheeseMethodSauce: Heat the oil in a frying pan, then cook the minced beef and chopped onion for about 10 min until browned all over. Pour over the tomato sauce and beef stock, add the dried herbs. Bring up to the boil, then simmer for 10 min.Use dried, precooked lasagna noodles.Layer noodle, meat sauce, and cheese then repeat. Then sprinkle evenly with remaining mozzarella cheese on the top of noodles and put them on the low rack. After cooking, stand for 2-3 minutes.

Food Serving		size (g)	Directions
H4	Homemade Gratin	600-6501200-1250	Ingredients (1200-1250 g)800 g potatoes, 100 ml milk, 100 ml cream, 50 g beaten whole egg, 1 tsp each of salt, pepper, nutmeg, 150 g grated mozzarella cheese, butter, thyme* In case of 600-650 g, Use half quantity.MethodPeel potatoes and slice them to 3 mm thickness. Rub the butter all over the surface of a gratin dish, about 18 x 28 cm. Spread the slices on a clean towel and keep them covered with the towel while you prepare the rest of the ingredients.Mix the rest of the ingredients except for grated cheese into a large bowl and stir well. Layer the potato slices in the dish slightly overlapping and pour the mixture over the potatoes. Spread the grated cheese over the top and bake. Put them on the low rack. After cooking, serve sprinkled with a few fresh thyme leaves. After cooking, stand for 2-3 minutes.
H5	Frozen French Fries	300-350400-450	Distribute frozen oven chips evenly on the crusty plate. Set plate on low rack. After cooking, stand for 2-3 minutes.
H6	Frozen Buffalo Wings	400-450500-550	Put the Frozen Buffalo wings (pre-cooked and spiced) on a crusty plate. Set plate on high rack. Put them in the oven. After cooking, stand for 2-3 minutes.
H7	RoastChickenPieces	500-600900-1000	Weigh chicken pieces and brush with oil and spices. Place them evenly on high rack. When the beep sounds, turn the chicken over and press start to continue. After cooking, stand for 2-3 minutes.
H8	RoastChicken	1200-1300	Brush the chicken oil and spices fully. Put Breast side down first, in the middle of low rack. When the beep sounds, turn the chicken over by using tongs and press the start to continue. After cooking, stand for 2-3 minutes.
H9	Beef SteakPie	500-600	Ingredients200 g beef, cubed, 1 tbsp olive oil, 1/2 onion(sliced), 80 g mushroom(sliced), 1 tbsp each of parsley and thyme, chopped, 1 tbsp Worcestershire sauce, salt and pepper, 2 tbsp flour, 100 ml hot beef stock,120 g ready-made pastry dough, 1 egg yolk (beaten)MethodSprinkle the beef with four, salt and pepper. Fry them in a frying pan with oil, stirring frequently until browned. Add onion, mushroom, parsley, thyme, Worcestershire sauce and beef stock and broil. After broiling, reduce to simmer for an hour.Pour the filling mixture to an oven dish and cover with the pie pastry sheet and press the edge together to seal. Decorate with pastry trimming with knife and pork. Cut cross the top and brush with beaten egg yolk. Put them on the low rack. After cooking, stand for 2-3 minutes.

Food Serving		size (g)	Directions
H10	Homemade Mini Quiche	400-500 IngredientsPastry200 g plain flour, 80 g butter, 1 eggMixture30 g bacon, cubed, 60 g Cream, 60 g Cream fraiche. 2 egg, 40 g grated cheese, salt and pepperMethodTo make the pastry, put the flour, butter and eggs in a bowl and mix to a soften pastry and then rest it in the refrigerator for 30 mins.Roll out the pastry and place in buttered metal tins (like muffin mould for 6 mini quiches). Mix the cream, cubed bacon, cream fraiche, egg, cheese, salt, pepper and pour the mixture into the moulds. Put them on the low rack. After cooking, stand for 5 minutes.

English 25

Cooking Smart

Auto cook guide

Food Serving		size (g)	Directions
A1	Frozen Lasagne	400-450	Put frozen lasagne into a suitable sized ovenproof dish. Put dish on low rack. After cooking, stand for 3-4 min.
A2	Frozen Thin Pizza	300-350400-450	Put frozen pizza on the low rack. After cooking, stand for 1-2 min.
A3	Plated Meal(3 components)	300-350400-450	Put on a ceramic plate and cover with microwave cling film. This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish like potatoes, rice or pasta). After cooking, stand for 2-3 minutes.
A4	Ready Meal(1 component)	300-350400-450	Put on a ceramic plate and cover with microwave cling film. After cooking, stand for 2-3 minutes.
A5	Roast Fish 300-400	500-600	Brush skin of whole fish (trout or gilthead) with oil and add herbs and spices. Put fish side by side, head to tail on the high rack. Turnover as soon as the beep sounds. After cooking, stand for 2-3 minutes.
A6	Roast Beef 800-1000	1200-1400	Brush beef with oil and spice it with pepper and salt. Put it on the low rack, first with the fat side down. After cooking, wrap in aluminium foil and stand for 10-15 minutes.

Food Serving		size (g)	Directions
A7	Roast Pork 800-1000	1200-1400	Brush pork with oil and spice it with pepper and salt. Put it on the low rack, first with the fat side down. After cooking, wrap in aluminium foil and stand for 10-15 minutes.
A8	Grilled Chicken Breasts	300-400500-600	Rinse chicken breast, marinate and put them on the high rack. Turnover as soon as the beep sounds. After cooking, stand for 2-3 minutes.
A9	Grilled Salmon Fillets	300-400500-600	Brush salmon fillets with oil and spice. Put fish steaks evenly on the high rack. Turnover as soon as the beep sounds. After cooking, stand for 2-3 minutes.
A10	Grilled Fish Fillets	500-600	Brush fish fillets with oil and spice. Put fish fillets evenly on the high rack. Turnover as soon as the beep sounds. After cooking, stand for 2-3 minutes.
A11	Frozen Bread Rolls	400-500	Put frozen bread rolls on the low rack. After cooking, stand for 1-2 minutes.
A12	Brownies 700-750	Put pre-mixture, egg, water, sunflower oil in a bowl and mix well. Pour mixture in a glass tray on the low rack. After cooking, stand for 10 minutes. As your preference, you can put some nuts in brownie.
A13	Roast Vegetables	200-250300-350	Slice fresh vegetables (e.g. pieces of pepper, onions, courgette slices and mushrooms) and brush oil, spice. Put them on crusty plate. Set plate on the high rack. After cooking, stand for 2-3 minutes.
A14	Frozen Potato Croquettes	300-350400-450	Distribute frozen potato croquettes evenly on the crusty plate. Set plate on low rack. After cooking, stand for 2-3 minutes.
A15	Homemade French Fries	300-350400-450	Peel potatoes and cut into sticks with a thickness of 10x10 mm. Soak in cold water (for 30 min.). Dry them with a towel, weigh them and brush with 5 g oil and spice. Distribute homemade fries evenly on the crusty plate. Set plate on low rack. After cooking, stand for 2-3 minutes.
A16	Potato Wedges 300-350400-450		Wash normal sized potatoes and cut them into wedges. Brush with olive oil and spices. Put them with the cut side on the crusty plate. Set plate on high rack. After cooking, stand for 2-3 minutes.
A17	Frozen Onion Rings	200-250300-350	Distribute frozen onion rings evenly on the crusty plate. Set plate on low rack. After cooking, stand for 2-3 minutes.
A18	Frozen Prawns 300-350400-450		Distribute frozen prawns evenly on the crusty plate. Set plate on low rack. After cooking, stand for 2-3 minutes.
A19	Frozen Fried Squids	200-250300-350	Distribute frozen fried squids evenly on the crusty plate. Set plate on low rack. After cooking, stand for 2-3 minutes.
A20	Frozen Chicken Nuggets	300-350400-450	Distribute frozen chicken nuggets evenly on the crusty plate. Set plate on high rack. After cooking, stand for 2-3 minutes.

Food Serving		size (g)	Directions
A21	Pizza Dough	300-500	Put dough in suitable sized bowl and set on the low rack. Cover with aluminium foil.
A22	Cake Dough	500-800	Put dough in suitable sized bowl and set on the low rack. Cover with aluminium foil.
A23	Bread Dough	600-900	Put dough in suitable sized bowl and set on the low rack. Cover with aluminium foil.
A24	Yogurt - Small Ceramic Cup	500 Distribute 150 g natural yogurt into 5 ceramic cups or small glass jars evenly (30 g each). Add 100 ml milk into each cup. Use long-life milk (room-temperature; 3.5 % fat). Cover each with cling film and set in a circle on turntable. After finish, keep 6 hours in a refrigerator. For the first time we recommend to use dried yogurt bacteria ferment.
A25	Yogurt - Large Glass Bowl	500 Mix	150 g natural yogurt with 500 ml long-life milk (room-temperature, 3.5 % fat). Pour evenly into large glass bowl. Cover with cling film and set on turntable. After finish, keep 6 hours in a refrigerator. For the first time we recommend to use dried yogurt bacteria ferment.

NOTE

The turntable is not rotating while fermenting yogurt.

English 27

Cooking Smart

Power Defrost guide

Food Serving		size (g)	Directions
d1	Meat 200-1500 Sh	eld the edges	with aluminium foil. Turn the meat over, when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops, minced meat. Stand for 20-60 minutes.
d2	Poultry 200-1500	Shield the leg	and wing tips with aluminium foil. Turn the poultry over, when the oven beeps. This programme is suitable for whole chicken as well as for chicken portions. Stand for 20-60 minutes.
d3	Fish 200-1500 Shield the tail of a whole fish with aluminium foil. Turn the fish over, when the oven beeps. This programme is suitable for whole fishes as well as for fish fillets. Stand for 20-50 minutes.

Food Serving		size (g)	Directions
d4 B	read/Cake 100-1000	Put bread	horizontally on a piece of kitchen paper and turn over, as soon as the oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the oven beeps. (Oven keeps operating and is stopped, when you open the door.) This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping. Stand for 10-30 minutes.
d5 F	fruit 100-600	Spread fruits evenly	into a flat glass dish. This programme is suitable for all kind of fruits. Stand for 5-20 minutes.

Manual cooking

Microwave cooking guide

• Do not use metal containers with Microwave mode. Always put food containers on the turntable.
• It is recommended to cover the food for best results.
  • After cooking is complete, let the food settle in its own steam.

Frozen vegetables

• Use a glass Pyrex container with a lid.
  • Stir vegetables twice during cooking, and once after cooking.
• Add seasoning after cooking.

Food	Serving size (g)	Power (W)	Cooking time (min.)	Standing time (min.)
Spinach 150 600 5-7 2-3
	Add 15 ml (1 tbsp.) of cold water.
Broccoli 300 600 8-10 2-3
	Add 30 ml (2 tbsp.) of cold water.
Peas 300 600 7-9 2-3
	Add 15 ml (1 tbsp.) of cold water.
Green beans 300 600 7 12 -9 12 2-3
	Add 30 ml (2 tbsp.) of cold water.
Mixed vegetables (carrots, peas, corn)	300 600 7-9 2-3
	Add 15 ml (1 tbsp.) of cold water.
Mixed vegetables (Chinese style)	300 600 7 12 -9 12 2-3
	Add 15 ml (1 tbsp.) of cold water.

Fresh vegetables

• Use a glass Pyrex container with a lid.
- Add 30-45 ml of cold water for every 250 g.
• Stir once during cooking, and once after cooking.
- Add seasoning after cooking.
- For faster cooking, it is recommended to cut into smaller, even sizes.
• Cook all fresh vegetables using full microwave power (900 W).

Food Serving size (g)		Cooking time (min.)	Standing time (min.)
Broccoli 250	500	3-46-7	3
	Prepare even sized florets. Arrange the stems to the centre
Brussels sprouts	250	5-6	3
	Add 60-75 ml (4-5 tbsp.) of water.
Carrots	250	4-5	3
	Cut carrots into even sized slices.
Cauliflower	250500	4-57-8	3
	Prepare even sized florets. Cut big florets into halves. Arrange stems to the centre.
Courgettes	250	3-4	3
	Cut courgettes into slices. Add 30 ml (2 tbsp.) of water or a knob of butter. Cook until just tender.
Egg Plants	250	3-4	3
	Cut egg plants into small slices and sprinkle with 1 tablespoon lemon juice.
Leeks	250	3-4	3
	Cut lecks into thick slices.

English 29

Cooking Smart

Food Serving size (g)	Cooking time (min.)	Standing time (min.)
Mushrooms 125
	250	1-22-3
	Prepare small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving.
Onions 250 4-5 3
	Cut onions into slices or halves. Add only 15 ml (1 tbsp.) water.
Peppers 250 4 5 3
	Cut pepper into small slices.
Potatoes 250
	500	4-57-8
	Weigh the peeled potatoes and cut them into similar sized halves or quarters.
Turnip cabbage 250 5-6 3
	Cut turnip cabbage into small cubes.

Rice and pasta

Stir from time to time during and after cooking.

Cook uncovered, and close the lid during settling. Then, drain water thoroughly.

- Rice: Use a large glass Pyrex container with a lid against the rice doubling in volume.

- Pasta: Use a large glass Pyrex container.

Food	Serving size (g)	Power (W)	Cooking time (min.)	Standing time (min.)	Directions
White rice (parboiled)	250	900 20	16-18	5	Add 500 ml of cold water.
	375 18				Add 750 ml of cold water.
Brown rice (parboiled)	250	900 25	22-23	5	Add 500 ml of cold water.
	375 24				Add 750 ml of cold water.
Mixed rice (rice + wild rice)	250 900	17-19	5		Add 500 ml of cold water.
Mixed corn (rice + grain)	250 900	19-20	5		Add 400 ml of cold water.
Pasta	250 900	11-13	5		Add 1000 ml of hot water.

Reheating

• Do not reheat large-sized foods such as joints of meat, which easily overcook.
  • It is safer to reheat foods at lower power levels.
  • Stir well or turn over during and after cooking.
• Use caution for liquids or baby foods. Stir well before, during, and after cooking with a plastic spoon or glass stirring stick to prevent eruptive boiling and scalding. Keep them inside the oven during the standing time. Allow a longer reheating time than other food types.
• Recommended standing time after reheating is 2-4 minutes. See the table below for reference.

Liquids

Food Serving	size Power (W)		Cooking time (min.)	Standing time (min.)
Drinks (coffee, tea, water)	250 ml (1 mug)500 ml (2 mugs)	900 1 12 -23 - 3 12		1-2
	Pour into mugs and reheat uncovered: 1 cup in the centre, 2 cups side by side. Keep in microwave oven during standing time and stir well.
Soup (chilled) 250	g450 g	900 3-4	4-5	2-3
	Pour into a deep ceramic plate or deep ceramic bowl. Cover with plastic lid. Stir well after reheating. Stir again before serving.
Stew (chilled) 450	g 600 5 12 - 6 12 2-3
	Put stew in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving.
Pasta with sauce(chilled)	350 g 600 4 12 - 5 12 3
	Put pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate. Cover with microwave cling film. Stir before serving.

Food Serving	size Power (W)		Cooking time (min.)	Standing time (min.)
Filled pasta with sauce (chilled)	350 g 600 5 12 - 6 12 3
	Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate.Cover with plastic lid. Stir occasionally during reheating and again before standing and serving.
Plated meal(chilled)	450 g 600 6-7 3
	Plate a meal of 2-3 chilled components on a ceramic dish.Cover with microwave cling-film.

Baby foods & milk

Food Serving	size Power (W)		Cooking time (sec.)	Standing time (min.)
Baby food (vegetables + meat)	190 g 600	30 2-3
	Put into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully.
Baby porridge (grain + milk + fruit)	190 g 600	20 2-3
	Put into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully.
Baby milk 100 ml	200 ml	300	30-4060-70	2-3
	Stir or shake well and pour into a sterilized glass bottle. Place into the centre of turn table. Cook uncovered. Shake well and stand for at least 3 minutes. Before serving, shake well and check the temperature carefully.

Cooking Smart

Defrost

Put frozen food in a microwave-safe container without a cover. Turn over during defrosting, and drain off liquid and remove giblets after defrosting. For faster defrosting, cut the food into small pieces, and wrap them with aluminum foil before defrosting. When the outer surface of frozen foods begins to melt, stop defrosting and let stand as instructed in the table below. Do not change the default power level (180 W) for defrosting.

Food Serving size (g)			Defrosting time (min.)	Standing time (min.)
Meat Minded meat 250Pork steaks 250 7-8		500	4-69-11	15-30
Place the meat on the ceramic plate. Shield thinner edges with aluminium foil. Turn over after half of defrosting time!
Poultry Chicken pieces 500 (2 pcs.) 12-14 15-60Whole chicken 1200 28-32
First, put chicken pieces first skin-side down, whole chicken first breast-side-down on ceramic plate. Shield the thinner parts like wings and ends with aluminium foil. Turn over after half of defrosting time!
Fish Fish fillets 200 6-7Whole fish 400 11-13		10-25
Put frozen fish in the middle of ceramic plate. Arrange the thinner parts under the thicker parts. Shield narrow ends of fillets and tail of whole fish With aluminium foil. Turn over after half of defrosting time!
Fruit	Berries	300 6-7	5-10
	Spread fruit on a flat, round glass dish (with a large diameter).

Food Serving size (g)			Defrosting time (min.)	Standing time (min.)
Bread	Bread rolls(each ca. 50 g)	2 pcs	1-1 12	5-20
		4 pcs	2 12 -3
	Toast/sandwich	250	4-4 12
	German bread	500 7-9
	Arrange rolls in a circle or bread horizontally on kitchen paper on the ceramic plate. Turn over after half of defrosting time!

Grilling guide

The grill-heating elements are located on the ceiling of the cooking chamber. These elements operate only when the door is closed and the turntable is rotating. When grilling food, put the food on the high rack unless otherwise instructed. Preheat the grill for 2-3 minutes with Grill mode, and, unless otherwise instructed below, grill food on the high rack. When grilling is complete, use oven gloves to take out the food.

Cookware

Grill: Use flameproof containers, which may include metal parts. Do not use plastic cookware of any kind.

Microwave + Grill: Do not use cookware that is made of metal or plastic substances.

Food type

Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches, and all kinds of toast with toppings.

Grilling

Food Serving size Mode			Cooking time(1st side)(min.)	Cooking time(2nd side)(min.)
Toast Slices 4 pcs.(each 25 g)	Grill only 312		412 2-212
	Put toast slices side by side on the high rack.
Grilledtomatoes	2 pcs. (400 g) 300 W + Grill 6-7		-
	Cut tomatoes into halves. Put some cheese on top. Arrange in acircle in a flat glass pyrex dish. Place it on the high rack. Standfor 2-3 minutes.
Tomato +cheese toast	4 pcs. (300 g) 180 W + Grill 5-6		-
	Toast the bread slices first. Put the toast with topping on thehigh rack. Stand for 2-3 minutes
Toast Hawaii 4 pcs. (500 g) 300 W + Grill 5-6
			Toast the bread slices first. Put the toast with topping on thenigh rack. Stand for 2-3 minutes.
Baked potatoes 500 g 450 W + Grill 14-16
			Cut potatoes into halves. Brush potatoes with oil and parsley.Put them in a circle on the high rack with the cut side to thegrill.
Baked apples 2 apples 300 W + Grill 6-7
			Core the apples and fill them with raisins and jam. Put somealmond slices on top. Put apples on a flat glass pyrex dish.Place the dish directly on the low rack.
Roast Chicken 1200-1300 g 450 W + Grill 19-23 20-24

Food Serving size Mode			Cooking time (1st side) (min.)	Cooking time (2nd side) (min.)
Chicken pieces	500 g(2 pcs.)	300 W + Grill	9-11	8-10
	Brush chicken pieces with oil and spices. Put them in a circle on the high rack. After grilling stand for 2-3 minutes.
Beef steaks (medium)	400 g(2 pcs.)	Grill only	8-12	6-10
	Brush the beef steaks with oil. Lay them in a circle on the high rack. After grilling stand for 2-3 minutes.
Roast fish	400-500 g	300 W + Grill	6-8	512 - 612
	Brush skin of whole fish with oil and add herbs and spices. Put two fish side by side (head to tail) on the high rack. After grilling stand for 2-3 minutes.

Cooking Smart

Crusty plate

We recommend you to preheat the crusty plate while it's on the turntable for 3-4 minutes.

Food	Serving size (g)	Preheat Cooking
		Mode Time (min.)	Mode Time (min.)
Bacon 80 (4-6 slices)		600 W + Grill	3 600 W + Grill		3-4
		Preheat crusty plate. Put slices side by side on crusty plate. Put plate on high rack.
Grilled tomatoes	200 600	W + Grill	3 300 W + Grill		312 - 412
	Preheat crusty plate. Cut tomatoes in halves. Put some cheese on top. Arrange in a circle on plate and set on high rack.
Potato wedges	250 600	W + Grill	4 450 W + Grill		8-10
	Rinse and clean potatoes. Cut into wedges or cubes. Brush with olive oil, herbs and spices. Distribute cubes evenly on plate. Put plate on high rack. Turn over after 5-7 minutes.
Chicken nuggets	300 600	W + Grill	4 600 W + Grill		6-8
	Preheat crusty plate. Brush plate with 1 tbsp. oil. Put chicken nuggets on crusty plate. Put plate on the high rack. Turn over after 4-5 minutes.

Hot blast guide

Cooking with hot blast is a powerful combination of the inner grill heater and the convection ring heater with fan at side. The hot air blows from the top of the cavity through holes into the oven. The heating element at top and side and the fan at the side-wall, keeps the hot air circulating evenly.

Use this mode for biscuits, individual scones, rolls, and cakes as well as fruit cakes, choux, and soufflés.

All conventional ovenproof cookware, baking tins and sheets - anything you would normally use in a traditional convection oven - can be used.

Food Serving	size (g) Mode (°C)		Cooking Time (min.)
Frozen mini tarts/ pizza snacks	250 200 9-12
	Put pizza snacks on the crusty plate. Put plate on low rack.
Frozen Oven Chips 300	200 13-16
	Distribute frozen oven chips on crusty plate. Put plate on low rack.
Frozen chicken nuggets	300 200 6-9
	Put frozen nuggets on crusty plate. Put plate on the high rack.
Frozen Pizza 300 200	13-15
	Put frozen Pizza on the low rack.
Homemade Lasagna/ Pasta Cratin	500 180 25	30
	Put pasta in ovenproof dish. Put dish on low rack.
Roast Vegetables 300	200 6-10
	Rinse and prepare vegetables in slices (e.g. courgette, egg plants, pepper, pumpkin). Brush with olive oil and add spices. Put on crusty plate on low rack.

Convection guide

Convection

In Convection mode, both the heating element and the side wall fan operate together to circulate the heat inside the cooking chamber. Use this mode for biscuits, individual scones, rolls, and cakes as well as fruit cakes, choux, and soufflés. All conventional ovenproof cookware, baking tins and sheets - anything you would normally use in a traditional convection oven - can be used.

Microwaves+Convection

This combination mode combines the microwave energy with hot air, resulting in reduced cooking time and producing a brown, crispy surface of the food. The oven offers 5 different combination modes for your convenience. Use this for all kinds of meal and poultry as well as casseroles and gratin dishes, sponge cakes and light fruit cakes, pies and crumbles, roast vegetables, scones, and breads. Use only ovenproof cookware, such as glasses, potteries, or bone china without metal trim. Preheat the grill with Fast Preheat, and wait until the cycle is complete. Set the power level and cooking time as instructed below. Use oven gloves when taking out food.

Food Serving	size (g) Mode		Cooking Time (min.)
Frozen Pizza (ready baked)	300-400 Only	200 °C 15-17
	Place the pizza on the low rack. After baking stand for 2-3 minutes
Frozen lasagne 400	450 W + 200 °C 16-18
	Put into a suitable sized glass pyrex dish or leave in the original packaging (take carc that this is suitable for microwaves and oven heat). Put frozen lasagne on the low rack. After cooking stand for 2-3 minutes.

Food Serving	size (g) Mode		Cooking Time (min.)
Roast beef/lamb (medium)	1000-1200 450	W + 160 °C 18-20	(first side)15-17 (second side)
	Brush beef/ lamb with oil and spice it with pepper, salt and paprika. Put it on the low rack, first with the fat side down. After cooking wrap in aluminium foil and stand for 10-15 minutes.
Frozen bread rolls 350	(6 pcs.) 100 W + 160 °C 6-8
	Put bread rolls in a circle on the low rack. Stand 2-3 minutes.
Marble cake 700 Only	180 °C 70-80
	Put the fresh dough in a small rectangular black metal baking dish (length 25 cm). Put the dish on the low rack. After baking stand for 5-10 minutes.
Small Cakes	each 30 Only	165 °C 25-35
	Put up to 12-15 small cakes / muffins in paper cups on crusty plate. Put plate on low rack. After baking stand for 5 minutes.
Croissants/bread rolls(fresh dough)	200-250 Only	200 °C 13-18
	Put the chilled croissants or bread rolls on baking paper on the low rack.
Frozen cake	1000 180 W	+ 160 °C 16-18
	Put the frozen cake directly on the low rack. After defrost and warming keep standing for 15-20 minutes.

Cooking Smart

Food Serving size (g) Mode			Cooking Time (min.)
Homemade Potato Gratin	500 600 W	180 °C	5-7 (first side)12-16 (second side)
	Put Gratin in ovenproof dish. Set on low rack.
Homemade Quiche (Medium size)	500-600 170	°C 40-42
	Preheat oven for 170 °C by using convection mode.Prepare quiche using metal medium size pan and put on low rack. Refer a recipe in Hot Blast auto cook guide.
Homemade quiche (Large size)	900-1000 180	W + 170 °C 38-40
	Preheat oven for 170 °C by using convection mode without crusty plate. Prepare quiche using crusty plate and put on low rack. Refer a recipe in Hot Blast auto cook guide.

Steam cooking guide

The cooking time depends on size, thickness and type of food. When steaming thin slices or small pieces we recommend to reduce the time. When steaming thick slices or big sized pieces of food you can add time. Use the power levels and times in this table as a guide lines for steam cooking.

Fresh food	Portion (g)	Cold water (ml)	Power (W)	Time (min.)	Instructions
Broccoli florets	400 500	900 12-18	Rinse and clean		broccoli.Cut into similar sized florets.Put florets evenly on steam tray.
Carrots 400	500 900	15-20 Rinse	and clean carrots		and cut into even slices.Distribute slices on steam tray.

Fresh food	Portion (g)	Cold water (ml)	Power (W)	Time (min.)	Instructions
Cauliflower whole	600 500	900 20-25	Clean	whole cauliflower and set on steam tray.
Corn on the cob	400(2 pcs)	500 900	23-28	Rinse and clean corn on the cobs. Put corn on the cobs side by side on steam tray.
Courgettes	400 500	900 10-15	Rinse courgettes and cut them into similar slices.Distribute evenly on steam tray.
Frozen mixed vegetables	400 500	900 18-23	Distribute frozen	mixed vegetables (-18 °C) e.g.broccoli, cauliflower, sliced carrots evenly on steam tray.
Potatoes (Small)	500 500	900 25-30	Rinse and clean	potatoes and pierce skin with a fork.Set whole potatoes evenly on steam tray.
Apples	800(4 apples)	500 900	15-20	Rinse and core apples.Put apples upright side by side on steam tray.
Eggs	4-6 eggs	500 900	15-20	Pierce 4-6 fresh eggs (size M) and set them in the small cavities of steam tray.After steaming keep standing covered for 2-5 minutes.
Blue prawns	250(5-6 pcs)	500 900	10-15	Sprinkle blue prawns with 1-2 tablespoons lemon juice.Put them evenly on steam tray.

36 English

Fresh food	Portion (g)	Cold water (ml)	Power (W)	Time (min.)	Instructions
Fish fillets (Cod fish, Rose-fish)	500 (2-3 pcs)	500 900	12-17	Sprinkle	fish fillets with 1-2 tablespoons lemon juice and add herbs and spices (e.g. rosemary).Put fillets evenly on steam tray.
Chicken breast fillets	400 (2 fillets)	500 900	20-25	Rinse and	clean the chicken breast fillets.Put chicken breast fillets side by side on steam tray.

How to clean the Pro Steamer

• Clean the Pro Steamer with warm water and detergent and rinse off with clean water.
• Do not use a scrubbing brush or a hard sponge otherwise the top layer will be damaged.
  • The Pro Steamer is not dishwasher-safe.

Quick & Easy

Melting butter

Put 50 g butter into a small deep glass dish. Cover with plastic lid. Heat for 30-40 seconds using 900 W, until butter is melted.

Melting chocolate

Put 100 g chocolate into a small deep glass dish. Heat for 3-5 minutes, using 450 W until chocolate is melted. Stir once or twice during melting. Use oven gloves while taking out!

Melting crystallized honey

Put 20 g crystallized honey into a small deep glass dish. Heat for 20-30 seconds using 300 W, until honey is melted.

Melting gelatine

Lay dry gelatine sheets (10 g) for 5 minutes into cold water. Put drained gelatine into a small glass pyrex bowl. Heat for 1 minute using 300 W. Stir after melting.

Cooking glaze/icing (for cake and gateaux)

Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water. Cook uncovered in a glass pyrex bowl for 3 ½ to 4 ½ minutes using 900 W, until glaze/icing is transparent. Stir twice during cooking.

Cooking Jam

Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid. Add 300 g preserving sugar and stir well. Cook covered for 10-12 minutes using 900 W. Stir several times during cooking. Put directly into small jam glasses with twist off lids. Stand on lid for 5 minutes.

Cooking pudding

Mix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6 ½ to 7 ½ minutes using 900 W. Stir several times well during cooking.

Browning almond slices

Spread 30 g sliced almonds evenly on a medium sized ceramic plate. Stir several times during browning for 3 ½ to 4 ½ minutes using 600 W. Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out!

English 37

TroubleshootingTroubleshooting

You may encounter a problem using the oven. In that case, first check the table below and try the suggestions. If a problem persists, or if any information code keeps appearing on the display, contact a local Samsung service centre.

Checkpoints

If you encounter a problem with the oven, first check the table below and try the suggestions.

Problem Cause	Action
General
The buttons cannot be pressed properly.	Foreign matter may be caught between the buttons.	Remove the foreign matter and try again.
	For touch models: Moisture is on the exterior.	Wipe the moisture from the exterior.
	Child lock is activated. Deactivate Child lock.
The time is not displayed.	The Eco (power-saving) function is set.	Turn off the Eco function.
The oven does not work.	Power is not supplied. Make sure power is supplied.
	The door is open. Close the door and try again.
	The door open safety mechanisms are covered in foreign matter.	Remove the foreign matter and try again.
The oven stops while in operation.	The user has opened the door to turn food over.	After turning over the food, press the Start button again to start operation.

Problem Cause Action
The power turns off during operation.	The oven has been cooking for an extended period of time.	After cooking for an extended period of time, let the oven cool.
	The cooling fan is not working.	Listen for the sound of the cooling fan.
	Trying to operate the oven without food inside.	Put food in the oven.
	There is not sufficient ventilation space for the oven.	There are intake/exhaust outlets on the front and rear of the oven for ventilation.Keep the gaps specified in the product installation guide.
	Several power plugs are being used in the same socket.	Designate only one socket to be used for the oven.
There is a popping sound during operation, and the oven doesn't work.	Cooking sealed food or using a container with a lid may causes popping sounds.	Do not use sealed containers as they may burst during cooking due to expansion of the contents.
The oven exterior is too hot during operation.	There is not sufficient ventilation space for the oven.	There are intake/exhaust outlets on the front and rear of the oven for ventilation. Keep the gaps specified in the product installation guide.
	Objects are on top of the oven.	Remove all objects on the top of the oven.
The door cannot be opened properly.	Food residue is stuck between the door and oven interior.	Clean the oven and then open the door.

38 English

Problem Cause	Action
Heating including the Warm function does not work properly.	The oven may not work, too much food is being cooked, or improper cookware is being used.	Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated. Reduce the amount of food and start the function again. Use a cooking container with a flat bottom.
The thaw function does not work.	Too much food is being cooked.	Reduce the amount of food and start the function again.
The interior light is dim or does not turn on.	The door has been left open for a long time.	The interior light may automatically turn off when the Eco function operates. Close and reopen the door or press the Cancel button.
	The interior light is covered by foreign matter.	Clean the inside of the oven and check again.
A beeping sound occurs during cooking.	If the Auto Cook function is being used, this beeping sound means it's time to turn over the food during thawing.	After turning over the food, press the Start button again to restart operation.
The oven is not level.	The oven is installed on an uneven surface.	Make sure the oven is installed on flat, stable surface.
There are sparks during cooking.	Metal containers are used during the oven/thawing functions.	Do not use metal containers.
When power is connected, the oven immediately starts to work.	The door is not properly closed.	Close the door and check again.

Problem Cause Action
There is electricity coming from the oven.	The power or power socket is not properly grounded.	Make sure the power and power socket are properly grounded.
1. Water drips.2. Steam emits through a door crack.3. Water remains in the oven.	There may be water or steam in some cases depending on the food. This is not an oven malfunction.	Let the oven cool and then wipe with a dry dish towel.
The brightness inside the oven varies.	Brightness changes depending on power output changes according to function.	Power output changes during cooking are not malfunctions. This is not an oven malfunction.
Cooking is finished, but the cooling fan is still running.	To ventilate the oven, the cooling fan continues to run for about 3 minutes after cooking is complete.	This is not an oven malfunction.

English 39

Troubleshooting

Problem Cause	Action
Turntable
While turning, the turntable comes out of place or stops turning.	There is no roller ring, or the roller ring is not properly in place.	Install the roller ring and then try again.
The turn table drags while turning.	The roller ring is not properly in place, there is too much food, or the container is too large and touches the inside of the microwave.	Adjust the amount of food and do not use containers that are too large.
The turn table rattles while turning and is noisy.	Food residue is stuck to the bottom of the oven.	Remove any food residue stuck to the bottom of the oven.
Grill
Smoke comes out during operation.	During initial operation, smoke may come from the heating elements when you first use the oven.	This is not a malfunction, and if you run the oven 2-3 times, it should stop.
	Food is on the heating elements.	Let the oven cool and then remove the food from the heating elements.
	Food is too close to the grill.	Put the food a suitable distance away while cooking.
	Food is not properly prepared and/or arranged.	Make sure food is properly prepared and arranged.

Problem Cause	Action
Oven
The oven does not heat.	The door is open. Close the door and try again.
Smoke comes out during preheating.	During initial operation, smoke may come from the heating elements when you first use the oven.	This is not a malfunction, and if you run the oven 2-3 times, it should stop.
	Food is on the heating elements.	Let the oven cool and then remove the food from the heating elements.
There is a burning or plastic smell when using the oven.	Plastic or non heat-resistant cookware is used.	Use glass cookware suitable for high temperatures.
There is a bad smell coming from inside the oven.	Food residue or plastic has melted and stuck to the interior.	Use the steam function and then wipe with a dry cloth. You can put a lemon slice inside and run the oven to remove the odour more quickly.
The oven does not cook properly.	The oven door is frequently opened during cooking.	If you open the door often, the interior temperature will be lowered and this may affect the results of your cooking.
	The oven controls are not correctly set.	Correctly set the oven controls and try again.
	The grill or other accessories are not correctly inserted.	Correctly insert the accessories.
	The wrong type or size of cookware is used.	Use suitable cookware with flat bottoms.

Information codes

If the oven fails to operate, you may see an information code on the display. Check the table below and try the suggestions.

Code Description Action
C-20	The temperature sensor is open.	Unplug the power cord of the oven, and contact a local Samsung service centre.
	The temperature sensor is short.
C-A1	This code appears when the oven fails to sense the damper to open or close for 1 minute.
C-F0	If there is no communication between the main and sub MICOM.
C-21	This code appears when the oven temperature high.In case the temperature rises over the limit temperature during operation of each mode. (Fire sensed.)	Unplug the power cord for cooling enough time, and restart the microwave oven.
C-F2	The touch key is malfunction.	Press Stop (_) to try again.
C-d0		Unplug the power cord for cooling enough time, and clean the button. (Dust, Water)When appear same problem, contact a local Samsung service centre.

Technical specifications

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Power Source 230 V		~50 Hz
Power Consumption	Maximum power 2950 W
	Microwave 1450 W
	Grill 2250 W
	Convection 2500 W
	Hotblast 2750 W
Output Power 100 W / 900 W (IEC - 705)
Operating Frequency 2450 MHz
Magnetron OM75P (20)
Cooling Method Cooling fan motor
Dimensions(W x H x D)	Main unit(Include Handle)	528 x 404 x 481 mm
	Cooking chamber 400 x 219 x 396.5 mm
Volume 35 liter
Weight	Net	Approx. 27.5 kg

English 41

Memo

Memo

SAMSUNG

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.

QUESTIONS OR COMMENTS?

COUNTRY / LOCATION	CALL OR VISIT US ONLINE AT
AUSTRALIA 1300 362 603 www.samsung.com/au/support
NEW ZEALAND 0800 726 765 www.samsung.com/nz/support
CHINA 400-810-5658 www.samsung.com/cn/support
HONG KONG 3698 4598	www.samsung.com/hk/support (Chinese)www.samsung.com/hk_en/support (English)
INDIA	1800 40 SAMSUNG (1800 40 7267864)(Toll-Free)1800 5 SAMSUNG (1800 5 7267864)(Toll-Free)	www.samsung.com/in/support
BANGLADESH	0961230030008000300300 (Toll free)	www.samsung.com/support
INDONESIA	021-5699-77770800-112-8868 (All ProducL Toll Free)	www.samsung.com/d/support
JAPAN 0120	363 905 www.galaxymobile.jp/jp/support
MALAYSIA	1800-68-9969+603-7713 7420 (Overseas contact)	www.samsung.com/my/support

COUNTRY / LOCATION	CALL OR VISIT US ONLINE AT
PHILIPPINES	1-800-13-726-7864 [ PLDT Toll Free ]1-800 8-726-7864[Globe Lancline and Mobile ]02-422-2111 [ Standard Lancline ]	www.samsung.com/ph/support
SINGAPORE 1800 7267864 | 1800-SAMSUNG www.samsung.com/sg/support
THAILAND	0-2689-32321800-29-3232 (Toll free)	www.samsung.com/th/support
TAIWAN 0800 32-9999 www.samsung.com/tw/support
VIETNAM 1800 588-889 www.samsung.com/vn/support
MYANMAR [phone] www.samsung.com/mm/support
MACAU	0800-333	www.samsung.com/thk/support (Chinese)www.samsung.com/thk_en/support (English)
SRI LANKA	011 SAMSUNG (011 7267864)	www.samsung.com/support
CAMBOICIA	[phone]-20-3232 (Toll free)	www.samsung.com/thy/support
LAOS	[phone]	www.samsung.com/th/support
NEPAL	16600172667 (Toll Free for NTC Only)9801572667 (Toll Free for Noell users)	www.samsung.com/support

DE68-04597D-00
